Enhanced Genome Editing Activity with Novel Chimeric ScCas9 Variants in Rice
Zhen Liang, Yuqing Wu, Shuke Deng, Sha Wei, Kai Zhang, Yingjie Guo
TL;DR
Researchers improved genome editing in rice by creating a new chimeric Cas9 variant with better efficiency and broader target range.
Contribution
A novel chimeric SpcRN++ Cas9 variant is engineered with enhanced editing efficiency and compatibility with base editors in plants.
Findings
SpcRN++ shows higher genome editing efficiency than Sc++ in rice protoplasts and transgenic plants.
SpcRN++-based base editors improve cytosine and adenine editing in plants.
Herbicide-resistant rice was successfully generated using SpcRN++.
Abstract
The Streptococcus canis Cas9 protein (ScCas9) recognizes the NNG protospacer adjacent motif (PAM), offering a wider range of targets than that offered by the commonly used S. pyogenes Cas9 protein (SpCas9). However, both ScCas9 and its evolved Sc++ variant still exhibit low genome editing efficiency in plants, particularly at the less preferred NTG and NCG PAM targets. In this study, a chimeric SpcRN++ variant is engineered by grafting the recognition (REC) domain of SpCas9 into the Sc++ variant, incorporating the R221K/N394K mutations, and retaining the positively charged loop of S. anginosus Cas9. The SpcRN++ variant exhibits a higher genome editing capacity and wider target range than the Sc++ variant in rice protoplasts and stable transgenic plants. Further evidence indicates that nSpcRN++‐based A3A/Y130F and TadA8e exhibit enhanced cytosine and adenine editing efficiency in plants.…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6- —National Key R&D Program of China 10.13039/501100012166
- —National Natural Science Foundation of China 10.13039/501100001809
- —Science and Technology Innovation Young Talent Team of Shanxi Province
- —Natural Science Foundation of Shanxi Province for the Excellent Youth
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsCRISPR and Genetic Engineering · RNA and protein synthesis mechanisms · Insect symbiosis and bacterial influences
Introduction
1
Over the past decade, CRISPR/Cas9 genome editing technology has rapidly advanced animal and plant breeding, as well as gene therapy, due to its simplicity and high efficiency.^[^ 1, 2 ^]^ The CRISPR/Cas9 system searches for potential target sites in a genome by recognizing the presence of protospacer adjacent motif (PAM) sequences, and then induces DNA double‐strand breaks. For instance, the commonly used SpCas9 from Streptococcus pyogenes recognizes canonical NGG PAM, which significantly restricts its range of targets.^[^ 3, 4 ^]^ Base editing technologies derived from the CRISPR/Cas9 system, such as cytosine base editors (CBEs),^[^ 5 ^]^ adenine base editors (ABEs),^[^ 6 ^]^ and glycosylase‐based base editors (GBEs),^[^ 7 ^]^ can create gain‐of‐function mutations at specific bases of the target genes. However, their editing window is constrained by the requirement for a PAM sequence at the target site.^[^ 8 ^]^ Prime editors can theoretically enable precise base substitutions and facilitate small fragment DNA insertion/deletion mutations. However, their efficiency depends on the distance between the editing site and the PAM sequence site.^[^ 9, 10 ^]^ Therefore, the selection and flexibility of PAM sequence sites are crucial for precise gene editing.
To expand the range of gene editing targets, researchers have long been committed to engineering the Cas9 protein to enhance its compatibility with PAM sequences.^[^ 11 ^]^ Notably, the development of xCas9, Cas9‐NG, and SpG variants that recognize NG PAM sequences and the SpRY variant that recognizes NNN (NRN>NYN) PAM sequences has significantly improved the accessibility of genome editing tools.^[^ 12, 13, 14 ^]^ However, expansion of the range of PAM sites recognized by these four Cas9 variants has occurred at the expense of their editing activity.^[^ 15, 16, 17, 18 ^]^ In particular, the SpRY variant displays restricted editing efficiency, pronounced self‐editing, and off‐target effects.^[^ 19, 20 ^]^
Bioinformatics‐based mining of Cas9 proteins can also be used to enrich the PAM sequences. Notably, ScCas9 from S. canis, which has NNG PAM recognition ability, is the only naturally occurring Cas nuclease that recognizes a single‐base PAM sequence.^[^ 21 ^]^ ScCas9 was further upgraded through bioinformatics analysis and structure‐guided design, incorporating the T1227K mutation from S. gordonii Cas9 and a positively charged loop (positions 367–376) from S. anginosus Cas9, resulting in an Sc++ variant with significantly enhanced editing activity. The Sc++ variant exhibited superior editing efficiency compared with xCas9 and SpCas9‐NG in mammalian cells.^[^ 22 ^]^ In plants, the Sc++ variant also shows higher editing efficiency than ScCas9.^[^ 23, 24 ^]^ Sc++ demonstrates strong cutting ability at the NAG and NGG PAM targets; however, its efficiency at the NCG and NTG PAM targets is limited. Some research groups have suggested that the Sc++ variant recognizes NVG PAM sequences (V = A, G, or C).^[^ 23 ^]^ These findings suggest that while the Sc++ variant displays superior editing capabilities compared to other Cas nucleases and their variants that recognize single‐base PAMs, its editing efficiency requires further optimization.
Optimizing the performance of current genome editing tools requires more sophisticated protein engineering efforts than previously undertaken. The high‐resolution structures of Cas9 and Cas12a nucleases provide valuable insights into rational protein design strategies. Various research groups have endeavored to enhance the genome editing capabilities of Cas9 proteins through rational mutagenesis of their target DNA‐binding amino acids.^[^ 13, 14, 25, 26 ^]^ Cas9 variants engineered by replacing non‐ or negatively charged residues in the nuclease (RuvC or HNH) domain with positively charged arginine residues have also been used to increase affinity for the DNA substrate, thereby improving the editing efficiency.^[^ 27 ^]^ Additionally, directed evolution and site‐saturated mutagenesis have been shown to be effective in altering the characteristics of target proteins without the need for detailed structural or mechanistic information. These approaches have been utilized to increase the nuclease activity and target scope of both Cas9 and the less active Cas12 proteins.^[^ 28, 29, 30, 31 ^]^ Furthermore, sequence conservation of Cas9 orthologs mapped onto its structure suggests domains that may be malleable for engineering. Phylogenetic analysis revealed high sequence diversity in the PAM‐interacting (PI) domain among Cas9 orthologs. Swapping the PI domain between Cas9 orthologs creates several chimeric Cas9 variants with expanded PAM compatibility.^[^ 32, 33, 34 ^]^ The recognition (REC) domain of Cas9 plays a crucial role in target DNA cleavage. However, its potential role in enhancing genome editing efficiency through synthetic chimeric nucleases has been overlooked.
In this study, we engineered chimeric Cas9 variants by combining Sc++ and SpCas9 to enhance the genome editing capability of ScCas9. To achieve this, we initially attempted to graft the REC domain of SpCas9 into the Sc++ enzyme. However, the resulting chimeric enzyme exhibited reduced editing efficiency in rice plant cells. We then stacked two point mutations (R221K and N394K) and a positively charged loop (positions 367–376) from S. anginosus Cas9 to create a chimeric Sp‐RN‐loop‐Sc++ (herein referred to as SpcRN++). The SpcRN++ variant exhibited enhanced nuclease activity compared with Sc++ at diverse NNG PAM targets in rice protoplast cells and transgenic plants. Even the target sites that were resistant to Sc++ were successfully edited using the SpcRN++ variant. We further showed that nSpcRN++ fused with a cytosine or adenine deaminase achieved the highest base editing efficiency among all variants in rice. We also used nSpcRN++‐based adenine base editors to generate herbicide‐resistant rice. In summary, we present SpcRN++ as a novel chimeric ScCas9 variant with augmented genome editing capabilities for NNG PAM targets in plants. This engineered Sc++‐based chimeric variant is expected to facilitate robust genome editing and expand its possible applications in plant biology.
Results
2
Engineering of Chimeric ScCas9 Variants with Enhanced Activity
2.1
ScCas9 shares 89.2% sequence similarity with the commonly used and highly efficient SpCas9.^[^ 21 ^]^ To enhance the nuclease activity of ScCas9, we initially attempted to mimic the R221K/N394K mutations, which have been shown to increase the editing efficiency of SpCas9 based on sequence alignment.^[^ 31 ^]^ We commercially synthesized a plant codon‐optimized Sc++ variant and introduced the R221K/N394K mutation into its coding region to generate an ScRN++ variant (Figure 1a; Sequences, Supporting Information). To investigate their nuclease activity and PAM specificity, we designed 10 single guide RNAs (sgRNAs) that targeted the rice endogenous genomic loci with NAG, NGG, NCG, and NTG PAMs. SgRNAs under the control of the rice U3 (OsU3) promoter, along with the nuclear localization signal (NLS)‐flanked Sc++ and its variant driven by the maize Ubiquitin1 (ZmUbi) promoter, were delivered into rice protoplasts (Figure S1a, Supporting Information). Two days after transfection, the genomic DNA was extracted and subjected to amplicon deep sequencing. Sequencing analysis showed that ScRN++ exhibited a higher editing efficiency than Sc++ at seven of the ten target sites, whereas the editing efficiency was comparable at the remaining three target sites (Figure 1b). For the NAG and NGG PAMs, the editing efficiency of Sc++ ranged from 2.0% to 17.2%, whereas that of ScRN++ was, on average, 1.7‐fold higher at 6.0% to 21.1% (except for the OsHOS66 and OsGAPDH targets). For the NCG and NTG PAMs, Sc++ yielded an editing efficiency of 0.4–1.7%, and that of ScRN++ was, on average, 2.5‐fold higher at 0.8–3.8% (except for the OsFBK1 target). The observed variations in editing efficiency across different PAM targets were also consistent with the findings of previous studies that tested ScCas9 and Sc++ in rice and demonstrated that their editing efficiency at the NAG and NGG PAM targets was superior to that at the NTG and NCG PAM targets.^[^ 23, 24, 35, 36 ^]^ Taken together, these results demonstrate that the R221K/N394K mutations in ScRN++ moderately enhance its nuclease activity.

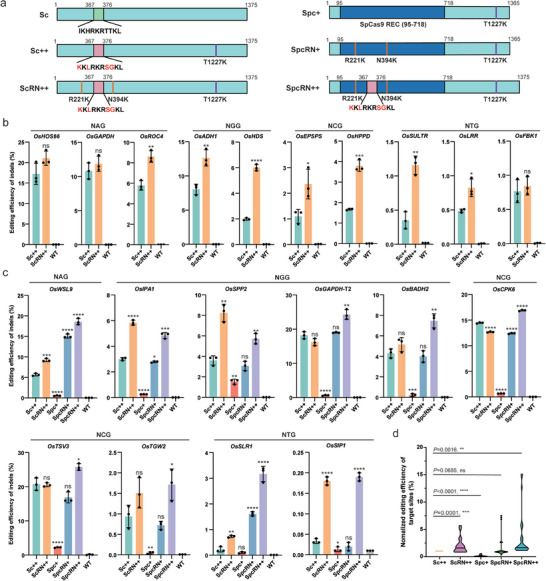

Design and characterization of DNA cleavage activities of Sc++‐ based variants in plant cells. a) Schematic illustration of ScCas9 and its derivatives, Sc++, ScRN++, Spc+, SpcRN+, and SpcRN++. The green box in Sc indicates amino acid sequences from 367 to 376 of the ScCas9 protein. The pink box in Sc++, ScRN++, and SpcRN++ represents the positively charged loop (positions 367–376) of S. anginosus Cas9. The dark blue box in Spc+, SpcRN+, and SpcRN++ represents the REC domain (positions 95–718) of SpCas9. b) Evaluation of editing efficiency of Sc++ and ScRN++ at 10 target sites with NNG PAMs in rice protoplasts. c) Comparison of the editing efficiency achieved by chimeric nucleases Spc+, SpcRN+, and SpcRN++ nucleases with that of Sc++ and ScRN++ at an additional 10 target sites with NNG PAMs in rice protoplasts. Editing efficiencies (mean ± s.e.m.) are based on three independent experiments (n = 3) in (b) and (c). d) Overall editing efficiencies achieved by Sc++, ScRN++, Spc+, SpcRN+, and SpcRN++. The editing efficiencies achieved by Sc++ for each target were normalized to 1, and the efficiencies of ScRN++, Spc+, SpcRN+, and SpcRN++ for each target were adjusted accordingly. p‐values were determined using the two‐tailed Student's t‐test: * p < 0.05, ** p < 0.01.
Considering the modular structure of Cas9 enzymes, we postulated that engineering chimeric Cas9 variants would generate non‐natural variants that would expand the kinetic parameter spectrum.^[^ 37 ^]^ The Cas9 protein comprises a REC lobe responsible for nucleic acid binding and activation of the HNH domain.^[^ 38 ^]^ Notably, the R221K/N394K mutations in the REC domain have been shown to enhance the nuclease activity of both SpCas9 and Sc++ (Figure 1b), thereby underscoring the pivotal roles of the REC domain in DNA cleavage.^[^ 31 ^]^ Moreover, SpCas9 demonstrated higher editing efficiency than Sc++ at the NGG PAM sites.^[^ 35 ^]^ Inspired by these findings, we sought to engineer variants that would embody the salient features of Sc++ and SpCas9. To this end, we rationally replaced the REC domain of Sc++ with that of SpCas9, resulting in a chimeric hybrid Cas9, which we termed Spc+ (Figure 1a). Furthermore, the R221K/N394K mutations were incorporated into Spc+, either independently or in conjunction with the positively charged loop (positions 367–376) of S. anginosus Cas9, to yield SpcRN+ and SpcRN++ variants, respectively (Figure 1a; Sequences, Supporting Information). To evaluate the on‐target efficacy of these engineered chimeric Cas9 variants, we selected ten additional target sites across the NAG, NGG, NCG, and NTG PAMs (Table S1, Supporting Information) and assessed the editing efficiency using a transient protoplast assay. Sc++ and ScRN++ were used as benchmark controls. Notwithstanding the observation that the Spc+ variant exhibited markedly diminished activity compared to Sc++, incorporation of the R221K/N394K mutations in Spc+, which yielded SpcRN+, successfully restored its cleavage activity and achieved an editing efficiency comparable to that of Sc++ (Figure 1c). Notably, the chimeric SpcRN++ variant, which features the SpCas9 REC lobe, the R221K/N394K mutations, and the positively charged loop of S. anginosus Cas9, exhibited the best performance among all the variants (Figure 1d; Figure S2, Supporting Information). SpcRN++ consistently exhibited superior editing efficiency compared to Sc++ across all ten tested targets, and ScRN++ showed enhanced efficiency at five of these targets (Figure 1c). Moreover, SpcRN++ exhibited a higher editing efficiency than ScRN++ at eight of these targets. In terms of on‐target efficiency, SpcRN++ was, on average, 3.3‐fold higher (maximum 14.2‐fold for OsSLR1) than Sc++. In comparison, ScRN++ demonstrated an average increase of approximately 2.0‐fold in on‐target efficiency (maximum 5.4‐fold for OsSIP1) relative to Sc++ (Figure 1c,d). The greatest enhancements were observed for both SpcRN++ and ScRN++ at the NTG PAM targets, which were previously reported to be resistant to Sc++.^[^ 23 ^]^ Consequently, we concluded that relative to Sc++, both SpcRN++ and ScRN++ variants had enhanced editing efficiency, with SpcRN++ offering slightly higher efficiency than ScRN++ in plant cells.
Chimeric SpcRN++ Outperformed Other Variants in Stable Transgenic Rice
2.2
We further conducted a comprehensive evaluation of the editing performance of the engineered ScCas9 variants in transformed plants. We selected 12 targets in the rice endogenous genomic loci, five of which were previously assessed in the protoplast assay (Table S1, Supporting Information). Given the suboptimal editing efficiency observed for the NCG and NTG PAM targets, we selected two targets each for the NAG and NGG PAMs and four each for the NCG and NTG PAMs. Subsequently, we constructed six multiplex genome editing vectors for the 12 targets in rice (Figure S1b, Supporting Information). Multiplex targeting vectors incorporating Sc++, ScRN++, SpcRN+, and SpcRN++ were independently delivered into rice plants via Agrobacterium‐mediated stable transformation. Typically, 30 to 40 transgenic plants were generated for each vector and the mutations were detected using the High‐throughput Tracking of Mutations (Hi‐TOM) platform.^[^ 39 ^]^
Sequencing analysis indicated that SpcRN++ exhibited the highest genome editing efficiency among all variants at the NAG PAM targets, with 97.1% at OsWSL9 and 94.3% at OsEFL1 (Figure 2a). However, for the NGG PAM targets, all variants yielded lower editing efficiencies than Sc++. Nevertheless, SpcRN++ demonstrated a comparable or higher bi‐allelic mutation ratio than Sc++. For the OsIPA1 targets, 88% (22/25) of the mutants generated by SpcRN++ were homozygous/bi‐allelic, whereas the corresponding percentages were only 45.2%, 46.4%, and 12.5% for Sc++, ScRN++, and SpcRN+, respectively (Figure 2a,b). Comparable homozygous/bi‐allelic ratios were achieved for the OsSPP2 target using Sc++, ScRN++, and SpcRN++. For the NTG PAM targets, SpcRN++ exhibited the highest on‐target efficiency among all four variants for all the tested targets (Figure 2c). The editing efficiency of SpcRN++ ranged from 33.3% to 63.9% at these four targets, while those of Sc++, ScRN++, and SpcRN+ were 5.748.6%, 14.342.9%, and 6.334.4%, respectively. Furthermore, the bi‐allelic mutants were exclusively present at the SpcRN++‐targeted sites, with the exception of one bi‐allelic mutant generated by ScRN++ at the OsACC target (Figure 2a). The on‐target effects of Sc++ and its variants varied in the NCG PAM targets. The OsMTN target was efficiently edited by all variants, with SpcRN+ showing the highest editing efficiency and SpcRN++ yielding the highest bi‐allelic mutation ratio (Figure 2a,b). However, Sc++ and SpcRN+ exhibited negligible activity against the remaining three targets (OsTSV3‐T2, OsCCT1, and OsNAL1), all of that contained TCG PAMs. Intriguingly, SpcRN++ successfully targeted the three targets with an editing efficiency of 5.613.9%, whereas the editing efficiency of ScRN++ was 5.0~8.3% (Figure 2a,c; Figure S3, Supporting Information). No significant differences were observed between the mutation types produced by the four variants (Figures S4 and S5, Supporting Information). These results indicate that SpcRN++ is a promising chimeric Cas9 nuclease for generating genome‐edited rice plants with NNG PAM targets owing to its enhanced editing activity.

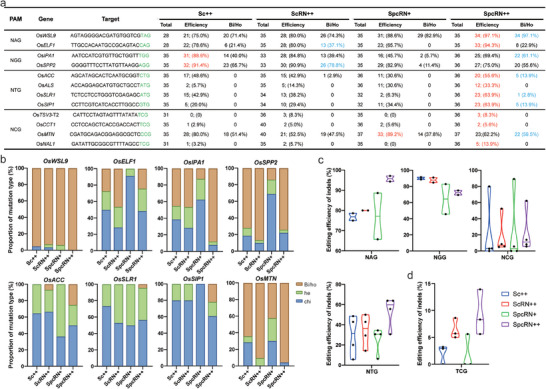

Robust genome editing by SpcRN++ in transgenic rice plants. a) Summary of the editing efficiencies and bi‐allelic ratios induced by Sc++, ScRN++, SpcRN+, and SpcRN++ at 12 target sites with NNG PAMs in T0 transgenic plants. The highest editing efficiencies and bi‐allelic ratios are highlighted in red and blue, respectively. b) Analysis of various mutation types induced by Sc++, ScRN++, SpcRN+, and SpcRN++ at eight target sites harboring homozygous or bi‐allelic mutants. Bi, bi‐allelic; Ho, homozygous; He, heterozygous; chi, chimeric. Seedlings with >70% indel frequencies were classified as bi‐allelic or homozygous mutations, those with 30% to 70% indel frequencies were considered heterozygous mutations, and those with <30% indel frequencies were deemed chimeric mutations. c) Editing efficiencies at NAG, NGG, NTG, NCG, and TCG PAM targets in the T0 plants.
SpcRN++ Exhibits Low Off‐Target Activity During Genome Editing in Plants
2.3
The potential for off‐target effects remains a significant concern for CRISPR/Cas9‐mediated genome editing applications. Previous studies have demonstrated that Sc++ is an inherently high‐fidelity nuclease that exhibits fewer off‐target effects than SpCas9.^[^ 22 ^]^ We further characterized the editing fidelity of the engineered chimeric Cas9 variants using a mismatch tolerance assay. We systematically introduced single or adjacent double mismatches at consecutive positions along the guide sequence of the OsWSL9 and OsSLR1 targets (Table S2, Supporting Information). Subsequently, we quantified the genome editing efficiency of mismatched sgRNAs against the on‐target sequence. We found that all variants had a higher tolerance to single mismatches than to double mismatches (Figure 3; Figure S6, Supporting Information). Notably, the SpcRN++ variant exhibited slightly diminished sequence specificity for some single mismatches compared with Sc++. This may be attributed to a trade‐off for its enhanced activity (Figure 3).

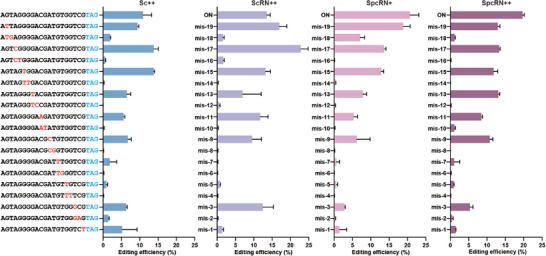

Comparison of sequence specificities of Sc++, ScRN++, SpcRN+, and SpcRN++. Off‐target effects of Sc++ and its variants ScRN++, SpcRN+, and SpcRN++ with guide sequences containing singular or double mismatches at successive positions against the OsWSL9 target. Each sgRNA was tested in combination with the four ScCas9 variants, and the percentage of indels was used to measure the editing activity. Editing efficiencies (mean ± s.e.m.) are based on three independent experiments (n = 3). The WT guide sequence is highlighted in bold, and the PAM is highlighted in blue. The mismatch sites are highlighted in red.
To further investigate the potential off‐target effects in transgenic plants, we employed the CRISPR‐GE online tool to predict candidate off‐target sites with up to three mismatches against three on‐target sites (OsIPA1, OsWSL9, and OsSPP2) (Table S3, Supporting Information).^[^ 40 ^]^ A total of 12 bi‐allelic edited plants were selected for each treatment, and the potential off‐target mutations were detected using Hi‐TOM sequencing. The only exceptions were the OsIPA1 and OsSPP2 targets edited by SpcRN+, which had only two and four bi‐allelic edited plants in the T_0_ generation, respectively (Figure S7, Supporting Information). The sequencing results demonstrated that none of the Sc++, ScRN++, SpcRN+, and SpcRN++ nucleases exhibited any off‐target effects at the targets with two or three mismatches. Therefore, we considered that SpcRN++ largely maintained the intrinsic sequence specificity of Sc++, while offering enhanced activity.
Evaluation of Chimeric Cas9 Variants‐Based Base Editing in Rice Cells
2.4
The PAM preferences of Cas proteins significantly constrain the target range of base editors. Considering the singular base PAM requirement demonstrated by Sc++ and its derivatives, we investigated their adenine base editing efficiency and compatibility. The fusion constructs were engineered by linking hyperactive adenosine deaminase TadA8e to the amino termini of the D10A nickase variants, generating nSc++‐, nScRN++‐, nSpcRN+‐, and nSpcRN++‐based adenine base editors (ABEs) (Figure 4a). Subsequently, we selected eight target sites in rice endogenous loci with NAG, NGG, NCG, and NTG PAMs and measured their A‐to‐G efficiency in rice protoplasts using amplicon deep sequencing. The results demonstrated that the overall base editing efficiencies of nScRN++‐, nSpcRN+‐, and nSpcRN++‐based ABE8e were comparable to those of nSc++ (Figure 4b). Notably, for targets exhibiting relatively low editing efficiency (<10% A‐to‐G conversion), nSpcRN++‐based ABE8e increased the base editing ratio, achieving a maximum enhancement of 3.4‐fold at the OsMTN target (Figure 4c). Conversely, at other targets where the nSc++‐based ABE8e was already effective, nSpcRN++ demonstrated a limited enhancement of the base editing ratio, with only a 1.4‐fold improvement observed at the OsIPA1‐T2 target (Figure 4c). Further analysis of the base editing profiles across the eight targets at the editable adenine nucleotides revealed that the editing window (positions 4–10) for all variants nearly overlapped, with limited effects outside the main editing window (Figure 4d). In summary, these results indicate that SpcRN++ likely exhibits enhanced compatibility with TadA8e at loci challenged by suboptimal efficiency.

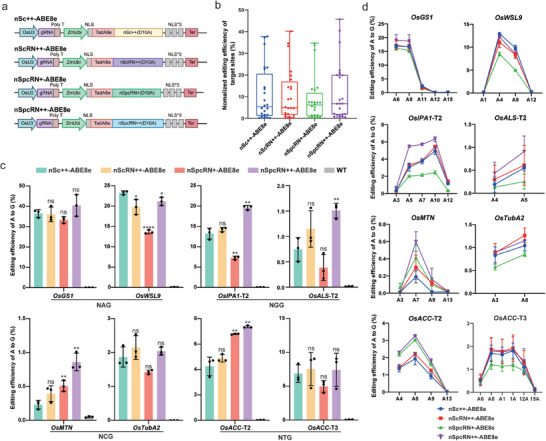

Comparative analysis of adenine base editing efficiency achieved by Sc++‐ based variants in rice protoplasts. a) Schematic illustration of ABE constructs with TadA8e‐fused nSc++, nScRN++, nSpcRN+ and nSpcRN++. b) Overall editing efficiencies at eight target sites induced by nSc++‐, nScRN++‐, nSpcRN+‐ and nSpcRN++‐based ABEs. c) Efficiencies of targeted A‐to‐G conversion at eight targets with NNG PAMs achieved by the four ScCas9‐derived variants. These efficiencies were calculated by summing the A‐to‐G conversions for all sites within the editing window. p‐values were obtained using two‐tailed Student's t‐test: * p < 0.05, ** p < 0.01. d) Adenine editing window of the eight target sites induced by the four designed ABE8e vectors. Editing efficiencies (mean ± s.e.m.) are based on three independent experiments (n = 3).
Based on these results, we sought to use SpcRN++ for C‐to‐T base editing in plants. Cytosine base editors were generated by fusing the D10A nickase of the four ScCas9 variants with A3A/Y130F, an APOBEC3A (A3A) cytosine deaminase variant that incorporates the Y130F mutation (Figure 5a).^[^ 41 ^]^ Subsequently, we evaluated the efficacy of these base editors at eight endogenous loci in rice protoplasts. Amplicon deep sequencing data revealed that A3A‐nSpcRN++ displayed the most robust C‐to‐T conversion efficiency across all target sites, with an average 1.5‐fold enhancement in efficiency relative to A3A/Y130F‐nSc++. In contrast, the base editing efficiencies of A3A/Y130F‐nScRN++ and A3A/Y130F‐nSpcRN+ were comparable to those of A3A/Y130F‐nSc++ (Figure 5b; Figure S8, Supporting Information). Further analysis was conducted to determine whether the editing window of the CBE system was altered when the ScCas9 variants were used. Among the eight tested targets, four CBEs exhibited consistent editing windows of C3‐C11 (Figure 5c,d), and other Cs outside the main editing window displayed lower editing efficiency. These results indicate that the SpcRN++ variant exhibited higher compatibility with A3A/Y130F deaminase, suggesting that the fusion of other cytosine deaminases could further enrich the base editing toolbox.

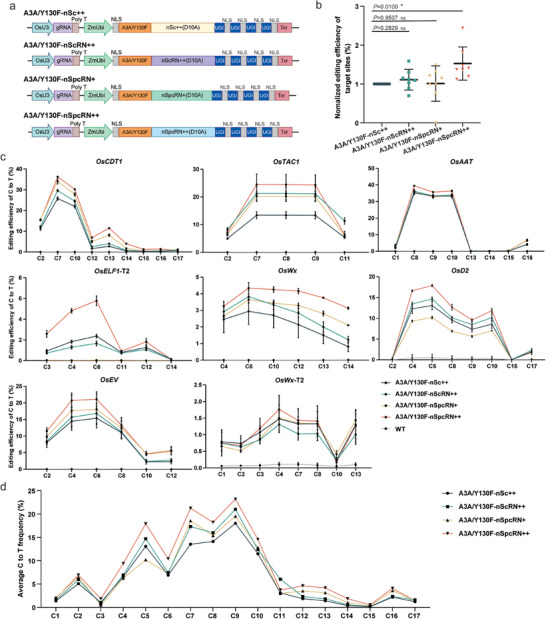

Comparison of the C‐to‐T base editing efficiency of Sc++ variants‐ based CBE in rice protoplasts. a) Schematic representation of CBE constructs with A3A/Y130F‐fused nSc++, nScRN++, nSpcRN+, and nSpcRN++. b) Overall comparison of the base editing efficiency of cytosine base editors derived from four ScCas9 variants. Editing efficiencies represent only the highest edited cytosine of each target. Editing efficiencies achieved by A3A/Y130F‐nSc++ for each target were normalized to 1, and the efficiencies of nScRN++, nSpcRN+, and nSpcRN++‐based CBEs for each target were adjusted accordingly. p‐values were obtained using two‐tailed Student's t‐test: * p < 0.05. c) The C‐to‐T conversion efficiency of nSc++‐, nScRN++‐, nSpcRN+‐, and nSpcRN++‐based CBEs at eight endogenous genomic loci in rice cells. d) Average C‐to‐T base editing efficiency at different positions in eight targets edited by the four ScCas9‐derived variants. Editing efficiencies (mean ± s.e.m.) are based on three independent experiments (n = 3).
nSpcRN++‐Based ABE Outperformed Other Variants in Transgenic Plants
2.5
We further evaluated the performance of our designed chimeric Cas9 variants in mediating adenine base editing in transgenic plants and explored their potential applications in agricultural trait improvement. To elucidate these potential applications, we used Sc++‐based variants for adenine base editing to engineer herbicide‐resistant rice by targeting the OsACC gene. We designed two sgRNAs targeting the DNA sequences encoding the pivotal amino acids D2176 and I1879 in the carboxyl‐transferase (CT) domain of OsACC. Analogous substitutions of these two amino acids have previously been demonstrated to confer herbicide resistance in L. rigidum.^[^ 42 ^]^ One of the sgRNAs recognized the NAG PAM, and the other specifically recognized the NTG PAM (Figure 6a). The two sgRNAs were subsequently incorporated into the ABE8e vectors based on nSc++, nScRN++, nSpcRN+, and nSpcRN++ (Figure 4a). The eight resulting constructs were used for rice transformation. Approximately 40 transgenic plants of each construct were regenerated and genotyped using Hi‐TOM sequencing.

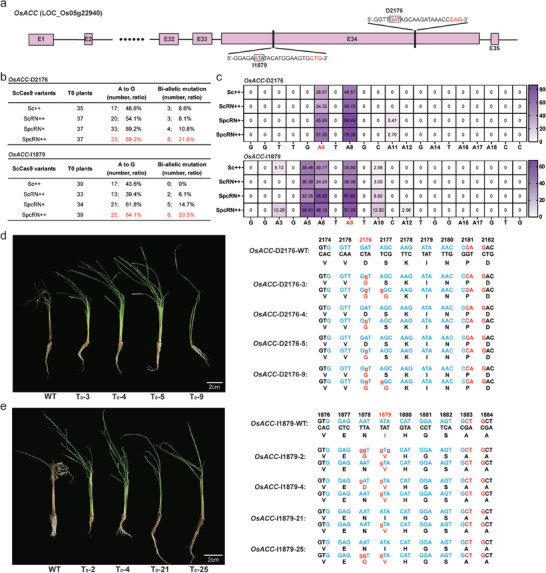

Robust base editing activity of nSpcRN++‐TadA8e in transgenic plants and herbicide resistance conferred to rice. a) Schematic representation of the target sites in the OsACC gene. b) Editing efficiencies and bi‐allelic ratio induced by nSc++‐, nScRN++‐, nSpcRN+‐, and nSpcRN++‐based ABEs at OsACC‐D2176 and ‐I1879 targets in T0 transgenic plants. c) Heat maps illustrating the efficiencies of targeted single A‐to‐G conversion and editing window at the OsACC‐D2176 and ‐I1879 targets induced by the four ABE8es. The A‐to‐G substitutions in OsACC‐D2176 (A6) and OsACC‐D1879 (A8) that may confer herbicide resistance were highlighted in red. Herbicide‐resistant T0 lines were generated by targeting amino acids D2176 d) and I1879 e) and their genotypes. Scale bars: 2 cm.
