Effects of stimulus polarity on the local evoked potential in auditory brainstem implant users
Anne Schröder, Marko Takanen, Konrad Schwarz, Thomas Lenarz, Lutz Gärtner, Andreas Büchner

TL;DR
This study examines how different electrical pulse polarities affect hearing in auditory brainstem implant users, finding that cathodic pulses are more effective for measuring local evoked potentials.
Contribution
The paper introduces a new baseline-dependent definition for analyzing LEP amplitude and suggests cathodic pulses for ABI-specific coding strategies.
Findings
Cathodic leading pulses showed significantly shorter LEP peak latencies compared to anodic pulses.
LEP thresholds with both cathodic and anodic pulses correlated with perceptual hearing thresholds, though anodic results were affected by outliers.
No significant differences were found in LEP thresholds or slopes between cathodic and anodic leading pulses.
Abstract
Auditory brainstem implants (ABI) can enable hearing sensation through electrical stimulation of the cochlear nucleus. The basic stimulation and signal coding strategies of the ABI are based on those of the cochlear implant. This may not always be optimal, and ABI-specific strategies may be preferred. In a cohort of ten ABI users, we examined the feasibility of measuring local evoked potentials (LEP) via fine-grained stimulation with a forward masking paradigm. We introduce a new baseline-dependent definition of LEP amplitude for analyzing the LEP amplitude growth function to obtain threshold stimulation levels and slope values. The processing of biphasic pulses by the cochlear nucleus and the influence of the leading phase polarity were examined. There were no statistically significant differences in LEP thresholds or slopes between cathodic and anodic leading pulses. LEP thresholds…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

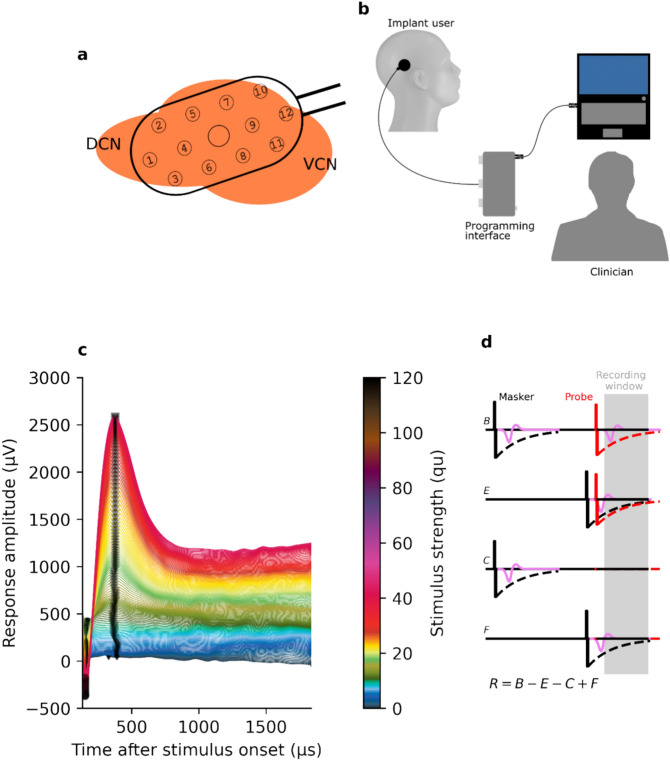

Figure 1
Figure 2
Figure 3
Figure 4- —Medizinische Hochschule Hannover (MHH) (3118)
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsHearing Loss and Rehabilitation · Hearing, Cochlea, Tinnitus, Genetics · Blind Source Separation Techniques
Introduction
Cochlear implants (CI) are the standard of care for individuals with severe to profound hearing loss. Cumulatively, more than one million devices have been implanted^1^. Over the decades, there have been many improvements in the areas of hardware design, sound coding strategies, and in surgical and fitting procedures for CIs^2^. One productive area of research has been in the development of objective measures which can assess both the functionality of the device and the electrode neuron-interface. These measures can also assist in optimizing fitting parameters. This may be particularly useful with individuals for whom behavioral testing can produce less reliable results, such as young children, those with intellectual or cognitive comorbidities, and other individuals who cannot provide reliable reports of their hearing percepts^3^.
The CI audio processor splits the audio signal into separate channels via bandpass filters and converts the signal at each channel into an electrical pulse train which is delivered to an array of intracochlear electrodes^4^. These pulse trains are typically biphasic and are charge-balanced in order to protect the cochlea from charge buildup^5,6^. The neural signals evoked by the electrical stimulation traverse along the cochlear nerve to the cochlear nucleus (CN) of the auditory brainstem, which processes the input and projects responses to different targets along the auditory pathway^7^.
A CI therefore requires both an intact cochlea and an intact cochlear nerve. This is not always the case, and this led to the development of a post-cochlear nerve auditory prosthesis—the auditory brainstem implant (ABI). The ABI is indicated as an alternative treatment option if no benefit from a CI is to be expected^8^. The pathologies for which the ABI is indicated include the presence of non-functioning cochlear nerves after tumor resection in neurofibromatosis type 2 (NF2), congenital malformations of the inner ear which preclude cochlear implantation, and cochlear nerve hypoplasia or aplasia^9^.
The first ABI was implanted by Hitselberger in 1979^10^. The general hardware design and signal processing strategies of the ABI have been—then and now—based on that of the CI. There are many dissimilarities between the neural tissues and environments to which the electrical stimulation is applied with an ABI versus a CI. In contrast to the cochlea, the CN is not tonotopically organized on the outer layer, where the ABI electrode panel is placed^11^. The CN also contains neural structures that do not process auditory signals, and stimulation of these structures by the ABI can produce non-auditory side effects such as coughing, tingling or dizziness^12^. As a result of these difference, there may be scope for improvement in ABI performance through the development of ABI-specific signal processing strategies.
To achieve this, a better understanding of the responses of CN neural structures to ABI stimulation is needed. Biphasic pulses are known to reduce the risk of tissue damage caused by charge buildup^5,13^, which is why they are the standard for both the CI and ABI. However, a challenge which arises when stimulating the CN compared to stimulating the cochlea is that it is comprised of a complex and heterogeneous population of neural cell types^14^. The electrode paddle is placed onto both the dorsal and ventral surfaces of the CN, as depicted in Fig. 1a. The dorsal CN contains excitatory neurons including fusiform and giant cells which are responsible for signal transduction, while tuberculoventral and cartwheel cells are inhibitory and do not project to other structures. The ventral CN consists of cell types such as bushy and stellate cells which project to the superior olivary complex and the inferior colliculus^14,15^.Fig. 1(a) Schematic illustration of a typical position of a ABI electrode panel on the ventral (VCN) and dorsal cochlear nucleus (DCN). (b) Illustration of the stimulation and recording setup. The implant was connected via a transmitting coil to the programming interface, which was controlled by a computer. (c) Plot of exemplary LEP responses for one participant measured at a single recording electrode. To ease visual inspection, vertical offset has been introduced between traces, and stimulus intensities have been color coded. (d) Pulse sequence for measuring LEPs. The strengths of the masker and the probe pulses were incrementally increased according to the fine-grain stimulation paradigm. The neural responses elicited by the probe and masker pulses are depicted as purple signals and the dashed black and red lines depict stimulation artefacts related to the masker and probe pulse, respectively.
For both the CI and the ABI, electrical stimulation generates an action potential in the neurons proximal to the electrode. The strength of the electrical stimulus is usually correlated with the perceived loudness sensation. The summation of the activity of excited nerve fibers yields an electrically evoked compound action potential (eCAP). This response can be recorded at a different electrode contact using two-way telemetry. In the CI, the eCAP is well understood and provides a valuable tool for testing the integrity of the electrode-nerve interface. eCAP measurements have thus found their way into clinical practice, for both intraoperative and postoperative routines^16^.
In the CN, the equivalent of the eCAP is referred to as the local evoked potential (LEP). As described by Gärtner et al.^17^, LEPs show a very similar morphology to eCAPs, with a characteristic negative-going peak followed by a positive-going peak^18^ (illustrated in Fig. 2a). The voltage difference of the minimum (N) and maximum (P) peak amplitudes is defined as the LEP amplitude. By plotting LEP amplitude as a function of stimulation level, an amplitude-growth function (AGF) is obtained. For clinical practice, the AGF parameters of slope and threshold stimulation level (illustrated in Fig. 2b) are of interest, as these can be used to estimate the integrity of the electrode-neuron interface and can be indicative of perceptual thresholds, respectively^17^.Fig. 2(a) Schematic illustration of LEP responses. The baseline, N and P peaks, and P latency are indicated. (b) A LEP amplitude growth function. The dotted line denotes measured LEP amplitudes, and the solid line denotes the sigmoidal function fitted to the measured values. The threshold value and slope (dashed line) of the fitted sigmoid function are indicated. (c) Illustration of the anodic- and cathodic-leading biphasic charge-balanced pulses used for stimulation. The zero-amplitude portion between the positive and negative phases is denoted as inter-phase gap.
In audiological fitting sessions, perceptual thresholds are typically determined behaviourally by stimulating single electrodes while the user is asked about their auditory impression. The lowest stimulus strength where the user reports a sound sensation is set to be the perceptual hearing threshold. However, obtaining this feedback from user can be challenging for several reasons, for example a lack of experience with sound sensation, mental comorbidities or in pediatric users that cannot give reliable verbal feedback of their sensations. The use of objective measures such as the LEP may enable the estimation of perceptual thresholds in these cases.
Several challenges do remain, which hinder the prospect of using LEPs as objective measures of hearing. Not all electrode channels will produce a hearing sensation. It is a difficult task to insert the electrode array into the lateral recess and onto the CN. It is not clear whether the electrode array will be placed over excitable neurons. Due to the variety of cell types in the CN and in structures immediately adjacent to it, which may also be subject to electrical stimulation, sometimes there is hearing percept, sometimes there is not, and sometimes a non-auditory percept is evoked. Nevison et al.^19^ observed that side-effects due to stimulation of non-auditory neurons occur in almost all subjects—only 7.7% of individuals reported complete absence of non-auditory sensations.
In contrast to eCAPs, the LEP N peak is often cut-off in the recording. This is due to the presence of the electrical stimulus artefact, which is also picked up by the recording electrode. The stimulus artefact is typically orders of magnitude larger than the neural response (volts versus microvolts). As the response needs to be amplified prior to transmission, the recording system must wait until the residual charge of the stimulus artefact has decayed to a level that it will not cause saturation of the amplifier, which would induce clipping of the response. In the eCAP, the neural structures being stimulated lie a considerable distance from the electrode array. As such, the latency between the stimulus and response is typically large enough that there is little or no temporal overlap between them. In contrast, the ABI electrodes are placed directly on surface of the CN, and the latency between stimulus and response is correspondingly shorter. For this reason, an alternative method for analyzing and interpreting LEP responses is needed which does not rely on the N peak.
LEPs have been studied in ABI users by performing several repetitive measurements on discrete stimulus strengths^17^. It is also possible to use the fine-grain paradigm to sample the eCAP/LEP amplitude growth function in finer detail by increasing the stimulus strength in small increments and recording eCAPs/LEPs at each increment. As this produces a single response for each stimulus strength, no averaging of responses is used^20^. Gärtner et al.^17^ introduced the measuring of LEP and showed a significant correlation between LEPs and hearing perception. In 90.5% of the cases where LEPs could be detected there was also a reported hearing percept. However, that study also reported 33.7% false positive results.
The present study was performed with a cohort of ten ABI users, and had three broad objectives. The first was to determine the feasibility of using the fine-grain stimulation paradigm for measuring LEPs in ABI users. Part of this objective was to determine a method of estimating LEP amplitudes when the N peak is absent from the processed recording which, as mentioned above, is a common situation. To that end, we introduce a new definition of LEP amplitude which is independent of the N peak.
The second objective was related to the wider goal of developing an ABI-specific signal coding strategy. Here, we studied the influence of biphasic pulse polarity (cathodic-leading, CA, versus anodic-leading, AC) on the excitability of CN neural structures as measured with LEPs. Differences between the two polarity configurations were hypothesized to manifest as alterations in LEP latencies and/or in the thresholds or slopes of the LEP AGF. To facilitate investigation of polarity-related effects, LEPs were recorded using the revised forward-masking paradigm^21^ for artefact reduction.
The third objective was to determine the feasibility of using LEPs as a supplement to behavioural testing for fitting in ABI users. We investigated the relationship between the stimulation thresholds measured from LEP AGFs and the perceptual thresholds obtained from clinical fitting session of the ABI users. We hypothesized that these two threshold measures would correlate sufficiently to allow LEP thresholds to be used to predict perceptual thresholds. These correlation studies were performed separately for both cathodic-leading and anodic-leading pulse shapes, in alignment with the second objective.
Results
Participants
In total, ten ABI users were enrolled. Six were young children aged between 3 and 7 years of age and four were adults. The duration of ABI experience (interval between implantation and measurement) ranged from less than one year to 11 years (median 6 years). More details of demographic and device characteristics are provided in Table 1.Table 1. Demographic data of the participants and implant characteristics.IDImplantSide of implantationAge at implantation (years)Age at measurement (years)Etiology01SYNCHRONY ABIRight3434Neurofibromatosis Type II02PULSAR ti100 ABIRight4758Meningitis04SYNCHRONY ABIRight48Meningitis05CONCERTO ABIRight715CHARGE syndrome/cochlear dysplasia06SYNCHRONY ABILeft49CHARGE syndrome/cochlear dysplasia07CONCERTO ABIRight6169Cochlear otosclerosis09SYNCHRONY ABIRight412Goldenhar syndrome10SYNCHRONY ABILeft6062Meningitis16SYNCHRONY ABIRight38Cochlear nerve aplasia17CONCERTO ABIRight312Cochlear aplasiaAge was rounded to whole years.
Morphology of LEP responses
In total 60,491 individual LEP responses were acquired in the study. On average, approximately 444.8 individual responses (SD: 180) were acquired for each participant at each stimulating electrode for both pulse polarities. The number of electrode contacts at which the responses were recorded for each participant are given in the supplementary data. LEP responses were examined by plotting the response amplitude as a function of time after stimulus onset. LEPs were characterized by an early negative-going peak followed by a steep positive-going peak, with the peak maxima denoted here as N and P, respectively (Fig. 2a).

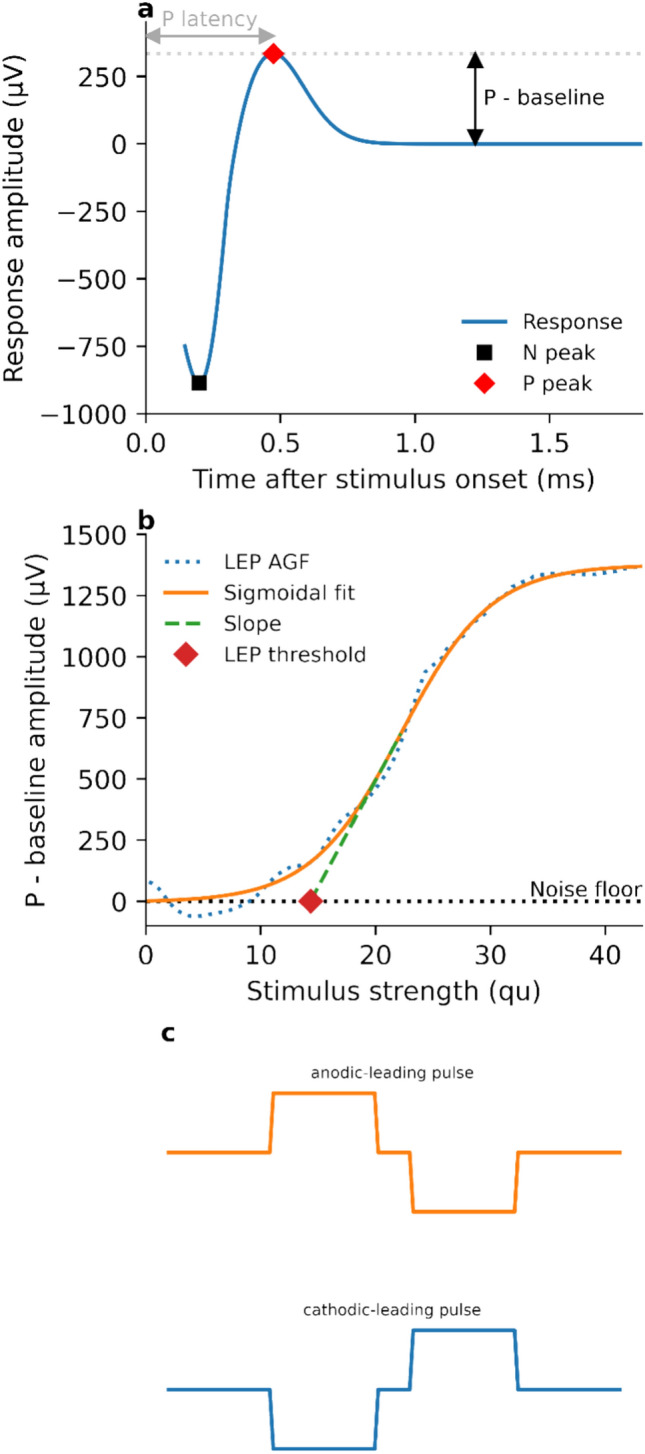

When the LEP response amplitude (P—baseline) was plotted as a function of the stimulus strength, a generally monotonic and sigmoidal AGF was observed (Fig. 2b). The slopes and thresholds of these AGFs were determined as described in the methods.
Effect of pulse polarity on LEP thresholds and the slope of the LEP AGF

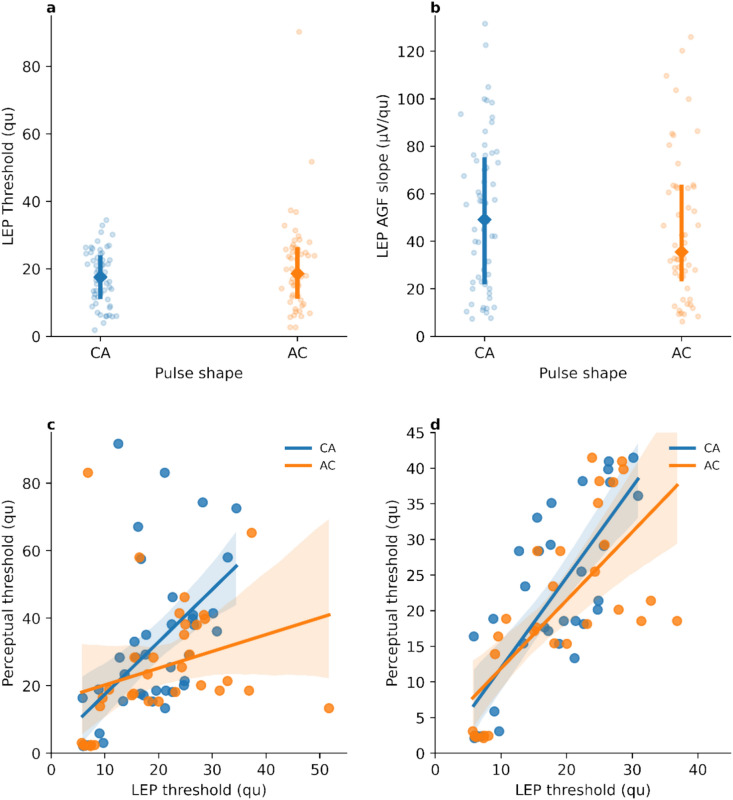

ANOVA of linear mixed effects models yielded non-significant results for all dependent variables (polarity, electrode and their interaction), indicating that there were no statistically significant differences between anodic- and cathodic-leading pulses on LEP thresholds or on LEP AGF slopes. The median values and the quartile ranges of the LEP thresholds and the AGF slopes are shown in Fig. 3a and b, respectively.Fig. 3. Distributions of (a) LEP thresholds and (b) LEP AGF slopes for the two pulse polarities CA and AC. The median values and inter-quartile ranges are indicated. Relationships between LEP thresholds and perceptual thresholds for (c) the complete data and (d) upon exclusion of outlier values (LEP and perceptual thresholds above 45 qu), respectively. Regression lines are shown. The error bands on the regression lines represent the 95% confidence intervals of the regression.
Correlation between pulse polarity and subjective hearing thresholds
LEP thresholds stimulated from cathodic-leading pulses were found to correlate strongly with perceptual thresholds (r = 0.54, t39 = 4.00, p < 0.001), while those stimulated from anodic-leading pulses did not significantly correlate with perceptual thresholds (r = 0.29, t32 = 1.70, p > 0.05) (Fig. 3c).
The correlation analysis was found to be affected by outlier threshold values above 45 qu (charge unites, approximately equivalent to 1 nC). These values were beyond 1.5 times the inter-quartile ranges for LEP and perceptual thresholds, and may result from the electrodes stimulating primarily (imperceptible) non-auditory activity. Upon exclusion of these outliers, perceptual thresholds were found to correlate strongly with LEP thresholds measured with both cathodic- and anodic-leading pulses (r = 0.77, t31 = 6.81, p < 0.0001 and r = 0.70, t27 = 45.14, p < 0.0001, respectively) (Fig. 3d).
Effect of pulse polarity on P latencies

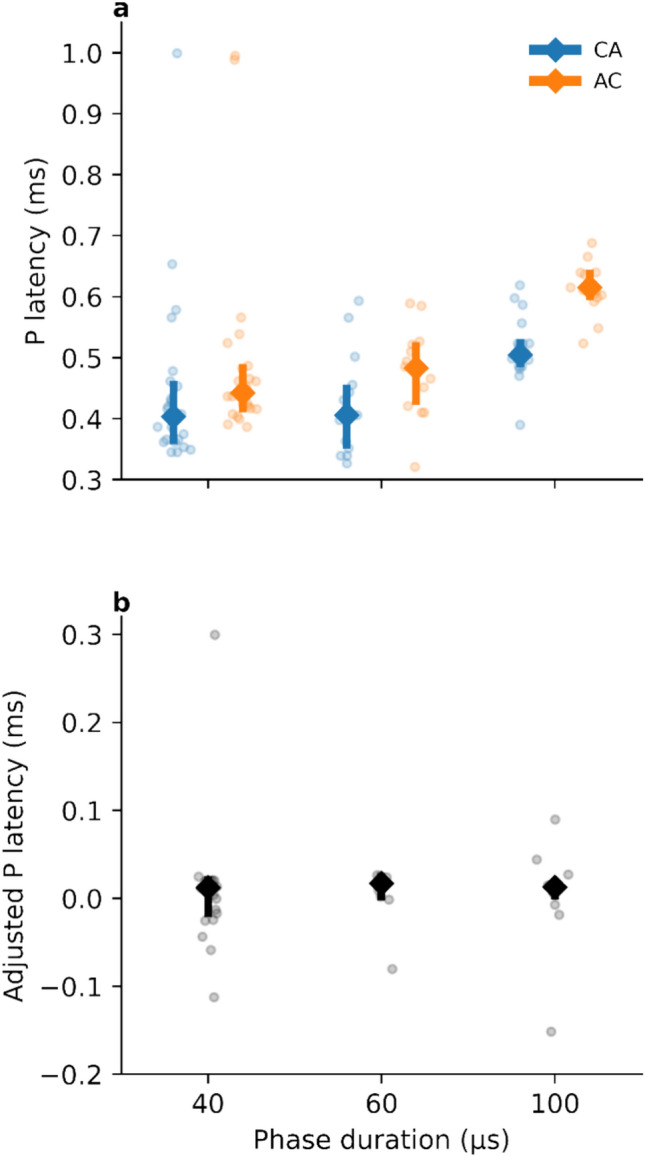

The mean P latencies were shorter for cathodic-leading pulses (462 µs ± 109 µs SD) than for anodic-leading pulses (521 µs ± 126 µs SD). Paired t-tests indicated that these differences were statistically significant (t104.8 = 2.63, p < 0.01).
