Combined immunization with SARS-CoV-2 spike and SARS-CoV nucleocapsid protects K18-hACE2 mice but increases lung pathology
Jaekwan Kim, Alla Kachko, Prabhuanand Selvaraj, David Rotstein, Charles Brandon Stauft, Naveen Rajasagi, Yangqing Zhao, Tony Wang, Marian Major
TL;DR
A vaccine combining SARS-CoV-2 spike and SARS-CoV nucleocapsid proteins protects mice from infection but may cause more lung damage.
Contribution
Demonstrates the protective and pathological effects of combining spike and nucleocapsid proteins in a vaccine.
Findings
Spike-nucleocapsid vaccines protected mice against SARS-CoV-2 in lungs and brain.
N1-immunized mice showed stronger immune responses but increased lung pathology.
Viral control may be linked to higher lung damage due to nucleocapsid's immunogenicity.
Abstract
Vaccines against SARS-CoV-2 have targeted the spike protein and have been successful at preventing disease. However, with the emergence of variants, spike-specific vaccines become less effective. The nucleocapsid protein is relatively conserved among variants of SARS-CoV-2 and is a candidate for addition to spike in next generation vaccines for the induction of T cell protection. Previous studies on SARS-CoV have suggested that the induction of an immune response to nucleocapsid could result in enhanced disease. Using the K18-hACE2 mouse model we investigated immunization with a variant nucleocapsid, from SARS CoV (N1) alone or in combination with spike from SARS-CoV-2 and compared this to nucleocapsid from SARS-CoV-2 (N2). The spike-nucleocapsid-based vaccines conferred protection against SARS-CoV-2 in lungs and brain and decreased lung pathology compared to control mice. However,…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8- —https://doi.org/10.13039/100000038U.S. Department of Health & Human Services | U.S. Food and Drug Administration (U.S. Food & Drug Administration)
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsSARS-CoV-2 and COVID-19 Research · COVID-19 Clinical Research Studies · Viral gastroenteritis research and epidemiology
Introduction
Severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) has infected more than 770 million people, with over 7 million deaths worldwide as of December 2024^1,2^. Vaccines targeting the spike (S) protein have been highly successful at preventing hospitalization and severe disease^3–5^. However, the S protein mutates over time, with variants of concern emerging at intervals with the potential to evade the immune responses induced by current vaccines^6–8^. The induction of broader and more enduring immune responses by vaccination is critical to preventing further outbreaks. Coronaviruses (CoV) encode four main structural proteins, S, membrane, envelope and nucleocapsid (N)^9^. The primary function of the N protein is to package the viral RNA genome and interact with the membrane proteins for virion assembly^10^. The N protein is highly immunogenic^11,12^, more conserved than S and represents a useful candidate as an additional target for inclusion in future next-generation vaccines^13^. The N protein is not presented on the virion surface, although it has been shown to be expressed on the surface of infected cells^14^, and the main mechanism of N-mediated protective immunity would be through the engagement of innate immune cells or targeting of infected cells through the induction of T cells. CD8+ cytotoxic T cells are pivotal in recognizing viral peptides presented on infected cells and executing their elimination. The orchestration of this response involves the release of cytokines, such as interferon-gamma (IFN-γ), tumor necrosis factor-alpha (TNF-α), and interleukins, which collectively amplify the immune reaction and contribute to antiviral defenses. T cells have been shown to be induced during SARS-CoV-2 infection and vaccination with S^15–19^. A recent publication demonstrated antibody-independent protection against SARS-CoV-2 from T cell immunity to the S antigen in mouse models^20^, further emphasizing the role that T cells can play in protection from SARS-CoV-2 infections. Several studies have been performed testing N either alone or in combination with other proteins, including S, in preclinical models for COVID-19 vaccines^21–25^. Recently it was shown that N combined with S for immunization of mice had a synergistic effect on protection from virus challenge and dissemination of the virus to the brain^24^. However, the use of the N antigen in vaccines presents concerns as previous studies on SARS-CoV suggested that the induction of an immune response to N could result in enhanced disease following infection with the virus^26^. In addition, despite the relative sequence conservation of the N protein among CoV isolates, adaptive mutations have been shown to arise^27,28^. The advantage of adding a T cell-based vaccination strategy is that T cell epitope escape in one individual will not necessarily result in T cell escape in another individual with a different MHC haplotype. However, a mismatch of the N protein used for vaccination with the circulating virus could lead to a sub-optimal response which could result in enhanced disease following exposure to SARS-CoV-2. In this study, we have explored the use of a mismatched N protein in protection and disease enhancement in the K-18-hACE2 transgenic mouse model using adenovirus vectors expressing the N protein of SARS CoV (Ad-N1) and of SARS CoV-2 (Ad-N2) delivered either alone or in combination with adenovirus expressing the SARS CoV-2 S antigen. We chose to use the N protein from the 2004 SARS-CoV instead of a sequence from a SARS-CoV-2 variant in part due to the previous reports of enhanced disease in mouse models with this antigen^26^, but also to study a more diverse antigenic sequence. Thus far, SARS-CoV-2 variants have exhibited only low-level diversity in the N protein (0-1.9%) (Supplementary Table 1). The use of the SARS-CoV N sequence with a 9.8% difference from the SARS-CoV-2 N protein (Supplementary Table 1) represents a worst-case scenario for immunization with a nucleocapsid-containing vaccine that does not match the infecting virus. In the absence of neutralizing antibody, we observed lower mortality and reduced lung pathology in Ad-N1 and Ad-N2 immunized mice following intranasal challenge with SARS-CoV-2, combined with better virus control, compared to control mice. The addition of Ad-S for immunization improved protection with reduced lung pathology, lower virus titers in lungs and brains of challenged mice and 100% survival. However, we observed increased lung pathology in mice immunized with Ad-N1 or Ad-N1 plus Ad-S compared to those immunized with Ad-N2 plus Ad-S or Ad-S alone. Overall, our data indicate that the inclusion of N in a vaccine can result in protection from SARS-CoV-2 infection even when the N antigen sequence is not homologous with the infecting virus, but this protection may be associated with higher inflammatory cell infiltration in the lungs.
Results
Ad-N1 and Ad-N2 induce SARS-CoV-2 specific immune responses in K18-hACE2 mice

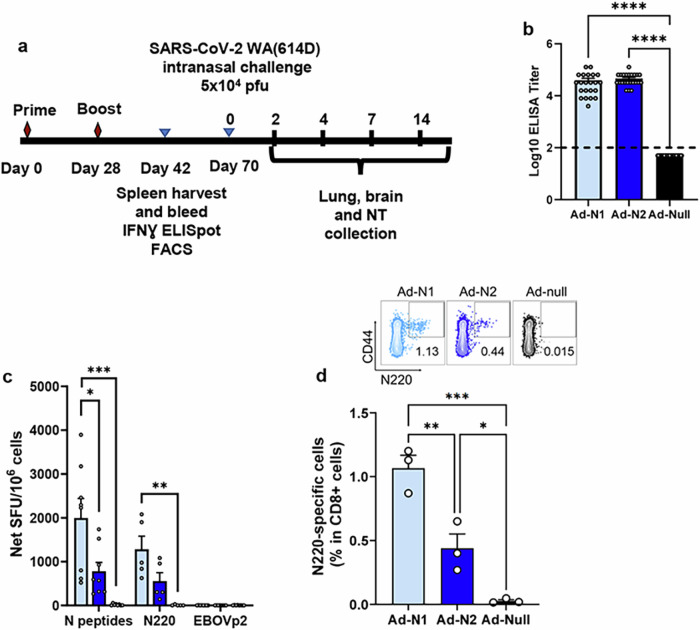

Immunogenicity of adenovirus constructs expressing the N protein of SARS-CoV (Ad-N1) or SARS-CoV-2 (Ad-N2) were tested in a prime-boost regimen with intramuscular inoculations on days 0 and 28 (Fig. 1a). Sera and spleens were collected 2 weeks after the second dose and analyzed for antibodies and T cell responses. Mice immunized with either Ad-N1 or Ad-N2 developed SARS-CoV-2 N binding antibodies (>4 log10 end point titer) (Fig. 1b), while no signal above background was observed in mice immunized with an Ad5 vector lacking a transgene (Ad-Null).Fig. 1. Immunization scheme and immunogenicity of Ad-N1 and Ad-N2.a Schedule of vaccination, virus challenge, and harvesting of analytes. b Nucleocapsid binding antibody endpoint titers in K18-hACE2 mice 2 weeks post boost. Titers falling below the lowest dilution of 1:100, as indicated by the dashed line, were assigned a value of 50. c Frequencies of IFN-γ expressing splenocytes after stimulation with overlapping peptides representing the N protein, N220 peptide, or a pool of Ebola virus peptides (EBOVp2) were assessed using ELIspot. d Frequencies of SARS-CoV-2 N220-specific CD8 T cells in freshly isolated splenocytes assessed using a dextramer. Error bars represent SEM. Each dot represents an individual mouse. Statistical analysis was conducted using one-way ANOVA with Tukey’s Multiple Comparisons. Significance levels are indicated as follows: *p < 0.05, **p < 0.01, ***p < 0.001, ****p < 0.0001. For clarity, comparisons that were not significant are not shown.
An IFN-γ ELIspot assay using overlapping peptide pools spanning the SARS-CoV-2 N sequence and a single N220 peptide previously shown to be a CD8+ T cell epitope in C57BL/6 mice^29^, demonstrated the induction of T cell responses in the Ad-N1 and Ad-N2 immunized mice (Fig. 1c). The dominant T cell response was to the peptide pool containing the N220 peptide and is consistent with the conservation of this epitope sequence in both the Ad-N1 (from SARS-CoV) and Ad-N2 (from SARS-CoV-2) constructs (Supplementary Fig. 1). Interestingly, we observed significantly higher IFN-γ ELIspot responses in the Ad-N1 immunized mice compared with the Ad-N2 immunized mice using peptide pools. Responses were also higher against the N220 peptide, but these did not reach significance compared to the Ad-N2 immunized mice. N220-specific CD8+ T-cells were detected in both groups using a N220 dextramer (Fig. 1d), the levels of dextramer-positive CD8+ T cells in the Ad-N1 group were significantly higher than those observed for the Ad-N2 group.
Higher CD8+ T cell responses are induced by Ad-N1 and higher CD4+ T cell responses are induced by Ad-N2

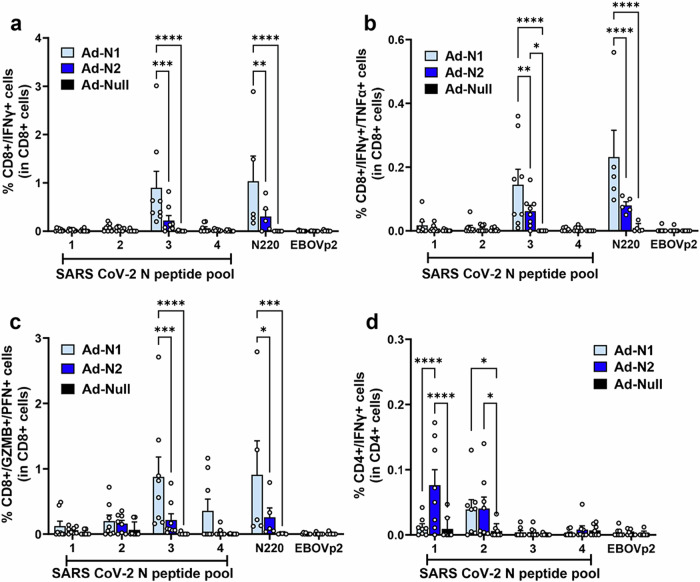

Using flow cytometry analysis N-specific CD4+ and CD8+ T cell responses were detected in the Ad-N1 and Ad-N2 immunized mice (Fig. 2a–d and Supplementary Fig. 2). CD8 + IFN-γ-producing cells were detected in both immunized groups using the same SARS-CoV-2 peptide pools used for the ELIspot analysis (Fig. 2a). As observed in the ELIspot studies, a significantly higher frequency of IFN-γ-positive CD8+ cells was detected in the Ad-N1 group compared with the Ad-N2 group following stimulation with peptide pools and a higher level was observed following stimulation with the N220 peptide alone (Fig. 2a). CD8+ T cells producing both IFN-γ and TNF-α (Fig. 2b) and granzyme-B and perforin (Fig. 2c) were also induced in both immunized groups of mice, with significantly higher levels observed in the Ad-N1 immunized group.Fig. 2. Flow cytometry analysis of splenocytes from Ad-N1, Ad-N2, Ad-Null immunized mice.Spleens were collected at 2 weeks post boost and analyzed by flow cytometry following in vitro stimulation with overlapping peptides of the SARS-CoV-2 N or a pool of Ebola virus antigen (EBOVp2). a Frequencies of CD8+ cells expressing IFN-γ following SARS CoV-2 N peptide stimulation. b Frequencies of CD8+ cells expressing both IFN-γ and TNF-α following SARS CoV-2 N peptide stimulation c Frequencies of CD8+ cells expressing both Granzyme B and Perforin following SARS CoV-2 N peptide stimulation. d Frequencies of CD4+ cells expressing IFN-γ SARS CoV-2 N peptide stimulation. Representative flow cytometry dot plots from one mouse per group are shown in Supplementary Fig. 2. Error bars represent SEM. Each dot represents an individual mouse. Statistical analysis was conducted using two-way ANOVA with Tukey’s Multiple Comparisons. Significance levels are indicated as follows: *p < 0.05, **p < 0.01. For clarity, comparisons that were not significant are not shown.
We were able to detect CD4+ T cells by flow cytometry in both immunized groups of mice, though at a lower frequency than seen for CD8+ cells (Fig. 2d). In the case of CD4 + IFN-γ-producing cells, we observed a significantly higher frequency in the Ad-N2 immunized mice, compared with the Ad-N1 group (Fig. 2d), while low levels of CD4+ cells producing IL4 were detected in all groups (Supplementary Fig. 3), indicating the induction of a Th1-type response in immunized mice.
Ad-N1 and Ad-N2 provide low-level protection in SARS-CoV-2 challenged mice

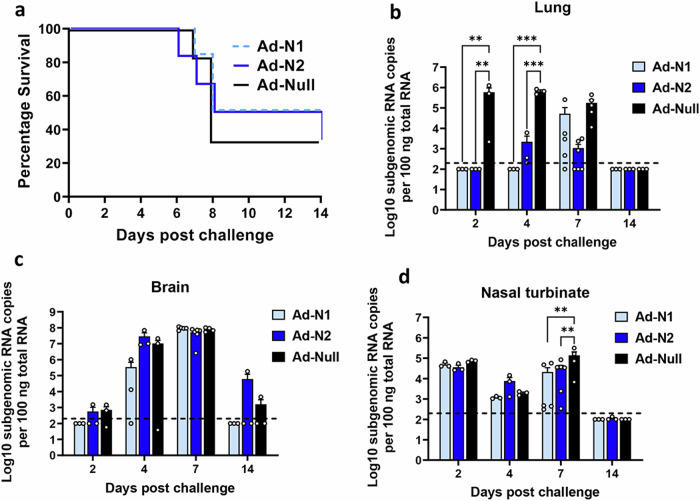

To assess the protective effect of immune responses induced against Ad-N1 or Ad-N2, K18-hACE2 mice were challenged 6 weeks after the 2^nd^ dose of vaccine with 5×10^4^ PFU SARS-CoV-2 (Washington strain, WA1/2020 (614D)) (Fig. 1a). This virus expresses N antigen homologous to the N protein encoded by the Ad-N2 recombinant. Ad-N1 and Ad-N2 immunized mice showed slightly better survival compared to Ad-Null immunized mice (Fig. 3a), although this was not found to be significant. Viral subgenomic RNA (sgRNA) titers in the lung, brain and nasal turbinate were assessed on days 2, 4, 7 and 14 post challenge. We observed significantly lower levels of sgRNA in the lungs of both Ad-N1 and Ad-N2 immunized mice at days 2 and 4 post challenge (Fig. 3b) compared with Ad-Null immunized mice. We also observed a lower level of sgRNA in Ad-N2 immunized mice at day 7 post-challenge. By day 14 post-challenge there was no detectable sgRNA in the lungs of any challenged mice (Fig. 3b). In contrast, we observed no significant differences in the levels of sgRNA in the brains (Fig. 3c) and only at day 7 in the nasal turbinates (Fig. 3d) for the immunized groups post-challenge compared to the Ad-Null group.Fig. 3. Survival and sgRNA levels in Ad-N1 and Ad-N2 immunized mice post SARS-CoV-2 challenge.a Kaplan–Meier survival curve of SARS-CoV-2-challenged K18-hACE2 mice. b-d Subgenomic viral RNA (sgRNA) levels in the lungs (b), brains (c), and nasal turbinate (d) of challenged mice. sgRNA copy numbers falling below the limit of detection (LOD) (200 copies), indicated by the dashed line, were set as half of the LOD. Error bars represent SEM, each dot represents an individual mouse. Statistical analysis was conducted using two-way ANOVA with Tukey’s Multiple Comparisons. Significance levels are indicated as follows: **p < 0.01, ***p < 0.001. For clarity, comparisons that were not significant are not shown.

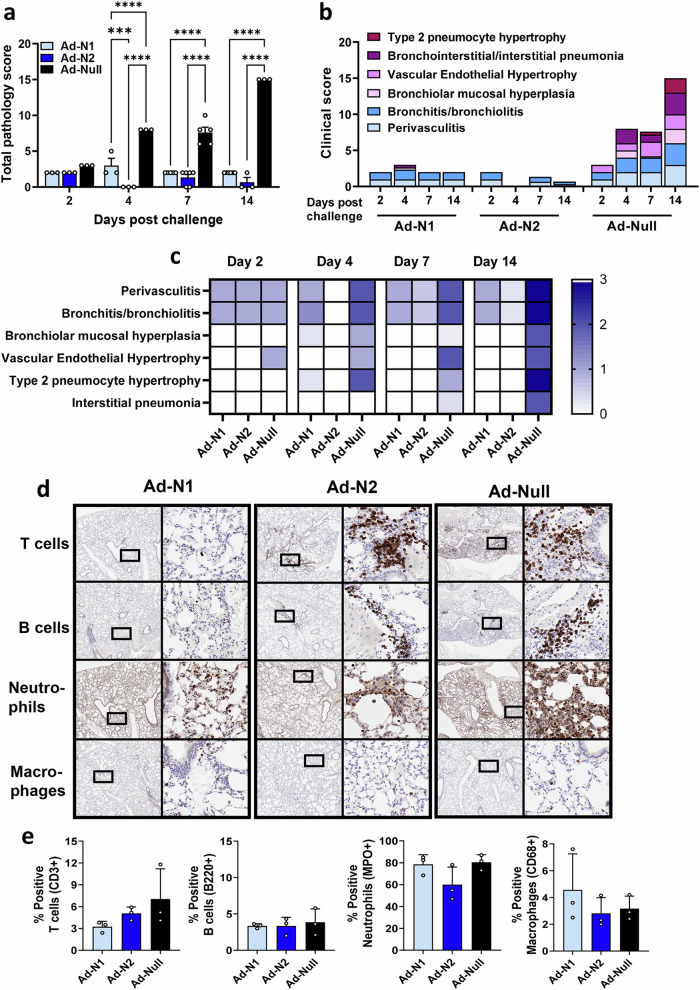

Inflammation and pathology scores were assessed in hematoxylin and eosin (H&E)-stained lung tissue sections obtained from challenged mice at days 2, 4, 7, and 14 (Fig. 4a). Significantly lower levels of inflammatory infiltration were observed in the Ad-N1 and Ad-N2 immunized groups throughout the follow-up period compared to the Ad-Null group (Fig. 4a). However, we observed elevated inflammatory infiltration in the Ad-N1 immunized mice compared to the Ad-N2 immunized mice at days 2 through 14 (Fig. 4a–c). Mild perivasculitis and bronchitis were observed in the Ad-N1 and Ad-N2 immunized groups, while Ad-Null mice exhibited intermediate symptoms (Fig. 4b, c and Supplementary Fig. 4). Starting from day 2, Ad-Null mice exhibited increased cellularity (hyperplasia/hypertrophy), whereas the Ad-N1 and Ad-N2 groups showed minimal symptoms. The progression of lung damage, including type 2 pneumocyte hypertrophy and interstitial pneumonia, was observed to increase in the Ad-Null group while these manifestations were barely detectable in the Ad-N1 and Ad-N2 groups (Fig. 4b, c and Supplementary Fig. 4). We performed immunohistochemistry staining of lung tissues from day 7 post-challenge for T cells, B cells, neutrophils and macrophages. We observed increased T and B cell infiltration in the lungs of Ad-Null mice compared to the N-immunized groups (Fig. 4d) and increased clusters of T and B cells in Ad-N2 immunized mice compared to Ad-N1 immunized mice (Fig. 4d). Although quantification of cell numbers in tissue sections did not show significant increases in total numbers of T or B cells in any group (Fig. 4e), we observed 1.5-2-fold higher levels of T cells in the Ad-N2 and Ad-Null groups compared with the Ad-N1 group. We observed high levels of neutrophil infiltrates in all three groups of challenged mice (Fig. 4d, e) and similar levels of macrophages (Fig. 4d, e).Fig. 4. Histopathology analysis of Ad-N1 and Ad-N2 immunized mice following SARS-CoV-2 challenge.Hematoxylin and eosin (H&E) staining was performed on paraffin-embedded lung tissues of mice in each group on specified days post-challenge. a Mean total pathology score for individual groups. The combined scores of six parameters for lung pathology are presented. b Mean inflammatory scores for each of six lung pathology parameters for individual groups. c Heatmap showing inflammatory levels in immunized mice post-challenge. d Immunohistochemistry staining for T cells, B cells, neutrophils and macrophages in lungs of immunized mice at 7 days post-challenge. Images are shown at low (2x) and high (20x) magnification. The box in the low-magnification image represents the area shown in the high-magnification image. e Percentage of positive T cells, B cells, neutrophils and macrophages in total scanned lung tissues. Error bars represent SEM, each dot represents an individual mouse. Statistical analysis was conducted using two-way ANOVA (a) or one-way ANOVA (e) with Tukey’s Multiple Comparisons. Significance levels are indicated as follows: ***p < 0.001, ****p < 0.0001. For clarity, comparisons that were not significant are not shown.
Addition of N impacts S immune responses in combined immunization
Our observations using Ad-N1 to immunize mice challenged with SARS-CoV-2 suggested that immune responses to heterologous N antigen still results in low level protection with reduced pathology compared to control challenged mice. We next assessed immune responses, challenge outcome and lung pathology following immunization with Ad-N1 or Ad-N2 in combination with an adenovirus construct expressing S (Ad-S). Results were compared with mice immunized with Ad-S alone or Ad-Null.

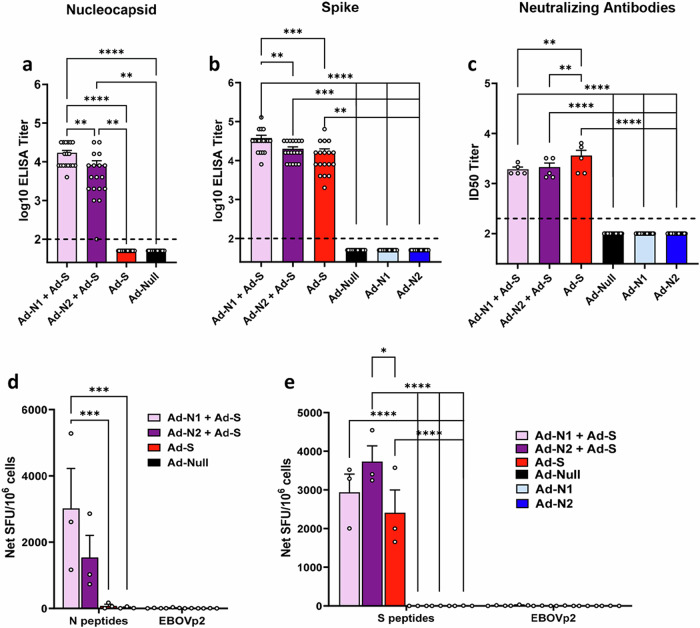

Binding assays showed that antibody responses specific to the test antigen were induced in all groups of immunized mice (Fig. 5a, b). No N-specific antibodies were detected in the Ad-S immunized group (Fig. 5a). Results for mice immunized with Ad-N1 and Ad-N2 alone are included to demonstrate that there is no cross-reactivity of N antibodies in combined immunizations (Fig. 5b and c). We observed significantly higher levels of S and N binding antibodies in the Ad-N1+Ad-S groups compared with the Ad-N2+Ad-S and Ad-S immunized mice (Fig. 5a, b) although we found significantly lower levels of neutralizing antibodies in the Ad-N+Ad-S immunized mice, whether with Ad-N1 or Ad-N2 compared with S alone (Fig. 5c).Fig. 5. Immune responses against SARS-CoV-2 S and N antigens after immunization with Ad-N1 or Ad-N2 combined with Ad-S or Ad-S alone.N antigen (a) and S antigen (b) binding antibody endpoint titers in K18-hACE2 mice two weeks post-boost. Titers falling below the lowest dilution of 1:100, as indicated by the dashed line, were assigned a value of 50. c Neutralization titers of sera collected two weeks post-boost using SARSpp-WA1 pseudotyped virus. A titer of 100 was assigned to samples that did not show 50% inhibition at the lowest dilution of 1:200. d Frequencies of IFN-γ expressing splenocytes after stimulation with overlapping peptides representing the SARS-CoV-2 N protein or EBOVp2 peptide pool were assessed using ELISpot assay. e Frequencies of IFN-γ expressing splenocytes after stimulation with overlapping peptides representing the SARS-CoV-2 S protein or EBOVp2 peptide pool were assessed using ELISpot assay. Error bars represent SEM, and each dot represents an individual mouse. Statistical analysis was conducted using one-way ANOVA with Tukey’s Multiple Comparisons. Significance levels are indicated as follows: **p < 0.01, ***p < 0.001, ****p < 0.0001. For clarity, comparisons that were not significant are not shown.
ELIspot analysis of IFN-γ production in cells stimulated with SARS-CoV-2 N or SARS-CoV-2 S peptide pools also showed specific responses in all immunized groups (Fig. 5d, e). Similar to that seen for the Ad-N1 and Ad-N2 alone (Fig. 1), there was a higher frequency of IFN-γ producing cells in the Ad-N1 + Ad-S immunized mice following N peptide stimulation compared with the Ad-N2 + Ad-S immunized mice (Fig. 5d). Splenocytes from all mice immunized with Ad-S, whether alone or in combination with Ad-N, produced IFN-γ following stimulation with S peptide pools (Fig. 5e), with higher levels being observed in the combined immunization groups compared to Ad-S alone.

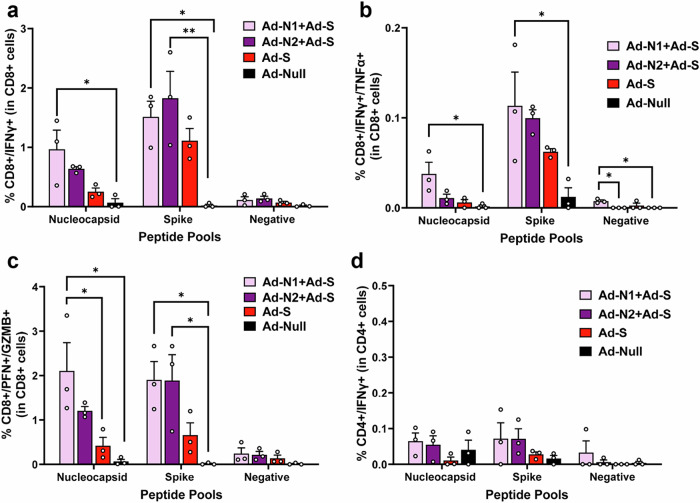

Using flow cytometry analysis N- and S-specific CD8+ T cell responses were detected in all immunized mice following peptide stimulation (Fig. 6 and Supplementary Fig. 5). As observed in the T cell studies using Ad-N1 and Ad-N2 alone, when cells were stimulated with N peptide pools a higher frequency of CD8+ cells producing IFN-γ (Fig. 6a), IFN-γ and TNF-α (Fig. 6b) and cells producing granzyme B and perforin (Fig. 6c) were observed in the mice immunized with Ad-N1+Ad-S compared with the mice immunized with Ad-N2+Ad-S, although the differences did not reach statistical significance. When splenocytes were stimulated with S peptide pools, CD8+ cells producing IFN-γ (Fig. 6a), IFN-γ and TNF-α (Fig. 6b) and granzyme B and perforin (Fig. 6c) were detectable in all Ad-S immunized groups. The levels in the Ad-N1+Ad-S and Ad-N2+Ad-S were consistently higher than the levels observed for the Ad-S only group. There was no specific detection of CD4+ cells producing IFN-γ for any of the immunized groups (Fig. 6d).Fig. 6. Flow cytometry analysis of splenocytes following combined immunization.Spleens were collected at 2 weeks post boost and analyzed by flow cytometry following in vitro stimulation with overlapping peptides of the SARS-CoV-2 N or S protein or a pool of Ebola virus antigen (EBOVp2). a Frequencies CD8+ cells expressing IFN-γ following SARS CoV-2 N and S peptide stimulation. b Frequencies CD8+ cells expressing both IFN-γ and TNF-α following SARS CoV-2 N and S peptide stimulation c Frequencies CD8+ cells expressing both Granzyme B and Perforin following SARS CoV-2 N and S peptide stimulation. d Frequencies CD4+ cells expressing IFN-γ SARS CoV-2 N and S peptide stimulation. Representative flow cytometry dot plots from one mouse per group are shown in Supplementary Fig. 5. Error bars represent SEM. Each dot represents an individual mouse. Statistical analysis was conducted using two-way ANOVA with Tukey’s Multiple Comparisons. Significance levels are indicated as follows: *p < 0.05, **p < 0.01. For clarity, comparisons that were not significant are not shown.
Combined Ad-N and Ad-S immunization results in survival but increased lung pathology compared to Ad-S immunization

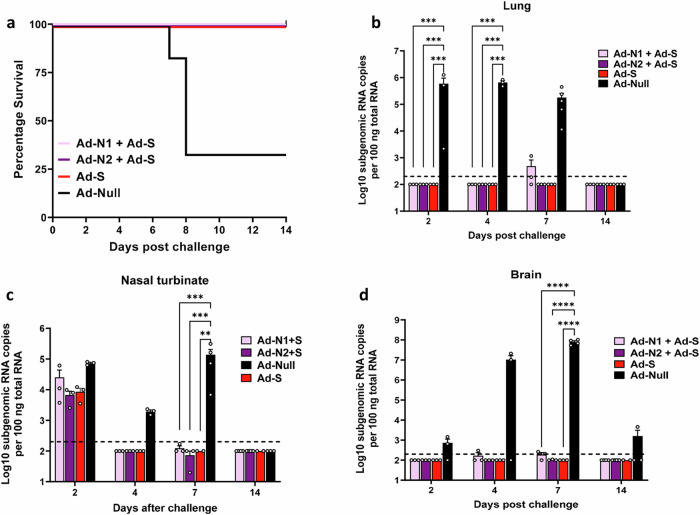

We next assessed the protective effect of S plus N immunization compared with S immunization alone in challenged mice. As for the studies using N alone, K18-hACE2 mice were challenged 6 weeks after the 2nd dose of vaccine with 5×10^4^ PFU SARS-CoV-2 (Washington strain, WA1/2020 (614D)) expressing N and S antigens homologous to the proteins encoded by the Ad-N2 and Ad-S recombinants (Fig. 1a). We observed 100% survival in animals that received Ad-S, whether alone or in combination with Ad-N1 or Ad-N2 (Fig. 7a). We were unable to detect sgRNA in the lungs of immunized mice except for two mice in the Ad-N1+Ad-S group on day 7 (Fig. 7b). For all immunized groups lung, nasal turbinate and brain sgRNA titers were lower than in the control Ad-Null group post-challenge (Fig. 7b–d) and at most time points were undetectable in the immunized mice.Fig. 7. Survival and sgRNA levels in Ad-N1 + Ad-S and Ad-N2 + Ad-S immunized mice post SARS-CoV-2 challenge.a Kaplan–Meier survival curve of SARS-CoV-2-challenged K18-hACE2 mice. Subgenomic viral RNA (sgRNA) levels in the lungs (b), nasal turbinate (c), and brains (d) of challenged mice. sgRNA copy numbers falling below the limit of detection (LOD) (200 copies), indicated by the dashed line, were set as half of the LOD. Error bars represent SEM, each dot represents an individual mouse. Statistical analysis was conducted using two-way ANOVA with Tukey’s Multiple Comparisons. Significance levels are indicated as follows: **p < 0.01, ***p < 0.001, ****p < 0.0001. For clarity, comparisons that were not significant are not shown.

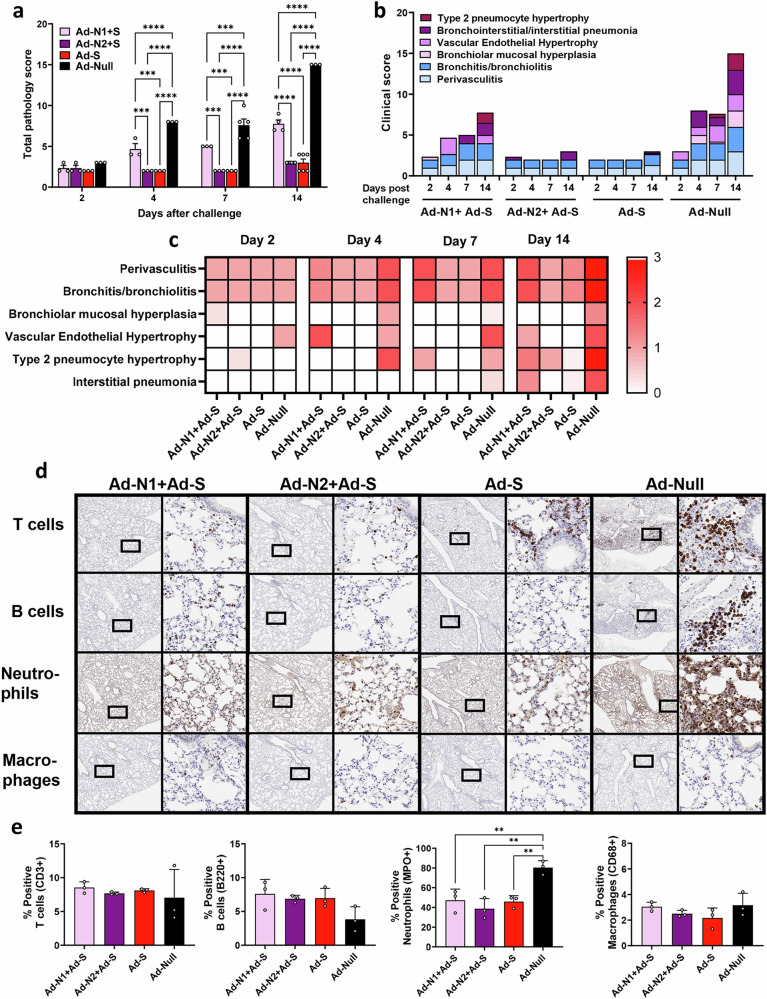

Inflammation and pathological scores were also assessed in H&E-stained lung tissue (Fig. 8a). The Ad-S immunized group exhibited very mild pathology progression, including a low degree of perivasculitis and bronchitis throughout, with minimal type 2 pneumocyte hypertrophy and interstitial pneumonia observed only at day 14 (Fig. 8b, c). The addition of Ad-N2 to Ad-S did not impact pathology scores, however, the inclusion of Ad-N1 with Ad-S resulted in increased pathology scores (Fig. 8a) and perivasculitis and bronchitis on all days post-challenge compared to the Ad-N2+Ad-S and Ad-S only groups (Fig. 8b, c and Supplementary Fig. 6). The Ad-N1+Ad-S group exhibited increased cellularity (hyperplasia/hypertrophy) and pneumonia progression, although the degree of cellularity increase and pneumonia progression was lower than that in the Ad-Null group (Fig. 8b, c). Of interest, the pathology observed following Ad-N1+Ad-S immunization was higher than that observed for Ad-N1 alone (Fig. 4). Immunohistochemistry staining of lung tissues on day 7 showed fewer T and B cell clusters in all groups compared to the Ad-Null group (Fig. 8d), as seen for animals immunized with N alone (Fig. 4), although we observed an overall higher frequency of T cells in the lungs of immunized mice (Fig. 8e) compared with the levels observed for the mice immunized with N alone (Fig. 4e). We also observed slightly higher total B cell numbers in the scanned tissue sections from the immunized mice (Fig. 8e). In contrast to the mice immunized with N antigen alone (Fig. 4), we observed lower levels of neutrophil infiltration in the lung tissues of immunized mice compared to the control mice (Fig. 8d, e) while observing similar low levels of macrophages in all groups (Fig. 8d, e).Fig. 8. Histopathology analysis of Ad-N1 + Ad-S and Ad-N2 + Ad-S immunized mice following SARS-CoV-2 challenge.H&E staining was performed on formalin-fixed paraffin-embedded lung tissues of mice in each group on specified days after challenge. a Mean total pathology score for individual groups. The combined scores of six parameters for lung pathology are presented b Mean inflammatory scores for each of six lung pathology parameters for individual groups. c Heatmap showing inflammatory levels in immunized mice post-challenge. d Immunohistochemistry staining for T cells, B cells, neutrophils and macrophages in lungs of immunized mice at 7 days post-challenge. Images are shown at low (2x) and high (20x) magnification. The box in the low-magnification image represents the area shown in the high-magnification image. e Percentage of positive T cells, B cells, neutrophils and macrophages in total scanned lung tissues. Error bars represent SEM. Statistical analysis was conducted using two-way ANOVA (a) or one-way ANOVA (e) with Tukey’s Multiple Comparisons. Significance levels are indicated as follows: **p < 0.01, ***p < 0.001, ****p < 0.0001. For clarity, comparisons that were not significant are not shown.
