Acetabular Home Run Screw Guidance for Transiliac Fixation in Cup Revision Arthroplasty
Martin Wessling, Carsten Gebert, Mohamed Marei, Marcel Dudda, Arne Streitbuerger, Mirko Aach, Lee Jeys, Sven Frieler, Daniela Koller, Yannik Hanusrichter

TL;DR
This study provides guidance for optimal screw placement in transiliac fixation during acetabular revision surgery to improve implant stability.
Contribution
The paper introduces a data-driven approach to determine ideal screw angles and entry points for transiliac fixation in acetabular revisions.
Findings
The average TIF length was 77 mm with a mean anteroposterior angle of 18° medially and 27° dorsally.
Entry points concentrated around the second radius and between the eleven o’clock and one o’clock positions.
Gender and height significantly influence the anteroposterior angle of TIF.
Abstract
Background/Objectives: The growing incidence of acetabular revisions has highlighted the importance of achieving reliable fixation to the remaining bone. Proximal transiliac fixation (TIF) of pelvic implants is becoming an increasingly common approach for managing extensive bone defects. This study seeks to provide guidance on TIF implantation by analyzing the optimal screw placement in partial pelvic replacements for acetabular defects. Methods: Between 2014 and 2024, a cohort of 96 consecutive patients (65 females and 31 males) who underwent customized partial pelvic replacement (PPR) with transiliac fixation (TIF) were examined. The angle and entry point of the ideal TIF were determined using preoperative three-dimensional planning and compared with potential influencing factors. Results: All PPRs were successfully implanted, with an average TIF length of 77 mm. The mean…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1

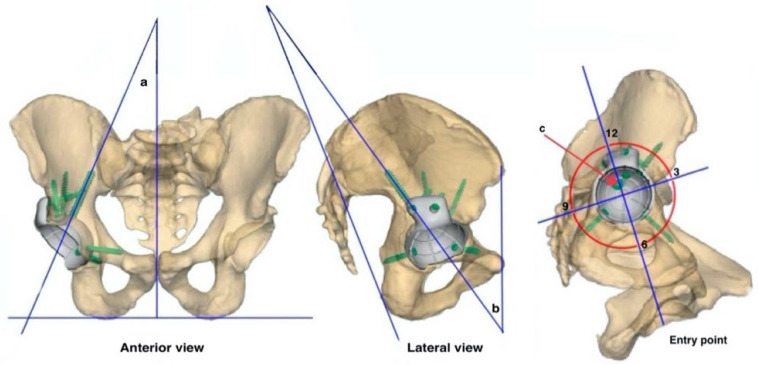

Figure 2

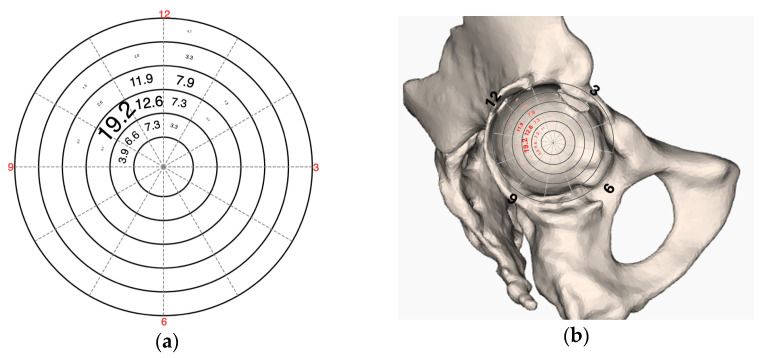

Figure 3

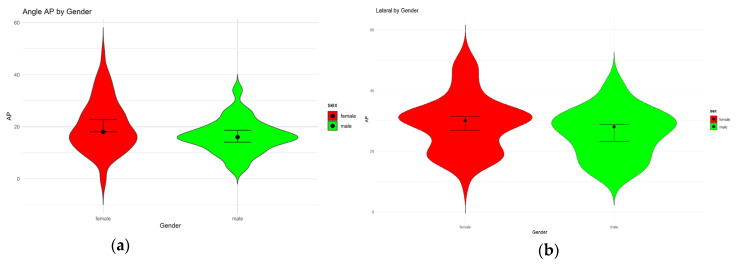

Figure 4Peer Reviews
