Design, Fabrication, and Surgical Testing of the 3D-Printed Large-Array Port-System for the Implantation of Large Epiretinal Stimulators
Frederic Kuba Balcewicz, Sabine Baumgarten, Kim Schaffrath, Jiayun Wang, Sandra Johnen, Peter Walter, Tibor Lohmann
TL;DR
Researchers designed and tested a 3D-printed device to help implant large retinal stimulators for treating blindness, improving surgical precision and safety.
Contribution
A novel 3D-printed implantation device for large epiretinal stimulators was developed and validated in surgical testing.
Findings
The 3D-PLAPS device improved ocular stability and sealed incisions during implantation.
It successfully facilitated implantation of stimulators up to 14.0 mm in diameter.
The device is adaptable for different eye sizes and could allow repositioning of arrays without additional surgery.
Abstract
In the treatment of blindness causing retinal dystrophies, that is, retinitis pigmentosa (RP), retinal implants showed promising results. Recently, larger devices restoring a greater visual field were introduced. With larger size, implantation surgery became more difficult. In this study, a novel implantation device was developed, fabricated, and tested in implantation surgeries. The goal was to demonstrate a reproducible, safe, and, in comparison, superior implantation method. The novel implantation device 3D-Printed Large-Array Port-System (3D-PLAPS) was designed using computer-aided design software. Anatomic dimensions of rabbit, pig, and human eyes were collected from anatomic and histological data sources. The 3D-PLAPS were 3D-printed. In cadaveric porcine and rabbit eyes, 3D-PLAPS was used to implant large epiretinal stimulators developed by this group. A standardized surgical…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6| Implant | Length | Width | Depth | Aperture | Suture Holes | Holes Diameter |
|---|---|---|---|---|---|---|
| 3D-PLAPS implantation device | 8.4 | 3.0 | 3.4 | 7.1 × 1.0 | 6 | 0.6 |
| 3D-PLAPS implantation device for rabbit eyes | 4.2 | 2.0 | 1.5 | 2.5 × 1.5 | 2 | 0.6 |
| 3D-PLAPS pre-implantation template | 12.0 | 3.5 – 4.8 | – | 8.7 × 0.3 | 6 | 0.8 |
| 3D-PLAPS pre-implantation template for rabbit eyes | 4.2 | 2.5 | – | 2.5 × 0.35 | 2 | 0.8 |
| 3D-PLAPS closing plug | 9.9 | 5.0 | 6.4 | – | – | – |
| 3D-PLAPS closing plug for rabbit eyes | 5.2 | 3.0 | 2.7 | – | – | – |
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsNeuroscience and Neural Engineering · Photoreceptor and optogenetics research · EEG and Brain-Computer Interfaces
Introduction
Retinal dystrophies, that is, retinitis pigmentosa (RP), are progressive diseases affecting the retinal pigment epithelium (RPE) and photoreceptors.1^,^2 RP is caused by various mutations coding for enzymes involved in retinal metabolism and light perception.3 RP affects approximately 1 in 5000 individuals worldwide.4 After onset nyctalopia, a progressive loss of visual field follows. In RP, preservation of inner retinal neurons can be seen, despite a nearly total loss of photoreceptors.4 Neurons, to which photoreceptors connect, partially survive.5^–^8 Currently, treatment options are limited with different treatments under evaluation: nutritional supplements, pharmaceutical therapies, retinal implants, gene therapy, and stem cell approaches.2^,^9^,^10 In previous clinical studies, it was shown that electrical retinal stimulation applied by microelectrodes can initiate a local neural response, leading to visual perception in clinically blind patients.11 Retinal stimulators have been used in patients with RP.12 With the introduction of the Argus II (Second Sight Medical Products, Sylmar, CA, USA), retinal stimulators were made commercially available to a larger group of clinicians and patients.13^,^14 For blind patients with RP, the re-activation of a larger visual field is important to regain mobility and orientation. Therefore, large-area retinal stimulators are the focus in current research.1^,^15^,^16 As published in 2019 by our group, a very large electrode array (VLARS) was introduced to obtain a large visual angle with 250 electrodes on a foldable epiretinal array.15 Further developments toward a larger area of stimulation followed.16^–^18
Generally, the implantation of larger arrays results in an increasingly more traumatic surgery.15 The demand for larger incisions yields a higher risk for intravitreal hemorrhage, retinal tearing and detachment, implant displacement due to uncontrolled intraocular flow, leakage and hypotonia, and proliferative tissue reactions.1^,^10^,^15^,^17^,^19 Results on the implantation surgery published by this group showed feasibility, yet adverse events, that is, retinal detachment or hemorrhage, occurred.15^,^17 Therefore, the introduction of a safer and more efficient surgery method for large-area electrode arrays is desired. Further, the possibility to reposition the implanted arrays in an acute setting is desirable.
In this study, we designed, produced, and surgically tested an implantation device for large epiretinal stimulators. The 3D-Printed Large-Array Port-System (3D-PLAPS) was tested in cadaveric porcine and rabbit eyes for its surgical feasibility. Further, intraocular pressure (IOP) while using the 3D-PLAPS was evaluated. The aim was to create an implantation device which facilitates a safer surgery with stable IOP, reduced leakage, and the possibility to adjust the position of epiretinal stimulators during surgery, without the need for additional incisions or sutures.
Materials and Methods
Fabrication
Computer-Aided Design
To design the devices, 3D computer-aided design software AutoCAD 2022, Inventor 2022, and Fusion360 2022 (Autodesk, San Rafael, CA, USA) were used.
Dimensions of 3D-PLAPS Three-Part System
The 3D-PLAPS was designed in two planes: (1) a rectangular support frame to be sewed onto the sclera, and (2) an intraocular elliptical tube with a depth of 3.4 mm. The 3D-PLAPS was designed with a length of 8.4 mm and width of 3.0 mm. The elliptical aperture is measuring 7.0 mm in diameter and an opening width of 1.0 mm at its widest point. The aperture's wall thickness is 0.3 mm (Figs. 1A, 1D). For additional stability, the device is adapted to the curvature of normal sighted human eyes with an axial length (AL) of 24.0 mm. Apertures for scleral suturing were added to the base of the device (see Fig. 1A). To secure appropriate intraoperative stability, 6 marginal apertures were added, 0.6 mm in diameter each. The 3D-PLAPS can be occluded using a custom-made closing plug (see Figs. 1B, 1D). For correct surgical positioning of the 3D-PLAPS, a pre-implantation template was designed (see Figs. 1C, 1D). In summary, the 3D-PLAPS consists of three parts: a pre-implantation template, the device itself, and a closing plug (dimensions shown in the Table). For in vivo rabbit experiments, we adapted the design and dimensions of the 3D-PLAPS to the smaller rabbit eye with an AL of 16.0 mm with a more curved scleral base. Total length was shortened to 4.2 mm, width was shortened to 2.0 mm. The aperture's shape was changed to rectangular with a 2.5 × 1.5 mm opening. Suture holes have been reduced from six to two holes closer to the opening (see the Table). The intraocular part has been shortened to 1.5 mm in respect to the relative size comparing rabbit to human or porcine eyes.20

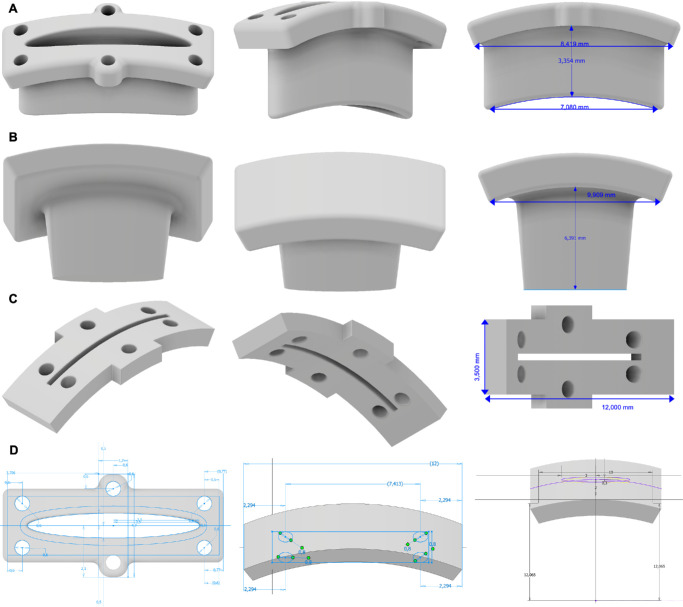

The 3D-PLAPS implantation device, closing plug, and pre-implantation template dimensions as 3D pictures in computer-aided design software Inventor 2022 (Autodesk, Rehovot, Israel); 3D-PLAPS oblique front, side-view with intraocular reaching elliptic tube, elliptic aperture width (1.0 mm), length (7.1 mm), complete length (8.4 mm), and intraocular depth (3.4 mm) (A); 3D-PLAPS closing plug depth (6.4 mm) and length (9.9 mm) (B); pre-implantation template length (12.0 mm) and width (3.5 mm) (C); 3D-PLAPS design in computer-aided software Inventor; 3D-PLAPS, pre-implantation template, and closing plug measurements (D) during the design and fabrication processes.

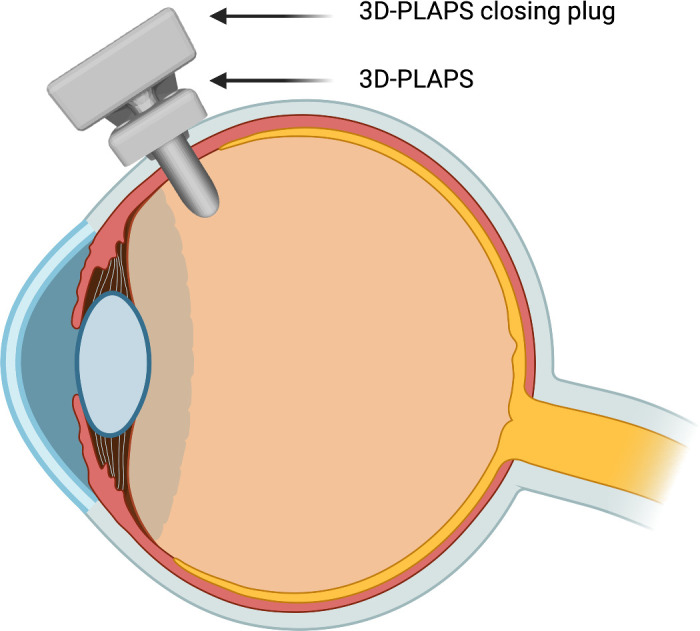

Figure 2 displays a schematic sagittal illustration of a human eye implanted with the 3D-PLAPS and 3D-PLAPS closing plug at the pars plana.
Schematic sagittal illustration of 3D-PLAPS and closing plug aligned at the pars plana of a human eye, 3D-PLAPS in closed stage after insertion; Created in BioRender. Balcewicz, F. (2024), https://BioRender.com/k06s246.
Three Dimensional Printing
The 3D-printing was performed using the Objet350 and Objet500 Connex 3 systems (Stratasys, Rehovot, Israel) at the Center for Biohybrid Medical Systems (CBMS) in Aachen, Germany (Institute of Applied Medical Engineering, RWTH University Aachen, Aachen, Germany). In its initial iteration, the 3D-PLAPS was fabricated using HighTemperatureWhite 3D-printing material (SDS-06109 EN A, RGD525; Stratasys, Rehovot, Israel). RGD810 (VeroClear; Stratasys, Rehovot, Israel) was utilized for later iterations. Printed structures needed to be cleaned with mechanical instruments (Geuder AG, Heidelberg, Germany) and 70.0% ethanol to minimize residues.
Cadaveric Eye Experiments
The surgical feasibility and device handling was tested in porcine and rabbit eyes in a similar setting to human ophthalmologic surgeries. All animal experiments were performed according to the ARVO declaration for the use of animals in research and adhered to the “Principles of laboratory animal care” (NIH publication No. 85-23, revised 1985), the OPRR Public Health Service Policy on the Human Care and Use of Laboratory Animals (revised 1986), and the US Animal Welfare Act, as well as according to the German Law for the Protection of Animals and after obtaining approval by local authorities and ethics committee.
Surgeries were performed using a surgical microscope (Zeiss OPMI MDO S5 Ophthalmology Surgical Microscope; Carl Zeiss Meditech, Oberkochen, Germany) by an experienced retinal surgeon (author T.L.) using a phacoemulsification and vitrectomy device (Fritz Ruck Pentasys 1 Phaco Emulsifier, Fritz Ruck Ophthalmologische Systeme; GmbH, Eschweiler, Germany).

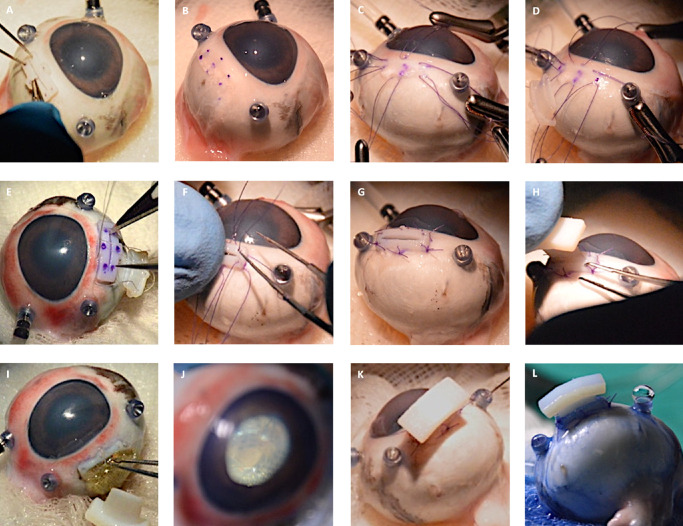

Porcine cadaveric eyes were stabilized in a custom-made 3D-printed holding device. We performed a corneal abrasion on selected porcine eyes using a Szurman DMEK Preparation Scraper (Geuder, Heidelberg, Germany) in case of advanced epithelial edema for better visibility. Additionally, Glycerin 0.25% eye drops (Pharmacy of the RWTH University Hospital, Aachen, Germany) were used on the corneal surface to further reduce opacity. Three 23-gauge trocars (EVA AVETA 23G Cannula set with high flow infusion line, D.O.R.C. Dutch Ophthalmic Research Center International B.V., Zuidland, The Netherlands) for infusion, a cutter (High Speed vitrector Cutter UNO Colorline 23G; Geuder AG, Heidelberg, Germany) and a light source (fiber optic S UNO Colorline 23G; Geuder AG, Heidelberg, Germany) were set 3.5 mm distally from the corneal limbus in the following positions: nasal superior, temporal superior, and temporal inferior. A balanced salt solution infusion was connected to maintain a constant IOP. The lens was removed by phacoemulsification followed by complete vitrectomy (Fritz Ruck Pentasys 1 Phaco Emulsifier). The 3D-PLAPS pre-implantation template was placed episclerally between two 23G trocar ports, approximately 3.5 mm distally from the corneal limbus (Fig. 3A). Six suture points were marked (Fig. 3B). The template was removed, and 6 intrascleral 6-0 Vicryl monophilic seams (ETHICON; Johnson & Johnson, New Brunswick, NJ, USA) were placed (Figs. 3B–D). The 3D-PLAPS template was placed episclerally, an 8.7 mm incision was performed using a disposable scalpel (Feather disposable scalpel number 11; Feather Safety Razor Co., LTD., Osaka, Japan; Fig. 3E). After the template was removed, the 3D-PLAPS was inserted (see Figs. 3E, 3F). The base of the 3D-PLAPS was sutured onto the sclera (Fig. 3G) and the 3D-PLAPS closing plug was inserted (Fig. 3H). Handling was tested with the implantation of the VLARS and a novel epiretinal stimulator (Dense Electrode Array for Retinal Stimulation [DEARS]) developed by our group (unpublished data, E. Ghosh et al., 2024; Figs. 3I, 3J).15 The surgery in rabbits followed the steps as described above except the 23-gauge trocars were placed approximately 2.0 mm distally of the limbus. The surgery was conducted on decapitated heads rather than enucleated eyes (Figs. 4A–G). Design and dimensions were kept the same as for the porcine eyes in the first iterations. Those designs can be seen in Figures 4A to 4C. Figures 4D to 4H display 3D-PLAPS in its design for porcine experiments. In later experiments, the dimensions of the 3D-PLAPS were changed and a novel design was established (see the Table). Surgery steps are shown in Figures 4A to 4C. Insertion experiments are displayed in Figures 4D to 4F. Post-surgery images of the 3D-PLAPS, the 3D-PLAPS pre-implantation template, the 3D-PLAPS closing plug, and the implanted epiretinal stimulator were taken to evaluate possible signs of damage or utilization (Fig. 5).
Porcine eye. Ophthalmological vitrectomy setup consisting of three 23G trocars (EVA AVETA23G Cannula set with high flow infusion line, Article No: 1272.ED23, D.O.R.C. Dutch Ophthalmic Research Center (International) B.V., Zuidland, The Netherlands), running infusion, marking of 6 suture points with surgical marker using 3D-PLAPS pre-implantation template (A, marked in B), suturing process with 6-0 Vicryl surgical suture (ETHICON; Johnson & Johnson, New Brunswick, NJ, USA) and stabilized by 6 Dieffenbach serrefine forceps (Geuder AG, Heidelberg, Germany) (C), attachment of 3D-PLAPS device onto 3 bottom sutures (D), use of pre-implantation template for marking of incision points, scalpel (size 11) incision (Feather disposable scalpel, Feather Safety Razor Co., LTD., Osaka, Japan, Socorex Isba SA, Ecublens/Lausanne, Switzerland) (E), scleral fixation of 3D-PLAPS with 6-0 Vicryl surgical sutures (F), result of attachment (G), adapting the closing plug to the device (H), implantation of VLARS epiretinal stimulator dummy through 3D-PLAPS and correct positioning inside eye cavity epiretinally (I, J), trypan blue tests for sealing and leakage (Vioron Vial 0.5 mL, G-81001, 1000188, Fluoron GmbH, Ulm, Germany), semi-quantitative flow analysis inside eye (K, L) (showing the closing plug on 3D-PLAPS with leakage of the infusion trough 23G trocar system).

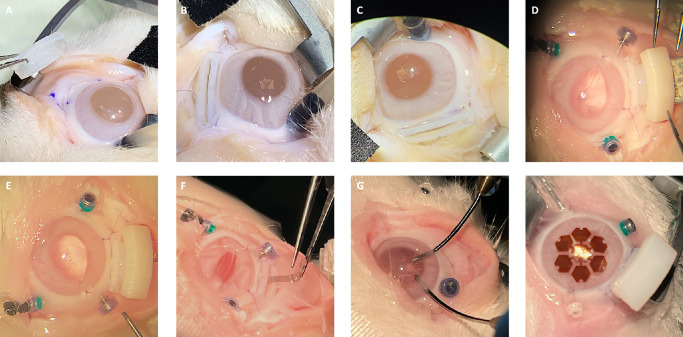

Albino rabbit eye in its orbit. Insertion of 3D-PLAPS using a micro colibri forceps and Cook eye speculum (Geuder AG, Heidelberg, Germany) (A), fixation using ophthalmological surgery sutures (B), inserted into scleral incision, and fixated under a microscope (C), 23G vitrectomy trocar set (EVA AVETA 23G Cannula set with high flow infusion line, Article No: 1272.ED23, D.O.R.C. Dutch Ophthalmic Research Center (International) B.V., Zuidland, The Netherlands), fixated and closed using 3D-PLAPS closing plug (D), insertion experiments (D–F), irrigation and aspiration (G), mounded 3D-PLAPS, novel developed DEARS (E) (Ghosh et al., 2024) lying on the cornea, pressured eye (H).

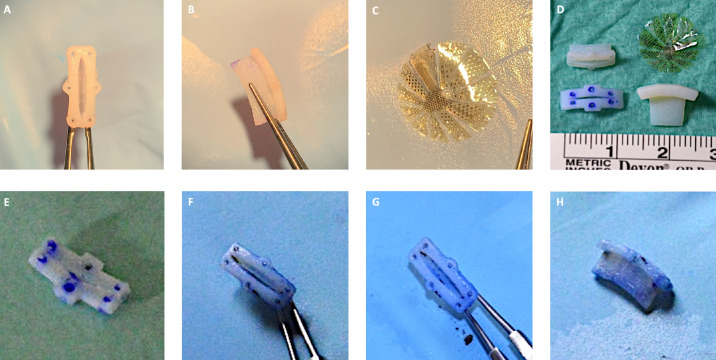

Porcine cadaveric eye, 3D-PLAPS post-surgery: upper view (A), side view (B), VLARS dummy from top (C), scale of all used 3D-PLAPS – instruments and VLARS (D), 3D-PLAPS and pre-implantation template post-surgery, upper view of the template (E), upper view of the 3D-PLAPS (F, G), side view of the 3D-PLAPS (H); visible blue coloring comes from surgical marker and trypan blue leakage and sealing measurements.
Pressure Measurements
Indentation tonometry was performed with a Schiötz type tonometer (Geuder AG, Heidelberg, Germany) in the closed and opened states of the 3D-PLAPS. Measurements were conducted with the infusion turned on and off (Fig. 6). The IOP was set to 33.75, 45.00, 60.00, and 79.50 millimeters of mercury (mm Hg) over the infusion, followed by repeated (5 times) IOP measurements for each step. The objective was to confirm the absence of leakage and the maintenance of IOP. Trypan Blue (Vioron Vial 0.5 mL, G-81001, 1000188; Fluoron GmbH, Ulm, Germany) was intravitreally injected to visualize leakage (Figs. 3K, 3L).

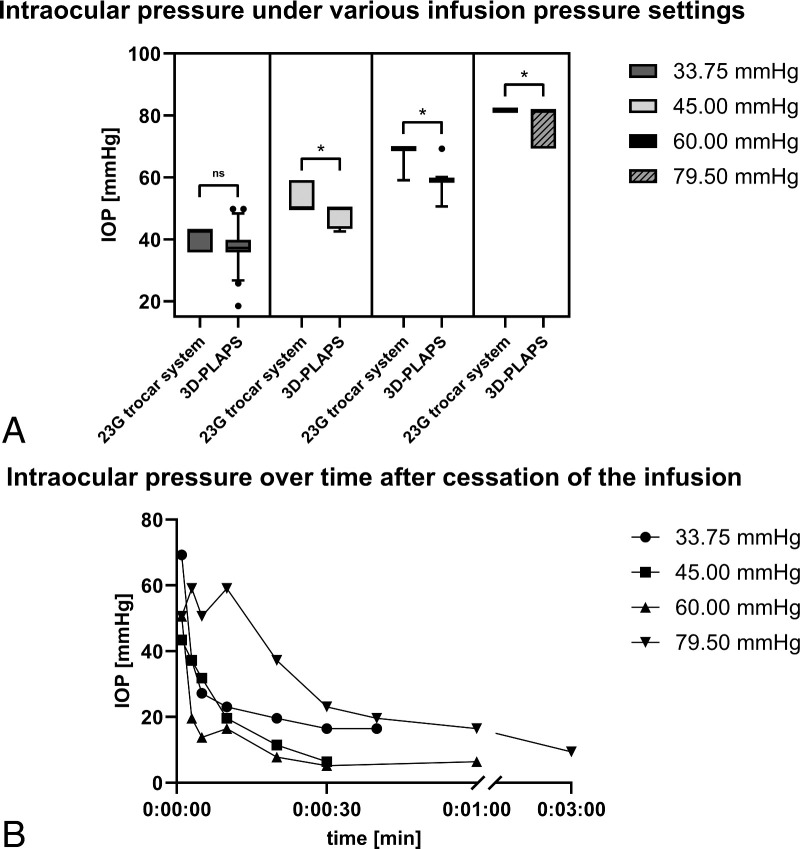

Pressure experiments with 23G trocar system both with and without additional implementation of 3D-PLAPS. (A) Results of intraocular pressure (IOP) measurements with running infusion under various infusion pressure settings, with the 3D-PLAPS closed using its closing plug. (B) Results of IOP stability over time after cessation of the infusion, with the 3D-PLAPS closed using its closing plug. (A) The graph shows an analysis of resulting IOP levels obtained using either a 23G trocar port system alone or in conjunction with the 3D-PLAPS in a closed configuration. The measurements were conducted using a Schioetz tonometer at four distinct pressure intervals (33.75 mm Hg, 45.00 mm Hg, 60.00 mm Hg, and 79.50 mm Hg). At each pressure interval, five pressure data points were analyzed. The results were compared to the corresponding pressure data gained without the setup of 3D-PLAPS. Bars were calculated as mean ± SD. Whiskers represent the 10th and 90th percentiles. Maxima and minima are displayed as black dots. Ordinary 1-way ANOVA (Dunnett’s multiple comparison test) was used. A P value of < 0.05 was considered statistically significant. Significance is marked an asterisk (), not significant differences is marked with “ns.” (B) The graph shows the timespan of IOP values after cessation of the infusion (0:00:00 seconds). IOP measurements were recorded using a Schioetz tonometer at time intervals of 1 second, 3 seconds, 5 seconds, 10 seconds, 20 seconds, 30 seconds, 40 seconds, 60 seconds, and 180 seconds. For each set infusion pressure, the same IOP-measurement method was performed.*
