The genome sequence of the Gold Spot moth, Plusia festucae (Linnaeus, 1758)
Tom Prescott, David Hill, Stuart Bence, Arun Arumugaperumal, Sivasankaran Kuppusamy
TL;DR
The genome of the Gold Spot moth is sequenced, providing insights into its genetic makeup and structure.
Contribution
The first genome assembly of the Gold Spot moth, including chromosomal scaffolding and gene annotation.
Findings
The genome assembly is 422.50 megabases long with 99.92% scaffolded into 31 chromosomal pseudomolecules.
The mitochondrial genome is 15.3 kilobases in length.
Gene annotation identified 19,273 protein-coding genes.
Abstract
We present a genome assembly from an individual male specimen of Plusia festucae (Gold Spot; Arthropoda; Insecta; Lepidoptera; Noctuidae). The genome sequence has a total length of 422.50 megabases. Most of the assembly (99.92%) is scaffolded into 31 chromosomal pseudomolecules, including the Z sex chromosome. The mitochondrial genome has also been assembled and is 15.3 kilobases in length. Gene annotation of this assembly on Ensembl identified 19,273 protein-coding genes.
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5| Project information | |||
|---|---|---|---|
|
| Plusia festucae (rice looper) | ||
|
| PRJEB61357 | ||
|
|
| ||
|
| SAMEA112198470 | ||
|
| 254382 | ||
| Specimen information | |||
|
|
|
|
|
|
| ilPluFest1 | SAMEA112198509 | thorax |
|
| ilPluFest1 | SAMEA112198508 | head |
|
| ilPluFest1 | SAMEA112198509 | thorax |
| Sequencing information | |||
|
|
|
|
|
|
| ERR11242562 | 9.37e+08 | 141.48 |
|
| ERR11242138 | 2.77e+06 | 28.75 |
|
| ERR12245559 | 7.66e+07 | 11.57 |
| Genome assembly | ||
|---|---|---|
| Assembly name | ilPluFest1.1 | |
| Assembly accession | GCA_950381575.1 | |
|
|
| |
| Span (Mb) | 422.50 | |
| Number of contigs | 85 | |
| Number of scaffolds | 37 | |
| Longest scaffold (Mb) | 22.71 | |
| Assembly metrics
|
| |
| Contig N50 length (Mb) | 10.6 |
|
| Scaffold N50 length (Mb) | 14.7 |
|
| Consensus quality (QV) | 68.0 |
|
|
| 100.0% |
|
| BUSCO v5.4.3 lineage
| C:98.8%[S:98.5%,D:0.3%],
|
|
| Percentage of assembly mapped
| 99.92% |
|
| Sex chromosomes | Z |
|
| Organelles | Mitochondrial genome: 15.3 kb |
|
| Genome annotation of assembly GCA_950381575.1 at Ensembl | ||
| Number of protein-coding genes | 19,273 | |
| Number of gene transcripts | 19,442 | |
| INSDC accession | Name | Length (Mb) | GC% |
|---|---|---|---|
| 1 | 16.78 | 35.5 | |
| 2 | 16.65 | 36.0 | |
| 3 | 16.53 | 35.5 | |
| 4 | 16.48 | 36.0 | |
| 5 | 16.43 | 35.0 | |
| 6 | 16.01 | 35.5 | |
| 7 | 15.57 | 35.0 | |
| 8 | 15.41 | 35.0 | |
| 9 | 15.36 | 35.5 | |
| 10 | 15.04 | 35.0 | |
| 11 | 14.76 | 35.0 | |
| 12 | 14.67 | 36.0 | |
| 13 | 14.57 | 35.5 | |
| 14 | 14.53 | 35.5 | |
| 15 | 14.31 | 35.0 | |
| 16 | 14.07 | 35.5 | |
| 17 | 13.66 | 35.5 | |
| 18 | 13.54 | 35.0 | |
| 19 | 13.02 | 36.0 | |
| 20 | 12.96 | 36.0 | |
| 21 | 12.69 | 35.5 | |
| 22 | 11.92 | 36.5 | |
| 23 | 11.54 | 35.5 | |
| 24 | 10.8 | 35.5 | |
| 25 | 10.16 | 35.5 | |
| 26 | 10.1 | 35.5 | |
| 27 | 9.38 | 37.5 | |
| 28 | 8.33 | 36.5 | |
| 29 | 7.53 | 37.0 | |
| 30 | 6.75 | 37.5 | |
| Z | 22.71 | 35.5 | |
| MT | 0.02 | 20.5 |
| Software tool | Version | Source |
|---|---|---|
| BEDTools | 2.30.0 |
|
| BLAST | 2.14.0 |
|
| BlobToolKit | 4.3.7 |
|
| BUSCO | 5.4.3 and 5.5.0 |
|
| bwa-mem2 | 2.2.1 |
|
| Cooler | 0.8.11 |
|
| DIAMOND | 2.1.8 |
|
| fasta_windows | 0.2.4 |
|
| FastK | 427104ea91c78c3b8b8b49f1a7d6bbeaa869ba1c |
|
| Gfastats | 1.3.6 |
|
| GoaT CLI | 0.2.5 |
|
| Hifiasm | 0.19.8-r587 |
|
| HiGlass | 44086069ee7d4d3f6f3f0012569789ec138f42b84aa
|
|
| Merqury.FK | d00d98157618f4e8d1a9190026b19b471055b22e |
|
| MitoHiFi | 3 |
|
| MultiQC | 1.14, 1.17, and 1.18 |
|
| NCBI Datasets | 15.12.0 |
|
| Nextflow | 23.04.0-5857 |
|
| PretextView | 0.2.5 |
|
| purge_dups | 1.2.5 |
|
| samtools | 1.16.1, 1.17, and 1.18 |
|
| sanger-tol/ascc | - |
|
| sanger-tol/genomenote | 1.1.1 |
|
| sanger-tol/readmapping | 1.2.1 |
|
| Seqtk | 1.3 |
|
| Singularity | 3.9.0 |
|
| YaHS | 1.2a.2 |
|
- —Wellcome Trust
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsLepidoptera: Biology and Taxonomy · Insect Resistance and Genetics · Genetic diversity and population structure
Species taxonomy
Eukaryota; Opisthokonta; Metazoa; Eumetazoa; Bilateria; Protostomia; Ecdysozoa; Panarthropoda; Arthropoda; Mandibulata; Pancrustacea; Hexapoda; Insecta; Dicondylia; Pterygota; Neoptera; Endopterygota; Amphiesmenoptera; Lepidoptera; Glossata; Neolepidoptera; Heteroneura; Ditrysia; Obtectomera; Noctuoidea; Noctuidae; Plusiinae; Plusia; Plusia festucae (Linnaeus, 1758) (NCBI:txid254382)
Background
The Gold Spot moth, Plusia festucae ( Figure 1) is a member of the family Noctuidae. It is found throughout the Palaearctic realm from Ireland to Japan ( GBIF Secretariat, 2023). It is widespread throughout Britain and Ireland, and is fairly frequent in suitable habitats ( Waring et al., 2017). This is a colourful and distinctive moth, with a reddish-brown forewing with golden blotches, and two silvery-white central marks ( Waring et al., 2017). The larvae feed on Carex, Sparganium erectum, Iris pseudacorus and Alisma ( Robinson et al., 2023).
Photograph of Plusia festucae (not the specimen used for genome sequencing) by Jerzy Strzelecki.
The Plusia festucae genome Here we present a chromosomal-level genome sequence for Plusia festucae, based on a male specimen from Glenmore, Isle of Bute, Scotland, United Kingdom. It was sequenced as part of the Darwin Tree of Life Project, a collaborative effort to sequence all named eukaryotic species in the Atlantic Archipelago of Britain and Ireland ( Darwin Tree of Life Project Consortium, 2022).
Genome sequence report
The genome of Plusia festucae was sequenced using Pacific Biosciences single-molecule HiFi long reads, generating a total of 28.75 Gb (gigabases) from 2.77 million reads, providing an estimated 66-fold coverage. Primary assembly contigs were scaffolded with chromosome conformation Hi-C data, which produced 141.48 Gb from 936.92 million reads. Specimen and sequencing details are summarised in Table 1.
Table 1.: Specimen and sequencing data for Plusia festucae.
Assembly errors, including 37 missing joins or mis-joins and nine haplotypic duplications, were corrected by manual curation. This increased the scaffold number by 18.06% and decreased the scaffold N50 by 8.17%. The final assembly has a total length of 422.50 Mb in 37 sequence scaffolds, with 47 gaps, and a scaffold N50 of 14.7 Mb ( Table 2).
Table 2.: Genome assembly data for Plusia festucae, ilPluFest1.1.

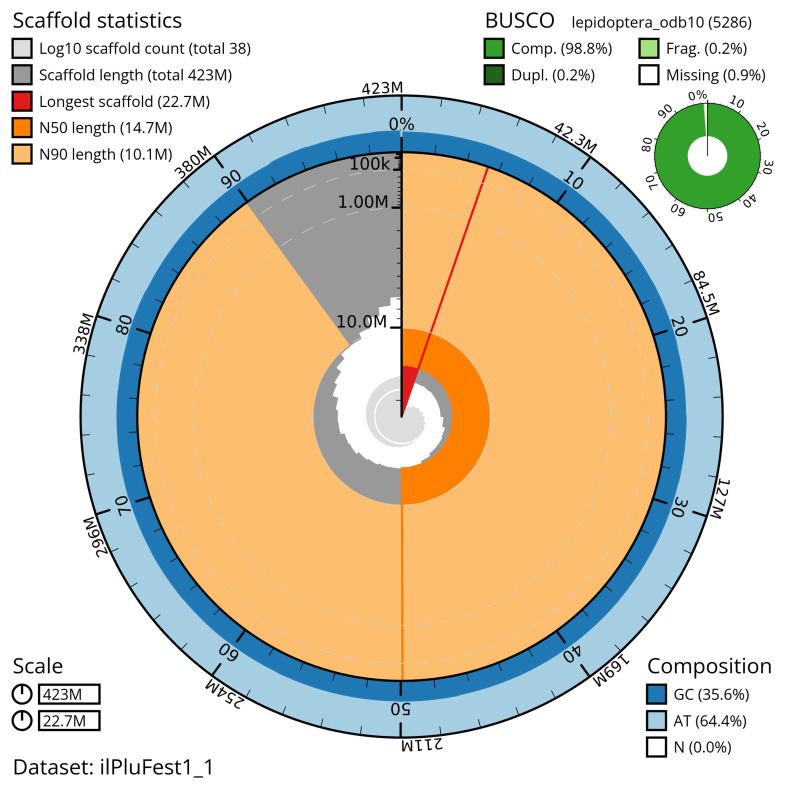

The snail plot in Figure 2 provides a summary of the assembly statistics, indicating the distribution of scaffold lengths and other assembly metrics. Figure 3 shows the distribution of scaffolds by GC proportion and coverage. Figure 4 presents a cumulative assembly plot, with separate curves representing different scaffold subsets assigned to various phyla, illustrating the completeness of the assembly.
Genome assembly of Plusia festucae, ilPluFest1.1: metrics.The BlobToolKit snail plot provides an overview of assembly metrics and BUSCO gene completeness. The circumference represents the length of the whole genome sequence, and the main plot is divided into 1,000 bins around the circumference. The outermost blue tracks display the distribution of GC, AT, and N percentages across the bins. Scaffolds are arranged clockwise from longest to shortest and are depicted in dark grey. The longest scaffold is indicated by the red arc, and the deeper orange and pale orange arcs represent the N50 and N90 lengths. A light grey spiral at the centre shows the cumulative scaffold count on a logarithmic scale. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/ilPluFest1_1/dataset/ilPluFest1_1/snail.

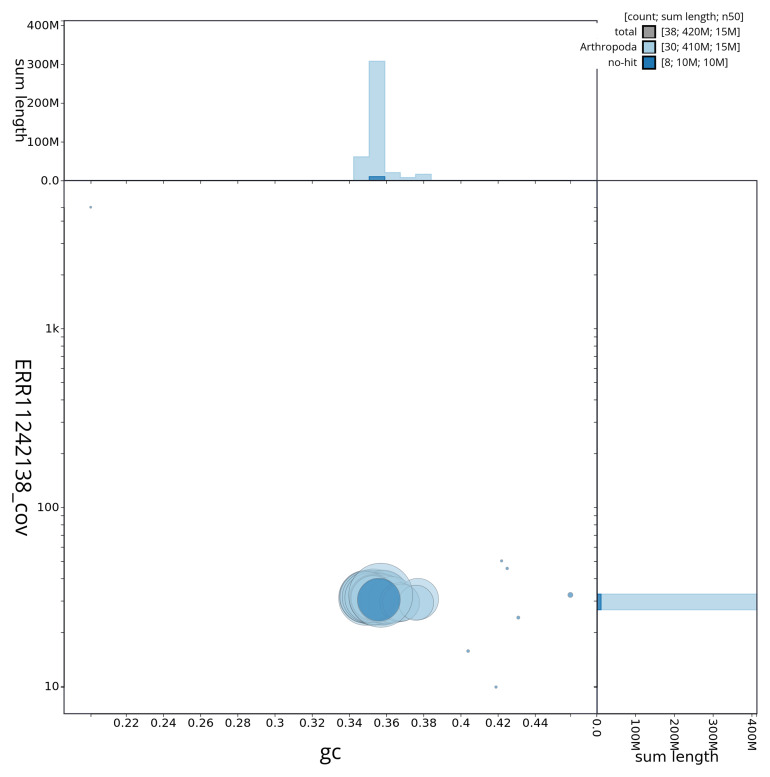

Genome assembly of Plusia festucae, ilPluFest1.1: BlobToolKit GC-coverage plot showing sequence coverage (vertical axis) and GC content (horizontal axis).The circles represent scaffolds, with the size proportional to scaffold length and the colour representing phylum membership. The histograms along the axes display the total length of sequences distributed across different levels of coverage and GC content. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/ilPluFest1_1/dataset/ilPluFest1_1/blob.

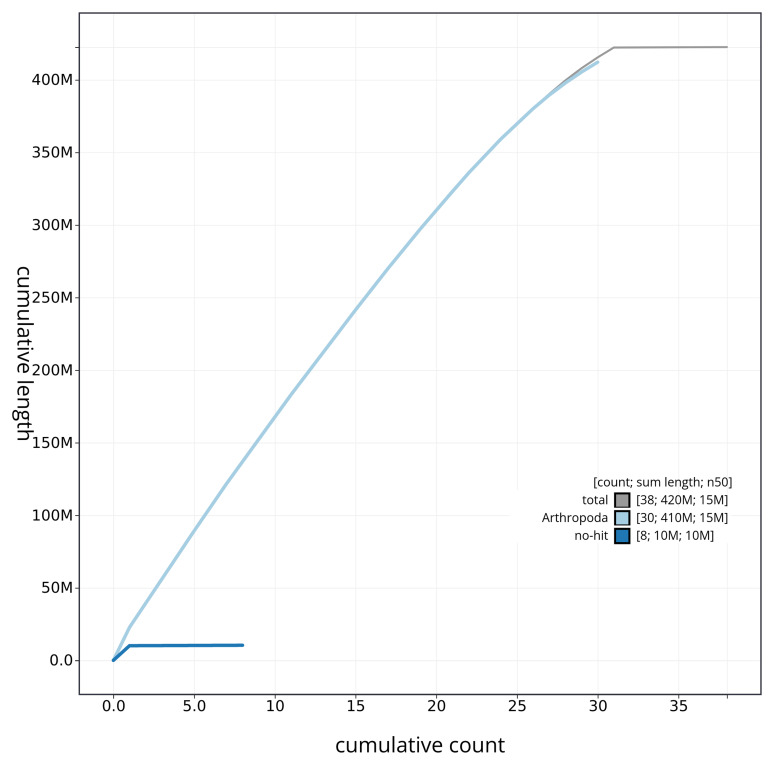

Genome assembly of Plusia festucae ilPluFest1.1: BlobToolKit cumulative sequence plot.The grey line shows cumulative length for all sequences. Coloured lines show cumulative lengths of sequences assigned to each phylum using the buscogenes taxrule. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/ilPluFest1_1/dataset/ilPluFest1_1/cumulative.
Most of the assembly sequence (99.92%) was assigned to 31 chromosomal-level scaffolds, representing 30 autosomes and the Z sex chromosome. These chromosome-level scaffolds, confirmed by the Hi-C data, are named in order of size ( Figure 5; Table 3). During manual curation it was noted that Chromosome Z was assigned by synteny to Abrostola tripartita (GCA_905340225.1) ( Boyes et al., 2021).

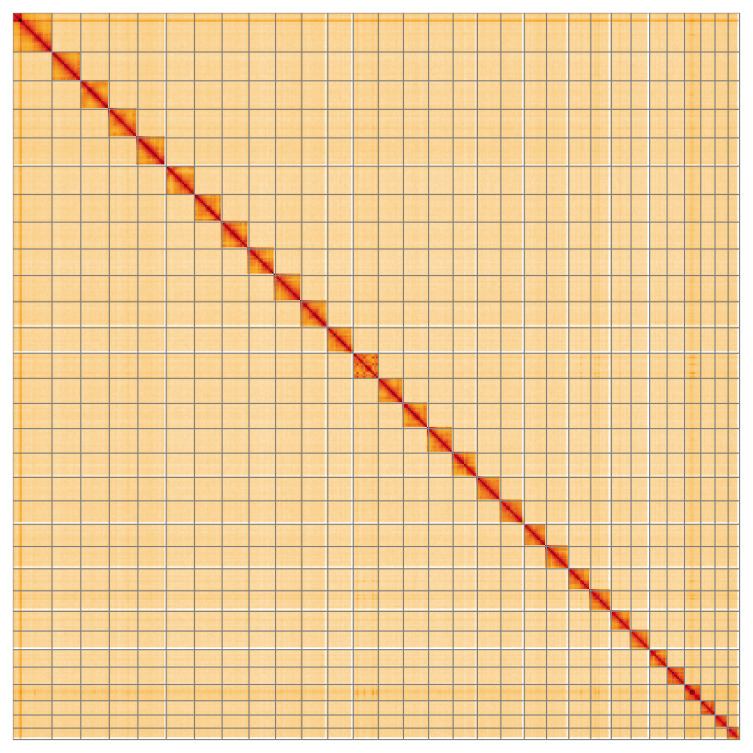

Genome assembly of Plusia festucae ilPluFest1.1: Hi-C contact map of the ilPluFest1.1 assembly, visualised using HiGlass.Chromosomes are shown in order of size from left to right and top to bottom. An interactive version of this figure may be viewed at https://genome-note-higlass.tol.sanger.ac.uk/l/?d=PJRawa0sSTaRvjAetMa3SQ.
Table 3.: Chromosomal pseudomolecules in the genome assembly of Plusia festucae, ilPluFest1.
While not fully phased, the assembly deposited is of one haplotype. Contigs corresponding to the second haplotype have also been deposited.
The mitochondrial genome was also assembled and can be found as a contig within the multifasta file of the genome submission, and as a separate fasta file with accession OX494461.1.
The final assembly has a Quality Value (QV) of 68.0 and k-mer completeness of 100.0%. BUSCO (v5.4.3) analysis using the lepidoptera_odb10 reference set ( n = 5,286) indicated a completeness score of 98.8% (single = 98.5%, duplicated = 0.3%). The assembly achieves the EBP reference standard of 6.C.68. Other quality metrics are given in Table 2.
Genome annotation report
The Plusia festucae genome assembly (GCA_950381575.1) was annotated at the European Bioinformatics Institute (EBI) on Ensembl Rapid Release. The resulting annotation includes 19,442 transcribed mRNAs from 19,273 protein-coding genes ( Table 2; https://rapid.ensembl.org/Plusia_festucae_GCA_950381575.1/Info/Index). The average transcript length is 5,800.64. There are 5.27 exons per transcript.
Methods
Sample acquisition
A male adult Plusia festucae (specimen ID SAN00002590, ToLID ilPluFest1) was collected from Glenmore, Isle of Bute, Argyll and Bute, Scotland, United Kingdom (latitude 55.88, longitude –5.16) on 2022-07-02 by moth trap. The specimen was collected by Tom Prescott and David Hill (Butterfly Conservation) and Stuart Bence (NatureScot). It was formally identified by Tom Prescott and preserved by on dry ice.
Nucleic acid extraction
The workflow for high molecular weight (HMW) DNA extraction at the Wellcome Sanger Institute (WSI) Tree of Life Core Laboratory includes a sequence of procedures: sample preparation and homogenisation, DNA extraction, fragmentation and purification. Detailed protocols are available on protocols.io ( Denton et al., 2023b).
The ilPluFest1 sample was prepared for DNA extraction by weighing and dissecting it on dry ice ( Jay et al., 2023). Tissue from the thorax was homogenised using a PowerMasher II tissue disruptor ( Denton et al., 2023a).
HMW DNA was extracted in the WSI Scientific Operations core using the Automated MagAttract v2 protocol ( Oatley et al., 2023). The DNA was sheared into an average fragment size of 12–20 kb in a Megaruptor 3 system ( Bates et al., 2023). Sheared DNA was purified by solid-phase reversible immobilisation, using AMPure PB beads to eliminate shorter fragments and concentrate the DNA ( Strickland et al., 2023). The concentration of the sheared and purified DNA was assessed using a Nanodrop spectrophotometer and Qubit Fluorometer using the Qubit dsDNA High Sensitivity Assay kit. Fragment size distribution was evaluated by running the sample on the FemtoPulse system.
RNA was extracted from thorax tissue of ilPluFest1 in the Tree of Life Laboratory at the WSI using the RNA Extraction: Automated MagMax™ mirVana protocol ( do Amaral et al., 2023). The RNA concentration was assessed using a Nanodrop spectrophotometer and a Qubit Fluorometer using the Qubit RNA Broad-Range Assay kit. Analysis of the integrity of the RNA was done using the Agilent RNA 6000 Pico Kit and Eukaryotic Total RNA assay.
Hi-C preparation
Tissue from the head of the ilPluFest1 sample was processed at the WSI Scientific Operations core, using the Arima-HiC v2 kit. Tissue (stored at –80 °C) was fixed, and the DNA crosslinked using a TC buffer with 22% formaldehyde. After crosslinking, the tissue was homogenised using the Diagnocine Power Masher-II and BioMasher-II tubes and pestles. Following the kit manufacturer's instructions, crosslinked DNA was digested using a restriction enzyme master mix. The 5’-overhangs were then filled in and labelled with biotinylated nucleotides and proximally ligated. An overnight incubation was carried out for enzymes to digest remaining proteins and for crosslinks to reverse. A clean up was performed with SPRIselect beads prior to library preparation.
Library preparation and sequencing
Library preparation and sequencing were performed at the WSI Scientific Operations core. Pacific Biosciences HiFi circular consensus DNA sequencing libraries were prepared using the PacBio Express Template Preparation Kit v2.0 (Pacific Biosciences, California, USA) as per the manufacturer's instructions. The kit includes the reagents required for removal of single-strand overhangs, DNA damage repair, end repair/A-tailing, adapter ligation, and nuclease treatment. Library preparation also included a library purification step using AMPure PB beads (Pacific Biosciences, California, USA) and size selection step to remove templates shorter than 3 kb using AMPure PB modified SPRI. DNA concentration was quantified using the Qubit Fluorometer v2.0 and Qubit HS Assay Kit and the final library fragment size analysis was carried out using the Agilent Femto Pulse Automated Pulsed Field CE Instrument and 165 kb gDNA and 55 kb BAC analysis kit. Samples were sequenced using the Sequel IIe system (Pacific Biosciences, California, USA). The concentration of the library loaded onto the Sequel IIe was in the range 40–135 pM. The SMRT link software, a PacBio web-based end-to-end workflow manager, was used to set-up and monitor the run, as well as perform primary and secondary analysis of the data upon completion.
For Hi-C library preparation, DNA was fragmented to a size of 400 to 600 bp using a Covaris E220 sonicator. The DNA was then enriched, barcoded, and amplified using the NEBNext Ultra II DNA Library Prep Kit following manufacturers’ instructions. The Hi-C sequencing was performed using paired-end sequencing with a read length of 150 bp on an Illumina NovaSeq 6000 instrument.
Poly(A) RNA-Seq libraries were constructed using the NEB Ultra II RNA Library Prep kit, following the manufacturer’s instructions. RNA sequencing was performed on the Illumina NovaSeq 6000 instrument.
Genome assembly, curation and evaluation
** Assembly **
The HiFi reads were first assembled using Hifiasm ( Cheng et al., 2021) with the --primary option. Haplotypic duplications were identified and removed using purge_dups ( Guan et al., 2020). The Hi-C reads were mapped to the primary contigs using bwa-mem2 ( Vasimuddin et al., 2019). The contigs were further scaffolded using the provided Hi-C data ( Rao et al., 2014) in YaHS ( Zhou et al., 2023) using the --break option for handling potential misassemblies. The scaffolded assemblies were evaluated using Gfastats ( Formenti et al., 2022), BUSCO ( Manni et al., 2021) and MERQURY.FK ( Rhie et al., 2020).
The mitochondrial genome was assembled using MitoHiFi ( Uliano-Silva et al., 2023), which runs MitoFinder ( Allio et al., 2020) and uses these annotations to select the final mitochondrial contig and to ensure the general quality of the sequence.
** Assembly curation **
The assembly was decontaminated using the Assembly Screen for Cobionts and Contaminants (ASCC) pipeline (article in preparation). Manual curation was primarily conducted using PretextView ( Harry, 2022), with additional insights provided by JBrowse2 ( Diesh et al., 2023) and HiGlass ( Kerpedjiev et al., 2018). Scaffolds were visually inspected and corrected as described by Howe et al. (2021). Any identified contamination, missed joins, and mis-joins were corrected, and duplicate sequences were tagged and removed. The Z sex chromosome was identified by synteny analysis. The curation process is documented at https://gitlab.com/wtsi-grit/rapid-curation (article in preparation).
** Evaluation of the final assembly **
A Hi-C map for the final assembly was produced using bwa-mem2 ( Vasimuddin et al., 2019) in the Cooler file format ( Abdennur & Mirny, 2020). To assess the assembly metrics, the k-mer completeness and QV consensus quality values were calculated in Merqury ( Rhie et al., 2020). This work was done using Nextflow ( Di Tommaso et al., 2017) DSL2 pipelines “sanger-tol/readmapping” ( Surana et al., 2023a) and “sanger-tol/genomenote” ( Surana et al., 2023b). The genome evaluation pipelines were developed using nf-core tooling ( Ewels et al., 2020) and MultiQC ( Ewels et al., 2016), relying on the Conda package manager, the Bioconda initiative ( Grüning et al., 2018), the Biocontainers infrastructure ( da Veiga Leprevost et al., 2017), as well as the Docker ( Merkel, 2014) and Singularity ( Kurtzer et al., 2017) containerisation solutions. The genome was also analysed within the BlobToolKit environment ( Challis et al., 2020) and BUSCO scores ( Manni et al., 2021) were calculated.
Table 4 contains a list of relevant software tool versions and sources.
Genome annotation
The BRAKER2 pipeline ( Brůna et al., 2021) was used in the default protein mode to generate annotation for the Plusia festucae assembly (GCA_950381575.1) in Ensembl Rapid Release at the EBI.
Wellcome Sanger Institute – Legal and Governance
The materials that have contributed to this genome note have been supplied by a Darwin Tree of Life Partner. The submission of materials by a Darwin Tree of Life Partner is subject to the ‘Darwin Tree of Life Project Sampling Code of Practice’, which can be found in full on the Darwin Tree of Life website here. By agreeing with and signing up to the Sampling Code of Practice, the Darwin Tree of Life Partner agrees they will meet the legal and ethical requirements and standards set out within this document in respect of all samples acquired for, and supplied to, the Darwin Tree of Life Project.
Further, the Wellcome Sanger Institute employs a process whereby due diligence is carried out proportionate to the nature of the materials themselves, and the circumstances under which they have been/are to be collected and provided for use. The purpose of this is to address and mitigate any potential legal and/or ethical implications of receipt and use of the materials as part of the research project, and to ensure that in doing so we align with best practice wherever possible. The overarching areas of consideration are:
• Ethical review of provenance and sourcing of the material
• Legality of collection, transfer and use (national and international)
Each transfer of samples is further undertaken according to a Research Collaboration Agreement or Material Transfer Agreement entered into by the Darwin Tree of Life Partner, Genome Research Limited (operating as the Wellcome Sanger Institute), and in some circumstances other Darwin Tree of Life collaborators.
