3D echocardiography derived reference values and determinants of left ventricular twist and torsion from the population-based STAAB cohort study
Julia Napp, Götz Gelbrich, Floran Sahiti, Vladimir Cejka, Dora Pelin, Lena Schmidbauer, Mengmeng Chen, Niklas Hitschrich, Marcus Schreckenberg, Stefan Frantz, Peter U. Heuschmann, Stefan Störk, Caroline Morbach
TL;DR
This study uses 3D echocardiography to determine normal values and factors affecting heart muscle twisting in a large population.
Contribution
Establishes population-based reference values for left ventricular twist and torsion using 3D echocardiography in a large cohort.
Findings
LV twist and torsion increase with age and blood pressure but decrease with higher body weight.
Reference percentiles for LV rotational parameters were derived from a subset of 479 healthy individuals.
LV rotation is influenced by sub-endocardial and sub-epicardial fibers, which may be affected differently by risk factors.
Abstract
Left ventricular (LV) rotational function parameters provide in-depth information about LV mechanical function as well as prognostic information. Using three-dimensional (3D) echocardiography, we identified determinants of LV “twist” and “torsion”, and established reference values using a large population-based cohort. 3D echocardiography images were recorded in n = 2803 subjects within the prospective STAAB cohort study investigating a representative age- and sex-stratified sample of residents of the city of Würzburg, aged 30–79 years, without history of heart failure. Valid 3D image analysis was performed in n = 1831 (65.3%) subjects (mean age 57 ± 11 years, 49.3% women). Using general linear models, we identified determinants of LV twist and torsion: there was a positive association between LV rotational parameters and age, female sex, and blood pressure but a negative association…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3- —Universitätsklinikum Würzburg (8913)
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsCardiovascular Function and Risk Factors · Cardiac Imaging and Diagnostics · Cardiac Valve Diseases and Treatments
Introduction

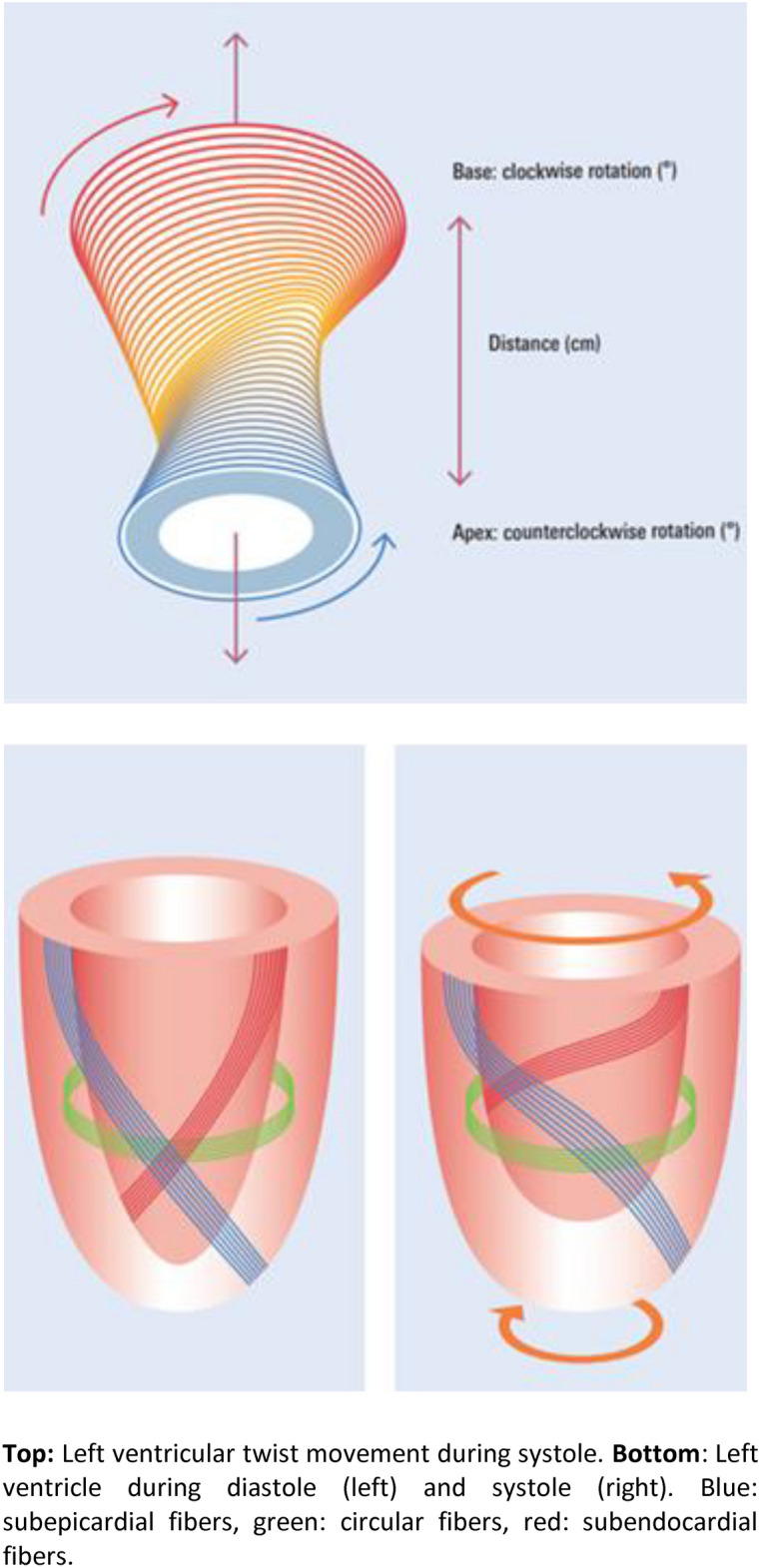

The left ventricular (LV) rotational parameters twist and torsion provide important information about the mechanical functionality of the LV. Viewed from the cardiac apex, the base of the heart rotates clockwise during systole, while the apex rotates counterclockwise (Fig. 1). LV twist (measured in °) describes the sum of the absolute values of the maximum apical and basal angle of rotation^1^. Torsion (measured in °/cm) is the twist normalized to the measured distance between apex and base^2^. Fig. 1. Schematic representation of the left ventricular rotation during a cardiac cycle. Top: Left ventricular twist movement during systole. Bottom: Left ventricle during diastole (left) and systole (right). Blue: subepicardial fibers, green: circular fibers, red: subendocardial fibers.
Prior observational studies consistently reported on the prognostic relevance of LV rotational parameters in various cardiovascular conditions. E.g., in subjects with non-ischemic dilated cardiomyopathy (DCM), reduced torsion accurately identified patients with a reduced functional capacity and was associated with more frequent hospitalization when compared to patients with preserved torsion^3,4^. In patients after ST-elevation myocardial infarction, adding LV torsion to conventional prognostic factors such as left ventricular ejection fraction (LVEF) and infarct size, resulted in improved risk classification^5^. Furthermore, twist and torsion predicted the risk of two-year all-cause death in patients with severe aortic stenosis after transcatheter aortic valve implantation^6^.
Three-dimensional echocardiography (3DE) offers the possibility of reliably measuring twist and torsion. This has been validated using sonomicrometry in animal studies^7,8^ and cardiac magnetic resonance imaging (MRI) in human studies as a reference standard^9^. There, torsion consistently increased with age^9–13^. Previously published reference values for 3D measured twist and torsion varied widely, most likely since they were derived from heterogeneous collectives and convenience samples^9,12–15^.
Our aim was to establish 3DE-derived reference values that account for the determinants of LV rotational function by using a large population-based cohort stratified for age and sex and covering a broad age range.
Methods
Study population and recruitment
Data were acquired as part of the Characteristics and Course of Heart Failure Stages A-B and Determinants of Progression (STAAB) cohort study. The study comprises a representative sample of residents of the city of Würzburg (Germany) without self-reported heart failure, aged 30–79 years, stratified for age (10:27:27:27:10 for the respective decades) and sex (1:1). Data for the analyses were obtained from the first follow-up examination, which took place from December 2017 to August 2021. The detailed study design and methodology have been published^16,17^. Since STAAB is not a clinical trial, it has not been registered and provided with a clinical trial number.
Examination
In accordance with the standard operating procedures implemented for the STAAB cohort study, anthropometry and blood pressure were assessed^16^. The central laboratory at the University Hospital of Würzburg conducted the laboratory measurements from venous blood. Medical history and current pharmacotherapy were assessed by a trained physician, who also performed the physical examination^16,18^.
Image acquisition and analysis

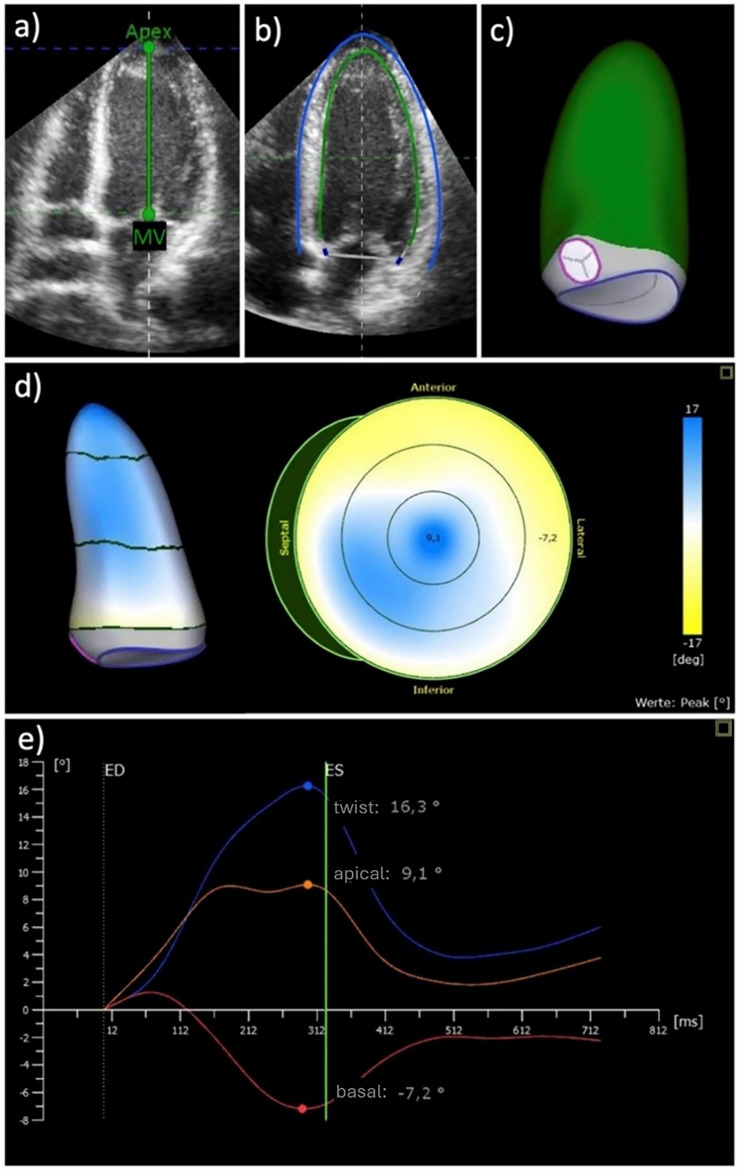

Transthoracic echocardiography was performed by trained and internally certified personnel using a Vivid E95 ultrasound scanner equipped with a M5SC-D 1.5-4.6 MHz transducer (GE Healthcare, Horten, Norway). The pre-specified protocol started with a comprehensive set of 2D images and Doppler measurements to characterize cardiac structure and function. A minimum of three cardiac cycles per angulation was recorded and stored digitally. The scan was completed by 3D images from the apical window focusing on covering the complete LV. For each view, we performed a single-beat and a multi-beat acquisition aiming for higher frame rates, respectively^16,19^. In the context of a cooperation project^20^, 3D images were analyzed off-line using custom software (TomtecArena®, Tomtec Imaging Systems, Unterschleißheim, Germany). For each subject, the 3D dataset with the best image quality was selected. Images not covering the complete LV, with poor image quality (e.g. low resolution, high attenuation, reverberation artifacts), or containing stitching artifacts were excluded from the analysis. With the start of the semi-automatic analysis, the views were first correctly aligned at the time points of end-diastole and end-systole. For this purpose, the mitral and aortic valves and the apex were marked in different views. The time at which the LV cavity was at its largest was marked as end-diastole, while the time at which the cavity was at its smallest was marked as end-systole. These marks were created automatically by the software but were checked by the observer and manually adjusted as needed. The 3D datasets then appeared as multi-plane reconstruction images, presented in three standard long-axis views (apical four-chamber, three-chamber, and two-chamber views) and a short-axis view. Contours of the endocardium and the location of the mitral and aortic valves were automatically marked by the software and adjusted by the examiner as necessary. The LV outflow tract, papillary muscles, and trabeculae were included in the LV cavity. Finally, the software reconstructed a beating LV so that the adjustments could be verified in three dimensions. LV volumes and functional parameters including twist and torsion as well as circumferential strain^21^ were then calculated automatically (Fig. 2).Fig. 2. Image analysis and determination of left ventricular (LV) twist through 3D echocardiography. (a) Marking of the mitral valve (MV) and apex of the LV. (b) Contour of the LV (blue line), the endocardium (green line) and marking of the mitral valve (blue dots). (c) 3D reconstruction of the LV. (d) Visualisation of the apical (blue) and basal (yellow) rotation of the LV. (e) LV rotation during the cardiac cycle. Orange line: apical rotation, red line: basal rotation, ED: end-diastole, ES: end-systole. Twist (blue dot): the sum of the absolute values of the maximum apical (orange dot) and basal (red dot) rotation.
