Role of Ribosomal Protein bS1 in Orthogonal mRNA Start Codon Selection

TL;DR

This study investigates how the ribosomal protein bS1 and the Shine-Dalgarno sequence influence the selection of mRNA start codons in bacteria.

Contribution

The study shows that removing bS1 from ribosomes does not improve their orthogonality, suggesting other mRNA features are involved.

Findings

Ribosomes lacking bS1 are slightly less active than wild-type ribosomes in vitro.

Orthogonal ribosomes without bS1 do not show improved orthogonality.

mRNA features beyond the Shine-Dalgarno sequence and bS1 binding likely affect start codon selection.

Abstract

In many bacteria, the location of the mRNA start codon
is determined
by a short ribosome binding site sequence that base pairs with the
3′-end of 16S rRNA (rRNA) in the 30S subunit. Many groups have
changed these short sequences, termed the Shine–Dalgarno (SD)
sequence in the mRNA and the anti-Shine–Dalgarno (ASD) sequence
in 16S rRNA, to create “orthogonal” ribosomes to enable
the synthesis of orthogonal polymers in the presence of the endogenous
translation machinery. However, orthogonal ribosomes are prone to
SD-independent translation. Ribosomal protein bS1, which binds to
the 30S ribosomal subunit, is thought to promote translation initiation
by shuttling the mRNA to the ribosome. Thus, a better understanding
of how the SD and bS1 contribute to start codon selection could help
efforts to improve the orthogonality of ribosomes. Here, we engineered
the Escherichia coli ribosome to prevent binding of bS1 to the 30S subunit and separate
the activity of bS1 binding to the ribosome from the role of the mRNA
SD sequence in start codon selection. We find that ribosomes lacking
bS1 are slightly less active than wild-type ribosomes in vitro. Furthermore,
orthogonal 30S subunits lacking bS1 do not have an improved orthogonality.
Our findings suggest that mRNA features outside the SD sequence and
independent of binding of bS1 to the ribosome likely contribute to
start codon selection and the lack of orthogonality of present orthogonal
ribosomes.

Figures

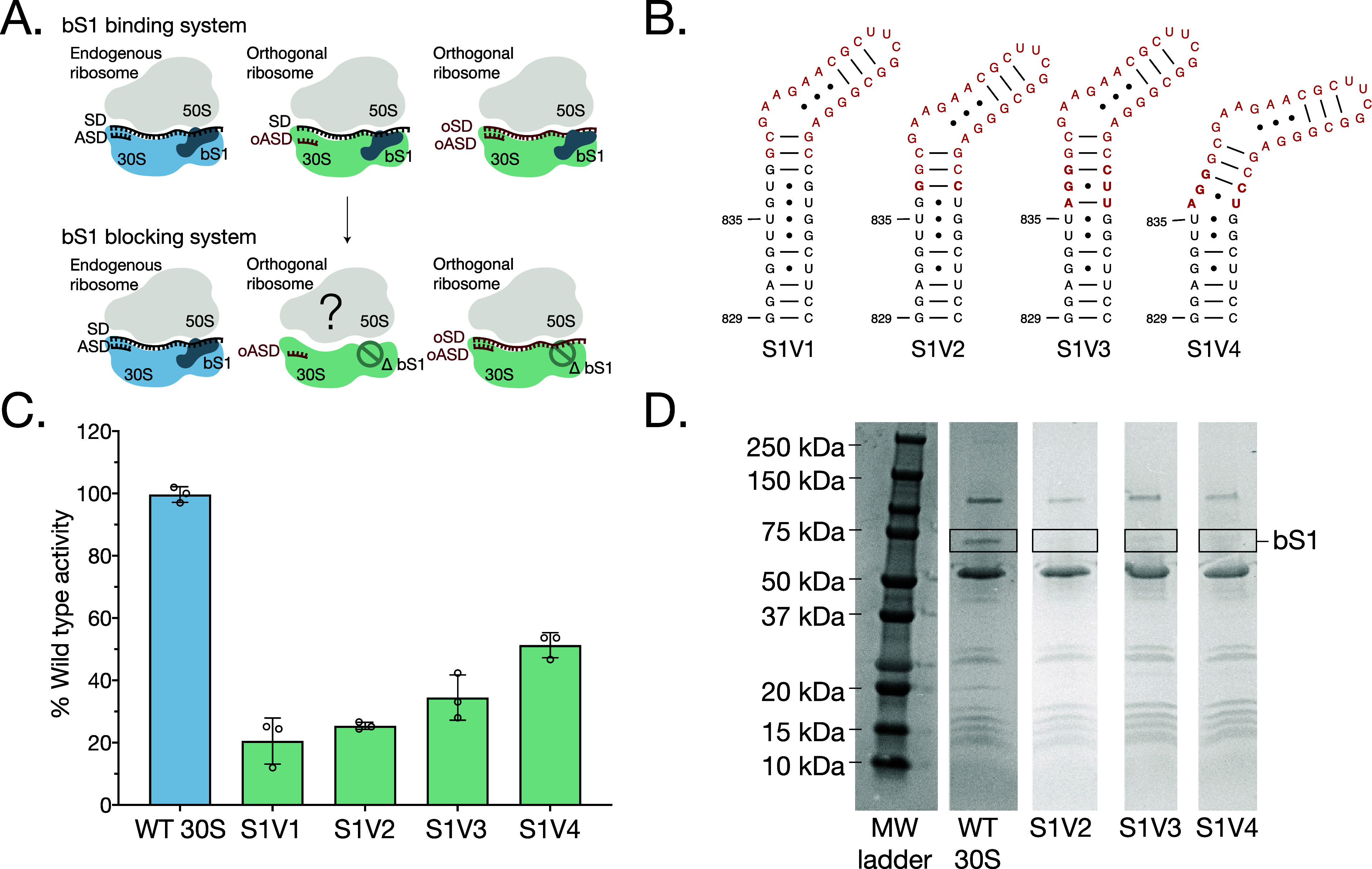

Model and characterization of bS1 blocking ribosomes. (A) Proposed model of orthogonal ribosomes in a bS1 binding system and a bS1 blocking system. Current orthogonal ribosomes that undergo SD-independent translation translate omRNA (right) as well as endogenous mRNA (middle), possibly due to bS1. A bS1 blocking system would prevent binding of bS1 to orthogonal ribosomes, which could prevent translation of endogenous mRNA (middle) while encouraging translation of omRNA (right). Endogenous mRNA is shown in black and omRNA in red. (B) Secondary structure of all versions of the bS1 blocking mutants inserted into helix h26 of E. coli 16S rRNA. Nucleotides colored red are added bases. Nucleotides in bold highlight differences between versions S1V1–S1V4. (C) In vitro activity assay of wild-type 30S and bS1 blocking mutants with wild-type 50S subunits. Activity corresponds to luminescence of synthesized nanoluciferase, normalized to wild-type ribosomes. Error bars indicate the standard deviation for n = 3 replicates. (D) 10% SDS PAGE gel of wild-type 30S subunits and versions S1V2–S1V4 of the bS1 blocking mutants. The black box highlights bS1. The relative intensities of the maltose and MS2 binding fusion protein used for purification, as well as the other ribosomal proteins, are consistent across all lanes, indicating that the same amount of protein was loaded for each sample. The percentage of bS1 depletion is larger than 95% for all of the insertion constructs (see the Materials and Methods section).

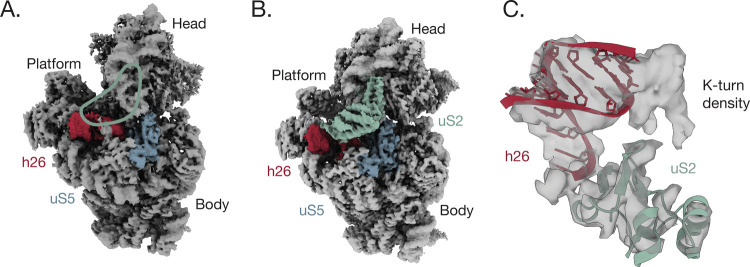

Structure of S1 blocking ribosomes. (A) Cryo-EM density of 30S subunit S1V3, with density for ribosomal protein uS2 missing. Density is clearly resolved for protein uS5 and rRNA helix h26 (blue and red, EMD 47168). The green outline indicates where the uS2 density would be. (B) Cryo-EM density of 30S subunit S1V4. Density for uS2 is indicated in green and is well resolved. Density of uS5 is shown in blue, and rRNA helix h26 is shown in red (EMD 47169). (C) Cryo-EM density of the h26 k-turn extension (unmodeled) and uS2, in 30S subunit S1V4. The cryo-EM maps were blurred with a B-factor of 61 Å2 to highlight the k-turn density.

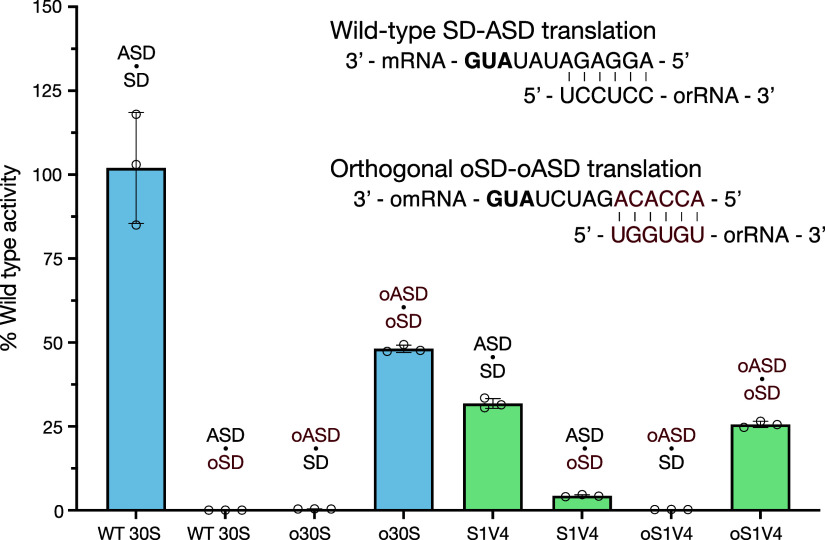

In vitroactivity of 30S subunit S1V4. Activity of 30S ribosomal subunits with wild-type or orthogonal RBS elements in an in vitro nanoluciferase translation assay. Normalized luminescence of wild-type 30S subunits (blue) with a wild-type ASD sequence and an oASD sequence with corresponding nanoluciferase reporters (black and red). The activity of 30S subunit S1V4 is shown in green with a wild-type ASD sequence and an oASD sequence with corresponding nanoluciferase reporters (black and red). The activity is normalized to that of wild-type ribosomes. Error bars indicate the standard deviation for n = 3 measurements.

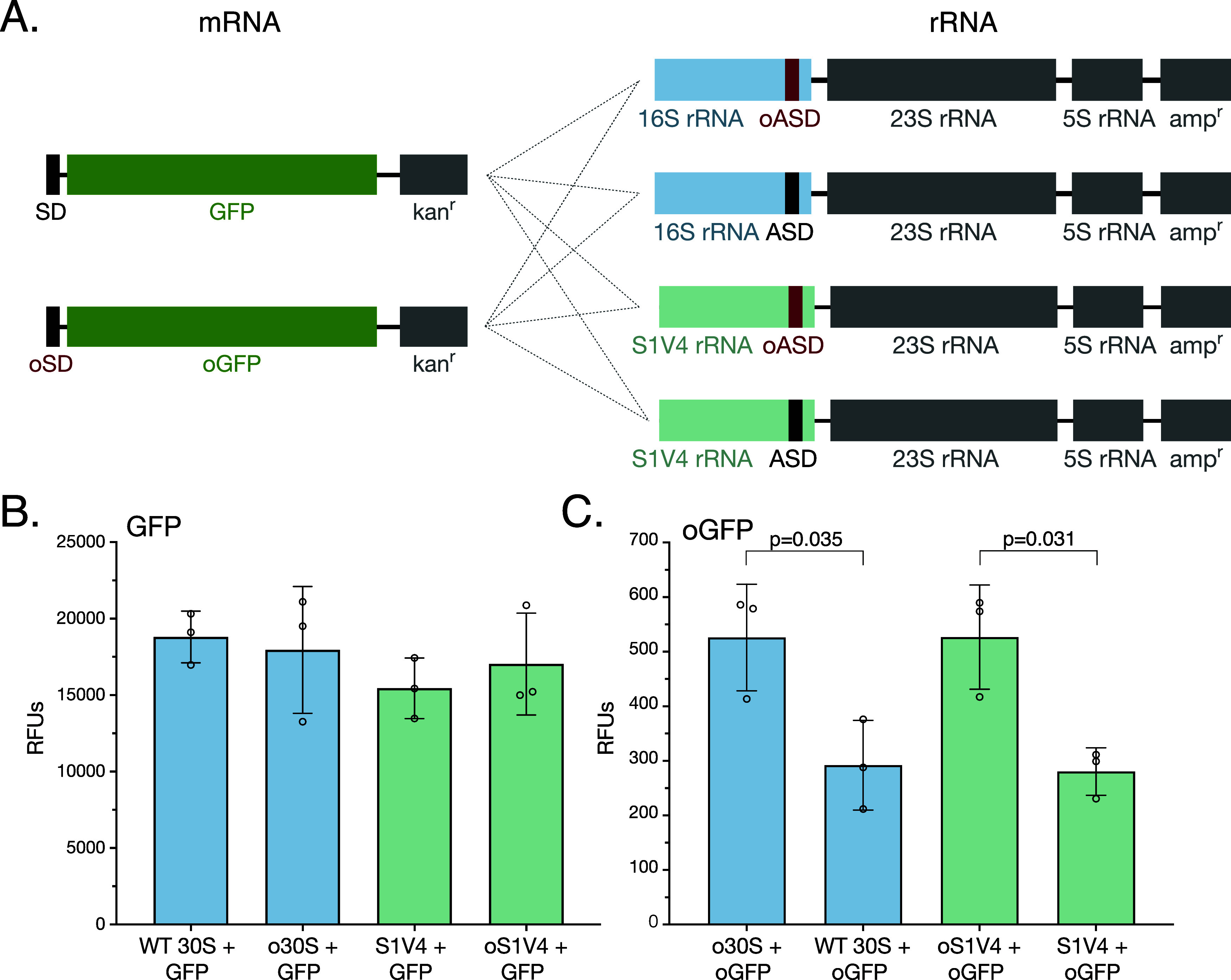

In vivoactivity of S1V4 30S subunits. (A) Two-plasmid reporter system with an arabinose inducible promoter upstream of GFP or oGFP, and an IPTG inducible promoter upstream of wild-type or S1V4 16S rRNA sequence, either with an ASD or oASD at the 3′ end. All 8 combinations used in reporter assays are indicated by connecting lines. (B) In vivo translation of wild-type GFP by wild-type 30S (blue), o30S (blue), S1V4 (green), and oS1V4 (green). Error bars indicate the standard deviation for n = 3, p-values > 0.29. (C) In vivo translation of orthogonal GFP by o30S (blue), wild-type 30S (blue), oS1V4 (green), and S1V4 (green). Error bars indicate the standard deviation for n = 3 measurements. Measurements were reported in relative fluorescence units (RFUs).

Full text

Introduction

Translation initiation in bacteria involves the formation of a 30S initiation complex in which the start codon of the mRNA pairs with the initiator fMet-tRNA anticodon in the P site of the small (30S) ribosomal subunit. The positioning of the start codon in the 30S initiation complex is aided by the Shine–Dalgarno (SD) sequence 5′ of the start codon, which base pairs to the complementary anti-Shine–Dalgarno (ASD) sequence in 16S rRNA. Characteristics of the SD sequence, including its presence or absence, spacer length from the SD sequence to the start codon, or SD sequence composition, can determine translation efficiency.^1^ For example, many bacteria encode leaderless mRNAs, or mRNAs that do not contain an identifiable SD sequence, and only 54% of E. coli genes have an SD sequence.^2^ RNA-seq analysis has also revealed that leaderless mRNAs can comprise up to 70% of transcripts in other bacteria as well as archaea.^3^ In mRNAs possessing an SD sequence, the number of nucleotides between the start codon and the SD sequence affects the levels of protein expression.^4^ Finally, nucleotides that compose the SD sequence can also affect translation. For example, in E. coli, the canonical SD sequence (5′-UAAGGAGG-3′) yields better translation efficiency than a 5′-AAGGA-3′ sequence.^5^ Taken together, these findings suggest that the role of the SD sequence in the mechanism of translation initiation does not follow a simple set of rules and can vary widely across bacteria.

Mechanisms of gene expression in E. coli have been the most widely studied in bacteria, making this model organism the most popular host for synthetic biology applications. These include efforts to expand the genetic code to enable noncanonical amino acid incorporation into proteins for the synthesis of nonproteinogenic polymers by the ribosome.^6^ To enable genetic code expansion, many groups have engineered cells with an orthogonal ribosome, a secondary ribosome to translate orthogonal mRNAs (omRNAs) independent of the endogenous translation machinery, along with omRNAs.^7^ The orthogonal ribosome can be engineered to incorporate noncanonical amino acids while the endogenous ribosome can continue translating cellular mRNAs, preventing cellular growth defects.^8,9^ A central aspect of engineering mRNAs encoding noncanonical proteins to be orthogonal to the endogenous translation machinery is to include an orthogonal ribosome binding site (RBS) on the 16S rRNA and an orthogonal SD (oSD) sequence on the mRNA, for start codon selection.^7,10,11^ To ensure that the orthogonal ribosome only translates these omRNAs, 16S rRNA in the orthogonal 30S subunit (o30S) harbors an orthogonal ASD (oASD) sequence that base pairs with the omRNA RBS. This combination of oSD in the omRNA and oASD in the o30S subunit, in theory, should ensure that the target omRNA is only translated by the orthogonal ribosome, while the orthogonal ribosome does not translate endogenous mRNAs.

Multiple examples of orthogonal RBS have been reported in which both the 16S rRNA and mRNA RBS sequences have been engineered. Approaches to identify these sequences involved positive and negative selections as well as computational methods.^7,12^ However, recent studies in E. coli have shown that the SD sequence does not fully dictate whether or not an mRNA transcript is translated. Single-molecule tracking techniques in live cells revealed that translating ribosomes with oASD sequences in their 16S rRNA bind to endogenous mRNAs.^13^ This finding is further supported by ribosome profiling experiments that reveal that different ASD sequences in 16S rRNA do not prevent orthogonal ribosomes from translating cellular mRNAs.^14^ Taken together, this cross-reactivity of orthogonal ribosomes with endogenous mRNAs limits the current utility of these orthogonal systems (Figure 1A).

Model and characterization of bS1 blocking ribosomes. (A) Proposed model of orthogonal ribosomes in a bS1 binding system and a bS1 blocking system. Current orthogonal ribosomes that undergo SD-independent translation translate omRNA (right) as well as endogenous mRNA (middle), possibly due to bS1. A bS1 blocking system would prevent binding of bS1 to orthogonal ribosomes, which could prevent translation of endogenous mRNA (middle) while encouraging translation of omRNA (right). Endogenous mRNA is shown in black and omRNA in red. (B) Secondary structure of all versions of the bS1 blocking mutants inserted into helix h26 of E. coli 16S rRNA. Nucleotides colored red are added bases. Nucleotides in bold highlight differences between versions S1V1–S1V4. (C) In vitro activity assay of wild-type 30S and bS1 blocking mutants with wild-type 50S subunits. Activity corresponds to luminescence of synthesized nanoluciferase, normalized to wild-type ribosomes. Error bars indicate the standard deviation for n = 3 replicates. (D) 10% SDS PAGE gel of wild-type 30S subunits and versions S1V2–S1V4 of the bS1 blocking mutants. The black box highlights bS1. The relative intensities of the maltose and MS2 binding fusion protein used for purification, as well as the other ribosomal proteins, are consistent across all lanes, indicating that the same amount of protein was loaded for each sample. The percentage of bS1 depletion is larger than 95% for all of the insertion constructs (see the Materials and Methods section).

In E. coli, ribosomal protein bS1 is thought to contribute to translation initiation using mechanisms independent of the SD sequence.^15^ Ribosomal protein bS1 is composed of multiple RNA-binding domains and is, in some cases, thought of as an additional translation factor due to its reversible binding to the ribosome.^15^ Protein bS1 also has a high affinity for mRNA and is thought to facilitate translation for highly structured mRNAs.^16^ However, the translation of leaderless mRNAs, as well as of mRNAs that have an RBS close to the 5′ end, is independent of bS1.^16^ Recent cryo-EM structures of E. coli ribosomes with truncated ribosomal protein bS1 reveal that bS1 binds to mRNA, just upstream of the SD sequence.^17^ In addition to binding to the mRNA, bS1 simultaneously binds to ribosomal protein uS2 adjacent to the SD–ASD interaction site, as well as to 16S in this region.^18^ Taken together, these mechanistic and structural findings have led to the model that bS1 acts to recruit mRNA to the ribosome in an SD-independent manner.

We reasoned that the ability of ribosomal protein bS1 to recruit mRNAs to the ribosome in an SD-independent manner might be responsible for the lack of orthogonality seen with the present orthogonal ribosomes and omRNAs. We therefore tested whether orthogonal ribosomes could be engineered to rely more on SD and ASD binding by engineering an orthogonal 16S rRNA that sterically prevents bS1 binding to the 30S ribosomal subunit. In this case, ribosomal protein bS1, an essential protein in E. coli, would continue to bind to the endogenous ribosome and translate endogenous mRNAs.^15^ However, the orthogonal ribosomes that have an oASD and translate omRNAs would not bind bS1 and eliminate this aspect of bS1’s contribution to mRNA recruitment to the ribosome (Figure 1A). Using cryo-EM and in vitro and cell-based translation assays, we found that preventing bS1 binding to the 30S subunit does not affect ribosome orthogonality in vitro or in vivo, indicating that SD-independent mRNA translation is not solely dependent on binding of bS1 to the ribosome.

Materials and Methods

Plasmid Preparation

A pLK35 plasmid with an MS2 tag located in 16S rRNA helix h6 was a gift from the Schepartz Laboratory at UC Berkeley.^19^ The helix h26 extensions were introduced using the In-Fusion Cloning Kit (Takara Bio) with the primers listed below. The oASD was also cloned into the wild-type plasmid as well as S1V4 using the same method and the following primers:Table 1. Primersconstructforward primer (5′ to 3′)reverse primer (5′ to 3′)Plasmid PreparationS1V1AAGAACGCTTCGGCGGGAGCCGTGGCTTCCGGAGCTAACCGCCGAAGCGTTCTTCGCCACAACCTCCAAGTCGACATCGS1V2AAGAACGCTTCGGCGGGAGCCTGGCTTCCGGAGCTAACGCCGCCGAAGCGTTCTTCGCCCAACCTCCAAGTCGACATCGS1V3AAGAACGCTTCGGCGGGAGCCTTGGCTTCCGGAGCTAACGCCGCCGAAGCGTTCTTCGCCCTAACCTCCAAGTCGACATCGS1V4AAGAACGCTTCGGCGGGAGCCTGGCTTCCGGAGCTAACGCCGCCGAAGCGTTCTTCGCCCTAACCTCCAAGTCGACATCGoASDGGATCTGTGGTCCTTAAAGAAGCGTACTTTGTAGTGAAGGACCACAGATCCAACCGCAGGTTCCCReporter ConstructsoSD (nanoluciferase)CATAGATCTGTGGTTCTTAAAGTTAAACAAACCGGGAACCACAGATCTATGGTCTTCACACTCGAAGoSD (GFP)AACACCACAGATCTATGAGCAAAGGAGAAGAACTTTTCATAGATCTGTGGTGTTAGCCCAAAAAACGGGTRT-PCR GGCGGCAGGCCTAACACATGCCCCCTCCATCAGGCAGTTTCCCAG

Reporter Constructs

An oSD was cloned into a nanoluciferase reporter using the In-Fusion Cloning Kit (Takara Bio) and the primers listed in Table 1. A GFP gene block with overhangs (Twist) was cloned into plasmid pJH474_pTech_Para-supP (Addgene) using the In-Fusion Cloning Kit.^20^ An oSD was cloned into the GFP reporter by using the primers listed in Table 1.

MBP-MS2 Protein Expression and Purification

A pMAL-c2 plasmid (NEB) encoding an N-terminally 6xHis-tagged MBP-MS2 fusion protein was transformed into E. coli BL21 cells.^21^ A colony from the transformation was grown overnight in 10 mL of LB broth containing 100 μg/mL of ampicillin. The culture was transferred to 1 L of ZYM-5052 autoinduction media^22^ with 100 μg/mL of ampicillin and grown overnight at 37 °C with shaking at 175 rpm. Cells were pelleted by centrifugation (6000 × g, 4 °C, 20 min), resuspended in lysis buffer (20 mM HEPES pH 7.5, 250 mM KCl, and 10 mM imidazole), and then lysed using sonication. The resulting lysate was clarified by centrifugation (33,746 × g, 4 °C, 45 min) and subsequently filtered through a 0.2 μm filter. The lysate was loaded onto a gravity column with 3 mL of Cobalt Resin (Thermo Scientific). The column was washed four times with three column volumes of lysis buffer. The protein was eluted into 1 mL fractions using an elution buffer (20 mM HEPES pH 7.5, 250 mM KCl, 2 mM BME, and 500 mM imidazole). The purified protein was buffer exchanged to MS2–150 buffer (20 mM HEPES pH 7.5, 150 mM KCl, and 1 mM EDTA) and concentrated to 10 mg/mL using 30 kDa spin filters.

Mutant Ribosome Expression and Purification

Plasmids containing the 16S rRNA variants designed to block bS1 binding were transformed into E. coli Mach1 competent cells (Thermo Fisher), and cultures were grown overnight in 10 mL of LB broth containing 100 μg/mL of ampicillin. Cultures were transferred to 1 L of LB containing 100 μg/mL of ampicillin and incubated at 37 °C with shaking at 175 rpm. Cultures were induced with isopropyl β-d-1-thiogalactopyranoside (IPTG) at OD_600_ = 0.4, with a final IPTG concentration of 0.5 mM, for 4 h. Cells were pelleted, resuspended in ribosome buffer A-1 (20 mM Tris HCl pH 7.5, 100 mM NH_4_Cl, 1 mM MgCl_2_, and 0.5 mM EDTA), and then lysed using sonication. The resulting lysate was clarified by centrifugation (33,746 × g, 4 °C, 45 min) and loaded into Ti-45 tubes. A sucrose cushion was prepared by adding 24 mL of buffer B (20 mM Tris HCl pH 7.5, 0.5 mM EDTA, 100 mM NH_4_Cl, 10 mM MgCl_2_, and 0.5 M sucrose) and 17 mL of buffer C (20 mM Tris HCl pH 7.5, 0.5 mM EDTA, 60 mM NH_4_Cl, 6 mM MgCl_2_, and 0.706 M sucrose) to the Ti-45 tubes, and the ribosomes were pelleted by centrifugation (27,000 rpm or 57,000 × g, 4 °C, 15 h). Crude ribosomes were resuspended in ribosome buffer A-1, clarified by centrifugation (21,130 × g, 4 °C, 25 min), and subsequently filtered using a 0.2 μm filter.

Crude ribosomes (>60 mg) were diluted to 15 mg/mL in ribosome buffer A-1 and purified at 4 °C. A 5 mL MBP-trap column (Cytiva) was buffer exchanged to MS2–150 buffer, and 10 mg of MBP-MS2 was diluted to 3 mL in MS2–150 buffer before being loaded onto the column. The column was washed with 5 column volumes of ribosome buffer A-1, and crude ribosomes were then slowly loaded onto the column. The column was washed with another 5 column volumes of ribosome buffer A-1, and then 10 column volumes of ribosome buffer A-250 (20 mM Tris HCl pH 7.5, 250 mM NH_4_Cl, 1 mM MgCl_2_, 0.5 and mM EDTA). Ribosomes were eluted into 1 mL fractions using an elution buffer (20 mM Tris HCl pH 7.5, 100 mM NH_4_Cl, 1 mM MgCl_2_, 0.5 mM EDTA, and 10 mM maltose). The purified ribosomes were buffer exchanged to ribosome buffer A-1, concentrated to 3000 nM using 100 kDa spin filters (using the approximation of 1 A_260_ = 72 nM), and flash frozen in liquid nitrogen.

The extent of bS1 depletion in wild-type 16S rRNA and the S1 blocking mutants was analyzed by a 15% SDS-PAGE gel. The samples were diluted to 100 nM based on A_260_ absorbance, and 10 μL of each sample was heat shocked at 95 °C for 5 min before adding the loading dye and loading on the gel. After staining with Coomassie blue dye, the amount of bS1 in each sample was quantified by the band intensity using ImageJ. A box was made around the region of each bS1 band as well as above the band, and the gel analysis tool was used to plot the intensity. The box above the band was used to subtract the background from the signal. This process was repeated for each lane, and the resulting values were normalized to the wild-type bS1 value.

Wild-Type Ribosome Expression and Purification

Wild-type 30S and 50S subunits were expressed and purified as previously described.^23^ Briefly, E. coli MRE600 cells were grown for 4 h before being pelleted and resuspended in ribosome buffer A-1 and subsequently sonicated. The lysate was clarified by centrifugation, and crude ribosomes were isolated using a sucrose cushion at 4 °C. The crude ribosomes were then separated on a 20–40% sucrose gradient using a dissociation buffer (20 mM Tris-HCl pH 7.5, 60 mM NH4Cl, 1 mM MgCl_2_, and 5 mM EDTA), and individual subunits were isolated via fractionation. The subunits were buffer exchanged to ribosome buffer A-1 for storage.

Ribosome Purity Assay

60 μg of purified mutant ribosomes were heated at 95 °C for 5 min. Lithium chloride precipitation solution (Invitrogen) was then added at 2× the volume of ribosomes on ice, and the samples were incubated at −20 °C for 1 h to precipitate the rRNA. The rRNA was pelleted by centrifugation (21,130 × g, 4 °C, 25 min), and the supernatant was vacuum aspirated. The rRNA was washed with 40 μL of 70% ethanol and pelleted by centrifugation (21,130 × g, 4 °C, 5 min), and the supernatant was vacuum aspirated. The resulting rRNA was resuspended in RNase-free water. Primers flanking the MS2 tag in the 16S rRNA (see Table 1) were used in a reverse transcription reaction using the OneStep RT-PCR kit (Qiagen). The resulting cDNA was resolved on a 10% TBE gel and visualized with SYBR Safe DNA Gel Stain (Supplementary Figure S1). For RT-PCR, 1 mL of cells was spun down after 4 h of induction and lysed via a 5 min heat shock at 98 °C. The debris was pelleted, and RT-PCR was performed as described above.

Reassociation Sucrose Gradients

20–40% sucrose gradients (20 mM Tris-HCl pH 7.5, 60 mM NH_4_Cl, 10 mM MgCl_2_, and 0.5 mM EDTA) were prepared in SW 41 Ti tubes. 500 nM 50S and 1000 nM 30S were incubated at 37 °C for 45 min before being added to the gradients (20 mM Tris-HCl pH 7.5, 60 mM NH_4_Cl, 10 mM MgCl_2_, and 0.5 mM EDTA). The gradients were run overnight at 4 °C in an SW 41 Ti swinging bucket rotor (Beckman Coulter) and subjected to 5.45 × 10^11^ ω^2^t total centrifugal force (27,000 rpm, 16 h). The gradients were analyzed on a Biocomp fractionator.

Cryo-EM Sample Preparation

70S ribosome fractions were collected from a 20–40% sucrose gradient using a Biocomp fractionator and buffer exchanged with cryo-EM buffer (20 mM HEPES pH 7.5, 10 mM Mg(OAc)2, 2 mM DTT, and 100 mM KCl). The sample was incubated at 37 °C for 45 min before use. 300 mesh 100 R 1.2/1.3 UltrAuFoil grids (Quantifoil) with 2 nm carbon were glow discharged in a PELCO easiGlow for 12 s at 25 mA and 0.37 mbar before 4 μL of sample was added to each grid. The samples were incubated on the grid for 1 min before being washed three times in 100 μL of cryo-EM buffer. The grids were blotted on an FEI Mark IV Vitrobot using a blot force of 6 and a blot time of 3 s at 4 °C in 100% humidity. The grids were then plunged into liquid ethane.

Cryo-EM Data Acquisition and Processing Workflow

Movies were collected on a 300 kV Titan Krios microscope with a BIO-energy filter and a Gatan K3 camera as previously described,^24^ using a super-resolution pixel size of 0.41 Å and a physical pixel size of 0.82 Å. SerialEM^25^ was used for automated data collection over a defocus range of −0.5 to −1.5 μm with an electron dose of 40 e^–^/Å^2^ over 40 frames.

Raw movies were imported into CryoSPARC 4.^30^ The movies were motion-corrected using Patch Motion Correction^26^ before CTFFind4^27^ was used to estimate the CTFs of micrographs. Particles were picked using Template Picker with a 70S ribosome 2D template. Particles were extracted and Fourier-cropped to 1/8 of the box size. 2D classification was run with 100 classes, and 32 classes that were consistent with 70S ribosomes were selected for a second round of 2D classification. The particles were re-extracted and Fourier-cropped to 1/4 of the box size, and particles were subjected to heterogeneous refinement using a 70S ribosome map from Watson et al.^24^ Classes consistent with 70S ribosomes were re-extracted at the full box size and then subjected to homogeneous refinement (Supplementary Figure S2). For the S1V3 and S1V4 maps, local refinement was done with a mask over the 30S subunit. The pixel sizes for the maps were calibrated using a simulated map from PDB entry 7K00. For modeling, the coordinates from the 30S subunit in 7K00 were used as the initial model. Real-space refinement in PHENIX was used to refine the model.^28^ Local resolution was determined using local resolution estimation in Relion.^29^ Figures were prepared in ChimeraX.^30^ Validation statistics are provided in Supplementary Table S1.

In Vitro Translation Reactions

An in vitro translation reaction using a ΔRibosome PURExpress kit (NEB) was prepared in a total volume of 10 μL containing the following components: 2 μL of solution A, 0.63 μL of factor mix, 0.13 μL of RNase inhibitor, and 25 ng/μL of nanoluciferase DNA template. The reaction also included 250 nM 50S ribosomal subunits and 500 nM 30S ribosomal subunits. The remaining volume consisted of Milli-Q water. The reaction was incubated at 37 °C for 45 min. 2 μL of the reaction product was combined with 30 μL of a 1:50 dilution of Nano-Glo substrate (Promega) into a 364-well microplate, and luminescence was detected with the Tecan Spark microplate reader. Raw luminescence readings are provided in Supplementary Tables S2 and S3.

In Vivo Translation Reactions

E. coli NEBExpress cells were cotransformed with two plasmids using heat shock. One plasmid contained an aminoglycoside phosphotransferase gene for kanamycin resistance and expressed superfolder GFP under the control of an arabinose inducible promoter and an orthogonal (p15A) origin of replication. The second plasmid harbored a beta-lactamase gene for ampicillin resistance and expressed an rrnB rRNA operon with MS2-tagged 16S rRNA. Cells were grown overnight in 1 mL of LB containing 100 μg/mL of ampicillin and 100 μg/mL of kanamycin. 100 μL of the overnight culture was transferred to 3 mL of LB containing 100 μg/mL of ampicillin and 100 μg/mL of kanamycin and allowed to grow until they reached a cell density of OD_600_ = 0.2. Cultures were then induced with 0.5 mM IPTG and 0.1% arabinose at final concentrations. Cultures were grown for 4 h at 37 °C with shaking at 175 rpm. Cells were then pelleted and resuspended in 250 μL of 1× PBS (pH 7.2), which was transferred to a clear 96-well microplate. GFP fluorescence and the OD_600_ were measured with the Tecan Spark microplate reader. GFP fluorescence was normalized to the OD_600_ optical density.

Results

An RNA Extension Blocks bS1 from Binding Ribosomes

Previous structural studies have shown that bS1 binds to the 30S subunit near helix h26 in 16S rRNA.^17,18^ Given that helix h26 contains variable regions that are surface exposed and are not phylogenetically conserved,^31^ we introduced an rRNA extension to helix h26 between positions U835 and G851 to attempt to sterically block bS1 binding to the mutant ribosomes.^32^ However, we kept the conserved loop of the helix, which contains a stable UUCG tetraloop, constant (Figure 1B).^33^ To extend h26, we searched for an RNA motif with structural and folding properties that were well characterized. We tested four different variable sequences that form kink-turn (k-turn) motifs to identify an RNA structural element that could sterically prevent bS1 from binding the 30S subunit (S1V1–S1V4).^34^

We first inserted a k-turn derived from an engineered RNA that introduced 14 additional bases into helix h26 in 16S rRNA (S1V1).^35^ However, the S1V1 30S subunit was only 20% active compared to the tagged wild-type 30S subunits, as shown by in vitro translation of a nanoluciferase reporter (Figure 1C). We therefore tried introducing a G–C base pair at the base of the helix h26 extension to both stabilize and extend the helix, to create mutant S1V2. To test for bS1 depletion from the S1V2 30S subunit, we expressed and purified ribosomes via an MS2 hairpin on the 16S rRNA.^19^ After purification, we isolated and resolved the proteins from the samples on a 15% SDS-PAGE protein gel. As a control, we also tagged wild-type 16S rRNA and purified wild-type 30S subunits adjacent to the mutant ribosomes. The gel shows a band for bS1 in the wild-type 30S at the expected molecular weight of 61.2 kDa, consistent with previous studies.^36^ However, this band is missing in the S1V2 mutant sample (Figure 1D). While it is likely that some percentage of bS1 was depleted during 30S subunit purification, 30S subunits with the wild-type 16S rRNA control that underwent the same purification scheme still contained substantial bS1, as evidenced by the solid band for bS1 in the SDS-PAGE gel. This indicates that the S1V2 rRNA extension played a role in depleting bS1. However, while S1V2 successfully prevented bS1 from binding the 30S subunit, this mutant was only 25% as active as wild-type 30S subunits (Figure 1C). To search for more active 30S subunits, we hypothesized that we could further extend the helix to prevent bS1 binding and introduce an additional A–U pair at the base of the helix (S1V3; Figure 1B). The S1V3 mutation successfully disrupted binding of bS1 to the 30S subunit (Figure 1D) and was about 35% as active as wild-type ribosomes (Figure 1C).

We determined a cryo-EM structure of a 70S ribosome with the S1V3 30S subunit and found that ribosomal protein uS2 was missing from the 30S subunit (Figure 2A and Supplementary Figure S3). This suggested that the A–U base pair extension may have extended and rotated the k-turn to a position that collides with uS2. To mitigate this potential collision, we removed the uridine from the A–U base pair in mutant S1V4 such that stacking of the A in the RNA helix would angle the helix away from ribosomal protein uS2. This final variant, S1V4, also successfully blocked bS1 from binding the 30S subunit (Figure 1D) and was about 50% as active as wild-type 30S subunits. S1V4 also readily formed 70S ribosomes with wild-type 50S subunits, as shown by a reassociation sucrose gradient (Supplementary Figure S4). To ensure the S1V4 30S subunit maintained structural integrity, i.e., with respect to ribosomal protein uS2, we determined the cryo-EM structure of S1V4 to a global resolution of 1.8 Å and a local resolution of 4.4 Å around the h26 extension (Figure 2B, Supplementary Figures S5 and S6). The structure reveals a well-resolved density for the base of helix h26. However, as the helix continues into the k-turn, the density becomes weaker, indicating a flexible k-turn extension (Figure 2C). Cryo-EM density is lacking for ribosomal protein bS1 but is present for uS2 indicating that the extension successfully prevents bS1 binding while not disturbing binding of uS2 to the ribosome (Figure 2B).

Structure of S1 blocking ribosomes. (A) Cryo-EM density of 30S subunit S1V3, with density for ribosomal protein uS2 missing. Density is clearly resolved for protein uS5 and rRNA helix h26 (blue and red, EMD 47168). The green outline indicates where the uS2 density would be. (B) Cryo-EM density of 30S subunit S1V4. Density for uS2 is indicated in green and is well resolved. Density of uS5 is shown in blue, and rRNA helix h26 is shown in red (EMD 47169). (C) Cryo-EM density of the h26 k-turn extension (unmodeled) and uS2, in 30S subunit S1V4. The cryo-EM maps were blurred with a B-factor of 61 Å2 to highlight the k-turn density.

Ribosomal Protein bS1 Does Not Improve Ribosome Orthogonality

To test our hypothesis that preventing bS1 binding to the 30S subunit would improve ribosome orthogonality, i.e., make ribosomes more dependent on the SD–ASD interaction, we used a previously developed oASD sequence in both the wild-type 16S and S1V4 16S rRNA backgrounds.^12^ We also cloned the corresponding oSD sequence into a nanoluciferase reporter (Figure 3). Using a PURE in vitro transcription and translation (IVTT) system supplemented with purified 30S and 50S subunits, we measured nanoluciferase luminescence from IVTT reactions containing wild-type or S1V4 30S subunits and mRNAs in all four possible combinations of wild-type SD and ASD and oSD and oASD pairings. In the case of the wild-type 30S subunit, translation of the wild-type SD reporter is robust, and the translation of the oSD–ASD pair is about 50% of wild-type levels (Figure 3). Consistent with published results, there is no detectable translation for noncognate SD–ASD pairs when using wild-type 30S subunits capable of binding bS1.^12^ We observed similar results with S1V4, although there is slight cross-reactivity between the wild-type ASD and oSD. These results suggest that the SD–ASD interaction can be made highly orthogonal in vitro, and prevention of bS1 binding to the 30S subunit is inconsequential and possibly deleterious to orthogonality.

In vitroactivity of 30S subunit S1V4. Activity of 30S ribosomal subunits with wild-type or orthogonal RBS elements in an in vitro nanoluciferase translation assay. Normalized luminescence of wild-type 30S subunits (blue) with a wild-type ASD sequence and an oASD sequence with corresponding nanoluciferase reporters (black and red). The activity of 30S subunit S1V4 is shown in green with a wild-type ASD sequence and an oASD sequence with corresponding nanoluciferase reporters (black and red). The activity is normalized to that of wild-type ribosomes. Error bars indicate the standard deviation for n = 3 measurements.

Although preventing bS1 binding to the 30S subunit did not improve ribosome orthogonality in vitro, under these conditions, there is no competition between mRNAs for ribosome binding as would occur in cells.^37^ We therefore sought to understand how preventing ribosomal protein bS1 binding to the 30S subunit would affect the orthogonality of ribosomes in vivo. To accomplish this, we developed a two-plasmid system based on previously designed reporters.^12^ In this system, GFP is encoded on a plasmid under the control of an arabinose inducible promoter, while the rRNA operon is encoded on a plasmid under the control of an IPTG inducible promoter. In this system, wild-type GFP is translated from an mRNA harboring a wild-type SD, using ribosomes carrying the wild-type ASD (Figure 4A). In the orthogonal case, oGFP is translated from an mRNA harboring an oSD and should be translated only by ribosomes with an oASD (Figure 4A). With the set of mRNA and ribosome plasmids harboring all combinations of SD, ASD, wild-type 16S, and S1V4 16S sequences, we cotransformed eight different variations of ribosome and GFP plasmids to test for ribosome orthogonality.

In vivoactivity of S1V4 30S subunits. (A) Two-plasmid reporter system with an arabinose inducible promoter upstream of GFP or oGFP, and an IPTG inducible promoter upstream of wild-type or S1V4 16S rRNA sequence, either with an ASD or oASD at the 3′ end. All 8 combinations used in reporter assays are indicated by connecting lines. (B) In vivo translation of wild-type GFP by wild-type 30S (blue), o30S (blue), S1V4 (green), and oS1V4 (green). Error bars indicate the standard deviation for n = 3, p-values > 0.29. (C) In vivo translation of orthogonal GFP by o30S (blue), wild-type 30S (blue), oS1V4 (green), and S1V4 (green). Error bars indicate the standard deviation for n = 3 measurements. Measurements were reported in relative fluorescence units (RFUs).

We measured the fluorescence of GFP 4 h after inducing GFP and rRNA expression with arabinose and IPTG, respectively. We also assessed the level of exogenous 16S rRNA expression using RT-PCR (Supplementary Figure S7). Cells from both wild-type 30S subunits and S1V4 30S subunits harboring the wild-type ASD and expressing the wild-type SD mRNA had comparable levels of fluorescence, which likely derives mostly from endogenous ribosomes given the level of exogenous 16S rRNA expression (Figure 4B and Supplementary Figure S7). We also observe high levels of fluorescence from cells expressing GFP from the mRNA with a wild-type SD (wild-type GFP) and o30S and oS1V4 30S, again likely due to the mRNA being translated by endogenous ribosomes. Interestingly, in the case of cells expressing oGFP mRNA, the amount of translation by ribosomes formed from oS1V4 30S subunits is comparable to that of cells expressing o30S subunits (Figure 4C), consistent with the in vitro translation results. The amount of GFP cross-translation by wild-type ASD containing ribosomes of oSD mRNA is also comparable to the background fluorescence in the uninduced control (Supplementary Figure S8) and is similar to the behavior of S1V4 30S subunits (Figure 4C). Taken together, these results indicate that the oSD and oASD sequences function similarly, independent of whether bS1 is able to bind to the 30S subunit or not.

Conclusions

While orthogonal ribosomes play an essential role in efforts to expand the genetic code, they are limited by SD-independent translation. This has been shown by single-molecule tracking of orthogonal ribosomes in live cells, which revealed that 30S subunits, regardless of having an oASD, still translate endogenous mRNAs.^13^ This is further supported by ribosome profiling experiments, using ribosomes with altered SD sequences, where it was shown that the SD sequence does not dictate the ability of the ribosome to translate endogenous mRNA.^14^ One possible reason for the cross-reactivity of endogenous mRNAs with orthogonal ribosomes is the role that ribosomal protein bS1 plays in translation initiation. It has been hypothesized that bS1, which harbors nucleic acid binding domains, shuttles mRNAs to the ribosome by binding the 5′ region of the mRNA.^17,18^ This could also occur with orthogonal ribosomes, preventing full orthogonality of the translation systems by allowing orthogonal ribosomes to translate endogenous proteins.

Here, we tested the hypothesis that preventing bS1 from binding to the E. coli 30S ribosomal subunit would enable orthogonal ribosomes to be more dependent on the mRNA SD sequence. Since bS1 is essential in E. coli,^14^ we devised a strategy that would leave endogenous bS1 and endogenous ribosomes intact yet allow us to test the role of bS1 binding to orthogonal ribosomes. In structures of the 30S ribosomal subunit, protein bS1 binds predominantly to ribosomal protein uS2 and extends in the direction of 16S rRNA helix h26. We took inspiration from RNA nanostructures and identified RNA k-turns as promising candidates to insert into h26 to sterically block bS1 from binding uS2.^35^ We engineered 16S rRNA using a prototypical k-turn in four different extensions of helix h26. Using a combination of biochemistry and cryo-EM, we were able to identify one variant (S1V4) that prevented bS1 binding to the 30S subunit in vitro while remaining translationally active and without substantially perturbing ribosome structure, i.e., uS2 binding.

We assessed the orthogonality of ribosomes harboring S1V4 30S subunits using both in vitro and in vivo translation reactions^12^ and found that ribosome orthogonality is not improved by preventing bS1 binding to the 30S subunit. In fact, the in vitro reactions, in which no mRNA competition is involved, suggest that preventing bS1 binding to the 30S subunit might actually decrease SD-dependent orthogonality. In addition, preventing bS1 binding to the 30S subunit also decreased translational activity when compared to wild-type 30S subunits. Given the role of bS1 in shuttling mRNA to the ribosome,^16^ depleting bS1 may decrease ribosome activity because mRNA is not shuttled to the ribosome as readily. Although the S1V4 insertion sterically occupies the space normally occupied by bS1 (Figure 2C) and prevents bS1 binding in vitro (Figure 1D), it is possible that bS1 might bind to S1V4 30S subunits in cells, in which the concentrations of ribosomes are higher. Future experiments will be needed to assess bS1 affinity to S1V4 30S subunits in cells.

It is possible that other characteristics of mRNA may have an impact on SD-independent translation independent of the role of bS1. For example, recent studies have shown that adenosines at positions −3 and −6 relative to the start codon increase translation efficiency.^38^ This sequence pattern is prevalent in E. coli and could enable orthogonal ribosomes to translate these endogenous mRNAs, regardless of the absence or presence of bS1. Based on a large screen of over 200,000 sequences, unstructured UTRs also increase translation efficiency,^39^ a result confirmed by ribosome profiling experiments.^14^ Thus, mRNAs with unstructured UTRs could also enable binding to orthogonal ribosomes. Taken together, these features of mRNA outside the SD–ASD interaction and independent of binding of bS1 to the 30S subunit suggest that further improvements to ribosome orthogonality may require a deeper understanding of translation initiation mechanisms in E. coli.
