The Application of Pinch Technology to a Novel Closed-Loop Spray Drying System with a Condenser and Reheater
Zexin Lei, Thomas O’Neill, Timothy Langrish
TL;DR
This paper explores using pinch technology in a closed-loop spray drying system to significantly improve energy efficiency and reduce environmental impact.
Contribution
The study introduces a novel closed-loop spray drying system with an air reheater that achieves substantial energy savings.
Findings
The system achieved a very low approach temperature of 3.48 K.
Heat-recovery components reduced external heating demand by up to 30%.
The system offers a scalable solution for energy efficiency in industrial applications.
Abstract
Spray drying is an energy-intensive process in industrial use, making energy recovery a critical focus for improving overall efficiency. This study investigates the potential of integrating heat-recovery systems, including an innovative air reheater, into a closed-loop spray-drying unit to maximise energy savings. Through detailed pinch analysis, the system achieved a very low approach temperature, averaging 3.48 K, which is significantly lower than that of conventional open-loop systems. The study quantifies the energy-recovery potential by demonstrating that the integration of heat-recovery components can reduce the external heating demand by up to 30%. This not only enhances heat-transfer efficiency but also lowers operational costs and reduces the system’s environmental impact. The results suggest that closed-loop systems with air reheaters offer a scalable solution for improving…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

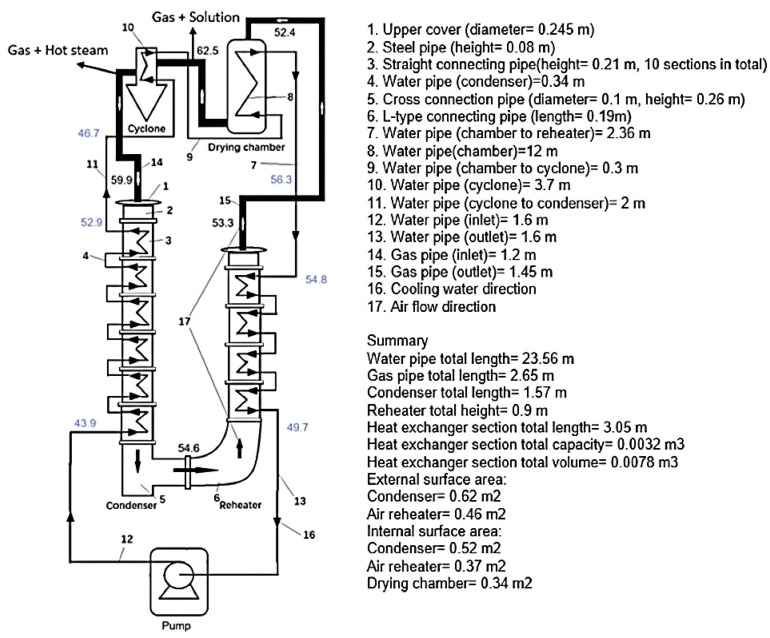

Figure 1

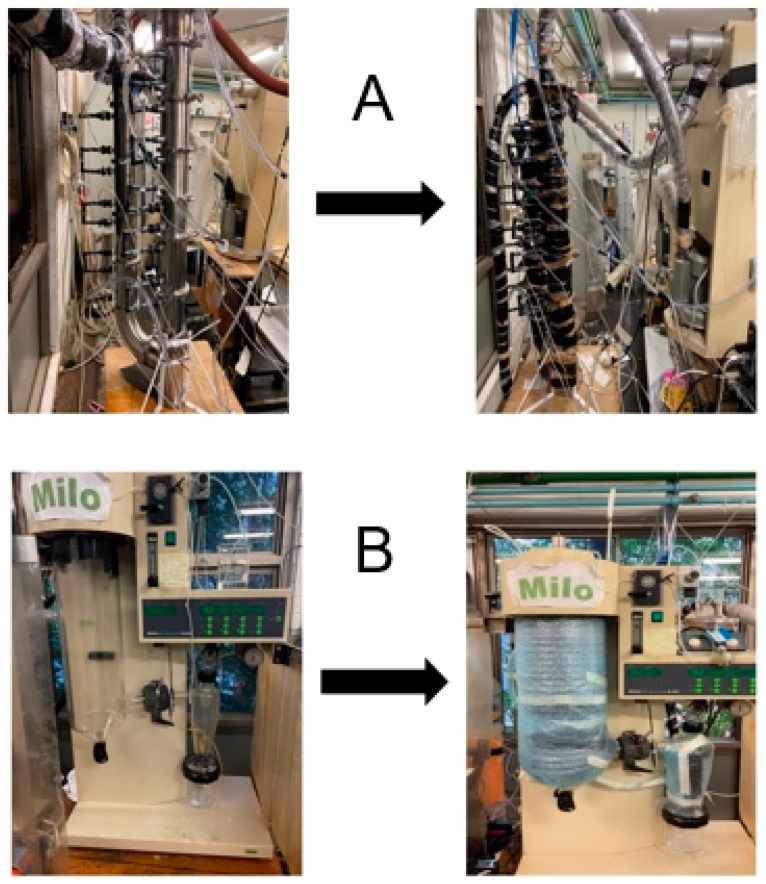

Figure 2

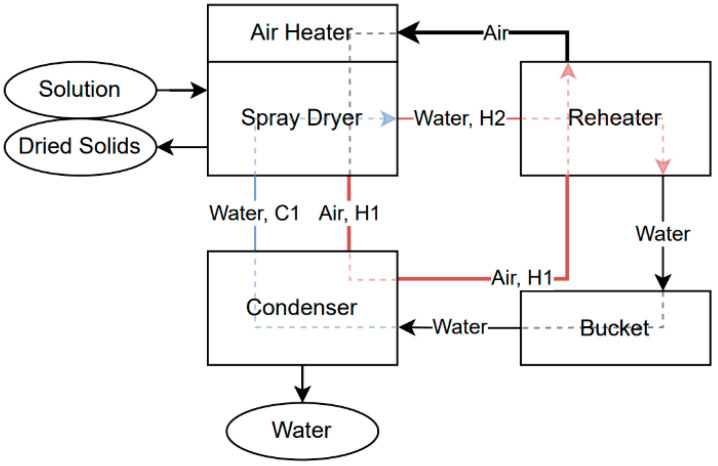

Figure 3

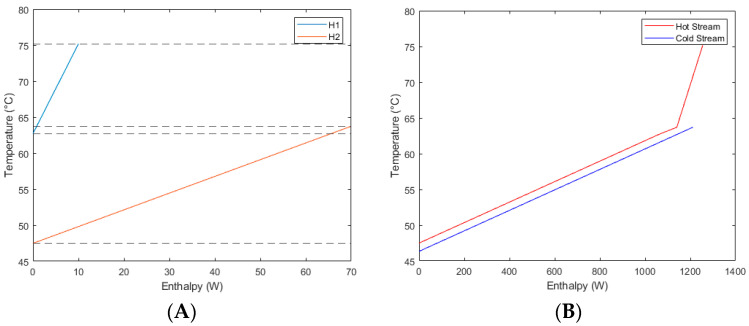

Figure 4

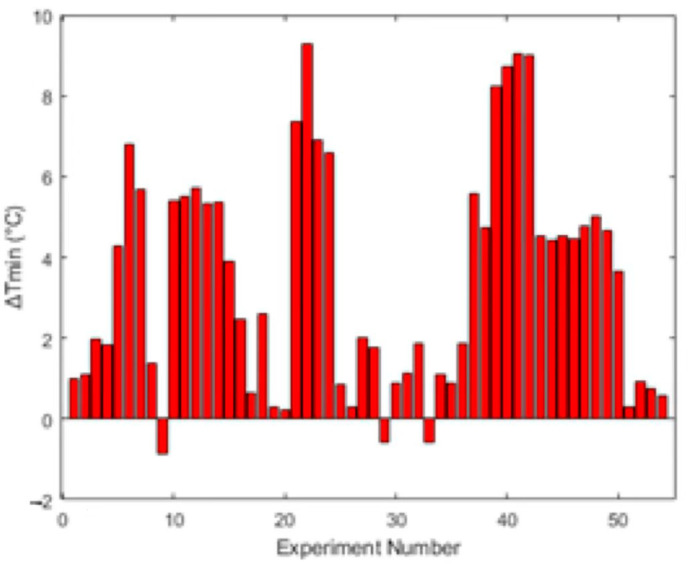

Figure 5

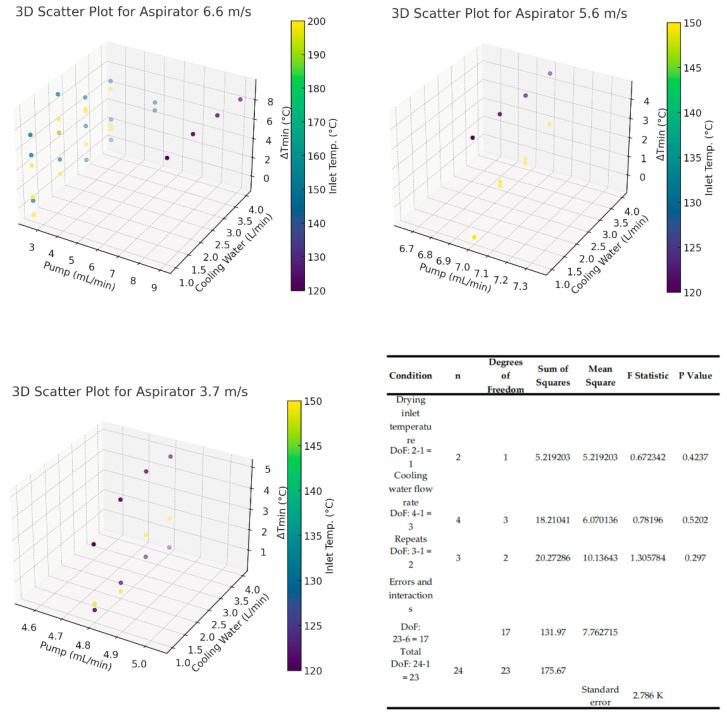

Figure 6

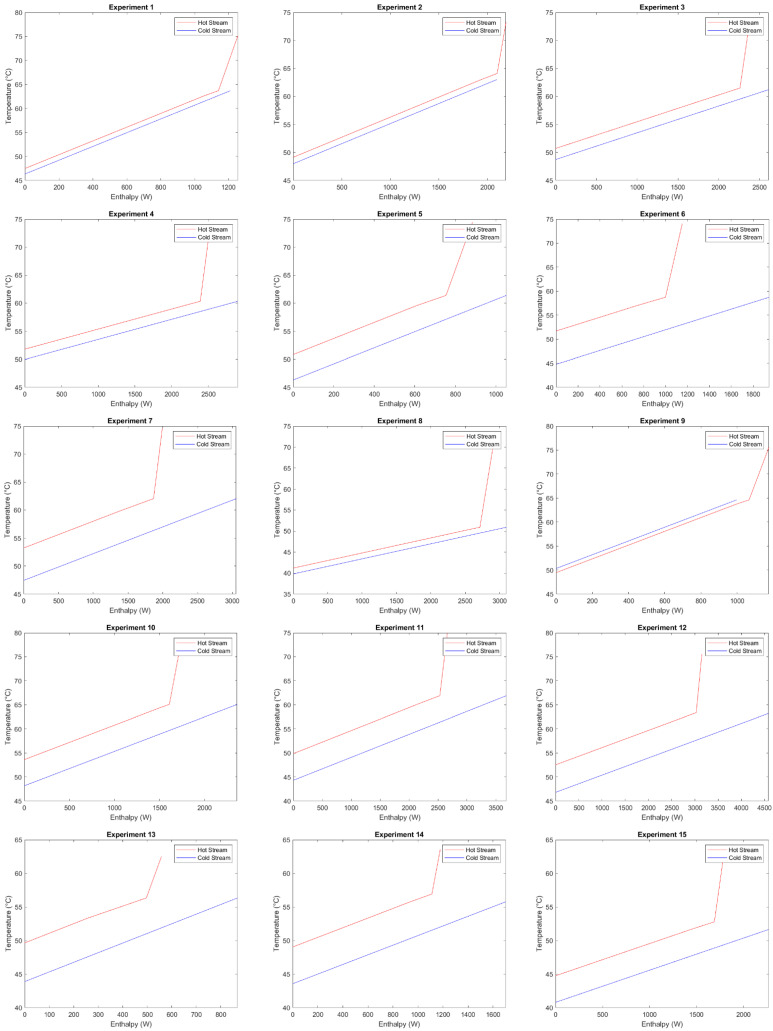

Figure 7

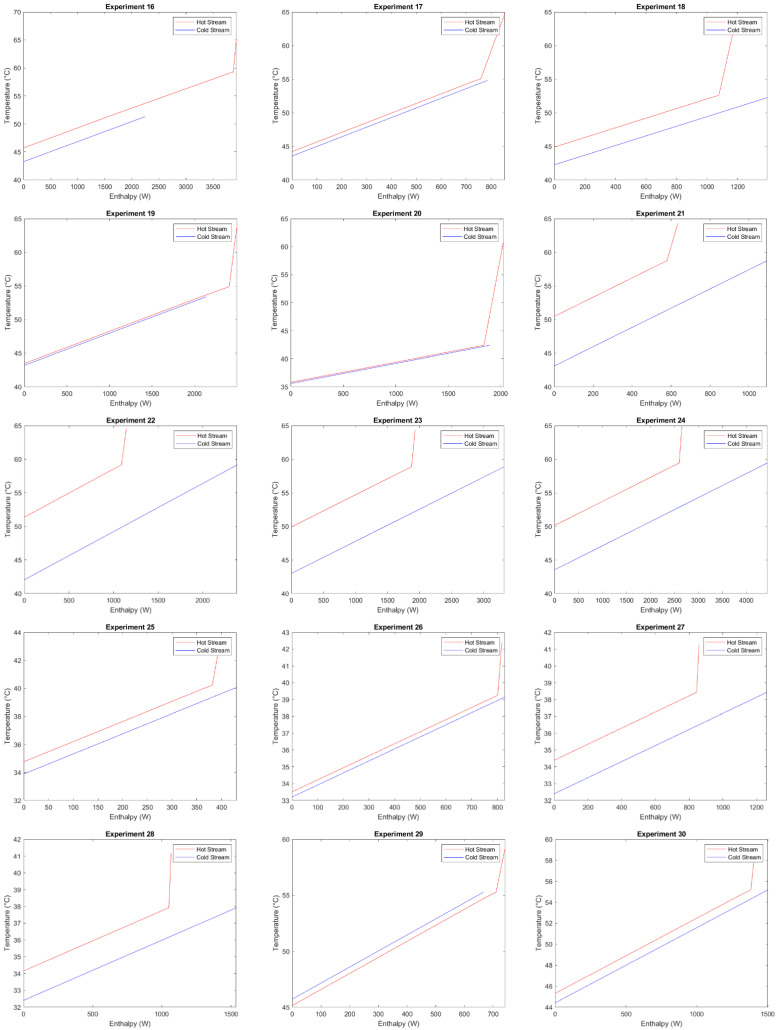

Figure 8

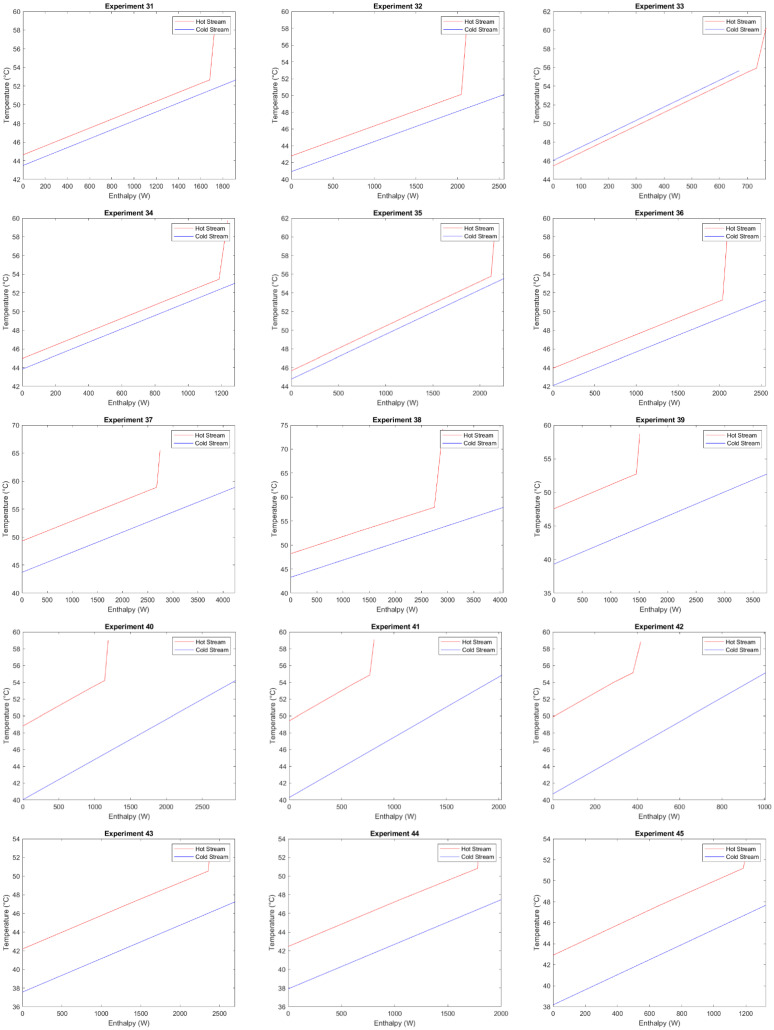

Figure 9

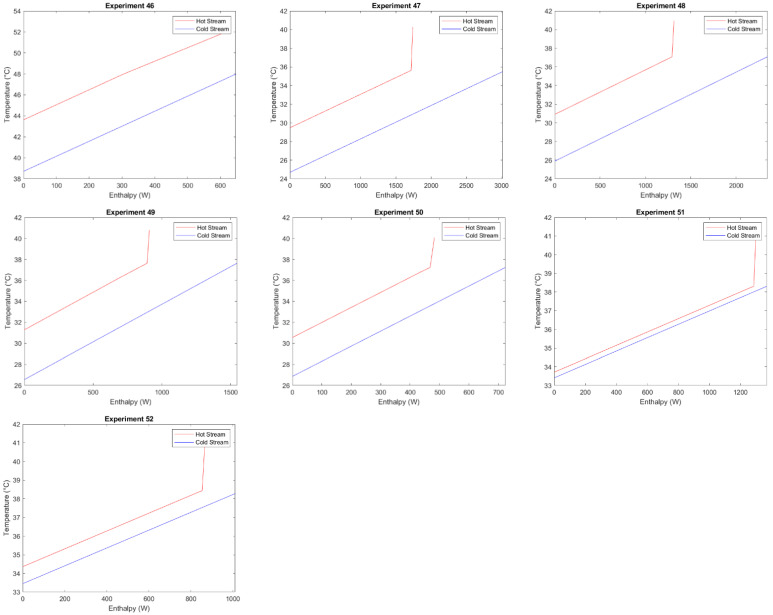

Figure 10Peer Reviews
