Layer upon layer: Imaging techniques of bladder matrix stone: A case report

TL;DR

This case report describes a rare bladder condition called matrix lithiasis and how a combination of imaging techniques helped diagnose it.

Contribution

The paper presents a rare case of bladder matrix lithiasis and emphasizes the importance of multimodal imaging for accurate diagnosis.

Findings

Ultrasonography, CT, and MRI were used to identify a complex, multilayered bladder mass.

MRI provided detailed insights into the internal structure of the lesion.

The case was confirmed as matrix lithiasis after ruling out other possibilities like parasites.

Abstract

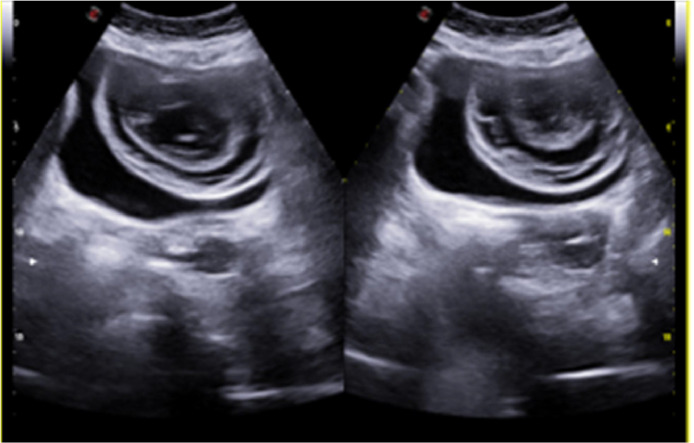

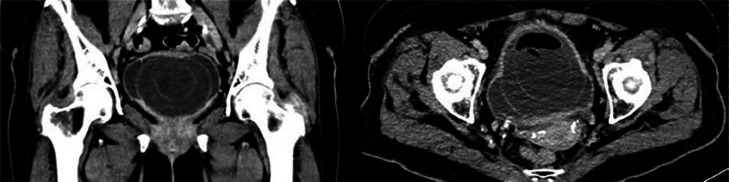

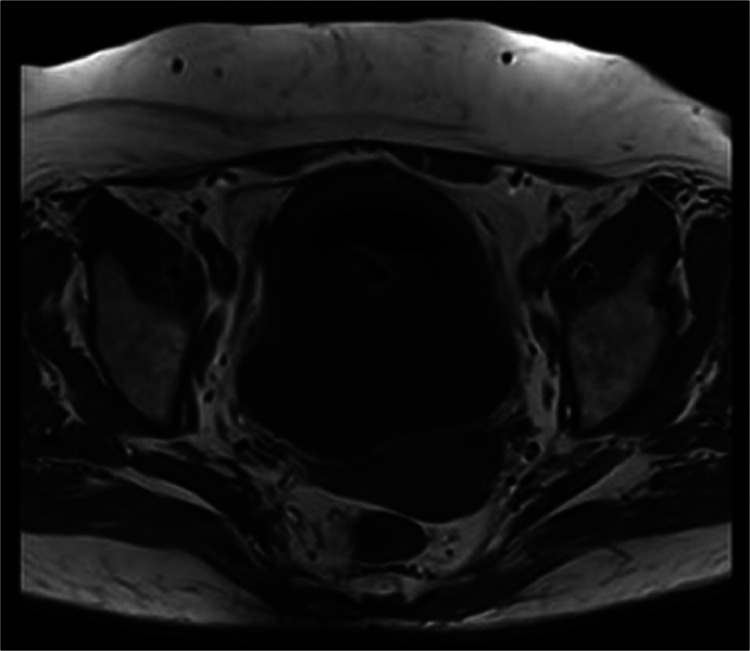

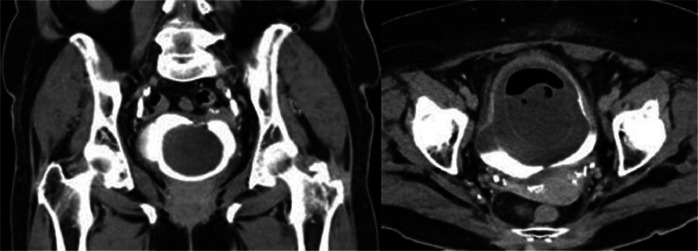

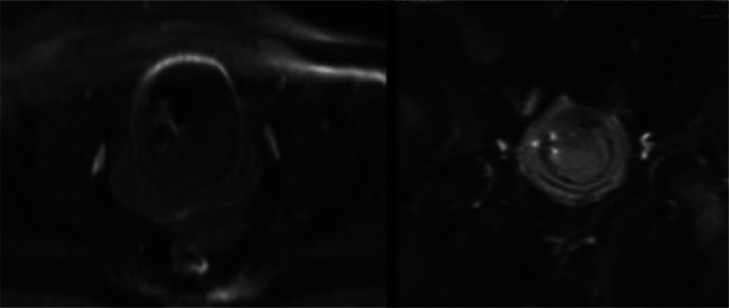

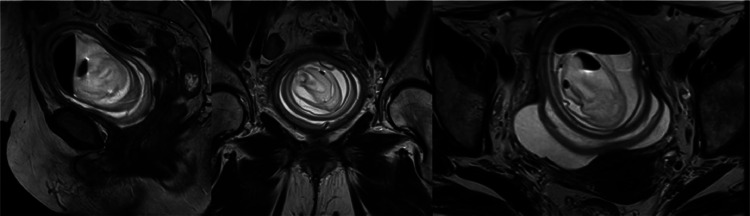

Matrix lithiasis within the bladder is an extremely rare and diagnostically challenging condition, characterized by its atypical presentation and complex imaging appearance. We report the case of a 69-year-old woman with nonspecific urinary symptoms, including hematuria and abdominal pain. Initial ultrasonography revealed an echogenic lesion on the bladder wall, leading to further investigations using computed tomography (CT) and magnetic resonance imaging (MRI). CT imaging initially delineated the lesion's structure, revealing a complex, multilayered cystic mass. Subsequent MRI provided detailed insights into the internal architecture of the mass, further elucidating its layered structure. Although a parasitic etiology was initially suspected, matrix lithiasis was later confirmed. This case highlights the critical role of a comprehensive imaging strategy in diagnosing rare urological conditions and emphasizes the importance of multimodal imaging in differentiating potential diagnoses.

Figures
