Reducing Radiation Dermatitis for PBS Proton Therapy Breast Cancer Patients Using SpotDelete

TL;DR

This study shows that removing proton spots near the skin during breast cancer proton therapy reduces radiation dermatitis severity and delays its onset.

Contribution

A novel technique called SpotDelete is introduced to reduce skin toxicity in proton therapy by eliminating proton spots in the skin rind.

Findings

SpotDelete reduced grade 3 dermatitis to 0% compared to 7% in the MinDepth cohort.

Dermatitis onset was delayed by one week in the SpotDelete group.

No significant differences in LET or RBE models were observed between the two cohorts.

Abstract

The purpose of this work was to reduce the severity of radiation dermatitis for breast cancer patients receiving pencil beam scanning proton therapy. The hypothesis was that eliminating proton spots (SpotDelete) in the 0.5 cm skin rind would reduce the potentially higher relative biological effectiveness (RBE) known to occur at the Bragg Peak.

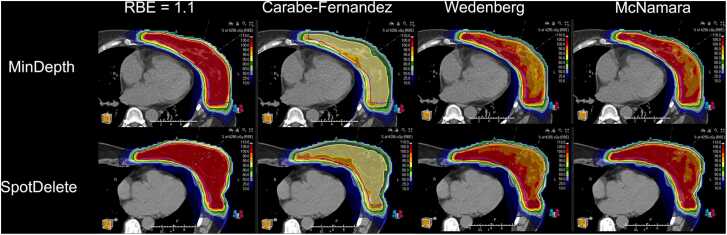

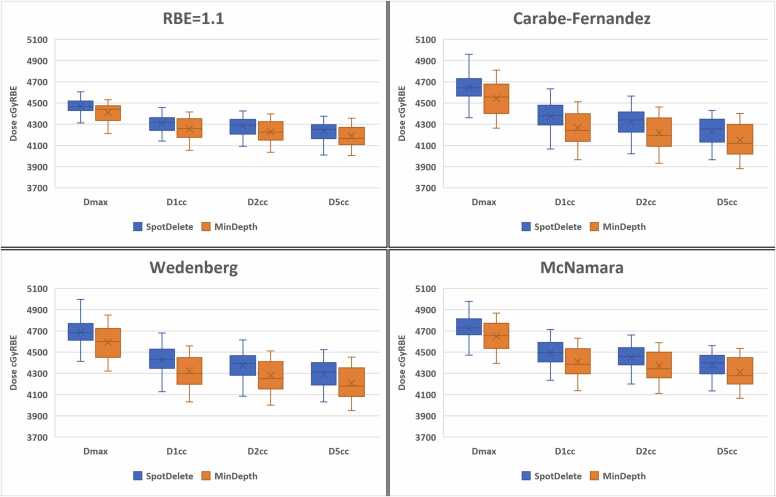

Our center has been using an in-house developed Python script in RayStation since 2021 to remove spots from the skin rind of breast patients. In this work, we retrospectively reviewed the on-treatment visit data from a cohort of breast patients treated with hypofractionation (16 fractions) before this technique (MinDepth) and after (SpotDelete) to acquire the physician-reported radiation dermatitis scores. We evaluated the delivered treatment plans, calculating the linear energy transfer (LET) and applying 3 variable RBE models, Carabe-Fernandez, Wedenberg, and McNamara. An α/β of 10 was assumed for the skin.

In the MinDepth cohort (n = 28), grade 1, 2, and 3 dermatitis accounted for 57%, 36%, and 7% of the cases, respectively. For SpotDelete (n = 27), the incidence rate of grade 1 and 2 acute radiation dermatitis was 67% and 37%, respectively. There were 0 instances of grade 3 dermatitis observed in the SpotDelete cohort. The onset of radiation dermatitis in the SpotDelete cohort was delayed compared to MinDepth, occurring 1 week later in the course of treatment. There was no significant difference in LET or in any of the variable RBE models when analyzing the 0.5 cm skin rind between the cohorts.

Despite the lack of correlation in LET or RBE, SpotDelete has been shown to reduce the severity and onset of radiation dermatitis. Possibly, more research into the α/β for skin and RBE models based on skin cell lines could provide insight into the efficacy of the SpotDelete technique.

Figures
