The genome sequence of the Red Chestnut moth, Cerastis rubricosa (Schiffermüller, 1775)

TL;DR

The genome of the Red Chestnut moth is sequenced, assembled into 31 pseudomolecules and annotated with thousands of genes.

Contribution

A high-quality genome assembly and gene annotation for the Red Chestnut moth is presented.

Findings

The genome is 678.7 megabases long and includes 31 chromosomal pseudomolecules.

Gene annotation identified 18,784 protein-coding genes.

The mitochondrial genome is 15.39 kilobases in length.

Abstract

We present a genome assembly from an individual male
Cerastis rubricosa (the Red Chestnut moth; Arthropoda; Insecta; Lepidoptera; Noctuidae). The genome sequence is 678.7 megabases in span. Most of the assembly is scaffolded into 31 chromosomal pseudomolecules, including the Z sex chromosome. The mitochondrial genome has also been assembled and is 15.39 kilobases in length. Gene annotation of this assembly on Ensembl identified 18,784 protein coding genes.

Figures

Photograph of the Cerastis rubricosa (ilCerRubr1) specimen used for genome sequencing.

Genome assembly of Cerastis rubricosa, ilCerRubr1.1: metrics.The BlobToolKit Snailplot shows N50 metrics and BUSCO gene completeness. The main plot is divided into 1,000 size-ordered bins around the circumference with each bin representing 0.1% of the 678,709,332 bp assembly. The distribution of scaffold lengths is shown in dark grey with the plot radius scaled to the longest scaffold present in the assembly (31,522,147 bp, shown in red). Orange and pale-orange arcs show the N50 and N90 scaffold lengths (23,337,995 and 16,738,118 bp), respectively. The pale grey spiral shows the cumulative scaffold count on a log scale with white scale lines showing successive orders of magnitude. The blue and pale-blue area around the outside of the plot shows the distribution of GC, AT and N percentages in the same bins as the inner plot. A summary of complete, fragmented, duplicated and missing BUSCO genes in the lepidoptera_odb10 set is shown in the top right. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/ilCerRubr1_1/dataset/ilCerRubr1_1/snail.

Genome assembly of Cerastis rubricosa, ilCerRubr1.1: BlobToolKit GC-coverage plot.Scaffolds are coloured by phylum. Circles are sized in proportion to scaffold length. Histograms show the distribution of scaffold length sum along each axis. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/ilCerRubr1_1/dataset/ilCerRubr1_1/blob.

Genome assembly of Cerastis rubricosa, ilCerRubr1.1: BlobToolKit cumulative sequence plot.The grey line shows cumulative length for all scaffolds. Coloured lines show cumulative lengths of scaffolds assigned to each phylum using the buscogenes taxrule. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/ilCerRubr1_1/dataset/ilCerRubr1_1/cumulative.

Genome assembly of Cerastis rubricosa, ilCerRubr1.1: Hi-C contact map of the ilCerRubr1.1 assembly, visualised using HiGlass.Chromosomes are shown in order of size from left to right and top to bottom. An interactive version of this figure may be viewed at https://genome-note-higlass.tol.sanger.ac.uk/l/?d=aghxpM00RxKIO-eZme_jEA.

Tables

Table 1.. Genome data for Cerastis rubricosa, ilCerRubr1.1.

Project accession data
Assembly identifier	ilCerRubr1.1
Species	Cerastis rubricosa
Specimen	ilCerRubr1
NCBI taxonomy ID	988089
BioProject	PRJEB59288
BioSample ID	SAMEA10107029
Isolate information	ilCerRubr1, male: abdomen (DNA sequencing), head (Hi-C sequencing)
Assembly metrics *		Benchmark
Consensus quality (QV)	68.7	≥ 50
k-mer completeness	100.0%	≥ 95%
BUSCO **	C:99.0%[S:98.5%,D:0.5%], F:0.2%,M:0.8%,n:5,286	C ≥ 95%
Percentage of assembly mapped to chromosomes	99.96%	≥ 95%
Sex chromosomes	Z	localised homologous pairs
Organelles	Mitochondrial genome: 15.39 kb	complete single alleles
Raw data accessions
PacificBiosciences SEQUEL II	ERR10809410
Hi-C Illumina	ERR10818316
Genome assembly
Assembly accession	GCA_949152445.1
Accession of alternate haplotype	GCA_949152405.1
Span (Mb)	678.7
Number of contigs	107
Contig N50 length (Mb)	11.0
Number of scaffolds	35
Scaffold N50 length (Mb)	23.3
Longest scaffold (Mb)	31.52
Genome annotation
Number of protein-coding genes	18,784
Number of gene transcripts	18,993

Table 2.. Chromosomal pseudomolecules in the genome assembly of Cerastis rubricosa, ilCerRubr1.

INSDC accession	Chromosome	Length (Mb)	GC%
OX424524.1	1	30.09	39.0
OX424525.1	2	26.31	39.0
OX424526.1	3	25.88	39.0
OX424527.1	4	25.8	38.5
OX424528.1	5	25.8	39.0
OX424529.1	6	24.74	38.5
OX424530.1	7	24.49	39.0
OX424531.1	8	24.47	38.5
OX424532.1	9	23.86	38.5
OX424533.1	10	23.76	39.0
OX424534.1	11	23.57	39.0
OX424535.1	12	23.39	39.0
OX424536.1	13	23.34	39.0
OX424537.1	14	23.33	38.5
OX424538.1	15	23.07	38.5
OX424539.1	16	22.37	39.0
OX424540.1	17	22.32	39.0
OX424541.1	18	22.11	39.0
OX424542.1	19	21.66	39.0
OX424543.1	20	21.62	39.0
OX424544.1	21	21.07	39.0
OX424545.1	22	21.05	39.0
OX424546.1	23	19.48	39.5
OX424547.1	24	19.41	38.5
OX424548.1	25	16.74	39.5
OX424549.1	26	16.24	39.0
OX424550.1	27	13.25	39.5
OX424551.1	28	13.04	39.5
OX424552.1	29	12.68	40.0
OX424553.1	30	11.99	41.0
OX424523.1	Z	31.52	38.5
OX424554.1	MT	0.02	19.0

Table 3.. Software tools: versions and sources.

Software tool	Version	Source
BlobToolKit	4.2.1	https://github.com/blobtoolkit/blobtoolkit
BUSCO	5.3.2	https://gitlab.com/ezlab/busco
Hifiasm	0.16.1-r375	https://github.com/chhylp123/hifiasm
HiGlass	1.11.6	https://github.com/higlass/higlass
Merqury	MerquryFK	https://github.com/thegenemyers/MERQURY.FK
MitoHiFi	2	https://github.com/marcelauliano/MitoHiFi
PretextView	0.2	https://github.com/wtsi-hpag/PretextView
purge_dups	1.2.3	https://github.com/dfguan/purge_dups
sanger-tol/ genomenote	v1.0	https://github.com/sanger-tol/genomenote
sanger-tol/ readmapping	1.1.0	https://github.com/sanger-tol/readmapping/tree/1.1.0
YaHS	1.2a	https://github.com/c-zhou/yahs

Full text

Species taxonomy

Eukaryota; Opisthokonta; Metazoa; Eumetazoa; Bilateria; Protostomia; Ecdysozoa; Panarthropoda; Arthropoda; Mandibulata; Pancrustacea; Hexapoda; Insecta; Dicondylia; Pterygota; Neoptera; Endopterygota; Amphiesmenoptera; Lepidoptera; Glossata; Neolepidoptera; Heteroneura; Ditrysia; Obtectomera; Noctuoidea; Noctuidae; Noctuinae; Noctuini; Cerastis; Cerastis rubricosa (Schiffermüller, 1775) (NCBI:txid988089).

Background

The Red Chestnut Cerastis rubricosa is a reddish-brown spring-flying noctuid moth recorded widely across central and northern Europe, with additional scattered records from Russia, Ukraine, China and Hokkaido, Japan ( GBIF Secretariat, 2023). In Britain, the species is found from the north of Scotland to the south coast of England, through south and west Wales and across much of Northern Ireland, but has declined greatly in abundance over the past 50 years ( Randle et al., 2019). In Ireland, C. rubricosa is mainly found in coastal regions and can be locally common ( MothsIreland, 2023).

In Europe the moth has one generation per year, with adults recorded from March to May. The polyphagous larvae feed in summer on a wide range of low-growing herbaceous plants including dock Rumex sp., dandelion Taraxacum officinale, groundsel Senecio vulgaris and orchids ( Sletvold et al., 2015; South, 1961). The larvae are highly mobile and can move between plants to select their preferred food source ( Sletvold et al., 2015). In a study of herbivory on the Fragrant orchid Gymnadenia conopsea in Norway, larvae of C. rubricosa were found to feed on orchid flowers before switching to feed on the leaves and stem, sometimes eating all parts of the plant above ground ( Sletvold et al., 2015).

A genome sequence of the Red Chestnut Cerastis rubricosa was determined as part of the Darwin Tree of Life project. The genome sequence will facilitate research into adaptations to polyphagy and will contribute to the growing set of resources for studying molecular evolution in the Lepidoptera.

Genome sequence report

The genome was sequenced from one male Cerastis rubricosa ( Figure 1) collected from Wytham Woods, Oxfordshire, UK (51.77, –1.34). A total of 34-fold coverage in Pacific Biosciences single-molecule HiFi long reads was generated. Primary assembly contigs were scaffolded with chromosome conformation Hi-C data. Manual assembly curation corrected 14 missing joins or mis-joins and removed 8 haplotypic duplications, reducing the assembly length by 1.46% and the scaffold number by 2.70%, and decreasing the scaffold N50 by 1.80%.

Photograph of the Cerastis rubricosa (ilCerRubr1) specimen used for genome sequencing.

The final assembly has a total length of 678.7 Mb in 35 sequence scaffolds with a scaffold N50 of 23.3 Mb ( Table 1). The snailplot in Figure 2 provides a summary of the assembly statistics, while the distribution of assembly scaffolds on GC proportion and coverage is shown in Figure 3. The cumulative assembly plot in Figure 4 shows curves for subsets of scaffolds assigned to different phyla. Most (99.96%) of the assembly sequence was assigned to 31 chromosomal-level scaffolds, representing 30 autosomes and the Z sex chromosome. Chromosome-scale scaffolds confirmed by the Hi-C data are named in order of size ( Figure 5; Table 2). The Z chromosome identified based on synteny with Diarsia rubi (GCA_932274075.1) ( Boyes et al., 2023). While not fully phased, the assembly deposited is of one haplotype. Contigs corresponding to the second haplotype have also been deposited. The mitochondrial genome was also assembled and can be found as a contig within the multifasta file of the genome submission.

Table 1.: Genome data for Cerastis rubricosa, ilCerRubr1.1.

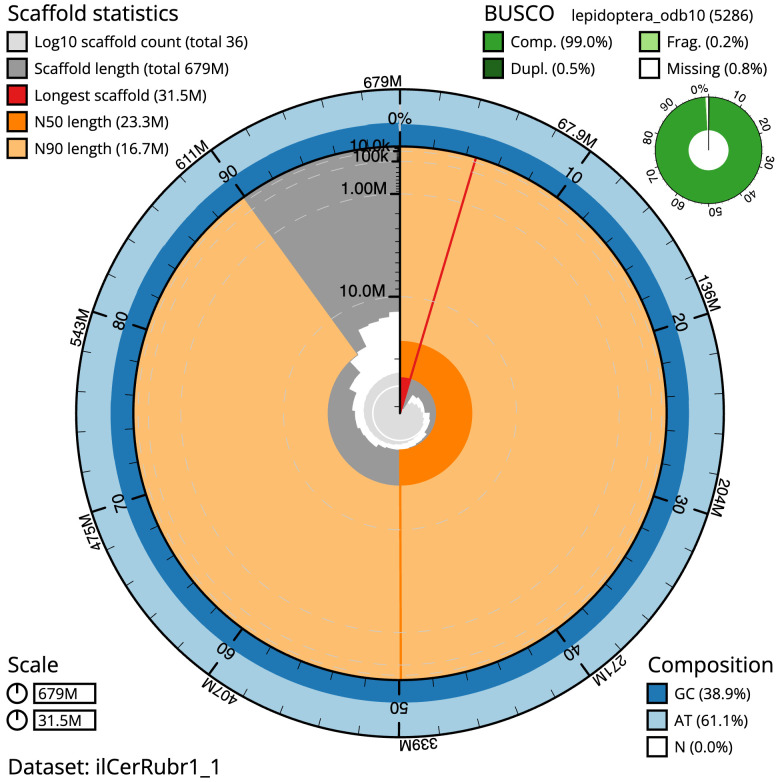

Genome assembly of Cerastis rubricosa, ilCerRubr1.1: metrics.The BlobToolKit Snailplot shows N50 metrics and BUSCO gene completeness. The main plot is divided into 1,000 size-ordered bins around the circumference with each bin representing 0.1% of the 678,709,332 bp assembly. The distribution of scaffold lengths is shown in dark grey with the plot radius scaled to the longest scaffold present in the assembly (31,522,147 bp, shown in red). Orange and pale-orange arcs show the N50 and N90 scaffold lengths (23,337,995 and 16,738,118 bp), respectively. The pale grey spiral shows the cumulative scaffold count on a log scale with white scale lines showing successive orders of magnitude. The blue and pale-blue area around the outside of the plot shows the distribution of GC, AT and N percentages in the same bins as the inner plot. A summary of complete, fragmented, duplicated and missing BUSCO genes in the lepidoptera_odb10 set is shown in the top right. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/ilCerRubr1_1/dataset/ilCerRubr1_1/snail.

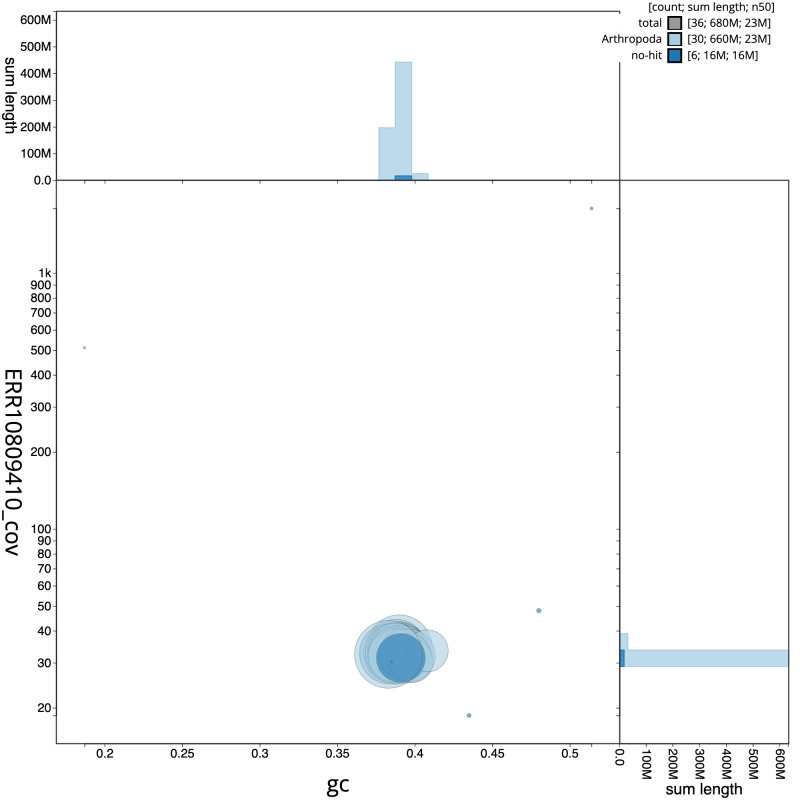

Genome assembly of Cerastis rubricosa, ilCerRubr1.1: BlobToolKit GC-coverage plot.Scaffolds are coloured by phylum. Circles are sized in proportion to scaffold length. Histograms show the distribution of scaffold length sum along each axis. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/ilCerRubr1_1/dataset/ilCerRubr1_1/blob.

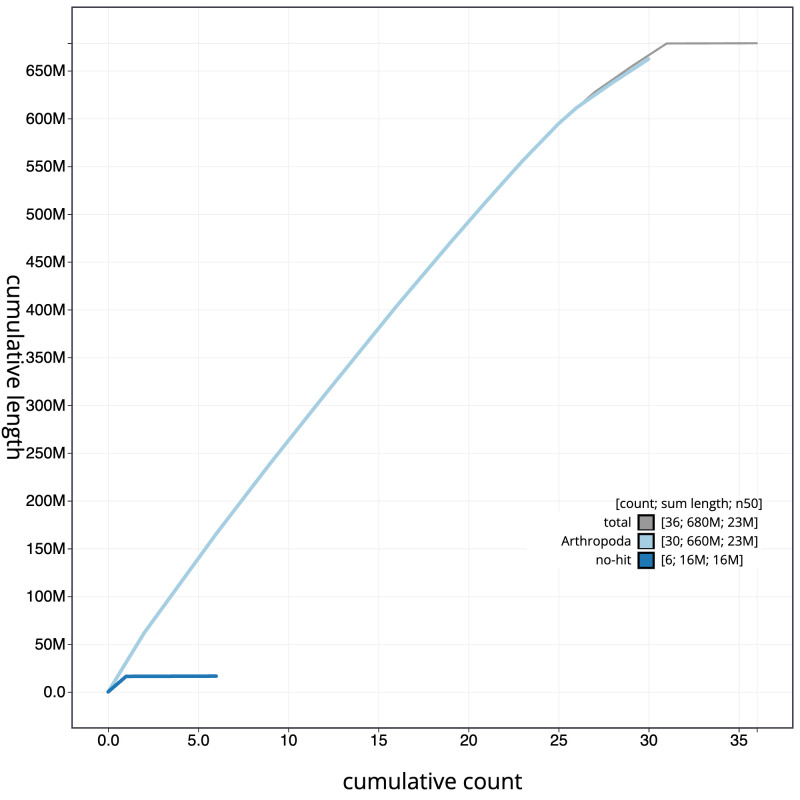

Genome assembly of Cerastis rubricosa, ilCerRubr1.1: BlobToolKit cumulative sequence plot.The grey line shows cumulative length for all scaffolds. Coloured lines show cumulative lengths of scaffolds assigned to each phylum using the buscogenes taxrule. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/ilCerRubr1_1/dataset/ilCerRubr1_1/cumulative.

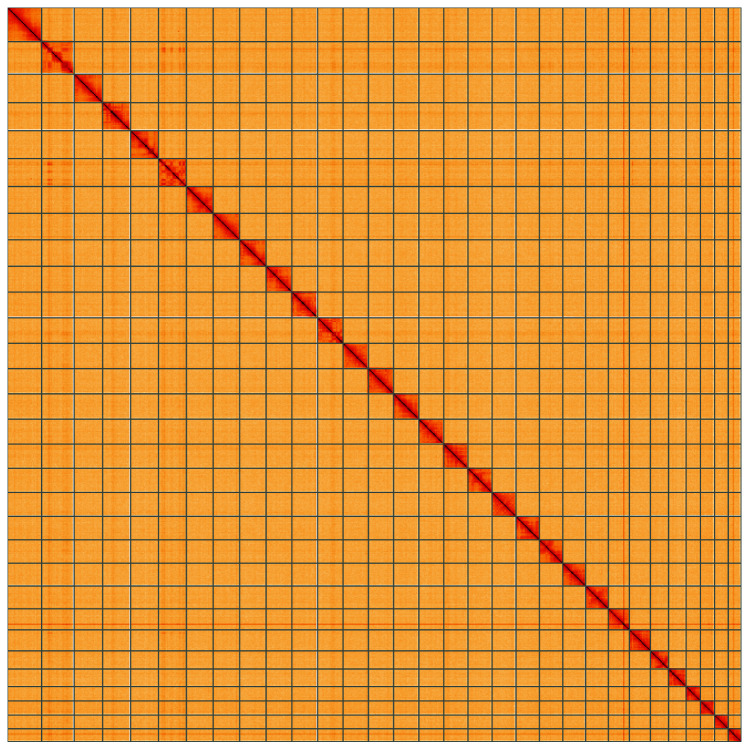

Genome assembly of Cerastis rubricosa, ilCerRubr1.1: Hi-C contact map of the ilCerRubr1.1 assembly, visualised using HiGlass.Chromosomes are shown in order of size from left to right and top to bottom. An interactive version of this figure may be viewed at https://genome-note-higlass.tol.sanger.ac.uk/l/?d=aghxpM00RxKIO-eZme_jEA.

Table 2.: Chromosomal pseudomolecules in the genome assembly of Cerastis rubricosa, ilCerRubr1.

The estimated Quality Value (QV) of the final assembly is 68.7 with k-mer completeness of 100.0%, and the assembly has a BUSCO v5.3.2 completeness of 99.0% (single = 98.5%, duplicated = 0.5%), using the lepidoptera_odb10 reference set ( n = 5,286).

Metadata for specimens, barcode results, spectra estimates, sequencing runs, contaminants and pre-curation assembly statistics are given at https://links.tol.sanger.ac.uk/species/988089.

Genome annotation report

The Cerastis rubricosa genome assembly (GCA_949152445.1) was annotated using the Ensembl rapid annotation pipeline ( Table 1; https://rapid.ensembl.org/Cerastis_rubricosa_GCA_949152445.1/Info/Index). The resulting annotation includes 18,993 transcribed mRNAs from 18,784 protein-coding genes.

Methods

Sample acquisition and nucleic acid extraction

A male Cerastis rubricosa (specimen ID Ox001104, ToLID ilCerRubr1) was collected from Wytham Woods, Oxfordshire (biological vice-county Berkshire), UK (latitude 51.77, longitude –1.34) on 2021-03-31 using a light trap. The specimen was collected and identified by Douglas Boyes (University of Oxford) and preserved on dry ice.

The workflow for high molecular weight (HMW) DNA extraction at the Wellcome Sanger Institute (WSI) includes a sequence of core procedures: sample preparation; sample homogenisation, DNA extraction, fragmentation, and clean-up. In sample preparation, the ilCerRubr1 sample was weighed and dissected on dry ice ( Jay et al., 2023). For sample homogenisation, abdomen tissue was cryogenically disrupted using the Covaris cryoPREP ^®^ Automated Dry Pulverizer ( Narváez-Gómez et al., 2023). HMW DNA was extracted using the Automated MagAttract v1 protocol ( Sheerin et al., 2023). DNA was sheared into an average fragment size of 12–20 kb in a Megaruptor 3 system with speed setting 30 ( Todorovic et al., 2023). Sheared DNA was purified by solid-phase reversible immobilisation ( Strickland et al., 2023): in brief, the method employs a 1.8X ratio of AMPure PB beads to sample to eliminate shorter fragments and concentrate the DNA. The concentration of the sheared and purified DNA was assessed using a Nanodrop spectrophotometer and Qubit Fluorometer and Qubit dsDNA High Sensitivity Assay kit. Fragment size distribution was evaluated by running the sample on the FemtoPulse system.

Protocols developed by the WSI Tree of Life laboratory are publicly available on protocols.io ( Denton et al., 2023).

Sequencing

Pacific Biosciences HiFi circular consensus DNA sequencing libraries were constructed according to the manufacturers’ instructions. DNA sequencing was performed by the Scientific Operations core at the WSI on a Pacific Biosciences SEQUEL II (HiFi) instrument. Hi-C data were also generated from head tissue of ilCerRubr1 using the Arima2 kit and sequenced on the Illumina NovaSeq 6000 instrument.

Genome assembly, curation and evaluation

Assembly was carried out with Hifiasm ( Cheng et al., 2021) and haplotypic duplication was identified and removed with purge_dups ( Guan et al., 2020). The assembly was then scaffolded with Hi-C data ( Rao et al., 2014) using YaHS ( Zhou et al., 2023). The assembly was checked for contamination and corrected as described previously ( Howe et al., 2021). Manual curation was performed using HiGlass ( Kerpedjiev et al., 2018) and Pretext ( Harry, 2022). The mitochondrial genome was assembled using MitoHiFi ( Uliano-Silva et al., 2023), which runs MitoFinder ( Allio et al., 2020) or MITOS ( Bernt et al., 2013) and uses these annotations to select the final mitochondrial contig and to ensure the general quality of the sequence.

A Hi-C map for the final assembly was produced using bwa-mem2 ( Vasimuddin et al., 2019) in the Cooler file format ( Abdennur & Mirny, 2020). To assess the assembly metrics, the k-mer completeness and QV consensus quality values were calculated in Merqury ( Rhie et al., 2020). This work was done using Nextflow ( Di Tommaso et al., 2017) DSL2 pipelines “sanger-tol/readmapping” ( Surana et al., 2023a) and “sanger-tol/genomenote” ( Surana et al., 2023b). The genome was analysed within the BlobToolKit environment ( Challis et al., 2020) and BUSCO scores ( Manni et al., 2021; Simão et al., 2015) were calculated.

Table 3 contains a list of relevant software tool versions and sources.

Genome annotation

The BRAKER2 pipeline ( Brůna et al., 2021) was used in the default protein mode to generate annotation for the Cerastis rubricosa assembly (GCA_949152445.1) in Ensembl Rapid Release.
