The genome sequence of a soldier beetle, Cantharis flavilabris Fallén, 1807

TL;DR

This paper presents the genome sequence of the soldier beetle Cantharis flavilabris, including chromosomal scaffolding and gene annotation.

Contribution

The study provides a high-quality genome assembly and gene annotation for Cantharis flavilabris.

Findings

The genome assembly spans 348.3 megabases and includes 7 chromosomal pseudomolecules.

Gene annotation identified 22,711 protein coding genes using Ensembl.

Abstract

We present a genome assembly from an individual female
Cantharis flavilabris (soldier beetle; Arthropoda; Insecta; Coleoptera; Cantharidae). The genome sequence is 348.3 megabases in span. Most of the assembly is scaffolded into 7 chromosomal pseudomolecules, including the X sex chromosome. The mitochondrial genome has also been assembled and is 17.5 kilobases in length. Gene annotation of this assembly on Ensembl identified 22,711 protein coding genes.

Figures

Photograph of the Cantharis flavilabris (icCanFlav1) specimen used for genome sequencing.

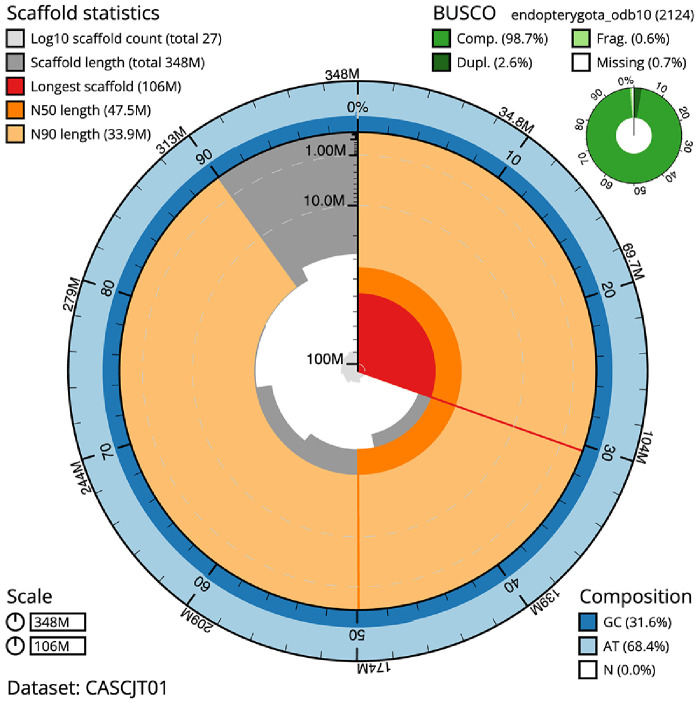

Genome assembly of Cantharis flavilabris, icCanFlav1.1: metrics.The BlobToolKit Snailplot shows N50 metrics and BUSCO gene completeness. The main plot is divided into 1,000 size-ordered bins around the circumference with each bin representing 0.1% of the 348,304,867 bp assembly. The distribution of scaffold lengths is shown in dark grey with the plot radius scaled to the longest scaffold present in the assembly (106,117,081 bp, shown in red). Orange and pale-orange arcs show the N50 and N90 scaffold lengths (47,548,398 and 33,898,588 bp), respectively. The pale grey spiral shows the cumulative scaffold count on a log scale with white scale lines showing successive orders of magnitude. The blue and pale-blue area around the outside of the plot shows the distribution of GC, AT and N percentages in the same bins as the inner plot. A summary of complete, fragmented, duplicated and missing BUSCO genes in the endopterygota_odb10 set is shown in the top right. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/CASCJT01/dataset/CASCJT01/snail.

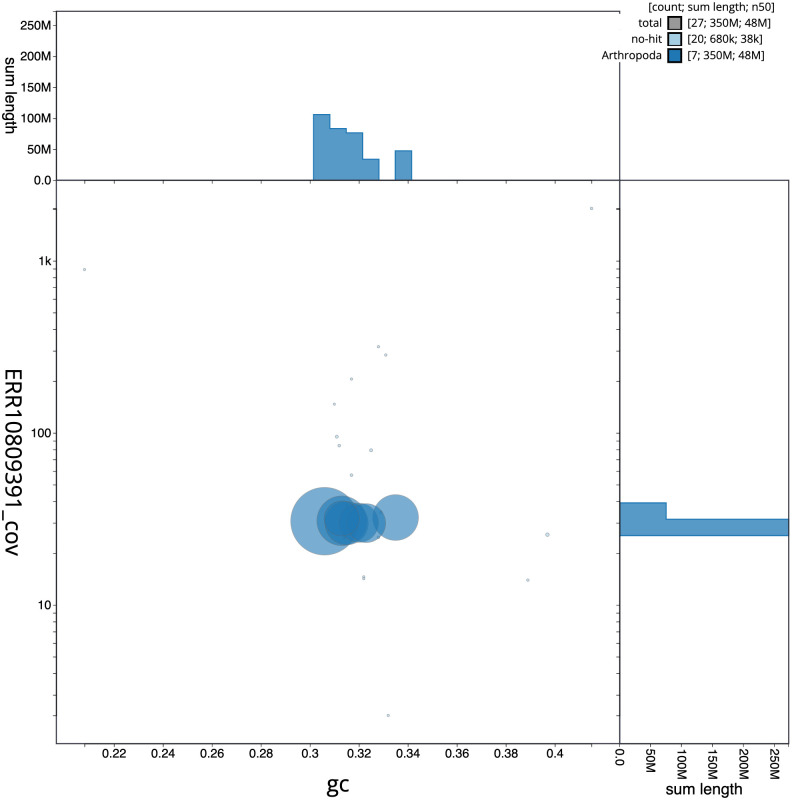

Genome assembly of Cantharis flavilabris, icCanFlav1.1: BlobToolKit GC-coverage plot.Scaffolds are coloured by phylum. Circles are sized in proportion to scaffold length. Histograms show the distribution of scaffold length sum along each axis. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/CASCJT01/dataset/CASCJT01/blob.

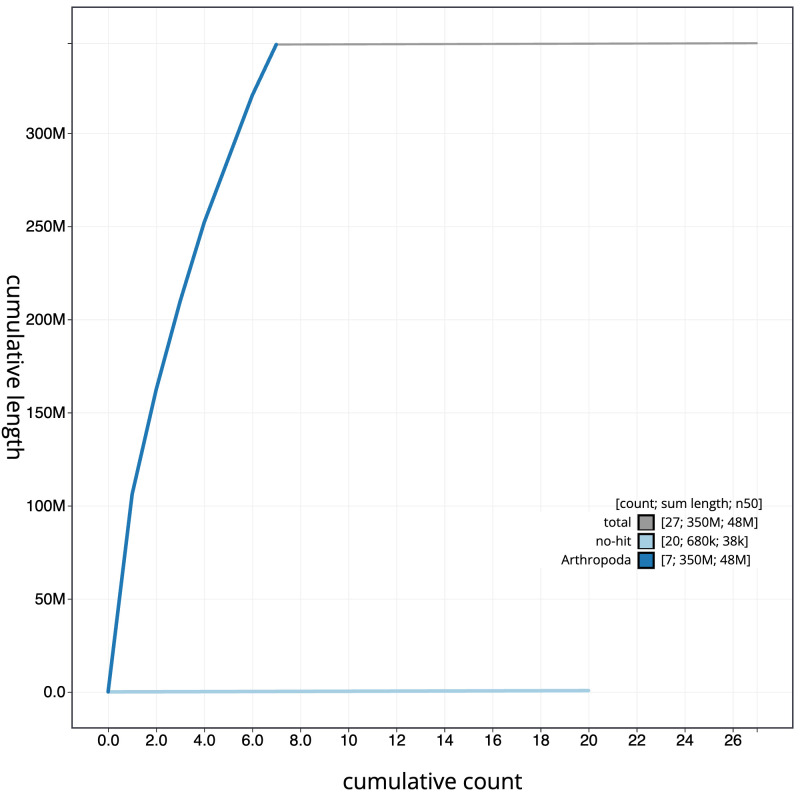

Genome assembly of Cantharis flavilabris, icCanFlav1.1: BlobToolKit cumulative sequence plot.The grey line shows cumulative length for all scaffolds. Coloured lines show cumulative lengths of scaffolds assigned to each phylum using the buscogenes taxrule. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/CASCJT01/dataset/CASCJT01/cumulative.

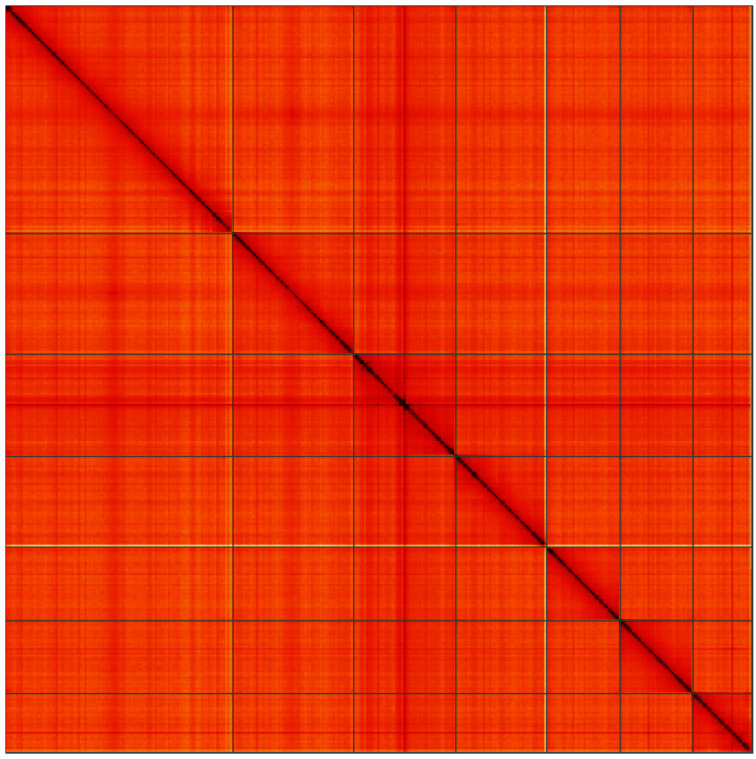

Genome assembly of Cantharis flavilabris, icCanFlav1.1: Hi-C contact map of the icCanFlav1.1 assembly, visualised using HiGlass.Chromosomes are shown in order of size from left to right and top to bottom. An interactive version of this figure may be viewed at https://genome-note-higlass.tol.sanger.ac.uk/l/?d=Kkxirt3sTYK9ripEyx-0Yw.

Tables

Table 1.. Genome data for Cantharis flavilabris, icCanFlav1.1.

Project accession data
Assembly identifier	icCanFlav1.1
Species	Cantharis flavilabris
Specimen	icCanFlav1
NCBI taxonomy ID	877752
BioProject	PRJEB59137
BioSample ID	SAMEA111458455
Isolate information	icCanFlav1, female: thorax (DNA sequencing), head (Hi-C sequencing)
Assembly metrics *		Benchmark
Consensus quality (QV)	66.2	≥ 50
k-mer completeness	100.0%	≥ 95%
BUSCO **	C:98.7%[S:96.1%,D:2.6%], F:0.6%,M:0.7%,n:2,124	C ≥ 95%
Percentage of assembly mapped to chromosomes	99.8%	≥ 95%
Sex chromosomes	X	localised homologous pairs
Organelles	Mitochondrial genome: 17.5 kb	complete single alleles
Raw data accessions
PacificBiosciences SEQUEL II	ERR10809391
Hi-C Illumina	ERR10802468
Genome assembly
Assembly accession	GCA_949152465.1
Accession of alternate haplotype	GCA_949152385.1
Span (Mb)	348.3
Number of contigs	84
Contig N50 length (Mb)	10.5
Number of scaffolds	26
Scaffold N50 length (Mb)	47.5
Longest scaffold (Mb)	106.12
Genome annotation
Number of protein-coding genes	22,711
Number of gene transcripts	23,081

Table 2.. Chromosomal pseudomolecules in the genome assembly of Cantharis flavilabris, icCanFlav1.

INSDC accession	Chromosome	Length (Mb)	GC%
OX424435.1	1	106.12	30.5
OX424436.1	2	56.15	31.5
OX424437.1	3	47.55	33.5
OX424438.1	4	42.28	31.5
OX424439.1	5	34.3	32.0
OX424440.1	6	33.9	32.5
OX424441.1	X	27.33	31.5
OX424442.1	MT	0.02	21.0

Table 3.. Software tools: versions and sources.

Software tool	Version	Source
BlobToolKit	4.1.7	https://github.com/blobtoolkit/blobtoolkit
BUSCO	5.3.2	https://gitlab.com/ezlab/busco
Hifiasm	0.16.1-r375	https://github.com/chhylp123/hifiasm
HiGlass	1.11.6	https://github.com/higlass/higlass
Merqury	MerquryFK	https://github.com/thegenemyers/MERQURY.FK
MitoHiFi	2	https://github.com/marcelauliano/MitoHiFi
PretextView	0.2	https://github.com/wtsi-hpag/PretextView
purge_dups	1.2.3	https://github.com/dfguan/purge_dups
sanger-tol/ genomenote	v1.0	https://github.com/sanger-tol/genomenote
sanger-tol/ readmapping	1.1.0	https://github.com/sanger-tol/readmapping/tree/1.1.0
YaHS	1.2a	https://github.com/c-zhou/yahs

Full text

Species taxonomy

Eukaryota; Opisthokonta; Metazoa; Eumetazoa; Bilateria; Protostomia; Ecdysozoa; Panarthropoda; Arthropoda; Mandibulata; Pancrustacea; Hexapoda; Insecta; Dicondylia; Pterygota; Neoptera; Endopterygota; Coleoptera; Polyphaga; Elateriformia; Elateroidea; Cantharidae; Cantharinae; Cantharis; Cantharis flavilabris Fallén, 1807 (NCBI:txid877752).

Background

The genome of the soldier beetle, Cantharis flavilabris, was sequenced as part of the Darwin Tree of Life Project, a collaborative effort to sequence all named eukaryotic species in the Atlantic Archipelago of Britain and Ireland. Here we present a chromosomally complete genome sequence for Cantharis flavilabris, based on one female specimen from Leith Hill, England, UK.

Genome sequence report

The genome was sequenced from one female Cantharis flavilabris ( Figure 1) collected from Leith Hill, England, UK (51.18, –0.37). A total of 74-fold coverage in Pacific Biosciences single-molecule HiFi long reads was generated. Primary assembly contigs were scaffolded with chromosome conformation Hi-C data. Manual assembly curation corrected 16 missing joins or mis-joins and removed 5 haplotypic duplications, reducing the assembly length by 0.60% and the scaffold number by 6.90%, and increasing the scaffold N50 by 11.36%.

Photograph of the Cantharis flavilabris (icCanFlav1) specimen used for genome sequencing.

The final assembly has a total length of 348.3 Mb in 26 sequence scaffolds with a scaffold N50 of 47.5 Mb ( Table 1). The snailplot in Figure 2 provides a summary of the assembly statistics, while the distribution of assembly scaffolds on GC proportion and coverage is shown in Figure 3. The cumulative assembly plot in Figure 4 shows curves for subsets of scaffolds assigned to different phyla. Most (99.8%) of the assembly sequence was assigned to 7 chromosomal-level scaffolds, representing 6 autosomes and the X sex chromosome. Chromosome-scale scaffolds confirmed by the Hi-C data are named in order of size ( Figure 5; Table 2). Chromosome X was assigned by synteny to Cantharis rufa (GCA_947369205.1) ( Sivell et al., 2023) and Cantharis rustica (GCA_911387805.1) ( Sivell et al., 2021). While not fully phased, the assembly deposited is of one haplotype. Contigs corresponding to the second haplotype have also been deposited. The mitochondrial genome was also assembled and can be found as a contig within the multifasta file of the genome submission.

Table 1.: Genome data for Cantharis flavilabris, icCanFlav1.1.

Genome assembly of Cantharis flavilabris, icCanFlav1.1: metrics.The BlobToolKit Snailplot shows N50 metrics and BUSCO gene completeness. The main plot is divided into 1,000 size-ordered bins around the circumference with each bin representing 0.1% of the 348,304,867 bp assembly. The distribution of scaffold lengths is shown in dark grey with the plot radius scaled to the longest scaffold present in the assembly (106,117,081 bp, shown in red). Orange and pale-orange arcs show the N50 and N90 scaffold lengths (47,548,398 and 33,898,588 bp), respectively. The pale grey spiral shows the cumulative scaffold count on a log scale with white scale lines showing successive orders of magnitude. The blue and pale-blue area around the outside of the plot shows the distribution of GC, AT and N percentages in the same bins as the inner plot. A summary of complete, fragmented, duplicated and missing BUSCO genes in the endopterygota_odb10 set is shown in the top right. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/CASCJT01/dataset/CASCJT01/snail.

Genome assembly of Cantharis flavilabris, icCanFlav1.1: BlobToolKit GC-coverage plot.Scaffolds are coloured by phylum. Circles are sized in proportion to scaffold length. Histograms show the distribution of scaffold length sum along each axis. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/CASCJT01/dataset/CASCJT01/blob.

Genome assembly of Cantharis flavilabris, icCanFlav1.1: BlobToolKit cumulative sequence plot.The grey line shows cumulative length for all scaffolds. Coloured lines show cumulative lengths of scaffolds assigned to each phylum using the buscogenes taxrule. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/CASCJT01/dataset/CASCJT01/cumulative.

Genome assembly of Cantharis flavilabris, icCanFlav1.1: Hi-C contact map of the icCanFlav1.1 assembly, visualised using HiGlass.Chromosomes are shown in order of size from left to right and top to bottom. An interactive version of this figure may be viewed at https://genome-note-higlass.tol.sanger.ac.uk/l/?d=Kkxirt3sTYK9ripEyx-0Yw.

Table 2.: Chromosomal pseudomolecules in the genome assembly of Cantharis flavilabris, icCanFlav1.

The estimated Quality Value (QV) of the final assembly is 66.2 with k-mer completeness of 100.0%, and the assembly has a BUSCO v5.3.2 completeness of 98.7% (single = 96.1%, duplicated = 2.6%), using the endopterygota_odb10 reference set ( n = 2,124).

Metadata for specimens, barcode results, spectra estimates, sequencing runs, contaminants and pre-curation assembly statistics are given at https://links.tol.sanger.ac.uk/species/877752.

Genome annotation report

The Cantharis flavilabris genome assembly (GCA_949152465.1) was annotated using the Ensembl rapid annotation pipeline ( Table 1; https://rapid.ensembl.org/Cantharis_flavilabris_GCA_949152465.1/Info/Index). The resulting annotation includes 23,081 transcribed mRNAs from 22,711 protein-coding genes.

Methods

Sample acquisition and nucleic acid extraction

A female Cantharis flavilabris (specimen ID NHMUK014439758, ToLID icCanFlav1) was collected from Leith Hill, England, UK (latitude 51.18, longitude –0.37) on 2021-06-20. The specimen was collected and identified by Maxwell Barclay (Natural History Museum) and preserved by dry freezing at –80 °C.

The workflow for high molecular weight (HMW) DNA extraction at the WSI includes a sequence of core procedures: sample preparation; sample homogenisation, DNA extraction, fragmentation, and clean-up. In sample preparation, the icCanFlav1 sample was weighed and dissected on dry ice ( Jay et al., 2023). Tissue from the thorax was homogenised using a PowerMasher II tissue disruptor ( Denton et al., 2023a). HMW DNA was extracted using the Automated MagAttract v1 protocol ( Oatley et al., 2023a). HMW DNA was sheared into an average fragment size of 12–20 kb in a Megaruptor 3 system with speed setting 30 ( Todorovic et al., 2023). Sheared DNA was purified by solid-phase reversible immobilisation ( Oatley et al., 2023b): in brief, the method employs a 1.8X ratio of AMPure PB beads to sample to eliminate shorter fragments and concentrate the DNA. The concentration of the sheared and purified DNA was assessed using a Nanodrop spectrophotometer and Qubit Fluorometer and Qubit dsDNA High Sensitivity Assay kit. Fragment size distribution was evaluated by running the sample on the FemtoPulse system.

Protocols developed by the Wellcome Sanger Institute (WSI) Tree of Life core laboratory have been deposited on protocols.io ( Denton et al., 2023b).

Sequencing

Pacific Biosciences HiFi circular consensus DNA sequencing libraries were constructed according to the manufacturers’ instructions. DNA sequencing was performed by the Scientific Operations core at the WSI on a Pacific Biosciences SEQUEL II instrument. Hi-C data were also generated from head tissue of icCanFlav1 using the Arima2 kit and sequenced on the Illumina NovaSeq 6000 instrument.

Genome assembly, curation and evaluation

Assembly was carried out with Hifiasm ( Cheng et al., 2021) and haplotypic duplication was identified and removed with purge_dups ( Guan et al., 2020). The assembly was then scaffolded with Hi-C data ( Rao et al., 2014) using YaHS ( Zhou et al., 2023). The assembly was checked for contamination and corrected as described previously ( Howe et al., 2021). Manual curation was performed using HiGlass ( Kerpedjiev et al., 2018) and PretextView ( Harry, 2022). The mitochondrial genome was assembled using MitoHiFi ( Uliano-Silva et al., 2023), which runs MitoFinder ( Allio et al., 2020) or MITOS ( Bernt et al., 2013) and uses these annotations to select the final mitochondrial contig and to ensure the general quality of the sequence.

A Hi-C map for the final assembly was produced using bwa-mem2 ( Vasimuddin et al., 2019) in the Cooler file format ( Abdennur & Mirny, 2020). To assess the assembly metrics, the k-mer completeness and QV consensus quality values were calculated in Merqury ( Rhie et al., 2020). This work was done using Nextflow ( Di Tommaso et al., 2017) DSL2 pipelines “sanger-tol/readmapping” ( Surana et al., 2023a) and “sanger-tol/genomenote” ( Surana et al., 2023b). The genome was analysed within the BlobToolKit environment ( Challis et al., 2020) and BUSCO scores ( Manni et al., 2021; Simão et al., 2015) were calculated.

Table 3 contains a list of relevant software tool versions and sources.

Genome annotation

The BRAKER2 pipeline ( Brůna et al., 2021) was used in the default protein mode to generate annotation for the Cantharis flavilabris assembly (GCA_949152465.1) in Ensembl Rapid Release.
