Optical Surface Management System and BladderScan for Patient Setup During Radiotherapy of Postoperative Prostate Cancer

TL;DR

This study shows that combining an optical surface system and bladder scanning improves radiotherapy setup accuracy for prostate cancer patients.

Contribution

The novel contribution is validating a zero-dose, noninvasive setup method combining OSMS and BladderScan to improve radiotherapy accuracy.

Findings

The experimental group had significantly smaller setup errors in vertical, lateral, and longitudinal directions compared to the control group.

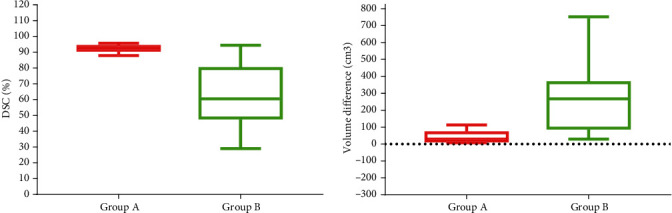

Bladder volume consistency was significantly better in the OSMS + BladderScan group, as shown by higher Dice similarity coefficients and smaller volume differences.

Rotation errors like pitch, roll, and yaw were significantly reduced in the experimental group compared to conventional methods.

Abstract

Background: The precision of postoperative prostate cancer radiotherapy is significantly influenced by setup errors and alterations in bladder morphology. Utilizing daily cone beam computed tomography (CBCT) imaging allows for the correction of setup errors. However, this naturally leads to the question of the issue of peripheral dose and workload. Thus, a zero-dose, noninvasive technique to reproduce the bladder volume and improve patient setup accuracy was needed.

Purpose: The aim of this study is to investigate if the setup method by combining Optical Surface Management System (OSMS) and BladderScan can improve the accuracy of setup and accurately reproduce the bladder volume during radiotherapy of postoperative prostate cancer and to guide CTV-PTV margins for clinic.

Method: The experimental group consisted of 15 postoperative prostate cancer patients who utilized a setup method that combined OSMS and BladderScan. This group recorded 103 setup errors, verified by CBCT. The control group comprised 25 patients, among whom 114 setup errors were recorded using the conventional setup method involving skin markers; additionally, patients in this group also exhibited spontaneous urinary suppression. The errors including lateral (Lat), longitudinal (Lng), vertical directions (Vrt), Pitch, Yaw, and Roll were analyzed between the two methods. The Dice similarity coefficient (DSC) and volume differences of the bladder between CBCT and planning CT were compared as the bladder concordance indicators.

Results: The errors in the experimental group at Vrt, Lat, and Lng were 0.17 ± 0.12, 0.22 ± 0.17, and 0.18 ± 0.12 cm, and the control group were 0.25 ± 0.15, 0.31 ± 0.21, 0.34 ± 0.22 cm. The rotation errors of Pitch, Roll, and Yaw in the experimental group were 0.18 ± 0.12°, 0.11 ± 0.1°, and 0.18 ± 0.13°, and in the control group, they were 0.96 ± 0.89°, 1.01 ± 0.86°, and 1.02 ± 0.84°. The DSC and volume differences were 92.52 ± 1.65% and 39.99 ± 28.75 cm3 in the patients with BladderScan, and in the control group, they were 62.98 ± 22.33%, 273.89 ± 190.62 cm3. The P < 0.01 of the above performance indicators indicates that the difference is statistically significant.

Conclusion: The accuracy of the setup method by combining OSMS and BladderScan was validated by CBCT in our study. The method in our study can improve the setup accuracy during radiotherapy of postoperative prostate cancer compared to the conventional setup method.

Figures
