Serum neurofilament light chain as a sensitive biomarker for neuromonitoring during extracorporeal membrane oxygenation
Stefanie Fischer, Lars Heubner, Stephanie May, Puya Shalchi Amirkhiz, Jens Kuhle, Pascal Benkert, Tjalf Ziemssen, Peter Spieth, Katja Akgün
TL;DR
This study shows that serum neurofilament light chain (NfL) levels increase in ECMO patients with neurological complications, suggesting it could help monitor brain damage during ECMO therapy.
Contribution
The study demonstrates that NfL is a sensitive biomarker for detecting neurological injury during ECMO, independent of the underlying cause.
Findings
Patients with neurological complications had significantly higher NfL levels at 24 hours and 7 days on ECMO.
NfL levels were markedly elevated in patients with neurological complications compared to those without.
No significant correlation was found between NfL levels and survival outcomes in ECMO patients.
Abstract
The use of extracorporeal membrane oxygenation (ECMO) has grown rapidly, driven by the COVID-19 pandemic. Despite its widespread adoption, neurological complications pose a significant risk, impacting both mortality and survivors’ quality of life. Detecting these complications is challenging due to sedation and the heterogeneous nature of ECMO-associated neurological injury. Still, consensus of neurologic monitoring during ECMO is lacking since utilization and effectiveness of current neuromonitoring methods are limited. Especially in view of the heterogeneous nature of neurological injury during ECMO support an easily acquirable biomarker tracing neuronal damage independently from the underlying pathomechanism would be favorable. In a single-center prospective study on 34 severe acute respiratory distress syndrome (ARDS) patients undergoing ECMO, we explored the potential of serum…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3- —Universitätsklinikum Carl Gustav Carus Dresden an der Technischen Universität Dresden (8944)
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsMechanical Circulatory Support Devices · Cardiac Arrest and Resuscitation · Cardiac Structural Anomalies and Repair
Introduction
In 1944, the internists Kolff and Berk made the discovery that blood flowing through cellophane chambers of an artificial kidney becomes oxygenated^1^. The foundation for the development of ECMO was laid. In addition to cardiac surgery, the technique has revolutionized intensive care medicine over the past 80 years. It maintains sufficient gas exchange over days and weeks while the lung parenchyma can recover from previous damage or mature in the case of premature infants.
Despite its often life-saving effect, the use of ECMO is considered a last resort in the treatment of critically ill patients with severe impaired pulmonary function or as extracorporeal life support (ECLS) for e.g. cardiogenic shock. Primarily due to its negative side effects, particularly neurological complications and hemostatic disorders, e.g. bleeding and thrombosis, ECMO support cannot easily be recommended for every patient^2^. Distinct criteria for the eligibility of ECMO support in ARDS has been established in international guidelines^3^. ECMO support is frequently associated with neurological events such as hypoxic encephalopathy, ischemic strokes, or spontaneous intraparenchymal or extra-axial hemorrhages^4–6^. As the number of ECMO cases continues to rise, the need for standardized, sensitive, and easily applicable neuromonitoring methods becomes more urgent, especially in non-neonatal age groups. Additionally, a reliable biomarker for identifying suitable patients with a low hazard of significant neurological complications and, consequently, a low risk of mortality during ECMO support would be desirable.
A cross-disease blood-based biomarker that is highly sensitive to neuronal damage is neurofilament light chain (NfL), which has been associated with disease severity and prognosis in multiple neurological diseases and general neurodegeneration^7–9^. The neuronal cytoplasmic protein is highly expressed in large calibre myelinated axons. Its levels increase in cerebrospinal fluid (CSF) and blood proportionally to the degree of neuro-axonal damage in a variety of neurological disorders, including inflammatory, neurodegenerative, traumatic and cerebrovascular diseases. Even though changes in NfL levels in biofluids are not specific to any particular central nervous system (CNS) disease, this biomarker may have diagnostic value and significant potential in terms of prognostic assessment and disease monitoring^9^. For instance, a recent meta-analysis indicates that serum NfL shows promise as an early biomarker of neurological outcomes following cardiac arrest^10^.
With our single center prospective observational study, we aimed to examine serum neurofilament light chain (sNfL) levels, neurological complications and their potential risk factors in patients undergoing veno-venous extracorporeal membrane oxygenation (VV-ECMO) due to acute respiratory distress syndrome (ARDS). As patient recruitment took place during the Covid-19 pandemic, almost exclusively patients with ARDS secondary to COVID-19 were included. We also addressed the question whether sNfL serves as a sensitive biomarker for neurological complications during ECMO therapy and whether baseline levels prior to ECMO initiation are useful in assessing patients' mortality risk during ECMO treatment.
Methods
Patients and ethical approval
We conducted a single center prospective observational study, examining 34 patients at the anaesthesiological intensive care unit (ICU) at the university medical center of Dresden with severe ARDS who required VV-ECMO support in the period of 04/2021 to 11/2021. Patients were selected based on the following inclusion criteria: age ≥ 18 years, ARDS requiring VV-ECMO support, absence of pre-existing chronic or acute neurological diseases or injuries. The management of ARDS and ECMO treatment in these patients was performed according to internal guidelines and has been previously published elsewhere^11^.
The study was performed according to the Declaration of Helsinki and the study protocol was approved by the Ethics Committee of the Faculty of Medicine of the Dresden University of Technology, Germany. If patients were not able to give their informed consent, their legal representatives or an independent physician of the university clinical center received written information about the study and were asked to give written informed consent for participation considering the presumed patient`s interest. In these cases, informed consent was obtained later on, if patients were able to make decisions again.
sNfL measurements
Serum samples were collected at three predefined different time points: just before ECMO cannulation (T_baseline_), 24 h afterwards (T_24h_) and 7 days after ECMO cannulation (T_7d_). Furthermore, patients were analyzed for demographic data (age, pre-existing diseases), routine laboratory parameters and the occurrence of complications, including clotting abnormalities, pulmonal, cardial, infectious, neurological events during or subsequent to ECMO support or exitus letalis at the ICU setting. Serum samples were stored at −80 °C till measurement. NfL levels were measured in serum using the commercially available Single Molecule Array NfL assay on a HD-1 Analyzer (SIMOA, Quanterix, Lexington, MA, USA)^12,13^. Samples were prepared as recommended in the manufacturer`s instructions (Quanterix, Lexington, MA, USA). Sample dilution was calculated and done by the instrument. The mean intra-assay coefficient of variation of duplicates was below 10%. NfL levels were measured in pg/ml and additionally log transformed for statistical analysis. Furthermore, NfL-levels were adjusted for age and BMI using a Generalized Additive Model for Location, Scale and Shape (GAMLSS model). NfL Z-scores (based on a large population of healthy controls) indicating how strongly the NfL levels deviate from levels in control persons of same age and BMI were calculated as described previously^14^.
Statistical analysis
Our longitudinal patient data were analyzed per cohort by generalized linear mixed models for repeated measures with log link function due to right-skewed distribution pattern of the data and point of time as the fixed effect of the model. The results were adjusted for age and sex. Bonferroni correction for pairwise tests was used. Values of *p < 0.05, **p < 0.01, ***p < 0.001 and ****p < 0.0001 were considered as statistically significant.
The results are reported and graphically depicted as the median with indication of the interquartile range (IQR).
Results
Patient characteristics
A total of 34 patients were included in the study. The mean age was 54 years, 73.5% male and 26.5% female. Over 80% of the patients had no significant pre-existing conditions and all patients had a prehospital Barthel Index of 100. In over 90% of cases, the indication for ECMO was severe ARDS due to SARS-CoV-2 pneumonia. 44.1% survived at least until transfer to a rehabilitation facility. 41.2% of all ECMO patients developed neurological complications, of which, in turn, 57% resolved during the further course of hospitalisation. Other common complications occurring in 60–90% of patients included cardiovascular, pulmonary, coagulation, and infectious complications. All patients who deceased (55.9%) succumbed to multiorgan failure within the context of septic shock. Table 1 provides a detailed overview of the characteristics of the included patients.Table 1. Characteristics of study population. ^1^Crohn’s disease, atrial fibrillation, mitral valve insufficiency, tricuspid valve insufficiency, spinal canal stenosis, chronic kidney insufficiency, renal hyperparathyroidism, cholangiocellular carcinoma; ^2^Glucocorticoids, interleukin-6 (IL6) blocking agent.Total patient number (n)34Mean age, years (range)54.2 (18–77)Sex, n (%)Female: 9 (26.5), male: 25 (73.5)Severe ARDS resulting from: n (%) ● SARS-CoV-2 pneumonia31 (91.2) ● Pleural empyema1 (2.9) ● Ileus with misery1 (2.9) ● Unknown cause1 (2.9)Pre-existing diseases^1^, n (%) ● Yes6 (17.7) ● No28 (82.3)Survival, n (%) ● Survived15 (44.1) ● Deceased19 (55.9)Complications, n (%) ● Neurological14 (41.2) ● Pulmonary26 (76.5) ● Cardiovascular23 (67.6) ● Hemostatic30 (88.2) ● Infectious24 (70.6)Co-treatment during ECMO, n (%) ● Haemodialysis7 (20.6) ● Catecholamines33 (97.1) ● Coagulation products15 (44.1) ● Red blood cell concentrates21 (61.8) ● Platelet concentrates3 (8.8) ● Immunomodulators^2^14 (41.2)
Neurological complications during ICU and ECMO
To identify potential risk factors for developing neurological adverse events during ECMO support, we compared patient characteristics of people who developed neurological complications and clinically neurologically asymptomatic patients (Table 2). There was a significant difference in the application of procoagulatory treatment (PPSB, fibrinogen) between both groups. Within the group without neurological complications 60% received procoagulatory products whereas only 21% of patients who developed neurological complications got procoagulatory therapy (p = 0.026). There were no relevant differences between the two subgroups concerning age, sex, pre-existing diseases, non-neurological complications, infusion of red cell concentrates or platelet concentrates, haemodialysis or the treatment with immune modulating drugs.Table 2. Comparison of patients who developed neurological complications during VV-ECMO therapy versus patients who did not.Neurological complicationsNo (n = 20)Yes (n = 14)Chi2 testN%Clopper Pearson CIn%Clopper Pearson CIpAge (≥ 50 years)1575(50.9–91.3%)1071.4(41.9–91.6%)0.816Sex (females)525(8.7–49.1%)428.6(8.4–58.1%)0.816Pre-existing diseases420(5.7–43.7%)214.3(1.8–42.8%)0.667Bacterial superinfection1680(56.3–94.3%)857.1(28.9–82.3%)0.150Clotting complications1785(62.1–96.8%)1392.9(66.1–99.8%)0.484Pulmonal complications1680(56.3–94.3%)1071.4(41.9–91.6%)0.562Haemodynamic complications1365(40.8–84.6%)1071.4(41.9–91.6%)0.693Haemodialysis420(5.7–43.7%)321.4(4.7–50.8%)0.919Vasopressors20100(83.2–100%)1392.9(66.1–99.8%)0.225Procoagulatory treatment (PPSB, fibrinogen)1260(36.1–80.9%)321.4(4.7–50.8%)0.026Red cell concentrates1260(36.1–80.9%)1071.4(41.9–91.6%)0.493Platelet concentrates210(1.2–31.7%)17.1(0.2–33.9%)0.773Immunomodulation945(23.1–68.5%)535.7(12.8–64.9%)0.558
sNfL levels in the ICU setting during ECMO therapy

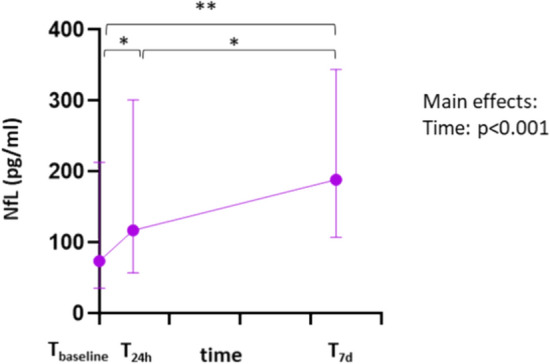

An important aspect of this study was to investigate the role of sNfL in the ICU setting during ECMO therapy. First, we evaluated the overall sNfL-kinetics of all patients undergoing VV-ECMO (Fig. 1). When considering the sNfL values of all ECMO patients, it was noticeable that the values were already significantly elevated immediately before ECMO connection (T_baseline_ median 73.85 pg/ml (IQR 35.5–213 pg/ml)). 24 h after start of ECMO, a significant increase in the sNfL level was observed compared to the baseline (T_24h_ median 117 pg/ml (IQR 57.2–301 pg/ml), p = 0.011). Seven days after the start of ECMO therapy, this value showed a further significant increase (T_7d_ median 188.5 (IQR 107–344 pg/ml), p = 0.001). The sNfL values at the various measurement points in our studied patient cohort did not show any correlation with other blood parameters such as complete blood count, inflammation markers, retention parameters, cholestasis markers, or transaminases.Fig. 1sNfL levels during ICU and ECMO therapy. Median sNfL levels with IQR in patients undergoing ECMO support just before (T_baseline_), 24 h after (T_24h_) and 7 days after ECMO cannulation (T_7d_) are presented. Asterixis indicate level of statistical significance: *p < 0.05, **p < 0.01.
NfL levels are known to increase with age and decrease with increasing body mass index (BMI)^14^. Therefore, we calculated Z-scores for each sNfL value, representing the deviation of a given patient sNfL level versus same age and BMI healthy controls. Table 3 displays the Z-score distribution of all patients at time point 1 (baseline) in correlation to clinical outcome parameters (survival status, Barthel activities of daily living (ADL) index) and the occurrence of neurological complications during the course of ECMO therapy.Table 3. Adjusted Z-scores of sNfL baseline levels of the study population and their distribution in the several sub cohorts.Z-Score baselinen (%)Deceased n (%)Survived n (%)Neurological complications n (%)No manifest neurological complications n (%)Barthel ADL index of survivors at discharge mean (range) < 12 (5.8)1 (5.2)1 (6.7)1 (7.1)1 (5)100 ≥ 1, < 23 (8.7)–3 (20)1 (7.1)2 (10)21.7 (0–65) ≥ 2, < 37 (20.3)4 (21)3 (20)1 (7.1)6 (30)6.7 (0–10) ≥ 3, < 419 (55.1)13 (68.4)6 (40)9 (64.3)10 (50)7.5 (0–45) ≥ 43 (8.7)1 (5.2)2 (13.3)2 (14.3)1 (5)15 (10–20)
8.7% of patients who underwent ECMO therapy showed sNfL values with Z-scores higher than 4 (i.e. 99.99th percentile). 50.1% of patients showed sNfL Z-scores above 3 (99.7^th^ percentile), and 20.3% above 2 (95.5th percentile). Interestingly, the sNfL values of one patient remained very low throughout the course of ECMO therapy (T_baseline_ 3.14 pg/ml, Z-score -2.2 (1.45th percentile), T_24h_ 4.46 pg/ml, Z-score -1.2 (12th percentile), T_7d_ was not collected due to early discharge from the hospital). This patient was a 37-year-old man who had an uncomplicated hospital course with rapid decannulation from ECMO treatment and a barthel index of 100 at discharge.
However, when comparing baseline sNfL Z-scores in terms of survival status, the prevalence of neurological complications, or the Barthel Index at discharge, no significant differences could be observed between the respective subgroups.
sNfL as marker to monitor neurological complications during ICU and ECMO
One of the main aims of the study was to investigate whether sNfL is a sensitive biomarker for neurological complications during ECMO therapy and thus suitable as a monitoring marker in the ICU setting. During our study, 41% of recruited patients undergoing ECMO developed neurological complications, which manifested as intracranial parenchymal hemorrhage (11.7%), ischemic stroke (2.9%), subdural hematoma (2.9%), subarachnoidal hematoma (2.9%), posterior reversible encephalopathy syndrome (PRES) (2.9%), delirium and brain organic psychosis (11.7%), critical illness polyneuropathy and myopathy (CIP/CIM) (11.7%) and hepatic encephalopathy due to acute hepatic failure (2.9%).

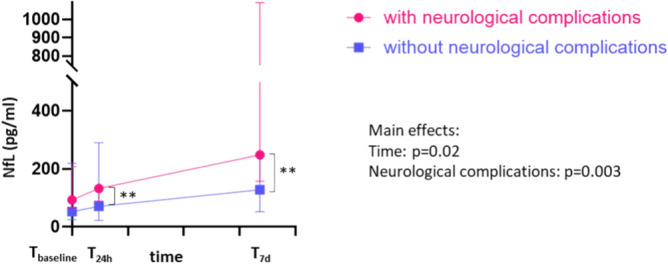

The course of sNfL values in relation to the occurrence of neurological complications is depicted in (Fig. 2). In comparison to patients who did not develop neurological complications during ECMO treatment, patients with neurological events showed higher sNfL values even before ECMO connection, although statistical significance had not been reached at this point in time (T_baseline (with)_ median 92.95 pg/ml (IQR 64.7–207 pg/ml) vs. T_baseline (without)_ median 52.6 pg/ml (IQR 24.5–218.5 pg/ml)). 24 h after start of ECMO therapy, the cohort of patients with neurological complications demonstrated a significant sNfL increase compared to their baseline level (T_24h (with)_ median 132 pg/ml (IQR 88.6–924 pg/ml), p = 0.008). Seven days after ECMO, the sNfL value in this subpopulation further significantly increased compared to the previous time-points (T_7d (with)_ median 248 pg/ml (IQR 157–1090 pg/ml), p = 0.001). In contrast, patients without neurological complications did not show a significant increase in sNfL within the 7-day evaluation period and presented significantly lower sNfL levels at T_24h_ (T_24h (without)_ median 70.75 pg/ml (IQR 22.2–290 pg/ml), p = 0.023) and T_7d_ (T_7d (without)_ median 128 pg/ml (IQR 51.8–244 pg/ml), p = 0.002) compared to the group with neurological complications.Fig. 2sNfL levels in patients with and without neurological complications during ICU and ECMO support. Median sNfL levels with IQR of ECMO-supported patients with neurological complications (pink) and without (purple) are presented at the points of time just before (T_baseline_), 24 h after (T_24h_) and 7 days after ECMO cannulation (T_7d_). Asterixis indicate level of statistical significance: **p < 0.01.
Predictive value of sNfL in terms of survival outcome
44.1% of the ECMO patients survived until discharge to a rehabilitation facility, 55.9% died within the observed time interval of seven days. Table 4 provides an overview between patients who survived and those who deceased in terms of their demographic data, received treatment measures, and the prevalence of complications during their ICU stay. Patients who passed away were on average approximately 10 years older than the survivors, had a higher prevalence of pre-existing conditions (26.3 vs. 6.7%), and experienced significantly more complications during their hospital stay.Table 4. Comparison of the characteristics of patients who died and those who survived.DeceasedSurvivedMean ageyears (age range)58.8 (47–77)48.4 (18–68)Sex, female (n = 9)n (%)4 (44.4)5 (55.6)Male (n = 25)15 (60)10 (40)Pre-existing diseasesn (%)5 (26.3)1 (6.7)Neurological complicationsn (%)5 (26.3)11 (60)Pulmonary complicationsn (%)19 (100)7 (46,7)Cardiovascular complicationsn (%)17 (89,5)6 (40)Infectious complicationsn (%)19 (100)5 (33,3)Hemostatic complicationsn (%)18 (94.7)12 (80)Haemodialysisn (%)6 (31.6)1 (6.7)Catecholamine requirementn (%)19 (100)14 (93.3)Procoagulatory therapyn (%)11 (57.9)4 (26.7)Red blood cell concentratesn (%)15 (78.9)7 (46.7)Platelet concentratesn (%)2 (10.5)1 (6.7)

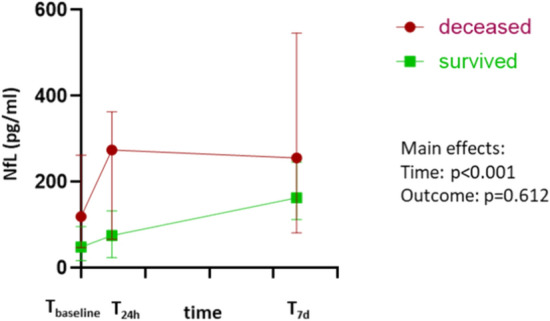

The course of NfL values in relation to survival status is depicted in (Fig. 3). When considering baseline NfL levels (T_baseline_), there was no significant difference between patients who survived (T_baseline (survived)_ median 48.3 pg/ml (IQR 16.8–95.8 pg/ml)) and those who passed away during the subsequent course of intensive medical treatment (T_baseline (deceased)_ median 119 pg/ml (IQR 47,4–262 pg/ml), p = 0.45). Furthermore, no significant difference was observed between the two subgroups at 24 h and 7 days after ECMO initiation in the subsequent course of treatment, although patients with a fatal outcome tended to exhibit higher values compared to survivors (T_24h (deceased)_ median 274 pg/ml (IQR 66.3–363 pg/ml) vs. T_24h (survived)_ median 75.2 pg/ml (IQR 23.5–132 pg/ml); T_7d (deceased)_ median 255.5 pg/ml (IQR 81.1–546 pg/ml) vs. T_7d (survived)_ median 162.5 pg/ml (IQR 112–246 pg/ml)).Fig. 3sNfl levels depending on survival during ICU and ECMO. Comparison between median sNfL levels of ECMO-supported patients depending on their outcomes (survived green; deceased red) at the points of time just before (T_baseline_), 24 h after (T_24h_) and 7 days after ECMO cannulation (T_7d_).
Discussion
ICU treatment and ECMO therapy are associated with an increased risk of developing neurological complications. However, sensitive and specific biomarkers that allow for comprehensive monitoring of sedated patients regarding neurological complications are not yet standardized. Furthermore, reliable biomarkers are lacking to identify patients at risk for neurological complications as well as an unfavorable clinical course under planned intensive care measures. During the Covid-19 pandemic, the examined cohort almost exclusively comprised patients with Covid-19-associated severe ARDS, with Covid-19 infection itself already proven to increase the risk of neurological complications.
NfL is a sensitive biomarker detecting neuronal damage in several neurological diseases, neurodegeneration and neurotrauma and seems promising for detecting neurological complications during ECMO therapy^8,15–19^. Furthermore, NfL serves as potential prognostic marker in various diseases, as it is considered a predictor of disease activity in patients with multiple sclerosis (MS), as an early biomarker of neurological outcomes following cardiac arrest, as well as marker for cognitive worsening in Alzheimers disease (AD), frontotemporal dementia (FTD) and parkinsons disease (PD), and of motor worsening in patients with amyotrophic lateral sclerosis (ALS) and atypical parkinsonian disorders (APDs)^7,10^.
As people are getting older and present more comorbidities a reliable biomarker predicting the outcome of patients undergoing ECMO support is preferable to screen for those who benefit from this invasive treatment. However, in our study increased baseline sNfL levels were not associated with a poor prognosis comparing survivors and patients who died during or shortly after ECMO therapy. Furthermore, sNfL levels before ECMO initiation could not predict the risk for subsequent neurological complications during ECMO therapy. Although patients who developed neurological complications during ECMO had, on average, higher sNfL values before ECMO initiation compared to patients without neurological symptoms later on, this difference did not reach statistical significance. Our results are in line with those of Smeele et al. who observed that sNfL levels of COVID-19 patients neither at ICU admission nor at their peak predict 90 days-mortality^6^. However, available research data are not consistent in respect to this question as a previous study could demonstrate an association between sNfL and mortality in ICU patients^8,20^.
Interestingly, the baseline sNfL levels before ECMO connection were elevated in nearly all patients, regardless of their subsequent clinical course, when compared to age-matched healthy controls by calculating Z-scores. In this context, more than 80% of the patients had their baseline sNfL values exceeding the 95.5th percentile versus healthy controls (i.e. versus 4.5% of same age and BMI controls expected to show higher sNfL levels). Possible explanatory approaches for the pre-existing elevated sNfL levels observed in nearly all patients include preceding and persistent respiratory insufficiency, e.g. hypoxemia^21^, reduced venous CNS drainage due to elevates ventilator pressures^22,23^, negative effects of long-term sedation and analgesia^24,25^ as well as neurotoxicity due to Covid-associated systemic inflammatory response^20,26–28^.
Regardless of the clinical outcome, the dynamics of sNfL values during the course of ICU treatment exhibited an upward trend in all patients, even in those who did not manifest neurological complications. Therefore, it must be assumed that at least subclinical neurological damage occurred. Several sources and pathomechanisms for (subclinical) neurological injury during intensive care treatment have to be considered: Once again, it must be noted that almost all patients of our study were infected with COVID-19. Previous studies could demonstrate that severe COVID-19 infection itself leads to a sNfL increase in a non-linear fashion in the first month after ICU admission and is associated with higher sNfL compared with non-COVID-19 ICU controls^8,20,27^. NfL increase in critically ill COVID-19 patients does not surprise considering previously discovered pathomechanisms like toxic or metabolic encephalopathy^8,28^, axonal damage due to inflammatory response^8,29^, endothelial dysregulation due to viral entry^3^ as well as cytokine storm with associated prothrombotic state^3^. Furthermore, ECMO application holds high risk for neurological damage, among others due to rapid correction of hypercarbia^30^, severe hemostatic disorders as acquired von Willebrand syndrome due to higher sheer stress of the ECMO circuit, aggressive anticoagulation, thrombocytopenia and thrombosis^6,31,32^. Though not all patients receiving ECMO support develop clinically apparent neurological symptoms, Marinoni et al. could show that cerebral microemboli are detectable in neurologically asymptomatic ECMO patients as well^33^ indicating at least one source for subclinical neuronal damage. In addition, during our study ICU-associated complications like bacterial superinfections occurred frequently in the recruited study population, presumably leading to systemic inflammatory response syndrome, which could further contribute to brain injury^34^. Based on the collected sNfL data it can be assumed, that patients undergoing ECMO support sustain at least subclinical neuronal damage, emphasizing the compelling need for sensitive neuromonitoring in order to initiate further and targeted diagnostics in case of abnormalities.
Even though none of the patients in our cohort succumbed primarily to their neurological complications, sensitive and early detection of neurological complications can be live saving. On the other hand, a reliable neuromonitoring method with the early identification of neurological complications could contribute to early adjustment of therapeutic goals in case of predicted severe neurological disability. While sNfL values before the initiation of ECMO therapy do not appear to serve as predictors for the subsequent clinical course under ECMO support, our data does reveal significantly elevated sNfL levels in patients with manifest neurological complications acquired during the course of ECMO support independent on their sources compared to patients developing no evident neurological injury.
Molecular biomarkers like sNfL are of significant relevance in addition to clinical examination especially in ICU patients that are mostly sedated and often treated with muscle relaxants. Several methods of neuromonitoring during ECMO have been analyzed, but its use is limited due to inconsistency because of different methods, high costs, limited availability of trained staff and the lack of validation in large-scale studies^35^. Furthermore, many of these assessed monitoring methods depend on a specific pathophysiology or epiphenomenon (e.g. elevated or reduced cerebral excitability, cortical desoxygenation etc.) which leads to a decreased sensitivity of detecting neuronal damage, particularly located in deep brain structures or due to other underlying factors.
Especially with respect to the broad spectrum of possible neurological complications during ECMO support, a monitoring method detecting neuronal damage instead of a single possible pathomechanism will contribute to a necessarily high sensitivity. Considering this, blood based neuronal biomarkers are promising candidates of a future standardized neuromonitoring protocol for patients undergoing ECMO support. There are published reports of the evaluation of other blood-based parameters like NSE, S100b and GFAP with regard to their eligibility for neuromonitoring during ECMO^35–39^. However, despite their demonstrated significant association with acute brain injury, validated biomarker-based monitoring protocols applicable for ECMO therapy are still lacking. Furthermore, most studies regarding these parameters were conducted speciously on biomarker dynamics in infants undergoing ECMO. Reasons, why sNfL should be part of single or multi-panel blood biomarkers include its eligibility to detect axonal damage directly (vs. GFAP as glial parameter), the requirement of small blood volumes for assay, fast processing, precise quantification, low cost, minimal technical expertise required for the assay and the intense and ongoing research on sNfL, including studies examining potential neuroprotective agents as well^40^. Furthermore, it becomes apparent, that the combination of different neuronal biomarkers, including sNfL, could contribute to etiological classification of neuronal damage which could prospectively be helpful in an ICU setting as well^41^.
Regarding potential risk factors for the development of neurological complications in our cohort, we observed an association with the absence of administration of procoagulatory products. Due to the small size of our study population and the study design, no causal relationship can be inferred from our data. However, given that intracranial hemorrhages are a leading complication in COVID-19-infected patients under ECMO support, future studies investigating this relationship more closely could be promising^3^.
Some limitations of our study have to be discussed including the relatively small sample size and the lack of routine imaging, electrophysiologic measurements and consistent neurological scoring (e.g. GCS, NIHSS) to assign degree and kind of selected neurological complications more in detail. Furthermore, data on long-term clinical outcome of patients who survived are missing. The current project was planned as a pilot study in our anesthesiology-led intensive care unit. Here, acute neurological diagnostic procedures were performed as needed in the event of clinical signs of deterioration (GCS deterioration, pupillary difference, etc.). A standardized collection of functional neurological test parameters at the respective time points, particularly at discharge or transfer, was not initially planned in the study design. However, it must be consistently considered in future projects to investigate the association with brain-centered outcomes. A corresponding follow-up project is already in planning, which will include the mentioned implementation of standardized neurological diagnostics as well as a larger sample size. One of the main reasons for ending recruitment for the current study was the alignment with the sample sizes of previously published ECMO studies, coupled with the decline of the COVID-19 pandemic, which made further patient recruitment difficult.
As a final limiting factor of this study, we would like to point out the still not yet firmly established neurofilament reference ranges. In the literature, a cutoff of 10 pg/ml is mentioned, which is also used for other neurological diseases. It is assumed that neurofilament levels are likely normal if the value is below 10 pg/ml. Even for the assessment of BMI- and age-adjusted Z-scores, there are currently only reference values for previously studied neurological conditions. For example, in multiple sclerosis, a significant increase in NfL is present at a Z-score of 1.25, and a secure neurodestruction is assumed at a value of 1.5^14^. To illustrate the neurofilament dynamics at different sampling times, we deliberately chose absolute neurofilament values to avoid information loss through Z-score transformation.
Nevertheless, the availability of a biomarker for neurological monitoring of ICU patients, especially patients undergoing ECMO support, could be of significant relevance concerning clinical decision-making. Our results show that significantly increasing sNfL levels during ECMO therapy indicate neurological complications, and suggest sNfL levels as potential molecular biomarker as part of a sensitive neuro-monitoring tool to predict neuro-axonal damage in ICU setting. Further studies are essential to define distinct sNfL levels and the importance of sNfL variation over time, to estimate the potential of sNfL measurements to predict neurological complications in detail and to weigh mortality risks and clinical outcome in ICU patients.
