Stress Avulsion Fracture of the Patellar Tendon Following Open Reduction and Internal Fixation of a Transverse Patella Fracture With Cannulated Screws

TL;DR

A 65-year-old woman developed a rare stress-avulsion fracture after patella surgery, which was successfully treated by adjusting the implant placement.

Contribution

Highlights a rare complication of patellar fracture fixation and provides a solution to prevent implant-related stress fractures.

Findings

A stress-avulsion fracture occurred due to a prominent screw head after patella fixation.

The fracture was successfully treated by burying the screw head and using cerclage wire.

Surgical techniques must address implant-related stress risers to prevent such complications.

Abstract

A stress-avulsion fracture of the inferior pole of the patella is rare. We report a case of a 65-year-old woman who underwent open reduction and internal fixation for a transverse fracture of the patella using cannulated screws inserted from the inferior pole of the patella. Subsequently, the patient developed an avulsion fracture of the inferior pole of the patella due to a stress riser from the prominent screw head. The avulsion fracture was treated with open repair and augmentation using a cerclage wire, and the stress riser was eliminated by burying the screw head into the bone. The outcomes were satisfactory. Preventing implant-related stress risers during internal fixation of fractures requires diligent surgical techniques.

Figures

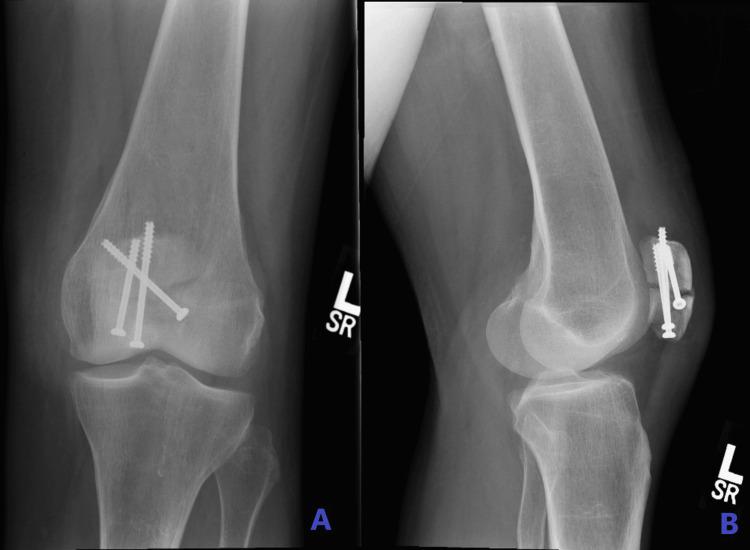

Plain antero-posterior (A) and lateral (B) X-rays after open reduction internal fixation of a transverse fracture of the patella

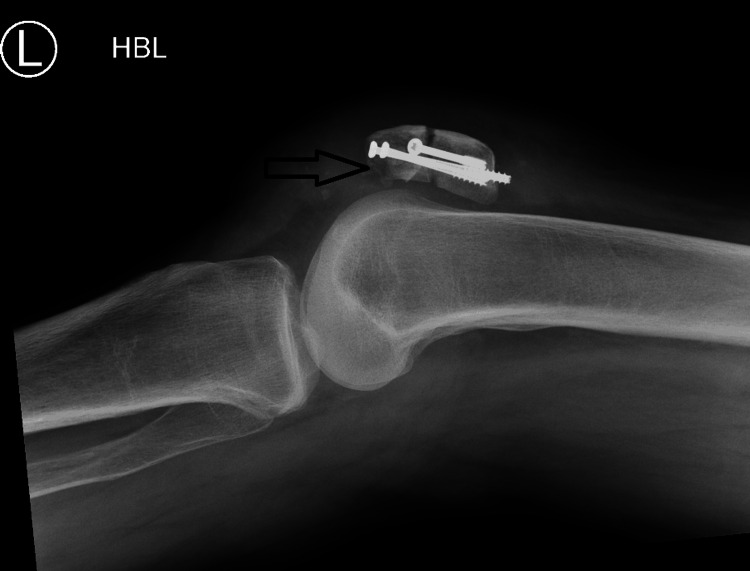

Lateral view of the knee showing stress avulsion fracture of the distal pole of the patella from the head of the previous screw fixation

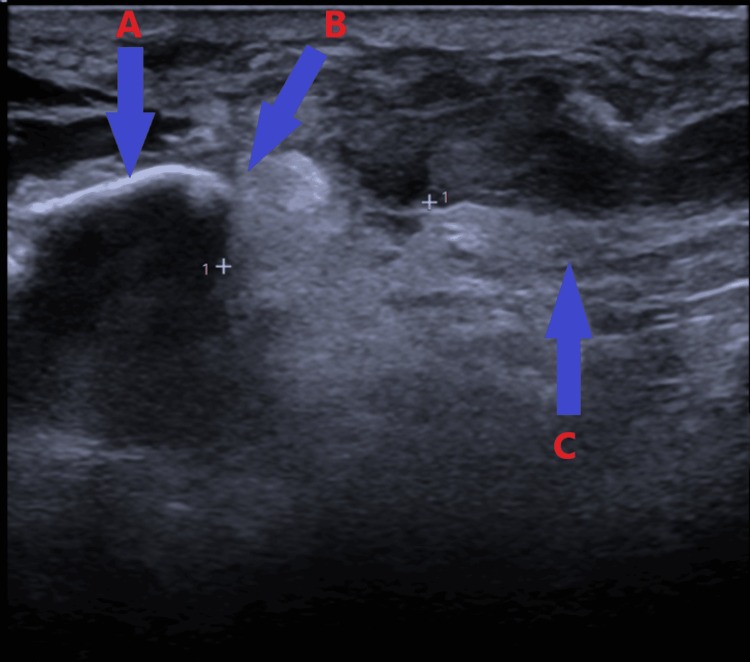

Ultrasound scan image showing avulsion of the patella tendon from the inferior pole of the patella: (A) patella, (B) avulsion fracture of the distal pole of the patella, and (C) patella tendon

Intraoperative picture showing complete avulsion of the patella tendon from the inferior pole of the patella (A) and the ruptured end of the patella tendon (B)

Intraoperative picture after the patella tendon repair (A) with image intensifier (B)

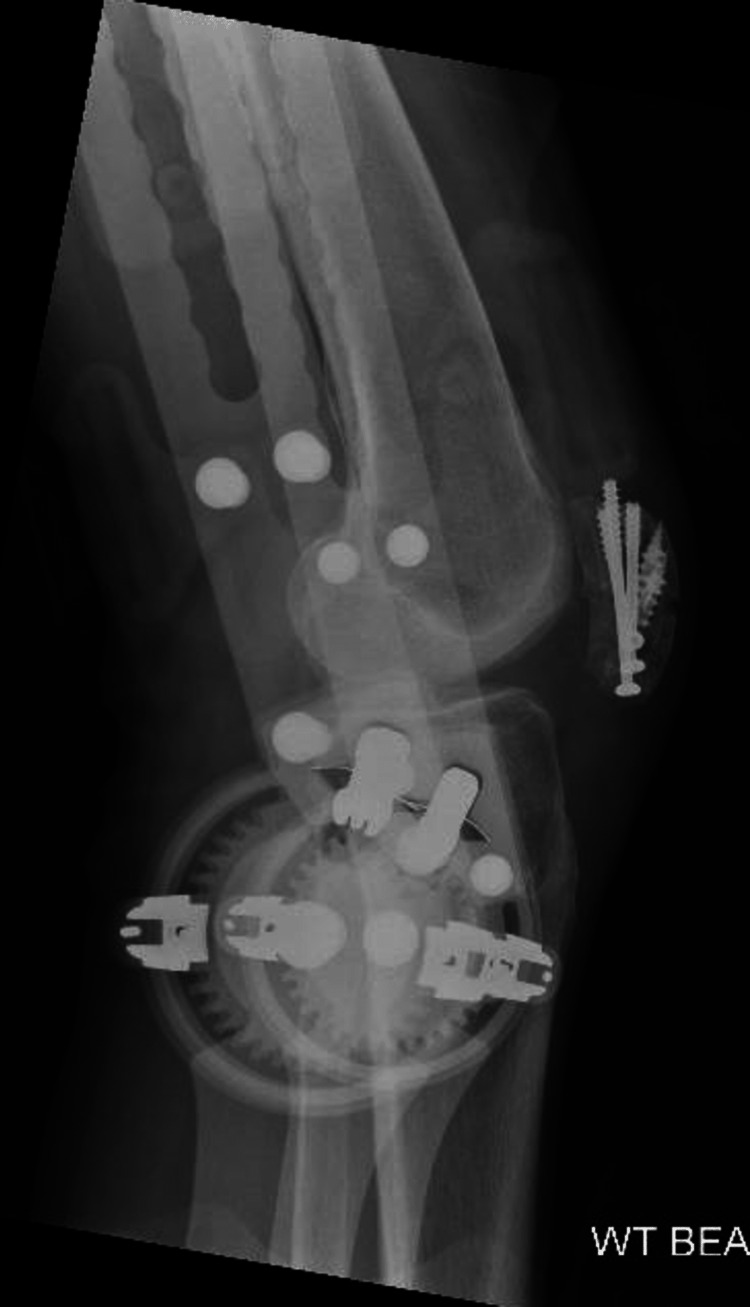

Lateral view of the knee showing healing of both the transverse and inferior pole fractures of the patella

Full text

Introduction

Avulsion fracture of the patellar tendon from the inferior pole of the patella is relatively rare, with patellar tendon injuries comprising only 3% of all knee extensor system injuries [1]. Early diagnosis and operative treatment of knee extensor mechanism injuries are crucial to restoring function, integrity, and strength [2]. To date, stress riser-induced avulsion fractures of the inferior pole of the patella following internal fixation for patella fractures have not been reported in the literature.

In this case report, we present a unique instance of an avulsion fracture of the distal pole of the patella caused by a stress riser following internal fixation of a transverse patellar fracture with cannulated screws. This case underscores the importance of meticulous surgical technique and implant placement to prevent such complications.

Case presentation

A 65-year-old woman presented to our accident and emergency department with complaints of pain and swelling in her left knee and an inability to fully bear weight. She had fallen four weeks prior while on holiday, sustaining a transverse fracture of the patella, which was treated with open reduction and internal fixation using three cannulated screws (Figure 1A-1B). On examination in the emergency room, the patient exhibited gross knee swelling with effusion, tenderness at the distal pole of the patella, limited knee flexion to 20 degrees, and an inability to perform a straight leg raise. Her medical history included chronic obstructive pulmonary disease and osteoporosis, for which she was on oral bisphosphonates. Radiological examination revealed a stress avulsion fracture of the distal pole of the patella originating from the head of the previously inserted screw (Figure 2). Ultrasound imaging confirmed complete proximal patellar ligament disruption (Figure 3).

Plain antero-posterior (A) and lateral (B) X-rays after open reduction internal fixation of a transverse fracture of the patella

Lateral view of the knee showing stress avulsion fracture of the distal pole of the patella from the head of the previous screw fixation

Ultrasound scan image showing avulsion of the patella tendon from the inferior pole of the patella: (A) patella, (B) avulsion fracture of the distal pole of the patella, and (C) patella tendon

The patient consented to an open repair of the patellar tendon. Under general anesthesia, a midline incision was made on the anterior aspect of the knee. Surgical findings included a full-thickness rupture of the patellar tendon and retinaculum, with shredded tendon fibers (Figure 4). The cannulated screws were prominent but still secured the fracture site, so the decision was made to leave the fixation in situ after ensuring the screw heads were buried into the bone. The patellar tendon was prepared with Krackow sutures and reattached to the distal pole of the patella using two 5 mm titanium screw double-loaded anchors. A cerclage wire was placed around the patella and the tibial tuberosity to act as a de-tension device and protect the patellar tendon repair (Figure 5).

Intraoperative picture showing complete avulsion of the patella tendon from the inferior pole of the patella (A) and the ruptured end of the patella tendon (B)

Intraoperative picture after the patella tendon repair (A) with image intensifier (B)

The patient had an uneventful recovery and was followed up in the clinic at two weeks for wound inspection and suture removal. Her knee was immobilized in a cylinder cast for the first two weeks, followed by a hinged knee brace adjusted from 0 to 90 degrees of flexion for the next four weeks. After six weeks, the knee brace was removed and full range of motion exercises were initiated. The cerclage wire was removed five months post-surgery. At the final follow-up at six months, the patient had regained 90 degrees of knee flexion, was able to perform a straight leg raise, and could fully bear weight. X-ray examination showed that both the transverse and stress fractures of the distal pole of the patella had healed (Figure 6). She was subsequently discharged from the clinic.

Lateral view of the knee showing healing of both the transverse and inferior pole fractures of the patella

Discussion

The incidence of patella fractures in skeletally mature adults across all age groups is about 1% [3]. The occurrence of stress fractures of the patella is uncommon [4,5]. There are case reports of stress fractures of the patella following total knee replacement [6] and anterior cruciate reconstruction using patellar tendon bone grafts [7]. Other risk factors for patellar tendon ruptures include age over 40, repeated steroid injections [8], chronic patellar tendinopathy (especially in athletes) [9], diabetes, obesity, inflammatory arthropathy, and osteogenesis imperfecta. Systemic disorders such as hyperparathyroidism, chronic renal failure and dialysis, and Ehlers-Danlos syndrome also increase the risk of bilateral tendon injuries [10]. Long-term administration of fluoroquinolones has been associated with an increased risk of tendon ruptures [11].

The term "stress riser fracture," also known as Young's modulus fractures, was coined by Cameron et al. [12]. Stress riser fractures are caused by a concentration of stress in localized regions of the cortical bone and can lead to catastrophic failures. These fractures are often due to surgical technical errors and thus can be prevented. In our case, the stress riser was due to the prominent screw head used to internally fix the patella fracture. Over time, this resulted in an avulsion fracture of the distal pole of the patella.

Plain X-rays are often diagnostic for avulsion fractures of the patellar tendon, both from the inferior pole of the patella and the tibial tuberosity. Findings such as patella alta (high riding patella) and changes in the Insall-Salvati ratio (normal: 1-2) are classical signs on the lateral view of the knee [13]. Ultrasound examination is one of the most important imaging tools available for diagnosing patellar tendon ruptures. It is relatively inexpensive, quick, and easy to use. Ultrasound has the advantage of clearly evaluating and visualizing the fibrillar echotexture of normal tendons, and the superficial location of the patellar tendon makes it ideal for static and dynamic evaluation. Studies have shown that ultrasound examination is more accurate than MRI in evaluating patellar tendon injuries [14,15]. Our patient's ultrasound scan showed complete proximal patellar ligament disruption.

Partial tears of the patellar ligament can be treated non-operatively with an extension brace, gradually increasing flexion over a few weeks [16]. Open repair is the standard treatment of choice for complete ruptures and avulsion fractures. Transosseous repair is the most common technique used [17]. Capiola et al. described a suture anchor fixation to the inferior pole of the patella using a Krackow technique [18]. Augmentation of the repair can be done with metal cable wires, synthetic tapes, allografts, or autografts. The benefits of augmentation include decreased strain across the repair, which may result in earlier knee motion [16]. In our patient, the patellar tendon was reattached to the distal pole of the patella using two 5mm titanium screw double-loaded anchors after preparing the tendon with Krackow sutures, and was augmented with a cerclage wire around the patella and tibial tuberosity.

Post-operative rehabilitation varies from cast immobilization to the application of knee braces and early mobilization [19]. Most surgeons combine both principles: initial cast immobilization for the first few weeks followed by range-of-motion knee braces and protected weight-bearing. Our patient followed this combined rehabilitation protocol and achieved satisfactory outcomes regarding knee movements and weight-bearing.

Conclusions
