Radiofrequency ablation with sine and square electrical waveforms to enhance ablation range

TL;DR

This study compares two electrical waveforms in radiofrequency ablation for liver cancer, finding that square waveforms improve ablation range and tumor control.

Contribution

The study introduces a novel RF generator with adjustable waveforms and demonstrates enhanced ablation efficacy using square waveforms in a mouse model.

Findings

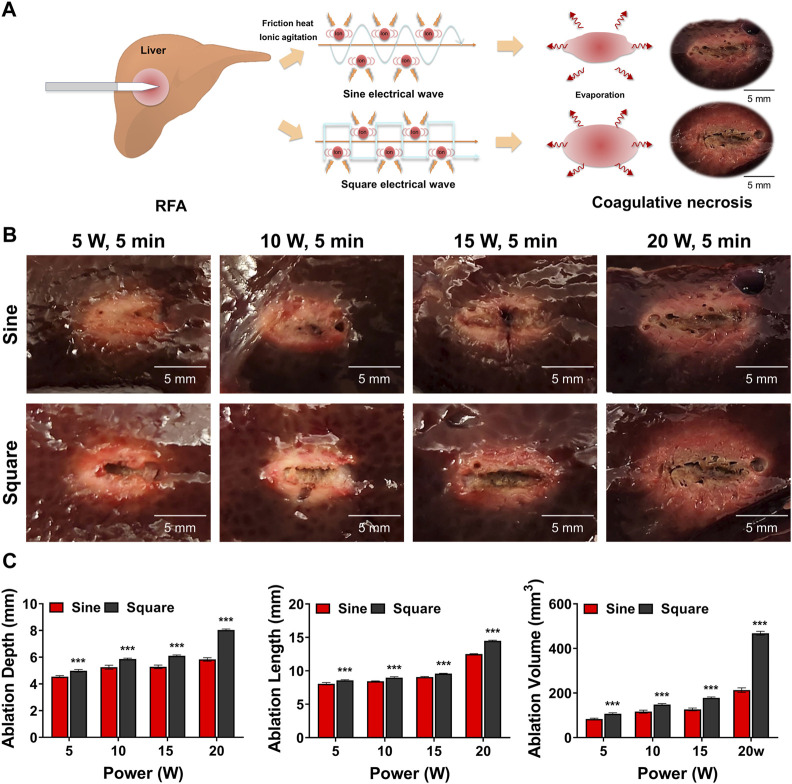

Square electrical waveform ablation ranges were significantly larger than sine waveform in porcine liver.

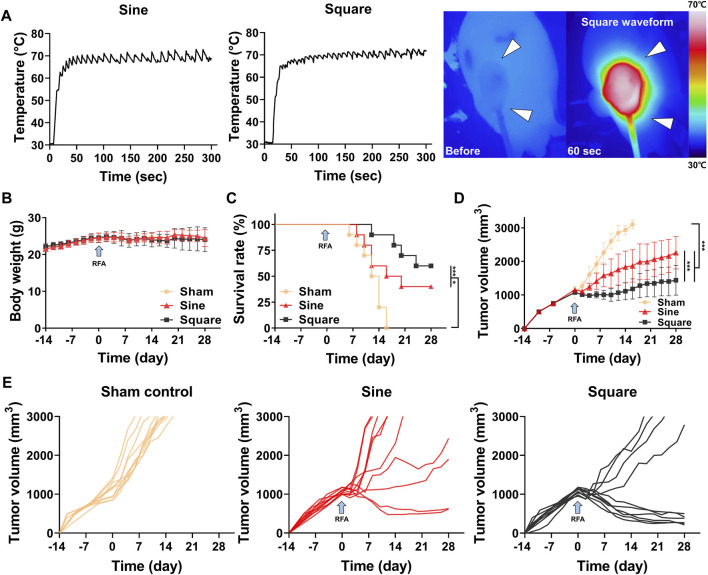

Square waveform RFA resulted in smaller tumor volumes and higher survival rates in mice.

Square waveform induced greater tissue necrosis and inflammatory responses compared to sine waveform.

Abstract

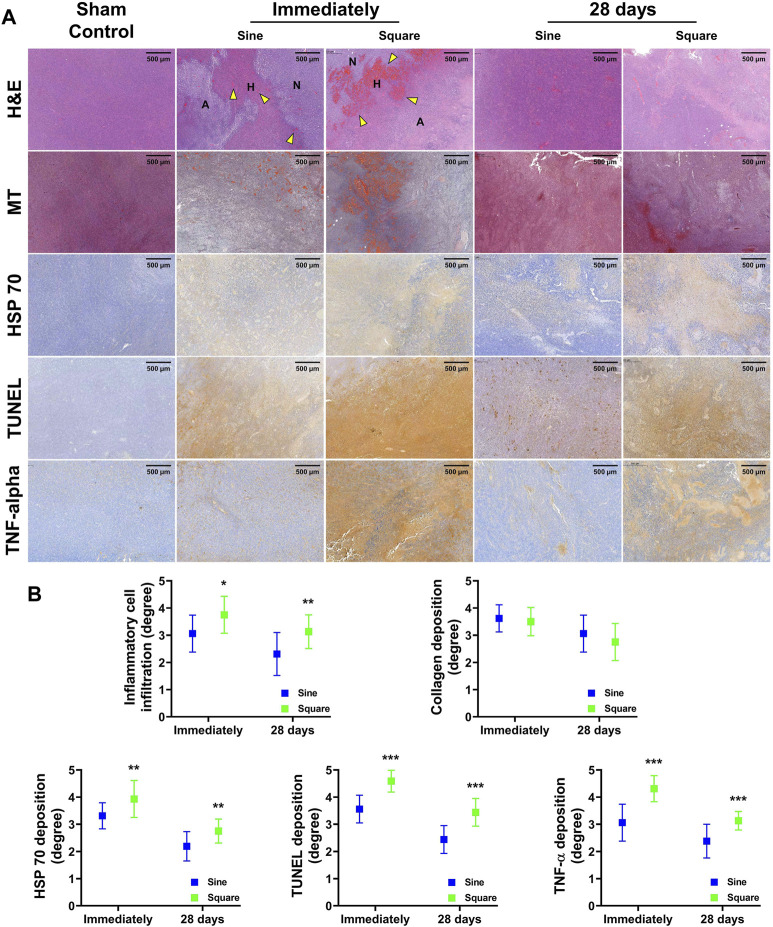

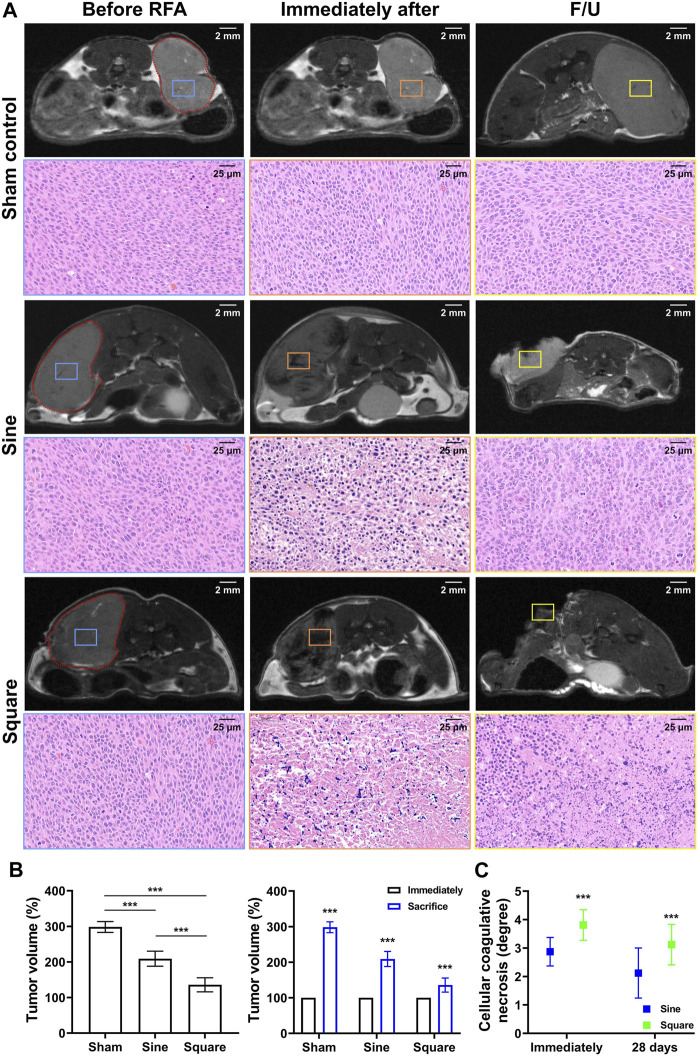

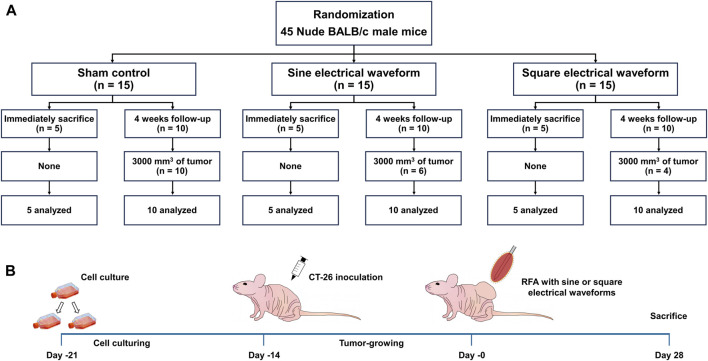

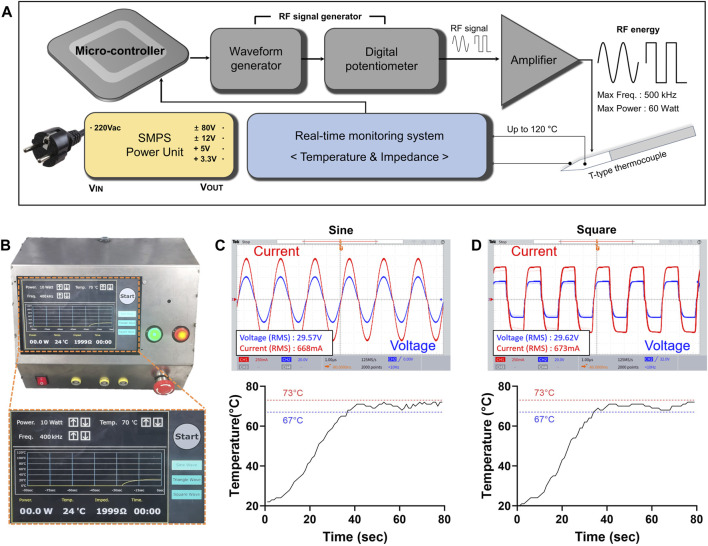

Radiofrequency ablation (RFA) is a local treatment modality for primary liver cancers. Although various input parameters of the RF generator have been adjusted to improve the ablation ranges, the limited ablation ranges remain an obstacle to RFA. This study aimed to compare the ablation ranges and efficacy of sine and square electrical waveforms in a mouse tumor model. An RF generator with an adjustable electrical waveform was developed, and its ablation range in the porcine liver was compared. For all RF parameters, the square electrical waveform ablation range was greater than that of the sine electrical waveform (all p < 0.001) in the porcine liver. The 45 BALB/c nude mice were used to evaluate the efficacy of the two electrical waveforms after the RFA. The mean tumor volume in the square group was significantly lower than that in the sine group (p < 0.001), indicating a higher survival rate (60%). The cellular coagulative necrosis, inflammatory cell infiltration, heat shock proteins, cellular necrosis, and tumor necrosis were significantly greater in square electrical waveform than in sine electrical waveform (all; p < 0.05). RFA with square electrical waveforms has therapeutic potential for tumor management with an enhanced ablation range.
