Comparing flow and pulmonary artery growth post-patent ductus arteriosus stenting in patients with ductal-dependent pulmonary flow using 4D magnetic resonance imaging

TL;DR

This study uses 4D MRI to assess how pulmonary arteries grow and blood flow changes after stenting in neonates with duct-dependent pulmonary circulation.

Contribution

The study provides new insights into differential growth rates and flow changes in left and right pulmonary arteries after PDA stenting in neonates.

Findings

The left pulmonary artery (LPA) showed a lower growth rate compared to the right pulmonary artery (RPA) after 6 months.

Indexed flow in both LPA and RPA decreased at the 6-month follow-up, likely due to reduced stent patency.

Abstract

The 4D magnetic resonance imaging (4D-flow MRI) provides a qualitative and quantitative assessment of cardiovascular structures and processes. 4D-flow MRI was used to study pulmonary flow in post-patent ductus arteriosus (PDA) stent insertion in duct-dependent pulmonary flow neonates at baseline (PDA stent insertion) and after 6 months, and also, to evaluate the effect of flow dynamics on the growth of pulmonary arteries (PAs).

This prospective observational study included neonates with ductus arteriosus-dependent pulmonary circulation who underwent ductal stenting between June 2021 and November 2022. Cardiac 4D-flow MRI and magnetic resonance angiography were conducted in two phases; after the deployment of the PDA stent during the neonatal period and after 6 months from stent deployment. Eight neonates were recruited, but only five completed both scans. A total of 10 PAs were evaluated during each phase. The median left PA (LPA) and right PA (RPA) diameters and indexed flow for LPA and RPA were evaluated. The growth rate of LPA was observed to be lower than that of RPA (percentage diameter increase: 74 vs. 153%). LPA Z-score was lower than RPA. Indexed flow in both LPA and RPA showed a reduction in the 6-month scan, which was consistent with reduced stent patency.

4D-flow cardiac MRI showed different growth rates and reduced flow between LPA and RPA post-PDA stent. These insights can aid in future management decisions.

Graphical Abstract

Figures

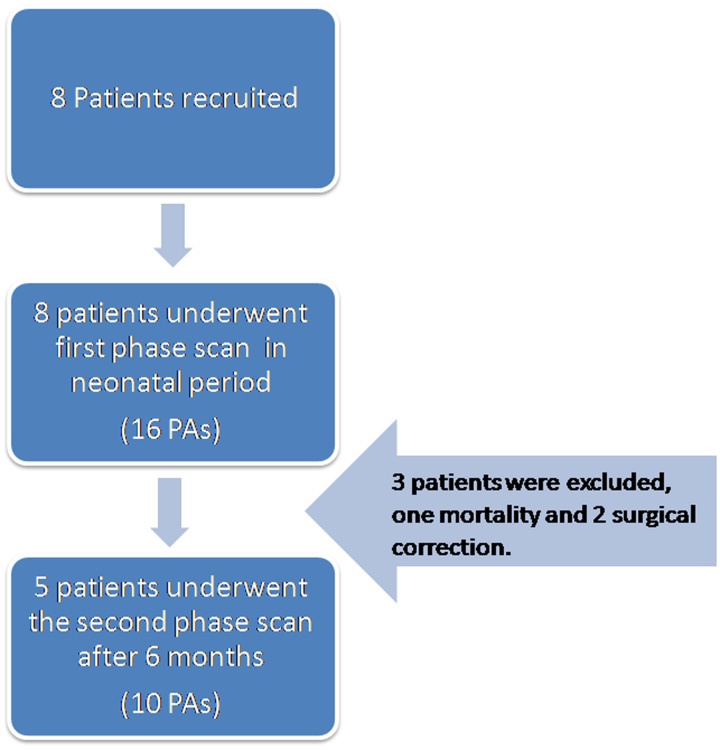

Summary of the patient recruitment.

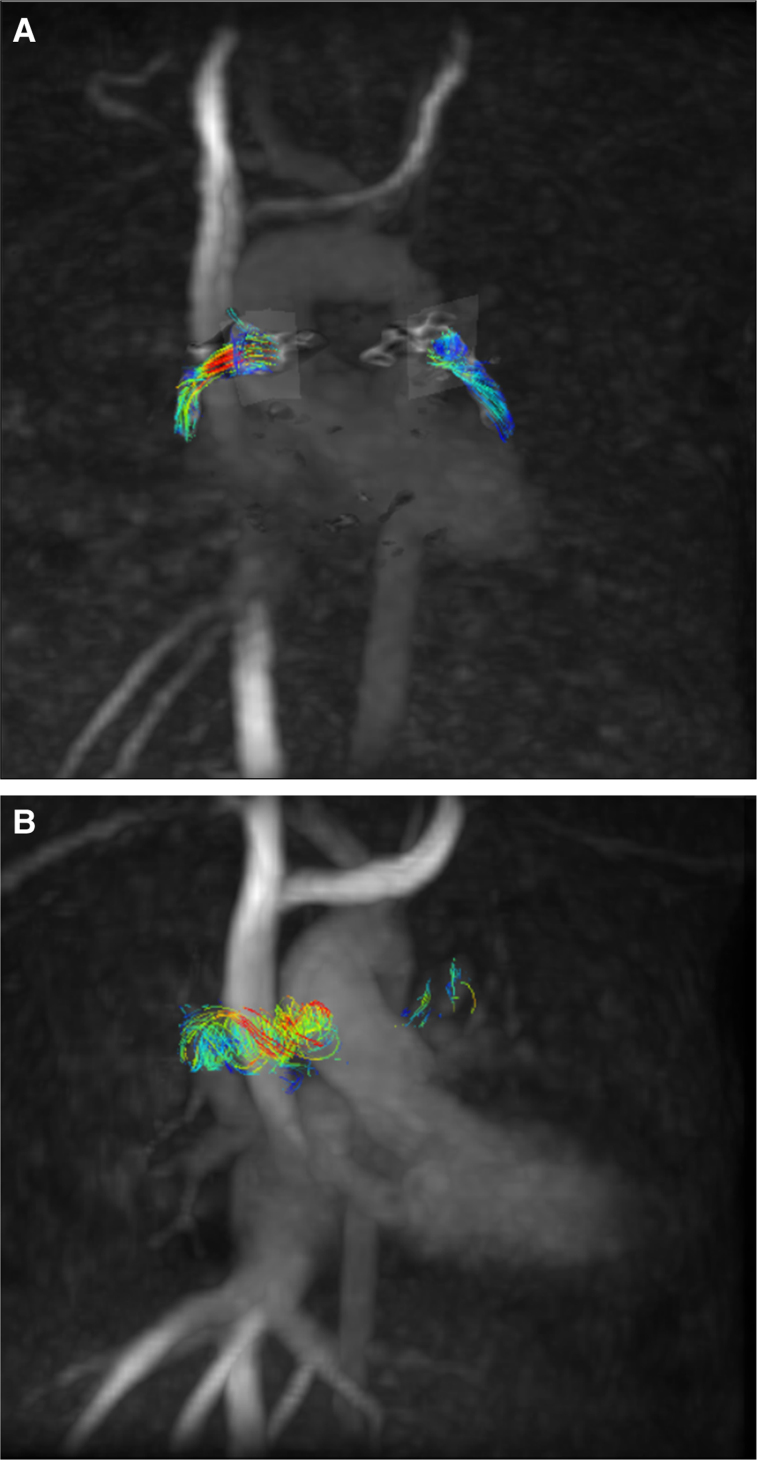

The 4D-flow image of flow streamlines in LPA and RPA, at baseline (A) and after 6 months from deploying the stent (B), demonstrating the change in flow pattern from linear to helical and the density of streamlines owed by the reduction in flow after 6 months.

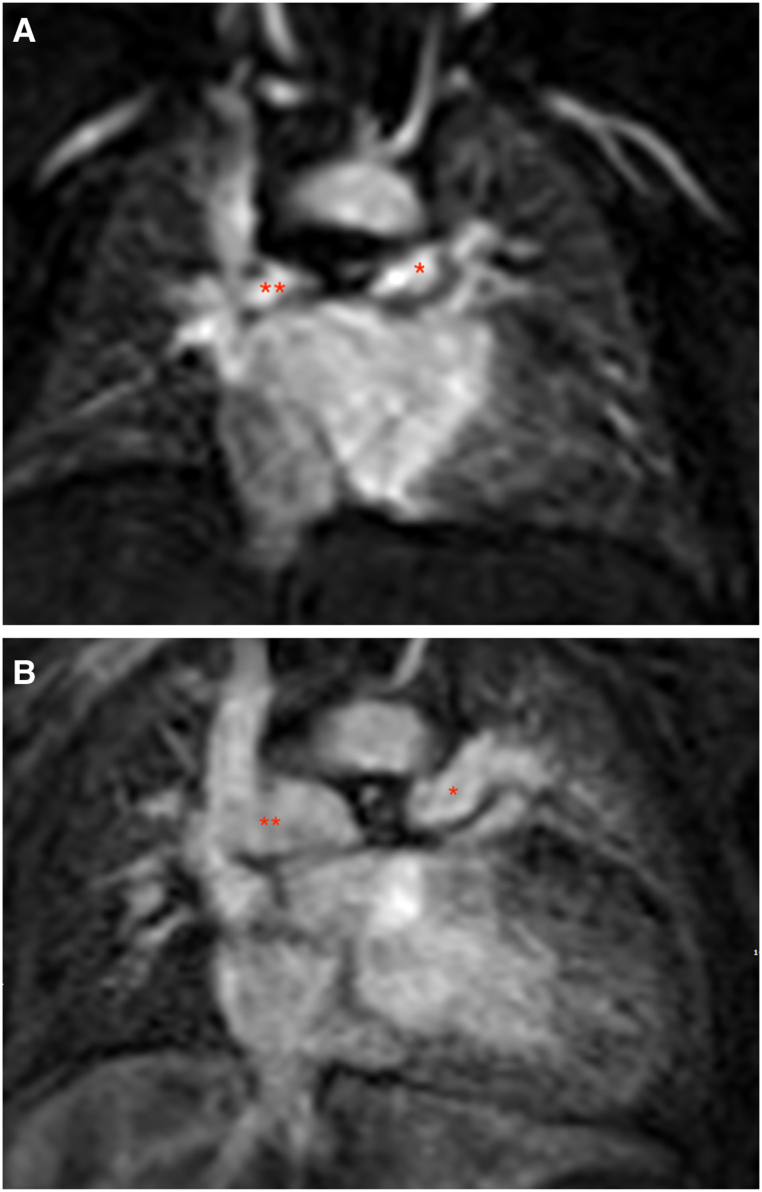

The MRA image of LPA and RPA, at baseline (A) and after 6 months of deploying the stent (B), demonstrating the change diameter. Notice the larger RPA in the images at 6 months (B). The 2 asterisks are marking the RPA and one asterisk is making the LPA.

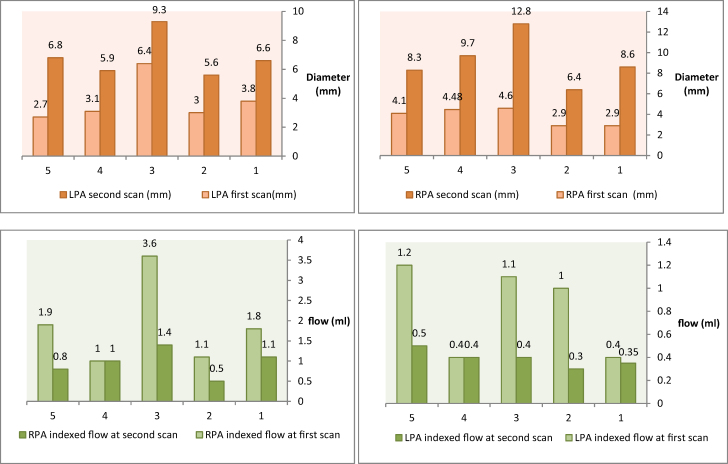

Graphs demonstrating the (A) growth of LPA and RPA for the five patients labelled from 1 to 5, at both the first scan (neonatal period) and after 6 months, measured by mm (Top 2 bar graphs) and (B) change of the flow measured from 4D-flow MRI, of LPA and RPA for the five patients labelled from 1 to 5, at both the first scan (neonatal period) and after 6 months, measured by mL (Lower 2 bar graphs).

Tables

Table 1. Demonstrating the baseline clinical features of the patients

Clinical variables	Mean (SD)/frequency
Birth weight (kg)	3.03 (0.47)
Gender
Male	5
Female	3
Diagnosis
CCTGA/PA	1
DORV/PA	1
MA/DORV/PA	1
PA IVS	2
PA/UBAVSD	2
PA/VSD	1
Aortic arch
Left	6
Right	2
Single-ventricle pathway
No	1
Yes	7
O2 saturation % on discharge	88 (5)
Origin of the PDA
Distal aortic arch	4
Innominate artery	1
Isthmus	3
Number of the PDA stent
1	5
2	3
Other procedures during first PDA stent
Atrial septostomy	3
None	5
Subsequent PDA stent Cath reintervention
No	5
Yes	1
O2 saturation % on the follow-up MRI scan	70 (9)
Cardiac surgical procedures
MBTS following PDA stent	2
Glenn shunt	5
Right pulmonary arterioplasty	1
Left pulmonary arterioplasty	2
Rastelli procedure	1
Outcome
Died	1
Alive	7

Table 2. Summury of patients parameters

	Baseline (n = 8)	After 6 months (n = 5)	Test	df	P-value	95% CI	Interpretation
Weight (kg)	3.15 ± 0.47	6.42 ± 1.33	6.478	11	0.0001	(−4.3809 to −2.1591)	P < 0.001
Height (cm)	50.625 ± 2.19	65.60 ± 2.51	11.364	11	0.0001	(−17.87536 to −12.07464)	P < 0.001
BSA	0.2 ± 0	0.322 ± 0.49	0.724	11	0.484	(−0.49276 to 0.24876)	NS
Heart rate (BPM)	143.75 ± 10.60	126 ± 23.02	1.91	11	0.0818	(−2.6451 to 38.1451)	NS

Table 3. LPA and RPA parameters measured from MRI and echocardiography

	Mean ± SDBaseline(n = 8)	Mean ± SDAfter 6 months(n = 5)	T-test	df	P-value	95% CI	Interpretation
Left pulmonary artery
Diameter (mm)	3.56 ± 1.4	6.84 ± 1.5	4.003	11	0.0021	(−5.0833 to −1.4767)	P < 0.001
Flow (mL/cycle)	1.15 ± 0.6	1.02 ± 0.4	0.4255	11	0.678	(−0.5425 to 0.8025)	NS
Flow indexed	0.82 ± 0.4	0.39 ± 0.1	2.322	11	0.0404	(0.0225 to 0.8375)	P < 0.05
Max V (cm/s)	79.48 ± 37.8	56.66 ± 49.4	0.944	11	0.3653	(−30.3654 to 76.0054)	NS
WSS (Pa)	0.39 ± 0.3	0.2 ± 0.1	1.35	11	0.204	(−0.1197 to 0.4997)	NS
Diameter by ECHO	3.66 ± 0.7	6.4 ± 1.1	5.543	11	0.0002	(−3.8280 to −1.6520)	P < 0.001
Z-score by ECHO	−1.47 ± 0.8	−0.08 ± 1	2.777	11	0.018	(0.2883 to 2.4917)	P < 0.05
Right pulmonary artery
Diameter (mm)	3.82 ± 0.7	9.16 ± 2.4	6.0384	11	0.0001	(−7.2864 to −3.3936)	P < 0.001
Flow (mL/cycle)	2.42 ± 1.2	2.35 ± 0.6	0.12	11	0.9067	(−1.2141 to 1.3541)	NS
F index	1.73 ± 0.9	0.96 ± 0.3	1.824	11	0.0954	(−0.1590 to 1.6990)	NS
WSS (Pa)	0.58 ± 0.3	0.52 ± 0.5	0.273	11	0.7896	(−0.4230 to 0.5430)	NS
RPA diameter by ECHO	3.82 ± 0.7	8.58 ± 2.7	4.85	11	0.0005	(−6.9198 to −2.6002)	P < 0.001
RPA Z-score by ECHO	−1.49 ± 0.6	1.78 ± 2.5	6.326	11	0.004	(−5.2547 to −1.2853)	P < 0.05

Table 4. Comparison of LPA and RPA parametes at each scan phase

	Mean ± SDLPA	Mean ± SDRPA	T-test	df	P value	CI	Interpretation
first scan (n = 8)
Diameter (mm)	3.56 ± 1.4	3.82 ± 0.7	0.4698	14	0.654	(−1.4469 to 0.9269)	NS
Flow (mL/cycle)	1.15 ± 0.6	2.42 ± 1.2	2.6774	14	0.018	(−2.2874 to −0.2526)	P < 0.05
F indexed	0.82 ± 0.4	1.73 ± 0.9	2.6134	14	0.0204	(−1.6568 to −0.1632)	P < 0.05
WSS (Pa)	0.39 ± 0.3	0.58 ± 0.3	1.2667	14	0.2259	(−0.5117 to 0.1317)	NS
Diameter by ECHO	3.66 ± 0.7	3.82 ± 0.7	0.4571	14	0.6546	(−0.9107 to 0.5907)	NS
Z-score by ECHO	−1.47 ± 0.8	−1.49 ± 0.6	0.0566	14	0.9557	(−0.7383 to 0.7783)	NS
6 months follow up scan (n = 5)
Diameter (mm)	6.84 ± 1.5	9.16 ± 2.4	1.833	8	0.1042	(−5.2387 to 0.5987)	NS
Flow (mL/cycle)	1.02 ± 0.4	2.35 ± 0.6	4.1242	8	0.0033	(−2.0737 to −0.5863)	P < 0.01
F indexed	0.39 ± 0.1	0.96 ± 0.3	4.0305	8	0.0038	(−0.8961 to −0.2439)	P < 0.01
WSS (Pa)	0.2 ± 0.1	0.52 ± 0.5	1.4033	8	0.1981	(−0.8459 to 0.2059)	NS
Diameter by ECHO	6.4 ± 1.1	8.58 ± 2.7	1.672	8	0.1331	(−5.1867 to 0.8267)	NS
Z-score by ECHO	−0.08 ± 1	1.78 ± 2.5	1.5446	8	0.161	(−4.638 to 0.9168)	NS

Full text

Introduction

Cardiac abnormalities are among the most common forms of congenital disease, with a prevalence of 6–10 per 1000 births. Together, they represent a significant disease burden. Cardiac imaging provides an important adjunct to clinical evaluation, contributing to a precise diagnosis as well as providing an accurate means to monitor progression and guide treatment decisions in these children. Magnetic resonance imaging (MRI) is considered the gold standard imaging modality and has considerably improved structural and functional assessment and reduced the need for invasive procedures.^1–3^ The development of 4D-flow techniques offers the potential to further add to current capabilities. 4D flow provides a time-resolved 3D description of the total dynamics of blood flow, allowing comprehensive retrospective analysis of any anatomical location within the scanned heart chambers and vascular system.^4–7^

The paediatric population with complex congenital heart disease (CHD) perhaps represents one of the most important groups with the potential to benefit from the application of 4D flow. Many of the surgical interventions performed are associated with planned reoperations, such as staged repair of single-ventricle circulation and replacement of right ventricle-to-pulmonary artery (PA) conduits. Altered blood flow in this setting is postulated to contribute to deteriorating cardiac function. The quantitative nature of 4D-flow MRI is well placed to provide new insights into these processes on an individual as well as a disease-specific level.^8,9^

There has been a recent increase in interest in applying 4D flow to the paediatric congenital population. However, right heart and PA flow have been examined in a small number of individuals, both in the setting of tetralogy of Fallot and following the Ross procedure.^4,8^ The evaluation of complex dynamics in post-procedural shunt placements, such as patent ductus arteriosus (PDA) stents using MRI, has been shortly studied as well. The quantitative measurement of flow and how it relates to the overall development of cardiac structures is still an area to be explored. In our research, we aimed to study the pulmonary flow dynamics in the post-PDA stent procedure in patients with duct-dependent pulmonary flow using the novel 4D-flow MRI, and also, to evaluate the growth of PAs non-invasively and how flow and growth of PAs are related over a period of time.

Methods

This is a prospective observational study that included eight neonates with ductus arteriosus-dependent pulmonary circulation who underwent ductal stenting between June 2021 and November 2022. Neonates, who were haemodynamically unstable following the ductal stenting and those with additional antegrade pulmonary blood flow, were excluded from the study. Figure 1 summarizes the patient selection.

Summary of the patient recruitment.

All neonates received general anaesthesia following standard American Society of Anesthesia monitoring guidelines. Imaging was performed after stent deployment and around 6 months later.

Imaging was done using a 1.5 T MRI, Signa Artist (GE; GE Healthcare, Milwaukee, WI, USA). Post-processing was done by a Level 1 cardiac imaging radiologist and cardiologist. Images were acquired with retrospective ECG gating, 320 mm^3^ volume, 1.0–1.25 mm^3^ isotropic spatial resolution, and velocity encoding (VENC) of 150–200 cm/s. The post-processing was done using CMR42 CVI post-processing workstation (GE; GE Healthcare). Scanning parameters also included magnetic resonance angiography (MRA) sequences to assess the PAs in addition to the 4D-flow sequences. MRA and 4D-flow data were acquired after the bolus injection of 0.2–0.4 mmol/kg gadolinium-based contrast agent.

Data analysis

The diameters, blood flow, and characteristics of the right PA (RPA) and left PA (LPA) were assessed. The comparison of means and data was treated to fit appropriately with the idiographic approach.

Results

Eight neonates were recruited during the study period, and all of them had a baseline MRI study following the PDA stent insertion. There was one mortality, and two patients underwent a modified Blalock–Taussig shunt (MBTS) later during the follow-up period. Therefore, five patients had completed both the baseline and the 6-month follow-up scan. Table 1 summarizes the baseline clinical features. The mean [standard deviation (SD)] birth weight was 3.03 kg (0.47). Seven out of eight patients had single-ventricle physiology. The PDA originated from the distal aortic arch in four patients and from the aortic isthmus in three patients. In only one patient, the PDA originated from the innominate artery. The mean (SD) oxygen saturation during the follow-up MRI scan was 70%.^9^ One patient underwent two ventricle repairs in the form of a Rastelli procedure, and five patients underwent Glenn shunt. Two patients underwent left pulmonary arterioplasty, and one patient required right pulmonary arterioplasty during the Glenn shunt procedure. One patient received MBTS following PDA stent insertion as a final palliative procedure.

Qualitative 4D-flow MRI analysis

Figure 2A and B illustrate the streamline flow pattern in the right and LPAs after PDA stent insertion during the immediate and 6-month follow-up period. The flow pattern in the first scan was linear, but it has changed to a helical pattern in the 6-month follow-up, particularly noted in the larger RPA. However, the streamlines were fewer in the 6 months denoting less flow.

The 4D-flow image of flow streamlines in LPA and RPA, at baseline (A) and after 6 months from deploying the stent (B), demonstrating the change in flow pattern from linear to helical and the density of streamlines owed by the reduction in flow after 6 months.

Quantitative 4D-flow MRI analysis

The mean heart rate, weight, height, and body surface area of the patients in the first and second MRI scans are summarized in Tables 2. Table 3 summurizes the parameters for each of the LPA and RPA obtained from the 4D flow quantification, diameters obtained from the MRA and also the parameters obtained by echocardiography done at same time. Table 4 provides a comparison of LPA and RPA parametes at exh scan phase.

The LPA diameter in the first scan was 3.56 ± 1.4 mm and increased significantly in the follow-up MRI scan to 6.84 ± 1.5 mm (P < 0.001). The indexed flow in the LPA reduced significantly between the two scans from 0.82 ± 0.4 to 0.39 ± 0.1 (P < 0.05). The maximum velocity and the wall shear stress (WSS) of the LPA were reduced between the two scans, but they were not statistically significant.

The RPA diameter in the first scan was 3.82 ± 0.7 mm and increased significantly in the follow-up MRI scan to 9.16 ± 2.4 mm (P < 0.001). The indexed flow in the RPA changed between the two scans (1.73 ± 0.9–0.96 ± 0.3, P > 0.05). In addition, the maximum velocity and the WSS of the RPA did not change between the two scans.

Comparison between the LPA and RPA

Six months following the PDA stent insertion, the RPA diameter was noted to be larger than the LPA diameter (9.16 ± 2.4 vs. 6.84 ± 1.5 mm) but it was not statistically significant (P > 0.05). The maximum velocity and the WSS were similar between the LPA and RPA in both scans (Table 4). However, the flow and the indexed flow were significantly lower in the LPA compared with the RPA in both scans. Figure 3A and B demonstrates the change in diameter from baseline. Figure 4 demonstrates the growth and flow differences of the LPA and RPA between the two scans.

The MRA image of LPA and RPA, at baseline (A) and after 6 months of deploying the stent (B), demonstrating the change diameter. Notice the larger RPA in the images at 6 months (B). The 2 asterisks are marking the RPA and one asterisk is making the LPA.

Graphs demonstrating the (A) growth of LPA and RPA for the five patients labelled from 1 to 5, at both the first scan (neonatal period) and after 6 months, measured by mm (Top 2 bar graphs) and (B) change of the flow measured from 4D-flow MRI, of LPA and RPA for the five patients labelled from 1 to 5, at both the first scan (neonatal period) and after 6 months, measured by mL (Lower 2 bar graphs).

Discussion

Our study identified distinct growth patterns in the RPA and LPA following PDA stenting. We found that the RPA had a higher growth rate compared with the LPA. The original hypothesis that both PAs would grow similarly after PDA stent deployment was rejected, and an alternate hypothesis was accepted. These findings are consistent with the findings of Santoro et al. who studied post-PDA stenting growth patterns in patients with pulmonary-dependent circulation. Santoro et al. used interventional procedures to calculate diameters. Our study suggests that MRA could be a non-invasive alternative to interventional studies for monitoring the growth and development of PAs in these patients.

The growth and flow dynamics of PAs in children with CHD are of paramount clinical importance, influencing both diagnosis and management. Recent studies have explored the potential of 4D-flow MRI for evaluating flow dynamics in various cardiac structures. Our study focused on using the 4D-flow MRI and MRA in the quantitative assessment of flow and growth in the LPA and RPA at baseline, at the time of PDA stent placement, and at 6-month follow-up. There have been recent studies looking into the applications of this modality in CHD. Valverde et al.^10^ utilized 4D-flow MRI to quantify flow in systemic-to-pulmonary collaterals, showcasing the technique’s applicability. Markl et al.^5,8^ investigated haemodynamic changes in children with single-ventricle physiology, emphasizing the significance of understanding PA growth patterns in optimizing surgical strategies for these patients.

Our study revealed distinctive growth patterns in the RPA and LPA following PDA stenting. The RPA exhibited a more substantial growth rate compared with the LPA, which aligns with findings by Santoro et al.^11,12^ who studied post-PDA stenting growth patterns in patients with pulmonary-dependent circulation. In their study, interventional procedures were used as the modality to calculate diameters. Our study suggests that MRA could serve as a non-invasive alternative to interventional studies for monitoring the growth and development of PAs in these patients.

The deployment of PDA stents has been proven to promote and improve circulation and growth of PAs in many studies.^13,14^ This has been postulated to be a factor for PA growth and development in virtue of increased flow. A multicentre comparison study of palliative PDA stent and MBTS showed that PAs were larger and measured by the Nakata index and more symmetrical in the PDA stent group.^15^ However, the absolute quantitative measurements of flow in the PAs have not been fully studied. In our study, we found a global decrease in the quantity of flow in all 10 PAs studied for the five recruited patients in the 6-month follow-up compared with the baseline. Sivakumar^16^ found a gradual decrease in oxygen levels caused by the growth of tissue within the ductal stents in their study of neonatal PDA stents. They also demonstrated that the cause was due to the development of a layer of fibrous tissue and blood clot within surgical shunts. The latter finding could explain the global quantitative reduction in the flow in all PAs in our study, and it may also concur with the previous postulations about the longevity of PDA stents in this population. The papers provide insights into the longevity of PDA stents. Alwi et al.^14^ found that PDA stenting was successful in a majority of patients with duct-dependent pulmonary circulation, but there were cases of stent stenosis and worsening branch PA stenosis during follow-up. Rodríguez-Cruz et al.^17^ presented two cases where stents were placed in the PDA, but did not provide specific information on long-term patency. Wespi et al.^18^ reported favourable short- to mid-term outcomes after PDA stenting, with successful procedural outcomes and adequate vessel growth for subsequent surgical procedures. However, the study did not include a long-term follow-up. Overall, it is suggested that PDA stenting can be a feasible and safe treatment option, but long-term patency and potential complications need further investigation.

The discrepancy in diameter growth, despite reductions in flow in both arteries, raises questions about factors beyond quantitative flow, such as vortices and flow patterns, playing a role in PA growth. Evidence from studies on bicuspid aortic and pulmonary valve patients supports the idea that flow patterns play a crucial role in vessel dilatation.^19–22^ Our study noted helical streamlines, particularly in the RPA at the 6-month follow-up, a phenomenon also found in normal RPA by Bächler et al.^23^ Gbinigie et al.^24^ described flow asymmetry in the PAs found in healthy individuals. A right-handed helical pattern is observed in the main PA. Beyond the bifurcation, helical flow with positive helicity is found in the RPA and with negative helicity in the LPA. It was also found that the RPA is 10% larger than the LPA in diameter. Moreover, the average cardiac cycle flow velocity was 40% larger in the RPA compared with the LPA.

The observed increase in LPA diameter, associated with a more significant reduction in indexed flow, suggests that PDA stenting may exert a more pronounced effect on the left pulmonary circulation. This information has critical implications for post-intervention management. It aligns with previous observations of LPA augmentation during surgical intervention for patients with ductal stenting, reinforcing the idea that PDA stenting significantly influences lower flow dynamics in the LPA.^25^

The limitations of the study include its small sample size and the need for further, larger research to validate the findings. Also, the study would benefit from longer term follow-up to assess the progression of the observed changes. One other limitation is the requirement of intensive care admission and the need for anaesthesia and intubation to perform the MRI. The recruitment of these resources was a challenge due to the occupancy issue. The small size of the PAs in these neonates was a challenge to image. It required a very small matrix and high resolution with a small slice thickness which rendered the scans very large in size and, therefore, more challenging for analysis of the 4D flow. A last limitation is the absence of reference of normal quantitative flow of PAs calculated from MRI. Therefore, we used the echocardiography Z-score as a reference.

Conclusion

The utilization of 4D-flow CMR in assessing the impact of PDA stenting on neonates with ductal-dependent pulmonary flow provides valuable insights into the haemodynamic changes and structural adaptations following this intervention. The study’s findings highlight the importance of MRI techniques, in particular, 4D-flow technique, in improving our understanding of CHDs and guiding clinical decision-making.

Consent

Informed consent was obtained from the parents of all recruited patients, and institutional ethical committee approval was also obtained.
