Growth mechanism of oleylammonium-based tin and lead bromide perovskite nanostructures
Kushagra Gahlot, Julia N. Kraft, Manuel Pérez-Escribano, Razieh M. Koushki, Majid Ahmadi, Enrique Ortí, Bart J. Kooi, Giuseppe Portale, Joaquín Calbo, Loredana Protesescu
TL;DR
This paper explores how tin and lead bromide perovskite nanostructures grow, showing that tin bromide tends to form more complex 2D or 3D structures than lead bromide.
Contribution
The study reveals that tin bromide is more prone to forming higher-order 2D or 3D nanostructures compared to lead bromide, using combined experimental and theoretical approaches.
Findings
Tin bromide is more inclined to form higher-order 2D Ruddlesden–Popper or 3D nanostructures than lead bromide.
Precisely tuned CsSnBr3 3D nanocrystals (7 and 10 nm) were synthesized using standard surface ligands.
Residual 2D RP nanostructures preferentially position at the interface with the substrate in coexisting 3D and 2D suspensions.
Abstract
Metal halide perovskites, particularly using tin and lead as bivalent cations, are well known for their synthetic versatility and ion mobility. These materials possess intriguing ionic properties that allow the formation of 2D Ruddlesden–Popper (RP) and 3D metal halide perovskite nanocrystals (NCs) under similar synthetic conditions. We studied the synthesis mechanism of oleylammonium-based Sn and Pb bromide perovskites 2D Ruddlesden–Popper (RP) in comparison with the 3D CsPbBr3 and CsSnBr3 NCs. Using experimental techniques in combination with theoretical calculations, we studied the interactions of the long-chain organic cations with the inorganic layers and between each other to assess their stability. Our findings suggest that tin bromide is more inclined toward forming higher-order RP phases or 3D NCs than lead bromide. Furthermore, we demonstrate the synthesis of precisely tuned…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5- —Nederlandse Organisatie voor Wetenschappelijk Onderzoek10.13039/501100003246
- —Generalitat Valenciana10.13039/501100003359
- —Ministerio de Ciencia e Innovación10.13039/501100004837
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsInnovative Educational Technologies · Educational Methods and Teacher Development · Foreign Language Teaching Methods
Introduction
Tin halide perovskites are emerging as one of the desirable lead-free perovskite materials for optoelectronic applications in the form of their 3D metal halide perovskite structure (ASnX_3_), 2D Ruddlesden–Popper (RP) perovskite phases [R-NH_3_]2_An−1_Sn_nX_3n+1 (n ≥ 1), or in the synergistic combination of both.^1–4^ The 3D perovskite structure exhibits better charge transport, whereas 2D RP phases can impart stability and defect passivation.^2,5^ Several reports in photovoltaic research have utilized the combination of 2D and 3D tin-halide perovskites to improve the performance as well as the long-term stability of the device.^6–8^
The limited number of synthetic reports on tin-halide perovskite nanocrystals (NCs) have majorly focused on iodide,^9–11^ owing to its appealing band gap in the infrared range (1.3 eV, bulk phase).^12^ On the other hand, CsSnBr_3_, the lead-free counterpart of CsPbBr_3_ NCs, has been researched primarily on bulk and thin-films for interesting phenomena like emphanisis,^13^ strong spin–orbit coupling,^14^ and for applications in optoelectronics.^15,16^ Only a few reports on the colloidal synthesis of CsSnBr_3_ NCs^17,18^ highlighted the potential of the hot-injection method when synthesizing CsSnBr_3_ and CsSnBr_1−xIx_ NCs. Thus, it is desirable to thoroughly investigate and optimize the synthetic process to attain high-quality Sn-halide perovskite NCs.
From our previous studies,^19^ we learned the importance of employing the sub-stoichiometric ratio of ligands (Sn : oleate : oleyl ammonium = 1 : 1 : 1) and excess of the SnI_2_ precursor to achieve stable, monodisperse, and tunable optical properties for the tin-halide perovskite NCs using a hot-injection method.^19^ The structural dynamics in the tin-halide perovskite nanostructures have been showcased with the presence of 3D CsSnI_3_ nanocuboids and 2D [R-NH_3_]2_Csn−1_Sn_nI_3n+1 (n > 1) RP nanosheets.^19^ Directing the reaction towards a specific dimensionality in the presence of SnX_2_ precursors and an ammonium ligand (oleylammonium) has posed an arduous challenge. Density functional theory (DFT) calculations demonstrated that, for Pb-halide-based perovskites,^20^ the formation energies of these reduced dimensional structures are comparable to those of the 3D counterparts.
The synthesis of CsPbBr_3_ or CsSnI_3_ NCs, as documented in various reports,^17,19,21,22^ typically involves the solubilization of metal salts subsequent to an acid–base reaction between a carboxylate (oleate, OA, R-COO, and C_17_H_33_COO^−^) and an ammonium moiety (oleylammonium, OLA, R-NH_3_, C_18_H_35_NH_3_^+^). These processes, where the Cs^+^ cation is intercalated at a specified temperature, serve as a foundational approach for synthesizing CsSnBr_3_ NCs analogs. Given the distinct reactivities, solubilities, and complexation behaviors of PbBr_2_ and SnBr_2_, along with the potential for competitive formation of both 2D [R-NH_3_]2_Csn−1_Sn_nBr_3n+1 (n ≥ 1) and 3D CsSnBr_3_ nanostructures, the synthesis of CsSnBr_3_ NCs remains a challenge.
In this work, we first investigated and compared the formation dynamics of oleyl ammonium-based tin- and lead-bromide 2D RP structures. We have observed that the n = 1 [R-NH_3_]2_MBr_4 2D RP structures exhibit different interlayer d-spacings in solution and thin-films due to the long organic chain flexibility and the weak non-covalent interactions, with minor chain-to-chain interdigitation. Energetically, these 2D RP structures are less likely to form in the case of SnBr_2_ as compared to PbBr_2_ or SnI_2_. We continued with the synthesis of 3D CsSnBr_3_ NCs for which we optimized the reaction parameters and we isolated and investigated two different sizes with average edge lengths of ≈7 and 10 nm. The 7 nm CsSnBr_3_ NC solution showed an extended ordering up to a few microns with simple drop-casting. This research work aims to advance the understanding of dimensional dynamics in the colloidal chemistry of Sn and Pb perovskite NCs.
Results and discussion
Oleyl ammonium-based 2D RP perovskite structures (n = 1)
To address the synthetic challenges found in the design of low-dimensional tin-based perovskites, we first investigated the formation of 2D RP perovskite nanostructures using Sn and Pb bromide salts (SnBr_2_, PbBr_2_) as starting precursors. We already reported that SnI_2_^9,10,17,19^ and SnBr_2_^23^ can form a 2D RP perovskite phase ([R-NH_3_]2_SnX_4) when complexed by the OLA (R-NH_3_^+^) and OA acid–base couple in a non-coordinated solvent (here octadecene, ODE) after a heating–cooling process (Fig. 1a).^19,23^ Therefore, we used the optimized precursor ratio^19^ MX_2_ : OLA : OA = 1 : 1 : 1 at a reaction concentration of 0.3 M (Fig. 1) and 0.03 M (for Pb, see Fig. S1, ESI†). After the complete dissolution of MX_2_ at 200 °C, we quenched the reaction mixture to room temperature to precipitate the 2D RP powders: [R-NH_3_]2_SnBr_4 (bright yellow) and [R-NH_3_]2_PbBr_4 (cool-white). Note that we used the same precursor concentration as previously reported for the Sn halide perovskite synthesis (0.3 M, Fig. 1), as it corresponds to the minimum concentration that can be used to yield thermodynamically stable Sn halide perovskite NCs. Still, we also tried 0.03 M (10 times diluted), the concentration typically used for Pb halide perovskite NCs^21,22,24^ (Fig. S1, ESI†). In both cases, the 2D RP perovskite structures were further purified and characterized. The low-angle X-ray diffraction (XRD) patterns recorded for thin films of [R-NH_3_]2_SnBr_4 (Fig. 1c, green plots) and [R-NH_3_]2_PbBr_4 (Fig. 1c, blue plots) drop-cast on Si-wafer showed diffraction peaks with a d-spacing of 4.1 nm for [R-NH_3_]2_SnBr_4 and 4.25 nm for [R-NH_3_]2_PbBr_4. To confirm this d-spacing in the colloidal suspension of 2D RP perovskites, we also measured their small-angle X-ray scattering (SAXS) profile, which yields a spacing between the inorganic layers of 4.3 nm for both [R-NH_3_]2_SnBr_4 and [R-NH_3_]2_PbBr_4 RP structures (Fig. 1d).

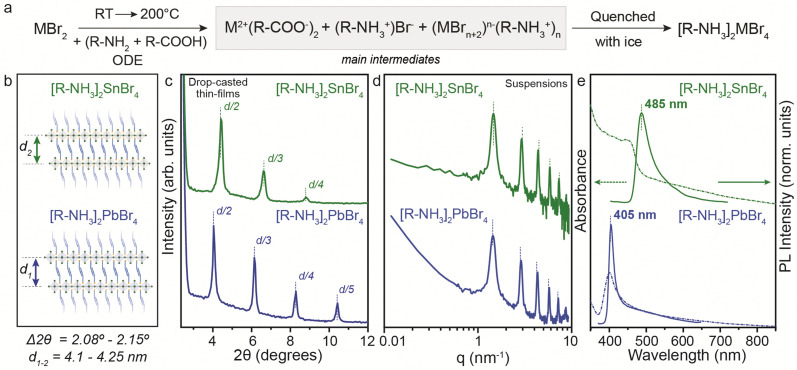

(a) General reaction scheme for the synthesis of the (n = 1) [R-NH3]2MBr4 RP perovskite phase prepared at 0.3 M. (b) Chemical structure representation of 2D [R-NH3]2MBr4 RP perovskites (n = 1). (c) The low-angle XRD pattern showcases the periodic peaks for the higher order of reflections based on an interlayer d-spacing ranging from 4.1 to 4.25 nm. (d) Small-angle X-ray scattering (SAXS) profiles for the 2D [R-NH3]2MBr4 RP perovskites (n = 1) suspension in toluene show periodic peaks corresponding to a d-spacing of 4.3 nm. (e) UV-Visible and photoluminescence spectroscopy for the 2D [R-NH3]2MBr4 RP perovskites (n = 1).
As depicted in Fig. 1e, the UV-visible absorbance and photoluminescence (PL) measurements demonstrated pronounced quantum confinement effects for both [R-NH_3_]2_MBr_4 structures, featuring narrow excitonic signatures (2.74 eV for Sn and 3.1 eV for Pb) and PL peaks at 485 nm (2.56 eV) for Sn and at 405 nm (3.05 eV) for Pb, with a full width at half maximum (FWHM) of approximately 0.1 eV, in good agreement with previous reports.^25,26^ We examined the morphological characteristics of the 2D RP [R-NH_3_]2_MX_4 materials, revealing their presentation as nanosheets with an anticipated aspect ratio of 3 : 2, as evidenced for [R-NH_3_]2_SnBr_4 in Fig. S2 (ESI†).
For the PbBr_2_ salt, a similar reaction path to yield [R-NH_3_]2_PbBr_4 structures was observed when the reaction was performed according to the procedure reported by Protesescu et al.^21^ (precursor concentration ∼ 0.03 M). In this case, the formation of [R-NH_3_]2_PbBr_4 2D RP perovskite structures was also confirmed. Fig. S1a (ESI†) highlights the low-angle XRD pattern with the 2θ periodicity corresponding to a d-spacing of 4.053 nm, slightly smaller than the values recorded for the concentrated system. The optical properties were not concentration-dependent, yielding similar UV-visible and PL spectra (Fig. S1b, ESI†). These 2D RP structures have low colloidal stability, so scattering effects are present in the absorption measurements.
While the chemical reaction pathway was anticipated, we were intrigued by the considerable spacing variation between the inorganic layers in those n = 1 structures. Similar values were reported for [R-NH_3_]2_SnI_4,^19,23^ which are dependent on the solid (precipitated as powder) and colloidal state, as well as on the cooling rate during the quenching of the reaction. Shorter cations were reported for both Sn and Pb 2D RP n = 1 structures with more rigid chains (such as butylammonium, phenylethylammonium, and octylammonium) and interspacing values ranging from 1.9 to 2.3 nm.^27,28^ Moreover, several reports described the high stability of those 2D structures with short ligands due to van der Waals interactions, making them energetically favorable over higher n values.^20,29,30^
The [R-NH_3_]2_MX_4 RP phases were investigated by means of a multilevel theoretical approach (see the ESI† for full details). First, the minimum-energy structures were calculated under the density functional theory (DFT) framework (PBEsol level of theory). Then, the extent of non-covalent interactions between the oleylammonium chains in the [R-NH_3_]2_MX_4 phases was estimated through analysis of the non-covalent index (NCI),^31^ as implemented in the NCIPlot code,^32^ and the interaction energy. Our calculations indicate an extended oleylammonium inter-chain region of weakly stabilizing non-covalent interactions (green surfaces in Fig. 2a). Interaction energies predicted at the PBEsol level including vdW correction suggest a slightly larger chain-to-chain stabilization in [R-NH_3_]2_SnBr_4 (−1.74 eV) compared to [R-NH_3_]2_PbBr_4 (−1.66 eV) and [R-NH_3_]2_SnI_4 (−1.44 eV). This trend correlates with the A-site size, and thus, with the chain-to-chain distance, which is calculated to be shorter for Sn–Br (N⋯N average distance of 6.5 Å), than for Pb–Br (6.6 Å) and Sn–I (7.0 Å). In fact, we predict negligible lattice distortions with respect to the bulk 3D analogue in [R-NH_3_]2_SnBr_4 compared to [R-NH_3_]2_PbBr_4 and [R-NH_3_]2_SnI_4 (see Tables S1 and S2, ESI†), indicative of optimal chain-to-chain separation in the former. On the other hand, the interaction energy between the perovskite MX_6_ octahedra and the oleylammonium cation was computed to be −5.40 eV for [R-NH_3_]2_SnBr_4, −5.76 eV for [R-NH_3_]2_SnI_4, and −6.39 eV for [R-NH_3_]2_PbBr_4 at the PBEsol/tier-2 level of theory. The cation–perovskite interaction is dominant compared to the chain-to-chain interaction, thus pointing to easier desorption of the oleylammonium for [R-NH_3_]2_SnBr_4, a process required to form higher-order 2D [R-NH_3_]2_Csn−1_M_nX_3n+1 (n > 1) or 3D CsMX_3_ perovskite phases. The formation of 2D RP with n = 1 is expected to be more favorable in [R-NH_3_]2_SnI_4 than in the bromide analogue, which agrees with previous reports where tin-iodide 2D RP structures were synthesized and stabilized.^19^

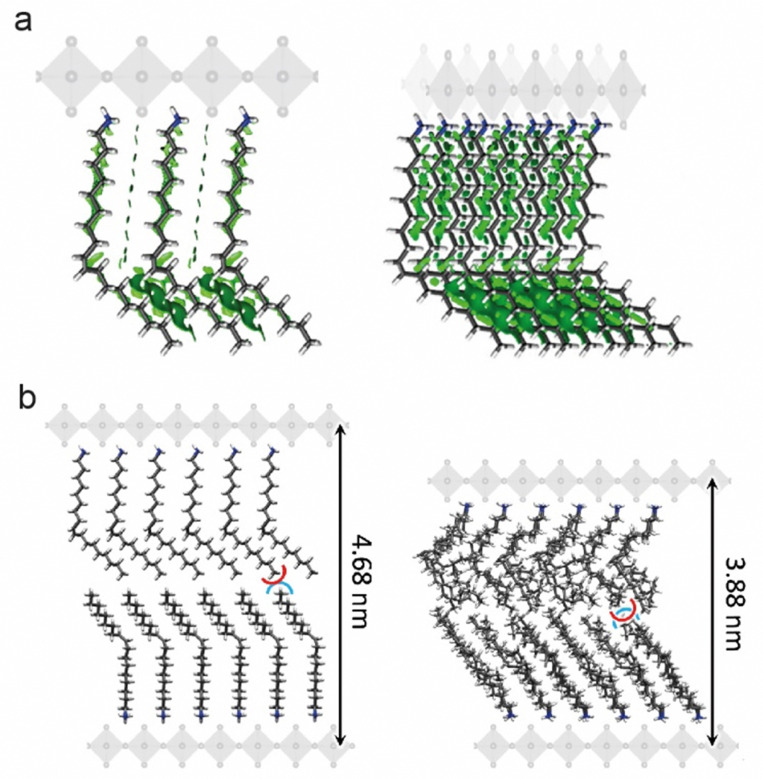

(a) Front (left) and diagonal (right) views of the NCI volumes (in green) indicating the weak but extended non-covalent forces governing the interaction between neighboring oleylammonium chains for the [R-NH3]2MBr4 RP perovskite (n = 1); rendering an iso value of 0.3 a.u. (b) d-spacing values calculated for the [R-NH3]2SnBr4 RP perovskite (n = 1) at the static DFT-minimum energy structure (left) and after an extended molecular dynamics simulation at room temperature (right). The location of the perovskite monolayer (not included in these calculations) is displayed for representation clarity.
To study the extent of intercalation between the oleylammonium chains and the effect of temperature and dynamic disorder on the interlayer d-spacing, classical molecular dynamics (MD) simulations were conducted on top of the DFT minimum-energy structure predicted for the [R-NH_3_]2_SnBr_4 phase, as a representative example. A significant contraction of the oleylammonium chains was observed along the c-axis when the system was equilibrated and thermalized at 298 K. The interlayer d-spacing decreases from 4.7 to 3.9 nm along the dynamics, with a small intercalation of <3 Å between the oleylammonium chains of neighboring layers (Fig. 2b). These results remark the flexible character of the OLA cations, and could explain the discrepancy observed in the d-spacings for drop-cast thin films and suspensions of [R-NH_3_]2_MX_4 RP structures. There is expected to be a decrease in the d-spacing variability on shortening the carbon chain length and rigidifying the structure of the organic cation.
Mechanistic studies for CsMBr3 NCs (M = Pb and Sn)
To synthesize CsSnBr_3_ NCs starting with the same precursor composition as for the 2D RP structures discussed above, we utilized the hot-injection of the Cs(oleate) precursor into our main intermediates at 200 °C followed by subsequent quenching with ice-water. Fig. 3a shows the structural and optical characterization of the obtained CsSnBr_3_ NCs in comparison to CsPbBr_3_ NCs. Note that for this comparison, we used the 0.3 M concentration. Fig. S3 (ESI†) displays the Sn-halide salt concentration-dependent optical stability of NCs, which shows the necessity of performing Sn-halide perovskite NC synthesis at supersaturated concentrations (>0.3 M) for longer stability of NCs.^19^ Thus, to make long-standing, colloidally stable NCs, the synthesis of Sn-halide perovskite NCs must be performed at a higher concentration of Sn while maintaining the sub-stoichiometric ratio of ligands (SnX_2_ : OLA : OA = 1 : 1 : 1) with respect to the Sn salt.^33^

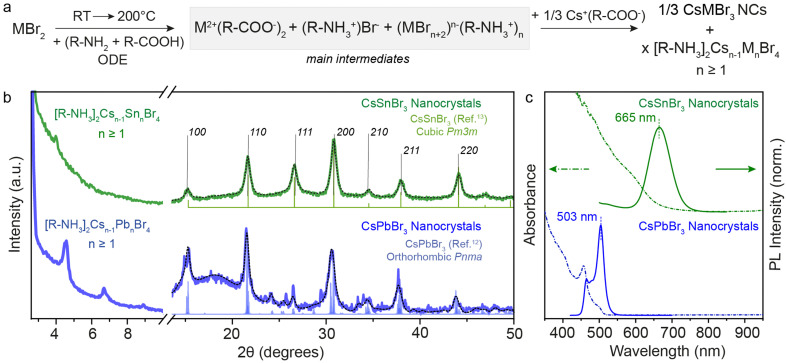

(a) General reaction scheme for the metal bromide case when Cs(Ol) is injected. (b) XRD pattern of 3D CsSnBr3 and CsPbBr3 NCs showcasing the residual presence of 2D [R-NH3]2Csn−1SnnBr3n+1 and [R-NH3]2Csn−1PbnBr3n+1 with n ≥ 1. (c) UV-Visible and PL spectroscopy of 3D CsSnBr3 and CsPbBr3 NCs showing red-shift from their respective n = 1 2D [R-NH3]2MX4 RD perovskites shown in Fig. 1. The black dotted line plots the Rietveld refined XRD data for respective crystal phases.
The XRD patterns recorded for both metal bromide perovskite cases are shown in Fig. 3b. The presence of sharp periodic peaks at low 2θ angles confirms the formation of 2D RP perovskite structures, which may have discrete intercalation of Cs cations giving rise to different order of 2D structures. To study the relative stability of 2D RP [R-NH_3_]2_Csn−1_M_nX_3n+1 structures with n > 1, DFT structural optimizations and formation energy estimations were conducted at the PBEsol level for M = Pb/Sn and X = Br, and n = 1–4. The values predicted for the formation energies, listed in Table S4 (ESI†), align well with the XRD findings since all high-order [R-NH_3_]2_Csn−1_M_nX_3n+1 phases (n > 1) are stable and close in energy. However, at wider angles, the 3D crystal phase was observed with high FWHM, suggesting the formation of 3D NCs. CsSnBr_3_ (green) and CsPbBr_3_ (blue) NCs crystallize in the purely cubic (Pm3m) and orthorhombic (Pnma) crystal phase, respectively, as measured with the lab-scale powder X-ray diffractometer and compared with the bulk.^12,13,34^ For completeness, Fig. S4 (ESI†) shows the XRD pattern of CsSnI_3_ NCs at low and high diffraction angles, which is similar to that of CsPbBr_3_ with periodic 2θ peaks and orthorhombic (Pnma) crystal phase. When comparing these results for OA and OLA acid–base couple reactions and with a high concentration of salts (0.3 M), a nearly complete conversion of precursors to 3D NCs was observed in the case of CsSnBr_3_, in contrast to what is obtained for CsPbBr_3_ or CsSnI_3_ perovskite compositions. This observation can be rationalized by considering the smaller binding energy between the cation and the perovskite calculated for the 2D [R-NH_3_]2_SnBr_4 phase (as described above), together with a smaller formation energy per formula unit (Ef = −0.175 eV) compared to [R-NH_3_]2_PbBr_4 (Ef = −0.247 eV) and [R-NH_3_]2_SnI_4 (Ef = −0.325 eV). However, upon increasing n, the formation energy rapidly becomes more favorable, especially for the tin-bromide composition (n ≥ 3, Tables S3 and S4, ESI†). The net stabilization between the 2D [R-NH_3_]2_MX_4 phase and that for bulk, which for comparison is assumed to be that of n = 4, is calculated larger for [R-NH_3_]2_SnBr_4 (0.79 eV) than for [R-NH_3_]2_PbBr_4 (0.68 eV) and [R-NH_3_]2_SnI_4 (0.50 eV). The formation of CsSnBr_3_ NCs is therefore highly likely to be in a more phase-pure tin-bromide perovskite 3D structure, compared to the other metal halide perovskite NCs, which agrees with that observed experimentally.
Fig. 3c exemplifies the quantum confinement effect through absorbance and PL spectra of 3D CsSnBr_3_ and CsPbBr_3_ NCs with the residual presence of [R-NH_3_]2_Csn−1_Sn_nBr_3n+1 and 2D [R-NH_3_]2_Csn−1_Pb_nBr_3n+1 with n ≥ 1. Cuboidal 10 nm 3D CsSnBr_3_ NCs showed a broad excitonic peak (600 nm) and a PL peak centered at 665 nm (FWHM ∼ 0.18 eV), whereas narrower excitonic peaks were observed for orthorhombic 3D CsPbBr_3_ NCs (458 and 500 nm, respectively) with main emission peak at 503 nm (FWHM ∼ 0.12 eV).
In order to further explore and rationalize the synthesis of 3D Sn and Pb halide perovskites NCs in the absence of 2D RP structures, one could decrease the oleylammonium cation concentration or utilize a weaker and sterically hindered protic acid. Thus, we used diisooctylphosphinic acid (DOPA) as an acid and surfactant for this reaction instead of OA. When the MX_2_ salts were dissolved in the presence of the DOPA and OLA couple, the formation of clean 2D [R-NH_3_]2_PbBr_4, [R-NH_3_]2_SnBr_4, and [R-NH_3_]2_SnI_4 2D RP perovskite structures was observed (Fig. S5a, ESI†). It is assumed that the reaction intermediates are potentially the same as in the case of the OA/OLA couple. We then proceeded with the addition of the Cs cation as Cs-DOPA. For PbBr_2_, this addition leads to the formation of stable phase-pure orthorhombic CsPbBr_3_ NCs as characterized via XRD pattern and presented in Fig. S5b (ESI†). In stark contrast, the Sn-halide perovskite NCs degraded very quickly during the cooling process, and no CsSnBr_3_ or CsSnI_3_ NCs could be identified. The degradation products of these reactions, when analyzed, and the XRD patterns showed the presence of mainly 2D RP [R-NH_3_]2_Csn−1_Sn_nBr_3n+1 structures (n ≥ 1) for SnBr_2_ and a mixture of 2D RP [R-NH_3_]2_Csn−1_Sn_nI_3n+1 structures (n ≥ 1) and CsI (cubic, Pm3m) for SnI_2_ (Fig. S5b, ESI†). Our results thus prove that DOPA, being a weakly binding ligand, is unable to stabilize the 3D perovskite structure for the Sn-halide perovskite NCs but can do so for Pb-halide perovskite NCs in the presence of OLA. For Sn-halide perovskite NCs, we have observed that in the presence of only DOPA, uncontrolled nucleation and growth yields bulk 3D Sn-halide perovskites (Fig. S6, ESI†).
Structural, morphological and optical characterization of CsSnBr3 NCs
Thus far, our understanding has been advanced through both experimental and theoretical investigations into the reactivity of precursors and the mechanisms dictating the transformation from 2D RP structures to 3D CsSnBr_3_ NCs, particularly in comparison to analogous lead-based compounds and other halides. In light of this consideration, CsSnBr_3_ NCs were synthesized and their distinctive characteristics are further discussed below.
In the bulk, CsSnBr_3_ exists in the symmetrical cubic Pm3m crystal phase at room temperature with a band gap of 1.75 eV (∼700 nm). This crystal phase undergoes a transformation to a tetragonal P4/mbm phase around 286 K, which then shows a continuous transition to an orthorhombic Pnma phase around 250 K.^13^ Our synthesized CsSnBr_3_ NCs also showed Pm3m crystal phase, highly monodisperse NCs in cuboidal shape with an average edge length of 7 and 10 nm as shown in Fig. 4. Fig. S7a–d (ESI†) provides the scanning transmission electron microscopy (STEM) images at different magnifications for 7 and 10 nm CsSnBr_3_ NCs, corroborating their monodispersity with size histograms (Fig. S7e and f, ESI†). This crystal phase is further confirmed with the high-resolution STEM (HR-STEM) analysis, demonstrating a d-spacing of 5.8 Å corresponding to the [100] planes, see also the fast-Fourier transform (FFT) pattern presented in the inset of Fig. 4c. STEM energy dispersive X-ray spectroscopy (EDXS) elemental mapping performed on the 10 nm CsSnBr_3_ NCs sample shows an even distribution of Cs, Sn, and Br over the NCs with atomic percentages in the ratio 1 : 1.3 : 3, respectively, establishing the correct stoichiometry of the NC system (Fig. 4d–g). Table S1 (ESI†) tabulates the elemental analysis results acquired by STEM-EDXS and inductively coupled plasma-mass spectrometry (ICP-MS) for 7 and 10 nm CsSnBr_3_ NCs. The XRD pattern measured with lab instrumentation shown in Fig. 4i exhibits CsSnBr_3_ cubic Pm3m perovskite crystal phase with the apparent change in the FWHM for the two different sizes of CsSnBr_3_ NCs. UV-Visible and steady-state PL spectra for different sizes are plotted in Fig. 4j, showing the emission peaks at 638 nm for 7 nm (FWHM = 0.18 eV) and at 665 nm for 10 nm (FWHM = 0.19 eV) CsSnBr_3_ NCs with the visible light photographs of colloidal NCs suspensions (Fig. 4k). To confirm the interaction of ligands with perovskite NC surface, we performed the Fourier transform-infrared (FT-IR) spectroscopy showing the disappearance C
<svg xmlns="http://www.w3.org/2000/svg" version="1.0" width="13.200000pt" height="16.000000pt" viewBox="0 0 13.200000 16.000000" preserveAspectRatio="xMidYMid meet"><metadata> Created by potrace 1.16, written by Peter Selinger 2001-2019 </metadata><g transform="translate(1.000000,15.000000) scale(0.017500,-0.017500)" fill="currentColor" stroke="none"><path d="M0 440 l0 -40 320 0 320 0 0 40 0 40 -320 0 -320 0 0 -40z M0 280 l0 -40 320 0 320 0 0 40 0 40 -320 0 -320 0 0 -40z"/></g></svg>
O stretching frequency (≈1700 cm^−1^) in NCs which is present in the free oleic acid ligand (Fig. S8, ESI†).

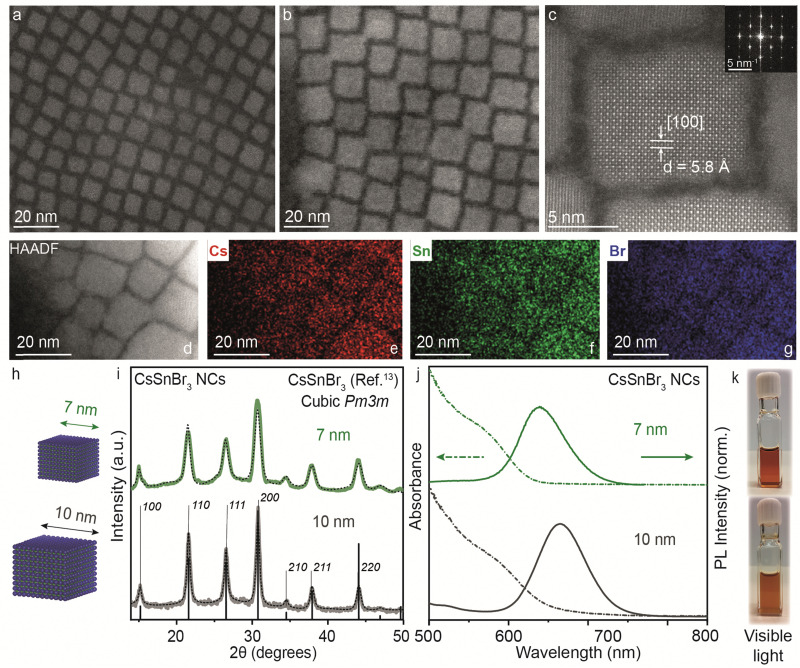

(a) and (b) STEM images of 7 and 10 nm CsSnBr3 NCs, respectively. (c) High-resolution STEM showing lattice parameter of 5.8 Å corresponding to the [100] planes for a 10 nm CsSnBr3 NC. Inset: Cubic FFT pattern for the CsSnBr3 NC shown in (c). (d)–(g) STEM-energy dispersive X-ray (EDX) elemental mapping for the image area depicted in (d) with the distribution of Cs (red) (e), Sn (green) (f), and Br (blue) (g). (h) Schematic of CsSnBr3 NCs with average sizes of 7 and 10 nm. (i) XRD pattern of CsSnBr3 NCs with an average size of 7 (green) and 10 nm (dark grey) plotted with cubic Pm3m bulk reference (black). (j) UV-Visible and steady-state PL spectra of 7 (green) and 10 nm (dark grey) CsSnBr3 NCs. (k) Photographs of 7 (top panel) and 10 nm (bottom panel) CsSnBr3 colloidal NCs dispersed in toluene in visible light. The black dotted line plots the Rietveld refined XRD data for respective crystal phases.
We further explored the variation in the synthetic parameters. For the lower (Cs : Sn < 1 : 3) and higher cation (Cs : Sn > 1 : 3) ratios, the mixture of 2D [R-NH_3_]2_Csn−1_Sn_nBr_3n+1 RP perovskite and 3D CsSnBr_3_ NCs was obtained (Fig. S9, ESI†), with an extra excitonic peak observed at 526 nm (2.36 eV) with emission at 540 nm (FWHM = 0.19 eV) for Cs : Sn = 1 : 6, and a broadening of the excitonic peak with a shoulder emission towards lower wavelength at 542 nm (FWHM = 0.18 eV) for Cs : Sn = 1 : 2. Thus, the cation ratio of Cs : Sn = 1 : 3 seems ideal, which also correlates well with our previous report on CsSnI_3_ NCs.^19^ Furthermore, the reactions performed at lower temperatures (from 100 to 160 °C) lead to the preferential formation of 2D RP structures rather than 3D perovskites. As discussed above, DFT calculations predict that the formation of 3D metal halide perovskites is energetically favored compared to 2D RP perovskite structures, leading to the formation and stabilization of the 3D perovskite structure. When probing various kinetic parameters, the injection temperature has a notable effect on the formation of the 3D or 2D RP structures. Fig. S10a (ESI†) shows the XRD pattern of the CsSnBr_3_ NCs synthesized at 100 °C in comparison with those formed at 200 °C. At the low angles, sharp periodic peaks are observed with d-spacing of ∼4.4 nm, which suggests the formation of higher order n > 1 [R-NH_3_]2_Csn−1_Sn_nBr_3n+1 RP structures in combination with 3D perovskite NCs. The blue shift in the absorbance and PL peak maxima shown in Fig. S10b (ESI†) confirms the confinement effects arising from the dimensionality reduction. Fig. S11 (ESI†) shows scanning electron microscopy (SEM) images in transmission mode for the reaction performed at 100 °C, indicating the co-existence of 3D CsSnBr_3_ NCs and 2D nanosheets. Since it is difficult to stabilize the discrete higher-order n > 1 [R-NH_3_]2_Csn−1_Sn_nBr_3n+1 RP perovskites, it is not possible to assign the n precisely. It is also clear from the literature that as n becomes higher, the isolation and stabilization of the RP structure becomes equally difficult.^20^ These observations suggest that at low temperatures, the crystallization of 2D RP structures is preferred rather than 3D perovskites, and depending on the concentration of the inorganic cation (Cs^+^), intercalation (value of n) can vary to a different extent.
The change in the reaction medium to a more volatile, non-polar, non-coordinating solvent (i.e. mesitylene) was performed to disrupt the ligand–solvent interactions and facilitate the post-synthetic treatment of the NCs. The reactions with mesitylene were performed under similar precursor ratios but at lower temperatures (from 70 to 150 °C), which resulted in products containing 3D CsSnBr_3_ NCs with PL emission ranging from 603 to 652 nm (Fig. S12, ESI†). Upon lowering the temperature (<150 °C), 2D [R-NH_3_]2_Csn−1_Sn_nBr_3n+1 RP perovskites were obtained together with 3D CsSnBr_3_ NCs (Fig. S12, ESI†), and a blue shift of the optical characteristics with excitonic peak at 555 nm and an emission peak at 605 nm was observed. The change in solvent also corroborates the fact that the reaction performed at lower temperatures (≤150 °C) is likely to form 2D RP structures rather than 3D NCs. Fig. S13 (ESI†) compares the optical properties of the 2D and 3D tin-halide perovskite materials.
CsSnBr3 NCs thin films
We further analyzed the self-assembly behavior of the CsSnBr_3_ NCs and the impact of the 2D [R-NH_3_]2_Csn−1_Sn_nBr_3n+1 RP structures on the in-plane and out-of-plane extended ordering. We selected the smaller NCs for this since we expected the co-presence of some 2D crystallites, as visible in XRD (Fig. 5a). The average size of the size-selected CsSnBr_3_ NCs was investigated by suspension SAXS, which shows a dominant diffuse intensity modulation generated by the presence of particles with 7 ± 1 nm diameter, in close agreement with the TEM results, together with a minor fraction of the 2D crystallites (Fig. 5b). The nanocubes show a remarkable tendency to form long-ranged ordered structures, namely superlattices, which can be easily obtained using a facile drop-cast thin-film technique (concentration of NCs ∼ 20 mg mL^−1^). These superlattices show order above 1 μm when imaged by SEM (Fig. 5c and d). To probe the superlattice formation at a large length scale, grazing incidence X-ray scattering (GIXS) patterns were acquired, illuminating mm^2^ of the thin NCs films deposited on a silicon substrate. The GIXS patterns reveal the co-assembly of the cubic NCs and the layered 2D crystallites, both showing the degree of particle alignment (Fig. 5e and f).

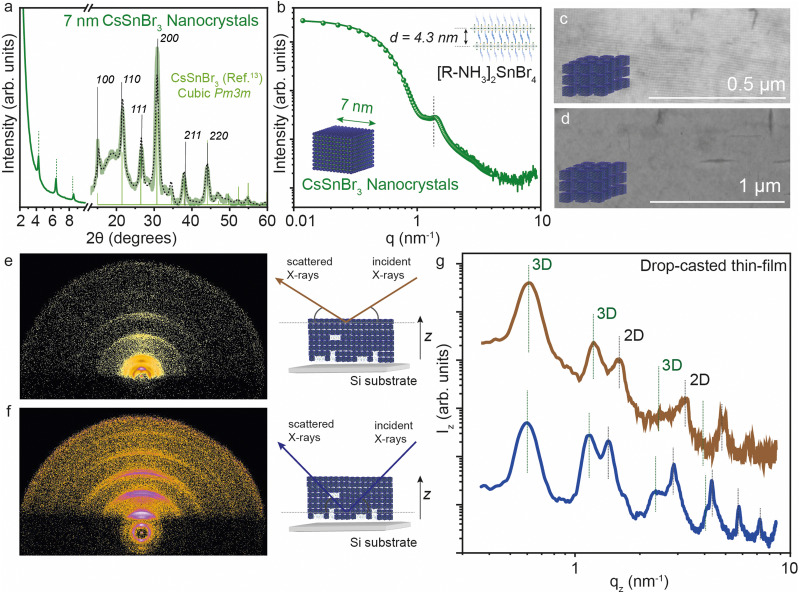

(a) XRD of 7 nm CsSnBr3 NCs. (b) Solution SAXS profile of 7 nm CsSnBr3 NCs together with the best fit using a mixed ensemble of spheroidal particles and 2D colloidal crystallites. (c) and (d) SEM images of 7 nm CsSnBr3 NCs showing extended ordering characteristics. (e) and (f) GIXS images on a drop-cast thin-film of 7 nm CsSnBr3 NCs and 2D [R-NH3]2SnBr4n = 1 RP structures at the low (∼10 nm) and high (∼200 nm) penetration depth, respectively, together the schematic representation. (g) GIXS vertical profiles on drop-cast thin-film of 7 nm CsSnBr3 NCs at the low (∼10 nm) and high (∼200 nm) depth, respectively. The black dotted line plots the Rietveld refined XRD data for respective crystal phases.
