Implementation and Evaluation of a Gait Training Assistant for the Use of Crutches: Usability Study
Milan Anton Wolf, Leon Sauerwald, Felix Kosmalla, Florian Daiber, Antonio Krüger, Stefan Landgraeber
TL;DR
A new digital gait training assistant for crutch use was developed and found to be more effective than traditional physiotherapy in teaching proper crutch techniques.
Contribution
The study introduces and evaluates a novel gait training assistant that provides real-time feedback for crutch use during rehabilitation.
Findings
Patients using the digital gait training assistant showed significantly better crutch angle and position compared to those trained by physiotherapists.
Despite preferring in-person training, most patients found the digital system usable and enjoyable.
The system was rated as above average in usability by the majority of participants.
Abstract
Surgical procedures on the lower extremities often require weight-bearing on crutches as part of the rehabilitation process. Orthopedic elective procedures enable patients to learn the correct use of crutches in a controlled preoperative setting. Digital assistance systems can safely circumvent a shortage of skilled staff and any contact restrictions that may be necessary. The usability of a newly developed gait training assistant (GTA) for the use of crutches will be evaluated. An intervention group trained to use crutches by the digital trainer will be compared with a control group trained to use crutches conventionally by a physiotherapist. As part of the development and implementation of a novel GTA, 14 patients learned to walk with crutches by completing specific exercises while receiving live feedback. Their movements were detected by a depth sensor and evaluated in real time.…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4| Characteristics | Intervention group (n=14) | Control group (n=14) | Total (n=28) | |
|
| ||||
|
| Female | 6 (43) | 7 (50) | 13 (46) |
|
| Male | 8 (57) | 7 (50) | 15 (54) |
| Age (years), mean (SD) | 44.4 (20.7) | 37.8 (17.6) | 41.1 (19.1) | |
| Body height (cm), mean (SD) | 173.1 (11.6) | 175.3 (11.9) | 174.2 (11.6) | |
|
| ||||
|
| Yes | 6 (43) | 9 (64) | 15 (54) |
|
| No | 8 (57) | 5 (36) | 13 (46) |
| Test | Value | ||
| Pillai trace | 0.433 | 8.39 (2, 22) | .002 |
| Wilks Lambda | 0.567 | 8.39 (2, 22) | .002 |
| Hotelling trace | 0.763 | 8.39 (2, 22) | .002 |
| Roy largest root | 0.763 | 8.39 (2, 22) | .002 |
| Parameters | Patient and rating | |||||||||||
|
| P7 | P9 | P12 | P13 | P14 | P15 | P16 | P17 | P19 | P22 | P26 | P28 |
| Step length | 3 | 3 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Step speed | 3 | 3 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Crutch angle | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Crutch position | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Synchronous movement | 5 | 5 | 5 | 4 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Question | Approval (n=14), n (%) |
| 1. Have you learned how to safely use forearm crutches? | 14 (100) |
| 2. Do you feel prepared using forearm crutches confidently? | 14 (100) |
| 3. Would you like to be rechecked by a physical therapist? | 6 (43) |
| 4. Did you understand all the instructions of the program? | 13 (93) |
| 5. Have you been able to follow all the instructions of the program? | 12 (86) |
| 6. Would you like to learn more exercise through an interactive training program? | 11 (79) |
| 7. Would you perform a purely digital rehabilitation (ie, without a human physical therapist)? | 2 (14) |
| 8. Would you have preferred to learn how to use forearm crutches from a physical therapist? | 4 (29) |
| 9. Do you think the interactive trainer is more motivating than a physical therapist? | 2 (14) |
| 10. Do you like the playful concept of the interactive trainer? | 13 (93) |
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsStroke Rehabilitation and Recovery · Total Knee Arthroplasty Outcomes · Prosthetics and Rehabilitation Robotics
Introduction
Following accidents or surgical procedures, it is often crucial for the healing process to provide support to the affected body part. In the case of lower limb injuries or surgeries, this can be accomplished by crutches. In the case of elective surgery, patients can receive preoperative instruction in a controlled environment several days prior to the procedure. In Germany, this training is typically provided by specialized physiotherapists.
The use of digital assistive devices has already become ubiquitous in clinical settings and serves to mitigate the strain on hospital personnel, reduce costs, and enhance patient rehabilitation [1]. Despite these advantages, advanced technology applications are currently used in patient with orthopedic care only in the context of studies [2-4].
Walking on crutches is a clearly structured movement sequence. However, the teaching of this skill requires significant staff resources. The projected increase in the number of elective orthopedic surgeries in the future is exacerbating the already persistent shortage of specialized health care personnel [5], which has been further intensified by the COVID-19 pandemic and the associated restrictions on physical contact [6].
The current digital aids for learning to walk with crutches do not provide the comprehensive support that a physiotherapist can offer [7,8]. Some crutches equipped with sensors can monitor proper use, but there are currently no commercially available systems that provide simultaneous guidance and assessment, which puts a strain on the resources of physiotherapists.
This study aims to evaluate the efficacy of a custom-designed gait training assistant (GTA) in teaching the proper use of crutches. The primary objectives of this study are to determine (1) the capability of the digital assistant to impart proper crutch-walking skills using a 3-point gait, (2) patient receptiveness toward the digital walking assistant, and (3) the competence of the digital crutch-walking training assistant in comparison to a human physiotherapist.
Methods
Study Design
A total of 28 patients who underwent elective orthopedic surgery and needed postoperative weight-bearing (3-point gait) on the lower extremity were included. Patients who could not follow the instructions of the GTA, for instance, due to neurological diseases, were excluded.
The patients were randomly assigned to the intervention group (n=14) or control group (n=14). The intervention group learned the proper use of crutches with the GTA. The control group learned the use of crutches with the help of a physiotherapist. Baseline data (age and sex) were collected using a survey. In the intervention group, satisfaction was assessed by a questionnaire specially developed for the study. In addition, the usability of the GTA was evaluated using Brooke’s System Usability Scale (SUS) [9]. The GTA and a physiotherapist evaluated the ability of both groups to use the crutches correctly.
Ethical Considerations
A prospective clinical trial was conducted in August 2022 after obtaining patient consent and institutional review board approval from the Saarland Medical Association (318/21). Data was anonymized and no compensation was provided to participants.
Implementation of the GTA
The GTA consists of a screen in portrait mode that gives visual guidance to the user and a 3D camera (Kinect v2 [Microsoft]) that tracks the position of the feet and crutches. While walking toward the screen, the gait pattern is automatically recognized and possible errors are brought to the attention of the user. The screen is also used to give instructions to the user (Figure 1). The user is guided through various exercises that aim to train a specific walking pattern (3-point gait). The software is designed so that each pattern can be described as a sequence of states, where each state specifies the crutch or the foot that needs to be moved. For 3-point gait, for instance, the user needs to move the injured leg, foot, or side and both crutches. Next, the noninjured leg, foot, or side is moved. This pattern is repeated. For simplicity, we focused on 3-point gait and forward movement only during this study, as other walking patterns and backward movement work similarly.

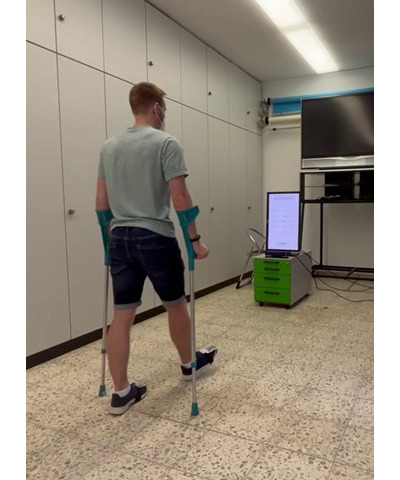

Training with the gait training assistant. The patient uses the crutches while the Kinect camera in front of him analyzes the crutches as well as the feet. The exercise to be completed is displayed with live feedback on the screen above the camera.
For simplicity, 2 infrared markers are attached to each crutch (handle and rubber foot) and each foot of the user to determine the movement of the crutches and feet. These reflective markers are extracted from the 2D infrared image and converted into 3D positions using the Kinect SDK. In this experiment, we focused on the 3-point gait. One step cycle was divided into smaller movements (eg, “Left foot and both crutches moving forward” and “Right foot moving forward”) that were derived by the 3D positions of the tracked reflective markers. Besides the necessary compound movements (foot and crutches), individual movements of crutches and feet were also recognized.
As the aim of the system is also to give corrective feedback during the training, the system tries to fit the currently detected movement to the gait pattern. If the system detects a wrong state or a wrong order of movements, it alerts the users and asks them to repeat the exercise (Figure 2).

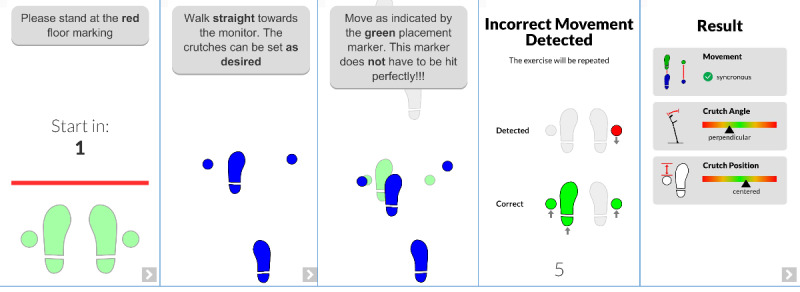

Excerpt from the instruction display with live feedback from gait training assistant. The first image (left) shows the start screen with the first instruction. The second image represents the instruction to use the crutches. The third image displays the live feedback. The fourth image signals an incorrect movement. The last image (right) provides the analysis of the exercise to the patient.
The 3D positions of the tracked markers are also used to compute a set of metrics while the user is walking. These metrics include crutch angle, crutch position, and the synchronicity of the movement and help to provide feedback to the user after each exercise. The crutch angle describes the tilting of the crutch along the walking path toward the camera when it is placed on the ground. It is computed using the upper and lower markers of the crutch with some additional offset to match the tilting of the crutch cane. For the crutch position, the depth offset between the crutch and the foot is measured after they have moved. As the optimal position is the center of the foot, an offset of 15 cm is subtracted from the tracked foot position. To measure the synchronicity of the movement, the time when the crutch and foot are moving together is divided by the overall moving time for the current state.
Statistical Analysis
The training performance of the GTA was assessed using an ANOVA. The number of correct runs during the analysis phase for each participant (independent variable) was compared between the 2 groups (dependent variable). The 2 groups were compared using a multivariate ANOVA (MANOVA), wherein 2 independent variables (crutch angle and crutch position) were simultaneously used to investigate the differences between the 2 groups. A correlation matrix was used to explore whether there was a correlation between the participants’ age and their perceived usability of the system.
Results
Baseline Data
In total, 28 participants were recruited for the primary study. The sample consisted of 13 female and 15 male participants with an age range of 18-73 (mean 41.1, SD 19.1) years. The participants’ height ranged from 1.55 m to 1.96 m. Approximately half (15/28, 54%) of the participants had prior experience with crutches, in most cases several years prior to the study. A total of 3 participants had used crutches in the last 12 months, although not for learning a 3-point gait (Table 1).
A total of 2 participants (P3 and P5; intervention group) could only partially perform the training with the GTA, as after a few exercises, the tracking function of 1 of the crutches was no longer shown in the live position visualization. Subsequent analysis was, therefore, not possible. However, they both filled out all the questionnaires. One other participant (P10; control group) had to be excluded from any analysis including the data recorded by the GTA, as no valid results were computed.
Evaluation of the Training Performance by the GTA
The GTA performance was determined by an analysis of the training sessions. Based on the number of incorrect exercises, the performance was extrapolated. Due to incomplete data collection, P3, P5 (intervention group), and P10 (control group) were excluded from the analysis. In the intervention group, 2 patients were found to have performed 1 of the 3 exercises incorrectly. In the control group, 3 patients performed 1 of the 3 exercises incorrectly and 2 participants performed 2 exercises incorrectly (Figure 3). The differences in the number of correctly performed exercises between the 2 groups were not statistically significant (P=.15).

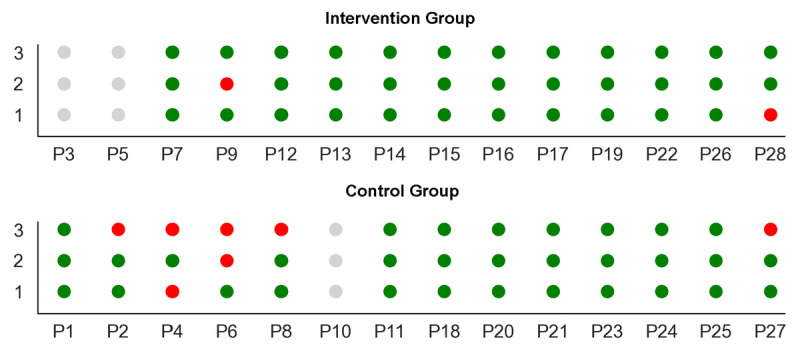

Status for each of the 3 exercises during the analysis: green: success; red: error (incorrect movement); and gray: excluded from the analysis. The upper image shows the results of the intervention group, and the lower image shows the results of the control group.
The parameters selected for comparison of the 2 groups were crutch position and crutch angle. The reason for this is that step length and step speed are individual, patient-specific movements, and the physiotherapists, therefore, had to train synchronous movement depending on the patients’ physical condition.
The intervention group showed significantly better values for crutch angle (intervention group vs control group: mean –6.3°, SD 3.5° vs mean –12.4°, SD 4.5°; P<.001) and crutch position (intervention group vs control group: mean 3.3, SD 5.1 cm vs mean –8.5, SD 4.9 cm; P=.02). A MANOVA confirmed the superiority of the intervention group in the gait metrics (Table 2). Here, group assignment (intervention group and control group) was used as a factor, and crutch angle and crutch position were used as dependent variables. There was homogeneity of the error variances, as assessed by the Levene test (P>.05). The homogeneity of covariance was given by the Box test (P=.86). All tests revealed a statistical significance for P<.05.
Evaluation of the GTA Training Performance by a Physiotherapist
The physiotherapist evaluated the ability to walk on crutches based on clinical experience using the parameters of step length, step speed, crutch angle, crutch position, and synchronous movement. Only the intervention group was evaluated, as an assessment of the control groups’ training performance by the physiotherapist was estimated to be too biased.
The analysis showed that almost all patients (10/12, 83%) trained on the GTA achieved a perfect result. Only 2 patients in the intervention group (P12 and P13) presented a slight deviation from the ideal score (Table 3).
Training Evaluation
Both groups felt that they were competently trained (intervention group: mean 4.43, SD 0.62; control group: mean 4.64, SD 0.48; Figure 4). All patients reported that they were able to follow the instructions of the physiotherapists and the GTA (intervention group: mean 1.71, SD 1.03; control group: mean 1.71, SD 1.22). The participants in both groups indicated that they enjoyed the training, with the GTA performing slightly better (intervention group: mean 4.5, SD 0.5; control group: mean 4.21, SD 0.77). The differences between the groups were very small and were not statistically significant (MANOVA Wilks Lambda: F3,42=0.872; P=.47).

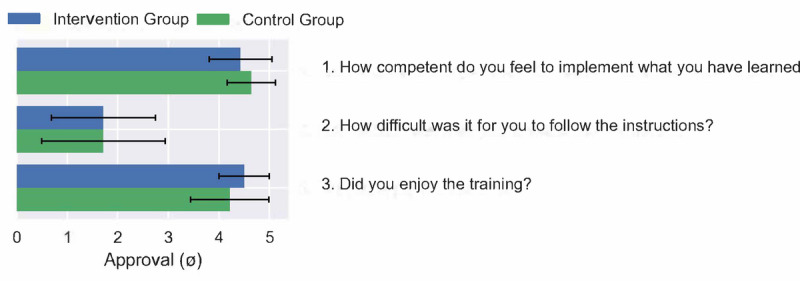

Evaluation of the training and comparison of patients from the control group and Intervention group. Rating from 1 (not at all) to 5 (very). Competence—intervention group: 4.43 (SD 0.62) and control group: 4.64 (SD 0.48). Difficulty—intervention group: 1.71 (SD 1.03) and control group: 1.71 (SD 1.22). Enjoyment—intervention group: 4.5 (SD 0.5) and control group: 4.21 (SD 0.77).
