Exploiting mechanisms for hierarchical branching structure of lung airway
Hisako Takigawa-Imamura, Katsumi Fumoto, Hiroaki Takesue, Takashi Miura
TL;DR
This study explores how lung airway branching patterns develop, focusing on mechanisms that control branch length and width during early lung development.
Contribution
The study introduces an integrated computational model combining curvature-dependent growth and cell shape control to explain hierarchical lung airway branching.
Findings
ERK activity increases with epithelial curvature during lung development.
Branch length is determined by curvature-dependent growth.
Branch width is regulated by apical constriction and cell shape.
Abstract
The lung airways exhibit distinct features with long, wide proximal branches and short, thin distal branches, crucial for optimal respiratory function. In this study, we investigated the mechanism behind this hierarchical structure through experiments and modeling, focusing on the regulation of branch length and width during the pseudoglandular stage. To evaluate the response of mouse lung epithelium to fibroblast growth factor 10 (FGF10), we monitored the activity of extracellular signal-regulated kinase (ERK). ERK activity exhibited an increase dependent on the curvature of the epithelial tissue, which gradually decreased with the progression of development. We then constructed a computational model that incorporates curvature-dependent growth to predict its impact on branch formation. It was demonstrated that branch length is determined by the curvature dependence of growth. Next, in…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Fig 1
Fig 2
Fig 3
Fig 4
Fig 5
Fig 6
Fig 7- —http://dx.doi.org/10.13039/501100001691Japan Society for the Promotion of Science
- —http://dx.doi.org/10.13039/501100001691Japan Society for the Promotion of Science
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsFirm Innovation and Growth
Introduction
Mammalian lung airways exhibit an intricate tree-like structure that contributes to the efficiency of respiratory function. The lung airways are formed by repetitive elongation and bifurcation of the epithelial tube, which is common in organs such as blood vessels, kidneys, and glandular organs. The architecture of major airways (such as the main bronchi, lobar bronchi, and segmental bronchi) shows a stereotyped pattern in humans [1–3], suggesting the existence of a mechanism to program the large-scale design. In mouse lungs, early-formed proximal branch segments are thick and long; in contrast, distal branch segments become thinner and shorter [4–6]. Unlike the botanical tree, in which new branches are always thin, the lumen size of the lung epithelial tip is large in the early stage and decreases as bifurcation proceeds. In addition, branching events occur more frequently as development progresses [4, 7–9], suggesting that branch formation is controlled with the developmental phase to configure the hierarchical structure. Several biological and theoretical investigations have explored the principle of epithelial branching through epithelial-mesenchymal interaction [10–16], but little is known about how the macroscopic configuration is ordered. In this study, we aimed to address the regulation of changes in the branch diameter and segment length during lung development.
Epithelial-mesenchymal interaction is mediated by diffusible molecules such as fibroblast growth factor (FGF), bone morphogenic protein (BMP), sonic hedgehog (Shh), and Wnt [17, 18]. Signaling molecules control the spatiotemporal coordination of cellular proliferation, migration, differentiation, and shape, leading to the arrangement of various cells in the prescribed shape for tissue formation. During lung development, epithelial growth is mainly promoted by FGF10, which is expressed in the outermost boundary of the mesenchyme [11, 19, 20]. FGF10 also induces epithelial expression of Shh, which diffuses into the mesenchyme and adversely represses FGF10 expression [21, 22]. Theoretical studies have shown that this feedback interaction leads to interfacial instability in the growing epithelium and promotes epithelial branching [23]. This is similar to the mechanism by which bacterial colonies grow under nutrient-deprived conditions, where regions of high curvature are exposed to residual nutrients and elongate faster than regions of low curvature [24, 25]. The tendency of the tip to grow faster is a common mechanism for spontaneous branch formation, such as crystal growth and viscous fingering [26–28]. Branching and bud formation with patterned proliferative activity at branch tips have also been observed for epithelial explants in extracellular matrix gels with an unbiased FGF distribution [10]. Drawing from these experimental insights, the diffusion-limited growth of epithelium has been described using reaction-diffusion [13, 29] or phase-field schemes [12, 30]. The mechanism of how heterogeneity of growth activity emerges is unknown; thus, the profile of FGF signaling activity in the lung epithelium requires confirmation to verify the common concept of branch formation models.
Wnt is also crucial for lung development [18]. The Wnt/β-catenin pathway mediates cell fate determination in the embryonic state. In the lung mesenchyme, Wnt2 and Wnt2b are expressed as master regulators of proximal and distal patterning, which are distinguished by the epithelial expression of SOX2 and SOX9, respectively [31, 32]. Loss of Wnt2/2b expression results in lung hypoplasia in the absence of small distal branches [33, 34]. Double mutation of transcription factors Tbx2 and Tbx3, which act downstream of Shh and upstream of Wnt, respectively, also severely reduces the number of distal tips by inhibiting mesenchymal proliferation [35]. These findings indicate that Wnt may contribute to the generation of distal branches in the lungs. We previously reported that Wnt switches epithelial development from the branching phase (called the pseudoglandular stage) to the alveolus-shaping phase (canalicular stage), emphasizing the importance of Wnt signaling in distal duct morphology [36]. It was also revealed that activation of the Wnt/β-catenin pathway induces apical constriction of the lung epithelium and eventually scales down the bud size that emerges in mesenchyme-free epithelial cyst culture. Bud formation is an in vitro model of branch formation; therefore, our results indicate that Wnt signaling assists FGF10 in branching events. These results are consistent with a previous report showing that deletion of the Wnt receptor Fzd2 causes branching defects and cystic lung in vivo [37]. In this study, we considered how the interplay of growth control by FGF10 and cell shape regulation by Wnt can adjust the branch scale.
There are two distinct modes of lung branching: tip splitting and lateral branching [4]. The former is the symmetrical bifurcation at the distal end of a growing branch, and the latter is the sprouting in the middle of a branch. Stepwise observation of mouse lung development revealed that lateral branching mainly occurs during the early phase in the pseudoglandular stage, suggesting that lateral branching mainly generates asymmetric major branches. In contrast, tip splitting sequentially occurs in different sizes and frequencies during branch elongation, suggesting that the regulation of tip splitting is crucial for the hierarchical structure of branches. Accordingly, we focused on tip splitting in the pseudoglandular stage.
This study aimed to explore how branch formation is regulated in the lung through experimental and theoretical examinations. Experimental verification of the protrusion-grows-faster concept in the lung epithelium provides new insights into the tip-splitting branching frequency change across developmental stages through FGF. We also observed the change in cell size across the stages to explain the difference in tube size. Mathematical models demonstrate how these observed properties contribute to the hierarchical structure of the airways. Furthermore, we propose that apical constriction can efficiently promote tip splitting of thin branches to regulate their length based on observation of cell shape changes and mathematical analysis.
Materials and methods
Animal
Transgenic mice expressing ERK FRET biosensors [38] were kindly provided by Michiyuki Matsuda (Kyoto University, Kyoto, Japan) through the JCRB Laboratory Animal Resource Bank of the National Institute of Biomedical Innovation. ERK FRET biosensors, EKAREV-nuclear export signals, are localized in the cytoplasm. ICR mice (Japan Charles River, Yokohama, Japan) were crossed with EKAREV mice, and the embryos were used for ERK activity measurement. ICR embryos were used for FGF10 uptake assay and immunostaining. All procedures involving animal experiments were reviewed and approved by the Ethics Committee of Animal Experiments, Kyushu University Graduate School of Medical Sciences (A25-182, A27-071, and A29-036).
Mesenchyme-free culture of embryonic lung epithelium in Matrigel
Embryonic mouse lungs (E12.5, E13.5, and E14.5) were dissected and washed with Hank’s balanced salt solution (HBSS). Lung lobes were cut into pieces and soaked in dispase solution (1 U/mL in HBSS; Gibco) for 10 min at 37°C. The tissues were washed twice in 10 mL of HBSS. Repetitive pipetting of tissues in HBSS broke up the mesenchyme and small epithelial explants remained. The supernatant containing mesenchymal cells was removed using a Cell Strainer with 40-μm pores (Falcon). The epithelial explants were picked using a micropipette under a stereomicroscope and placed on the bottom of a 35-mm glass-bottomed dish (IWAKI, blanched explants) or the μ-Slide Angiogenesis slide (ibidi, small explants for FGF10 dose-dependent assay). Matrigel (Corning, No. 356237) containing recombinant human FGF10 protein (PeproTech) was overlaid on explants and allowed to solidify for 15 min at 37°C, followed by the addition of the medium (2 mL for 35-mm dishes, and 50 μm for a well of the angiogenesis slide). The tissue culture medium was DMEM/Ham’s F-12 (Nacalai Tesque) supplied with Penicillin-Streptomycin Mixed Solution (×10, Nacalai Tesque), L-glutamine (584 mg/mL), and bovine serum albumin (10%). Samples were incubated for 18 h before ERK activity measurement. The FGF10 concentration is indicated as the mass concentration in the volume of the gel and medium.
Quantification of ERK activity
We used a 405 nm laser for excitation and acquired the 475 nm and 530 nm emissions as CFP and YFP signals, respectively. The acquired confocal images were analyzed using Fiji software (National Institute for Health). ERK activity was estimated as the ratio of the YFP signal to the CFP signal (Fig 1 and S1A–S1C, S1A’–S1C’ Fig). The mean command in Fiji was used to reduce the effect of spatial noise before quantifying fluorescence intensity, and signal ratios were corrected for background signal. Local activity was measured in a small region of interest (ROI) with a diameter defined based on epithelium thickness (S1D–S1F Fig). The ROI was limited to regions where the signal of the epithelial cross section was acquired in the confocal image (123 ROIs for E12.5, 108 ROIs for E13.5, and 77 ROIs for E14.5). Next, 2D tissue curvature was calculated from a series of ROI canters. Curvature was calculated from the coordinates of three ROIs four apart along adjacent data points to capture the smooth tissue curvature. Measured data were provided as S1–S3 Datas. The 3D curvature was not successful because of tissue damage caused by prolonged image acquisition times. The correlation with linear regression between ERK activity averaged over five neighboring points and tissue curvature was calculated by using Mathematica (Wolfram Research, Inc.).

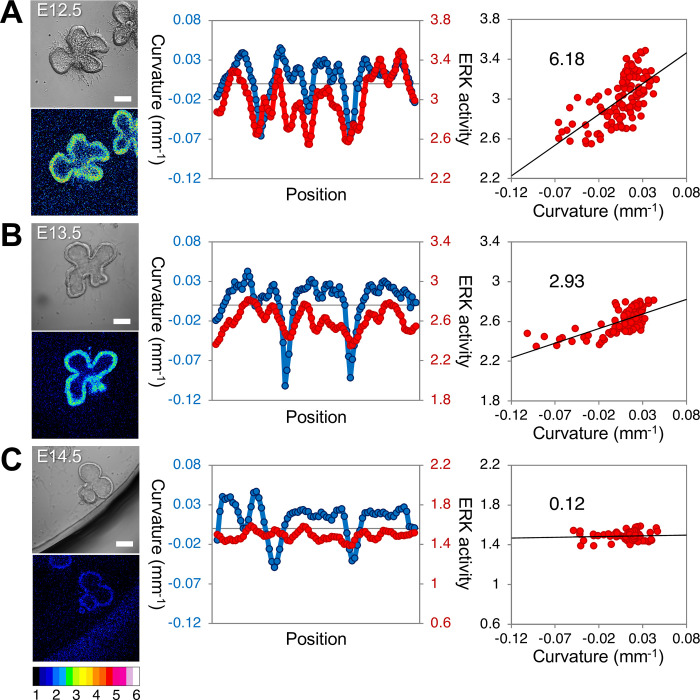

Map of ERK activity in embryonic mouse lungs.The upper left panel is the bright-field image, and the lower left panel shows the heat map representation of ERK activity. The middle panel shows cross-sectional tissue curvature (blue, left axis) and ERK activity (red, right axis) along the epithelial section. The right panel shows the correlation between the curvature and ERK activity. The color bar indicates the range of ERK activity. Epithelium explants at E12.5 (A), E13.5 (B), and E14.5 (C) were cultured with 500 ng/mL FGF10 for 18 h. The values in the figure represent the slope of the signal to curvature, determined through linear regression analysis (R2 = 0.41 at E12.5, R2 = 0.45 at E13.5, R2 = 0.0031 at E14.5). Scale bars: 100 μm.
The ERK activity of the cyst (Fig 2A and panel A in S2 Fig) was calculated as the ratio between the total intensities of YFP and CFP in the epithelial cyst area, excluding the luminal area in the cross-section. Measured data were provided as S4 Data. The FGF10 dose dependency was estimated by linear regression analysis, and its significant difference by developmental stage was tested using two-way analysis of variance (ANOVA) in the statistical software R (R Core Team).

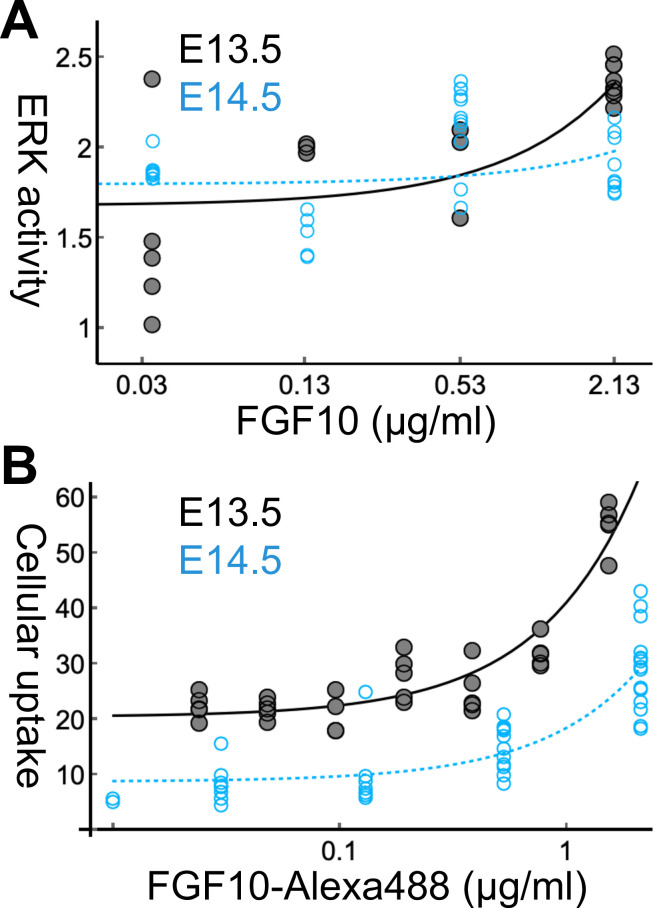

FGF10 dose dependency of the cellular response in E13.5 (black) and E14.5 (blue) epithelium.(A) The ERK activity of each cyst is represented by a dot in the semilog plot. The lung epithelium cysts of E13.5 and E14.5 (19 and 34 cysts, respectively) were cultured with FGF10 at concentrations of 0.03, 0.13, 0.53, and 2.13 μg/mL for 18 h. Linear regression analysis showed y = 0.330x + 1.68 with R2 = 0.53 for E13.5 and y = 0.0334x + 1.89 with R2 = 0.012 for E14.5. (B) The cellular uptake of FGF10-Alexa488 for 3 h was estimated for 34 and 44 explants of E13.5 and E14.5 lung, respectively. Each dot in the semilog plot represents a mean fluorescent intensity in an epithelial area of a cross-section. The concentration of FGF10-Alexa488 was 0.024, 0.048, 0.097, 0.19, 0.38, 0.78, and 1.55 for E13.5, and 0.03, 0.13, 0.53, and 2.13 μg/mL for E14.5. Linear regression analysis showed y = 20.7x + 20.4 with R2 = 0.87 for E13.5, and y = 9.75x + 8.80 with R2 = 0.72 for E14.5.
FGF10 incorporation assay
Recombinant FGF10 protein was labeled using an Alexa Fluor 488 Microscale Protein Labeling Kit (Invitrogen). To reduce the loss of physiological activity of FGF10, we optimized the labeling protocol and reduced the amount of Alexa Fluor used. The labeling reaction was conducted by mixing 100 μL of FGF10 solution (1 μg/mL in phosphate-buffered saline, PBS, pH 7.4), 5 μL of sodium bicarbonate (1 M), and 9.8 μL of Alexa488 solution (1:10 diluted) at 22°C. After a 15-min reaction, the unreacted dye in the sample was removed using a Slide-A-Lyser Mini Dialysis Unit (Thermo Scientific) in PBS for 16 h at 4°C. The purified solution was collected, and the protein concentration was measured using a NanoDrop spectrophotometer (Thermo Fisher). The FGF10-Alexa488 solution was stored in small aliquots at -20°C to avoid freeze-thaw cycles. Incubation and storage were performed in the dark.
Epithelial explants were embedded in Matrigel containing FGF10-Alexa488 protein in a 35-mm dish, which was subsequently filled with the medium. The protein incorporation was allowed for 3 h in a stage-top chamber (Tokai Hit) to maintain a 5% CO_2_-controlled atmosphere at 37°C followed by observation. The relative uptake activity was measured as the mean fluorescent intensity in the epithelial area of the cross-section of each explant. ROIs were defined as the round epithelial area, excluding the luminal area in the cross-section. While epithelial explants from E14.5 formed cysts within 3 hours, those from E13.5 exhibited slower cyst formation, with most regions of interest (ROIs) observed in sections from the tip regions (panel B in S2 Fig).
FGF10 uptake was quantified as the mean intensity in the epithelial cyst area, excluding the luminal area in the cross-section. Measured data were provided as S5 Data. The FGF10 dose dependency was estimated by linear regression analysis, and its significant difference by developmental stage was tested using two-way ANOVA in the statistical software R.
Immunostaining and quantification of epithelial thickness
Embryonic lungs from ICR mice were washed with PBS and fixed with methanol for 30 min. Permeabilization was in 0.1% Triton X-100 for 30 min, followed by the blocking with 1.5% normal goat serum for 60 min. The samples were stained with anti-mouse E-cadherin monoclonal antibody ECCD-2 (1:100, Takara) for 16 h at 4°C, followed by washing three times with 0.1% Triton X-100 in PBS. After incubation with Alexa Fluor 488-conjugated goat anti-rat IgG secondary antibody (1:200, Thermo Fisher) for 30 min, the sample was soaked in Scale reagent for tissue clearing overnight [39]. The cell nuclei were stained with 5 μg/mL propidium iodide (PI; Dojindo).
Thickness measurement was conducted by drawing small circles with diameters corresponding to the local thickness of the epithelium on the E-cadherin antibody-stained images. Circles were positioned to overlap halfway along the epithelium. The diameters of the circles were measured using Fiji and the mean and standard deviation were calculated to represent the epithelial thickness for each sample. The ROIs designated for thickness measurements are shown in S3 Fig.
Microscope observation
The lung explants were observed at 20× magnification using a Nikon C1 confocal microscope (Nikon Intech). Samples of live explants were kept in a stage-top chamber (Tokai Hit) to maintain a 5% CO_2_-controlled atmosphere at 37°C for cellular homeostasis during the observation.
Particle cell model of the curvature-dependent growth
Particle-based two-dimensional (2D) model framework from our previous studies was inspired by particle-based methods for fluid simulation, incorporating interactions with Lennard-Jones-like potentials between particles [40–44]. In this study, the modeling framework was employed to describe epithelial growth and deformation. Each particle represents a cell (Fig 3). The cell-cell interaction and bending rigidity were introduced as previously described [42, 43]. Curvature-dependent tissue growth was newly incorporated for this study and is mentioned in the Result section. Cell division event was described by replacing a cell with two daughter cells with a radius of 0.2, which gradually grew to the default mother cell radius of 0.4 in 1000 timesteps. Parameter values are in S1 Table.

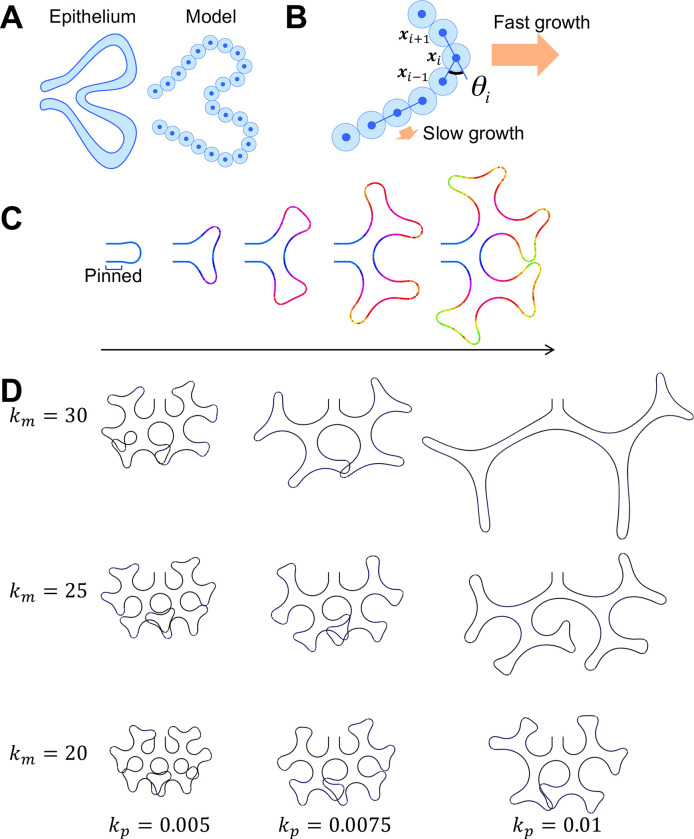

Protrusion growth described by the particle cell model.(A) The epithelial cell was represented by the particle in the model. The cell-cell distance is denoted by d. (B) Cell division was described by replacing a particle with two small particles, which gradually grow to the prescribed size. (C) The process of higher-order branching. Snapshots at t = 0, 75, 150, 225, and 300 are shown. The proximal end was pinned, and the distal tip was growing. The color indicates the cell generation. The number of cells was initially 50 and was increased to 450. (D) Branch scale control by curvature-dependent growth. Calculations were performed until the number of cells reached 800.
To obtain the initial geometry, 50 cells were arranged in a U-shape with a width of 5. The ten leftmost cells were pinned in their initial position. For relaxation of the shape of the cell sequence, cells were not grown, and the cell sequence was smoothed by bending rigidity until the shape became stationary. After sufficient relaxation time, numerical calculations of growth were performed. Pinned cells were not allowed to grow through the calculation, while growth was assumed for the remaining right tip side. Interactions between cells were considered only between adjacent and connecting cells, and control of branch growth direction was not incorporated, allowing for overlapping branches that never occurs in actual lung.The time development of the model was calculated using C++ with Δt = 0.005, and the graphics were generated using Mathematica. These computational procedures were used for other models throughout the study. We used a parameter range that was tuned to allow the model simulation to run smoothly in a system where repeated cell proliferation and growth cause tissue growth and deformation, and where changes in value reveal morphological differences throughout the study.
Quadrilateral cell model with apical constriction
To describe tissue deformation coupled with cell shape control, we applied the model framework in our previous studies [36, 45], where the cell shape is represented by four vertices (ai, a*i+*1, bi, and b*i+*1 in Fig 4A) and the displacement of vertices are calculated. Three attributes are considered for cell shape: apical length, basal length, and cell area, each with its respective target value. A harmonic potential W and force f associated with the vertex x can be considered as follows:
where u(x) is an attribute value and, is its corresponding target value. The forces for each attribute were calculated by Eq (1). The target value of apical length is 0 for introducing apical constriction (Fig 4B). It was assumed that all cells exhibit uniform apical constriction for simplicity. The area regulation force based on isotropic restoration [36] tended to destabilize the cell shape, thus it was simplified to be based on adjusting the lateral length as follows:
Eqs (2) and (3) are for the apical vertex ai and the basal vertex bi, respectively. The coefficient ks determines the magnitude of the regulation, si is the area formed by ai, ai-1, bi-1, and bi, and is its target value. When the two cells sharing the vertex are symmetrical in shape, Eqs (2) and (3) are consistent with the energy-derived force [36].
Effect of apical constriction on branch shape shown using the quadrilateral cell model.(A) The cross-section of epithelium is described as a sequence of quadrilaterals. The i-th cell was defined by four vertices ai, ai+1, bi, and bi+1. (B) Apical constriction is described by the attraction between apical vertices, with its strength represented by ka. (C) Curvature-dependent growth process. Snapshots at timesteps t = 0, 750 1750, 2750, and 3750 are shown. Pinned cells are indicated in gray. The case without apical constriction ka = 0 is shown. (D) Apical constriction was introduced with ka = 1.
To realize stable natural tissue shape, cell shape symmetry regulation was assumed for each cell, and bending rigidity was assumed for the sequence of the basal vertex as detailed previously [36]. Parameter values were adjusted for this study (S2 Table). We considered the displacement of the cell in the viscosity-dominated regime as follows:
where xi is a non-dimensionalized position vector of the i-th cell center, γ is the friction coefficient, t is time, and Δt = 0.005 is the timestep size.
Cell migration and division were assumed to depend on tissue curvature. Cell division was described by inserting new vertices into the middle of the edges of a fully grown cell at a probability qi. The daughter cells are set at half the size of the mother cells at the time of division and grow over 50,000 timesteps. Cell migration is described as the outward movement of vertices on the basal side represented by . The dependency on the tissue curvature was assumed as follows:
where kw and kq are the strength of curvature dependence, ni,j is the normal vector to xi-xj, φw and φq are the critical angles for migration and cell division, and is the basic probability of cell division. Tissue curvature was approximated using φi as an alternative to θi, aiming to avoid detecting local distortions.
The initial shape in Fig 4C and 4D was a thin tubular shape with an outer width of 3. The three leftmost vertices were pinned at the initial positions. After sufficient relaxation time, numerical calculations of growth were performed. Cells with pinned vertices were not allowed to grow through the calculation, while growth was assumed for the remaining right tip side.
In Fig 5A, epithelial cysts were depicted. No vertices were pinned, and no growth was assumed. Initially, ka = 0 was set and increased by 0.003 at each timestep until ka = 3.
Mechanical instability of small cysts by apical constriction in the quadrilateral cell model.(A) Cyst of n cells was relaxed for a sufficient time (upper panels), then apical constriction was introduced and deformation was observed (lower panels). (B) The potential energy difference between the circular state (Ec) and the elongated state (Ee). Color corresponds to the cyst sizes in (A). The vertical axis is the longitudinal cyst length L. The minimum L corresponds to the diameter in the circular state. The cross indicates the cyst length under apical constriction in the numerical simulation (A), indicating that the energy calculation predicted the model behavior. (C) Estimated stable cyst shapes obtained from energy calculations plotted along the cell number n. When n ≤ 15, the stable shape was circular (closed circle). When n ≥ 16, the cyst was elongated, and the longitudinal length (ellipse with a vertical line) and the width (ellipse with a horizontal line) were plotted. The diameter of the corresponding circular cyst for n ≥ 16 was plotted for reference (open circle). (D) Estimated minimum cyst width for 13 ≤ n ≤ 27. The vertical axis represents b¯/s¯, where b¯ is the cellular basal length and s¯ is the cellular area. Colors represent s values: 0.83 (blue dashed line), 1 (black dotted line), and 1.2 (red line). (E) Estimated critical cell number ne for the shape transition from circular to elongated.
Estimating mechanical instability in the cyst models
In the quadrilateral cell model, cysts were depicted in Fig 5A. Potential energy calculations were performed for these representations (Fig 5B–5E), ranging from circular to elongated shapes, by considering the combination of a rectangle of length x and a semicircle of radius y. The longitudinal length of the cyst is L = x + 2y. It was assumed that the basal length and cell area are uniformly maintained as and , respectively. The sum of the basal lengths in the cyst is . The apical lumen was approximated as an ellipse with a major radius α and a minor radius β. We estimated α and β by considering the conservation of cell areas and the relationship between cell height and apical length. The apical length of the cell with the highest curvature is denoted by ay. We assumed by considering the cell shape as a trapezoid. The area of the cell is given by , where α was derived as in Eq (8) below. Additionally, given that the elongated cyst area is equal to the circular cyst area, expressed as was derived as in Eq (9). Eqs (8) and (9) are as follows:
Cell type switching model
The model dynamics of integrated (Fig 6) is based on the quadrilateral cell model, with parameter values provided in S3 Table. The cell is initially of the tip type and switches to the duct type when φi>φd. The regulation of apical length and cell area were assigned for the tip type (kat, , and ) and duct type (kad, , and ), respectively. The triangle-like shape of the tip type was described by setting the optimal apical length . The tall columnar shape of the duct type was characterized by setting for the optimal cell area and equalizing apical and basal lengths as . Migration was assumed only for the duct type and described by moving the basal vertex with force . The difference in the epithelial thickness was described by changing .
Changes in epithelial thickness during lung development. (A–C) E-cadherin staining was performed to show the epithelial shape of the growing tip at E12.5 (A), E13.5 (B), and E14.5 (C). (D–F) Corresponding nuclear staining with PI is presented. Scale bar: 100 μm.
The initial shape was assumed to be the tip of an epithelial branch with a width of 10, in which 13 cells at the tip were assumed to be the tip type and the others were assumed to be the duct type. Cells at the proximal ends were pinned at their initial positions and no cell division was assumed in these cells. Numerical calculations were performed until the third-order bifurcation appeared, and the computation time for each model is summarized in the S3 Table.
Results
Verification of the enhanced FGF10 signaling in protruded regions of lung epithelium
The assumption that the protruded region of the epithelium shows high growth activity is commonly required in theoretical models to reproduce branching patterns [12–14, 46]. We examined extracellular signal-regulated kinase (ERK) activity as a hallmark of FGF receptor 2 (FGFR2) activation in embryonic mouse lungs (Fig 1 and S1 Fig). Lung explants from a transgenic mouse strain expressing a fluorescence resonance energy transfer (FRET) biosensor for ERK activity were used [38]. To facilitate the laser light for FRET detection in the epithelium, we used a mesenchyme-free epithelium culture supplemented with recombinant FGF10 protein. Fig 1 shows the ERK activity map in the epithelium of the mouse lung at embryonic day 12.5 (E12.5), E13.5, and E14.5, which are the early pseudoglandular stage. It was demonstrated that ERK activity correlates with the cross-sectional curvature of the epithelial explants as R^2^ = 0.41 in E12.5 and R^2^ = 0.45 in E13.5, suggesting that FGF10 signaling was enhanced in protruded regions (Fig 1A and 1B). However, poor correlation and activation were observed in the E14.5 epithelium as R^2^ = 0.0031 (Fig 1C). This result also excluded the possibility that the higher FRET signals at the protruded regions of the earlier explants were not due to differences in detection efficiency. The linear regression analysis revealed a progressive decline in the signal-to-curvature relationship, with a slope of 6.18 at E12.5, 2.93 at E13.5, and 0.12 at E14.5. These results revealed that the signaling response of the epithelium to FGF10 is gradually attenuated with development, indicating the modification of epithelial properties during the developmental process.
We further examined whether the difference in ERK activity reflected its sensitivity to FGF10 concentration (Fig 2). Small explants (<100 μm) of the distal epithelium were grown in Matrigel with various concentrations of FGF10 for 18 h, and the ERK activity of each cyst was measured (panel A in S2 Fig). It was demonstrated that FGF10 enhanced ERK activity in a dose-dependent manner, with a correlation of R^2^ = 0.53 (Fig 2A, black dots). E14.5 cysts showed a poor correlation with R^2^ = 0.013 (Fig 2A, blue dots), which is consistent with Fig 1C. The slope of regression lines in E13.5 was significantly larger than in E14.5, with P = 0.0014, whereas the significant differences in intercepts were rejected, suggesting a higher dose dependency in E13.5 than in E14.5. ERK activation levels vary among cysts for the same FGF10 concentration and the same developmental stage, indicating that epithelial segments may have intrinsic FGF signaling reactivity.
These variations in ERK activity may be due to differences in FGF10-FGFR2 interaction. It was reported that FGF10 stimulates the internalization of FGFR2 as early endosomes [47]. Thus, we visualized FGF10 uptake into cells to observe receptor activation (Fig 2B). Epithelial explants were cultured with fluorescence-labeled FGF10 (FGF10-Alexa488) for 3 h, resulting in the appearance of small fluorescent particles inside the cells (panel B in S2 Fig). Immunohistological analysis showed that FGF10 and FGFR2 localization overlapped with the fluorescent signals, suggesting that the signals reflected FGF10-Alexa488 uptake into cells by FGFR2 internalization (S4 Fig). Unlike ERK activity, tissue curvature dependency of FGF10 uptake was not detected. The average fluorescent intensity of the explants showed a correlation with the FGF10 dose in E13.5 (R^2^ = 0.87) and E14.5 (R^2^ = 0.72), with slopes of 20.7 and 9.7, respectively (Fig 2B). These regression lines differed significantly with P = 1.2 × 10^−7^. Collectively, these results suggest that epithelial responsiveness to FGF10 declines with the developmental stages in the lung epithelium, resulting in a difference in the activity gradient depending on the tissue curvature.
Modeling the curvature-dependent epithelial growth
We considered that epithelial responsiveness to FGF10 may affect the branching pattern and examined this by constructing a mathematical model. The longitudinal section shape of the epithelial duct was described in a 2D space by adopting a model framework, which we tentatively call the particle cell model, in which cells were assumed to be interacting particles [40–44]. We aimed to represent the curvature-dependent growth process of the tissue in the simplest form, in which the FGF10 distribution was omitted.
The cell was assumed to be a uniform circular shape, forming a chain of cells (Fig 3A). Distance-dependent interaction was assumed so that the cells bind to neighboring cells at a fixed distance, as described previously [42, 43]. The bending rigidity along the sequence of cells was introduced to express the smooth contours of the tissue as described [42, 43]. The interaction strength and bending rigidity are controlled by parameters kwall and kbend, respectively.
Tissue growth was incorporated so that the protruded regions grew faster. Cell migration and division were assumed to depend on local tissue curvature as a phenomenological simplification of epithelial diffusion-limited growth. The local tissue angle θi was used instead of calculating the local curvature (Fig 3B). The probability pi that the i-th cell divides in each timestep is as follows:
where kp is associated with the angle dependence, θp is the minimum angle for the cell division, is the basic probability, and xi designates the i-th cell position. FGF10 is also known to be involved in the regulation of cell migration [10, 19, 48]. Here we assumed simple outward movement as follows:
where represents the active migration in the normal direction of the tissue, and km is the coefficient.
The cell position changes according to the sum of the calculated forces of the cell-cell interaction, bending rigidity, and migration. The initial shape for the model simulation was assumed to be the tip of the epithelial branch (Fig 3C, left-most image). The cells at the proximal ends were pinned in their initial positions and the distal tip was grown according to curvature-dependent growth, thus depicting the successive tip-splitting deformation (Fig 3C). We further examined how the curvature dependency, denoted by km and kp, affects branch shape (Fig 3D). It was revealed that larger km and kp values resulted in a longer segment length, suggesting that epithelial responsiveness determines the segment length during airway construction. When the curvature dependency was high, extremely restricted tip growth facilitates tip elongation instead of tip splitting. In contrast, in the case of low dependency, broad growth causes tip curvature reduction, causing shape instability. However, the branch width did not show significant differences among the cases with different curvature dependencies, and the entire mechanism of the hierarchy construction could not be explained by the responsiveness change.
Modeling branch formation with cell shape regulation
To explore the control mechanism of tube size, we focused on the role of cell shape regulation. We have reported that the lung epithelium exhibits apical constriction and facilitates the formation of small buds through Wnt signaling [36]. Inhibition of Wnt signaling has been demonstrated to impede the formation of distal fine branches and induce cystic expansion in mice [31, 33]. Drawing from these observations, we considered that apical constriction may facilitate tip splitting to form distal fine branches. To explore this hypothesis, we investigated the impact of apical constriction on branch shape (Fig 4).
We employed the model established in previous studies [36, 45], where each cell is represented as a quadrilateral (Fig 4A) to incorporate apical constriction. The model framework is based on the harmonic potential control of each edge length and area, and apical constriction was implemented by applying an attractive force between the pair of apical vertices (Fig 4B). In this study, we extended the model by incorporating curvature-dependent growth. It was confirmed that curvature-dependent growth promoted branch elongation when no apical constriction was assumed (Fig 4C). When apical constriction was assumed, tip splitting was induced (Fig 4D). Apical constriction facilitates tip splitting due to mechanical instability caused by the imbalance between the increase in cell-autonomous curvature due to apical constriction and the decrease in tissue curvature due to growth [15, 36, 49].
To understand the model dynamics and to explore the mechanisms governing branch width, we depicted small cysts consisting of 13–18 cells and examined the impact of apical constriction (Fig 5). It was demonstrated that apical constriction transformed the cyst from a circular shape to an elongated shape if the cyst contained more than 15 cells; otherwise, the cyst sustained a circular shape (Fig 5A).
Next, we analyzed how the number of cells in the cyst influence the transition from a circular cyst to an elongated shape. The potential energy of the circular state Ec and that of the elongated state Ee were compared (Fig 5B). The longitudinal cyst length, designated by L, serves as a defining parameter for the cyst shape. The potential energy of the cyst was assessed based on the regulation of basal length, apical length, and cell area. When it was assumed the basal length and area are sustained by strong regulation, Ec-Ee is derived from the sum of apical lengths as follows:
where n is the cell number, ka represents the strength of apical constriction [36, 45], and ci and ei are the apical lengths of the i-th cell in the circular and elongated cysts, respectively. The sums of the apical lengths were approximated as circular and elliptic circumferences of the cyst lumen as follows:
where and are the basal length and area of the cell, α = L and β are the major and minor radius of an ellipse, respectively. The values of α and β can be estimated as the function of , n, and L by considering the constant cell area.
Fig 5B shows the numerical profile of Ec-Ee against L for n ranging from 13 to 18. The condition n > 12 is required for , as must be satisfied from Eq (14). The minimum L is , which corresponds to a circular cyst. The maximum of Ec-Ee corresponds to the most stable shape, which is consistent with the model simulation (Fig 5A). The widths of the elongated cysts do not exceed the diameter of the smallest circular cyst, indicating that the same cell shape regulation condition induces spontaneous curvature (Fig 5C). In this regard, we obtained the minimum width among cysts with varying cell numbers and found its decrease with , regardless of (Fig 5D). This result suggested that cell height determines the spontaneous curvature, irrespective of cell size. Changes in cell size are compensated by alterations in cell number (Fig 5E) and do not affect the spontaneous curvature (Fig 5D).
Fig 5 revealed a correlation between epithelial thickness and branch width, suggesting that the epithelium becomes thinner as development progresses. Supporting this theoretical result, we observed the lung epithelium at E12.5, E13.5, and E14.5, noting a progressive decrease in thickness to 70.3 ± 9.23 μm, 43.0 ± 9.66 μm, and 31.4 ± 4.08 μm, respectively (Fig 6). It should also be noted that E13.5 cysts in vitro showed the tendency to be thicker during culture than the E14.5 cysts (S5 Fig, black line in panel A and blue solid line in panel C), indicating an intrinsic alteration in thickness regulation as a developmental feature.
Integrated modeling of curvature-dependent growth and cell shape regulation
In addition to progressive changes in epithelial thickness, curvature-dependent changes in epithelial thickness were also observed. The epithelium was thinner in the high curvature tip region than in the low curvature duct (Figs 6 and 7A), consistent with the detailed 3D analysis of cell shape in E11.5 mouse lung [37], suggesting distinct cell shape regulation regimes for the tip and duct regions. Cells in the concave region were also thickened (asterisks in Fig 7A), implying that the shift from tip-type cells to duct-type cells is occurring during tip spitting event.
Cell type switching model.(A) The growing tip of E14.5 mouse lung. Arrows indicate tall cells at concave regions and asterisks indicate short cells. (B) Two cell types in the model. Tip type cells exhibit proliferation, outward migration, and apical constriction (left). Duct type cells are tall and do not show these activities (right). The switch from the tip type to the duct type occurs based on a decrease in local curvature. (C) Snapshots of the growing process in the case of thick epithelium with high curvature dependency. The gray color represents cells pinned at their initial positions. The red color on the apical side represents tip type cells. (D) Thin epithelium with low curvature dependency. (E) Thick epithelium with low curvature dependency, showing the intermediate morphology between (C) and (D). (F and G) The cases of low apical constriction activity. Thick epithelium with high curvature dependency (F) and thin epithelium with low curvature dependency (G) are shown.
It has also been shown that canonical Wnt signaling is more intense in the tip region of the lung epithelium [50, 51]. We therefore constructed a model to represent that cells in the tip region are highly active in growth and apical constriction.
The model framework is based on the quadrilateral cell model and two types of epithelial cells were assumed: a short tip type exhibiting high growth activity and apical constriction, and a tall duct type that lacks these activities (Fig 7B). The cell type is determined depending on the angle formed by successive vertices, representative of local curvature. The critical angle for switching φd determines the curvature dependency of growth. The growth was described only for the tip type by migration represented by kμ and cell division with a constant probability ρ. In addition, distinct parameter values for cell shape regulation were assigned to the tip and duct types, which are summarized in S3 Table.
Fig 7C and 7D show that the integration of curvature-dependent growth and cell shape change reproduced the higher-order branching process. Thicker epithelium with a higher curvature dependency resulted in a larger-scale branching structure (Fig 7C), compared to the case of thinner epithelium with a lower curvature dependency (Fig 7D). Epithelial thickness and curvature dependence had an additive impact on branch scale (Fig 7C–7E), suggesting that the changes in these epithelial features during development (Figs 1, 2, and 6) contribute to the progressive alteration in airway segment length. It was demonstrated that thin epithelium not only narrowed the branches (Fig 5) but also shortened the branches (Fig 7D and 7E), aligning with the progressive changes in epithelial thickness (Fig 6) and branch morphology [4]. Reduced apical constriction has a more significant effect on the tip shape in thin epithelium compared to thick epithelium (Fig 7F and 7G), consistent with Wnt signaling defects showing severe cystic morphology in the distal airway [33–35].
Discussion
We explored regulatory mechanisms to generate a hierarchical structure of the lung airways with a specific focus on epithelial properties. Our experimental observations revealed developmental changes in epithelium responsiveness to FGF10. Furthermore, by constructing a mathematical model assuming curvature-dependent growth, we demonstrated that such change leads to variations in branch segment length. Our analysis also highlighted the involvement of cell height regulation in modulating branch width through apical constriction. High curvature dependence in growth during early development is thought to predominate local growth at the tip of the epithelial branch, resulting in the formation of longer branches. On the other hand, reduced curvature dependence may promote branching by broadening the growth zone. Furthermore, considering the effect of apical constriction, the smaller and thinner the cell, the stronger the effect of apical constriction, resulting in the formation of thinner branches. This is consistent with the characteristic changes in the epithelium during lung development. This study provides a new perspective on how epithelial properties regulate the branching structure of the lung.
Morphogenesis is characterized by cells that are highly active and constantly responding to various regulatory cues, making it an essentially intricate process. Integrating such diverse behaviors into a model can complicate the pursuit of comprehensive understanding. We narrowed down the cellular behaviors of interest based on experimental observations in lung epithelial tissue. The agent-based approach enabled us to explore the implications of curvature-dependent growth and cell shape control in morphogenesis. Our models were based on experimental observations, while the parameters of the model are not experimentally comparable and will need to be validated in the future.
Theoretical studies on lung epithelial morphogenesis have been conducted based on the FGF10 distribution, emphasizing the importance of signaling interaction between the epithelium and mesenchyme [12, 14, 46]. However, it was later found that the expression pattern of FGF10 in the lung mesenchyme is not required for epithelial branching [52], triggering the hypothesis of an epithelium-autonomous morphogenetic mechanism [15, 16, 36]. In line with this perspective, our computational models propose that the branching structure of the lung is determined by epithelial properties, FGF10 responsiveness (Fig 3) and tissue thickness (Fig 5). The observation that early epithelia exhibit higher growth activity (Figs 1 and 2), and thicker tissue (Fig 6) might be apparent to biologists studying lung development. Additionally, we found that thinner epithelia are more responsive to FGF10 (S5 Fig, panel D), supporting the assumption that the tip type cell is thinner and grows faster in the integrated model (Fig 7B). It was also revealed that FGF10 exposure decreased cyst thickness (S5 Fig, panels B and C), implying a potential role of this essential signaling molecule for cell shape regulation.
The regulation of a specific growth activity at the epithelial protrusion remains an unsolved issue (Fig 1). One potentially relevant mechanism is geometry-dependent mechanical patterning [53]. When human embryonic stem cell-derived lung epithelial progenitor cells were cultured inside the 100-μm tube, SOX2 expression was suppressed via canonical Wnt signaling, whereas SOX9 expression was maintained [53]. The tissue curvature-dependent regulation of SOX2 and SOX9 expression, which is regulated only downstream of the Wnt/b-catenin pathway, is consistent with the assumption of curvature-dependent growth and apical constriction in our model (Fig 7). Clarifying how the cell shape and growth activity are regulated and how signaling pathways such as FGF and Wnt are involved is necessary to gain insight into the regulatory mechanisms of the global structure of the lung.
In the actual lung, we consider that tissue growth regulation is directed by 3D curvature, which eventually leads to shape instability. When examining the 3D structure of lung airway branches, it is essential to account for the control of branching and elongation directions. Conrad et al. observed, using a light-sheet microscope, that the outer contour and lumen of epithelial branches in E12.5 and E11.5 mouse lungs are compressed in various directions [54]. If such collapsed tubular structures are present distally, they may affect the direction of tip splitting during bronchiolar development, which alternates between planar and orthogonal directions [4]. The control of tip splitting direction is crucial for the efficiency of 3D space-filling patterning. The mechanisms underlying this control, including long-range interactions between epithelial branches, cell division direction, and cell migration direction, should be elucidated in future studies.
Supporting information
S1 FigROIs used to obtain the ERK activity map in Fig 1.ROIs are indicated by yellow circles on the bright-field images. 2D tissue curvature and ERK activity were obtained from a series of ROI clockwise along the epithelial cross-section.(PDF)
S2 FigRepresentative images in the ERK activity measurement in E13.5 and E14.5 lung epithelial explants in Fig 2.(A) The heat maps of the ERK activity (upper panels) and bright field images (lower panels) for E13.5 and E14.5 cysts. The ERK activity quantified for the cyst is indicated on each panel. The epithelial thickness seems different between in E13.5 and E14.5, and the statistical analysis was demonstrated in S3 Fig. (B) The fluorescent signals of FGF10-Alexa488 (upper panels) and bright field images (lower panels) for E13.5 and E14.5 explants. High backgrounds of the fluorescent images were caused by the high FGF10-Alexa488 concentration in the Matrigel and the medium. The mean fluorescent intensity is indicated on each panel. Scale bar: 50 μm.(PDF)
S3 FigROIs used to measure the epithelial thickness in Fig 6.ROIs for thickness measurement. Small circles were fitted to the local thickness of the epithelium. The mean and standard deviation of the circle diameters were calculated to represent the thickness.(PDF)
S4 FigImmunohistological analysis validating the FGF10-Alexa488 uptake experiment as the indication of the FGF10-FGFR2 internalization.The E13.5 epithelial cyst was cultured with the FGF10-Alexa488 and subsequently applied to the immunostaining of FGF10, FGFR2, and heparan sulfate. The samples were fixed with 2% paraformaldehyde in PBS for 5 min on ice. We used anti-FGF10 antibody (H-121, 1:20; Santa Cruz), anti-Bek (C-17, 1:100; Santa Cruz) for FGFR2 detection, and anti-heparan sulfate (10E4, 1:100; Seikagaku). The second antibodies were Alexa Fluor 568- conjugated goat anti-rabbit IgG and goat anti-mouse IgG (1:200; Thermo Fisher). The Alexa488 signals in cells was diffused but remained after the staining. The result of FGF10 immunostaining coincided with the FGF10-Alexa488 signal, except for that Matrigel containing FGF10-Alexa488 strongly reacted to anti-FGF10 antibody (upper panels). It was also found that FGFR2 mostly colocalized to the FGF10-Alexa488 signals (middle panels). Heparan sulfate is known to be localized to the cell surface and to support the FGF10-FGFR2 binding (lower panels). Scale bar: 50 μm.(PDF)
S5 FigShape changes and ERK activity of lung epithelial cysts.The cysts from E13.5 (A) and E14.5 (B, C, and D) mice were cultured in the FGF10-supplimented Matrigel for 18 h (A and C) or 3 h (B and D), following the procedures outlined in in Fig 2 and S2 Fig. The series for E13.5 and E14.5 are presented to the right of (A) and (D), respectively. For E13.5, morphometric analysis could not be conducted on samples cultured for 3 h with FGF and for 18 h without FGF, as cyst formation in these cases showed minimal progress. Cyst thickness was quantified by estimating outer and inner diameters in cross-sections using Fiji (NIH), calculated as the difference between them. The statistical analysis was performed by using R. The significant difference among the linear regression lines was tested by the analysis of covariance (ANOVA). (A) E13.5 cysts cultured for 18 h. The thickness-to- diameter correlations in four different doses of FGF10 showed no significant difference. The linear regression for the pooled data is y = 0.10x + 11.39 with R2 = 0.24 (black line), suggesting that epithelia tend to be thicker in larger cysts. Small explants may have been obtained by tearing off the tip of the epithelium where the epithelium is thin, while large explants may have been from a large area containing a thicker duct. (B) E14.5 cysts cultured for 3 h. The correlations in five different doses showed no significant difference. The linear regression for the pooled data is y = 0.16x + 9.48 with R2 = 0.48 (red dashed line), confirming the same tendency in (A). (C) E14.5 cysts cultured for 18 h. The correlation in five different doses showed no significant difference except for the samples without FGF10 (P < 0.001), suggesting that FGF10 exposure flattened the epithelium. The linear regression for the pooled data of the FGF10 exposed cases is y = 0.10x + 9.48 with R2 = 0.48 (blue line), and for the case without FGF10 y = 0.21x + 8.24 with R2 = 0.79 (blue dotted line). Both correlations were significantly different from the case of 3-h culture in (B) (P < 0.05), confirming that FGF10 exposure progressively flattened the epithelium, whereas prolonged culture without FGF10 thickened the epithelium. These correlations are also significantly different from the case of E13.5 cysts in (A), supporting the difference of the epithelial properties along the developmental process. The slopes in (A) and pooled data in (B) did not differ, whereas their intercepts significantly differ by 5.14 (P < 0.001), which agrees with that epithelium in the earlier stage is thicker. (D) Thickness was plotted against ERK activity for the corresponding sample in (B). The linear regression for the pooled data of the FGF10 exposed cases is y = −10.08x + 42.10 with R2 = 0.28 (gray dotted line), indicating that thinner epithelia exhibit higher activity. No significant correlation was found for the samples without FGF10.(PDF)
S1 DataCurvature and ERK activity of E12.5 explant in Fig 1A.(XLSX)
S2 DataCurvature and ERK activity of E12.5 explant in Fig 1B.(XLSX)
S3 DataCurvature and ERK activity of E12.5 explant in Fig 1C.(XLSX)
S4 DataERK activity of lung epithelial cysts in Fig 2A.(XLSX)
S5 DataFGF10 uptake of lung epithelial cysts in Fig 2B.(XLSX)
S1 TableParameter values for the particle cell model in Fig 3.(PDF)
S2 TableParameter values for the quadrilateral cell model in Figs 4 and 5.(PDF)
S3 TableParameter values for the cell type switching model in Fig 7.(PDF)
