Evaluation of the forces applied by rubber dam clamps on mandibular first molar teeth with different endodontic access cavities: a 3D FEA study

TL;DR

This study uses 3D modeling to compare how rubber dam clamps made of different materials affect stress in molar teeth with various access cavity designs.

Contribution

The study introduces a 3D finite element analysis comparing stress distribution from PEEK and stainless steel clamps on different endodontic cavity designs.

Findings

PEEK clamps caused lower von Mises stress than stainless steel clamps in all cavity designs.

The intact tooth model showed the lowest stress with PEEK clamps, while the distal caries cavity had the highest stress with stainless steel clamps.

Material choice and cavity design significantly influence stress distribution in endodontic access.

Abstract

This study aimed to examine the effect of the force applied by rubber dam clamps made from different materials on mandibular first molar teeth with various designs of endodontic access cavities using finite element analysis.

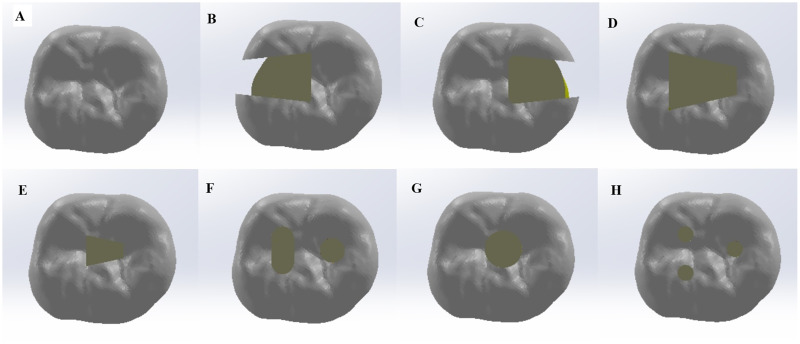

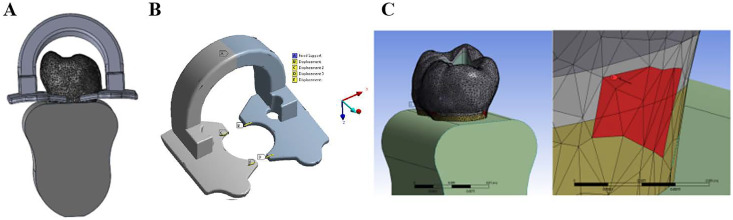

A intact tooth (IT) and seven different endodontic access cavities namely, a traditional endodontic cavity (TRADAC), a guided endodontic cavity (GEC), a conservative endodontic cavity (CAC), an ultra-conservative access cavity (UAC), a truss access endodontic cavity (TRSAC), a mesial caries access cavity (MCAC), and a distal caries access cavity (DCAC), along with two different clamp finite element models, were created. The clamp models were made of polyether ether ketone (PEEK) and stainless steel (SS). The forces applied by the clamps were calculated based on the axial section distance of the tooth, and these forces were applied to the contact areas on the tooth. Stress distribution models were calculated using maximum von Mises (vM) stress.

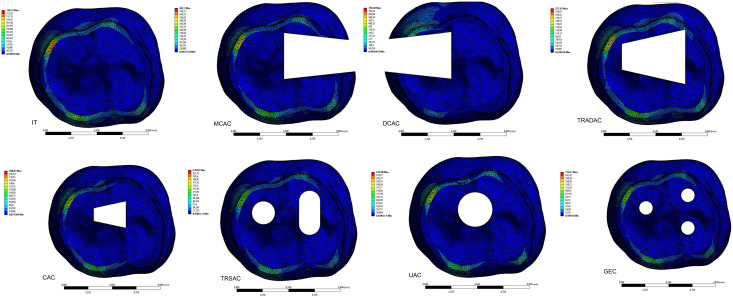

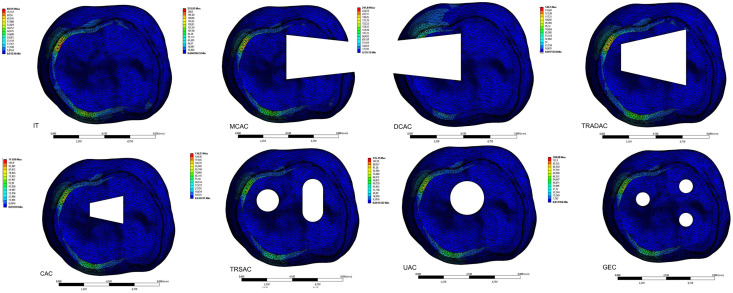

The lowest vM stress under the forces applied by the SS and PEEK clamps was found in the IT model (80.914 MPa) with the PEEK clamp. The highest vM stress was found in the DCAC model (759.49 MPa) applied with the SS clamp. The forces applied by SS clamps resulted in higher vM stress values in every cavity design than those applied by PEEK clamps.

PEEK clamps generated less force than SS clamps. However, clinicians should follow various isolation strategies (clamp made of different materials, split dam, etc.) according to different cavity types of the tooth.
