Spectroscopic Analysis on Different Stacking Configurations of Multilayered MoSe2

TL;DR

This paper explores how different stacking configurations of multilayered MoSe2 affect their properties using spectroscopic analysis.

Contribution

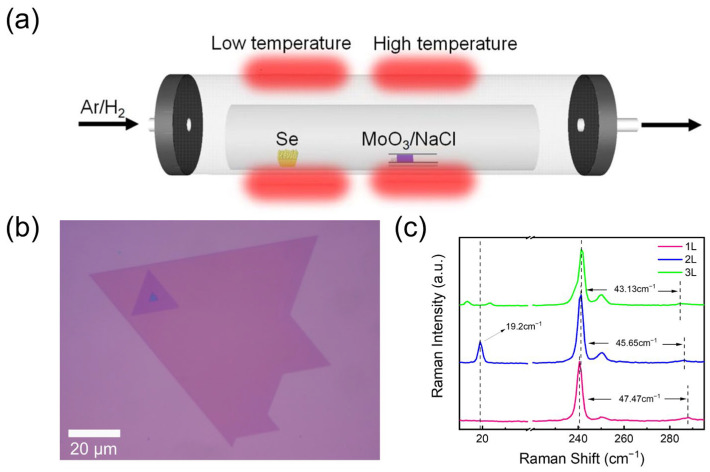

The study introduces salt-assisted chemical vapor deposition to grow high-quality multilayer MoSe2 with distinct stacking orders.

Findings

Monolayer, bilayer, and trilayer MoSe2 sheets show distinct spectroscopic features based on stacking order.

AA’ and AB stacking configurations are identified as the most stable for bilayer MoSe2.

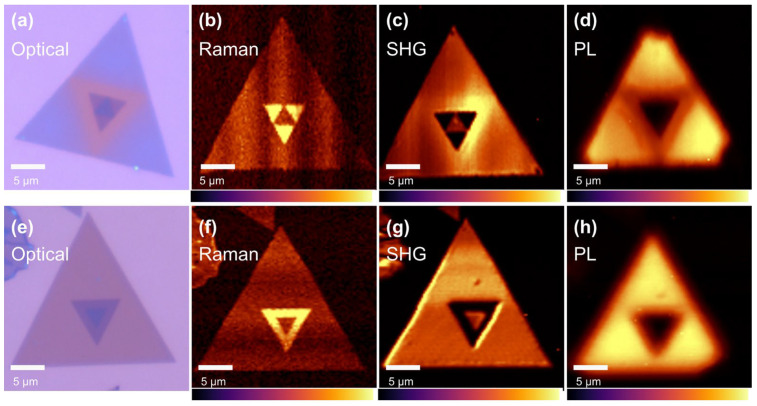

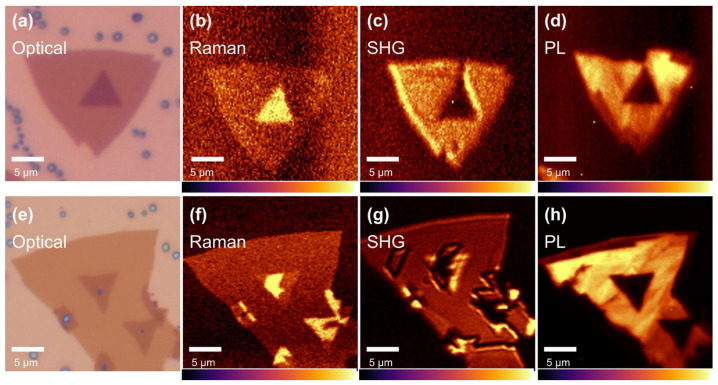

Uniform spectroscopy maps indicate high-quality stacked MoSe2 sheets.

Abstract

Transition metal dichalcogenides (TMDs) are drawing significant attention due to their intriguing photoelectric properties, and these interesting properties are closely related to the number of layers. Obtaining layer-controlled and high-quality TMD is still a challenge. In this context, we use the salt-assisted chemical vapor deposition to grow multilayered MoSe2 flake and characterize it by Raman spectroscopy, second harmonic generation, and photon luminescence. Spectroscopic analysis is an effective way to characterize the stacking order and optoelectronic properties of two-dimensional materials. Notably, the corresponding mapping reflects the film quality and homogeneity. We found that the grown continuous monolayer, bilayer, and trilayer of MoSe2 sheets with different stacking orders exhibit distinctive features. For bilayer MoSe2, the most stable stacking configurations are the AA’ and AB order. And the uniformity of the spectroscopy maps demonstrates the high quality of the stacked MoSe2 sheets.

Figures
