A Broadband MS-Based Circularly Polarized Antenna Array Using Sequential-Phase Feeding Network
Hung Pham-Duy, Dat Nguyen-Tien, Thanh Nguyen-Ngoc, Duc-Nguyen Tran-Viet, Thai Nguyen-Dinh, Tuyen Danh Pham, Hung Tran-Huy
TL;DR
This paper presents a compact, high-gain, broadband circularly polarized antenna array for C-band satellite communication.
Contribution
The design introduces a metasurface-based antenna array with a sequential-phase feeding network for enhanced bandwidth and gain.
Findings
The antenna achieves a 20% operating bandwidth with a peak broadside gain of 10.5 dBi.

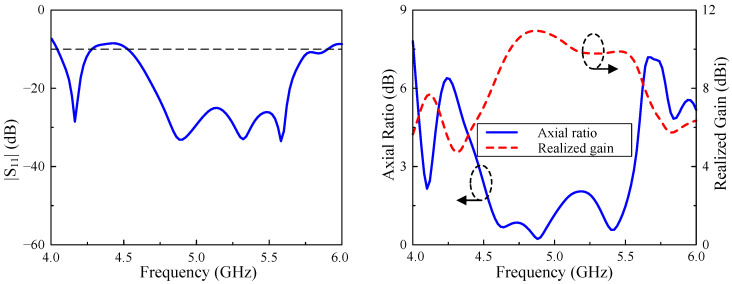

The design overlaps a 29.8% impedance bandwidth with a 20% axial ratio bandwidth.
The proposed array is more compact and efficient compared to recent similar designs.
Abstract

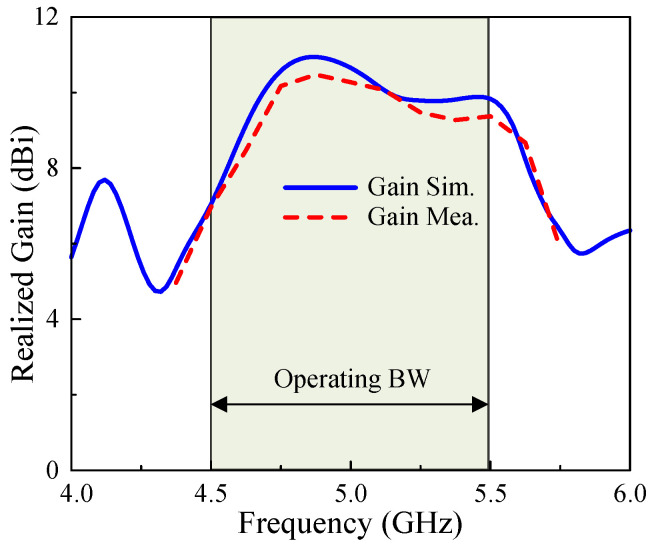

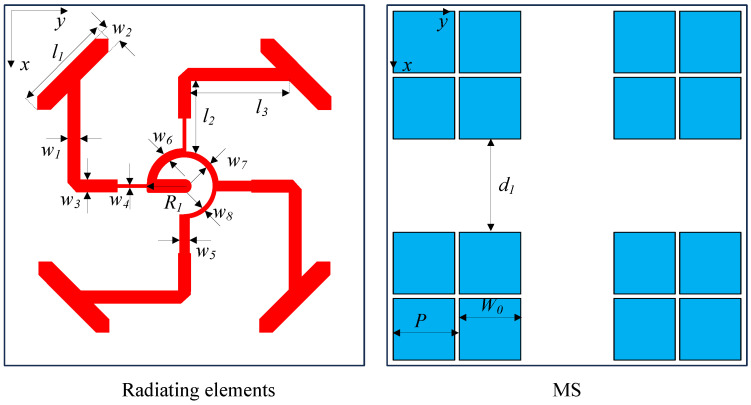

This paper introduces the design of a circularly polarized metasurface-based antenna array for C-band satellite applications that owns broadband operation and high gain characteristics. The single radiating element comprises a Y-shape patch and an above-placed 2 × 2 unit-cell metasurface. Further improvement in operating bandwidth and broadside gain is achieved by arranging four single elements in a 2 × 2 configuration and a sequential-phase feed network. A prototype has been fabricated and measured to validate the feasibility of the proposed antenna array. The measured operating bandwidth is 20% (4.50–5.50 GHz), which is an overlap between a −10 dB impedance bandwidth of 29.8% (4.50–5.99 GHz) and a 3 dB axial ratio bandwidth of 20% (4.50–5.50 GHz). Across this operating band, the peak broadside gain is 10.5 dBi. Compared with the recently published studies, the proposed array is a…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

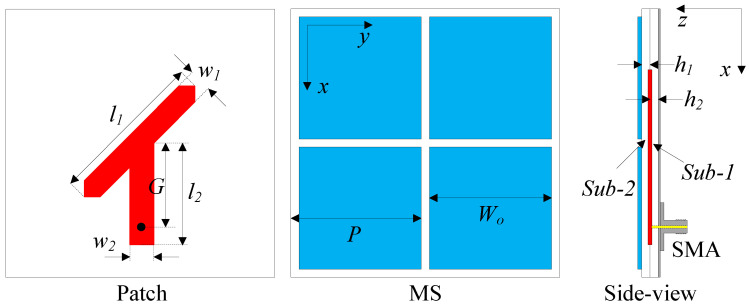

Figure 1
Figure 2

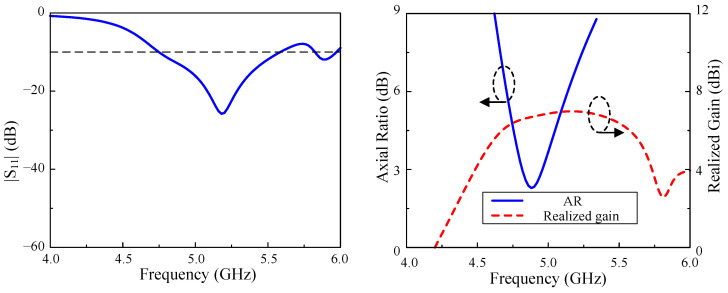

Figure 3

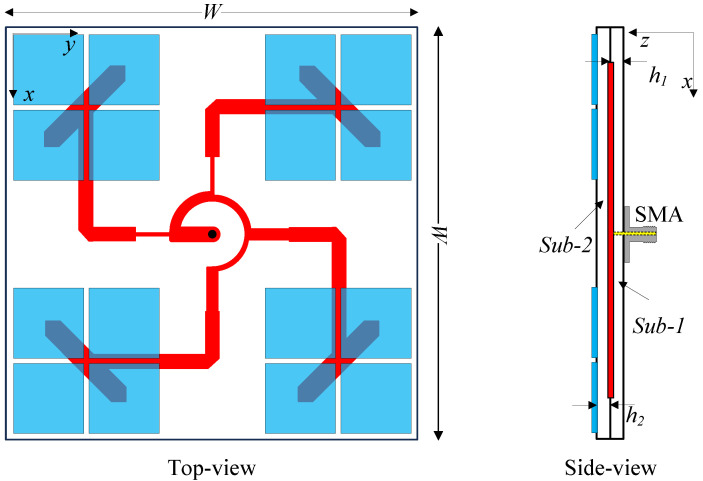

Figure 4
Figure 5
Figure 6

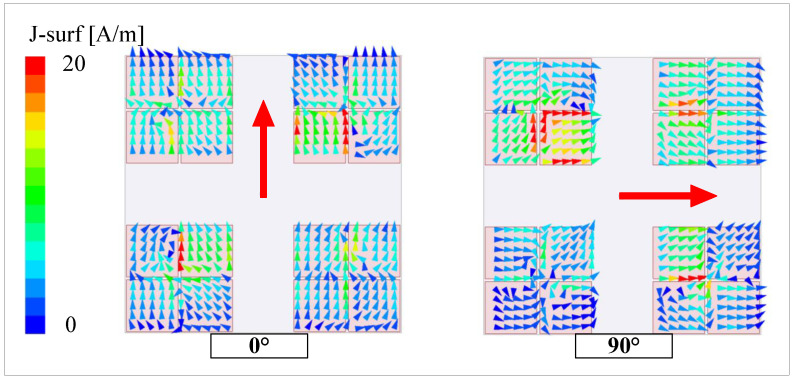

Figure 7

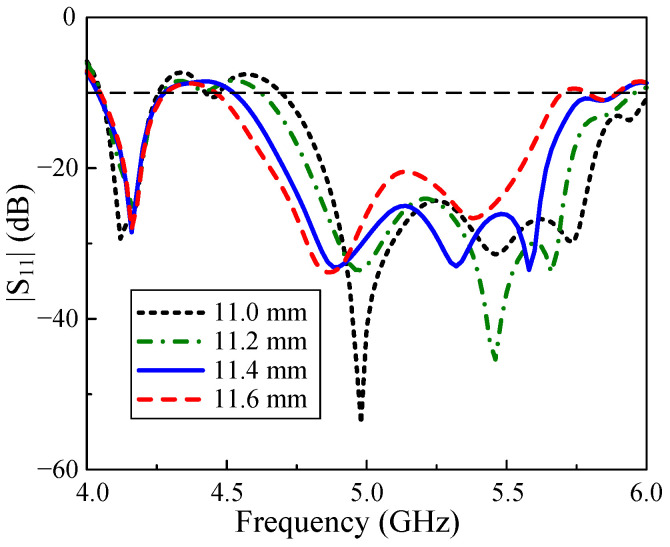

Figure 8
Figure 9
Figure 10

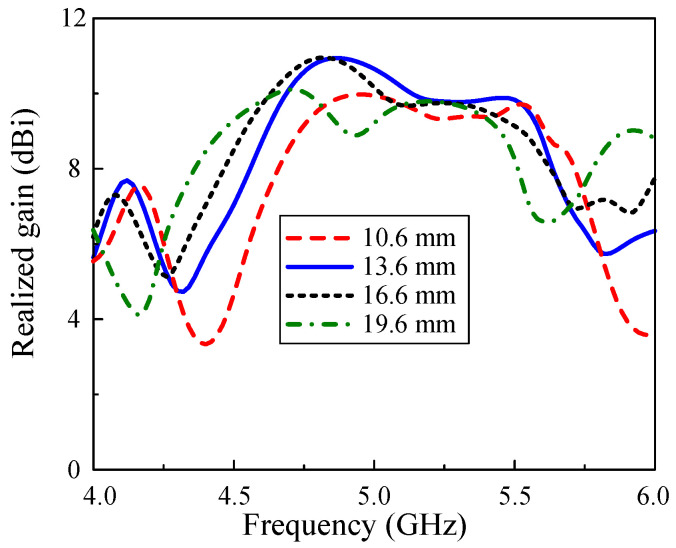

Figure 11

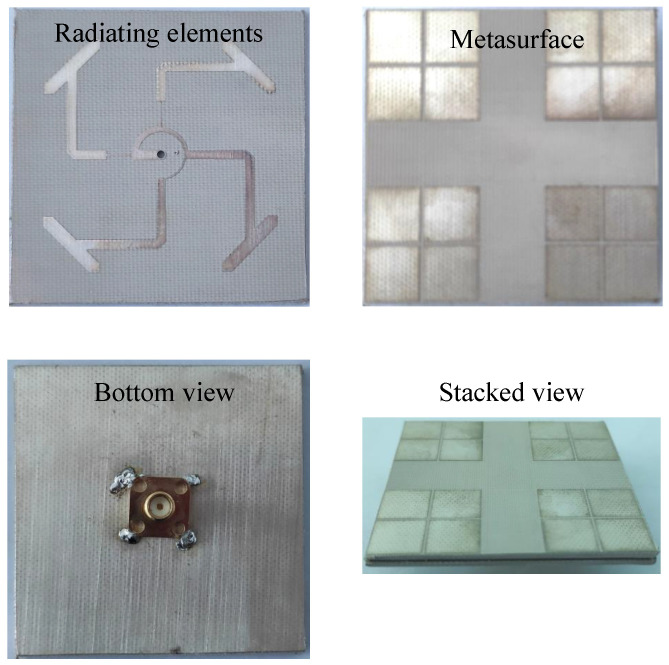

Figure 12

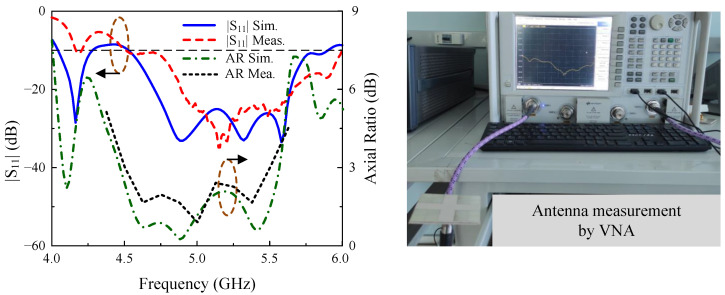

Figure 13
Figure 14
Figure 15Peer Reviews
