Numerical Analysis of the Dynamic Properties of Bionic Raster Ceilings
Artur Wirowski, Ewelina Kubacka, Paulina Kaszubska, Weronika Walisiak
TL;DR
This study uses numerical analysis to optimize bionic-inspired ceiling panels for better dynamic properties and airflow.
Contribution
The novelty lies in using bionic designs and numerical methods to optimize hole placement in ceiling panels for dynamic performance.
Findings
The study found how different hole shapes and materials affect natural frequencies and vibration modes of ceiling panels.

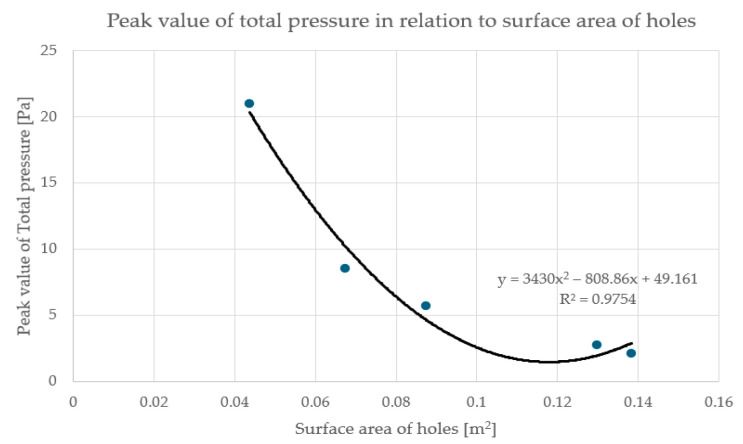

Airflow analysis revealed pressure variations based on hole area and velocity, aiding in resonance prevention.
Comparisons with solid slabs showed the benefits of perforated bionic designs in dynamic performance.
Abstract

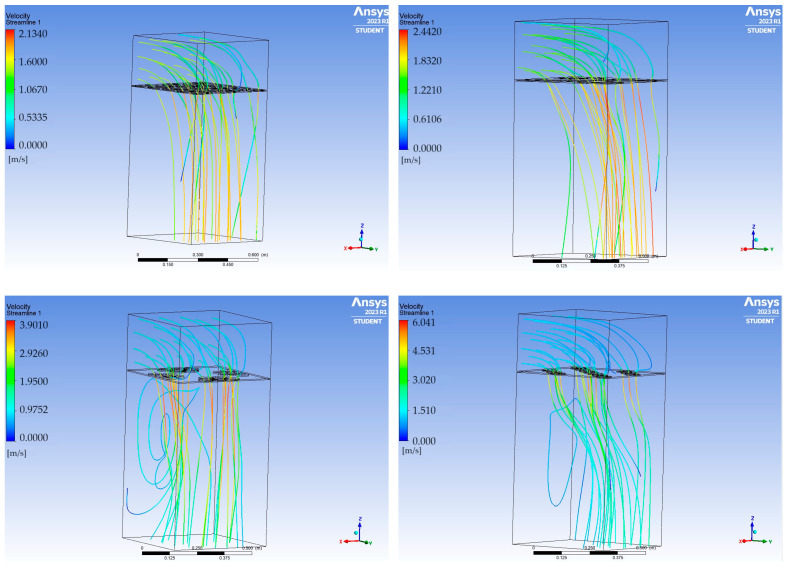

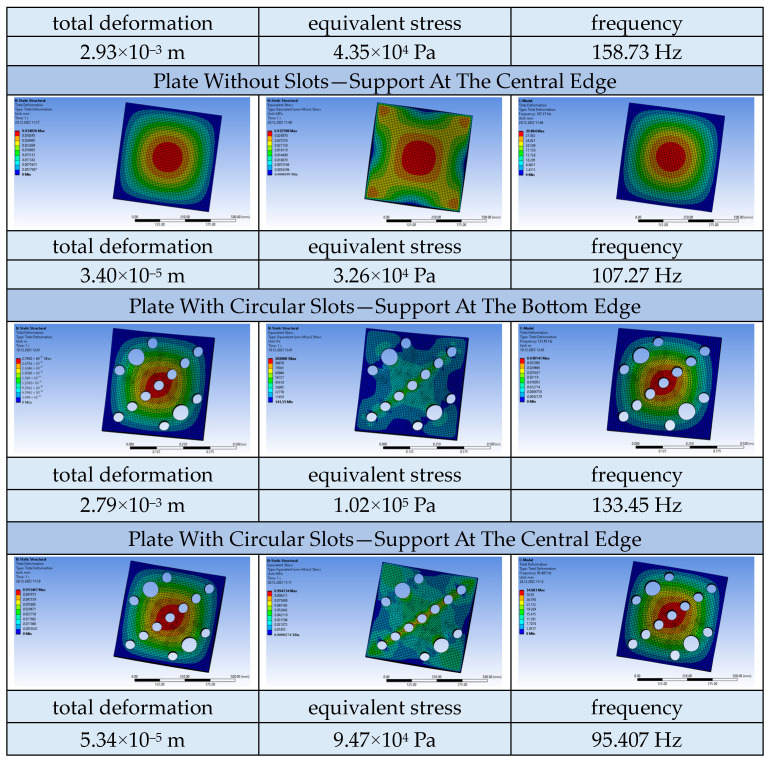

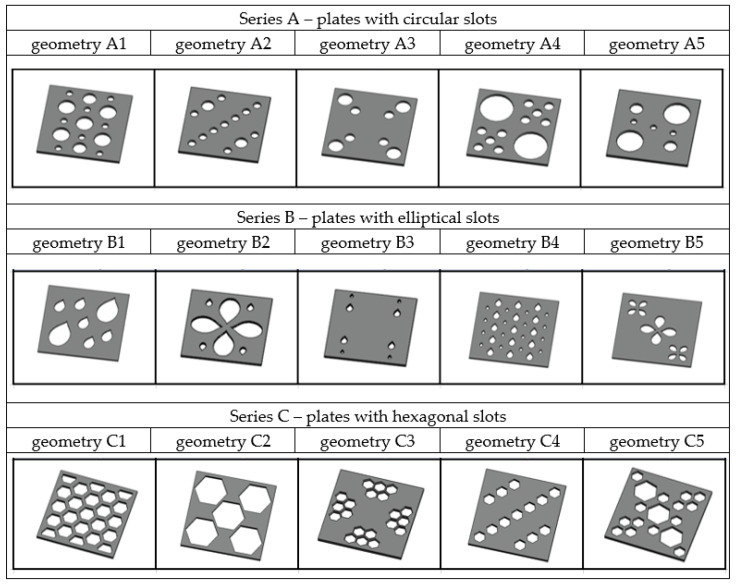

In this study, a numerical dynamic analysis of ceiling raster panels was performed. The analysis was conducted on panels designed with inspiration from bionics. The purpose of the analysis was to enable optimisation of the location of the holes in the designed slabs in order to achieve the preferred dynamic properties, including the natural frequencies of the slabs and an appropriate airflow to avoid the occurrence of resonance. Three different types of panels were used and a total of fifteen panels were designed in terms of their geometry, with circular, elliptical, and hexagonal perforations, made of different materials: polypropylene PP, wood, and aluminium. Then, using the finite element method and ANSYS 2023 R1 software, the airflow over the ceiling panels and their natural frequencies and vibration modes were analysed. The analysis took into account not only the shape of the…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1

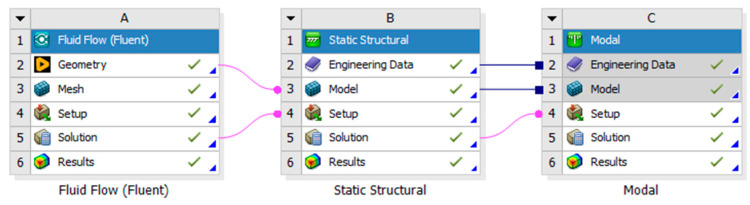

Figure 2

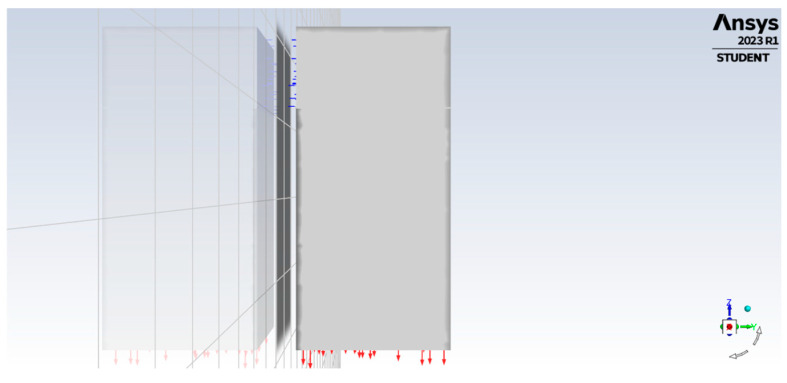

Figure 3

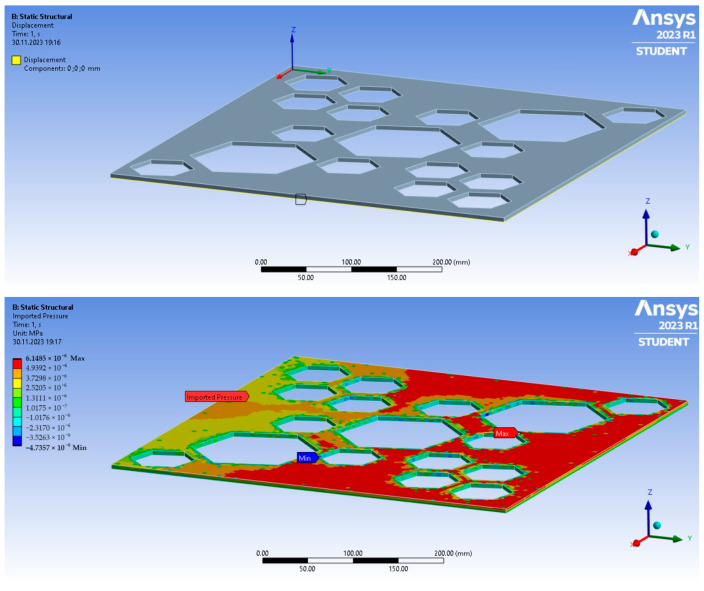

Figure 4

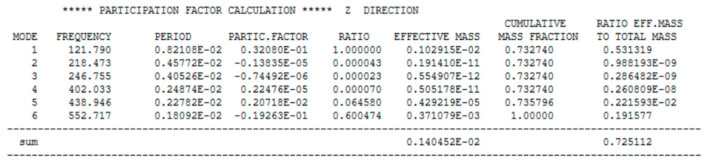

Figure 5

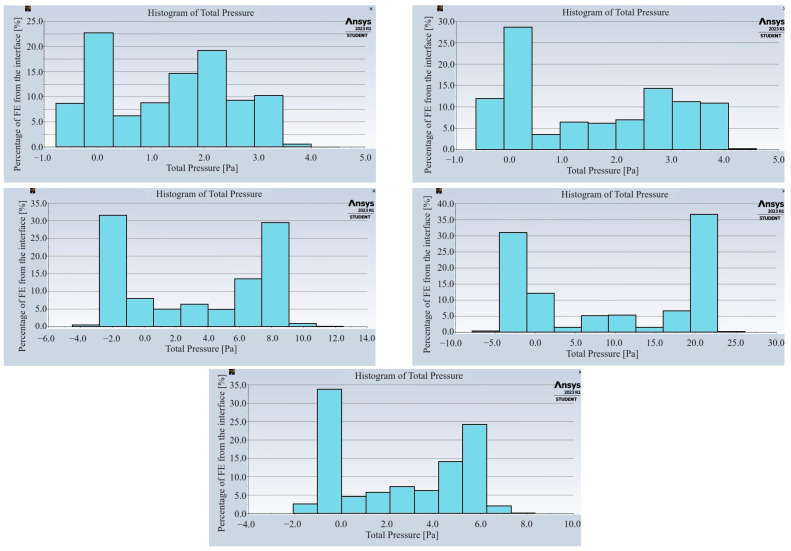

Figure 6
Figure 7
Figure 8

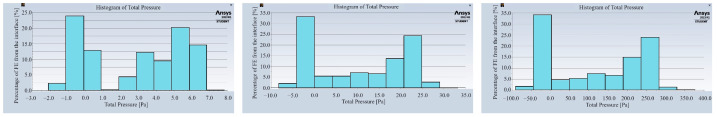

Figure 9

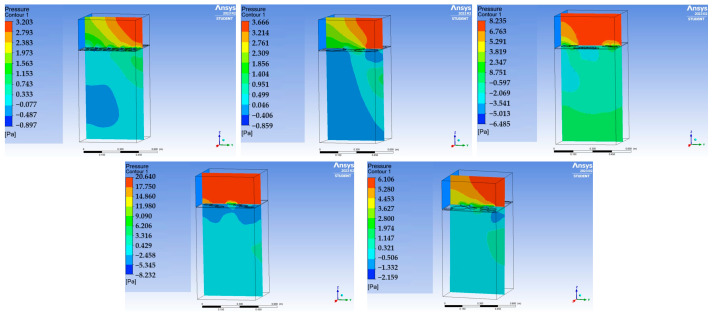

Figure 10
Figure 11
Figure 12

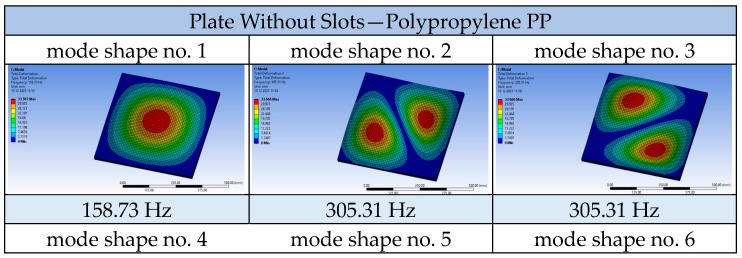

Figure 13

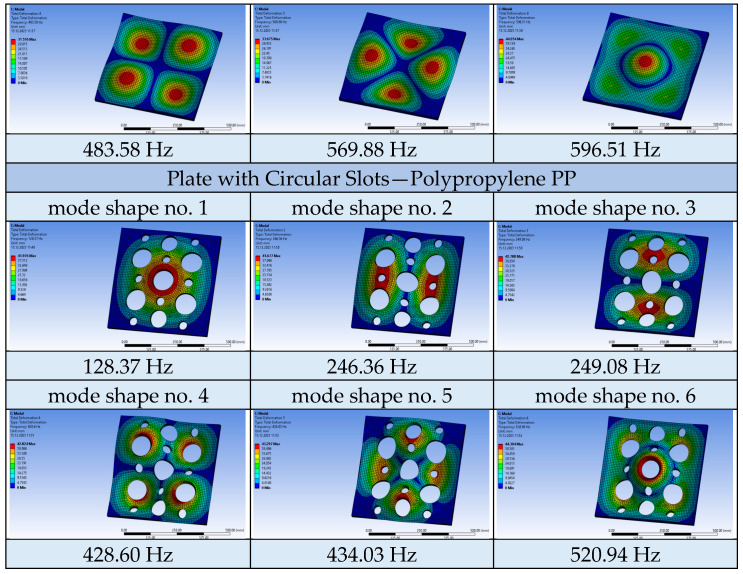

Figure 14

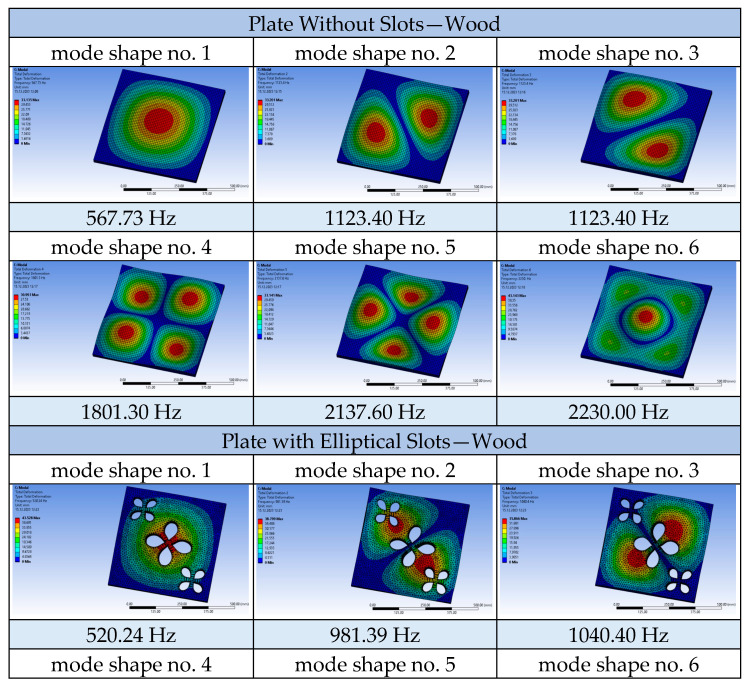

Figure 15

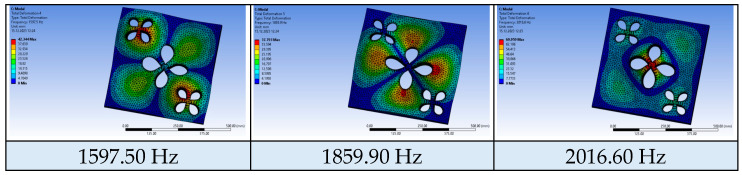

Figure 16

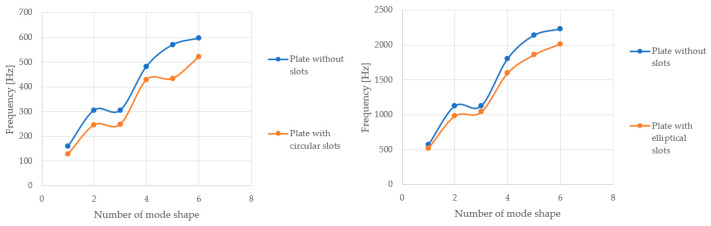

Figure 17
Figure 18

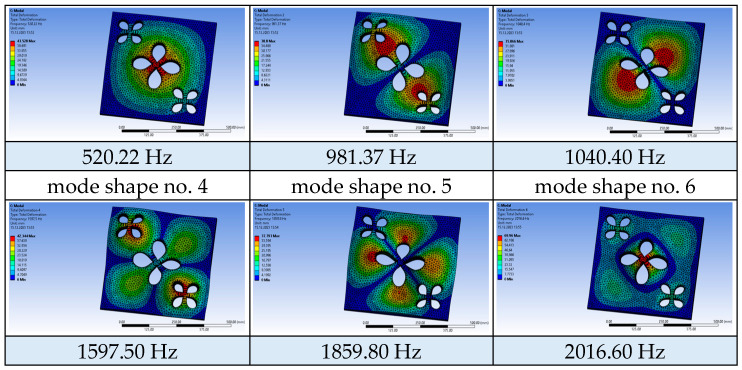

Figure 19
Figure 20

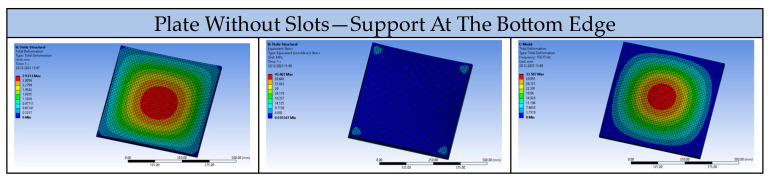

Figure 21
Figure 22
Figure 23

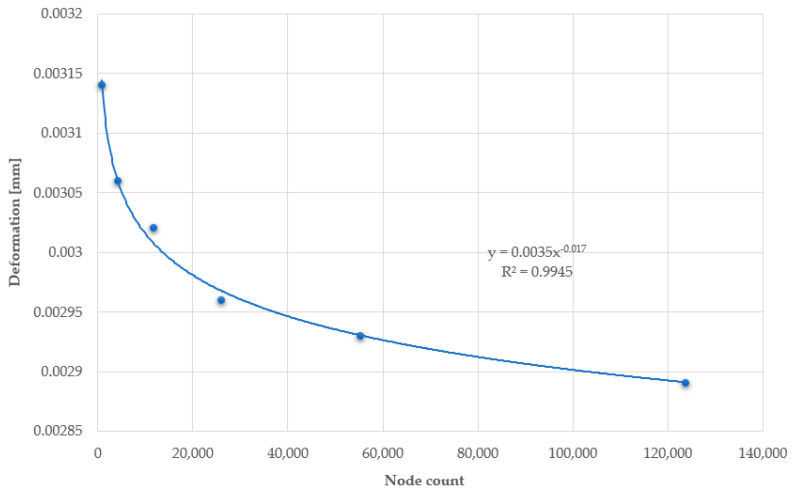

Figure 24
Figure 25

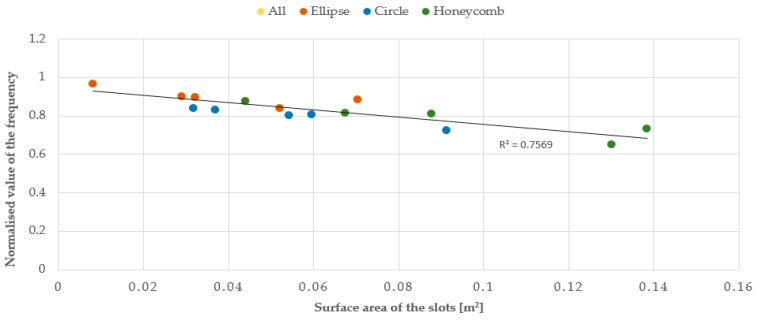

Figure 26
Figure 27
Figure 28
Figure 29

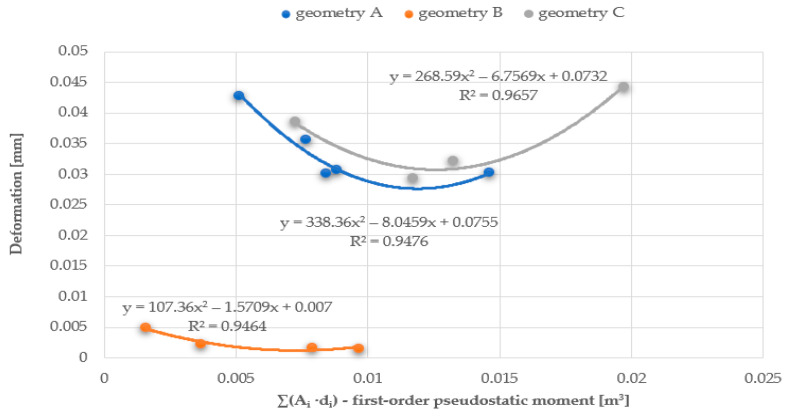

Figure 30

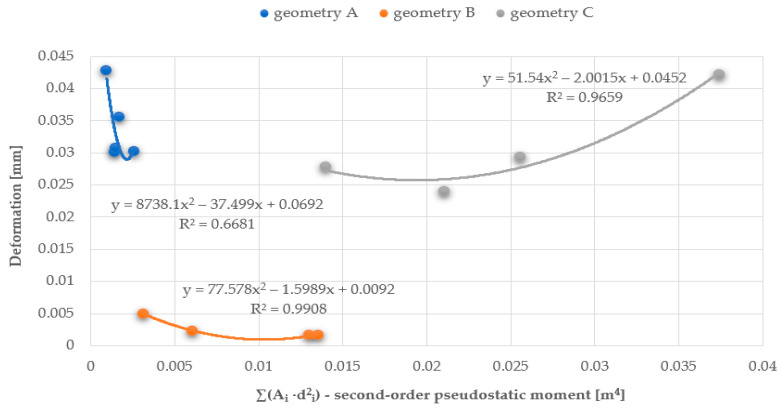

Figure 31
Figure 32
Figure 33
Figure 34Peer Reviews
