Physico-Mechanical Properties and Bonding Performance of Graphene-Added Orthodontic Adhesives

TL;DR

This study evaluates how adding graphene affects the strength and performance of orthodontic adhesives used in dental bonding.

Contribution

The study introduces graphene as an additive to orthodontic adhesives and evaluates its impact on mechanical and bonding properties.

Findings

Graphene addition improved shear bond strength and hardness in some adhesive groups.

Adhesive fracture was the most common failure mode after bonding tests.

Graphene addition did not negatively affect stickiness or degree of conversion of the adhesives.

Abstract

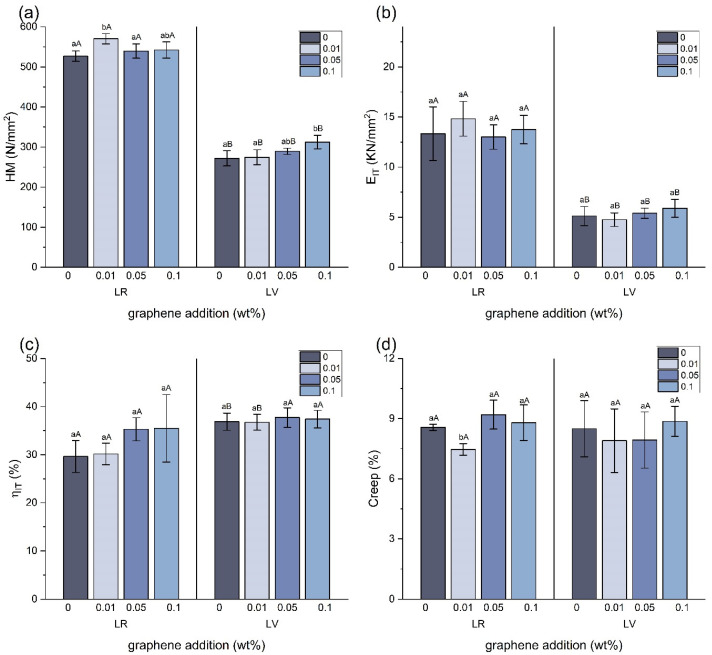

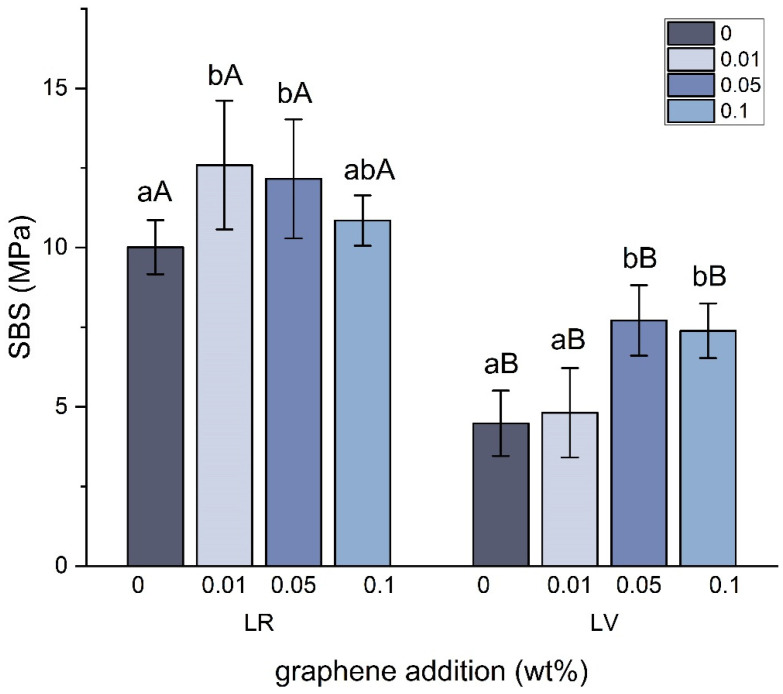

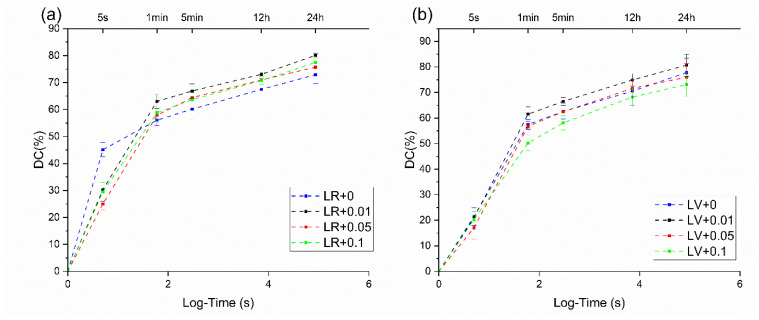

This study aimed to assess the key physico-mechanical properties and bonding performance of orthodontic adhesives with graphene addition for bonding a fixed retainer. Transbond LR (3M) and Transbond LV (3M) with no graphene were set as the control groups. Graphene was added into LR and LV at concentrations of 0.01 wt%, 0.05 wt% and 0.1 wt%. The stickiness of the uncured samples (n = 5) and real-time degree of conversion (DC) of the samples (n = 3) were measured over a 24-h period using Fourier-transform infrared spectroscopy. The hardness and other mechanical parameters, including the Martens hardness (HM), indentation modulus (EIT), elastic index (ηIT) and creep (CIT), were measured (n = 5). To measure the shear bond strength (SBS), adhesive composites were applied using a mold to bond the retainer wire to the lingual surfaces of bovine incisors (n = 10). Fracture modes subsequent to the SBS test were examined under light microscopy. Statistical analysis was conducted using ANOVA and Tukey tests (α = 0.05). In the LR groups, the LR + 0.01 showed the highest SBS (12.6 ± 2.0 MPa) and HM (539.4 ± 17.9 N/mm2), while the LV + 0.05 (7.7 ± 1.1 MPa) had the highest SBS and the LV + 0.1 had the highest HM (312.4 ± 17.8 N/mm2) among the LV groups. The most frequent failure mode observed was adhesive fracture followed by mixed fracture. No statistical difference was found between the graphene-added groups and the control groups in terms of the EIT, ηIT and CIT, except that the CIT was significantly lower in the LR + 0.01 than in the control group. Graphene addition had no significant adverse effect on the stickiness and DC of both LR and LV.

Figures
