Pitfalls When Determining HNA-1 Genotypes and Finding Novel Alleles

TL;DR

This paper shows that current methods for determining HNA-1 genotypes are inaccurate, while long-read nanopore sequencing offers a more precise and comprehensive solution.

Contribution

The study introduces long-read nanopore sequencing as a novel and specific method for FCGR3B genotyping, overcoming limitations of existing techniques.

Findings

Long-read nanopore sequencing accurately detects FCGR3B alleles and dosage-dependent distributions.

Current genotyping methods like TaqMan PCR and PCR-SSP produce ambiguous results due to co-amplification with FCGR3A.

Nanopore sequencing can identify novel and rare FCGR3B variants previously undetected.

Abstract

Genetic variation in the FCGR3B gene is responsible for different variants of human neutrophil antigen 1 (HNA-1). Laboratory techniques currently utilized for routine HNA-1 genotyping, predominantly PCR-sequence-specific primer (PCR-SSP) and PCR-sequence-based typing (PCR-SBT), lack specificity for FCGR3B. This study compares the capabilities and limitations of existing technologies including an in-house TaqMan PCR, a commercial PCR-SSP test, PCR-SBT and multiplex ligation-dependent probe amplification (MLPA) with those of a long-read nanopore sequencing assay. Testing was performed with both related and unrelated Danish samples with different copy numbers and/or rare alleles. Long-read nanopore sequencing was validated by blind testing of ten English samples. The results showed that FCGR3B copy numbers correlate with a dose-dependent distribution of alleles that complicates genotyping by TaqMan PCR, PCR-SSP and PCR-SBT, due to co-amplification of the homologous FCGR3A gene. MLPA can correctly quantify the dose-dependent distribution but not detect novel variants. Long-read nanopore sequencing showed high specificity for FCGR3B and was able to detect dosage-dependent distribution, and rare and novel variants that were previously not described. Current HNA-1 genotyping methods cannot produce unambiguous allele-level results, whereas long-read nanopore sequencing has shown the potential to resolve observed ambiguities, identify new HNA-1 variants and allow definitive allele assignment.

Figures

Full text

1. Introduction

The human neutrophil antigen 1 (HNA-1) is the allotypic form of glycoprotein Fc gamma receptor IIIb (FcγRIIIb, CD16b) expressed on the surface of human neutrophil granulocytes that plays an important role in allo- and autoimmunity [1]. Each neutrophil cell carries between 100,000 and 300,000 copies of FcγRIIIb on the neutrophil membrane, and the density correlates with the number of copies of the coding gene, FCGR3B [2,3]. HNA-1 variants play a central role in known clinical complications, such as neonatal alloimmune neutropenia, autoimmune neutropenia and transfusion-related acute lung injury (TRALI) [4,5]. Known HNA-1 variants are a result of six single nucleotide polymorphisms (SNPs) (c.108G/C, c.114C/T, c.194A/G, c.233C/A, c.244G/A and c.316G/A) in exon 3 of FCGR3B that induce five amino acid (aa) changes: p.Arg36Ser, p.Asn65Ser, p.Ala78Asp, p.Asp82Asn and p.Val106Ile [6,7,8], as shown in Table 1. According to the ISBT nomenclature, there are five FCGR3B alleles (FCGR3B01-05), two subvariants and one FCGR3Bnull* allele [9]. FCGR3B01* encodes HNA-1a and differs in five nucleotides (c.108G, c.144C, c.194A, c.244G and c.316G), from FCGR3B02* (c.108C, c.114T, c.194G, c.244A and c.316A), which encodes HNA-1b. The distribution of the two alleles varies between populations, with a frequency for FCGR3B01* of 58% in Caucasians and 91% in Taiwanese individuals and a frequency for FCGR3B02* of 88% in Caucasians and 54% in Taiwanese individuals [10]. FCGR3B03,* the allele encoding HNA-1c, differs only at one aa (c.233A, p.78Asp) from HNA-1b [11]. This allele is rare in Europeans, where it is reported to be carried by 5% of German individuals and less than 1% of Danish individuals [12,13]. This allele is missing in the Chinese population, but in Africans, its frequency is approximately 22–39% [13,14]. In Europeans, FCGR3B03* is in strong linkage disequilibrium with higher copy numbers (CNs) of the FCGR3B gene, but this is not observed for Africans [15]. Many Europeans are positive for FCGR3B03*, therefore, exhibit three or more HNA-1 antigens [13]. However, more CNs are not only detected among carriers of FCGR3B03*; among Danes, several combinations of FCGR3B01* and FCGR3B02* with higher CNs exist [12]. Gene duplication is the counterpart of gene deletion, and FCGR3Bnull* alleles are more frequently observed in populations with higher CNs [10,16]. FcγIIIb deficiency (completely lacking FCGR3B on both chromosomes) is observed in approximately 1 per 1,000 Europeans and 1 per 100 Africans/African Americans [17,18]. These individuals can be immunized and produce anti-FcγRIIIb isoantibodies [19]. The fourth HNA-1 allele, FCGR3B04,* has one aa different from that of FCGR3B01* (c.316A, p.106Val) but encodes a protein with unaltered reactivity compared to that of FCGR3B01* [20,21]. In Caucasians, the FCGR3B03* was first reported to be segregated with FCGR3B01* [22], but later studies and newer technologies have shown that it is FCGR3B04* that segregates with FCGR3B03* [13]. FCGR3B05* is characterized as an HNA-1b allele with an aa change (c.244G, p.82Asp) and exhibits reduced reactivity with wild-type HNA-1b antibodies [20,21,23]. In addition to the five confirmed alleles, other variants have been observed but not fully confirmed [23,24,25,26].

Routine laboratory testing of HNA-1 alleles is inferred from the allelic genotype according to the current International Society of Blood Transfusion (ISBT) HNA nomenclature [9]. The ISBT nomenclature defines six SNPs all located in exon 3 of the FCGR3B gene that correlate to five defined alleles (FCGR3B01-05). The missense mutations responsible for the confirmed alleles are the following SNPs: c.108G/C (rs200688856), c.114C/T (rs527909462), c.194A/G (rs448740), c.233C/A (rs5030738), c.244G/A (rs147574249) and c.316G/A (rs2290834), as shown in Table 1. Polymerase chain reaction with sequence-specific primers (PCR-SSP) has been the most frequently used approach [14,27]; however, the high degree of homology between FCGR3B and another FcγR gene, FCGR3A, complicates genotyping of FCGR3B alleles. The complexity of the FCGR2/3 locus is further increased by recurrent events of nonallelic homologous recombination, which have given rise to both copy number variation (CNV) and chimeric genes [28,29]. Five copy number regions (CNRs), subjected to either deletion or duplication, have been defined in the FCGR2/3 locus [3,15]. The most common are CNR1, which encompasses FCGR2C (CD32c) and FCGR3B (CD16b) and is in most cases coupled to higher and lower CNs of FCGR3B. CNs in FCGR3B are subject to ethnic variation and vary between zero and seven copies. Genotyping is further complicated with CNVs not only in FCGR3B but also in FCGR3A, which can vary from 0–4 copies [3]. The CNV of FCGR3B is a risk factor for several diseases, including glomerulonephritis, systemic lupus erythematosus, rheumatoid arthritis, sarcoidosis and autoimmune neutropenia [12,30,31,32,33], where the associations are connected to fewer copies or the absence of copies.

The CNV of FCGR3B has been reported to influence receptor density at the cell surface [2,34,35], but the dosages of the different HNA-1 alleles as a result of CNV are rarely explored. Autoimmune neutropenia and antibody-associated systemic vasculitis are caused by reduced phagocytosis and are associated with HNA-1a [36,37] and IgG antibody specificity [38]. Systemic lupus erythematosus is known to be associated with increased phagocytosis, which is linked to the HNA-1b genetic variant [38,39,40]. For autoimmune neutropenia, we previously combined CNs and HNA-1 alleles and found that hemizygous HNA-1a was a disease risk [12]. Combining knowledge of CNs, hence the receptor density of the surface, and the types of HNA-1 alleles might help in understanding the role of FcγIIIb in different diseases.

Approximately 12.2% of Danish Blood Donors have CNs alternating from two, 0.2% are nullizygous, 3.8% are hemizygous, 87.8% have two copies, and 8.2% have three or more copies [41]. We previously found one nullizygous individual in the Danish cohort (0.2%), confirming its presence in the Danish population, and the frequency is not expected to change from that of other European populations, which is estimated to be 1/1000 [17]. We also observed that among all tested patients, a higher CN of FCGR3B was always followed by a higher CN of FCGR2C, as expected for CNR1 [42]. Danish CN frequencies reflect other European studies where the frequency of <2 copies was found to be approximately 6.2–6.6% and >2 copies 9.9–10.9%. However, Europeans seem to be the population with the least CNV, and the frequency in Asians ranges from 6.3–10.2% for <2 copies and 13.9–34.4% for >2 copies [15,43,44], while in Africans <2 copies range from 4.7–18.2% and 6.6–25.8% for >2 copies [15,43,44,45]. The highest frequencies seem to be among South Americans, where the frequency ranges from 4.2–39.3% for <2 copies and 14.3–48.4% for >2 copies [3,28,46]. CN >4 has been reported only among South Americans [3,28,46].

In this article, we investigated and compared how different HNA-1 genotyping methods perform in patients with novel (unreported) or low-frequency variants and with different CNs of FCGR3B. This study was conducted to compare the capabilities and limitations of existing technologies with those of a long-read nanopore sequencing method for HNA-1 genotyping. The capabilities and limitations of five different HNA-1 genotyping tests were assessed, including an in-house TaqMan PCR, a commercial PCR-SSP test, PCR-sequence-based typing (PCR-SBT), multiplex ligation-dependent probe amplification (MLPA) and a new assay developed for long-read nanopore sequencing.

2. Results

2.1. In-House TaqMan PCR Genotyping Data

Five different methods for the detection of HNA-1 variants were compared to test for advances and limitations; a comparison is shown in Table 2. The in-house TaqMan PCR assays were designed to investigate five SNPs (c.114, c.194, c.233, c.244 and c.316) [47]. All the assays also targeted FCGR3A. For samples with FCGR3B deficiency, the genotyping results are displayed as the homozygosity for the FCGR3A nucleotides. For hemizygotes, one nucleotide from FCGR3B was measured, while FCGR3A appeared as the secondary allele. Genotyping of the five SNPs was successful for all samples with two copies, where the specificity for FCGR3A did not influence the result.

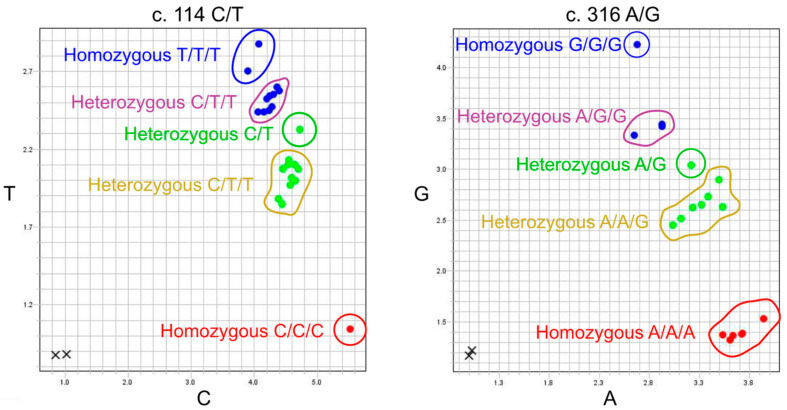

In samples with three or more copies, the two-dimensional representation of the TaqMan signal highlighted limitations of the assay and revealed the formation of groups distant from the groups with two copies for c.114 and c.316. The amplification plots are shown in Figure 1. The plots show formation of two intermediate clusters (marked with purple and yellow) confirmed to belong to individuals being heterozygotes with three copies (AAB or ABB) in the spaces between the two homozygous clusters (AA/AAA or BB/BBB) (marked with blue and red) and the heterozygote (AB) cluster with two copies (marked with green). There were no observed differences in the homozygous clusters regarding having two or three identical nucleotides. However, there is a risk of incorrect HNA-1 allele assignment resulting in the reporting of only two of the three copies. The in-house TaqMan PCR assay identified rare HNA-1 variants but only variants produced by the five already established SNPs, and it was not possible to determine whether these variants were a result of CNV or specificity for FCGR3A without further investigation.

2.2. Commercial PCR-SSP Genotyping Dats

The commercial PCR-SSP targeted two of the known SNPs, namely, c.194A (FCGR3B01*), c.233C (FCGR3B02*) and c.233A (FCGR3B03*), as shown in Table 2. In samples with hemizygosity, the results incorrectly show homozygosity, which leads to problems in family studies, as shown in Table 3, where a FCGR3BNull* allele is segregated from a mother to her two children. The commercial PCR-SSP genotyped the mother and child 1 as homozygous for FCGR3B01,* while child 2 was genotyped as homozygous for FCGR3B02*, complicating the line of succession. Copy numbers were determined with real-time quantitative PCR (qPCR), and they were in accordance with copy numbers obtained with MLPA. The HNA-1 genotyping performed with in-house TaqMan PCR and MLPA were also in accordance.

In samples with three copies, three different alleles (e.g., FCGR3B02*, *03, 04) were identified, but samples with multiple copies of the same allele could not be quantified (e.g., FCGR3B01, *02, *02). The kit was also unable to identify novel or rare variants.

2.3. Multiplex Ligation-Dependent Probe Amplification Data

MLPA was designed by the producent to detect CNs, and the assay contains six probes for CN detection in FCGR3B and four SNPs for HNA-1 genotyping (c.114, c.194, c.233 and c.316); see Table 2. Dosage quotient analysis was utilized to quantify the exact ratio of each nucleotide for the targeted SNPs. This approach was especially beneficial for samples with three or more copies, but because the MLPA design only genotyped the alleles of four SNPs, the identification of rare or novel variants was difficult/not possible. The CNs obtained with MLPA for both FCGR3A and FCGR3B were in full agreement with the ones obtained with qPCR, as also previously seen in [12].

2.4. PCR-SBT Data

The tested PCR-SBT assay was a previously published assay [48]. Neither this assay nor the assay used by National Health Service Blood and Transplant (NHSBT) in Bristol, United Kingdom was FCGR3B specific due to co-amplification of FCGR3A, as shown in Table S1. Three replicate samples with three copies of FCGR3B showed significant inconsistencies, when tested with the PCR-SBT assay from [48], as shown in Table 4 and Table S2. The three samples were confirmed to have three copies with qPCR. Two of them which where genotyped as FCGR3B01/*01/02 and FCGR3B01/*02/02 by MLPA were both wrongly genotyped to be FCGR3B02/Null by PCR-SBT. The third sample genotyped as FCGR3B02/*03/04 by MLPA and long-read sequencing, was genotyped as FCGR3B04/Null with PCR-SBT. In the case of c.114 and c.244, they can both correctly be determined as heterozygous, but it is not possible to determine the correct dosage quotient for the nucleotides. For c.194 and c.316, the problem is more severe because the test fails to detect one of the nucleotides, and therefore, presents the SNP as homozygous. No problems were observed for c.233 except the missing of the correct dosage quotient. In principle, this method can be used to find rare variants or novel alleles in the targeted region of FCGR3B because it identifies every SNP located in exon 3 in the sequence (526 bp), but the problems with obtaining specificity in this area complicate the use of this method, as it is not possible to definitively assign only to the target gene.

2.5. Long-Read Nanopore Sequencing Data

To overcome the limitations of TaqMan PCR, PCR-SSP and PCR-SBT, a long-read product targeting all five exons and flanking introns of FCGR3B was designed and sequenced with third-generation sequencing technology (Oxford Nanopore Technologies, Oxford, UK). The primers used were designed to cover the coding part of the FCGR3B gene and specifically target FCGR3B. Initially, 16 Danish samples with CNs ranging from one to four with rare variants or suspected novel variants were sequenced. To validate the long-read sequencing method, we used an additional validation cohort obtained from the NHSBT. The validation cohort consisted of ten samples previously geno- and phenotyped at the NHSBT containing samples with CNs ranging from zero to three. The ten British samples were analyzed in a blinded experiment at the Department of Clinical Immunology, Aalborg University Hospital. The genotyping results with long-read sequencing of 23 out of 26 samples are shown in Table 5, and in more detail in Tables S3 and S4. The specificity for FCGR3B was assessed at five SNPs located in exons 4 and 5 that differed between the FCGR3A and FCGR3B sequences (rs71632959, rs71632958, rs200215055, rs758550229 and rs374752953 in FCGR3B), including the most important difference between the two genes; a C to T change at c.733 (old nomenclature) in FCGR3B that creates a stop codon. The assay correctly determined all known FCGR3B alleles including the FCGR3B01*, *02, *03, *04 and 05 and was able to genotype samples with zero to four copies; see Table 5. The allelic distribution in samples with three or four copies indicated the possibility of quantification of CNs based on the nucleotide ratio with a ~1:3 (33%:66%) ratio in samples with three copies and a ~1:4 (25%:75%) ratio in samples with four copies; see Table 5. The quantified CNs were consistent with CNs determined with MLPA and qPCR in all tested samples. One hemizygote sample (BRI_008) was tested, and it appeared to be homozygote despite showing lower percentages. In four samples (AAL_004, AAL_007, AAL_009 and AAL_010), heterozygosity for a synonymous mutation (rs368410676) in exon 3 at c.297G/T was observed; see Table S3. This variant was linked to the FCGR3B05 allele. We found full concordance with previous results from the NHSBT, including a novel allele. In three out of the 26 samples (AAL_003, AAL_013 and BRI_007), two novel alleles were identified, which will be presented in the next section.

2.6. Novel Alleles

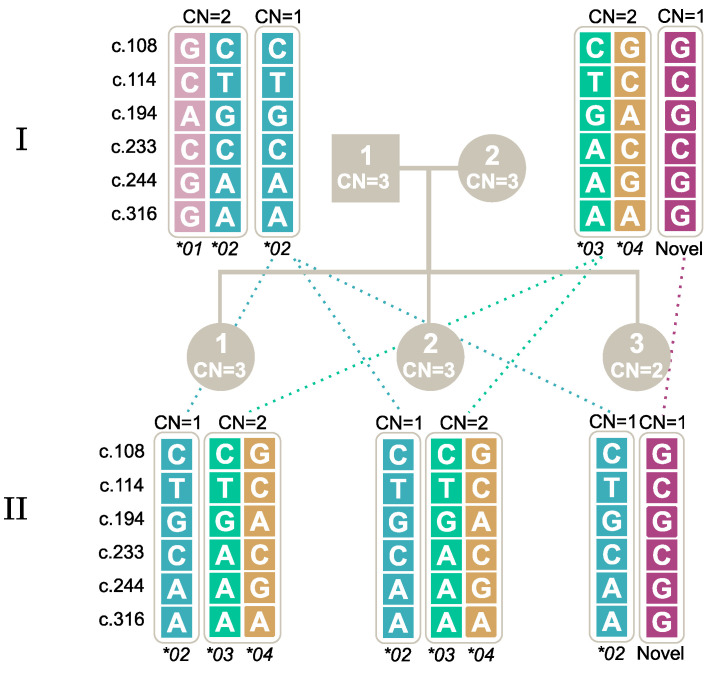

Two novel alleles not previously described were identified in this study; see Table 6. The first allele was found in a Danish individual (AAL_003) and had the genotype combination of c.108G, c.114C, c.194G, c.233C, c.244A and c.316A, which is identical to the known nucleotide composition of FCGR3A except at c.244, as shown in Table 7. Investigations with all described techniques, including long-read sequencing, confirmed the specificity of FCGR3B. Additionally, the family study confirmed the inheritance of the novel allele from the mother (AAL_003) to the daughter (AAL_013), as seen in Figure 2.

The second novel allele was identified in a hemizygote sample from an English blood donor (NHSBT, BRI_007), which was identical to the FCGR3A nucleotide composition at all six SNPs: c.108G, c.114C, c.194G, c.233C, c.244G and c.316A, but had an additional SNP at c.197C; see Table 6 and Table 7. Phenotyping with both human polyclonal and murine monoclonal antibodies at NHSBT showed that the donor neutrophils expressed FCGR3B but did not show HNA-1a or HNA-1b specificity, as seen in Figure 3 [49]. The results were reproduced in the testing of a second, subsequent donation sample and confirmed by an external reference as described in [49]. The genotype was then retested via long-read sequencing in a blinded experiment as one of ten samples at the Department of Clinical Immunology, Aalborg University Hospital. Using real-time qPCR, the CN of FCGR3B in this sample was determined to be one, and the CN of FCGR3A was determined to be two.

2.7. Segregation of Alleles through Family Studies

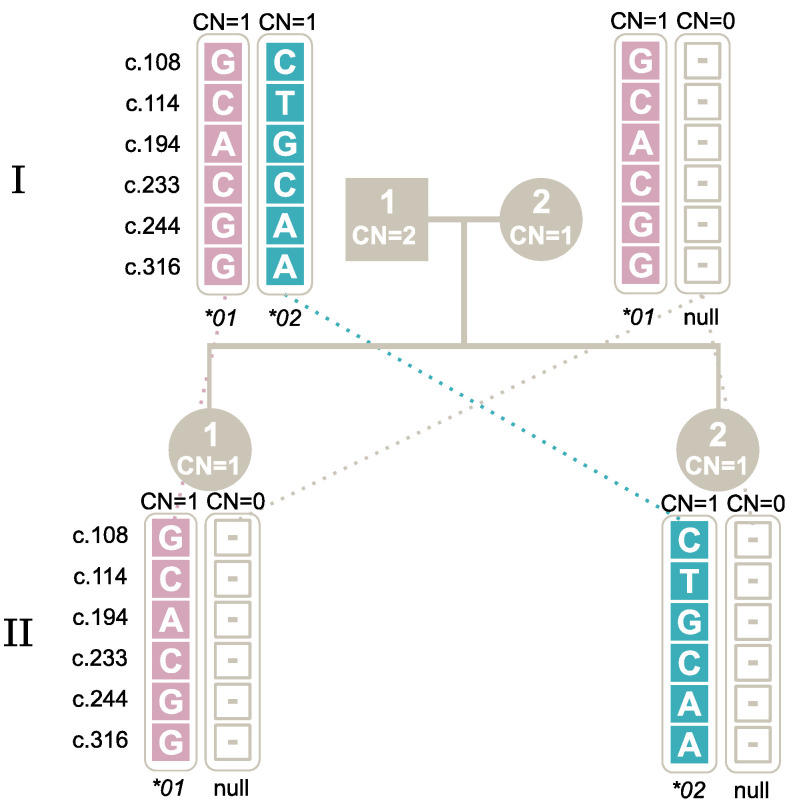

To understand the segregation of rare and numerous FCGR3B alleles among Danes, four family studies were carried out, and the different described techniques were applied for HNA-1 genotyping. In Study I, the segregation of a null allele was investigated, as shown in Figure 4, where the null allele was inherited from the mother to both offspring. This family is the one also presented in Table 3. The two offspring inherited different alleles from the father, resulting in the genotypes FCGR3B01/Null and FCGR3B02/Null. We found that when using a simple technique such as the PCR-SSP commercial kit, which tests only for the presence of FCGR3B01*, FCGR3B02* and FCGR3B03*, the line of inheritance did not match. The mother who was FCGR3B01/FCGR3BNull was wrongfully typed as an FCGR3B01* homozygote, and therefore, was not able to be the mother of one of her children who was typed as an FCGR3B02* homozygote (FCGR3B02/FCGR3BNull).

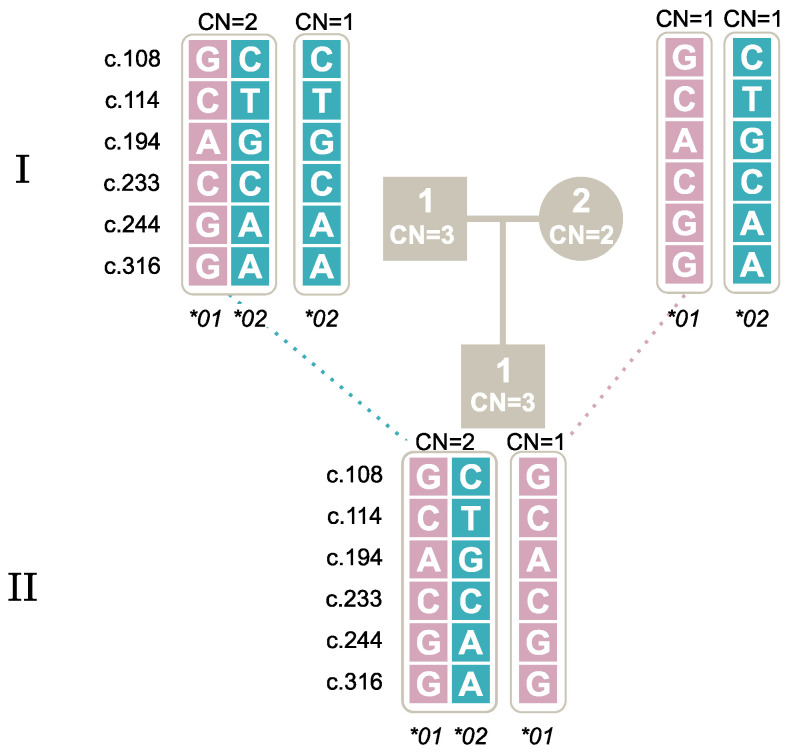

Study II investigated which alleles were inherited together in individuals with multiple copies of FCGR3B01* and FCGR3B02*, shown in Figure 5, where the father had three FCGR3B copies, one copy of FCGR3B01* and two copies of FCGR3B02*. Genotyping of the offspring revealed that one copy of FCGR3B01* was inherited together with one copy of FCGR3B02,* suggesting that they are located on the same chromosome.

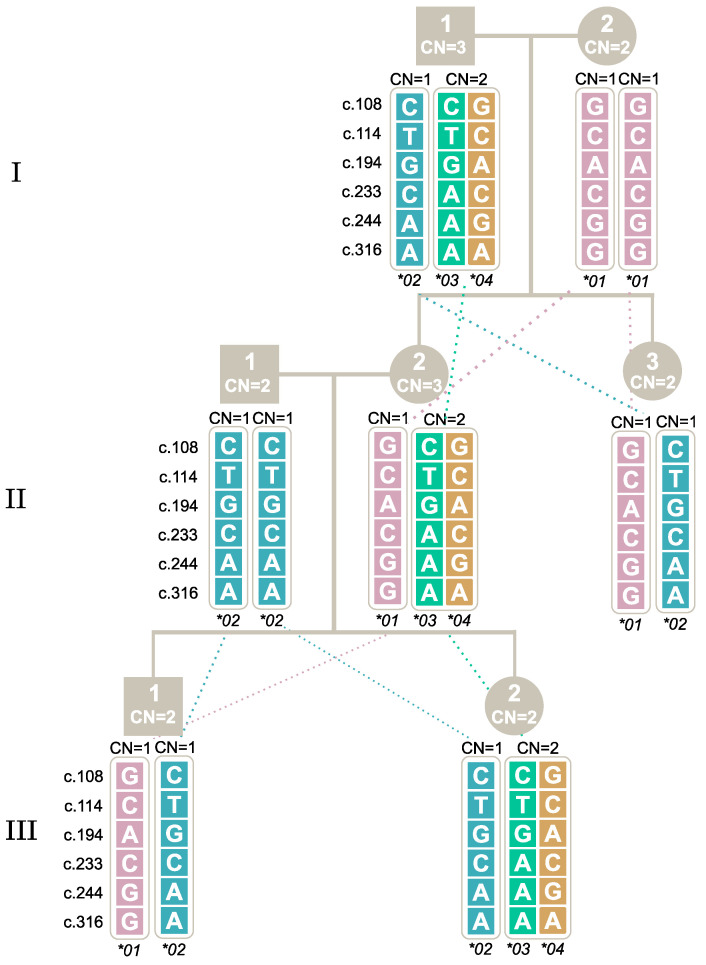

Similarly, in Study III, three generations were investigated to determine how the FCGR3B03* and FCGR3B04* alleles are linked and inherited together, as shown Figure 6. Previous studies [13] have shown that the FCGR3B03* and FCGR3B04* alleles are segregated together, and we also confirmed this to be the case among Danes.

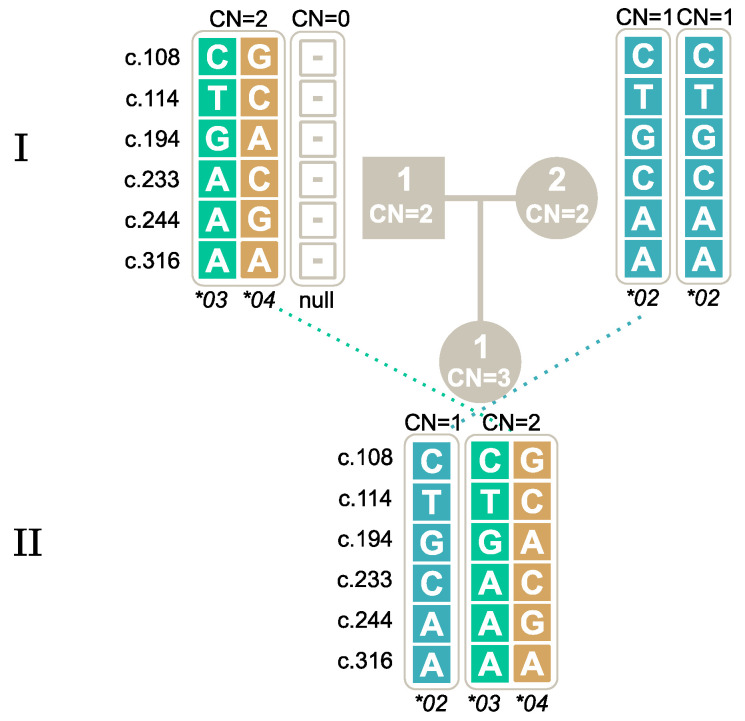

Study IV also confirmed the link between FCGR3B03* and FCGR3B04* and illustrated how two individuals with two copies can have of an offspring with three copies due to two alleles on the same chromosome and no alleles on the other chromosome; see Figure 7.

3. Discussion

Accurate determination of FCGR3B alleles is important for the investigation of TRALI, suspicion of neonatal alloimmune neutropenia and confirmation of autoimmune neutropenia during infancy. In this study, five different methods for genotyping FCGR3B allelic genotypes were compared. Genotyping of the FCGR3B gene is complicated by altered CNs and high homology to the FCGR3A gene. The possibility of lower or greater numbers of alleles results in a dosage-dependent distribution, which can lead to ambiguous results when genotyping HNA-1 using TaqMan PCR, PCR-SSP or PCR-SBT assays. TaqMan PCR, our own published in-house assay [47], and a commercial PCR-SSP kit (BAG Diagnostics, Lich, DE, Germany) were not specific for FCGR3B because they coamplified the homologous FCGR3A gene. As a result, all null alleles are assigned when only the known FCGR3A sequence is observed. The TaqMan PCR and PCR-SSP assays proved to be robust in identifying FCGR3B variants in samples with one or two copies. TaqMan PCR can indicate the presence of three copies, but not provide full genotypes, while it is unsuitable for samples with more than three copies. When testing samples with higher CNs, c.114 and c.316 showed five clusters instead of three clusters, suggesting that the TaqMan PCR assay has the potential to identify CN alterations. However, this grouping is concentration dependent, and due to obscurities, the higher CNs are reflected in the analysis of the other SNPs, with a risk of interpretation of an incorrect genotype, indicating that this method cannot be used in isolation. As the assays are not specific for FCGR3B but also target FCGR3A, one would expect that different CNs of FCGR3A could influence the results in the same way as different CNs do for FCGR3B. CNV in FCGR3A is, however, not as frequent as that in FCGR3B, and 94% of Europeans have been found to have two copies of FCGR3A [15].

We also tested a commercial PCR-SSP kit that tested for only two SNPs, c.194 and c.233, in three reactions (c.194A, c.233C, c.233A); see example in Table 3. This kit can both be used for real-time PCR and gel electrophoresis and provides a positive or negative result. The assay is suitable for high-throughput testing and works for the most frequent variants, such as FCGR3B01*, FCGR3B02* and FCGR3B03*, but is not able to identify rare variants or novel alleles or provide a dosage-dependent result that would indicate CN alterations. However, it can identify three unique variants (e.g., FCGR3B01*, FCGR3B02* and FCGR3B03*) present in the same sample.

The MLPA is designed to test for variants and CN alterations in the whole FCGR2/3 locus, but for FCGR3B, it especially investigates six CN probes and four SNPs (c.114, c.194, c.233 and c.316). The amplification products were analyzed with GeneScan, so it was possible to obtain a dosage-dependent quantification of the amplicons. Therefore, this method makes it possible to estimate the number of each nucleotide per SNP, which is especially beneficial for the correct determination of samples with higher CNs. As with the two PCR-SSP assays, this method cannot find novel variants outside of the investigated SNPs. A clinical setting MLPA will be sufficient for most cases. Only in rare cases of novel alleles based on novel SNPs not included in the assay, investigation with other techniques can be relevant.

Investigation outside of the six SNPs defined in the ISBT nomenclature requires sequencing more of the gene. PCR-SBT could be a suitable solution to this, and we tested a published assay targeting exon 3 with a product of 526 bp [48]. This assay was not only specific for FCGR3B but also targeted FCGR3A, which complicated the genotyping of especially higher CNs. Similar to PCR-SSP, PCR-SBT is a two-dimensional analysis and has complications in regard to dosage dependence. Because of the high homology between FCGR3B and FCGR3A, we were not able to design a PCR-SBT assay that is gene specific. The in-house PCR-SBT used by NHSBT is also not FCGR3B specific.

Long-read sequencing was performed with Nanopore technology, and the results were specific for FCGR3B. This method provides dosage-dependent results, which makes it possible to interpret CNs and multiple variants from the results. The method also makes it possible to identify novel SNPs (like c.197A/C in BRI_007) outside of the defined six SNPs in the nomenclature. The only limitation of this method is the ability to detect hemizygosity, as shown in Table 5 and Table 6.

In summary, for most samples with one or two copies, the use of TaqMan PCR and PCR-SSP assays is sufficient, and this is by far the cheapest solution with the simplest throughout. However, we recommend always testing for copy numbers of FCGR3B with qPCR, or alternatively MLPA, to identify samples with three or more copies. For special cases that demand further investigation of novel SNPs in FCGR3B, different from the six already defined in the ISBT nomenclature, the only functioning methods were long-read nanopore sequencing. Like MLPA, this method is more costly than the PCR-based methods, but also provides more knowledge. In general, in a clinical setting, the PCR-based methods are sufficient for most samples, but in special cases, it can be necessary to carry out further testing or have the samples tested at a laboratory with a more advanced setup.

The family studies identified an allele that did not match any of the alleles described in the ISBT nomenclature. The allele included c.108G, c.114C, c.194G, c.233C, c.244A and c.316A, which means that it was identical to FCGR3A except at c.244. The five SNPs in exons 4 and 5, which differ between the FCGR3A and FCGR3B sequences (rs71632959, rs71632958, rs200215055, rs758550229 and rs374752953 in FCGR3B), including the stop codon at c.733 (old nomenclature), confirmed that this was indeed an FCGR3B allele; the high resemblance to FCGR3A made it difficult to interpret with the PCR-SSP techniques that also had specificity for FCGR3A, and since c.244 was not included in the MLPA assay, this method also failed to correctly genotype this sample. The complexity of the testing did not decrease because the first tested sample (AAL_003) had three copies of FCGR3B, the other two being FCGR3B03* and FCGR3B04.* We therefore tested segregation to the next generation and found that two offspring inherited FCGR3B03* and FCGR3B04*, while the last (AAL_013) inherited the same new allele. The similarity to the allelic composition of FCGR3A provides difficulties in genotyping this allele and could explain why it has not been previously described.

A similar case was found in a British sample (BRI_007) originally genotyped at NHSBT in the United Kingdom, and the findings were replicated at two other laboratories, including our laboratory. This sample was identical to that of FCGR3A at all six SNPs, c.108G, c.114C, c.194G, c.233C, c.244G and c.316A, but had a novel mutation at c.197 resulting in the substitution of a Leu with an Arg at p.66. As for the Danish sample, it was confirmed with the five SNPs in exons 4 and 5 that it was indeed an FCGR3B allele. Phenotyping studies revealed that CD16b was expressed on the neutrophils of this donor, but cells were negative for HNA-1a and HNA-1b. These findings are consistent with a recently reported study in which four key aa’s that differed between the two variants (1a and 1b) were altered in transfected cells [50]. This study showed that the epitope formation of HNA-1a only depended on p.Asn65, while the formation of HNA-1b depended on p.Ser36 and/or p.Asn82. Based on these findings, the British allele (BRI_007) containing p.Ser65, p.Arg36 and p.Asp82 has neither HNA-1a nor HNA-1b epitopes, while the novel Danish allele (AAL_003 and AAL_013) containing p.Ser65, p.Arg36 and p.Asn82 could have an HNA-1b epitope. Phenotyping was not performed for the novel Danish allele, as it was found in combination with either FCGR3B02* or FCGR3B03*, both of which have p.Asn82.

The two novel variants were not identified with current, routine testing. The potential consequence of this is that they and others like them could have been wrongly interpreted in the past and that these types of variants exist in other patients and donors but are overlooked with the current reliance on inferred expression based on the current genotyping method. For definite allele assignment, we therefore recommend long-read nanopore sequencing.

4. Methods

4.1. Study Cohort

Thirty-eight samples from patients and family members who had previously been genotyped for HNA-1 for primary autoimmune neutropenia investigation at the Department of Clinical Immunology, Aalborg University Hospital, Denmark, were selected for this study. The Department of Clinical Immunology is the national center for diagnostic neutrophil testing in Denmark and was the center for sample collection. DNA was extracted from EDTA-stabilized whole blood or buccal swabs using the Maxwell RSC Blood DNA Kit or the Maxwell RSC Buccal Swab Kit on the Maxwell RSC instrument according to the manufacturer’s protocol (Promega, Madison, WI, USA). Written and oral informed consent from the participants was obtained according to the Danish Health Care Act and in accordance with the Declaration of Helsinki. The study was approved by the North Denmark Region Committee on Health Research Ethics (approval number: N-20170026).

4.2. Validation Cohort

Ten DNA samples from consented English blood donors who were originally geno- and phenotyped at NHSBT in Bristol, United Kingdom, were collected and tested at the laboratory at the Department of Clinical Immunology, Aalborg University Hospital, Denmark, as a blinded experiment for method verification. DNA was extracted at NHSBT either automated using the MagnaPure Nucleic Acid Isolation Kit I on a MagnaPure Compact (Roche, Basel, CH) or manual with the Puregene Blood Kit (Qiagen, Hilden, DE, Germany) according to each manufacturer’s protocol. Granulocytes were isolated, fixed and phenotyped for HNA-1 (CD16b) expression following existing in-house protocols (monoclonal 3G8, in-house polyclonal GI10, GI11) at NHSBT. Additional antigen-specific phenotyping was performed on selected samples using human polyclonal antibody reference serum for HNA-1a (NIBSC reference and in-house GI21, GI23) and HNA-1b (in-house GI2 and GI17). Genotyping for HNA-1 was performed by PCR-SBT following a validated in-house protocol optimized from the method described by Culliford et al. [51], which provides a 594 bp amplicon covering exon 3; see primers in Table S1.

4.3. In-House TaqMan PCR and Commercial PCR-SSP Testing

Genotyping of FCGR3B was performed with an in-house TaqMan PCR genotyping assay targeting five SNPs (rs527909462, rs448740, rs5030738, rs147574249 and rs2290834) previously published in [47] and shown in Table S5. The specificity of the primers was tested with Ensembl [52]. DNA amplification was carried out in a 20 µL volume containing 20 ng of DNA, 0.9 µM primers and 0.2 µM probes (final concentrations) amplified in 96-well plates. PCRs were performed with the following protocol on a Proflex (Applied Biosystems, Waltham, MA, USA): 95 °C for 10 min, followed by 40 cycles of 95 °C for 15 s and 60 °C for 1 min. Subsequently, endpoint fluorescence was determined using QuantStudio 12K Flex software v1.4 on a QuantStudio 12K Flex platform (Applied Biosystems, Waltham, MA, USA). The in-house FCGR3B analysis is routinely performed on patients in Denmark and is ISO accredited (DANAK, DK) and validated continuously in the International Granulocyte Immunology Workshops (IGIW) and INSTAND eV. PCR-SSP genotyping was performed with the commercial ERY Q^®^ HNA Kit from BAG Diagnostics according to the manufacturer’s protocol (BAG Diagnostics, Lich, DE).

4.4. Real-Time qPCR CN Investigation

CNs of FCGR3A and FCGR3B were characterized using qPCR TaqMan Copy Number Assays, FCGR3A (Hs00139300_cn) and FCGR3B (Hs04211858_cn), and the TaqMan Copy Number Reference Assay, RNase P, according to the manufacturers’ protocol (Applied Biosystems, Waltham, MA, USA) [41].

4.5. Multiplex Ligation-Dependent Probe Amplification Testing

MLPA was performed using the SALSA MLPA probe mixes P110-C1 FCGR mix 1 and P111-C1 FCGR mix 2, according to the manufacturer’s protocol (MRC-Holland, Amsterdam, The Netherlands) as previously described [12].

4.6. PCR-SBT Analysis

Selected samples were also subjected to PCR-SBT which was performed with primers previously published by J. He et al. [48] targeting exon 3 and providing a 526 bp product; see Table S1. Sequencing was performed using a BigDyeDirect Cycle Sequencing Kit according to the manufacturer’s protocol (Thermo Fisher Scientific, Waltham, MA, USA) on a 3500 Genetic Analyzer (Applied Biosystems, Waltham, MA, USA). For more details of the PCR-SBT typing; see Table S2.

4.7. Long-Read Nanopore Sequencing

Primers for FCGR3B-specific amplification, shown in Table S6, were designed with CLC Main Workbench 21 (Qiagen, Hilden, DE), and Ensembl [52] was used to confirm that the primers did not target FCGR3A. The amplicon (8262 bp) included all five exons and flanking intron in FCGR3B. Each 20 µL PCR reaction consisted of 200 ng of template DNA, 10 µL of Long-Range PCR: GoTaq^®^ Long PCR Master Mix (Promega, Madison, WI, USA) and 1 µL of primer mix (final conc. 0.5 mM of each). PCR was performed on a Proflex™ (Applied Biosystems, USA) with the following conditions: 95 °C for 2 min, 35 cycles of 94 °C for 30 s, 53 °C for 30 s and 65 °C for 9 min, and one cycle of 72 °C for 10 min. PCR products were visualized via gel electrophoresis and quantified with a Qubit FlexFluorometer (Thermo Fisher Scientific, Waltham, MA, USA) using a Broad Range Kit (Thermo Fisher Scientific, Waltham, MA, USA). Barcoding and sequencing were performed with the Rapid Sequencing gDNA-Barcoding protocol (SQK-RBK110.96) (version RBK_9126_v110_revO_24Mar2021) (Oxford Nanopore, Oxford, UK). Two hundred nanograms of amplification product was diluted to a volume of 7.5 µL, and 2.5 µL of barcoding mix was added according to the manufacturer’s protocol (Oxford Nanopore, Oxford, UK). The samples were cleaned with AMPure XP (Beckman Coulter, Brea, CA, USA) beads before pooling. Sequencing was performed with an R9.4 flow cell on a MinION 1 kb sequencer (Oxford Nanopore, Oxford, UK). Basecalling was performed with guppy alignment software v. 6.1.5, sequencing files were aligned to the human genome reference (Hg38) using minimap2 v. 2.22 and indexing was performed with the SAMtools index. Manual analysis was performed using Integrated Genomics Viewer (IGV) v. 2.16.1.
