Antegrade Wire Tracking of the Retrograde Tract (ATRT): A Novel Technique for Percutaneous Coronary Intervention for Chronic Total Occlusion
Asit Das, Gaurav Lakhani, Tusharkanti Patra, Santosh Kumar
TL;DR
This paper introduces a new technique called ATRT to treat difficult heart artery blockages when standard methods fail, showing an 80.6% success rate.
Contribution
The novel ATRT technique combines retrograde and antegrade approaches for CTO PCI after failed antegrade attempts.
Findings
ATRT successfully treated 25 out of 31 patients with failed antegrade approaches (80.6% success rate).
Four patients failed due to inability to cross the microchannel despite promising angiographic results.
Two patients required a different technique (reverse CART) due to microcatheter advancement issues.
Abstract
Background: Chronic total occlusion (CTO) lesions are the most challenging subset of coronary lesions. For lesions with a failed antegrade approach, the initial retrograde, followed by a combined retrograde and antegrade approach, remains the mainstay of therapy. Objective: The study evaluated a technique of initial retrograde followed by an antegrade approach to treat lesions with a failed antegrade approach. Methods: We have adopted this technique to treat 31 CTO lesions with a failed antegrade approach, where a floppy wire was advanced antegrade through the tract created by a retrograde balloon advanced over the retrograde wire (antegrade wire tracking of the retrograde tract (ATRT)), which was advanced into the aorta retrogradely. Result: In 31 patients with failed antegrade approaches, the ATRT technique was tried, which was successful in 25 patients (the success rate was…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5| Profiles of the Patients | Variables | Numerical Data | |
| Sociodemographic profile | Age | In years ± SD | 64.5 ± 10.5 |
| Sex | Male n (%) | 18 (58%) | |
| Female n (%) | 13 (42%) | ||
| Medical history | Diabetes n (%) | 10 (40) | |
| Hypertension n (%) | 15 (60) | ||
| Dyslipidemia n (%) | 15 (60) | ||
| Prior ACS n (%) | 10 (40) | ||
| CSA n (%) | 15 (60) | ||
| Stent failure n (%) | 5 (20) | ||
| Prior CABG n (%) | 2 (8) | ||
| Triple vessel CAD n (%) | 10 (40) | ||
| Double vessel CAD n (%) | 10 (40) | ||
| Single vessel CAD n (%) | 5 (20) | ||
| LVEF n (%) ± SD | 48±12 | ||
| Social habit/addiction | Smoker n (%) | 15 (60) | |
| Variables | Types | Numerical Data |
| Target vessel | RCA n (%) | 16 (64) |
| LAD n (%) | 8 (32) | |
| LCX n (%) | 1 (4) | |
| Lesion length (mm) | <20 n (%) | 8 (32) |
| ≥20-<40 n (%) | 15 (60) | |
| ≥40 n (%) | 2 (8) | |
| Lesion calcification | No n (%) | 12 (48) |
| Mild n (%) | 7 (28) | |
| Moderate n (%) | 5 (20) | |
| Heavy n (%) | 1 (4) | |
| Bridging collaterals (%) | n (%) | 22 (88) |
| Proximal cap | Tapered n (%) | 8 (32) |
| Abrupt cutoff n (%) | 12 (48) | |
| Presence of side branch n (%) | 5 (20) |
| Variables | Types | Numerical Data |
| Successful collaterals | Septal | 18 (72) |
| Epicardial | 7 (28) | |
| Wires used to cross the collaterals | New Suoh 03 (septal) n (%) | 15/18 (83.3) |
| Fielder XTR (septal) n (%) | 3/18 (16.66) | |
| Fielder XT (epicardial) n (%) | - | |
| New Suoh 03 (epicardial) n (%) | - | |
| Wire for retrograde crossing | Gladius Ex 14 n (%) | 18 (72) |
| Gaia 2 n (%) | 7 (28) | |
| Preparation of retrograde tract | Micro catheter only n (%) | 5/25 (20) |
| 1.25 × 10 mm Tazuna balloon n (%) | 12/20 (60) | |
| 1.50 × 10 mm Tazuna balloon n (%) | 8/20 (40) | |
| Inflation pressure of balloon (atm pr) ± SD | 11 ±3 | |
| Antegrade wire | RT floppy (%) | 25/25 (100) |
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsCoronary Interventions and Diagnostics · Cardiac Imaging and Diagnostics · Cardiac Valve Diseases and Treatments
Introduction
Chronic total occlusion (CTO) lesions represent the most complex and challenging subset of coronary artery blockages that interventional cardiologists face in their clinical practice [1]. These blockages are characterized by complete plaque obstruction of blood flow through a coronary artery for a prolonged period, typically over three months [2]. Treating CTO lesions requires specialized techniques and expertise due to their intricate anatomy, often involving extensive calcification, tortuosity, and bridging collaterals [3].
The antegrade approach, where devices and wires are advanced through the normal blood flow within the artery, is generally the preferred initial strategy for CTO percutaneous coronary intervention (PCI) [3]. PCI is a minimally invasive procedure aimed at restoring blood flow in blocked arteries [4]. However, certain specific CTO scenarios necessitate a primary retrograde approach [5]. This approach involves accessing the blocked artery from the opposite direction, utilizing collateral vessels to reach the occlusion site.
Ostial CTO lesions, affecting the very beginning of the coronary artery, along with lesions exhibiting an unclear proximal cap (the starting point of the blockage) and extensive calcification, are prime candidates for a primary retrograde approach [6]. The complexity of these lesions often renders the antegrade approach less feasible or successful [7]. Furthermore, when the initial antegrade approach fails to achieve revascularization [8], a combined retrograde and antegrade approach becomes the standard treatment strategy. This hybrid approach leverages the strengths of both techniques to navigate and ultimately recanalize the occluded artery.
Among the various techniques employed in CTO PCI, controlled antegrade and retrograde subintimal tracking (CART) and reverse CART have gained significant popularity [9]. These techniques involve creating a pathway within the artery wall's layers to bypass the blockage and re-establish blood flow [10]. While these established techniques have proven valuable, our study explored a novel approach termed antegrade wire tracking of the retrograde tract (ATRT).
ATRT is a unique technique that combines elements of both antegrade and retrograde approaches [11]. In this approach, after establishing a retrograde path using a wire and balloon, a floppy wire is advanced antegrade through the newly created tract [10]. The wire is made of stainless steel wire, usually 316L, aged 630, and has a shape memory alloy of nitinol or CoCrMo with high yield strength. The balloons are made up of polyethylene terephthalate (PET), nylon, polyethylene with additives, polyvinyl chloride (PVC), and polyurethane used along with nylon. This floppy wire is guided by the retrograde wire, which is advanced into the antegrade guiding catheter (a tube used to access the coronary arteries) or the aorta (the main artery leaving the heart). ATRT offers a promising alternative, particularly in patients with failed antegrade attempts who possess usable collateral vessels.
Our study sought to evaluate the feasibility, safety, and efficacy of the ATRT technique in a specific patient population. By meticulously documenting procedural details and outcomes, we aimed to contribute valuable insights to the evolving field of CTO PCI. The potential benefits of ATRT, including its ability to overcome challenges encountered in traditional approaches, could significantly impact the treatment landscape for patients with complex CTO lesions.
It is important to note that ATRT, like any interventional procedure, carries inherent risks and requires meticulous execution. Thorough pre-procedural planning, careful patient selection, and a comprehensive understanding of the technique's nuances are essential to ensure optimal outcomes. By further refining and optimizing ATRT, we can enhance our ability to tackle the most daunting coronary blockages and improve the quality of life for countless individuals suffering from CTO-related cardiovascular disease.
Materials and methods
The study was conducted at the Institute of Post Graduate Medical Education and Research outpatient department at Seth Sukhlal Karnani Memorial Hospital, Kolkata, India, from July 1, 2022, to September 30, 2023. It was conducted according to the Declaration of Helsinki. The institutional review board reviewed and approved the study on January 4, 2022 (IPGM/IRB/2021/234). The sample size (n) was calculated using the formula: n = 2(Za)2 C SD2/d2, where SD = anticipated standard deviation from the previous studies = 8; Za = value of Z when a = 5% =1.76; d = minimum expected mean difference = 3. Therefore, the minimum sample size was calculated to be 28 subjects. Considering few dropouts, 31 patients were recruited to perform a combined antegrade and retrograde approach with the ATRT technique and presented with a failed antegrade approach for a coronary CTO lesion. Strict adherence to "nil by mouth" instructions was given to all the patients before surgery. All patients signed written informed consent, agreeing to undergo a combined antegrade and retrograde approach.
Initially, two 6-F arterial accesses (both radials or one radial and one femoral) were taken. Injection unfractionated heparin was administered at a dose of 100 U/kg, and after one hour, 1000 U was repeated every 30 minutes. A 90-cm guiding catheter (GC) was used to engage the donor artery for the retrograde approach, and a 100-cm GC was used to engage the target artery. A simultaneous injection through both the GCs was taken in two orthogonal views. The target lesion was assessed for its morphology (proximal cap tapered or abrupt cutoff, presence of a side branch at the proximal cap), approximate length by the quantitative coronary angiography (QCA) method, and fluoroscopically visible calcium. An approximate CTO length of <20 mm was considered short, ≥20 mm and <40 mm were termed long, and ≥40 mm was considered very long [12]. Calcification was considered severe when radiopacities were noted without cardiac motion before contrast injection and involved both sides of the arterial wall, termed as moderate when radiopacities involved one side of the arterial wall, and mild when scattered radiopacities were noted along the CTO body [13]. The most suitable retrograde channel (either septal or epicardial) was identified (Figures 1, 2).

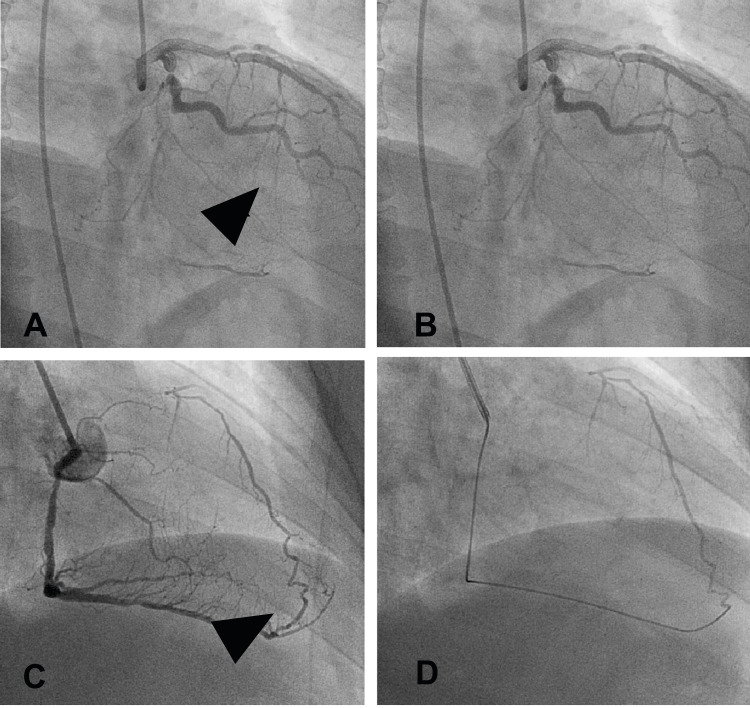

Successful collaterals: (A) septal collateral (arrowhead) from LAD supplying RCA PDA; (B) selective angiogram of the channel through the microcatheter; (C) epicardial collateral (arrowhead) from the PDA branch supplying LAD; and (D) selective angiogram of the same channel through the microcatheter.Photo credit: Asit DasLAD = left anterior descending artery; PDA = posterior descending artery; RCA = right coronary artery

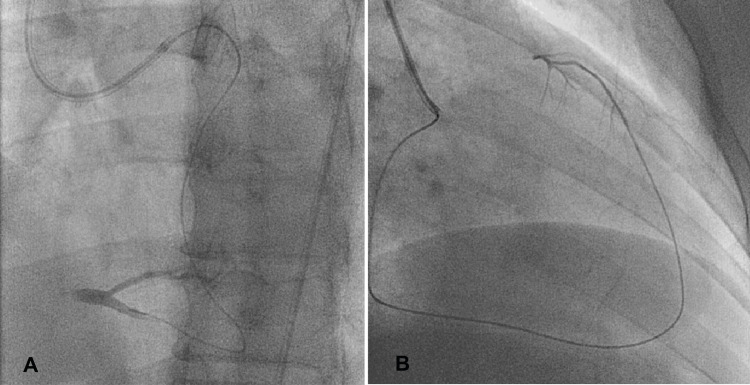

(A) After crossing the collateral injection through the microcatheter, the distal RCA bifurcation and the distal cap were visible in the same patient as in Figure 1A. (B) The microcatheter tip injection showed the distal CTO cap in the LAD (the same patient as in Figure 1B).Photo credit: Asit DasRCA = right coronary artery; CTO = chronic total occlusion; LAD = left anterior descending artery
The second most suitable retrograde channel was also looked for in all cases. A 150 cm microcatheter was taken (Corsair Pro XS (Asahi Intecc, Gurugram, India) or Finecross (Terumo, Gurugram, India), according to availability) to engage the retrograde channel through the retrograde GC. A new Suoh 03 guide wire (Asahi Intecc) was used to cross septal collaterals in all cases. The Fielder XTR (Asahi Intecc) guide wire was tried in failed cases. The Fielder XT guide wire crossed epicardial collaterals. In case of failure, a new Suoh 03 wire was used. After crossing the microchannel to the target vessel, a tip injection through the microcatheter was performed in all cases to visualize the distal cap (Figure 3).

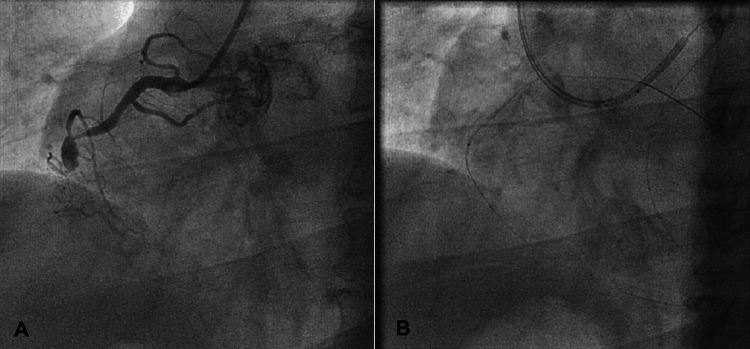

The retrograde wire is hanging in the aorta (A) mid-RCA CTO lesion; (B) the retrograde wire has crossed the lesion and is hanging in the aorta, along with a small balloon (SC 1.25 × 10 mm) dilatation of the CTO body.Photo credit: Asit DasCTO = chronic total occlusion; RCA = right coronary artery; SC = semi-compliant
To cross the lesion retrogradely, the Gladius Ex14 (Asahi Intecc) guide wire (a hydrophilic, non-tapered tip wire with a 3gm tip load) was our first choice. Because of its hydrophilic nature, it has a higher possibility of tracking microchannel retrogradely. With a higher tip load compared to contemporary hydrophilic wires, it has a higher penetrating force. In case of failure, Gaia 2 (Asahi Intecc) guide wire was used. The retrograde wire was tried to advance into the antegrade GC. In cases of failure, snaring was attempted through the antegrade GC. If snaring failed, the retrograde guidewire was left hanging in the aorta (Figure 4).

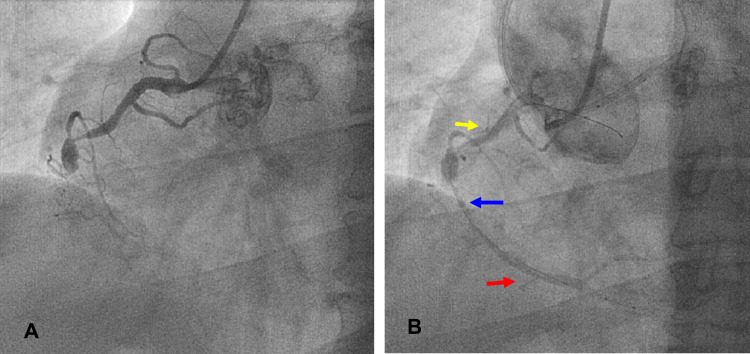

The retrograde tract connects the proximal and distal true lumen (A) mid-RCA CTO lesion; (B) the retrograde tract (blue arrow) connects the distal true lumen (red arrow) and the proximal true lumen (yellow arrow).Photo credit: Asit DasCTO = chronic total occlusion; RCA = right coronary artery
The microcatheter was slowly advanced over the retrograde wire to the proximal true lumen. After a few "to and fro" movements, it was pulled to the distal true lumen. Then, the whole retrograde tract was dilated with a monorail semi-compliant small balloon with nominal pressure. This created a “retrograde tract” that connected the proximal and distal true lumens in the target vessel (Figure 5).

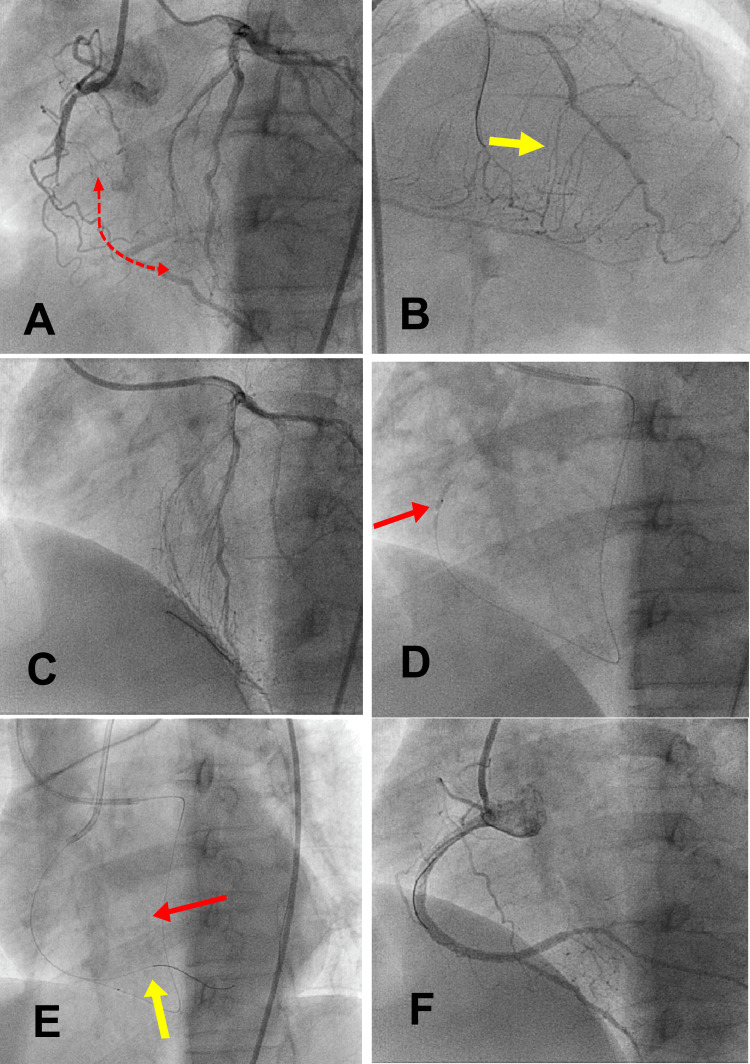

ATRT: a step-by-step method for an RCA CTO: (A) simultaneous injection into both coronaries to estimate the length of CTO (red dotted arrow), proximal and distal cap location. (B) Identification of the best usable collateral. S3 was the best channel in this case (yellow arrow). Note the floppy wire location at S1. (C) A new Suoh 03 retrograde wire in the RCA PDA. (D) Small (1.25 x 15 mm) SC balloon dilatation of the retrograde tract (red arrow). (E) The antegrade wire (yellow arrow) tracked the retrograde tract and positioned at the PLV branch, while the retrograde wire with its balloon (red arrow) in position. (F) Final result after stenting the lesion.Photo credit: Asit DasATRT = antegrade wire tracking of the retrograde tract; CTO = chronic total occlusion; PDA = posterior descending artery; PLV = posterior left ventricular; RC = right coronary artery; SC = semi-compliant
