On-Water Surface Synthesis of Two-Dimensional Polymer Membranes for Sustainable Energy Devices
Feng Ni, Zhiyong Wang, Xinliang Feng
TL;DR
This paper reviews the development of 2D polymer membranes for energy devices, focusing on their synthesis and performance in sustainable technologies.
Contribution
The paper introduces a surfactant-monolayer-assisted interfacial synthesis method for creating high-quality 2D polymer membranes.
Findings
2D polymer membranes overcome the permeability-selectivity trade-off in ion transport.
The SMAIS method enables tunable thickness and large crystalline domains in 2DPMs.
Applications include osmotic power generators and metal ion batteries with improved efficiency.
Abstract
Ion-selective membranes are key components for sustainable energy devices, including osmotic power generators, electrolyzers, fuel cells, and batteries. These membranes facilitate the flow of desired ions (permeability) while efficiently blocking unwanted ions (selectivity), which forms the basis for energy conversion and storage technologies. To improve the performance of energy devices, the pursuit of high-quality membranes has garnered substantial interest, which has led to the exploration of numerous candidates, such as polymeric membranes (e.g., polyamide and polyelectrolyte), laminar membranes (e.g., transition metal carbide (MXene) and graphene oxide (GO)) and nanoporous 2D membranes (e.g., single-layer MoS2 and porous graphene). Despite impressive progress, the trade-off effect between ion permeability and selectivity remains a major scientific and technological challenge for…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9- —Alexander von Humboldt-Stiftung10.13039/100005156
- —Deutsche Forschungsgemeinschaft10.13039/501100001659
- —Deutsche Forschungsgemeinschaft10.13039/501100001659
- —Deutsche Forschungsgemeinschaft10.13039/501100001659
- —H2020 European Research Council10.13039/100010663
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsMunicipal Solid Waste Management · Microplastics and Plastic Pollution · Environmental Sustainability and Education
Key References
LiuK.; QiH.; DongR.; ShivhareR.; AddicoatM.; ZhangT.; SahabudeenH.; HeineT.; MannsfeldS.; KaiserU.On-water Surface Synthesis of Crystalline, Few-layer Two-dimensional Polymers Assisted by Surfactant Monolayers. Nat. Chem.2019, 11, 994–100010.1038/s41557-019-0327-531548668 .^1^*In this work, we developed the SMAIS method for the synthesis of highly crystalline and large-area 2DPMs on the water surface.*WangZ.; ZhangZ.; QiH.; Ortega-GuerreroA.; WangL.; XuK.; WangM.; ParkS.; HennersdorfF.; DianatA.On-water Surface Synthesis of Charged Two-dimensional Polymer Single Crystals via The Irreversible Katritzky Reaction. Nat. Synth.2022, 1, 69–7610.1038/s44160-021-00001-4.^2^In this work, we demonstrated the synthesis of cationic 2DPMs with a tunable thickness ranging from 2 to 30 nm and crystal domain sizes up to 120 μm^2^*via the irreversible Katritzky reaction.*ZhangZ.; BhauriyalP.; SahabudeenH.; WangZ.; LiuX.; HambschM.; MannsfeldS. C. B.; DongR.; HeineT.; FengX.Cation-selective Two-dimensional Polyimine Membranes for High-performance Osmotic Energy Conversion. Nat. Commun.2022, 13, 393510.1038/s41467-022-31523-w35803906 PMC9270359.^3^This work demonstrated fully crystalline imine-linked 2DPMs capable of combining excellent ion permeability and high selectivity for osmotic power generation.SabaghiD.; WangZ.; BhauriyalP.; LuQ.; MoragA.; MikhailoviaD.; HashemiP.; LiD.; NeumannC.; LiaoZ.Ultrathin Positively Charged Electrode Skin for Durable Anion-intercalation Battery Chemistries. Nat. Commun.2023, 14, 76010.1038/s41467-023-36384-536765051 PMC9918723.^4^This work demonstrated the use of ultrathin, cationic 2DPMs with high anion permeability and selectivity as a graphite electrode coating for addressing the interfacial chemistry issues in batteries.
Introduction
1
Ion-selective membranes are integral to emerging energy devices, such as osmotic power generators,^5^ electrolyzers,^6^ fuel cells,^7^ and batteries.^8^ Driven by various gradients (e.g., pressure,^9,10^ electric field,^6^ concentration,^11^ temperature,^12^ etc.), these membranes selectively transport desired ions while chemically isolating unwanted processes, thereby critically influencing the performance metrics of energy devices, including efficiency and durability.^13^ Therefore, research into ion-selective membranes with high permeability necessitates meticulous design considerations.^11^ To date, diverse membranes have been developed to achieve efficient ion transport, including three-dimensional (3D) polymeric membranes (e.g., polyamide^14^ and polyelectrolyte^15^), two-dimensional (2D) laminar membranes (e.g., MXene^16^ and GO^17^), and nanoporous 2D membranes (e.g., single-layer MoS_2_^18^ and porous graphene^19^) (Figure 1a). However, 3D polymeric membranes suffer from low permeability and selectivity due to their disordered and broad-size-distributed channels.^20^ Conversely, 2D laminar membranes offer high selectivity, but their long ion transport pathways typically lead to limited ion permeability.^21^ Nanoporous 2D membranes provide ultrahigh permeability but often exhibit low ion selectivity due to insufficient functional groups.^22^ Therefore, mitigating the trade-off effect between ion permeability and selectivity remains a formidable challenge, limiting their application in sustainable energy devices.^23^

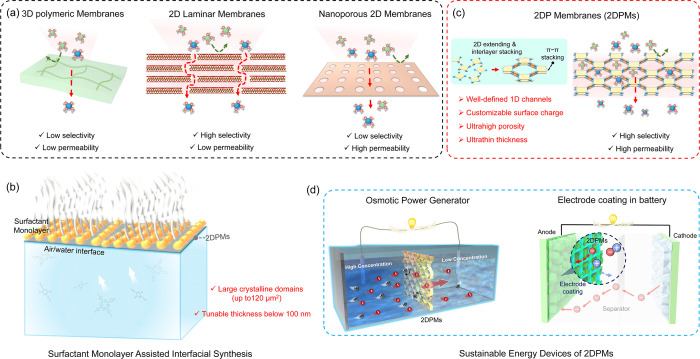

Schematics of the selective-ion-transport properties, synthesis, and energy device applications of 2DPMs. (a) Ion transport in representative membranes. (b) SMAIS strategy for synthesizing 2DPMs on the water surface. (c) Merits of 2DPMs for high ion selectivity and permeability. (d) 2DPMs applications in osmotic power generators and ion batteries.
2D polymer membranes (2DPMs) are monolayer to few-layer porous polymeric materials with strict 2D planar periodicity.^24^ They can be synthesized either by exfoliation of bulk crystals of 2D COFs with subsequent assembly or by direct interfacial synthesis.^25^ In 2019, our group developed the surfactant-monolayer-assisted interfacial synthesis (SMAIS) method, which leverages the unique reactivity and selectivity of reactions to guide the preorganization and 2D polycondensation of rigid monomers on the water surface (Figure 1b).^1^ Recent investigations using SMAIS have successfully synthesized various highly crystalline 2DPMs, including quasi-2D polyaniline,^26^ 2D polyamide,^1^ 2D polyimide,^1^ 2D polyimine,^27,28^ 2D polyboronate ester,^29^ 2D poly(pyridinium salt),^2^ and vinylene-linked 2DPs,^30^ with tunable thicknesses from 1 to 100 nm and large crystalline domains up to 120 μm^2^. Compared to traditional membranes, these 2DPMs feature well-defined one-dimensional (1D) channels, customizable surface charge, ultrahigh porosity, and ultrathin thickness, making them promising platforms for addressing the trade-off effect (Figure 1c).^25,31^ Due to these attributes, 2DPMs have been successfully integrated into sustainable energy devices, including osmotic power generators^2,3,32^ and metal ion batteries,^4,30,33^ exhibiting excellent performance. Given the rapid progress in this field, a comprehensive review of recent advances, challenges, and future opportunities is crucial for integrating insights from chemistry, materials science, and energy device applications to guide future research.
This Account presents our progress in the synthesis of 2DPMs via the SMAIS method and their applications in sustainable energy devices. First, we systematically examine the SMAIS method as a means to fabricate highly crystalline 2DPMs on the water surface. In particular, the role of surfactant, the guided interaction between surfactant and monomer precursor, as well as the enhanced reactivity on the water surface will be highlighted. By analyzing critical parameters of 2DPMs, such as pore sizes, charged sites, crystallinity, and thickness, we then elucidate their structure–property relationships in selective ion transport. Additionally, we showcase the applications of 2DPMs in sustainable energy devices, including osmotic power generators and ion batteries (Figure 1d). Finally, we provide insights into persistent challenges in synthetic chemistry, material science, and energy devices that must be addressed to propel this field forward.
On-Water
Surface Synthesis of 2DPMs through the SMAIS Method
2
Current methodologies for synthesizing 2DPMs employ either top-down or bottom-up strategies.^25^ Top-down strategies involve the physical and chemical delamination of layer-stacked 2DP bulk crystals (also known as 2D COFs), followed by filtration, casting, or reconstitution to form 2DPMs.^34^ However, these membranes, consisting of randomly stacked crystallites, often exhibit disordered and widely distributed channels, resulting in low ion permeability and selectivity. Conversely, bottom-up methods, including on-surface synthesis, liquid–liquid interfacial synthesis, and on-water surface synthesis (e.g., Langmuir–Blodgett (LB) method and SMAIS method), offer promising solutions to these challenges.^35,36^ On-surface synthesis facilitates direct growth of 2DPMs at the vapor–solid or liquid–solid interface, suitable for producing monolayer to few-layer 2DPMs.^37,38^ However, the strong molecule–substrate interactions typically result in limited domain sizes (less than 100 nm) and complicate membrane transfer for device integration. Alternatively, the liquid–liquid and LB methods, which provide a common platform for the synthesis of thick (few nm to μm) and monolayer 2DPMs, respectively, with easy transfer of resulting films.^39,40^ However, the stochastic directionality and large-amplitude motions of monomers, coupled with a lack of supramolecular forces driving preorganization into long-range ordered structures, often lead to 2DPMs with poor crystallinity and random layer orientation.
The SMAIS method developed by our group in 2019 opens a door to tackle the aforementioned challenges.^1^ As illustrated in Figure 2a, the SMAIS method generally involves three steps: (i) spreading the molecular surfactant (e.g., sodium oleyl sulfate (SOS), stearic acid (SA), sodium dodecyl sulfate (SDS), sodium 4-dodecylbenzenesulfonate (SDBS), and cetyltrimethylammonium bromide (CTAB)) or polymeric surfactants (e.g., poly(acrylic acid)^41^ and poly(sodium 4-styrenesulfonate)^42^) on the water surface to form an organized floating monolayer with stable surface pressure. The selection of surfactants is guided by their potential interactions with monomer precursors. For instance, negatively (or positively) charged surfactants can induce electrostatic interactions with positively (negatively) charged monomers, facilitating their adsorption and preorganization on the water surface. Other guided interactions, such as hydrogen bonding, coordination bonds, and strong covalent bonds, are also considered based on the functional groups present in the monomers. (ii) Injecting an aqueous solution of monomer 1 (M1) causes the monomers to diffuse, be absorbed, and preorganize beneath the surfactant monolayer. (iii) Adding monomer 2 (M2) initiates 2D polymerization on the water surface.

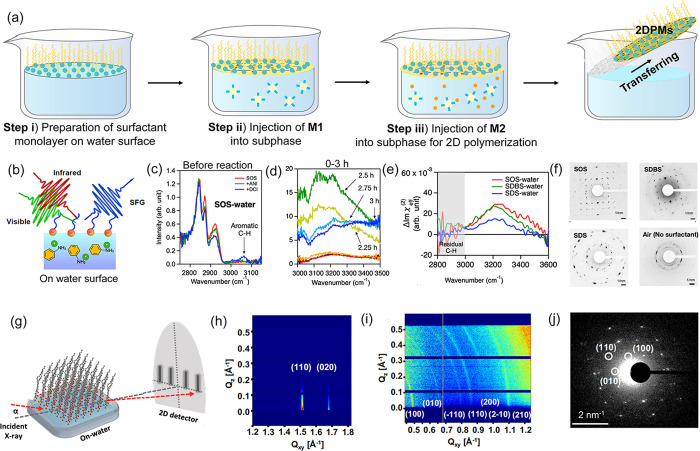

On-water surface synthesis of 2DPMs via the SMAIS method. (a) Schematic of the SMAIS procedure. (b) Illustration of the in situ SFG measurement. SFG spectra in the C–H stretch mode region recorded from the SOS-water interface (c) before polymerization and (d) within the first 3 h. (e) Difference in heterodyne-detected (HD) SFG spectra at 100 mM and 1 M salt concentrations. (f) SAED images of quasi-2D PANIs obtained from different surfactant–water interfaces. Adapted with permission from ref (43). Copyright 2021 Elsevier. (g) Illustration of the in situ GIWAXS measurements. GIWAXS patterns of (h) SOS monolayer in step i and (i) products after injecting M1 in step ii. (j) SAED pattern of the transferred M1-assembly films in step ii. Reproduced from ref (44). Copyright 2023 Springer Nature.
To elucidate the role of surfactants and unravel the molecular-level mechanisms behind the synthesis of 2DPMs using the SMAIS method, we utilized in situ techniques such as sum frequency generation (SFG) spectroscopy and grazing incidence wide-angle X-ray scattering (GIWAXS) to monitor the assembly of monomers and the subsequent 2D polymerization and crystallization processes in real-time. For example, using SFG, we tracked the growth of quasi-2D polyaniline (PANI) on the water surface (Figure 2b).^43^ The variation in characteristic SFG spectra indicated the accumulation of monomers underneath the SOS monolayer driven by the electrostatic interaction (Figure 2c). Following the injection of ammonium persulfate, drastic changes in the SFG signal after 2 h suggested the occurrence of the reaction on the water surface (Figure 2d). Notably, the positively charged = NH_2_ groups are generated between 2 to 2.5 h and then self-organized on the water surface, guided by the hydrophilic sulfonic acid group of SOS. In this respect, the type of surfactants, providing different charge densities on the water surface, was crucial in defining the nucleation density and crystallinity of quasi-2D PANI. As shown in Figure 2e-f, surfactants with higher charge densities, such as SOS and SDBS resulted in quasi-2D PANI with higher crystallinity compared to SDS and the absence of surfactant.
In another study, we employed in situ GIWAXS to probe the crystal structure of surfactant and porphyrin-based monomers preorganization on the water surface (Figure 2g).^44^ The GIWAXS pattern of SOS on the water surface (step (i) revealed sharp and discrete Bragg spots near Q_Z_ = 0, indicating the formation of a long-range ordered SOS monolayer (Figure 2h). Upon adding M1 (4-(5,10,15-triphenylporphyrin-20-yl)aniline) to the water subphase (step (ii), GIWAXS demonstrated epitaxial growth of M1 with a self-organized superstructure underneath the SOS monolayer (Figure 2i). The selected-area electron diffraction (SAED) pattern of the self-organized M1 film transferred onto the transmission electron microscope (TEM) grid matched that of GIWAXS, manifesting with smaller lattice parameters compared to individual M1 molecules due to the unique 2D confinement in J-aggregation (Figure 2j). After adding M2 (perylene-3,4,9,10-tetracarboxylic dianhydride) for 10 h, the SOS-M1 assembly and J-aggregated confinement of M1 remained intact (step (iii), directing the on-water reactions of M2 with M1 for crystallization. Furthermore, the in situ SFG technique suggested that this sequential assembly could further promote layer-to-layer growth of multilayer products through site-selective imide bond formation and simultaneous release of interfacial charges.
On the other hand, on-water surface reactions typically exhibit higher reactivity than those in aqueous solutions. To understand this behavior, we conducted model reactions and employed matrix-assisted laser desorption/ionization-time-of-flight mass spectrometry (MALDI-TOF MS) to monitor the evolution of the products.^2,30,44^ Take the Katritzky reaction as an example, model reactions between M1 (5-(4-aminophenyl)-10,15,20-(triphenyl)porphyrin) and M2 (2,4,6-triphenylpyrylium tetrafluoroborate) successfully yielded the targeted products on the water surface, in contrast to incomplete reactions and low conversion rates in aqueous solutions.^2^ Likewise, the Knoevenagel model reaction demonstrated enhanced reactivity and reversibility on the water surface compared to aqueous conditions.^30^ This enhanced reactivity can be attributed to oriented monomer assembly governed by intermolecular interactions, stabilization of the activated complex by hydrogen bonding,^2,30^ and the absence of solvation effects on the water surface.^45−47^ These results indicate that the SMAIS method not only facilitates supramolecular chemistry by preorganizing and interlocking precursor monomers on the water surface but also provides a 2D confined geometry that enhances the selectivity and reactivity for subsequent 2D polymerization.
On this basis, we have utilized a range of synthetic chemistry, including dynamic covalent reactions (e.g., boronate-ester,^29^ Schiff-base,^27^ condensation reactions,^1^ and coordination reactions^48^) and kinetically irreversible reactions (e.g., Katritzky reactions^2^ and Knoevenagel reactions^30^), for the synthesis of 2DPMs through the SMAIS method (Figure 3). These membranes are free-standing with large-area (∼28 cm^2^), preferential layer orientation and large crystal domain up to 120 μm^2^. By adjusting the monomer concentrations and reaction time, the thickness of 2DPMs can be tuned from 1 to 100 nm. Furthermore, by carefully modulating the guided interactions between monomers and surfactants on the water surface, we can precisely control the preferential layer orientations of these 2DPMs, shifting between face-on and edge-on configurations.^1^ For instance, the SOS surfactant monolayer enables the parallel adsorption of M1 (4,4′,4′′,4′′′-(porphyrin-5,10,15,20-tetrayl)tetraaniline) through electrostatic interaction and hydrogen bonding, creating a face-on arrangement (Figure 3g). SA that possesses −COOH headgroup reacts with one amine group to form a covalent amide bond, allowing M1 to be vertically anchored beneath the SA monolayer (Figure 3h). Upon adding M2 (1H,3H-Furo[3,4-f][2]benzofuran-1,3,5,7-tetrone), the preferential face-on or edge-on growth of 2DPMs was achieved on the water surface.

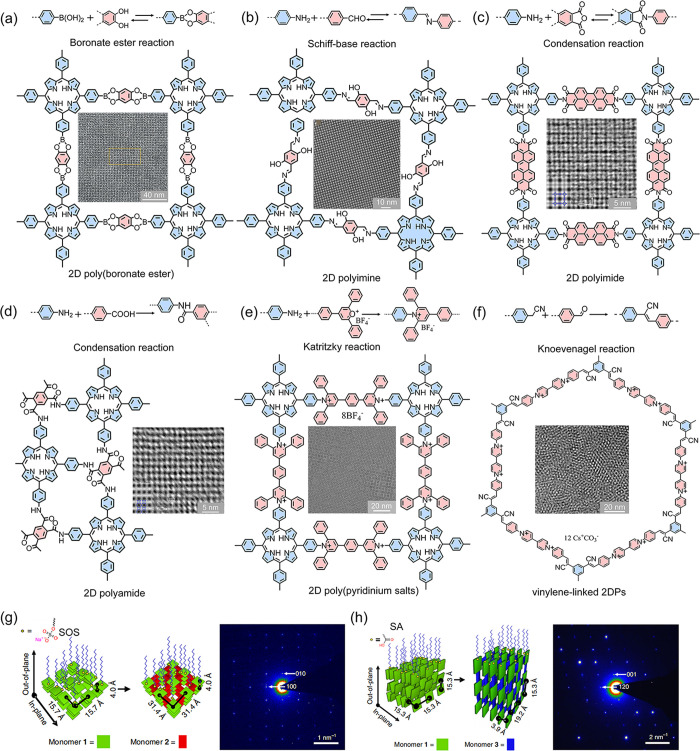

The obtained 2DPMs via the SMAIS method. (a-f) Representative synthetic chemistry and resultant products. (a) reproduced from ref (29). Copyright 2020 John Wiley and Sons. (b) reproduced from ref (49). Copyright 2020 AAAS. (c) and (d) reproduced from ref (1). Copyright 2019 Springer Nature. (e) adapted with permission from ref (2). Copyright 2021 Springer Nature. (f) reproduced from ref (30). Copyright 2024 John Wiley and Sons. Schematics of the resulting 2DPMs with (g) face-on and (h) edge-on orientations guided by different surfactants. Reproduced from ref (1). Copyright 2019 Springer Nature.
Selective-Ion-Transport Properties
of 2DPMs
3
The ion transport within 2DPMs is primarily dominated by size and electrostatic effect, operating across different length scales. The size effect leverages narrow nanochannels (typically less than 8.5 Å) to sieve preferential ions based on physical size exclusion.^22,50^ However, achieving Å-level precision in pore size modulation to selectively separate ions with different hydrated diameters remains challenging in current 2DPMs. Conversely, efficient selective ion transport can be achieved via electrostatic effects (Figure 4a).^11,22^ When immersed in electrolyte solutions, the charged ionic groups of 2DPMs form an electrical double layer (EDL).^51^ As the channel radius (d) approaches the thickness of the EDL, overlapping EDLs result in electrostatic interactions that preferentially transport counterions over co-ions along the diffusion layer, imparting ion selectivity (known as surface-charge-governed ion transport).^52^ The thickness of the resulting EDL is quantified by the Debye length (λ_D_), which is defined as^53^
where ε_r_ and ε_0_ refer to the relative and vacuum permittivity, respectively, kB is the Boltzmann constant, T is the absolute temperature, zi, c0 and F are the valence number, the concentration of the solution and the Faraday’s constant, respectively. As illustrated in Figure 4b, the potential distributions within channels dictate the concentration of transported ions to achieve ion selectivity, which could, in turn, affect their ion permeability. Engineering the pore sizes of 2DPMs thus provides a direct method to modulate selective ion transport. Our recent study investigated the impact of channel sizes on ion transport properties in 2DPMs.^32^ As shown in Figure 4c, numerical simulations indicate higher anion concentration and electric potential in narrower charged pores due to more overlapped EDLs. Encouraged by these insights, we synthesized two types of cationic 2DPMs with similar thicknesses (12–14 nm): propidium iodide-based 2DP membranes (PI-2DP, pore size: 1.2 nm) and ethidium bromide-based 2DP membranes (EB-2DP, pore size: 1.8 nm) (Figure 4d). Ion transport measurements revealed more overlapped EDLs in PI-2DP, resulting in higher anion (e.g., Cl^–^) selectivity coefficients (∼0.8) (Figures 4e-f). These results underscore the importance of designing narrower pore channels to enhance the ion selectivity of 2DPMs.

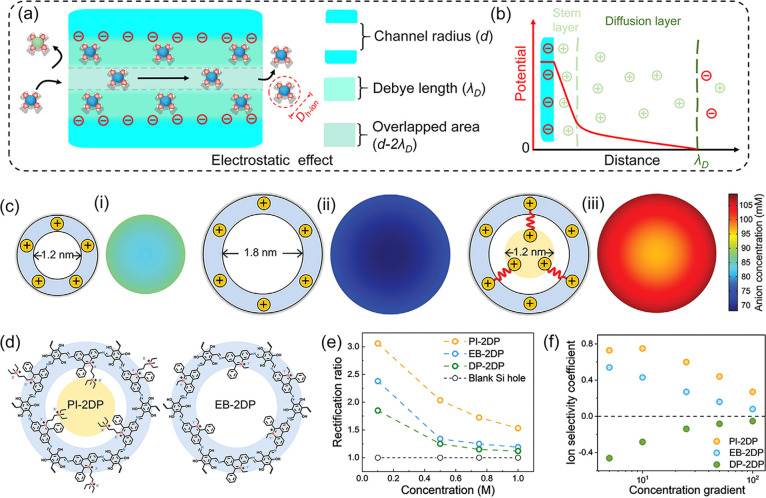

Engineering pore size for enhanced selective-ion-transport properties. (a) Schematics of electrostatic-effect ion transport in 2DPMs. (b) Potential field distribution within the EDL of 2DPMs, consisting of a first Stern layer and a second diffusion layer. (c) Simulated anion concentration profiles within 1D channels with varying d values. (d) Chemical structures of PI-2DP and EB-2DP. (e) Rectification ratios of PI-2DP and EB-2DP at different KCl concentrations. (f) Ion selectivity coefficient of PI-2DP and EB-2DP in increasing KCl concentration gradients. Reproduced from ref (32). Copyright 2024 John Wiley and Sons.
Apart from pore sizes, ionic groups that define charge polarity and density in 2DPMs are crucial for their selective-ion-transport properties.^11^ Typically, anionic (e.g., hydroxyl, carboxyl, and sulfonic) and cationic groups (e.g., amino, pyridinium, and ethidium) with distinct dissociation constants (pKa) become charged upon deprotonation or protonation, resulting in negatively or positively charged surfaces.^3,32,54−57^ This charge polarity determines which type of ions can be selectively transferred. For example, negatively charged pore channels facilitate the selective transport of cations, while positively charged ones enable anions transport. Incorporating more ionic groups during 2DPM synthesis enhances charge density, leading to greater potential distributions and thicker EDL within 2DPMs, thereby improving ion selectivity.^58^ Recently, our studies attempted to tune the charge density of 2D polyimine (2DPI) by controlling the pH of the electrolytes (i.e., KCl and NaCl) (Figure 5a).^3^ Ion transport in 2DPI was found to be pH-dependent, showing significant ionic rectification at high pH due to increased surface charge densities from hydroxyl group deprotonation (Figures 5b-c). Afterward, a fully deprotonated 2DPI exhibited lower barriers for K^+^ and Na^+^ ions than the partially deprotonated one (Figures 5d-e). This is attributed to the ions binding more readily to available active hydroxyl groups, enhancing their diffusion within the 2DPI.

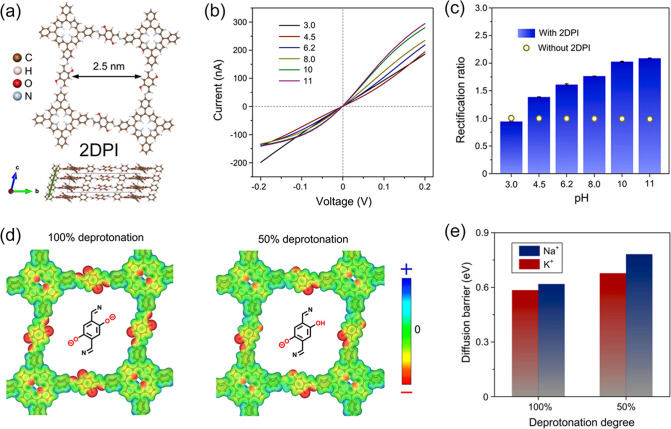

Selective-ion-transport properties of 2DPMs governed by ionic groups. (a) Structure of 2DPI. (b) I–V curves and (c) rectification ratios of 2DPI in various electrolytes with rising pH values. (d) Electrostatic potential (ESP) surface and (e) diffusion barriers of fully deprotonated (100%) and partially (50%) deprotonated 2DPI. Reproduced from ref (3). Copyright 2022 Springer Nature.
The crystallinity (i.e., crystalline domain and layer orientation) of 2DPMs reflects how long-range-ordered their inherent 1D channels are, essential for achieving both high ion selectivity and permeability. In amorphous 2DPMs and polycrystalline 2DPMs with random layer orientation, disordered channels create barriers for ion transport, resulting in low permeability (Figure 6a).^59^ On the other hand, wide-size-distributed channels in amorphous 2DPMs and the gaps between the crystal boundaries in polycrystalline 2DPMs may compromise ion selectivity. For example, fully crystalline and face-on oriented 2DPMs like viologen-immobilized 2DP membranes (V2DP) demonstrate faster ion transport along well-defined 1D channels due to less tortuous paths and lower ion diffusion resistance (Figure 6b-c).^60^ Furthermore, polycrystalline 2DPMs contain numerous grain boundaries and defects, significantly impacting their selective-ion-transport properties. To assess this influence, we conducted contrast experiments by varying the working area of polycrystalline 2DPMs (Figure 6d). For example, with PI-2DP, reducing the working area from 12 to 0.8 μm^2^ greatly improved ion selectivity, leading to increased output power density from 42.2 to 310 W m^–2^ (Figures 6e-f).^32^ This improvement is attributed to minimized penetration resistances from grain boundaries and defects. These findings emphasize the potential of achieving large single crystals to maximize the selective-ion-transport properties of 2DPMs.

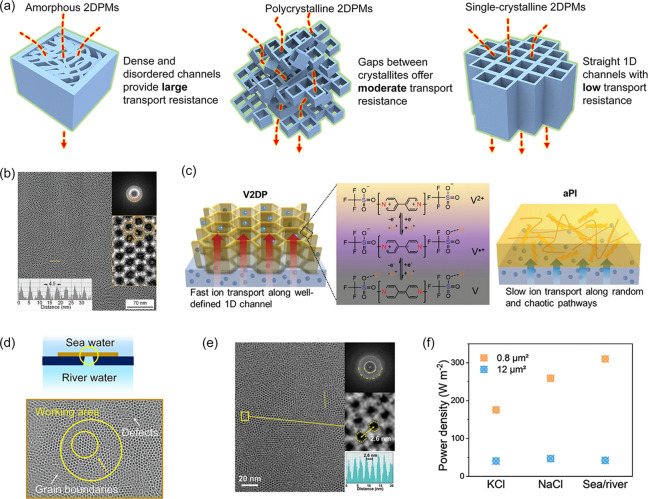

The impact of 2DPM crystallinity on selective-ion-transport properties. (a) Schematic comparison of ion transport in amorphous, polycrystalline, and single-crystalline 2DPMs. (b) High-resolution TEM (HRTEM) image of V2DP with SAED pattern (inset). (c) Schematic of ion transport pathways within V2DP and amorphous polyimine (aPI). Adapted with permission from ref (60). Copyright 2021 John Wiley and Sons. (d) Illustrations of the working area of polycrystalline 2DPMs for ion-transporting testing. (e) HRTEM image of polycrystalline PI-2DP with SAED pattern (inset). (f) The power density of PI-2DP with varying working areas. Reproduced from ref (32). Copyright 2024 John Wiley and Sons.
Ultrathin 2DPMs (<100 nm) offer short ion transport pathways with low barriers, crucial for enhancing ion permeability while maintaining high selectivity.^13^ Leveraging the high crystallinity and face-on orientation of 2DPI, we investigated a novel thickness-dependent H^+^/Zn^2+^ selectivity (Figure 7a-c).^33^ By varying the thickness from 20 to 100 nm, 2DPI exhibited a linear permeation relationship with constant transport rates for both H^+^ and Zn^2+^, with Zn^2+^ exhibiting a stronger thickness-dependent transport behavior (Figure 7d-e). Consequently, the 80 nm-thick 2DPI (2DPI-80) demonstrated the highest H^+^/Zn^2+^ selectivity of 140.7 while retaining a high H^+^ permeation rate (Figure 7f). Even in a typical electrolyte ((i.e., 2 M ZnSO_4_, pH = 4.3, C_Zn_^2+^/C_H_^+^ = 4 × 10^4^), 2DPI-80 exhibited an enhanced H^+^ permeation rate (0.046 mol m^–2^ h^–1^) compared to Zn^2+^ (0.013 mol m^–2^ h^–1^), achieving an excellent H^+^/Zn^2+^ selectivity of 3.5 (Figure 7g). This superior selectivity arises from enriched favorable sites in 2DPI facilitating H^+^ transport, including the O atoms of phenolic hydroxyl groups, N atoms of imine bonds, and more accessible porphyrin pyrrole units (Figure 7h). In contrast, Zn^2+^ transport is limited to phenolic hydroxyl and imine groups and requires higher transport energy (1.29 eV vs. 0.8 eV of H^+^) (Figure 7i). These findings support the experimental observation of the thickness-dependent selectivity of 2DPI.

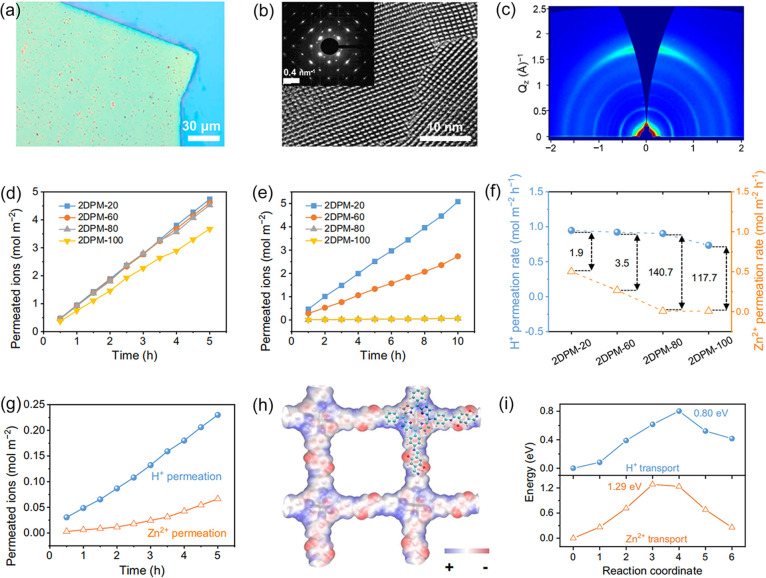

Modulation of selective-ion-transport properties in 2DPMs by thickness. (a) Optical microscopy image, (b) HRTEM image with inset SAED image, and (c) GIWAXS pattern of 2DPI. (d) H+ and (e) Zn2+ permeation curves, and (f) H+/Zn2+ selectivity of various 2DPI membranes with different thicknesses ranging from 20 to 100 nm. (g) H+ and Zn2+ permeation curves of 2DPI-80 in 2 M ZnSO4. (h) ESP surface of 2DPI. (i) Corresponding energy profiles of H+ and Zn2+ through the 2DPI. Reproduced from ref (33). Copyright 2024 Springer Nature.
Applications of 2DPMs in
Sustainable Energy Devices
4

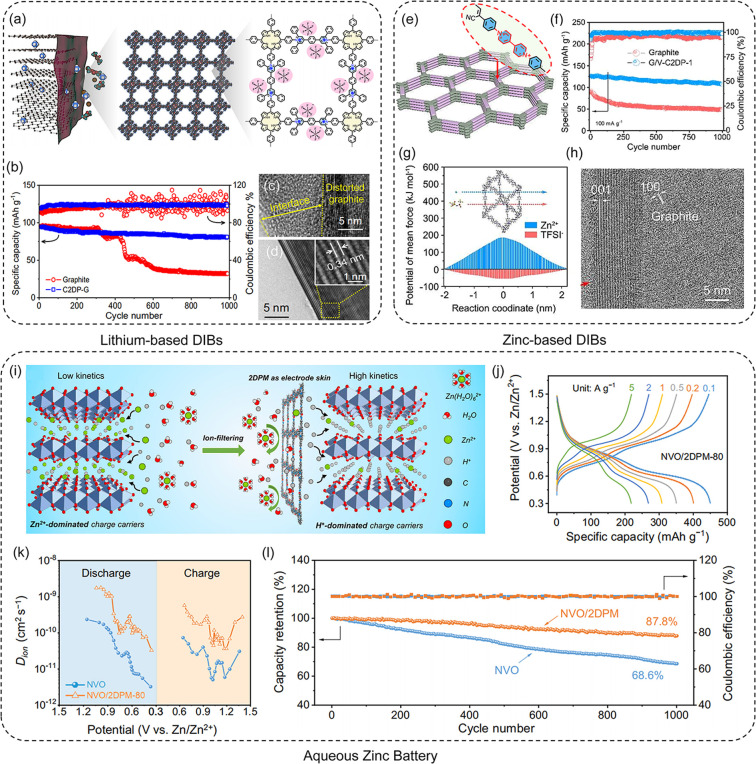

The exceptional ion selectivity and permeability of 2DPMs make them highly promising for sustainable energy devices requiring high-performance ion-selective membranes. This section will examine our recent advancements in the use of 2DPMs in osmotic power generators and as electrode coatings in metal ion batteries.
Osmotic Power Generators
4.1
Harvesting blue energy, or osmotic power, via reverse electrodialysis technologies presents substantial potential for large-scale electricity supply in both industrial and domestic contexts.^21^ Typically, this involves an ion-selective membrane separating saltwater and freshwater reservoirs, facilitating the selective transport of cations or anions. This method utilizes the Gibbs free energy released during solution mixing for power generation.^21^ The development of 2DPMs offers an appealing opportunity to achieve optimal osmotic power density due to their superior selective-ion-transport properties. In this regard, the performance of osmotic power conversion is assessed using an electrochemical cell under various salt concentration gradients across the 2DPMs (Figure 8a). By measuring the open-circuit voltage and short-circuit current, the osmotic potential (Vop) and osmotic current (Ioc) can be determined, allowing the calculation of theoretical maximum power density (Pmax) using the equation: Pmax = Vop× Ioc/4A, where A is the working area (Figure 8b). Therefore, improving the Vop and Ioc values, influenced by the ionic selectivity and permeability of 2DPMs, can significantly increase power output.

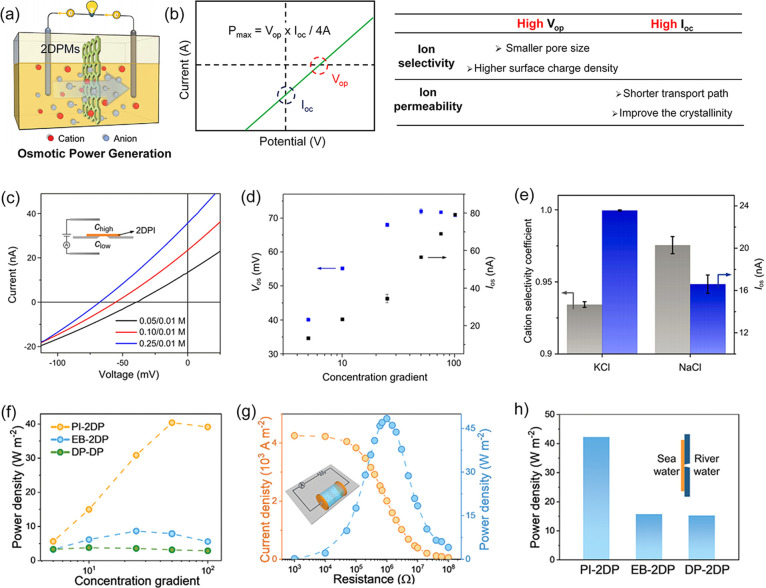

Application of 2DPMs in osmotic power generators. (a) Schematic depicting osmotic power generation using 2DPMs. Reproduced from ref (32). Copyright 2024 John Wiley and Sons. (b) I–V curve measured for osmotic power generation and guidelines for enhancing Vop and Ioc in 2DPMs. (c) Measured I–V curves and (d) Vop and Ioc values of osmotic power generators using 2DPI at varying KCl gradients. (e) Cation selectivity coefficient and Ioc of the 2DPI-based system at 10-fold KCl and NaCl. Reproduced from ref (3). Copyright 2022 Springer Nature. (f) The Pmax of PI-2DP under different KCl gradients. The Pout of PI-2DP on the external circuit Ioc (g) under an artificial 50-fold NaCl gradient and (h) by mixing natural river water and seawater. Reproduced from ref (32). Copyright 2024 John Wiley and Sons.
