Chrdl1-mediated BMP4 inhibition disrupts the balance between retinal neurons and Müller Glia
Dongmei Liu, Zeyuan Pu, Baige Li, Gao Tan, Ting Xie, Yin Shen
TL;DR
This study shows that inhibiting Bmp4 in the developing mouse retina shifts cell fate toward neurons and away from glial cells, affecting retinal function.
Contribution
The study reveals how Bmp4 inhibition alters retinal cell differentiation and identifies specific genes involved in this process.
Findings
Bmp4 inhibition disrupts both neuronal and Müller glial differentiation in the developing retina.
Bmp4 inhibition leads to upregulation of Id1/2/3/4 and Hes1/5 and downregulation of Neurod1/2/4 and Bhlhe22/23.
Bmp4 inhibition impairs retinal cell connectivity and visual function in mice.
Abstract
Chordin-like 1 (CHRDL1) is a secreted protein that serves as an endogenous antagonist of bone morphogenetic proteins (BMPs). In the developing retina, Bmp4 has been demonstrated to be essential for sustaining the proliferation of progenitor cells and facilitating the differentiation of glial cells. Despite these efforts, the precise effects of Bmp4 inhibition on the developing retina are yet to be fully understood. We sought to address this question by overexpressing Chrdl1 in the developing retina. In this study, we explored the impact of Bmp4 inhibition on the developing mouse retina by conditionally overexpressing the Bmp4 inhibitor Chrdl1. Initially, we characterized the expression patterns of Bmp4 and Chrdl1 in the developing mouse retina from E10.5 to P12.5. Additionally, we utilized various molecular markers to demonstrate that Bmp4 inhibition disrupts both neuronal and Müller…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8- —This work was supported by the National Key R&D Program of China (No. 2017YFE0103400) and the National Nature Science Foundation of China (No. 81800872).
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsRetinal Development and Disorders · Developmental Biology and Gene Regulation · TGF-β signaling in diseases
Introduction
Bone morphogenetic proteins (BMPs) constitute a remarkably conserved and diverse protein family, crucially contributing to the development and organization of the central nervous system (CNS) [1]. A multitude of studies have demonstrated the pivotal role of the BMP signaling pathway in the initiation and specification of eye development. This encompasses the induction of optic vesicle, optic cup, anterior segment, and lens formation in the early stages, as well as its involvement in retinogenesis during the later stages [2–5]. In the early stages of eye development, the BMP family (Bmp2, Bmp4, and Bmp7) is predominantly expressed in the optic nerve primordium and optic vesicle. Following the formation of the optic cup at E10.5, BMP expression becomes distributed in various regions. In the chicken retina, Bmp7 is mainly localized in the lens ectoderm [6], while Bmp2 is concentrated in the outer neuroepithelial layer of the optic cup, playing a regulatory role in the formation of RPE [7]. Additionally, Bmp4 is primarily expressed in the inner neuroepithelial layer of the optic cup [8], participating in the regulation of neural retina formation. However, the distribution and function of Bmp4 in mammalian retina development remain not well understood.
The BMP4 gene, located on 14q22-q23, is strongly associated with ocular malformations [9]. Heterozygous Bmp4^+/−^ mice exhibit anophthalmia-microphthalmia, failure of lens induction, anterior segment dysgenesis, and retinal and optic nerve aplasia [10–12]. Similarly, clinical studies have revealed that individuals with anophthalmia or microphthalmia, combined with sclerocornea, were found to harbor a nonsense mutation in Bmp4 [13]. Furthermore, maintaining an optimal level of Bmp4 signaling is crucial for proper growth along the dorso-ventral axis of the optic cup, as excessive activation can result in reduced ocular growth, leading to small and misshapen eyes [14]. Given the indispensable role of Bmp4 in the early stages of eye development, previous studies have investigated its impact on retinal cell differentiation following optic cup formation in the late stage of retinal development [15]. However, the precise role of Bmp4 in the morphological evolution and functional development of various retinal neurons remains to be fully elucidated.
The Human Protein Atlas (http://www.proteinatlas.org/) reveals that chordin-like 1 (Chrdl1) is the most prominently expressed inhibitor of BMPs signaling in the human and murine retina. Studies have demonstrated that Chrdl1 can alter the fate of progenitor cells by inhibiting the BMPs signaling pathway, thereby promoting the differentiation of neural progenitor cells into the neuronic lineage within the central nervous system [16]. Clinical studies have reported that dysregulation of CHRDL1-BMP4 antagonism leads to X-linked megalocornea in humans [17]. Based on these findings, we hypothesize that Chrdl1 and Bmp4 play a role in regulating cell differentiation during retinal development.
In this study, we initially explored the expression patterns and localization of Bmp4 and Chrdl1 in the retina. Subsequently, a mouse model with specific overexpression of Chrdl1 in the retina was established using the cre-loxp system. We then investigated the impact of inhibiting Bmp4 signaling on various aspects of retinal development, encompassing retinal tissue structure and visual function. Finally, through RNA-seq analysis, we unraveled the mechanisms underlying the actions of Bmp4 and Chrdl1, shedding light on their roles in retinal differentiation. This study provides novel insights into the understanding of Chrdl1-mediated Bmp4 signaling in retinal development.
Results
Temporal and spatial expression patterns of Bmp4 in retinal development

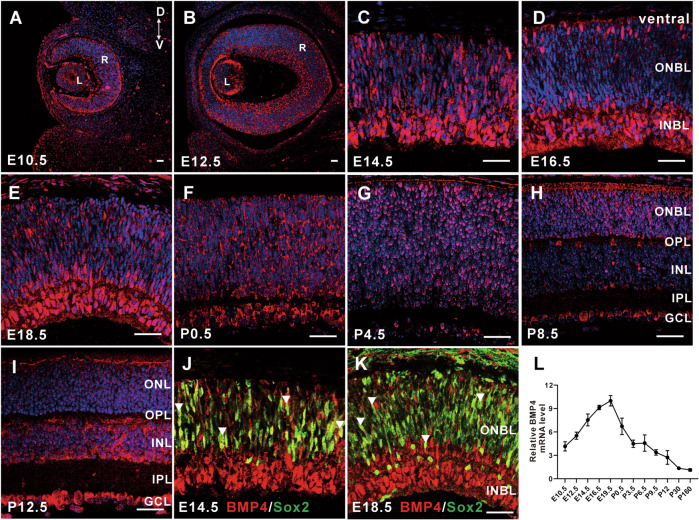

While a previous study has reported on the expression pattern of BMP receptors in retinal development [18], the comprehensive investigation of Bmp4 expression patterns in this context remains unexplored. Immunofluorescence was conducted to characterize the spatial and temporal expression patterns of Bmp4 in the mouse retina. As depicted in Fig. 1A, the expression of Bmp4 in the mouse retina exhibited a weaker signal at the embryonic stage (E) 10.5. By E12.5, the expression of Bmp4 became more pronounced compared to E10.5 (Fig. 1B). From E14.5 to E18.5, Bmp4 expression significantly increased in the entire population of retina progenitor cells, especially in the inner neuroblastic layers (INBL), while remaining robust in lens cells (Fig. 1C–E). From postnatal (P) 0.5 to mature retinas, Bmp4 gradually localizes to the ganglion cell layer (GCL) and the innermost region of the inner nuclear layer (INL), while its expression diminishes in the outer nuclear layer (ONL) (Fig. 1F–I). Additionally, our findings indicate that Bmp4 is predominantly expressed in Sox2+ retinal progenitor cells (RPCs) at E14.5 and E18.5 (Fig. 1J, K). In alignment with the immunofluorescence signal profile, Bmp4 mRNA expression maintains a high level during the embryonic stage, reaching its peak at E19.5, and subsequently decreases gradually with the development and maturation of the retina, persisting until P160 (Fig. 1L). These findings elucidated the dynamic nature of Bmp4 expression within the murine retina, revealing distinct spatiotemporal patterns of gene transcription. *3.2. Temporal l and spatial expression patterns of Chrdl1 expression during mouse retinal development.*Fig. 1. Spatiotemporal expression pattern of Bmp4 during mouse retinal development.A–I The Bmp4 immunostaining of the retinal sections at the stage of the indicated developmental stages. J, K The section in (C–E) was co-labeled with an anti-Sox2 antibody. L Temporal expression levels of Bmp4 from embryonic to adult stages during retinal development as determined by qRT-PCR analysis. Results are presented as the mean ± SEM (n = 3). Scale = 20 μm. Abbreviations: L lens, R retina, GCL ganglion cell layer, INBL inner neuroblastic layer, INL inner nuclear layer, IPL inner plexiform layer, ONBL outer neuroblastic layer, ONL outer nuclear layer, OPL outer plexiform layer.

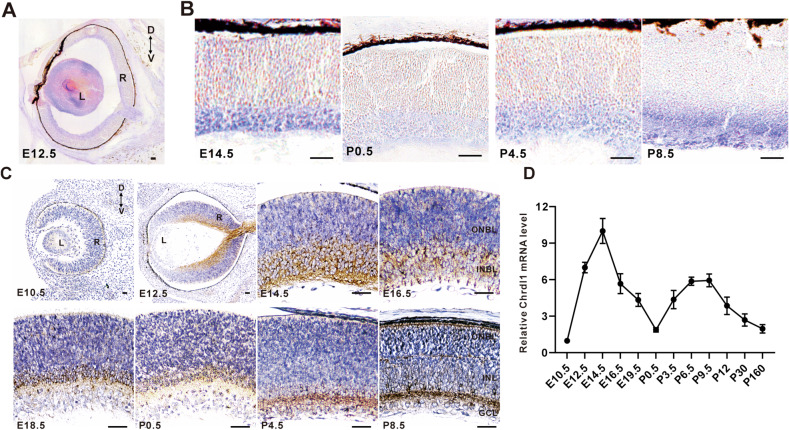

Chrdl1 antagonizes the function of Bmp4 by binding to the Bmp4 ligand, blocking its interaction with the receptor. Therefore, we employed situ hybridization and immunohistochemistry to investigate the temporal and spatial expression patterns of Chrdl1 during mouse retinal development. As depicted in Fig. 2A, the expression of Chrdl1 RNA was notably diminished in the retina, while it exhibited an elevated level in the lens at E12.5. Following a dynamic temporal progression, Chrdl1 RNA expression became confined to the inner neuroblastic layers (INBL) from E14.5 to P8.5 (Fig. 2B). The expression pattern of Chrdl1 protein closely mirrored its mRNA expression. Specifically, at E10.5, Chrdl1 expression was absent in the mouse retina, but discernible in the retina and restricted to the INBL at E12.5-E18.5. During early postnatal stages (P0.5, P4.5), Chrdl1 expression was confined to the inner layers of the retina. By P8.5, it became restricted to the inner nuclear layer (INL) and ganglion cell layer (GCL) (Fig. 2C). Quantitative real-time polymerase chain reaction (qRT-PCR) results mirrored the profiles observed in RNA in situ hybridization signals, indicating that Chrdl1 expression reached higher levels from E12.5 to E19.5 and subsequently maintained lower levels at least until P160 (Fig. 2D). These findings suggest that the expression pattern of Chrdl1 in the mouse retina is characterized by temporal and spatial variations.Fig. 2. Spatiotemporal expression pattern of Chrdl1 during mouse retinal development.A, B In situ hybridization of retinal sections of the target period with a Chrdl1 probe. C Retinal sections from the indicated developmental stages were immune stained with an anti-Chrdl1 antibody and counterstained with DAPI. D By qRT-PCR analysis, the temporal expression levels of Chrdl1 during retinal development from embryonic to adult stages were determined. Results are presented as the mean ± SEM (n = 3). Scale = 20 μm. Abbreviations: L lens, R retina, GCL ganglion cell layer, INBL inner neuroblastic layer, INL inner nuclear layer, ONBL outer neuroblastic layer, ONL outer nuclear layer.
Effect of Chrdl1 overexpression on the formation of retinal non-photoreceptor cells
In pursuit of this objective, we conducted targeted modifications to the ubiquitously expressed Rosa26 locus to facilitate the transcriptional expression of human Chrdl1. LoxP-flanked TpA stop signals were strategically introduced to mitigate the constitutive expression of the Chrdl1 gene. Subsequently, the introduction of a Six3-Cre transgene engendered a murine model wherein the expression of human Chrdl1 was selectively activated in the retina (designated as Rosa26-hChrdl1Six3-Cre, henceforth denoted as R26-hChrdl1), all while developing against an otherwise unaltered genetic backdrop. As anticipated, homozygous mice (Six3^pos^hChrdl1^+/+)^, characterized by the presence of two copies of the hChrdl1 gene, manifested discernibly heightened levels of hChrdl1 and a significant decrease in Bmp4 levels within the retina in comparison to their heterozygous counterparts (Six3^pos^hChrdl1^+/-^) and control (Six3^neg^hChrdl1^+/+^) (Fig. S1C and S2). In addition, we conducted additional experiments to consider the possible involvement of other BMP family ligands. Nevertheless, in contrast, only the expression of Bmp4 was markedly downregulated (Fig. S3).

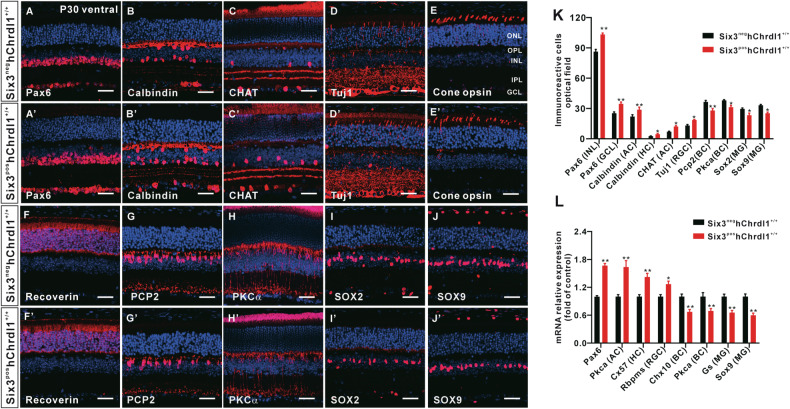

To elucidate the impact of inhibiting the BMP signaling pathway on the differentiation of distinct cell types and subtypes within the Six3^pos^hChrdl1^+/+^ retina, we characterized a spectrum of cell subtypes through immunofluorescence staining at postnatal day 30 (P30). In the Six3^pos^hChrdl1^+/+^, a notable increase in the population of Pax6^+^ cells (including amacrine and ganglion cells) was observed in the inner nuclear layer (INL) and ganglion cell layer (GCL) (Fig. 3A, A’). Correspondingly, a concordant elevation was noted in the numbers of Calbindin^+^ (amacrine cells) and Chat^+^ cells (amacrine cells), as depicted in Fig. 3B, C, along with their respective subfigures (Fig. 3B’, C’). Likewise, a marked augmentation was evident in the counts of Calbindin^+^ (horizontal cells) and Tuj1^+^ (ganglion cells) cells within the Six3^pos^hChrdl1^+/+^ retinas (Fig. 3B, B’, D, and D’). Importantly, no discernible difference was identified in the population of photoreceptor cells between Six3^pos^hChrdl1^+/+^ and Six3^neg^hChrdl1^+/+^ retina (Fig. 3E, F, E’, and F’). Concurrently, there was a notable reduction in the population of PKCα+ rod-bipolar cells and Pcp2+ on-bipolar cells within the Six3^pos^hChrdl1^+/+^ retina (Fig. 3G, H, G’, and H’). Müller cells assume a pivotal role in retinal homeostasis, overseeing the maintenance of both morphology and structural integrity. Our observations discerned a statistically significant decrease in the abundance of Sox2^+^ and Sox9^+^ Müller cells within the Six3^pos^hChrdl1^+/+^ retina (Fig. 3I, J, I’, and J).Fig. 3. Effect of Chrdl1 overexpression on the formation of retinal cell types.A–J, A’–J’ Sections from P30 Six3^neg^hChrdl1^+/+^ and Six3^pos^hChrdl1^+/+^ retinas were immune-stained with antibodies against the indicated cell type-specific markers and weakly counterstained with nuclear DAPI. Red represents Pax6 (RGCs, ACs), Calbindin (ACs, HCs), Chat (AC), Tuj1 (RGCs), Cone opsin (Cone), Recoverin (Photoreceptor cell), Pcp2 (BCs), Pkcα(BCs), Sox2 (MG) and Sox9 (MG), respectively. Scale = 20 μm. K Quantitation of the retinal cells for each specific marker per retina section. L The expression of the selected retinal cell-related genes at P30 in Six3^neg^hChrdl1^+/+^ and Six3^pos^hChrdl1^+/+^ retinas were determined by qRT-PCR analysis. Results are presented as the mean ± SEM (n = 3). ^*^p < 0.01, ^**^p < 0.05^.^ Abbreviations: AC Amacrine Cell, BC bipolar cell, HC horizontal cell, MG Müller glia cells, RGC retinal ganglion cell.
Quantitative assessment of immunoreactive cell populations revealed a significant augmentation in the number of early-born cell types, including Pax6^+^/Calbindin^+^ amacrine, Calbindin^+^ horizontal, and Chat^+^/Tuj1^+^ cells, within the Six3^pos^hChrdl1^+/+^ retina. Specifically, an increase of 32%, 26%, 24%, 42%, and 29%, respectively, was observed in comparison to the Six3^neg^hChrdl1^+/+^ retina. Conversely, late-born cell types in the Six3^pos^hChrdl1^+/+^ retina, namely PKCα^+^ rod bipolar, Pcp2^+^ on bipolar, Sox2^+^ Müller cells, and Sox9^+^ Müller cells, exhibited a decrease of 21%, 30%, 26%, and 31%, respectively, as compared to the Six3^neg^hChrdl1^+/+^ retina (Fig. 3K). Quantitative real-time polymerase chain reaction (QRT-PCR) was employed to corroborate the mRNA expression changes of specific markers corresponding to each cell type following Chrdl1 overexpression. The outcomes demonstrated congruence with the cell count results (Fig. 3L). In summary, our experimental findings indicate that the conditional overexpression of Chrdl1 results in an augmented abundance of early-born cell types (retinal ganglion cells, horizontal cells, and amacrine cells), concomitant with a diminished presence of later-born cell types (bipolar cells and Müller glial cells).
Chrdl1 overexpression alters the specification of non-photoreceptor cells in the early stage of retinal development
In the early stages of retinal development, retinal progenitor cells undergo differentiation into mature retinal neurons under the influence of transcription factors [19]. In this study, we investigated the development of non-photoreceptor cells in Six3^neg^hChrdl1^+/+^ and Six3^pos^hChrdl1^+/+^ retinas. Comparative analysis with the Six3^neg^hChrdl1^+/+^ group revealed a significant increase in the number of amacrine cells (Ap2α^+^ or Calbindin^+^) and horizontal cells (Calbindin^+^) in the Six3^pos^hChrdl1^+/+^ group at E 18.5. Conversely, the count of ganglion cells, immunoreactive for Rbpms, showed no significant change between Six3^neg^hChrdl1^+/+^ and Six3^pos^hChrdl1^+/+^ retinas at P 6.5 (Fig. 4A, B).Fig. 4. Effect of Chrdl1 overexpression on the generation of different retinal cell types.A Sections E18.5 Six3^neg^hChrdl1^+/+^ and Six3^pos^hChrdl1^+/+^ retinas were immune-stained with antibodies against the indicated cell type-specific markers and weakly counterstained with nuclear DAPI. Red represents Ap2α (ACs), Calbindin (ACs, HCs), Rbpms (RGCs) respectively. Scale = 20 μm. B Quantitation of cells that are immunoreactive for the indicated cell type-specific markers in E18.5 (Ap2α, Calbindin, Rbpms) Chrdl1^f1/f1^ and Chrdl1^Six3-KI^ retinas. C Sections P6.5 Six3^neg^hChrdl1^+/+^ and Six3^pos^hChrdl1^+/+^ retina were immune-stained with antibodies against the indicated cell type-specific markers and weakly counterstained with nuclear DAPI. Red represents Chx10 (BCs) and Sox9 (MG) respectively. Scale = 20 μm. D Quantitation of cells that are immunoreactive for the indicated cell type-specific markers in P6.5 (Chx10, Sox9) Chrdl1^f1/f1^ and Chrdl1^Six3-KI^ retinas. Results are presented as the mean ± SEM (n = 3). ^*^p < 0.01, ^**^p < 0.05. Abbreviations: RGC, retinal ganglion cell; AC, Amacrine Cell; HC, horizontal cell; BC, bipolar cell; MG, müller glia cells.

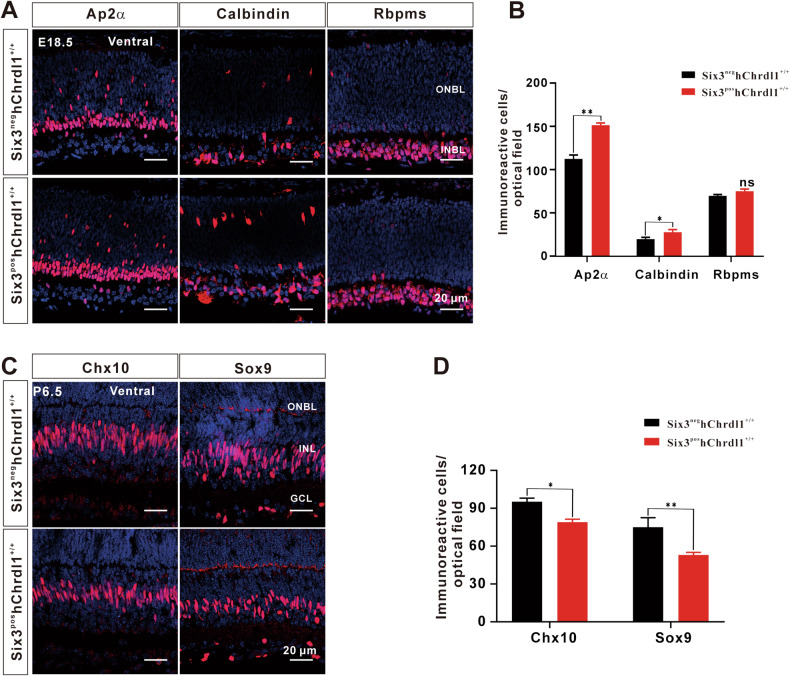

Furthermore, there was a notable reduction in the number of Chx10^+^ bipolar cells and Sox9^+^ Müller glial cells in the Six3^pos^hChrdl1^+/+^ group at P 6.5 (Fig. 4C, D). To provide additional insights into the roles of Chrdl1 and Bmp4 in early-stage retinal development, we labeled E 14.5 Six3^neg^hChrdl1^+/+^ and Six3^pos^hChrdl1^+/+^ retinal progenitor cells with Chx10 and Sox2 antibodies. Comparative analysis with Six3^neg^hChrdl1^+/+^ revealed a significant decrease in the number of Chx10^+^ or Sox2^+^ cells (representing retinal progenitor cells) in the Six3^pos^hChrdl1^+/+^ group (Fig. S4). These results suggest that Chrdl1 is essential for the specification of amacrine, horizontal, bipolar, and Müller glial cells, while its role in the specification of ganglion cells appears to be limited.
Chrdl1 overexpression impaired ERG responses and visual acuity

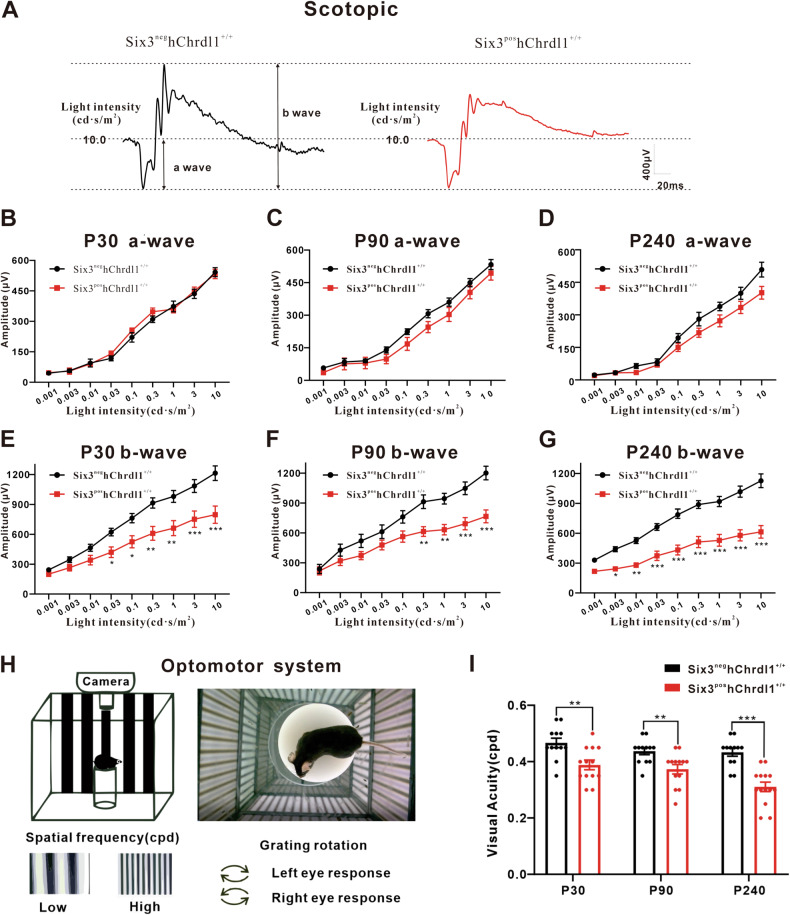

To assess the impact of Chrdl1 overexpression on the visual function of mice, electroretinogram (ERG) responses were recorded at postnatal days 30 (P30), 90 (P90), and 240 (P240) in both Six3^neg^hChrdl1^+/+^ and Six3^pos^hChrdl1^+/+^ mice. Representative waveforms for scotopic ERG responses at 10.0 cd·s/m2 are illustrated in Fig. 5A, indicating decreased b-wave amplitudes in Six3^pos^hChrdl1^+/+^ mice. Correspondingly, scotopic ERG responses at 30.0 cd·s/m2 are presented in Fig. S5A. Under dark-adapted conditions, for low flash intensities (0.003–0.03 cd·s/m2), ERG responses were predominantly characterized by the b-wave, with consistently lower response amplitudes observed in mutant mice compared to Six3^neg^hChrdl1^+/+^ animals. Notably, the a-wave exhibited no discernible changes in either light-adapted or dark-adapted environments between Six3^neg^hChrdl1^+/+^ and Six3^pos^hChrdl1^+/+^ mice at P30, P90, and P240 (Fig. 5B–D, Fig. S5B–D). Contrary to the stability of the a-wave, the amplitudes of the b-wave, primarily driven by the activity of Rod bipolar cells, exhibited an ~30% decrease in Six3^pos^hChrdl1^+/+^ mice at P30, P90, and P240 (Fig. 5E–G). In alignment with these findings, the b-wave amplitudes of Six3^pos^hChrdl1^+/+^ mice in light-adapted ERG were reduced by about 20% compared to the Six3^neg^hChrdl1^+/+^ group (Fig. S5E–G). The outcomes of electroretinogram (ERG) responses serve as indicative measures of the functional connectivity within various retinal cell populations. Specifically, alterations in the a-wave predominantly stem from changes in photoreceptor cells, while modifications in the b-wave are primarily attributed to alterations in the functional connectivity of diverse cells in the inner nuclear layer [20]. These changes may be intricately linked to variations in both the photoreceptor and non-photoreceptor cell populations.Fig. 5Chrdl1 overexpression causes deficit in electroretinogram (ERG) responses and visual acuity.A Representative ERG wave forms of 10.0 light intensity (cd·s/m^2^) from dark-adapted Six3^neg^hChrdl1^+/+^ and Six3^pos^hChrdl1^+/+^ mouse aged P30. B–D The amplitudes of the scotopic ERG a-waves elicited from mice were recorded at P30, P90 and P240. E–G The amplitudes of the scotopic ERG b-waves elicited from mice were recorded at P30, P90 and P240. H Schematic illustrating the OMR testing apparatus and procedures. A mouse is placed freely on a platform, and the stimulus gratings are displayed on the LED screens surrounding the mouse (left). A mouse is tracking the moving grating on the top of the platform (right). I The visual acuity threshold in the scotopic OMR was measured from Six3^neg^hChrdl1^+/+^ and Six3^pos^hChrdl1^+/+^ mice aged at P30, P90, and P240. Results are presented as the mean ± SEM (n = 12). ^*^p < 0.01, ^**^p < 0.05^, ***^p < 0.001.
Furthermore, the optomotor response (OMR) serves as a valuable tool for evaluating animal visual function, inducing eye movements through light stimulation at different frequencies (Fig. 5H). Our findings reveal a significant reduction in visual function in Six3^pos^hChrdl1^+/+^ mice at postnatal days 30, 90, and 240, respectively (Fig. 5I). Collectively, these results indicate that the conditional overexpression of Chrdl1 primarily impairs the visual acuity and ERG responses of the mice.
The overexpression of Chrdl1 induces a cell fate switch during retinal development

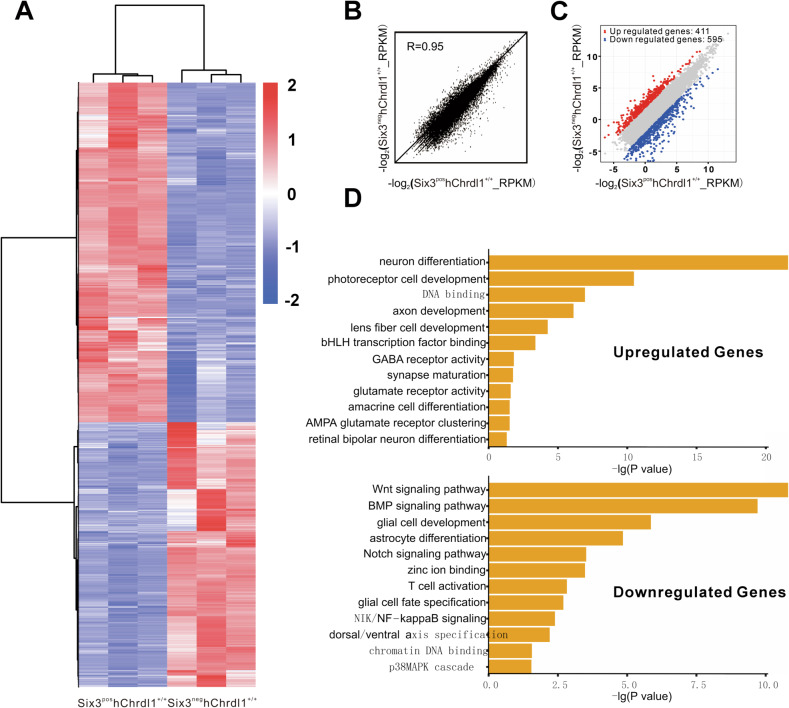

To delve deeper into the functional and mechanistic aspects of the Chrdl1-mediated Bmp4 signal in retinal development, we conducted RNA-seq analysis on the retinas of Six3^neg^hChrdl1^+/+^ and Six3^pos^hChrdl1^+/+^ mice at postnatal day 0.5 (P0.5). As anticipated, a significant disparity in gene expression profiles between Six3^neg^hChrdl1^+/+^ and Six3^pos^hChrdl1^+/+^ mice was evident (Fig. 6A), and the Spearman correlation coefficient (SCC) for this sequencing sample was calculated to be 0.95 (refer to Fig. 6B). The analysis revealed 3484 unique transcripts with expression levels either up-regulated or down-regulated by more than twofold in Six3^pos^hChrdl1^+/+^ compared to Six3^neg^hChrdl1^+/+^ mice. Specifically, among these, 1526 genes exhibited upregulation (depicted in red), while 1958 genes displayed downregulation (depicted in blue) (Fig. 6C). Subsequently, gene ontology analysis was employed to assess the functional categorization of transcripts in retinal development. The results indicated enrichment in categories related to neuron fate, axon development, synaptic maturation, and glia cell fate specification (Fig. 6D).Fig. 6RNA-seq analysis reveals the differentially expressed genes in Six3^pos^hChrdl1^+/+^ retina at P0.5.A Cluster analysis presented a large group of significantly upregulated genes and a smaller group of significantly downregulated genes in the Six3^pos^hChrdl1^+/+^ retinas. B The scatter plot of global gene expression profiles and the Spearman correlation coefficient were indicated. The levels of gene expression (reads per kilobase per million reads) were depicted in log10 scale. The diagonal line represented equal expression levels in the Six3^neg^hChrdl1^+/+^ and Six3^pos^hChrdl1^+/+^ retinas. C Scatter plot of significantly upregulated (red) and downregulated (blue) genes (fold change ≥ 2.0 and P < 0.05) between the Six3^neg^hChrdl1^+/+^ and Six3^pos^hChrdl1^+/+^ retinas. D Gene ontology (GO) terms that related to the retina of upregulated and downregulated genes set in Six3^pos^hChrdl1^+/+^ retinas compared to Six3^neg^hChrdl1^+/+^ retinas.

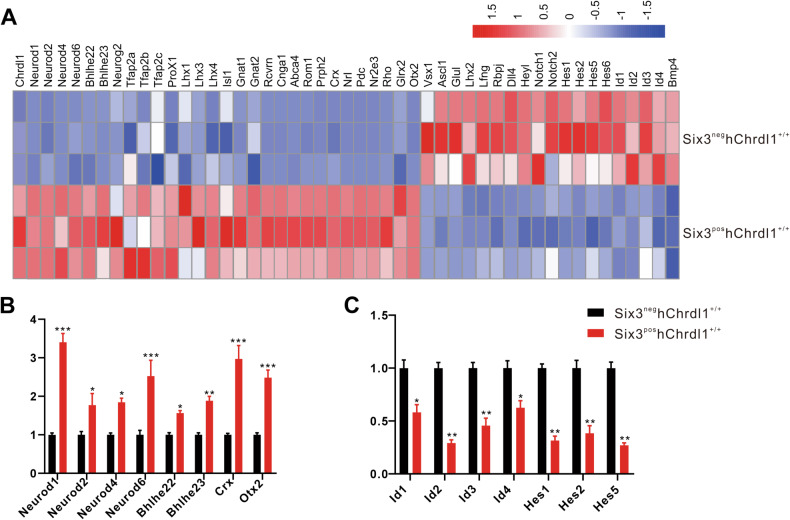

In previous studies, a suite of basic helix-loop-helix (bHLH) type transcription factors (TFs) has been implicated in the specification and differentiation of retinal neurons. We generated a heatmap illustrating the expression patterns of TFs involved in determining cell fate during retinogenesis (Fig. 7A). Consistent with the RNA-seq findings, quantitative real-time polymerase chain reaction (qRT-PCR) analysis revealed upregulation of transcriptional activators of bHLHs, including Neurod1, Neurod2, Neurod4, Neurod6, Bhlhe22, and Bhlhe23, in Chrdl1Six3-KI retinas (Fig. 7B). Conversely, transcriptional repressors of bHLHs, such as Id1, Id2, Id3, Id4, Hes1, and Hes5, exhibited a decrease in expression (Fig. 7C). These observations suggest that the conditional overexpression of Chrdl1 exerts an influence on the Chrdl1-Bmp4 pathway through the modulation of transcription factors during retinogenesis.Fig. 7. Expression analysis and qRT-PCR validation of transcription factors closely related to retinal development.A The heat map of expression levels for transcription factors (TFs) for retina development. B The qRT-PCR analyses of the up-regulated TFs genes in Six3^neg^hChrdl1^+/+^ and Six3^pos^hChrdl1^+/+^ mice at P0.5. C The qRT-PCR analyses of the down-regulated TFs genes in Six3^neg^hChrdl1^+/+^ and Six3^pos^hChrdl1^+/+^ mice at P0.5. Results are presented as the mean ± SEM (n = 3), ^*^p < 0.01, ^**^p < 0.05.
Discussion
The present study represents the inaugural attempt to systematically elucidate the spatiotemporal expression patterns of Chrdl1 and Bmp4 in the mammalian retina. Notably, our findings reveal a distinct expression profile for Chrdl1 and Bmp4 in the mouse retina, deviating significantly from the dorsoventral axis pattern observed in prior non-mammalian investigations. Furthermore, we contribute novel evidence supporting the pivotal roles of Chrdl1 and Bmp4 in orchestrating the delicate balance between neurons and Müller glia during retinal development, as demonstrated through the construction of a conditional overexpression Chrdl1 mouse model. These results offer fresh insights into the intricate role of Chrdl1-mediated Bmp4 signaling in the developmental processes of the retina. We also comparison of Six3^pos^hChrdl1^+/+^ mouse phenotypes with the range of retinal defects previously observed in various Chrdl1and TGF-/BMP signaling component mutants provides a platform with which to evaluate the specific mechanisms by which Chrdl1 mediates Bmp4 signaling in the context of specific retinal development (refer to Supplementary Table S5).
The well-established role of Bmp4 in promoting retinal ganglion cell survival and axon regeneration spans various stages of nervous system development [21]. During the early embryonic period, Bmp4 plays a pivotal role in the retina, influencing processes such as lens formation and mediating apoptosis [22]. Its significance extends to the late embryonic, postnatal, and even adult stages, as exemplified in the choroid where Bmp4 overexpression inhibits experimental neovascularization by modulating VEGF and MMP-9 [23]. This study investigates the temporal and spatial expression patterns of Bmp4 in retinal development using immunofluorescent staining, while qRT-PCR results further elucidate Bmp4 mRNA expression dynamics. Previous research on non-mammalian retinal development has focused on the dorsal retina as the primary site of Bmp4 expression [8]. However, the distribution of Bmp4 in mammalian retinal development remains poorly understood. Intriguingly, our present study systematically demonstrates, for the first time, the spatiotemporal expression patterns of Bmp4 in mammals. This expression profile diverges significantly from the findings of previous studies in non-mammalian retinal development, providing novel insights into the distinctive role of Bmp4 in mammalian retinal development.
Chrdl1 is a secreted glycoprotein characterized by three cysteine-rich (CR) repeats structurally. Extensive prior research has underscored the significance of Chrdl1 as a BMP antagonist in various systems, influencing angiogenesis [24], neural stem cell fate determination, and neurogenesis [16], as well as providing protection to the kidneys against acute and chronic injuries [25]. Additionally, Chrdl1 has been associated with the suppression of tumor growth and metastasis [26, 27]. However, the mechanisms governing the actions of Bmp4 and Chrdl1, along with their roles in retinal differentiation, remain elusive. In this study, we systematically delineate the temporal and spatial expression patterns of Chrdl1 during mouse retinal development using RNA In situ hybridization, Immunohistochemistry and qRT-PCR. The noteworthy observation is that the expression pattern of Chrdl1 and Bmp4 in the mouse retina deviates significantly from the dorsoventral axis pattern documented in prior non-mammalian studies. Additionally, we identified that Bmp4 is predominantly expressed in Sox2^+^ retinal progenitor cells (RPCs) at E14.5 and E18.5. This suggests that the Bmp4 signal pathway may be expressed in mitotic cells and postmitotic cells at these respective stages. In order to delve deeper into the role of Chrdl1-mediated Bmp4 signaling in retinal development, we generated a conditional overexpression Chrdl1 mouse. Through analysis of the Six3^pos^hChrdl1^+/+^ mouse models, we discerned that Chrdl1-mediated Bmp4 signaling plays crucial roles in maintaining a balance in the development between retinal neurons and Müller glia cells. Electroretinogram (ERG) and Optomotor Response (OMR) were also observed to deteriorate with age in mutant mice, underscoring the essential requirement for normal expression of Chrdl1 and Bmp4 in sustaining retinal cell structure and function. These findings suggest that *Chrdl1-*mediated Bmp4 signaling regulates the equilibrium between retinal neurons and Müller glia in retinal development.
During retinal ontogenesis, the differentiation of each retinal cell type necessitates the orchestrated activation of a specific ensemble of transcription factors (TFs) to induce their commitment to a particular cellular fate. Notably, the bHLHs and homeodomain families represent pivotal TFs in this regulatory paradigm [28–32]. Concurrently, in the context of central nervous system (CNS) development, the neurogenic bHLHs are susceptible to antagonism by Inhibitor of DNA binding and differentiation (Ids) proteins [33–35]. Ids have been substantiated as canonical early response genes in BMPs signaling across diverse cellular contexts [36, 37]. The promoter region of the Ids gene has been previously elucidated to harbor a BMP response element (BRE), recognized by a Smad1/5-Smad4 complex in response to BMPs, thereby eliciting downstream gene transcription [38]. Based on the findings from RNA-seq analysis, we posit that the regulatory influence of Bmp4 on retinal development may be mediated by Ids, which has the capacity to deactivate bHLH TFs and impede neuronal differentiation. In the course of our investigation, the expression levels of Ids isoforms (Id1, Id2, Id3, Id4) exhibited a noteworthy reduction subsequent to Chrdl1 overexpression. Concurrently, the expression levels of diverse bHLH TFs implicated in the regulation of retinal neuron differentiation were significantly elevated. Consequently, we postulate that the heightened expression of Chrdl1 impedes the regulatory dynamics of the BMP-Ids pathway during retinogenesis (Fig. 8), yielding three discernible outcomes: (i) augmentation in the expression of bHLH TFs, a paramount regulatory factor in retinal development, expediting the differentiation of diverse retinal neurons and culminating in an augmented population of early-born neurons; (ii) concomitant reduction in the number of retinal progenitor cells (RPCs) subsequent to Bmp4 inhibition, thereby impacting bipolar cell (BC) differentiation; and (iii) attenuation of BMPs signaling by Chrdl1, thereby inhibiting its facilitative role in glial differentiation and consequently diminishing the generation of Müller glial cells.Fig. 8Chrdl1 regulating retinal cell fate by bHLH transcription factor.Activation of the Notch and BMP signaling pathways leads to increased levels of Hes and Id proteins, which inhibit neuronal differentiation by binding and inhibiting bHLH transcription factor activity. Chrdl1 reverses this process, promoting neuronal differentiation and inhibiting gliogenesis.
In addition to the Ids family, the downstream effector Hes family within the Notch signaling pathway serves as an additional antagonist to neurogenic bHLH transcription factors [39]. Hes1 and Hes5 emerge as pivotal transcriptional regulators essential for the maintenance of retinal progenitor cells (RPCs). Notably, studies have demonstrated that the overexpression of Hes1 and Hes5 exerts a discernible influence on the fate determination of Müller glia and RPCs during retinogenesis, compromising neuronal differentiation [40–42]. In the course of our investigation, we observed a downregulation in the expression levels of multiple effectors downstream of the Notch pathway, including Hes1 and Hes5, consequent to the overexpression of Chrdl1. Consequently, it is conjectured that Chrdl1 engages in molecular interactions with the Notch pathway (Fig. 8). It is imperative to acknowledge certain limitations inherent in this study. The potential contrasting alterations resulting from the deficiency of Chrdl1 remain unclear and warrant further exploration. Subsequently, the utilization of a Chrdl1 knockout model is imperative to ascertain whether such deficiency will precipitate a reduction in neuronal differentiation and a concomitant augmentation in Müller glial differentiation.

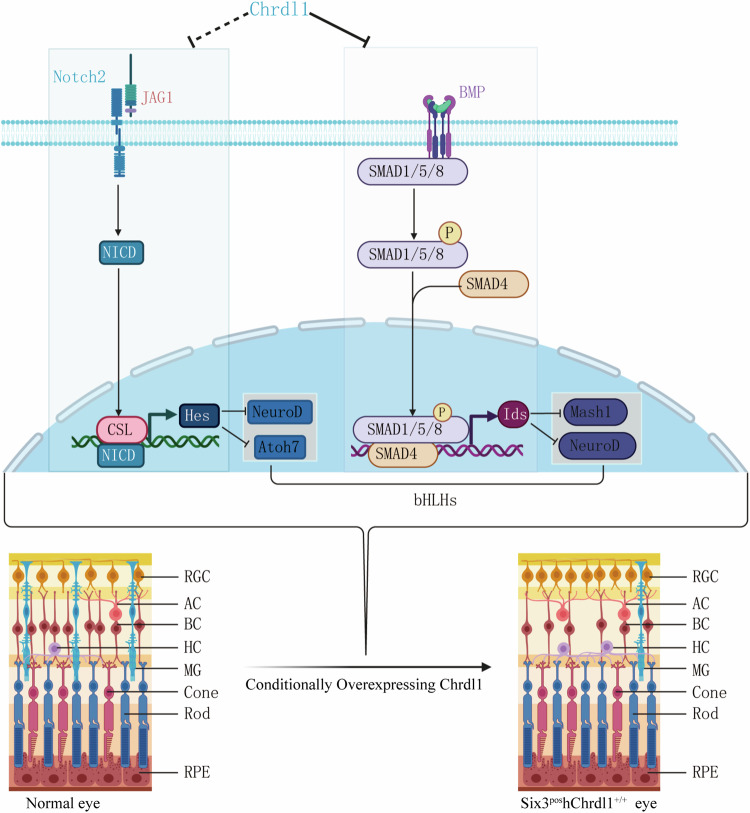

In summation, within the context of retinogenesis, Chrdl1, serving as an antagonist to Bmp4, exhibits the capacity to intricately modulate the fate commitment of progenitor cells. This modulation is achieved through the specific binding interactions with target mRNAs, namely, Id1/2/3/4, Hes1/5, Neurod1/2/4, and Bhlhe22/23, thereby indirectly regulating the expression levels of transcription factors (TFs), notably bHLHs and homeodomain families. Concurrently, Chrdl1 engages in interactions with the Notch pathway, as depicted in Fig. 8. Subsequent to the perturbation in TF levels induced by the conditional overexpression of Chrdl1, an excess of Chrdl1 is observed to impede gliogenesis while concurrently facilitating the differentiation of retinal progenitor cells (RPCs) into retinal neurons. This dysregulation precipitates the ultimate disruption in the amplitude of electroretinogram (ERG) responses and visual acuity. Consequently, our investigations contribute to an enhanced comprehension of the nuanced role played by Chrdl1-mediated Bmp4 signaling in retinal development. Furthermore, our findings present a novel conceptual framework with potential implications for the therapeutic management of Chrdl1-mediated Bmp4 signaling-associated ocular pathologies.
