The genome sequence of wood avens, Geum urbanum L., 1753

TL;DR

This paper presents the genome sequence of the wood avens plant, including its chromosomes, mitochondria, and plastid genomes.

Contribution

The paper provides the first complete genome assembly for Geum urbanum, including chromosomal pseudomolecules and organelle genomes.

Findings

The genome assembly spans 1,304.9 megabases and is scaffolded into 21 chromosomal pseudomolecules.

The mitochondrial genome is 335.5 kilobases and the plastid genome is 156.1 kilobases in length.

Abstract

We present a genome assembly from an individual
Geum urbanum
(wood avens; Streptophyta; Magnoliopsida; Rosales; Rosaceae). The genome sequence is 1,304.9 megabases in span. Most of the assembly is scaffolded into 21 chromosomal pseudomolecules. The mitochondrial and plastid genomes have also been assembled and are 335.5 and 156.1 kilobases in length respectively.

Figures

Ge um urbanum (not the sampled specimen) growing in secondary woodland.( a) The plant habit with five-petal flowers in late May. ( b) Two small insects visiting the flower of G. urbanum. ( c) A fruiting head of G. urbanum. Photos taken by Meng Lu.

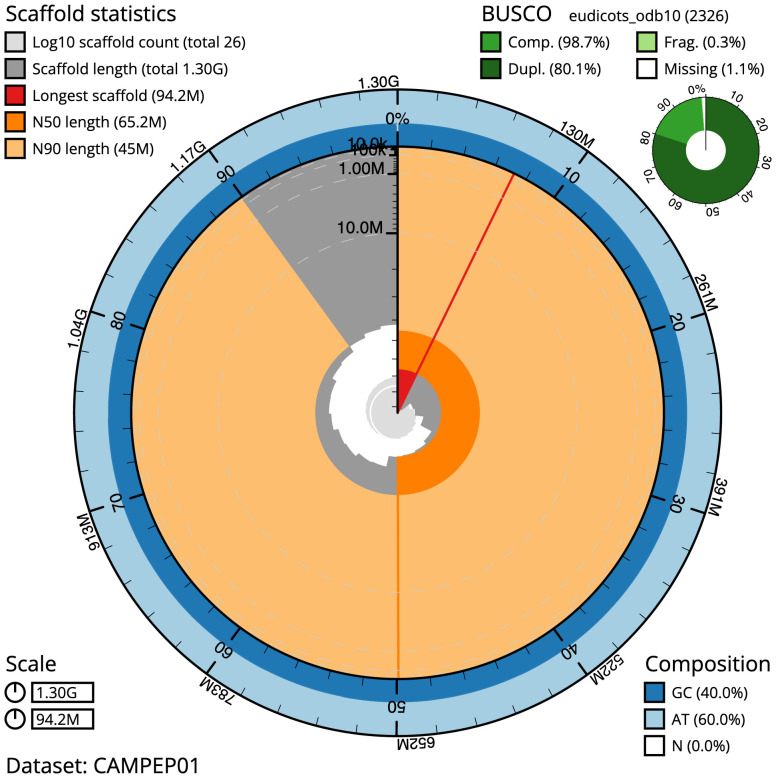

Genome assembly of Geum urbanum, drGeuUrba1.1: metrics. The BlobToolKit Snailplot shows N50 metrics and BUSCO gene completeness. The main plot is divided into 1,000 size-ordered bins around the circumference with each bin representing 0.1% of the 1,304,870,458 bp assembly. The distribution of scaffold lengths is shown in dark grey with the plot radius scaled to the longest scaffold present in the assembly (94,240,583 bp, shown in red). Orange and pale-orange arcs show the N50 and N90 scaffold lengths (65,224,196 and 44,983,829 bp), respectively. The pale grey spiral shows the cumulative scaffold count on a log scale with white scale lines showing successive orders of magnitude. The blue and pale-blue area around the outside of the plot shows the distribution of GC, AT and N percentages in the same bins as the inner plot. A summary of complete, fragmented, duplicated and missing BUSCO genes in the eudicots_odb10 set is shown in the top right. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/drGeuUrba1.1/dataset/CAMPEP01/snail.

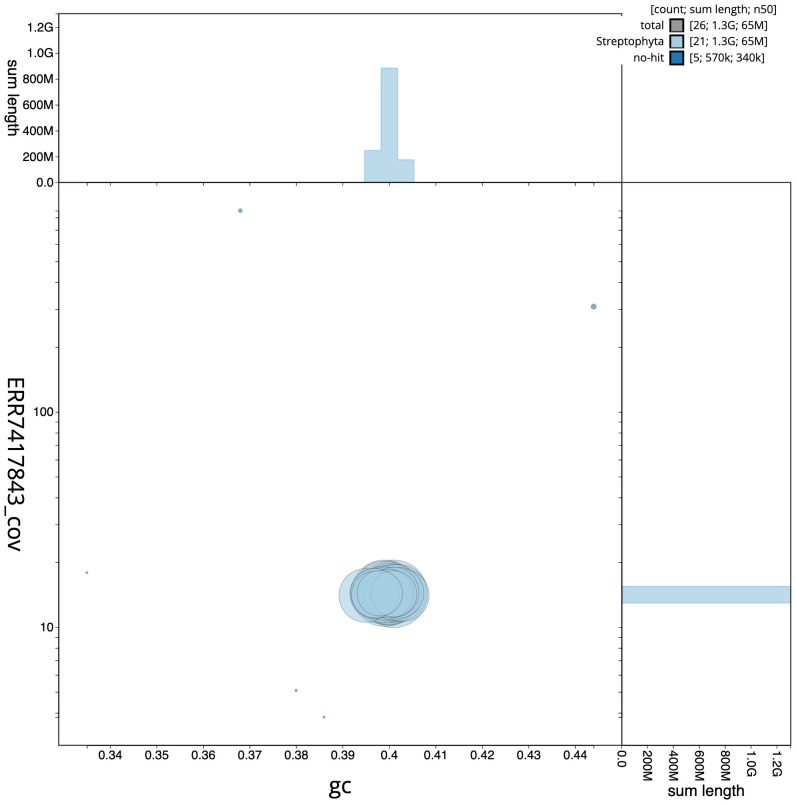

Genome assembly of Geum urbanum, drGeuUrba1.1: GC coverage. BlobToolKit GC-coverage plot. Scaffolds are coloured by phylum. Circles are sized in proportion to scaffold length. Histograms show the distribution of scaffold length sum along each axis. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/drGeuUrba1.1/dataset/CAMPEP01/blob.

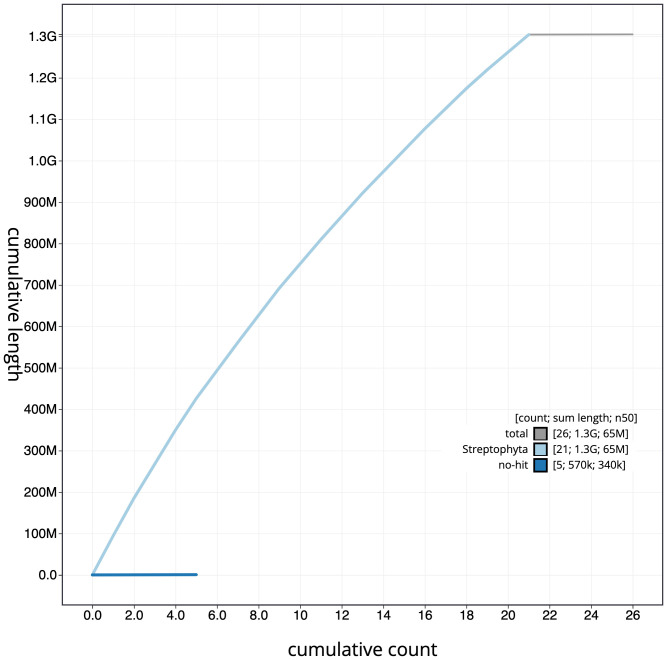

Genome assembly of Geum urbanum, drGeuUrba1.1: cumulative sequence. BlobToolKit cumulative sequence plot. The grey line shows cumulative length for all scaffolds. Coloured lines show cumulative lengths of scaffolds assigned to each phylum using the buscogenes taxrule. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/drGeuUrba1.1/dataset/CAMPEP01/cumulative.

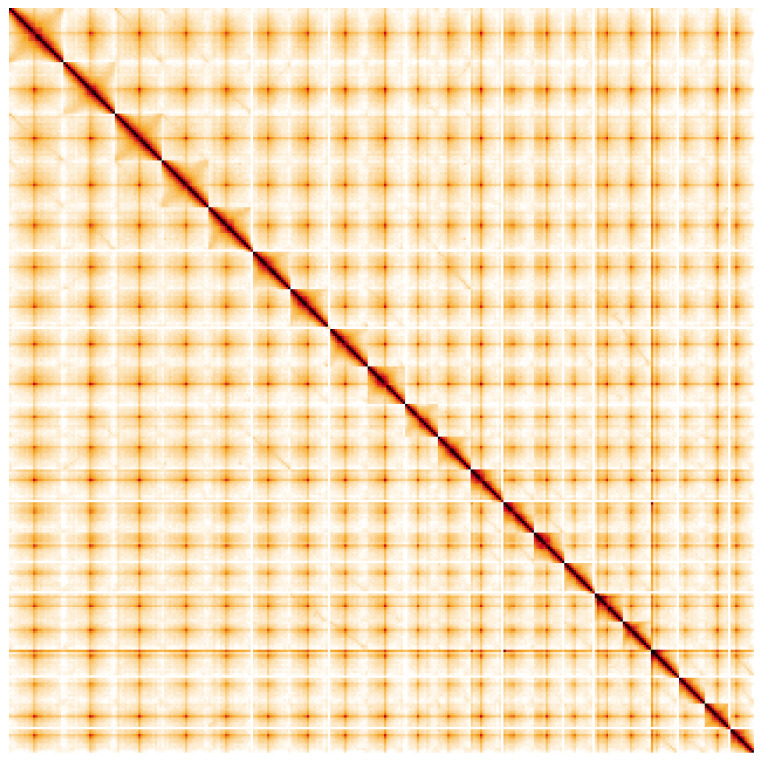

Genome assembly of Geum urbanum, drGeuUrba1.1: Hi-C contact map. Hi-C contact map of the drGeuUrba1.1 assembly, visualised using HiGlass. Chromosomes are shown in order of size from left to right and top to bottom. An interactive version of this figure may be viewed at https://genome-note-higlass.tol.sanger.ac.uk/l/?d=JSrsAc2aSfi-e9L51ilEkA.

Tables

Table 1.. Genome data for Geum urbanum, drGeuUrba1.1.

Project accession data
Assembly identifier	drGeuUrba1.1
Species	Geum urbanum
Specimen	drGeuUrba1
NCBI taxonomy ID	57919
BioProject	PRJEB48840
BioSample ID	SAMEA7522180
Isolate information	leaf tissue; drGeuUrba1 – Monoecious
Assembly metrics *		Benchmark
Consensus quality (QV)	59.6	≥ 50
k-mer completeness	99.99%	≥ 95%
BUSCO **	C:98.7%[S:18.6%,D:80.1%], F:0.3%,M:1.1%,n:2,326	C ≥ 95%
Percentage of assembly mapped to chromosomes	99.95%	≥ 95%
Sex chromosomes	Not applicable	localised homologous pairs
Organelles	Mitochondrial and plastid genomes assembled.	complete single alleles
Raw data accessions
PacificBiosciences SEQUEL II	ERR7419408, ERR7419409
10X Genomics Illumina	ERR7417841–ERR7417844
Hi-C Illumina	ERR7417845
PolyA RNA-Seq Illumina	ERR9435030
Genome assembly
Assembly accession	GCA_946800695.1
Accession of alternate haplotype	GCA_946800285.1
Span (Mb)	1,304.9
Number of contigs	113
Contig N50 length (Mb)	19.5
Number of scaffolds	26
Scaffold N50 length (Mb)	65.2
Longest scaffold (Mb)	94.2

Table 2.. Chromosomal pseudomolecules in the genome assembly of Geum urbanum, drGeuUrba1.

INSDC accession	Chromosome	Size (Mb)	GC%
OX326997.1	1	94.24	40.1
OX326998.1	2	90.78	39.9
OX326999.1	3	82.87	40
OX327000.1	4	81.92	39.9
OX327001.1	5	76.26	40
OX327002.1	6	68.51	40.1
OX327003.1	7	66.65	40.2
OX327004.1	8	65.95	39.9
OX327005.1	9	65.22	40.1
OX327006.1	10	58.98	39.5
OX327007.1	11	58.47	39.9
OX327008.1	12	56.09	40.1
OX327009.1	13	55.44	40.3
OX327010.1	14	52.82	40.2
OX327011.1	15	51.58	39.7
OX327012.1	16	51.37	40.1
OX327013.1	17	48.95	39.7
OX327014.1	18	48.17	40
OX327015.1	19	44.98	39.7
OX327016.1	20	43.17	40.1
OX327017.1	21	41.87	39.8
OX327018.1	MT	0.34	44.4
OX327019.1	Pltd	0.16	36.8

Table 3.. Software tools: versions and sources.

Software tool	Version	Source
BlobToolKit	4.0.7	https://github.com/blobtoolkit/blobtoolkit
BUSCO	5.3.2	https://gitlab.com/ezlab/busco
FreeBayes	1.3.1-17-gaa2ace8	https://github.com/freebayes/freebayes
Hifiasm	0.15.3	https://github.com/chhylp123/hifiasm
HiGlass	1.11.6	https://github.com/higlass/higlass
Long Ranger ALIGN	2.2.2	https://support.10xgenomics.com/genome-exome/ software/pipelines/latest/advanced/other-pipelines
MBG	-	https://github.com/maickrau/MBG
Merqury	MerquryFK	https://github.com/thegenemyers/MERQURY.FK
PretextView	0.2	https://github.com/wtsi-hpag/PretextView
purge_dups	1.2.3	https://github.com/dfguan/purge_dups
YaHS	1	https://github.com/c-zhou/yahs

Full text

Species taxonomy

Eukaryota; Viridiplantae; Streptophyta; Embryophyta; Tracheophyta; Spermatophyta; Magnoliopsida; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Rosales; Rosaceae; Rosoideae; Colurieae; Geum; Geum urbanum (Linnaeus 1753) (NCBI:txid57919).

Background

Geum urbanum L. (Rosaceae) is a widespread European perennial herb, the range of which extends to western Asia, western Siberia, and the northwest coast of Africa ( Taylor, 1997). It is native to Britain and Ireland and occurs abundantly, except in some parts of northern Scotland and Ireland ( Preston et al., 2002; Stace et al., 2019). Implied by its common name, wood avens, G. urbanum typically grows in woodland, shrubland, and hedgerows with well-drained conditions, but is also found in disturbed and more open habitats, waste grounds, gardens and parks ( Ruhsam et al., 2011; Taylor, 1997). It is a predominantly self-pollinating species with the outcrossing rates ranging from 0.058 to 0.177 in natural populations ( Ruhsam et al., 2010), yet its small, erect, yellow flowers can still attract pollinators ( Figure 1). The achene fruits of G. urbanum have a single hook ( Figure 1), which makes the seeds well-adapted to dispersal by animals ( Chen et al., 2013; Gorb & Gorb, 2002; Smedmark & Eriksson, 2006).

Ge um urbanum (not the sampled specimen) growing in secondary woodland.( a) The plant habit with five-petal flowers in late May. ( b) Two small insects visiting the flower of G. urbanum. ( c) A fruiting head of G. urbanum. Photos taken by Meng Lu.

Cytogenetic evidence shows that G. urbanum is an ancient hexaploid (2 n = 42) ( Gajewski, 1957; Gajewski, 1958), with molecular studies suggesting that allopolyploidisation gave rise to this hexaploid lineage in Rosoideae ( Gajewski, 1957; Smedmark et al., 2005; Smedmark et al., 2003). However, recent genetic studies show that this species largely behaves as a diploid, although with some additional duplicated gene copies ( Jordan et al., 2018; Ruhsam, 2009). This species is known for its rampant hybridisation with a closely related species, G. rivale, where both occur in close proximity. These two species have several contrasting attributes, including mating system, flower morphology and habitat preference. Apart from its interesting biological features, many of the secondary metabolites of G. urbanum have important pharmacological uses ( Al-Snafi, 2019).

This genome will be extremely helpful for evolutionary studies aimed at understanding historical and contemporary hybridisation ( Jordan et al., 2018; Ruhsam et al., 2011) and the genetic basis of the selfing syndrome ( Sicard & Lenhard, 2011). It will also further contribute to uncovering the potential medical value of compounds produced by G. urbanum.

Genome sequence report

The genome was sequenced from a Geum urbanum specimen collected from a garden bed at the Royal Botanic Gardens, Kew (latitude 51.48, longitude –0.30). Using flow cytometry, the genome size (1C-value) was estimated to be 1.64 pg, equivalent to 1,610 Mb. A total of 27-fold coverage in Pacific Biosciences single-molecule HiFi long reads and 64-fold coverage in 10X Genomics read clouds were generated. Primary assembly contigs were scaffolded with chromosome conformation Hi-C data. Manual assembly curation corrected 5 missing joins or mis-joins and removed one haplotypic duplication, reducing the scaffold number by 13.33%.

The final assembly has a total length of 1,304.9 Mb in 26 sequence scaffolds with a scaffold N50 of 65.2 Mb ( Table 1). Most (99.95%) of the assembly sequence was assigned to 21 chromosomal-level scaffolds. Chromosome-scale scaffolds confirmed by the Hi-C data are named in order of size ( Figure 2– Figure 5; Table 2).

Table 1.: Genome data for Geum urbanum, drGeuUrba1.1.

Genome assembly of Geum urbanum, drGeuUrba1.1: metrics. The BlobToolKit Snailplot shows N50 metrics and BUSCO gene completeness. The main plot is divided into 1,000 size-ordered bins around the circumference with each bin representing 0.1% of the 1,304,870,458 bp assembly. The distribution of scaffold lengths is shown in dark grey with the plot radius scaled to the longest scaffold present in the assembly (94,240,583 bp, shown in red). Orange and pale-orange arcs show the N50 and N90 scaffold lengths (65,224,196 and 44,983,829 bp), respectively. The pale grey spiral shows the cumulative scaffold count on a log scale with white scale lines showing successive orders of magnitude. The blue and pale-blue area around the outside of the plot shows the distribution of GC, AT and N percentages in the same bins as the inner plot. A summary of complete, fragmented, duplicated and missing BUSCO genes in the eudicots_odb10 set is shown in the top right. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/drGeuUrba1.1/dataset/CAMPEP01/snail.

Genome assembly of Geum urbanum, drGeuUrba1.1: GC coverage. BlobToolKit GC-coverage plot. Scaffolds are coloured by phylum. Circles are sized in proportion to scaffold length. Histograms show the distribution of scaffold length sum along each axis. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/drGeuUrba1.1/dataset/CAMPEP01/blob.

Genome assembly of Geum urbanum, drGeuUrba1.1: cumulative sequence. BlobToolKit cumulative sequence plot. The grey line shows cumulative length for all scaffolds. Coloured lines show cumulative lengths of scaffolds assigned to each phylum using the buscogenes taxrule. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/drGeuUrba1.1/dataset/CAMPEP01/cumulative.

Genome assembly of Geum urbanum, drGeuUrba1.1: Hi-C contact map. Hi-C contact map of the drGeuUrba1.1 assembly, visualised using HiGlass. Chromosomes are shown in order of size from left to right and top to bottom. An interactive version of this figure may be viewed at https://genome-note-higlass.tol.sanger.ac.uk/l/?d=JSrsAc2aSfi-e9L51ilEkA.

Table 2.: Chromosomal pseudomolecules in the genome assembly of Geum urbanum, drGeuUrba1.

The estimated Quality Value (QV) of the final assembly is 59.6 with k-mer completeness of 99.99%, and the assembly has a BUSCO v5.3.2 completeness of 98.7% (single = 18.6%, duplicated = 80.1%), using the eudicots_odb10 reference set ( n = 2,326).

Metadata for specimens, spectral estimates, sequencing runs, contaminants and pre-curation assembly statistics can be found at https://links.tol.sanger.ac.uk/species/57919.

Methods

Sample acquisition, genome size estimation and nucleic acid extraction

A specimen of Geum urbanum (drGeuUrba1) was collected from Bed 227 of the Rhododendron Dell at the Royal Botanic Gardens, Kew (latitude 51.48, longitude –0.30) on 26 August 2020. The specimen was picked by hand from weedy vegetation on the edge of the lawn by Maarten Christenhusz (Royal Botanic Gardens, Kew), collection number 9055. The specimen was identified based on its morphology by Maarten Christenhusz, and was preserved by freezing at –80°C.

Using flow cytometry, the genome size (1C-value) was estimated using the fluorochrome propidium iodide and following the ‘one-step’ method outlined in Pellicer et al. (2021). Specifically for this species, the General Purpose Buffer (GPB) supplemented with 3% PVP and 0.08% (v/v) beta-mercaptoethanol was used for isolation of nuclei ( Loureiro et al., 2007), and the internal calibration standard was Petroselinum crispum ‘Champion Moss Curled’ with an assumed 1C-value of 2,200 Mb ( Obermayer et al., 2002).

DNA was extracted at the Tree of Life laboratory, Wellcome Sanger Institute (WSI). The drGeuUrba1 sample was weighed and dissected on dry ice with tissue set aside for Hi-C sequencing. Leaf tissue was cryogenically disrupted to a fine powder using a Covaris cryoPREP Automated Dry Pulveriser, receiving multiple impacts. High molecular weight (HMW) DNA was extracted using the Illustra Nucleon PhytoPure HMW DNA extraction kit. HMW DNA was sheared into an average fragment size of 12–20 kb in a Megaruptor 3 system with speed setting 30. Sheared DNA was purified by solid-phase reversible immobilisation using AMPure PB beads with a 1.8× ratio of beads to sample to remove the shorter fragments and concentrate the DNA sample. The concentration of the sheared and purified DNA was assessed using a Nanodrop spectrophotometer and Qubit Fluorometer and Qubit dsDNA High Sensitivity Assay kit. Fragment size distribution was evaluated by running the sample on the FemtoPulse system.

RNA was extracted from leaf tissue of drGeuUrba1 in the Tree of Life Laboratory at the WSI using TRIzol, according to the manufacturer’s instructions. RNA was then eluted in 50 μl RNAse-free water and its concentration assessed using a Nanodrop spectrophotometer and Qubit Fluorometer using the Qubit RNA Broad-Range (BR) Assay kit. Analysis of the integrity of the RNA was done using Agilent RNA 6000 Pico Kit and Eukaryotic Total RNA assay.

Sequencing

Pacific Biosciences HiFi circular consensus and 10X Genomics read cloud DNA sequencing libraries were constructed according to the manufacturers’ instructions. Poly(A) RNA-Seq libraries were constructed using the NEB Ultra II RNA Library Prep kit. DNA and RNA sequencing were performed by the Scientific Operations core at the WSI on Pacific Biosciences SEQUEL II (HiFi), Illumina HiSeq 4000 (RNA-Seq) and Illumina NovaSeq 6000 (10X) instruments. Hi-C data were also generated from leaf tissue of drGeuUrba1 using the Arima v2 kit and sequenced on the Illumina NovaSeq 6000 instrument.

Genome assembly, curation and evaluation

Assembly was carried out with Hifiasm ( Cheng et al., 2021) and haplotypic duplication was identified and removed with purge_dups ( Guan et al., 2020). One round of polishing was performed by aligning 10X Genomics read data to the assembly with Long Ranger ALIGN, calling variants with FreeBayes ( Garrison & Marth, 2012). The assembly was then scaffolded with Hi-C data ( Rao et al., 2014) using YaHS ( Zhou et al., 2023). The assembly was checked for contamination and corrected as described previously ( Howe et al., 2021). Manual curation was performed using HiGlass ( Kerpedjiev et al., 2018) and Pretext ( Harry, 2022). The mitochondrial and chloroplast genomes were assembled using MBG ( Rautiainen & Marschall, 2021) from PacBio HiFi reads mapping to related genomes: a representative circular sequence was selected for each from the graph based on read coverage.

A Hi-C map for the final assembly was produced using bwa-mem2 ( Vasimuddin et al., 2019) in the Cooler file format ( Abdennur & Mirny, 2020). To assess the assembly metrics, the k-mer completeness and QV consensus quality values were calculated in Merqury ( Rhie et al., 2020). This work was done using Nextflow ( Di Tommaso et al., 2017) DSL2 pipelines “sanger-tol/readmapping” ( Surana et al., 2023a) and “sanger-tol/genomenote” ( Surana et al., 2023b). The genome was analysed within the BlobToolKit environment ( Challis et al., 2020) and BUSCO scores ( Manni et al., 2021; Simão et al., 2015) were calculated.

Table 3 contains a list of relevant software tool versions and sources.
