The genome sequence of the Green-brindled Crescent, Allophyes oxyacanthae (Linnaeus, 1758)
Douglas Boyes, Peter W. H. Holland, Min-jin Han, Amali Thrimawithana, Tree of Life Team Sanger, William Walker III, Lapo Ragionieri
TL;DR
This paper presents the genome sequence of the Green-brindled Crescent moth, including its chromosomes and mitochondrial DNA.
Contribution
The novel contribution is the first genome assembly of Allophyes oxyacanthae, including chromosomal scaffolding and gene annotation.
Findings
The genome assembly is 458 megabases long and scaffolded into 31 pseudomolecules.
The mitochondrial genome is 15.3 kilobases in length.
Ensembl annotation identified 17,301 protein-coding genes.
Abstract
We present a genome assembly from an individual male Allophyes oxyacanthae (the Green-brindled Crescent; Arthropoda; Insecta; Lepidoptera; Noctuidae). The genome sequence is 458 megabases in span. The whole assembly is scaffolded into 31 chromosomal pseudomolecules, including the assembled Z sex chromosome. The mitochondrial genome has also been assembled and is 15.3 kilobases in length. Gene annotation of this assembly on Ensembl has identified 17,301 protein coding genes.
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5| Project accession data | ||
|---|---|---|
| Assembly identifier | ilAllOxya1.1 | |
| Species |
| |
| Specimen | ilAllOxya1 | |
| NCBI taxonomy ID | 988056 | |
| BioProject | PRJEB50741 | |
| BioSample ID | SAMEA8603204 | |
| Isolate information | ilAllOxya1; male: thorax (PacBio), head (Hi-C) | |
| Assembly metrics
|
| |
| Consensus quality (QV) | 67.9 |
|
|
| 100% |
|
| BUSCO
| C:99.2%[S:98.8%,D:0.4%],
|
|
| Percentage of assembly mapped
| 100% |
|
| Sex chromosomes | Z chromosome |
|
| Organelles | Mitochondrial genome
|
|
| Raw data accessions | ||
| PacificBiosciences SEQUEL II | ERR8575376, ERR8575377 | |
| Hi-C Illumina | ERR8571663 | |
| Genome assembly | ||
| Assembly accession | GCA_932294325.1 | |
|
| GCA_932294395.1 | |
| Span (Mb) | 458.5 | |
| Number of contigs | 38 | |
| Contig N50 length (Mb) | 16.4 | |
| Number of scaffolds | 31 | |
| Scaffold N50 length (Mb) | 16.7 | |
| Longest scaffold (Mb) | 20.3 | |
| Genome annotation | ||
| Number of protein-coding genes | 17,301 | |
| Number of transcripts | 17,485 | |
| INSDC accession | Chromosome | Size (Mb) | GC% |
|---|---|---|---|
| 1 | 19.67 | 36.3 | |
| 2 | 18.89 | 36.7 | |
| 3 | 18.72 | 36.7 | |
| 4 | 18.51 | 36.5 | |
| 5 | 18.2 | 36 | |
| 6 | 17.92 | 36.1 | |
| 7 | 17.47 | 36.2 | |
| 8 | 17.03 | 36.1 | |
| 9 | 17 | 35.9 | |
| 10 | 16.91 | 36.3 | |
| 11 | 16.8 | 36 | |
| 12 | 16.68 | 36.3 | |
| 13 | 16.39 | 36.2 | |
| 14 | 15.76 | 36.1 | |
| 15 | 15.71 | 36.1 | |
| 16 | 15.55 | 36.3 | |
| 17 | 14.93 | 36.5 | |
| 18 | 14.7 | 36.9 | |
| 19 | 14.63 | 36.5 | |
| 20 | 14.54 | 36.4 | |
| 21 | 13.74 | 36.1 | |
| 22 | 12.47 | 36.2 | |
| 23 | 12.29 | 36.7 | |
| 24 | 11.69 | 36.7 | |
| 25 | 10.72 | 36.3 | |
| 26 | 9.96 | 36.2 | |
| 27 | 8.76 | 36.6 | |
| 28 | 7.85 | 36.4 | |
| 29 | 7.81 | 37.7 | |
| 30 | 6.89 | 36.7 | |
| Z | 20.28 | 36.3 | |
| MT | 0.02 | 20.1 |
| Software tool | Version | Source |
|---|---|---|
| BlobToolKit | 3.5.0 |
|
| Hifiasm | 0.16.1-r375 |
|
| HiGlass | 1.11.6 |
|
| MitoHiFi | 2 |
|
| PretextView | 0.2 |
|
| purge_dups | 1.2.3 |
|
| YaHS | yahs-
|
|
- —Wellcome Trust
- —Wellcome Trust
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsGenomics and Phylogenetic Studies · Invertebrate Immune Response Mechanisms · RNA and protein synthesis mechanisms
Species taxonomy
Eukaryota; Metazoa; Ecdysozoa; Arthropoda; Hexapoda; Insecta; Pterygota; Neoptera; Endopterygota; Lepidoptera; Glossata; Ditrysia; Noctuoidea; Noctuidae; Amphipyrinae; Allophyes; Allophyes oxyacanthae (Linnaeus, 1758) (NCBI:txid988056]).
Background
The Green-brindled Crescent Allophyes oxyacanthae is a moth in the family Noctuidae with an autumn flight period in the UK. The typical form of the moth is unmistakable, with a dense scattering of shimmering metallic green scales on the forewings, contrasting against a deep brown ground colour, pale marginal band and pale orbicular and reniform stigmata (oval and kidney marks). A distinct colour variant is also encountered in the UK, denoted form capucina, with uniform brown colouration and fewer green scales. Breeding experiments suggest that the difference between the two forms is controlled by a single genetic locus, with the f. capucina allele dominant to the wild type allele ( Steward, 1977). It has been suggested that f. capucina moths may have had a selective advantage in areas of industrial pollution, although the data are unclear on this issue ( Ford, 1967). The genetic locus and molecular basis of the polymorphism have not been identified.
A. oxyacanthae has been recorded across most of UK, including the north of Scotland, through Scandinavia and across mainland Europe although there are few records from Italy and southern Spain ( GBIF Secretariat, 2022). The species is attracted to light and can be found in woodlands and gardens where the larval food plants of hawthorn, blackthorn, rowan and fruit trees are found ( Robinson et al., 2010).
A genome sequence for A. oxyacanthae will facilitate study of the genetic basis of colour polymorphism and the molecular adaptations underpinning polyphagy, and contribute to a growing data set of resources for understanding lepidopteran biology.
Genome sequence report
The genome was sequenced from one male Allophyes oxyacanthae specimen ( Figure 1) collected in Wytham Woods (latitude 51.77, longitude –1.34). A total of 71-fold coverage in Pacific Biosciences single-molecule HiFi long reads weas generated. Primary assembly contigs were scaffolded with chromosome conformation Hi-C data. Manual assembly curation corrected three missing or mis-joins, reducing the scaffold number by 8.82%.
Photograph of the Allophyes oxyacanthae (ilAllOxya1) specimen used for genome sequencing.
The final assembly has a total length of 458.5 Mb in 31 sequence scaffolds with a scaffold N50 of 16.7 Mb ( Table 1). The whole assembly sequence was assigned to 31 chromosomal-level scaffolds, representing 30 autosomes and the Z sex chromosome. Chromosome-scale scaffolds confirmed by the Hi-C data have been named in order of size ( Figure 2– Figure 5; Table 2). The assembly has a BUSCO v5.3.2 ( Manni et al., 2021) completeness of 99.2% (single 98.8%, duplicated 0.4%) using the lepidoptera_odb10 reference set ( n = 5286). While not fully phased, the assembly deposited is of one haplotype. Contigs corresponding to the second haplotype have also been deposited.
Table 1.: Genome data for Allophyes oxyacanthae, ilAllOxya1.1.

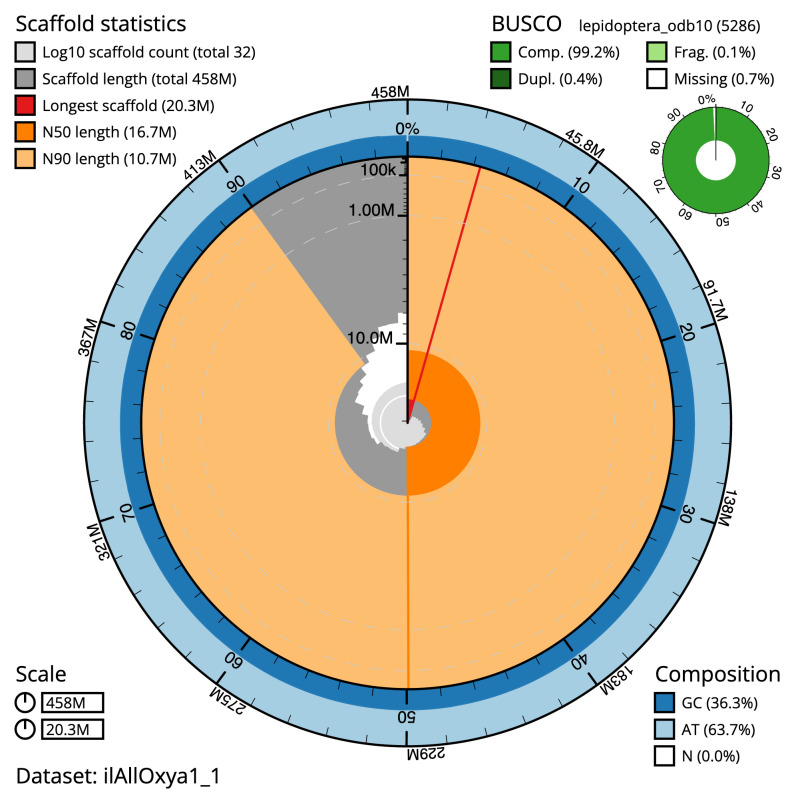

Genome assembly of Allophyes oxyacanthae, ilAllOxya1.1: metrics.The BlobToolKit Snailplot shows N50 metrics and BUSCO gene completeness. The main plot is divided into 1,000 size-ordered bins around the circumference with each bin representing 0.1% of the 458,479,537 bp assembly. The distribution of scaffold lengths is shown in dark grey with the plot radius scaled to the longest scaffold present in the assembly (20,278,968 bp, shown in red). Orange and pale-orange arcs show the N50 and N90 scaffold lengths (16,683,655 and 10,717,387 bp), respectively. The pale grey spiral shows the cumulative scaffold count on a log scale with white scale lines showing successive orders of magnitude. The blue and pale-blue area around the outside of the plot shows the distribution of GC, AT and N percentages in the same bins as the inner plot. A summary of complete, fragmented, duplicated and missing BUSCO genes in the lepidoptera_odb10 set is shown in the top right. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/ilAllOxya1_1/dataset/ilAllOxya1_1/snail.

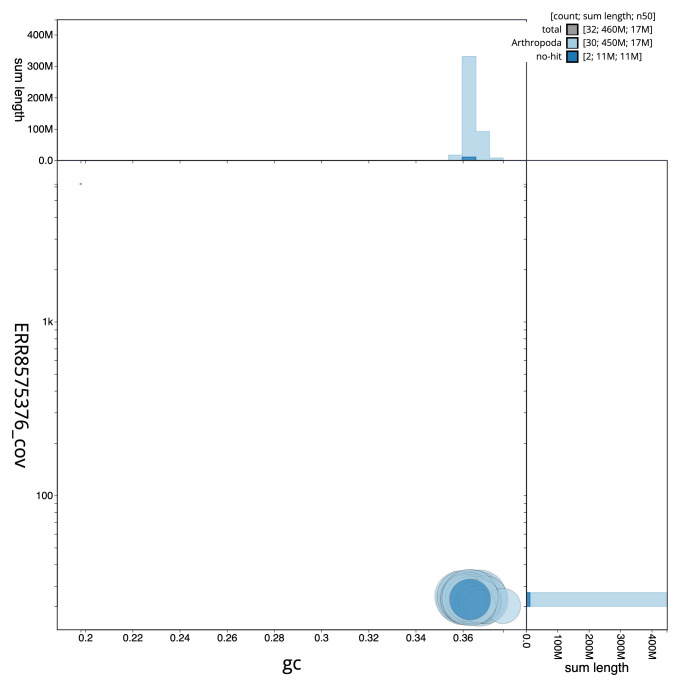

Genome assembly of Allophyes oxyacanthae, ilAllOxya1.1: GC coverage.BlobToolKit GC-coverage plot. Scaffolds are coloured by phylum. Circles are sized in proportion to scaffold length. Histograms show the distribution of scaffold length sum along each axis. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/ilAllOxya1_1/dataset/ilAllOxya1_1/blob.

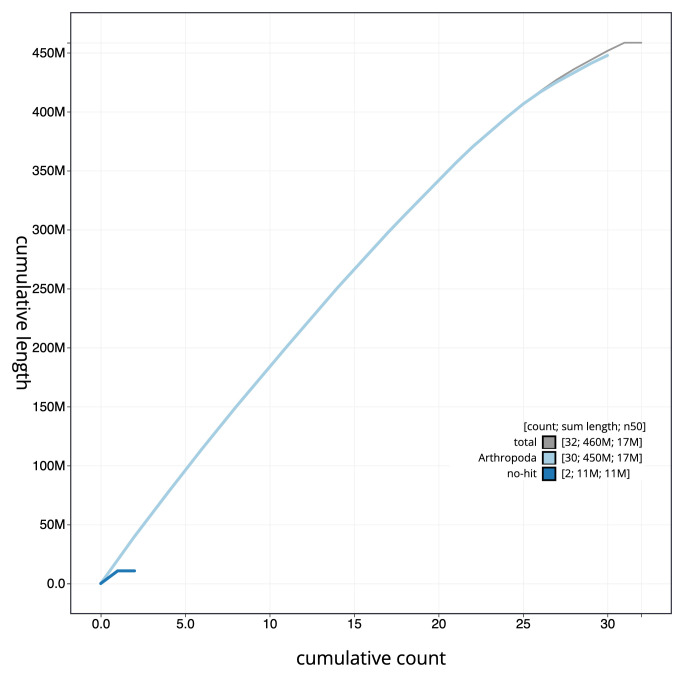

Genome assembly of Allophyes oxyacanthae, ilAllOxya1.1: cumulative sequence.BlobToolKit cumulative sequence plot. The grey line shows cumulative length for all scaffolds. Coloured lines show cumulative lengths of scaffolds assigned to each phylum using the buscogenes taxrule. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/ilAllOxya1_1/dataset/ilAllOxya1_1/cumulative.

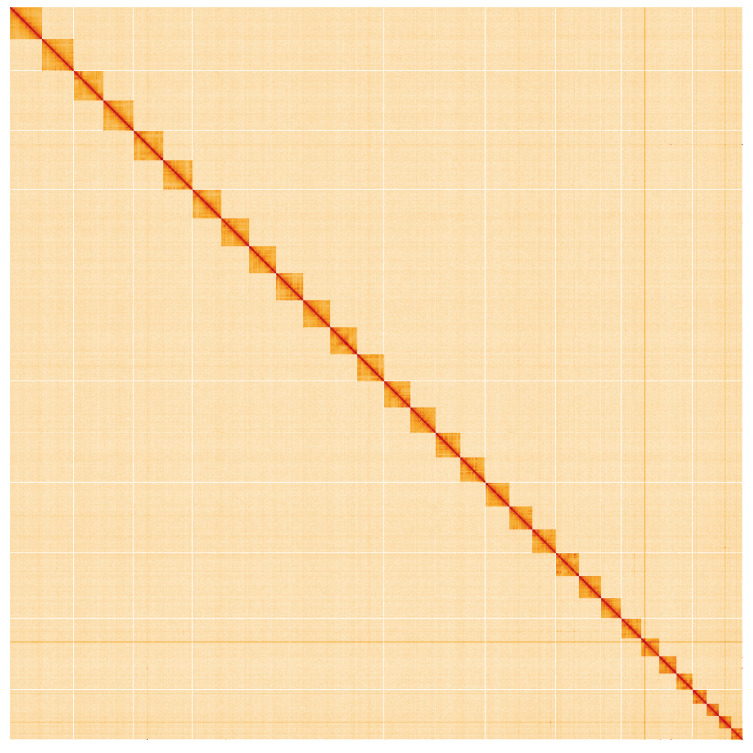

Genome assembly of Allophyes oxyacanthae, ilAllOxya1.1: Hi-C contact map.Hi-C contact map of the ilAllOxya1.1 assembly, visualised using HiGlass. Chromosomes are shown in order of size from left to right and top to bottom. An interactive version of this figure may be viewed at https://genome-note-higlass.tol.sanger.ac.uk/l/?d=OzgdewECSHeyOqN4f7ptEQ.
Table 2.: Chromosomal pseudomolecules in the genome assembly of Allophyes oxyacanthae, ilAllOxya1.
Genome annotation report
The A. oxyacanthae genome assembly ( GCA_932294325.1) was annotated using the Ensembl rapid annotation pipeline ( Table 1). The resulting annotation includes 17,485 transcribed mRNAs from 17,301 protein-coding genes.
Methods
Sample acquisition and nucleic acid extraction
An individual male A. oxyacanthae specimen (ilAllOxya1) was collected in Wytham Woods, Oxfordshire (biological vice-county: Berkshire), UK (latitude 51.77, longitude –1.34) on 8 October 2020 using a light trap. The specimens were collected and identified by Douglas Boyes (University of Oxford) and snap-frozen on dry ice. This specimen was used for DNA and Hi-C sequencing.
DNA was extracted at the Tree of Life laboratory, Wellcome Sanger Institute (WSI). The ilAllOxya1 sample was weighed and dissected on dry ice with head tissue set aside for Hi-C sequencing. Thorax tissue was disrupted using a Nippi Powermasher fitted with a BioMasher pestle. High molecular weight (HMW) DNA was extracted using the Qiagen MagAttract HMW DNA extraction kit. HMW DNA was sheared into an average fragment size of 12–20 kb in a Megaruptor 3 system with speed setting 30. Sheared DNA was purified by solid-phase reversible immobilisation using AMPure PB beads with a 1.8X ratio of beads to sample to remove the shorter fragments and concentrate the DNA sample. The concentration of the sheared and purified DNA was assessed using a Nanodrop spectrophotometer and Qubit Fluorometer and Qubit dsDNA High Sensitivity Assay kit. Fragment size distribution was evaluated by running the sample on the FemtoPulse system.
Sequencing
Pacific Biosciences HiFi circular consensus DNA sequencing libraries were constructed according to the manufacturers’ instructions. DNA sequencing was performed by the Scientific Operations core at the WSI on Pacific Biosciences SEQUEL II (HiFi) instrument. Hi-C data were also generated from head tissue of ilAllOxya1 using the Arima v2 kit and sequenced on the Illumina NovaSeq 6000 instrument.
Genome assembly
Assembly was carried out with Hifiasm ( Cheng et al., 2021) and haplotypic duplication was identified and removed with purge_dups ( Guan et al., 2020). The assembly was scaffolded with Hi-C data ( Rao et al., 2014) using YaHS ( Zhou et al., 2022). The assembly was checked for contamination as described previously ( Howe et al., 2021). Manual curation was performed using HiGlass ( Kerpedjiev et al., 2018) and Pretext ( Harry, 2022). The mitochondrial genome was assembled using MitoHiFi ( Uliano-Silva et al., 2022), which performed annotation using MitoFinder ( Allio et al., 2020). The genome was analysed and BUSCO scores generated within the BlobToolKit environment ( Challis et al., 2020). Table 3 contains a list of all software tool versions used, where appropriate.
Genome annotation
The BRAKER2 pipeline ( Brůna et al., 2021) was used in the default protein mode to generate annotation for the Allophyes oxyacanthae assembly (GCA_934047225.1) in Ensembl Rapid Release.
Ethics/compliance issues
The materials that have contributed to this genome note have been supplied by a Darwin Tree of Life Partner. The submission of materials by a Darwin Tree of Life Partner is subject to the Darwin Tree of Life Project Sampling Code of Practice. By agreeing with and signing up to the Sampling Code of Practice, the Darwin Tree of Life Partner agrees they will meet the legal and ethical requirements and standards set out within this document in respect of all samples acquired for, and supplied to, the Darwin Tree of Life Project. Each transfer of samples is further undertaken according to a Research Collaboration Agreement or Material Transfer Agreement entered into by the Darwin Tree of Life Partner, Genome Research Limited (operating as the Wellcome Sanger Institute), and in some circumstances other Darwin Tree of Life collaborators.
