Synthesis and Reactivity of Dipalladated Derivatives of Terephthalaldehyde
María-José Fernández-Rodríguez, Peter G. Jones, José Vicente, Eloísa Martínez-Viviente
TL;DR
This paper reports the synthesis and reactivity of new dipalladated terephthalaldehyde complexes, including the first examples of CO insertion into two aryl–metal bonds.
Contribution
The first fully characterized dipalladated terephthalaldehyde complexes and CO insertion into two aryl–metal bonds are presented.
Findings
Dipalladated terephthalaldehyde complexes 2a and 2b were synthesized and fully characterized.
CO insertion into both aryl–Pd bonds of 2a and 2b produced complexes 3a and 3b, the first of their kind.
Depalladation of complex 4 yielded a new organic compound 5, confirmed by X-ray crystallography.
Abstract
The polynuclear complex [{μ-C1,C4,N,N″-C6H2{C(H)=N(nBu)}2-2,5}{Pd(μ-OAc)}]2 (I) reacts with tbbpy (4,4′-di-tert-butyl-2,2′-bipyridine) and TlOTf to form the dinuclear complex [{μ-C1,C4,N,N″-C6H2{C(H)=N(nBu)}2-2,5}{Pd(tbbpy)}2] (1). The hydrolysis of I with acetic acid in a 5:1 acetone/water mixture, in the presence of two equivalents of tbbpy and excess NaX (X = Br, I), yields the dipalladated terephthalaldehyde complexes [C6H2{PdX(tbbpy)}2-1,4-(CHO)2-2,5] [X = Br (2a), X = I (2b)], which are the first fully characterized complexes of this type. The reaction of 2a,b with CO results in the insertion of CO into both aryl–Pd bonds, forming [C6H2{C(O){PdX(tbbpy)}}2-1,4-(CHO)2-2,5] [X = Br (3a), X = I (3b)], which are the first examples of complexes with CO inserted into two separate aryl–metal bonds involving the same ligand. The bromo complex 2a reacts with excess XylNC in acetone, causing…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

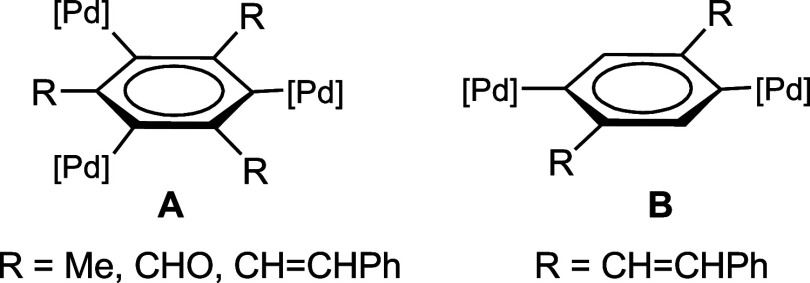

Chart 1
Scheme 1
Scheme 2
Scheme 3
Scheme 4
Scheme 5
Scheme 6
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5| 152.6 | 149.2 | 168.3 | 165.7 | ||||||
| 143.9 | 143.6 | 138.7 | 138.9 | ||||||
| 135.8 | 8.12 | 136.6 | 8.11 | 144.6 | 8.48 | 146.5 | 8.48 | ||
| 128.5 | 8.14 | 128.3 | 8.14 | ||||||
| 197.4 | 11.10 | 197.8 | 11.03 | 196.3 | 11.01 | 196.8 | 10.95 | ||
- —Fundación Séneca10.13039/100007801
- —Ministerio de Ciencia e Innovación10.13039/501100004837
- —Ministerio de Educación y Ciencias10.13039/100019954
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsCatalytic Cross-Coupling Reactions · Coordination Chemistry and Organometallics · Catalytic C–H Functionalization Methods
Introduction
Arylpalladium complexes are crucial intermediates in a wide range of palladium-catalyzed carbon–carbon and carbon-heteroatom bond-forming reactions, which have facilitated the efficient and selective construction of complex organic molecules.^1−18^ Consequently, the synthesis, characterization, and reactivity of these complexes remain a very active field of research.^19−41^ Organic substituents ortho to the Pd atom may be involved in this chemistry, yielding novel structures and potentially useful organic compounds.^21−30,34,35^ We have been interested in exploring the extension of this chemistry to di-^42,43^ and tripalladated^44−47^ benzene derivatives ortho-substituted at each Pd(II) center. Thus, our group has reported the synthesis and reactivity of mono-, di-, and tripalladated derivatives of mesitylene,^44,46^ benzenetricarboxaldehyde,^45^ and tris(styryl)benzene^47^ (Chart 1A), as well as dipalladated derivatives of 2,5-distyrylbenzene^42,43^ (Chart 1B).
**
Whereas the trinuclear complexes depicted in Chart 1 are fairly rare,^44−47^ reports of dinuclear ortho-substituted arylpalladium complexes are less scarce, although they refer, with some exceptions,^42,43,48^ to dipalladacycles with N-donor groups.^49−57^ We report now the first fully characterized dipalladated derivatives of terephthalaldehyde (R=CHO in Chart 1B) and a preliminary investigation of their reactivity toward unsaturated molecules (CO and XylNC). These reactions have resulted in the first complexes resulting from the double insertion of CO into two separate aryl–metal bonds of the same aryl ring, as well as the synthesis of a novel dinuclear Pd(II) complex derived from a multiple XylNC insertion, which can be depalladated to yield an interesting polycyclic organic compound containing a benzodipyrrole-1,5-dione core.
Results and Discussion
Synthesis

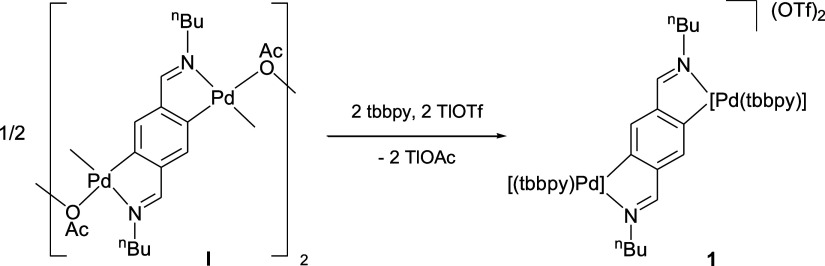

The polynuclear complex [{μ-C1,C4,N,N″-C_6_H_2_{C(H)=N(^n^Bu)}2-2,5}{Pd(μ-OAc)}]2 (I, Scheme 1) had been previously prepared in our research group by palladation of the diimine C_6_H_4_(CH=N^n^Bu)2-1,4 with [Pd(OAc)2].^58^ Complex I is soluble in common solvents, in contrast to a similar complex with Tol instead of ^n^Bu, also prepared in our research group.^51^ The reaction of I with tbbpy (4,4′-di-tert-butyl-2,2′-bipyridine) and TlOTf results in the dinuclear complex [{μ-C1,C4,N,N″-C_6_H_2_{C(H)=N(^n^Bu)}2-2,5}{Pd(tbbpy)}2] (1, Scheme 1). Complexes I and 1 are of interest because they contain an aryl ligand capable of binding two different metal centers simultaneously in a tetradentate fashion, resulting in two independent palladacycles on the same aryl ring. Such complexes are still relatively rare in the literature, although some examples can be found involving mainly N-donor groups.^49−57^ The examples most closely related to our work are the dipalladated Schiff bases reported by Vila and co-workers, prepared by palladation or oxidative addition reactions, followed by ligand exchange.^55,56^ These dinuclear square-planar palladium(II) complexes with two blocked cis-coordination sites can be very useful as building blocks in supramolecular chemistry.^55,59^
Complex I Reacts with tbbpy and TlOTf to Form the Dipalladated Complex 1
The hydrolysis of I with acetic acid in a 5:1 acetone/water mixture, in the presence of two equivalents of tbbpy and excess NaX (X = Br, I), yields the dipalladated terephthalaldehyde complexes [C_6_H_2_{PdX(tbbpy)}2-1,4-(CHO)2-2,5] [X = Br (2a), X = I (2b), Scheme 2]. These are the first such dinuclear Pd complexes to be fully characterized, as in a previous attempt by our research group,^51^ starting from a complex similar to I with Tol instead of ^n^Bu, and using bpy instead of tbbpy as the ligand, the formation of a similar complex [C_6_H_2_{PdBr(bpy)}2-1,4-(CHO)2-2,5] was proposed, but it was too insoluble to be purified and characterized. Similar reactions with tmeda instead of tbbpy have resulted in mixtures of compounds that could not be separated.

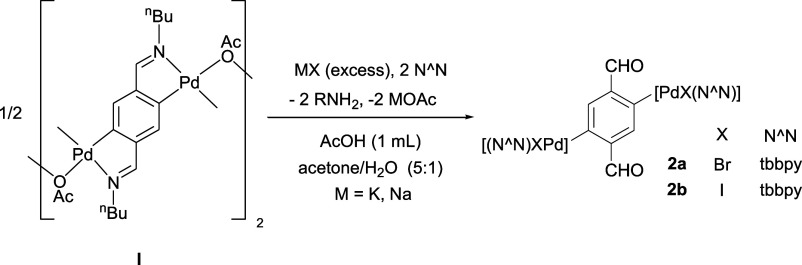

Hydrolysis of Complex I to Form the Dipalladated Complexes 2a,b

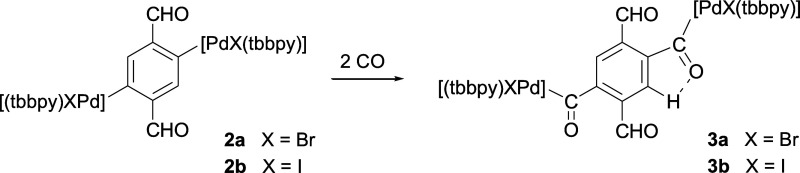

The reaction of 2a,b with CO results in the complexes [C_6_H_2_{C(O){PdX(tbbpy)}}2-1,4-(CHO)2-2,5] [X = Br (3a), X = I (3b), Scheme 3], resulting from the insertion of CO into both aryl–Pd bonds of 2a,b (Scheme 3). These are the first reported complexes resulting from the insertion of CO into two separate aryl–metal bonds involving the same aryl ligand. The infrared (IR) and nuclear magnetic resonance (NMR) spectra of 3a,b confirm the insertion of CO (see below). Additionally, the NMR spectra suggest that one of the inserted CO groups forms a hydrogen bond with the adjacent aromatic hydrogen, while the other inserted CO does not behave similarly. The syntheses of 3a,b are best carried out in distilled THF (heating to 60 °C for several hours, see Experimental Section). In CH_2_Cl_2_ or 1,2-dichloroethane, the reactions are much less clean.
CO Insertion in 2a,b to Form 3a,b
When bromo complex 2a reacts with a 2-fold excess of XylNC in acetone, singular dinuclear complex 2,3,6,7-tetrahydrobenzo[1,2-c:4,5-c′]dipyrrole-1,5-dione-2,6-dixylyl-3,7-bis{=C(NHXyl)-C(=NXyl)-[PdBr(CNXyl)2]} (4) precipitates as a red solid (Scheme 4). Complex 4 is the result of the insertion of three molecules of the isocyanide into each aryl–Pd bond and the nucleophilic attack of one of them at each formyl group, followed by an intramolecular proton migration (Scheme 5). The tbbpy ligands on the Pd atoms are displaced by two other XylNC molecules, which, as usual, adopt a trans disposition.^23,24,27,43^ It would seem that the insolubility of 4 plays an important role in its formation as similar reactions with iodo complex 2b, or with ^t^BuNC instead of XylNC, result in mixtures of compounds. Complex 4 decomposes slowly in solution to give [PdBr_2_(XylNC)4], which is easily identified by its ^1^H NMR resonance at 2.52 ppm.^23^

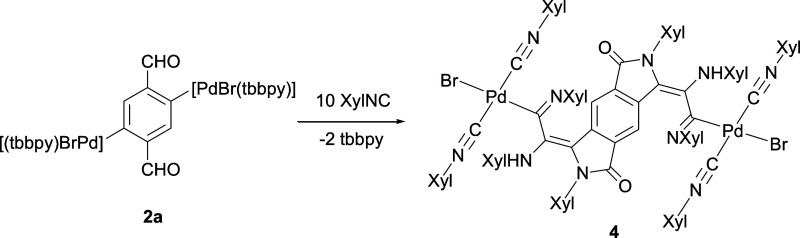

Reaction of 2a with XylNC to Form the Dinuclear Complex 4

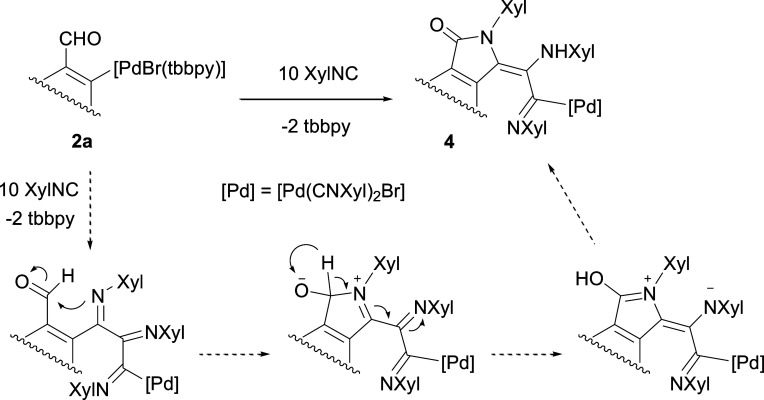

Proposed Mechanism for the Reaction of 2a with XylNC to Form 4

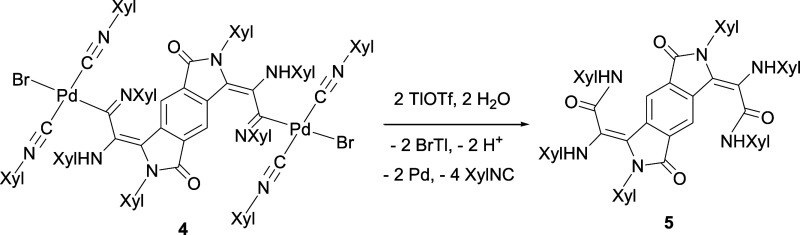

When complex 4 reacts with TlOTf in 1,2-dichloroethane at 70 °C, depalladation occurs, forming the new organic compound 2,3,6,7-tetrahydrobenzo[1,2-c:4,5-c′]dipyrrole-1,5-dione-2,6-dixylyl-3,7-bis{=C(NHXyl)–C(O)NHXyl} (5, Scheme 6). In this reaction, the precipitation of TlBr promotes the substitution of both [PdBr(XylNC)2] moieties by hydroxyl groups from residual water molecules, followed by a tautomeric equilibrium, resulting in a benzodipyrrole-1,5-dione core with two alkylidene substituents at positions 2 and 6. There is no other synthetic route described for the synthesis of a compound such as 5, and even for related, although more simple, benzodipyrrolediones, we have only found two precedents in the literature, none of them involving Pd: a report on cobalt-catalyzed carbonylation of Schiff bases as a step for the synthesis of benzenetetracarboxylic acids^60^ and the organic synthesis of bis(hydroxy-isoindolinones) as building blocks for supramolecular assembly.^61^
Depalladation of 4 to Form the Organic Compound 5
Structure of Complexes
Complex 1 shows the expected IR bands for the imine C=N bond (1614 cm^–1^) and the S=O bond of the OTf anion (1030, 1280 cm^–1^). In solution, 1 shows fluxional behavior, resulting in broad NMR resonances for the tbbpy ligand. This dynamic process might be promoted by the coordination of the OTf anion to the Pd atom, leading to a five-coordinated intermediate where the two halves of the tbbpy ligand would exchange by dissociation of one of the N atoms, rotation around the remaining Pd–N bond, and recoordination to Pd. We have described a similar process in anionic dinuclear indacenediide palladium complexes, also featuring a tbbpy ligand and an OTf anion.^43^
Complexes 2a,b show the expected IR bands for the formyl C=O bonds at 1672 and 1662 cm^–1^, respectively, while for 3a,b, we observe a broad band at 1682 cm^–1^ (3a) or two bands at 1662 and 1678 cm^–1^ (3b), confirming the presence of additional C=O groups resulting from the insertion of CO into both aryl–Pd bonds. 1D and 2D NMR spectra of 2a,b and 3a,b have allowed full assignment of their ^1^H and ^13^C resonances (see Experimental Section). 2a,b complexes show a single set of ^1^H and ^13^C resonances for the two halves of the molecule, which are made equivalent by an inversion center in solution. For 3a,b, interestingly, there is no such symmetry, and two well-separated ^1^H and ^13^C resonances for the two CH groups of the aryl ring are observed, while all of the other resonances of the two halves of the molecule coincide (see Table 1). This inequivalence of the two CH groups in 3a,b could be explained by the formation of a hydrogen bond between one of the inserted CO groups and the adjacent aryl proton, while the same would not happen for the other CO group, as a result of steric or electronic reasons. The aryl hydrogen involved in the hydrogen bond (H3″) in 3a,b would be shifted to higher frequencies (δ 8.48 ppm) with respect to the other aryl hydrogen, which would resonate at a similar frequency (δ 8.1 ppm) as in 2a,b (data in blue in Table 1). The ^13^C resonances of CH3 and CH3″ would also be affected, while for the other carbons in 3a,b, the difference in chemical shift would be so small that it would not be observable.a As also shown in Table 1, 2a,b and 3a,b show the expected ^1^H and ^13^C NMR resonances for the CHO groups. However, the ^13^C resonances of the inserted CO groups were not observed in 3a,b, possibly because of the long relaxation times. Nonetheless, the insertion of the CO molecules is confirmed by the elemental analyses and also by the IR spectra (as mentioned above).
The IR spectrum of complex 4 shows the expected bands for the N–H bond (3376 cm^–1^), the C≡N bonds of the coordinated isocyanides (2182 cm^–1^), the carbonyl C=O bonds (1682 cm^–1^), and the C=N bond of the inserted isocyanide (1614 cm^–1^). For the organic compound 5, we observe an N–H band at 3369 cm^–1^ and a broad C=O band at 1674 cm^–1^. The ^1^H and ^13^C NMR resonances of both 4 and 5 were also assigned with the help of 1D and 2D spectra. Both complexes feature an inversion center in solution (as in the solid state) so that the halves of the molecules are equivalent, and only one set of ^1^H and ^13^C NMR resonances is observed. The NMR data also indicate that there is free rotation around all the N–Xyl bonds, making both Me groups on each ring equivalent. For complex 4, the two XylNC ligands on each Pd are also equivalent, confirming the trans geometry proposed for this complex.
^1^ Indeed, the APT spectrum of 2b, when processed without window function, shows a significant broadening of the ^13^C resonances of the CHO/CHO″, C1/C1″, and C2/C2″ carbons but not of those of the tbbpy ligand.
The crystal structures of 1·4CHCl_3_ (Figure 1), 4·2CH_2_Cl_2_·3hexane (Figures 2 and 3), and 5·2CDCl_3_ (Figures 4 and 5) have been determined by X-ray diffraction studies (Table 1 in Supporting Information). The structure of 1·4CHCl_3_ (Figure 1) shows the crystallographic inversion symmetry of 1 and confirms the doubly chelating nature of the diimine ligand. The chelate ring is to a good approximation planar, with a mean deviation of 0.014 Å. The coordination of the iminic nitrogen to Pd leads to a slight lengthening of the C=N bond [1.291(7) Å] with respect to the mean value in imines (1.279 Å).^62^ The coordination around the Pd atoms is square planar but is markedly distorted to avoid a close contact between H3 and H26 (for which the observed distance is 2.12 Å); the atoms Pd, N11, N21, and N1 are coplanar (mean deviation 0.04 Å), but C2 lies 0.64 Å outside the plane thus defined. The Pd–C bond distance is 2.002(5) Å, similar to the values reported by some of us for other aryl palladium complexes with an aryl ligand trans to bpy or tbbpy (ca. 1.97–2.00 Å).^20,27,46,63^ The three Pd–N bond distances follow the expected order of the trans influence: Pd–N trans to aryl [2.160(4) Å] > Pd–N trans to N [2.039(5) and 2.058(5) Å].

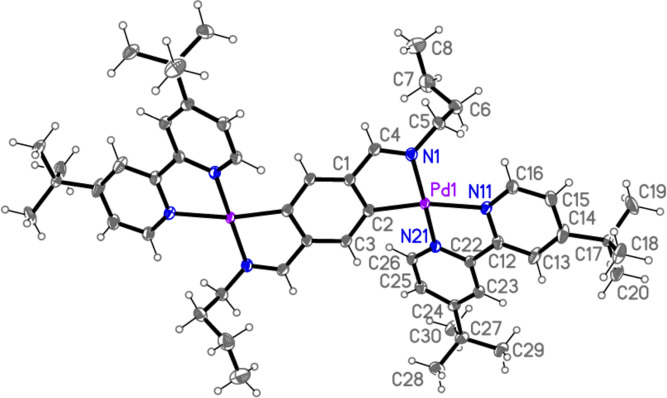

Thermal ellipsoid plot (50% probability level) of 1·4CHCl3. Only the cation is shown, and only the asymmetric unit is numbered. Selected bond lengths (Å) and angles (deg): Pd–C(2) = 2.002(5), Pd–N(1) = 2.058(5), Pd–N(21) = 2.039(5), Pd–N(11) = 2.160(4), C(1)–C(2) = 1.428(7), C(1)–C(4) = 1.428(7), N(1)–C(4) = 1.291(7), C(2)–Pd–N(1) = 80.3(2), C(2)–Pd–N(21) = 98.5(2), N(21)–Pd–N(11) = 78.14(17), N(1)–Pd–N(11) = 104.84(18), N(21)–Pd–N(1) = 172.26(19), C(2)–Pd–N(11) = 165.78(19), C(4)–C(1)–C(2) = 114.1(5), C(1)–C(2)–Pd = 113.1(4), N(1)–C(4)–C(1) = 117.8(5), C(4)–N(1)–Pd = 114.6(4).

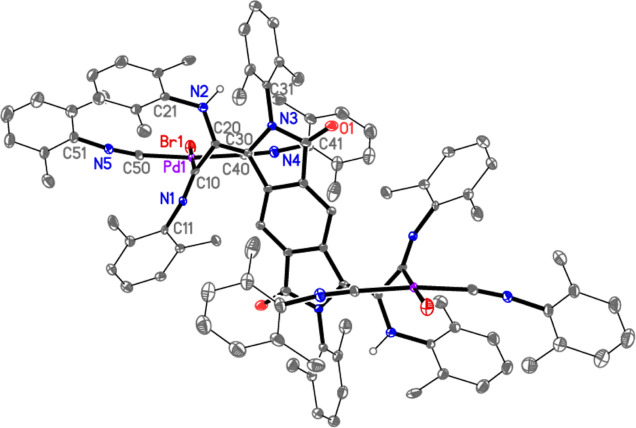

Thermal ellipsoid plot (30% probability level) of 4·2CH2Cl2·3hexane. The solvent is omitted as are all hydrogen atoms except that at N2, and only the asymmetric unit is numbered. Selected bond lengths (Å) and angles (deg): Pd–C(40) = 1.969(8), Pd–C(50) = 1.970(8), Pd–C(10) = 2.041(7), Pd–Br = 2.5338(10), N(1)–C(10) = 1.262(9), N(2)–C(20) = 1.389(9), N(3)–C(30) = 1.428(9), C(10)–C(20) = 1.476(10), C(20)–C(30) = 1.364(10), O–C(4) = 1.215(9), N(3)–C(4) = 1.387(10), C(40)–Pd–C(10) = 89.8(3), C(50)–Pd–C(10) = 92.4(3), C(40)–Pd–Br = 88.5(2), C(50)–Pd–Br = 89.8(2), C(40)–Pd–C(50) = 174.0(3), C(10)–Pd–Br = 174.9(2), C(10)–N(1)–C(11) = 126.8(6), C(20)–N(2)–C(21) = 125.1(6), C(4)–N(3)–C(30) = 112.7(6), C(4)–N(3)–C(31) = 118.3(6), C(30)–N(3)–C(31) = 129.0(6).

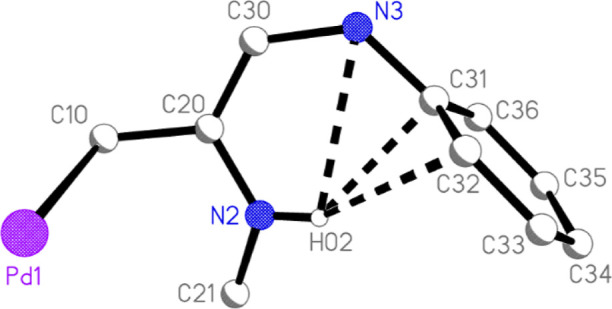

Intramolecular C–HΛπ hydrogen bonding system in 4·2CH2Cl2·3hexane. Thick dashed lines represent the three shortest contacts.

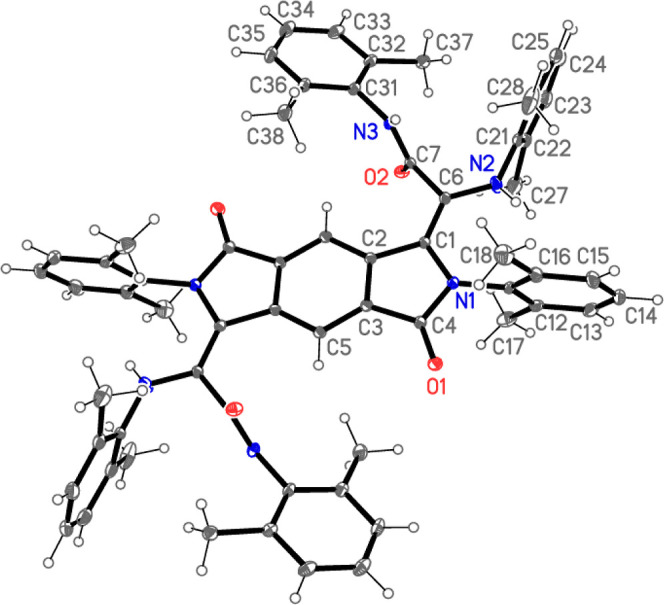

Thermal ellipsoid plot (30% probability level) of 5·2CDCl3. The solvent is omitted, and only the asymmetric unit is numbered. Selected bond lengths (Å) and angles (deg): C(1)–C(6) = 1.357(2), C(1)–N(1) = 1.427(2), C(1)–C(2) = 1.462(2), C(4)–O(1) = 1.225(2), C(4)–N(1) = 1.380(2), C(4)–C(3) = 1.467(2), C(6)–N(2) = 1.372(2), C(6)–C(7) = 1.522(2), C(7)–O(2) = 1.220(2), C(7)–N(3) = 1.354(2), C(6)–C(1)–N(1) = 125.80(12), C(6)–C(1)–C(2) = 128.67(12), N(1)–C(1)–C(2) = 105.35(11), O(1)–C(4)–N(1) = 125.13(13), O(1)–C(4)–C(3) = 128.96(13), N(1)–C(4)–C(3) = 105.88(12), C(1)–C(6)–N(2) = 124.75(13), C(1)–C(6)–C(7) = 118.67(12), N(2)–C(6)–C(7) = 116.50(12), O(2)–C(7)–N(3) = 123.66(13), O(2)–C(7)–C(6) = 120.29(13), N(3)–C(7)–C(6) = 116.04(12), C(4)–N(1)–C(1) = 112.17(11), C(4)–N(1)–C(11) = 120.43(12), C(1)–N(1)–C(11) = 127.30(12), C(6)–N(2)–C(21) = 125.75(13), C(7)–N(3)–C(31) = 122.54(12).

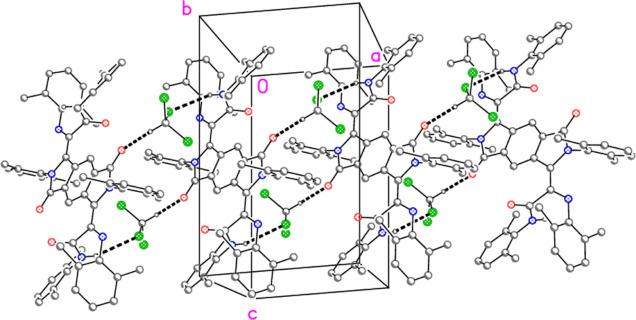

Hydrogen bonding system in 5·2CDCl3. Thick dashed lines represent hydrogen bonds. Hydrogen atoms not involved in hydrogen bonding have been omitted for clarity. Only the major component (83%) of the disordered solvent is shown.
