The genome sequence of a marine yeast, Metschnikowia zobellii (Uden & Cast.-Branco, 1961)

TL;DR

This paper reports the genome sequence of a marine yeast, Metschnikowia zobellii, including its chromosomal and mitochondrial DNA.

Contribution

The paper provides a new genome assembly for Metschnikowia zobellii, including scaffolded chromosomes and a mitochondrial genome.

Findings

The genome assembly spans 13.6 megabases and is scaffolded into 5 chromosomal pseudomolecules.

The mitochondrial genome is 51.12 kilobases in length.

Abstract

We present a genome assembly from a
Metschnikowia zobellii culture (a marine yeast; Ascomycota; Saccharomycetes; Saccharomycetales; Metschnikowiaceae). The genome sequence is 13.6 megabases in span. Most of the assembly is scaffolded into 5 chromosomal pseudomolecules. The mitochondrial genome has also been assembled and is 51.12 kilobases in length.

Figures

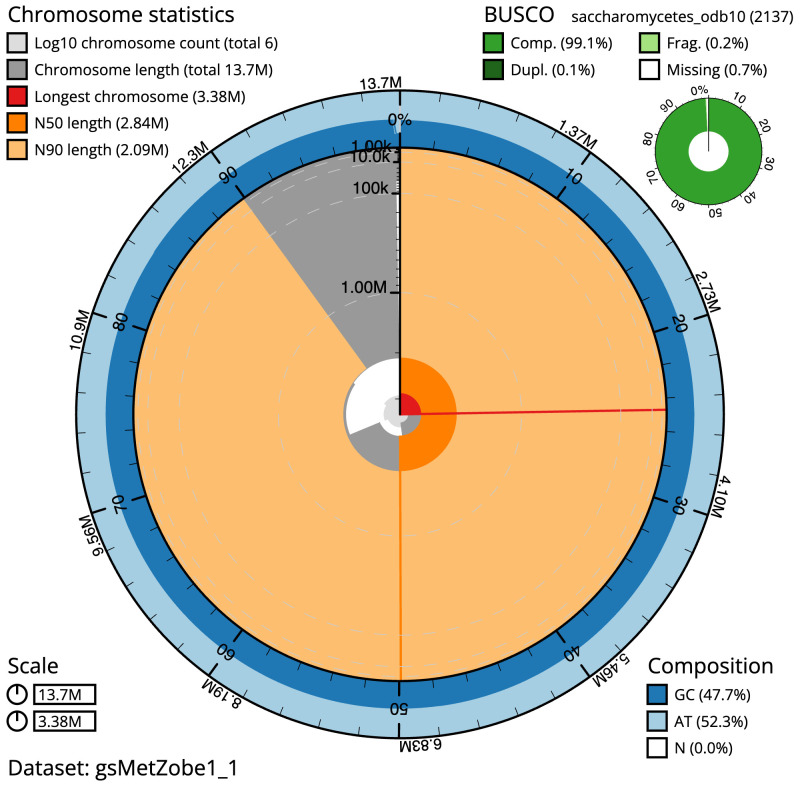

Genome assembly of Metschnikowia zobellii, gsMetZobe1.1: metrics.The BlobToolKit Snailplot shows N50 metrics and BUSCO gene completeness. The main plot is divided into 1,000 size-ordered bins around the circumference with each bin representing 0.1% of the 13,653,384 bp assembly. The distribution of scaffold lengths is shown in dark grey with the plot radius scaled to the longest scaffold present in the assembly (3,378,874 bp, shown in red). Orange and pale-orange arcs show the N50 and N90 scaffold lengths (2,836,740 and 2,093,737 bp), respectively. The pale grey spiral shows the cumulative scaffold count on a log scale with white scale lines showing successive orders of magnitude. The blue and pale-blue area around the outside of the plot shows the distribution of GC, AT and N percentages in the same bins as the inner plot. A summary of complete, fragmented, duplicated and missing BUSCO genes in the saccharomycetes_odb10 set is shown in the top right. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/gsMetZobe1.1/dataset/gsMetZobe1_1/snail.

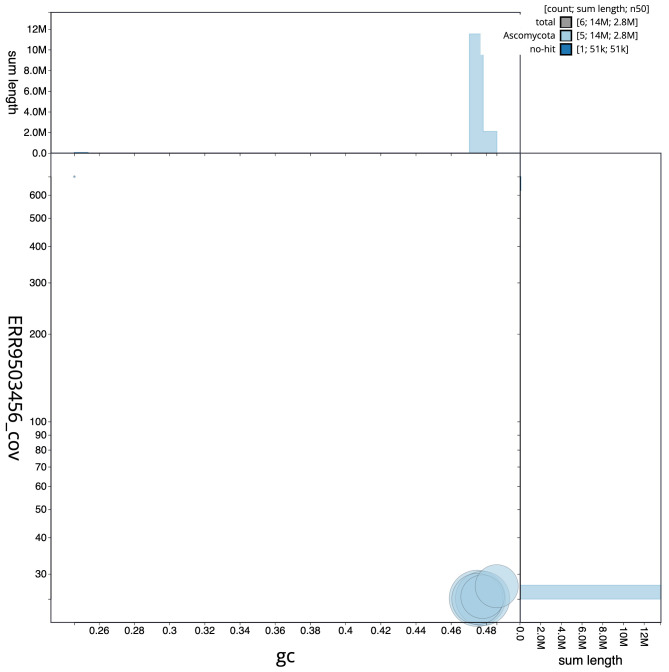

Genome assembly of Metschnikowia zobellii, gsMetZobe1.1: BlobToolKit GC-coverage plot.Scaffolds are coloured by phylum. Circles are sized in proportion to scaffold length. Histograms show the distribution of scaffold length sum along each axis. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/gsMetZobe1.1/dataset/gsMetZobe1_1/blob.

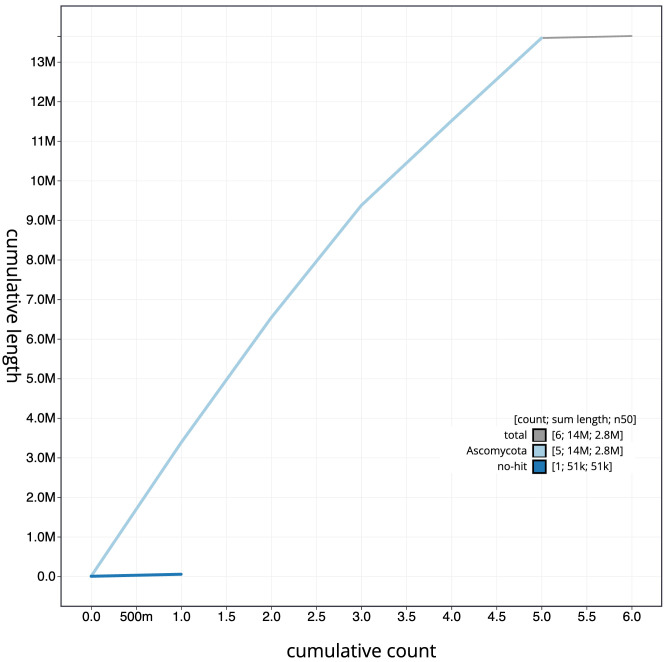

Genome assembly of Metschnikowia zobellii, gsMetZobe1.1: BlobToolKit cumulative sequence plot.The grey line shows cumulative length for all scaffolds. Coloured lines show cumulative lengths of scaffolds assigned to each phylum using the buscogenes taxrule. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/gsMetZobe1.1/dataset/gsMetZobe1_1/cumulative.

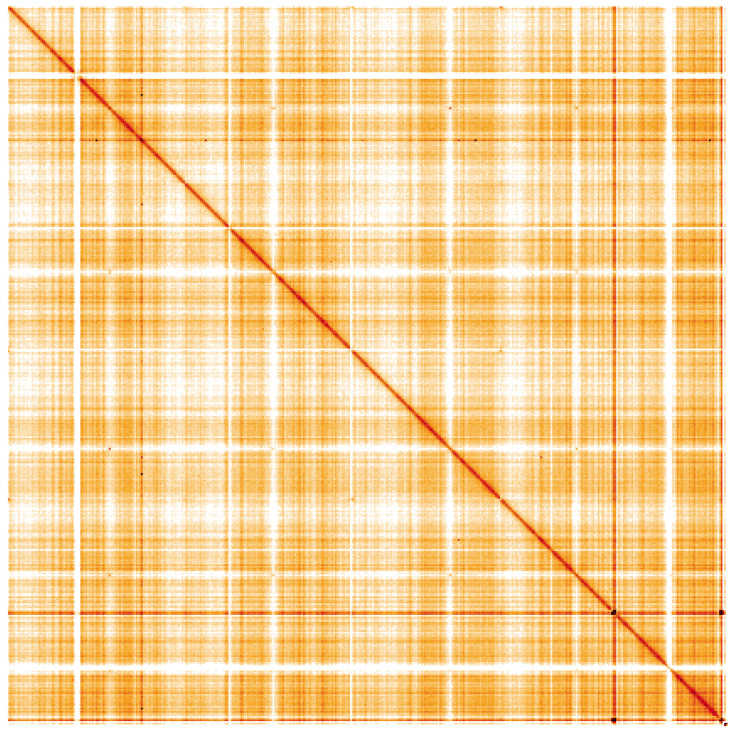

Genome assembly of Metschnikowia zobellii, gsMetZobe1.1: Hi-C contact map of the gsMetZobe1.1 assembly, visualised using HiGlass.Chromosomes are shown in order of size from left to right and top to bottom. An interactive version of this figure may be viewed at https://genome-note-higlass.tol.sanger.ac.uk/l/?d=MjYP2bWrTqimY9doy8ZPjA.

Tables

Table 1.. Genome data for Metschnikowia zobellii, gsMetZobe1.1.

Project accession data
Assembly identifier	gsMetZobe1.1
Species	Metschnikowia zobellii
Specimen	gsMetZobe1
NCBI taxonomy ID	27328
BioProject	PRJEB52022
BioSample ID	SAMEA7500987
Isolate information	gsMetZobe1: (DNA sequencing, Hi-C scaffolding)
Assembly metrics *		Benchmark
Consensus quality (QV)	69.7	≥ 50
k-mer completeness	100%	≥ 95%
BUSCO **	C:99.1%[S:98.9%,D:0.1%], F:0.2%,M:0.7%,n:2,137	C ≥ 95%
Percentage of assembly mapped to chromosomes	100%	≥ 95%
Sex chromosomes	-	localised homologous pairs
Organelles	Mitochondrial genome assembled	complete single alleles
Raw data accessions
PacificBiosciences SEQUEL II	ERR9588940, ERR9588941
Hi-C Illumina	ERR9503460
Genome assembly
Assembly accession	GCA_939531405.1
Accession of alternate haplotype	GCA_939531315.1
Span (Mb)	13.6
Number of contigs	7
Contig N50 length (Mb)	2.8
Number of scaffolds	5
Scaffold N50 length (Mb)	2.8
Longest scaffold (Mb)	3.4

Table 2.. Chromosomal pseudomolecules in the genome assembly of Metschnikowia zobellii, gsMetZobe1.

INSDC accession	Chromosome	Length (Mb)	GC%
OW618028.1	1	3.38	47.5
OW618029.1	2	3.16	48.0
OW618030.1	3	2.84	47.5
OW618031.1	4	2.13	48.0
OW618032.1	5	2.09	48.5
OW618033.1	MT	0.05	24.5

Table 3.. Software tools: versions and sources.

Software tool	Version	Source
BlobToolKit	3.4.0	https://github.com/blobtoolkit/blobtoolkit
BUSCO	5.3.2	https://gitlab.com/ezlab/busco
FreeBayes	1.3.1-17-gaa2ace8	https://github.com/freebayes/freebayes
gEVAL	N/A	https://geval.org.uk/
Hifiasm	0.16.1-r375	https://github.com/chhylp123/hifiasm
HiGlass	1.11.6	https://github.com/higlass/higlass
Long Ranger ALIGN	2.2.2	https://support.10xgenomics.com/genome-exome/ software/pipelines/latest/advanced/other-pipelines
Merqury	MerquryFK	https://github.com/thegenemyers/MERQURY.FK
MitoHiFi	2	https://github.com/marcelauliano/MitoHiFi
PretextView	0.2	https://github.com/wtsi-hpag/PretextView
purge_dups	1.2.3	https://github.com/dfguan/purge_dups
SALSA	2.3	https://github.com/salsa-rs/salsa
sanger-tol/genomenote	v1.0	https://github.com/sanger-tol/genomenote
sanger-tol/readmapping	1.1.0	https://github.com/sanger-tol/readmapping/tree/1.1.0

Full text

Species taxonomy

Eukaryota; Opisthokonta; Fungi; Dikarya; Ascomycota; saccharomyceta; Saccharomycotina; Saccharomycetes; Saccharomycetales; CUG-Ser1 clade; Metschnikowiaceae; Metschnikowia; Metschnikowia zobellii ( Uden & Cast.-Branco, 1961) (NCBI:txid27328).

Background

Metschnikowia zobellii ( van Uden & Castelo-Branco, 1961) van Uden, 1962 is a marine ascomycete yeast in the family Metschnikowiaceae which infects small crustaceans, including copepods ( Seki & Fulton, 1969). M. zobellii spores are elongated and barbed, with one spore occurring per ascus ( Mendonca-Hagler et al., 1993). These needle-like spores penetrate the gut walls of grazing invertebrates where the yeast multiples, eventually killing the host ( van Uden & Castelo-Branco, 1961). Metschnikowia are components of coastal marine planktonic communities that reoccur year on year ( Chrismas et al., 2023) and may play an important role in plankton population dynamics.

The genome of M. zobellii was sequenced as part of the Darwin Tree of Life Project, a collaborative effort to sequence all named eukaryotic species in the Atlantic Archipelago of Britain and Ireland. This genome is one of the first marine fungal genomes available to the scientific community and will provide new insights and opportunities for marine fungal research.

Genome sequence report

The genome was sequenced from a colony of Metschnikowia zobellii collected from Church Reef, Wembury, Devon, UK (50.32, –4.08). A total of 90-fold coverage in Pacific Biosciences single-molecule HiFi long reads was generated. Primary assembly contigs were scaffolded with chromosome conformation Hi-C data.

The final assembly has a total length of 13.6 Mb in 5 sequence scaffolds with a scaffold N50 of 2.8 Mb ( Table 1). The whole assembly sequence was assigned to 5 chromosomal-level scaffolds. Chromosome-scale scaffolds confirmed by the Hi-C data are named in order of size ( Figure 1– Figure 4; Table 2). While not fully phased, the assembly deposited is of one haplotype. Contigs corresponding to the second haplotype have also been deposited. The mitochondrial genome was also assembled and can be found as a contig within the multifasta file of the genome submission.

Table 1.: Genome data for Metschnikowia zobellii, gsMetZobe1.1.

Genome assembly of Metschnikowia zobellii, gsMetZobe1.1: metrics.The BlobToolKit Snailplot shows N50 metrics and BUSCO gene completeness. The main plot is divided into 1,000 size-ordered bins around the circumference with each bin representing 0.1% of the 13,653,384 bp assembly. The distribution of scaffold lengths is shown in dark grey with the plot radius scaled to the longest scaffold present in the assembly (3,378,874 bp, shown in red). Orange and pale-orange arcs show the N50 and N90 scaffold lengths (2,836,740 and 2,093,737 bp), respectively. The pale grey spiral shows the cumulative scaffold count on a log scale with white scale lines showing successive orders of magnitude. The blue and pale-blue area around the outside of the plot shows the distribution of GC, AT and N percentages in the same bins as the inner plot. A summary of complete, fragmented, duplicated and missing BUSCO genes in the saccharomycetes_odb10 set is shown in the top right. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/gsMetZobe1.1/dataset/gsMetZobe1_1/snail.

Genome assembly of Metschnikowia zobellii, gsMetZobe1.1: BlobToolKit GC-coverage plot.Scaffolds are coloured by phylum. Circles are sized in proportion to scaffold length. Histograms show the distribution of scaffold length sum along each axis. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/gsMetZobe1.1/dataset/gsMetZobe1_1/blob.

Genome assembly of Metschnikowia zobellii, gsMetZobe1.1: BlobToolKit cumulative sequence plot.The grey line shows cumulative length for all scaffolds. Coloured lines show cumulative lengths of scaffolds assigned to each phylum using the buscogenes taxrule. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/gsMetZobe1.1/dataset/gsMetZobe1_1/cumulative.

Genome assembly of Metschnikowia zobellii, gsMetZobe1.1: Hi-C contact map of the gsMetZobe1.1 assembly, visualised using HiGlass.Chromosomes are shown in order of size from left to right and top to bottom. An interactive version of this figure may be viewed at https://genome-note-higlass.tol.sanger.ac.uk/l/?d=MjYP2bWrTqimY9doy8ZPjA.

Table 2.: Chromosomal pseudomolecules in the genome assembly of Metschnikowia zobellii, gsMetZobe1.

The estimated Quality Value (QV) of the final assembly is 69.7 with k-mer completeness of 100%, and the assembly has a BUSCO v5.3.2 completeness of 99.1% (single = 98.9%, duplicated = 0.1%), using the saccharomycetes_odb10 reference set ( n = 2,137).

Metadata for specimens, spectral estimates, sequencing runs, contaminants and pre-curation assembly statistics can be found at https://links.tol.sanger.ac.uk/species/27328.

Methods

Sample acquisition and nucleic acid extraction

A colony of Metschnikowia zobellii (specimen ID MBA-191008-001A, individual gsMetZobe1) was collected from Church Reef, Wembury, Devon, UK (latitude 50.32, longitude –4.08) on 2019-10-08. The specimen was collected by Michael Cunliffe (Marine Biological Association) and grown on agar. The identifier was Ro Allen (Marine Biological Association). The sample was harvested and preserved in liquid nitrogen before processing.

DNA was extracted at the Tree of Life laboratory, Wellcome Sanger Institute (WSI). The gsMetZobe1 sample was weighed and some of the sample was set aside for Hi-C sequencing. The cells were cryogenically disrupted to a fine powder using a Covaris cryoPREP Automated Dry Pulveriser, receiving multiple impacts. High molecular weight (HMW) DNA was extracted using the Qiagen Plant MagAttract v3 DNA extraction kit. HMW DNA was sheared into an average fragment size of 12–20 kb in a Megaruptor 3 system with speed setting 30. Sheared DNA was purified by solid-phase reversible immobilisation using AMPure PB beads with a 1.8X ratio of beads to sample to remove the shorter fragments and concentrate the DNA sample. The concentration of the sheared and purified DNA was assessed using a Nanodrop spectrophotometer and Qubit Fluorometer and Qubit dsDNA High Sensitivity Assay kit. Fragment size distribution was evaluated by running the sample on the FemtoPulse system.

Sequencing

Pacific Biosciences HiFi circular consensus DNA sequencing libraries were constructed according to the manufacturers’ instructions. DNA sequencing was performed by the Scientific Operations core at the WSI on a Pacific Biosciences SEQUEL II (HiFi) instrument. Hi-C data were also generated from gsMetZobe1 using the Arima2 kit and sequenced on the Illumina NovaSeq 6000 instrument.

Genome assembly, curation and evaluation

Assembly was carried out with Hifiasm ( Cheng et al., 2021) and haplotypic duplication was identified and removed with purge_dups ( Guan et al., 2020). The assembly was then scaffolded with Hi-C data ( Rao et al., 2014) using SALSA2 ( Ghurye et al., 2019). The assembly was checked for contamination and corrected as described previously ( Howe et al., 2021). Manual curation was performed using HiGlass ( Kerpedjiev et al., 2018) and Pretext ( Harry, 2022). The mitochondrial genome was assembled using MitoHiFi ( Uliano-Silva et al., 2023), which runs MitoFinder ( Allio et al., 2020) or MITOS ( Bernt et al., 2013) and uses these annotations to select the final mitochondrial contig and to ensure the general quality of the sequence.

A Hi-C map for the final assembly was produced using bwa-mem2 ( Vasimuddin et al., 2019) in the Cooler file format ( Abdennur & Mirny, 2020). To assess the assembly metrics, the k-mer completeness and QV consensus quality values were calculated in Merqury ( Rhie et al., 2020). This work was done using Nextflow ( Di Tommaso et al., 2017) DSL2 pipelines “sanger-tol/readmapping” ( Surana et al., 2023a) and “sanger-tol/genomenote” ( Surana et al., 2023b). The genome was analysed within the BlobToolKit environment ( Challis et al., 2020) and BUSCO scores ( Manni et al., 2021; Simão et al., 2015) were calculated.

Table 3 contains a list of relevant software tool versions and sources.
