Application value of volumetric CT value in quantifying the activity of a pulmonary tuberculoma

TL;DR

This study shows that measuring the CT scan volume of lung tuberculosis lesions can accurately determine if they are active or inactive.

Contribution

The study demonstrates that volumetric CT values outperform conventional CT film reading in diagnosing active pulmonary tuberculomas.

Findings

Volumetric CT values of active tuberculomas were significantly lower than inactive ones (33.39 HU vs. 78.91 HU).

Volumetric CT achieved 97.2% sensitivity and 100% specificity in determining tuberculoma activity.

Conventional CT film reading had lower accuracy (72.2% sensitivity, 70.3% specificity) compared to volumetric CT.

Abstract

The purpose of this study was to explore the auxiliary diagnostic value of volumetric CT value in quantifying the activity of a pulmonary tuberculoma.

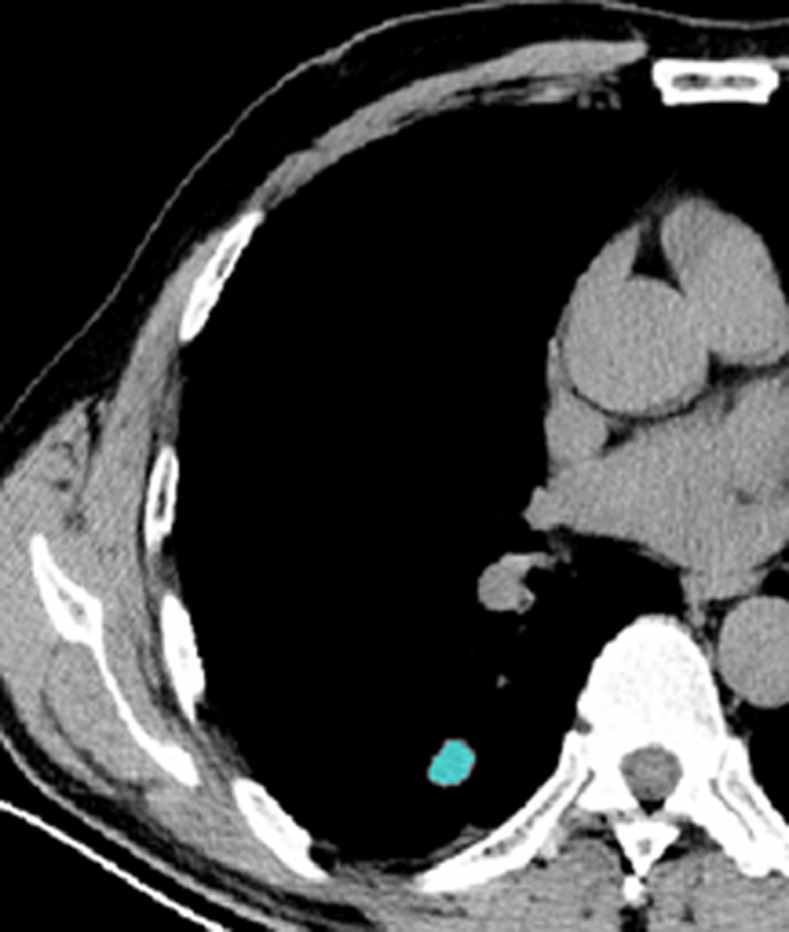

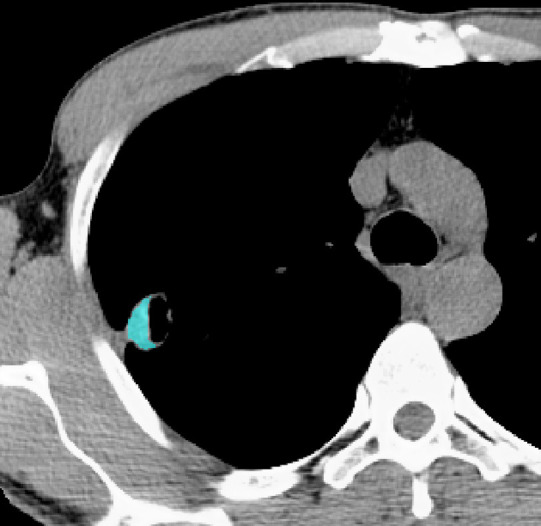

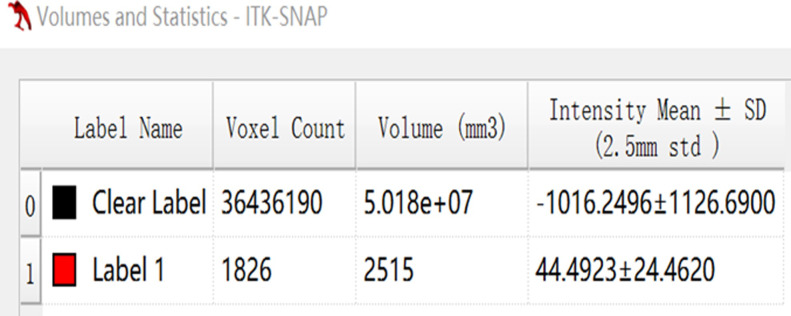

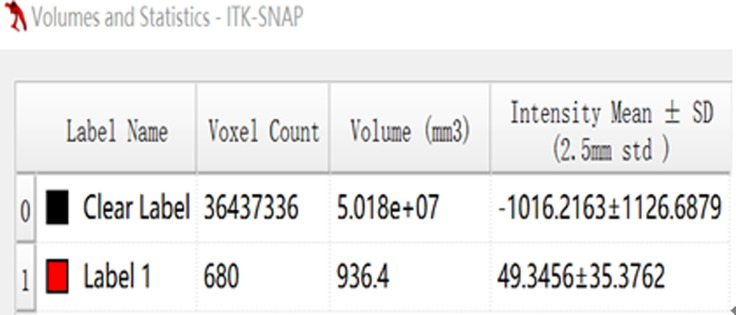

Chest CT image data of 112 patients with pulmonary tuberculomas who were diagnosed clinically between October 16, 2013 and March 21, 2023 were selected. With the shortest diameter axis>5 mm on the mediastinal window serving as the inclusion criterion, 108 active tuberculomas and 64 non-active tuberculomas were selected. The focused image was manually segmented using ITK-SNAP software, the volumetric CT value of the focus was calculated, and the ROC curve was analyzed. Using the final clinical diagnosis as the reference standard, the auxiliary diagnostic efficacy and consistency of the conventional CT film reading method and volumetric CT value in determining the activity of a pulmonary tuberculoma were compared.

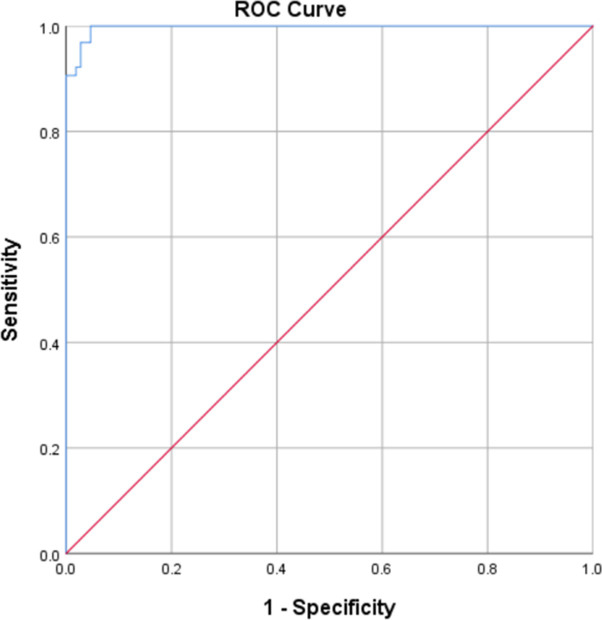

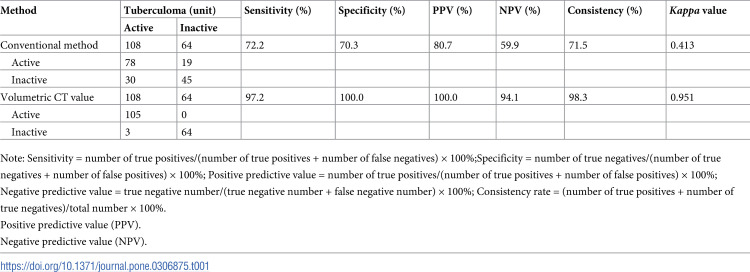

The volumetric CT value of 108 active pulmonary tuberculoma lesions (33.39 [28.17,36.23] HU) was significantly less than 64 inactive pulmonary tuberculoma lesions (78.91 [57.81,120.31] HU); the difference was statistically significant (Z = −10.888. P < 0.001). ROC curve analysis showed that at a maximum Yoden index value of 0.963, the optimal volumetric CT threshold value was 45.32 HU, the sensitivity and specificity of the volumetric CT value in determining the activity of a pulmonary tuberculoma were 97.2% and 100.0%, respectively, and the maximum area under the ROC curve was 0.998. Taking the final clinical diagnosis as the reference standard, the sensitivity, specificity, consistency, and kappa value of the conventional CT film reading method for determining the activity of a pulmonary tuberculoma were 72.2% (78/108), 70.3% (45/64), 71.5% (123/172), and 0.413, respectively, while the corresponding volumetric CT values were 97.2% (105/108), 100.0% (64/64), 98.3% (168/172), and 0.951, respectively.

Accurately quantifying the volumetric CT value of a pulmonary tuberculoma focus determines the activity of a pulmonary tuberculoma, which has very important auxiliary diagnostic value.
