Adsorption–desorption characteristics of coal-bearing shale gas under three-dimensional stress state studied by low field nuclear magnetic resonance spectrum experiments

TL;DR

This study uses low field nuclear magnetic resonance to analyze how three-dimensional stress affects gas adsorption and desorption in coal-bearing shale at a micro-scale.

Contribution

The study introduces a method using L-NMR T2 spectrum to quantify the relationship between gas adsorption and average effective stress in coal-bearing shale.

Findings

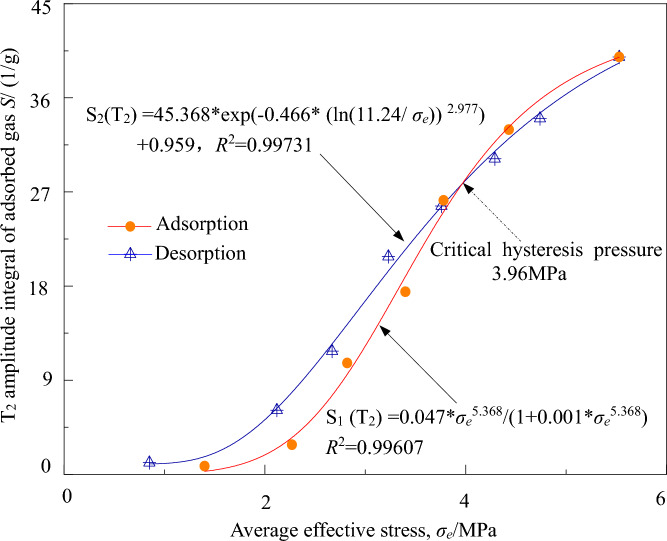

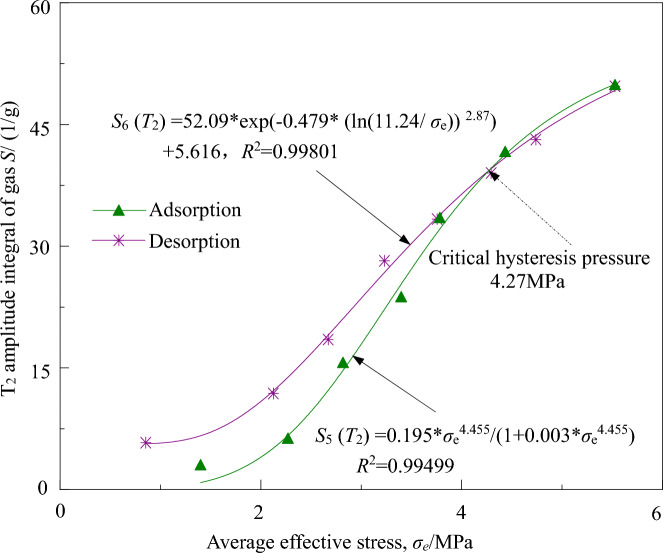

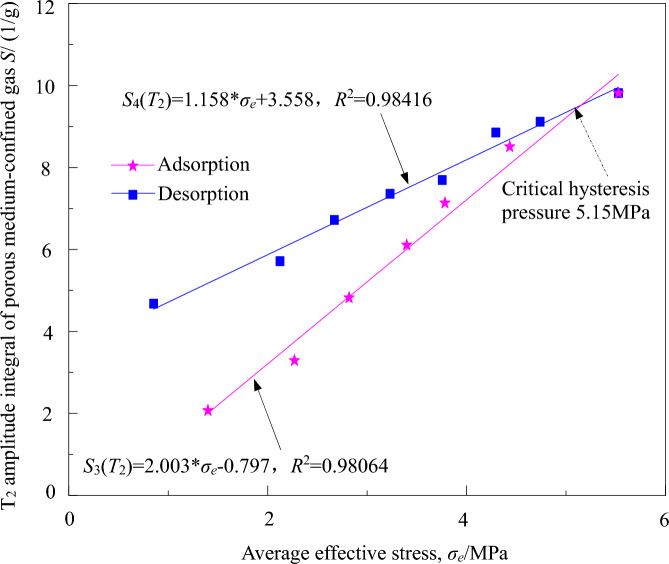

The adsorption–desorption process follows the L-F and D-A-d function models with respect to gas amount and average effective stress.

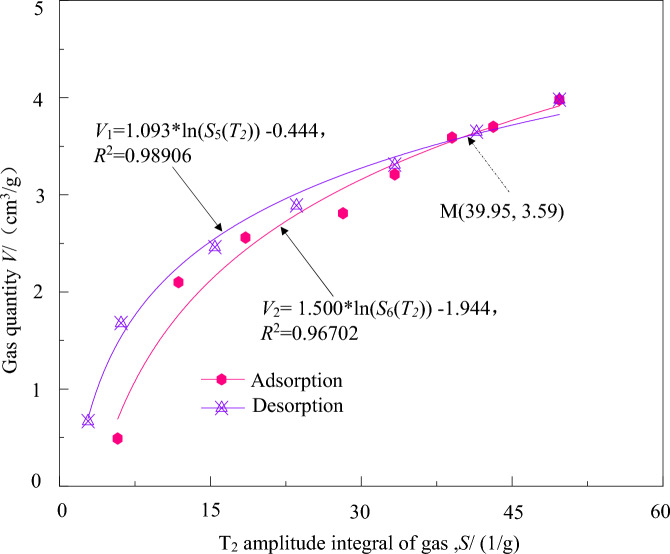

A logarithmic relationship exists between macroscopic and microscopic gas quantities during the process.

The differences in curves may relate to micropore deformation, damage, and gas desorption hysteresis.

Abstract

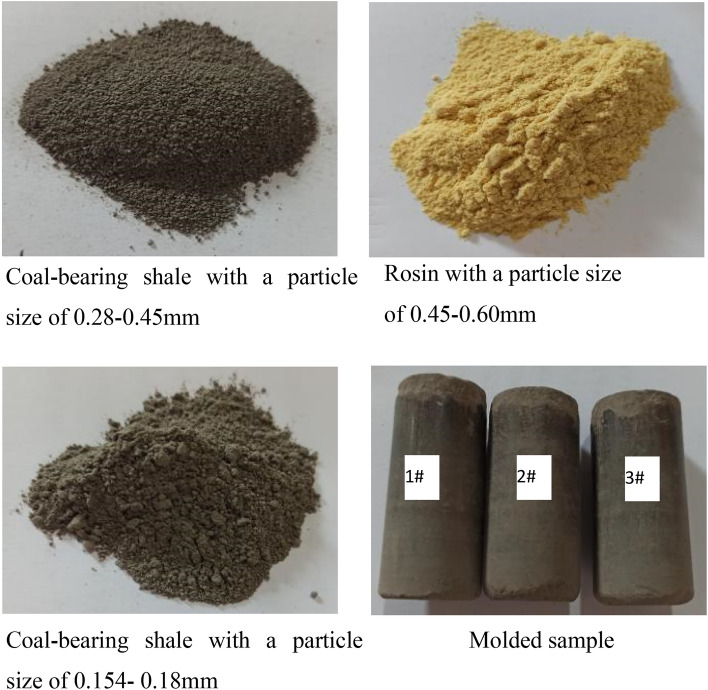

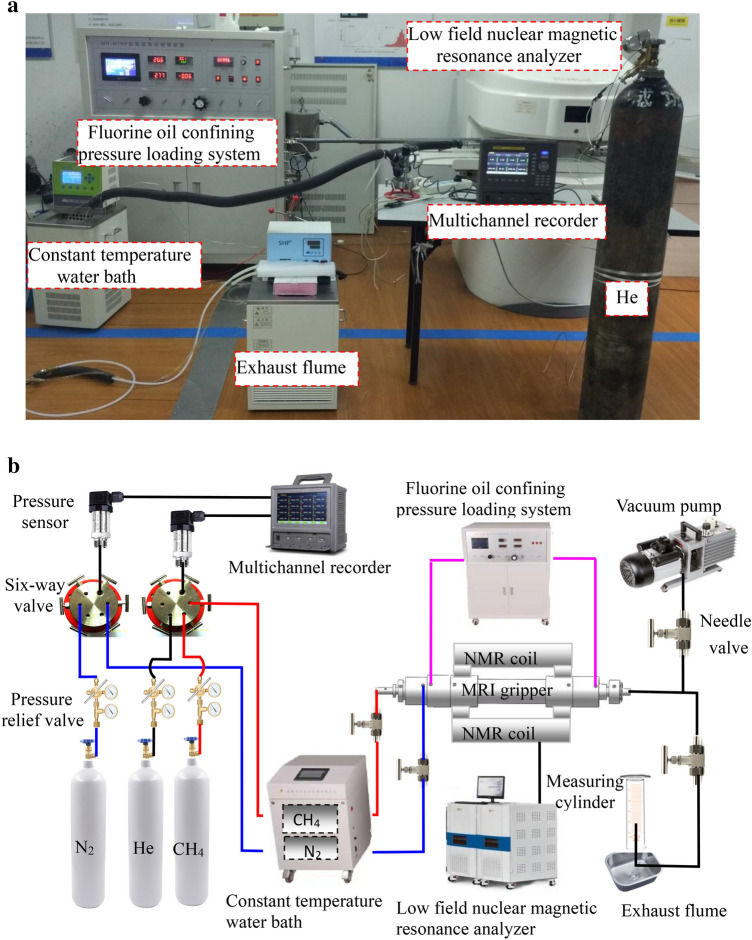

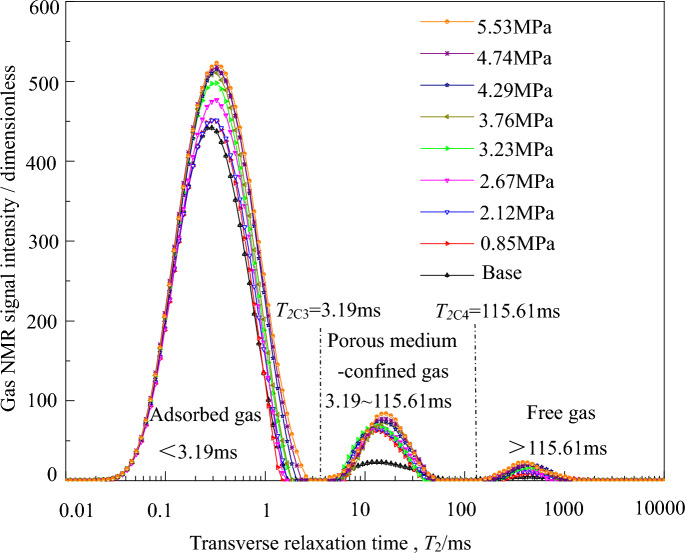

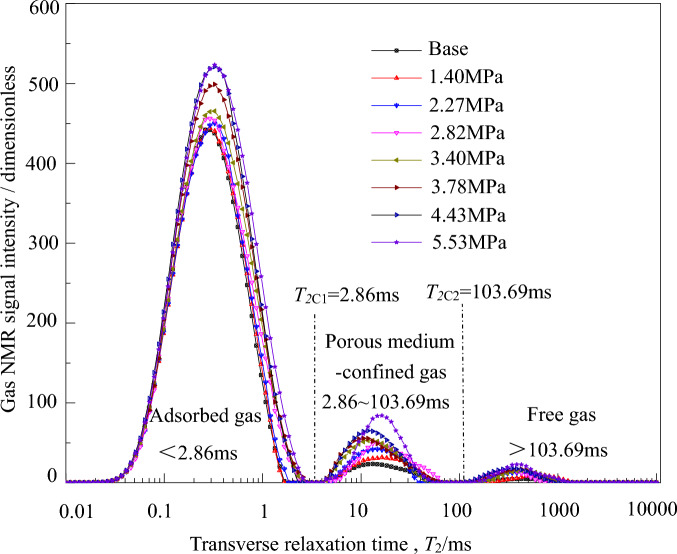

The micro-scale gas adsorption–desorption characteristics determine the macro-scale gas transport and production behavior. To reveal the three-dimensional stress state-induced gas adsorption–desorption characteristics in coal-bearing shale reservoirs from a micro-scale perspective, the coal-bearing shale samples from the Dongbaowei Coal Mine in the Shuangyashan Basin were chosen as the research subject. Isothermal adsorption–desorption experiments under three-dimensional stress state were conducted using the low field nuclear magnetic resonance (L-NMR) T2 spectrum method to simulate the in-situ coal-bearing shale gas adsorption–desorption process. The average effective stress was used as the equivalent stress indicator for coal-bearing shale, and the integral of nuclear magnetic resonance T2 spectrum amplitude was employed as the gas characterization indicator for coal-bearing shale. A quantitative analysis was performed to examine the relationship between gas adsorption in coal-bearing shale and the average effective stress. And a quantitative analysis was performed to examine the relationship between the macroscopic and microscopic gas quantities of coal-bearing shale. Experimental findings: (1) The adsorption–desorption process of coal-bearing shale gas follows the L-F function model and the D-A-d function model respectively with respect to the amount of gas and the average effective stress. (2) There is a logarithmic relationship between the macroscopic and microscopic gas quantities of coal-bearing shale during the adsorption–desorption process. This quantitatively characterizes the differences in the curves, which may be related to the elastic–plastic deformation, damage and fracture of the micropores in coal-bearing shale, as well as the hysteresis of gas desorption and the stress field of the gas occurrence state.
