The genome sequence of the Stripe-backed Dasysyrphus, Dasysyrphus albostriatus (Fallén, 1817)

TL;DR

This paper presents the genome sequence of the Stripe-backed Dasysyrphus, a type of hoverfly, including detailed gene annotations.

Contribution

The study provides a high-quality genome assembly and gene annotation for Dasysyrphus albostriatus.

Findings

The genome assembly spans 662.5 megabases and includes 5 chromosomal pseudomolecules.

Gene annotation identified 12,259 protein coding genes.

The mitochondrial genome is 17.55 kilobases in length.

Abstract

We present a genome assembly from an individual female
Dasysyrphus albostriatus (the Stripe-backed Dasysyrphus; Arthropoda; Insecta; Diptera; Syrphidae). The genome sequence is 662.5 megabases in span. Most of the assembly is scaffolded into 5 chromosomal pseudomolecules, including the X sex chromosome. The mitochondrial genome has also been assembled and is 17.55 kilobases in length. Gene annotation of this assembly on Ensembl identified 12,259 protein coding genes.

Figures

Photograph of the Dasysyrphus albostriatus (idDasAlbo1) specimen used for genome sequencing.

Genome assembly of Dasysyrphus albostriatus, idDasAlbo1.1: metrics.The BlobToolKit Snailplot shows N50 metrics and BUSCO gene completeness. The main plot is divided into 1,000 size-ordered bins around the circumference with each bin representing 0.1% of the 662,557,047 bp assembly. The distribution of scaffold lengths is shown in dark grey with the plot radius scaled to the longest scaffold present in the assembly (249,865,697 bp, shown in red). Orange and pale-orange arcs show the N50 and N90 scaffold lengths (154,042,049 and 88,412,347 bp), respectively. The pale grey spiral shows the cumulative scaffold count on a log scale with white scale lines showing successive orders of magnitude. The blue and pale-blue area around the outside of the plot shows the distribution of GC, AT and N percentages in the same bins as the inner plot. A summary of complete, fragmented, duplicated and missing BUSCO genes in the diptera_odb10 set is shown in the top right. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/CAMIUA01/dataset/CAMIUA01/snail.

Genome assembly of Dasysyrphus albostriatus, idDasAlbo1.1: BlobToolKit GC-coverage plot.Scaffolds are coloured by phylum. Circles are sized in proportion to scaffold length. Histograms show the distribution of scaffold length sum along each axis. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/CAMIUA01/dataset/CAMIUA01/blob.

Genome assembly of Dasysyrphus albostriatus, idDasAlbo1.1: BlobToolKit cumulative sequence plot.The grey line shows cumulative length for all scaffolds. Coloured lines show cumulative lengths of scaffolds assigned to each phylum using the buscogenes taxrule. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/CAMIUA01/dataset/CAMIUA01/cumulative.

Genome assembly of Dasysyrphus albostriatus, idDasAlbo1.1: Hi-C contact map of the idDasAlbo1.1 assembly, visualised using HiGlass.Chromosomes are shown in order of size from left to right and top to bottom. An interactive version of this figure may be viewed at https://genome-note-higlass.tol.sanger.ac.uk/l/?d=G3xi3rX8S4y1rbDptjgNRw.

Tables

Table 1.. Genome data for Dasysyrphus albostriatus, idDasAlbo1.1.

Project accession data
Assembly identifier	idDasAlbo1.1
Species	Dasysyrphus albostriatus
Specimen	idDasAlbo1
NCBI taxonomy ID	414801
BioProject	PRJEB54801
BioSample ID	SAMEA10166817
Isolate information	idDasAlbo1, female: thorax (DNA sequencing), head (Hi-C sequencing), abdomen (RNA sequencing)
Assembly metrics *		Benchmark
Consensus quality (QV)	62.5	≥ 50
k-mer completeness	100.0%	≥ 95%
BUSCO **	C:96.8%[S:96.3%,D:0.5%], F:0.6%,M:2.6%,n:3,285	C ≥ 95%
Percentage of assembly mapped to chromosomes	99.98%	≥ 95%
Sex chromosomes	XX	localised homologous pairs
Organelles	Mitochondrial genome: 17.55 kb	complete single alleles
Raw data accessions
PacificBiosciences SEQUEL II	ERR9981093
Hi-C Illumina	ERR9988135
PolyA RNA-Seq Illumina	ERR10378022
Genome assembly
Assembly accession	GCA_946251815.1
Accession of alternate haplotype	GCA_946251825.1
Span (Mb)	662.5
Number of contigs	287
Contig N50 length (Mb)	6.4
Number of scaffolds	22
Scaffold N50 length (Mb)	154.0
Longest scaffold (Mb)	249.87
Genome annotation
Number of protein-coding genes	12,259
Number of non-coding genes	1,527
Number of gene transcripts	20,312

Table 2.. Chromosomal pseudomolecules in the genome assembly of Dasysyrphus albostriatus, idDasAlbo1.

INSDC accession	Chromosome	Length (Mb)	GC%
OX276335.1	1	249.87	34.5
OX276336.1	2	154.04	33.0
OX276337.1	3	145.18	33.0
OX276338.1	4	88.41	33.0
OX276339.1	X	22.82	35.0
OX276340.1	MT	0.02	19.0

Table 3.. Software tools: versions and sources.

Software tool	Version	Source
BlobToolKit	4.1.7	https://github.com/blobtoolkit/blobtoolkit
BUSCO	5.3.2	https://gitlab.com/ezlab/busco
Hifiasm	0.16.1-r375	https://github.com/chhylp123/hifiasm
HiGlass	1.11.6	https://github.com/higlass/higlass
Merqury	MerquryFK	https://github.com/thegenemyers/MERQURY.FK
MitoHiFi	2	https://github.com/marcelauliano/MitoHiFi
PretextView	0.2	https://github.com/wtsi-hpag/PretextView
purge_dups	1.2.3	https://github.com/dfguan/purge_dups
sanger-tol/genomenote	v1.0	https://github.com/sanger-tol/genomenote
sanger-tol/readmapping	1.1.0	https://github.com/sanger-tol/readmapping/tree/1.1.0
YaHS	yahs-1.1.91eebc2	https://github.com/c-zhou/yahs

Full text

Species taxonomy

Eukaryota; Opisthokonta; Metazoa; Eumetazoa; Bilateria; Protostomia; Ecdysozoa; Panarthropoda; Arthropoda; Mandibulata; Pancrustacea; Hexapoda; Insecta; Dicondylia; Pterygota; Neoptera; Endopterygota; Diptera; Brachycera; Muscomorpha; Eremoneura; Cyclorrhapha; Aschiza; Syrphoidea; Syrphidae; Syrphinae; Syrphini; Dasysyrphus; Dasysyrphus albostriatus (Fallén, 1817) (NCBI:txid414801).

Background

The Stripe-backed Dasysyrphus, Dasysyrphus albostriatus, is a medium-sized black and yellow striped hoverfly in the subfamily Syrphinae. It occurs across the Palearctic and is widespread throughout Great Britain and Ireland in woodland clearings and edges ( Stubbs & Falk, 2002). Dasysyrphus species can be distinguished from hoverflies in other genera by hairy eyes and a long black wing stigma, a dark marking along the leading edge of the wing. Dasysyrphus albostriatus has yellow bars on the second, third and fourth abdominal segments that are angled downwards and often fused to form an inverted ‘v’ ( Ball & Morris, 2013). There are a pair of grey stripes on the thorax, from which the common name is derived.

It is bivoltine, with the first flight period from April to June and a second August to September ( Ball & Morris, 2013). Both sexes visit a wide range of flowers. The larvae are aphidophagous, feeding on a range of arboreal aphid species at night and resting in the trees near the aphid colony during the day, protected by their camouflage, of dark colours and projections from their bodies, that helps them to blend in with twigs and the bark of branches ( Hoverfly Recording Scheme, 2022).

We present a chromosomally complete genome sequence for Dasysyrphus albostriatus based on one adult female specimen, sequenced as part of the Darwin Tree of Life Project. This project is a collaborative effort to sequence all named eukaryotic species in the Atlantic Archipelago of Britain and Ireland.

Genome sequence report

The genome was sequenced from one female Dasysyrphus albostriatus ( Figure 1) collected from Tubney House, Oxfordshire, UK (51.69, –1.37). A total of 29-fold coverage in Pacific Biosciences single-molecule HiFi long reads was generated. Primary assembly contigs were scaffolded with chromosome conformation Hi-C data. Manual assembly curation corrected 130 missing joins or mis-joins and removed 15 haplotypic duplications, reducing the assembly length by 1.35% and the scaffold number by 72.15%.

Photograph of the Dasysyrphus albostriatus (idDasAlbo1) specimen used for genome sequencing.

The final assembly has a total length of 662.5 Mb in 22 sequence scaffolds with a scaffold N50 of 154.0 Mb ( Table 1). The snailplot in Figure 2 provides a summary of the assembly statistics, while the distribution of assembly scaffolds on GC proportion and coverage is shown in Figure 3. The cumulative assembly plot in Figure 4 shows curves for subsets of scaffolds assigned to different phyla. Most (99.98%) of the assembly sequence was assigned to 5 chromosomal-level scaffolds, representing 4 autosomes and the X sex chromosome. Chromosome-scale scaffolds confirmed by the Hi-C data are named in order of size ( Figure 5; Table 2). The scaffold order and orientation uncertain on chromosome X in the region of 15.31–18.96 Mb. While not fully phased, the assembly deposited is of one haplotype. Contigs corresponding to the second haplotype have also been deposited. The mitochondrial genome was also assembled and can be found as a contig within the multifasta file of the genome submission.

Table 1.: Genome data for Dasysyrphus albostriatus, idDasAlbo1.1.

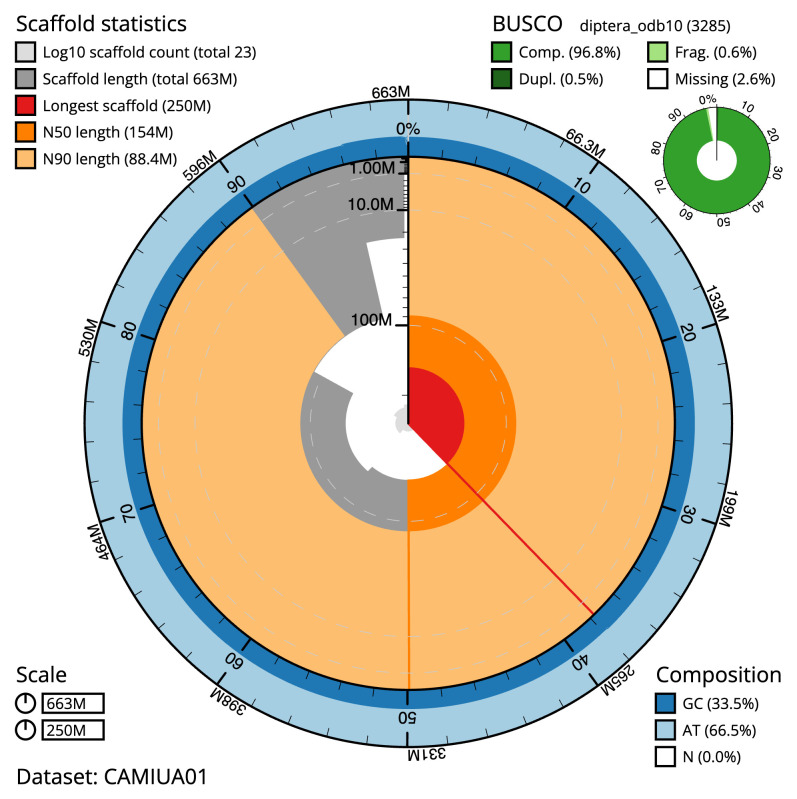

Genome assembly of Dasysyrphus albostriatus, idDasAlbo1.1: metrics.The BlobToolKit Snailplot shows N50 metrics and BUSCO gene completeness. The main plot is divided into 1,000 size-ordered bins around the circumference with each bin representing 0.1% of the 662,557,047 bp assembly. The distribution of scaffold lengths is shown in dark grey with the plot radius scaled to the longest scaffold present in the assembly (249,865,697 bp, shown in red). Orange and pale-orange arcs show the N50 and N90 scaffold lengths (154,042,049 and 88,412,347 bp), respectively. The pale grey spiral shows the cumulative scaffold count on a log scale with white scale lines showing successive orders of magnitude. The blue and pale-blue area around the outside of the plot shows the distribution of GC, AT and N percentages in the same bins as the inner plot. A summary of complete, fragmented, duplicated and missing BUSCO genes in the diptera_odb10 set is shown in the top right. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/CAMIUA01/dataset/CAMIUA01/snail.

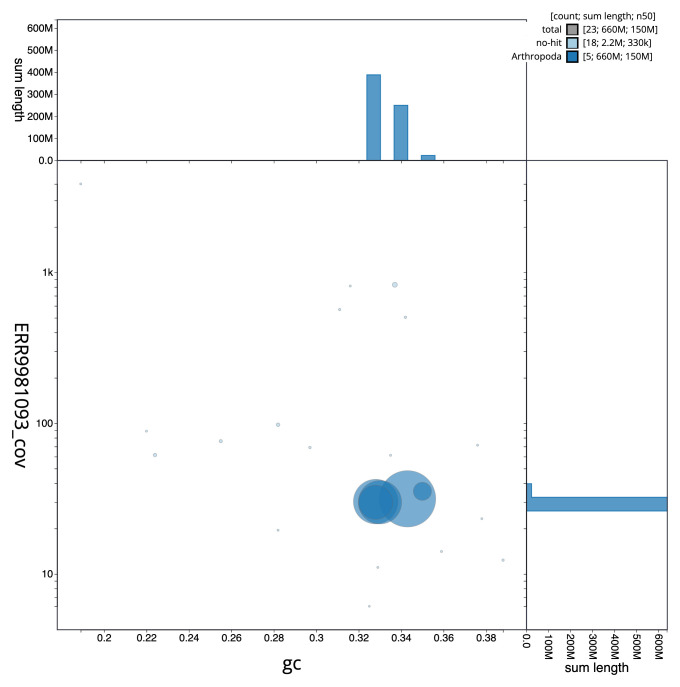

Genome assembly of Dasysyrphus albostriatus, idDasAlbo1.1: BlobToolKit GC-coverage plot.Scaffolds are coloured by phylum. Circles are sized in proportion to scaffold length. Histograms show the distribution of scaffold length sum along each axis. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/CAMIUA01/dataset/CAMIUA01/blob.

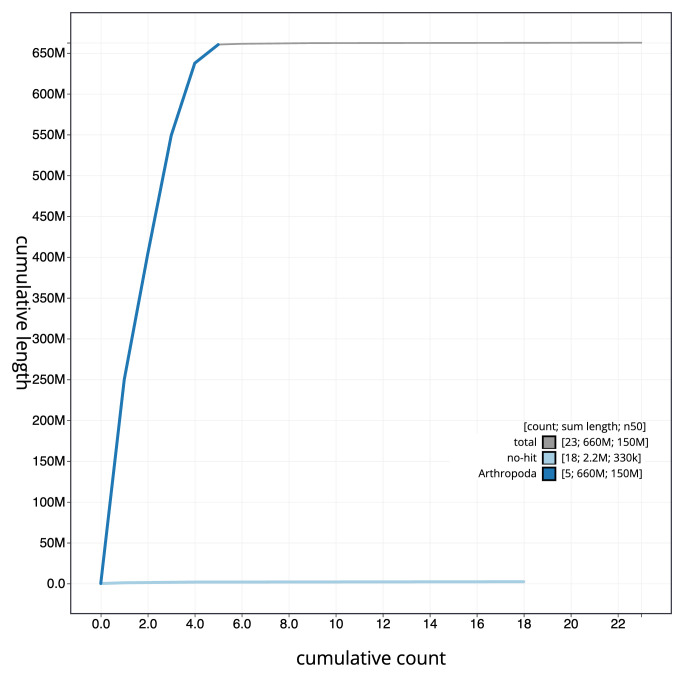

Genome assembly of Dasysyrphus albostriatus, idDasAlbo1.1: BlobToolKit cumulative sequence plot.The grey line shows cumulative length for all scaffolds. Coloured lines show cumulative lengths of scaffolds assigned to each phylum using the buscogenes taxrule. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/CAMIUA01/dataset/CAMIUA01/cumulative.

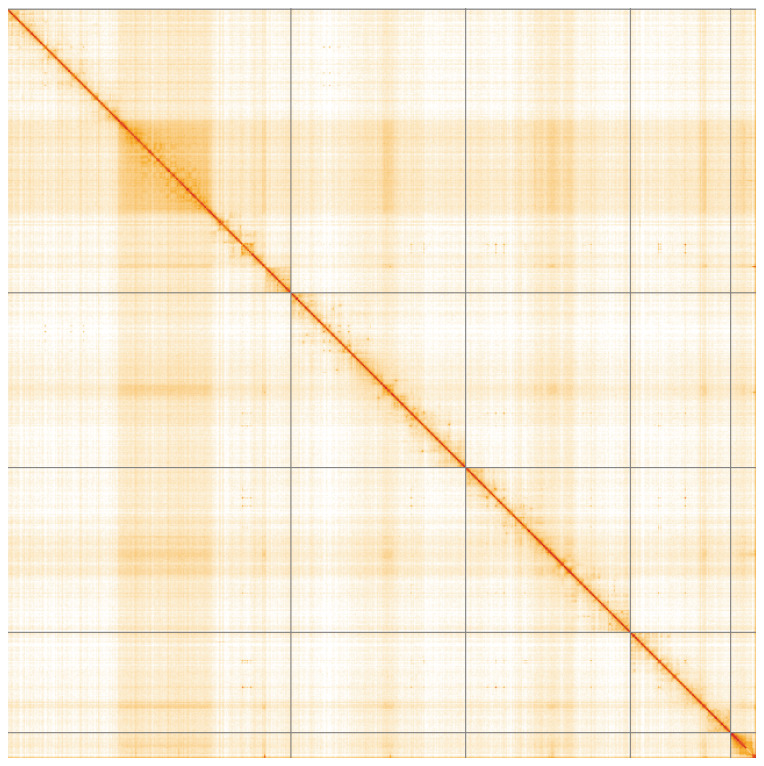

Genome assembly of Dasysyrphus albostriatus, idDasAlbo1.1: Hi-C contact map of the idDasAlbo1.1 assembly, visualised using HiGlass.Chromosomes are shown in order of size from left to right and top to bottom. An interactive version of this figure may be viewed at https://genome-note-higlass.tol.sanger.ac.uk/l/?d=G3xi3rX8S4y1rbDptjgNRw.

The estimated Quality Value (QV) of the final assembly is 62.5 with k-mer completeness of 100.0%, and the assembly has a BUSCO v5.3.2 completeness of 96.8% (single = 96.3%, duplicated = 0.5%), using the diptera_odb10 reference set ( n = 3,285).

Metadata for specimens, barcode results, spectra estimates, sequencing runs, contaminants and pre-curation assembly statistics are given at https://links.tol.sanger.ac.uk/species/414801.

Genome annotation report

The Dasysyrphus albostriatus genome assembly (GCA_946251815.1) was annotated using the Ensembl rapid annotation pipeline ( Table 1; https://rapid.ensembl.org/Dasysyrphus_albostriatus_GCA_946251815.1/Info/Index). The resulting annotation includes 20,312 transcribed mRNAs from 12,259 protein-coding and 1,527 non-coding genes.

Methods

Sample acquisition and nucleic acid extraction

A female Dasysyrphus albostriatus (specimen ID Ox001343, ToLID idDasAlbo1) was netted at Tubney House, Oxfordshire, UK (latitude 51.69, longitude –1.37) on 2021-05-10. The specimen was collected and identified by Liam Crowley (University of Oxford) and preserved on dry ice.

Protocols developed by the Wellcome Sanger Institute (WSI) Tree of Life core laboratory have been deposited on protocols.io ( Denton et al., 2023b). The workflow for high molecular weight (HMW) DNA extraction at the WSI includes a sequence of core procedures: sample preparation; sample homogenisation, DNA extraction, fragmentation, and clean-up. In sample preparation, the idDasAlbo1 sample was weighed and dissected on dry ice ( Jay et al., 2023). Tissue from the thorax was homogenised using a PowerMasher II tissue disruptor ( Denton et al., 2023a).HMW DNA was extracted in the WSI Scientific Operations core using the Automated MagAttract v2 protocol ( Oatley et al., 2023). HMW DNA was sheared into an average fragment size of 12–20 kb in a Megaruptor 3 system with speed setting 31 ( Bates et al., 2023). Sheared DNA was purified by solid-phase reversible immobilisation ( Strickland et al., 2023): in brief, the method employs a 1.8X ratio of AMPure PB beads to sample to eliminate shorter fragments and concentrate the DNA. The concentration of the sheared and purified DNA was assessed using a Nanodrop spectrophotometer and Qubit Fluorometer and Qubit dsDNA High Sensitivity Assay kit. Fragment size distribution was evaluated by running the sample on the FemtoPulse system.

RNA was extracted from abdomen tissue of idDasAlbo1 in the Tree of Life Laboratory at the WSI using the RNA Extraction: Automated MagMax™ mirVana protocol ( do Amaral et al., 2023). The RNA concentration was assessed using a Nanodrop spectrophotometer and a Qubit Fluorometer using the Qubit RNA Broad-Range Assay kit. Analysis of the integrity of the RNA was done using the Agilent RNA 6000 Pico Kit and Eukaryotic Total RNA assay.

Sequencing

Pacific Biosciences HiFi circular consensus DNA sequencing libraries were constructed according to the manufacturers’ instructions. Poly(A) RNA-Seq libraries were constructed using the NEB Ultra II RNA Library Prep kit. DNA and RNA sequencing was performed by the Scientific Operations core at the WSI on Pacific Biosciences SEQUEL II (HiFi) and Illumina NovaSeq 6000 (RNA-Seq) instruments. Hi-C data were also generated from head tissue of idDasAlbo1 using the Arima2 kit and sequenced on the Illumina NovaSeq 6000 instrument.

Genome assembly, curation and evaluation

Assembly was carried out with Hifiasm ( Cheng et al., 2021) and haplotypic duplication was identified and removed with purge_dups ( Guan et al., 2020). The assembly was then scaffolded with Hi-C data ( Rao et al., 2014) using YaHS ( Zhou et al., 2023). The assembly was checked for contamination and corrected as described previously ( Howe et al., 2021). Manual curation was performed using HiGlass ( Kerpedjiev et al., 2018) and Pretext ( Harry, 2022). The mitochondrial genome was assembled using MitoHiFi ( Uliano-Silva et al., 2023), which runs MitoFinder ( Allio et al., 2020) or MITOS ( Bernt et al., 2013) and uses these annotations to select the final mitochondrial contig and to ensure the general quality of the sequence.

A Hi-C map for the final assembly was produced using bwa-mem2 ( Vasimuddin et al., 2019) in the Cooler file format ( Abdennur & Mirny, 2020). To assess the assembly metrics, the k-mer completeness and QV consensus quality values were calculated in Merqury ( Rhie et al., 2020). This work was done using Nextflow ( Di Tommaso et al., 2017) DSL2 pipelines “sanger-tol/readmapping” ( Surana et al., 2023a) and “sanger-tol/genomenote” ( Surana et al., 2023b). The genome was analysed within the BlobToolKit environment ( Challis et al., 2020) and BUSCO scores ( Manni et al., 2021; Simão et al., 2015) were calculated.

Table 3 contains a list of relevant software tool versions and sources.

Genome annotation

The Ensembl gene annotation system ( Aken et al., 2016) was used to generate annotation for the Dasysyrphus albostriatus assembly (GCA_946251815.1). Annotation was created primarily through alignment of transcriptomic data to the genome, with gap filling via protein-to-genome alignments of a select set of proteins from UniProt ( UniProt Consortium, 2019).
