Capillary trapping of various nanomaterials on additively manufactured scaffolds for 3D micro-/nanofabrication
Xianglong Lyu, Zhiqiang Zheng, Anitha Shiva, Mertcan Han, Cem Balda Dayan, Mingchao Zhang, Metin Sitti
TL;DR

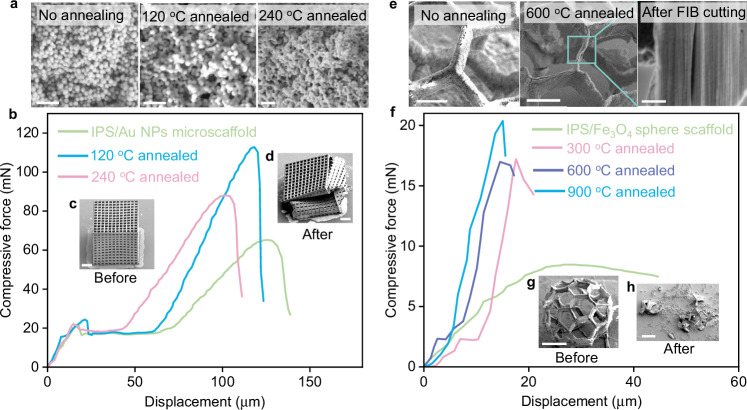

A new method uses capillary forces to assemble diverse nanomaterials into 3D structures, enabling advanced microfabrication.
Contribution
A novel capillary-trapping strategy enables multimaterial 3D microfabrication with diverse nanomaterials.
Findings
Capillary trapping allows uniform assembly of nanomaterials into 3D microstructures with high mass loading.
The method integrates at least four different material types into a single 3D structure layer-by-layer.
The 3D microscaffolds are removable, enabling pure material-based microstructures.
Abstract
High-precision additive manufacturing technologies, such as two-photon polymerization, are mainly limited to photo-curable polymers and currently lacks the possibility to produce multimaterial components. Herein, we report a physically bottom-up assembly strategy that leverages capillary force to trap various nanomaterials and assemble them onto three-dimensional (3D) microscaffolds. This capillary-trapping strategy enables precise and uniform assembly of nanomaterials into versatile 3D microstructures with high uniformity and mass loading. Our approach applies to diverse materials irrespective of their physiochemical properties, including polymers, metals, metal oxides, and others. It can integrate at least four different material types into a single 3D microstructure in a sequential, layer-by-layer manner, opening immense possibilities for tailored functionalities on demand.…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5- —European Research Council (ERC) Advanced Grant SoMMoR project with grant no. 834531.
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsAdvanced Materials and Mechanics · Nonlinear Optical Materials Studies · Pickering emulsions and particle stabilization
Introduction
Three-dimensional (3D) micro-/nanofabrication using various materials has emerged as a compelling technology^1–3^ with considerable potentials in numerous fields, including microrobotics^4–7^, micro-metamaterials^8,9^, micro-electrodes/electronics^10^, and micro-/nanooptics^11^. Among these techniques, two-photon polymerization (2PP) stands out as a cutting-edge method for 3D micro-/nanofabrication. It enables the creation of intricate, free-form 3D micro-/nanostructures with unparalleled design flexibility, surpassing the capabilities of traditional manufacturing^2,3^. In 2PP, two-photon absorption (2PA) at the focal point of a femtosecond laser induces the polymerization and solidification of monomers with a resolution up to 100 nm^12^. However, this process is limited by the specific requirements of 2PA, which restricts the range of usable monomers^13–15^. Consequently, the materials are confined to a narrow spectrum polymeric materials, such as commercially available inert polymers^4,16,17^ and a limited variety of custom-made functional hydrogels^5,6,18,19^.
Two strategies have been reported for 3D printing of non-polymeric materials, such as metals^20^, quantum dots^21–23^, metal oxides^24,25^, and ceramics^26–28^ at the micro-/nanoscale. One strategy relies on the direct laser writing of advanced photoresists, which can either include designing cross-linkable precursors for targeted materials^20,21,25,27–29^ or creating blends by physically dispersing nanomaterials into accessible monomers^26,30^. After printing, the desired materials are either chemically bonded to other heterogeneous materials or physically embedded within a polymer matrix. To achieve pure 3D structures of the targeted material, post-treatments, such as pyrolysis and etching, are necessary to remove the bonding materials^20,26,29^. For example, a colloidal nanocrystal photoresist was developed by grafting cross-linkable ligands onto the nanocrystal surface, enabling the direct laser writing of various 3D architectures with a high nanocrystal mass content of ≈90%^29^. However, this method is generally limited to specific chemistries, such as the surface ligands on colloidal nanocrystals (including C–H, Zn-S bonds^21,29^) and cross-linkable metal coordination compounds as certain metal precursors, hindering its broader applicability to other different materials. Besides, for photoresists composed of physically blended nanomaterials within accessible monomers, strict criteria of the nanomaterials need to be met, such as the size, mass loading, and transparency of the blended nanomaterials^26,30^.
Another strategy to fabricate non-polymeric 3D micro-/nanostructures involves template-assisted fabrication, which uses 3D-printed polymer scaffolds as templates for the deposition/adsorption of desired materials^31^. Techniques, such as chemical coating^32^, physical vapor deposition^8^, atomic layer deposition^33–35^, and weak interaction-based adsorption (electrostatic force^36^ or hydrogen bonding^37^), have been used to deposit various inorganic materials onto these templates. These methods have produced inorganic material-coated structures with high resolution (≈100 nm) and decent mechanical strength. However, they still face the challenges, such as the limited applicability to other materials, low mass loading of the desired materials, and the difficulties of integrating multiple materials. Detailed comparisons of the printing capabilities of existing approaches are provided in Supplementary Table 1. Despite these advancements, developing a versatile 3D micro-/nanofabrication strategy that broadly accommodates a wide spectrum of materials (both polymeric and non-polymeric materials), achieves high material content, and facilitates the on-demand integration of multiple materials remains a challenge.
Here, we propose a general strategy for the 3D micro-/nanofabrication of various materials, utilizing a non-specific physical interaction, i.e., capillary forces^38–40^, to trap nanomaterial dispersions and assemble the nanomaterials onto 3D 2PP-printed microscaffolds. The 2PP-printed scaffolds possess a strong pinning ability at the liquid/solid interface, effectively trapping the solution within and directing the steady assembly of nanomaterials onto the microscaffolds during the evaporation process. To ensure uniform and abundant nanomaterial deposition, we minimize the surface charge of the nanomaterials through salting out effect and reduce their electrostatic repulsion. By trapping and confining various nanomaterial dispersed solution inside the microscaffolds, we can realize the creation of 3D micro-/nanostructures from a diverse array of materials, including polymer, quantum dots, metal, metal oxide, alloy, diamond, and up-conversion nanomaterials. Additionally, we show that the polymer scaffolds can be removed, yielding pure-material 3D microstructures. Moreover, our method allows for easy integration of multiple materials, especially sequential integration of multiple materials into a single microscaffold. This capability has great potential for fabrication of heterogeneous, multifunctional micro-/nanodevices tailored for specific, synergetic, and on-demand functionalities.
Results
Capillary trapping-enabled 3D micro-/nanofabrication

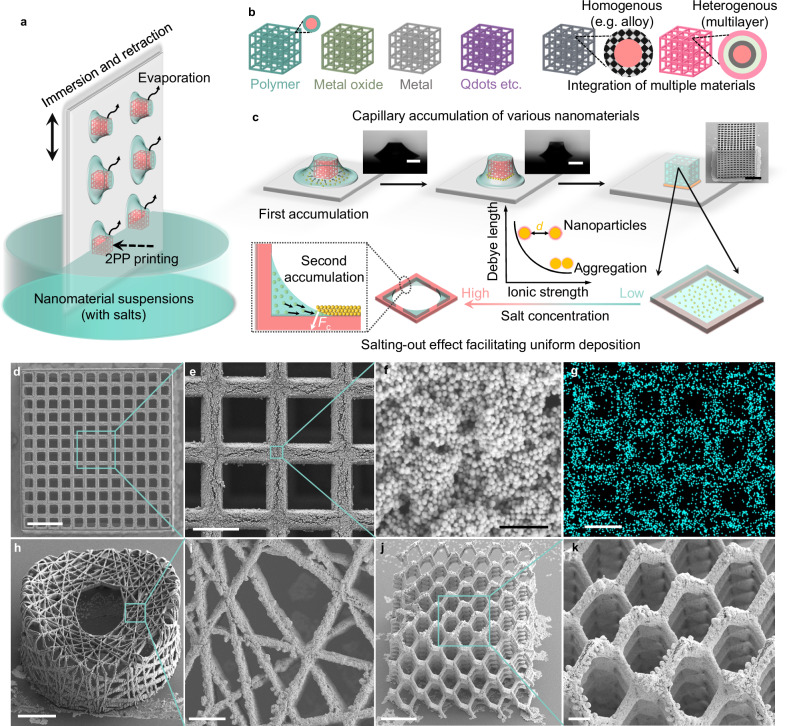

The creation of material-nonspecific 3D micro-/nanostructures involves a unique “capillary trapping” strategy, where nanomaterials are trapped and assembled onto microscaffolds through the capillary force. This process is outlined in Fig. 1a–c and includes several steps: (I) Modifying the silicon substrate with silane molecules; (II) Processing polymer microscaffolds (made from IPS photoresist polymer) on the silicon substrate through the 2PP process; (III) Repeatedly immersing and retracting the substrate in nanomaterial dispersions. The nanomaterials are gradually accumulated and assembled onto the microscaffolds after the trapped solution within them evaporates in each immersion-retraction cycle (Fig. 1c). Particularly, the capillary force, a prevalent non-specific physical interaction on solid-liquid-gas three-phase interfaces, plays a vital role during the enrichment and deposition process of nanomaterials at the micro-/nanoscale. It effectively traps the solution (≈0.12 µL for each microscaffolds; for details, see Methods) within the microscaffolds in each immersion-retraction cycle. The surface treatment of the substrate reduces its affinity for the solution, while the untreated microscaffolds exhibit a higher affinity. Differential affinity between the substrate and microscaffolds results in a directional flow of the dispersion liquid to the microscaffolds. This process facilitates the concentrated deposition of nanomaterials onto the microscaffolds, while it remains clear on the substrate, as the scanning electron microscope (SEM) image shows in Fig. 1c.Fig. 1. Concept of capillary trapping-based 3D micro-/nanofabrication.a, b Schematic showing the capillary force-induced fabrication process of various nanomaterials. c Schematic illustration of key steps of capillary accumulation and deposition of nanomaterials: (I) the nanomaterials dispersed in bulk solution accumulate around the microscaffolds due to the strong pinning ability of the microstructure (first accumulation); (II) nanomaterials accumulate at the meniscus area on the beam of microscaffolds during solvent evaporation (second accumulation); (III) nanomaterials effectively coagulate and assemble onto the surface of the microscaffolds as the decline of electrostatic repulsion among nanomaterials. Optical images (inset) show that solution is trapped by a microscaffold, and scanning electronic microscopy (SEM) image (inset) shows that Au NPs accumulate near a microscaffold. d–g, SEM images (d–f) and EDS mapping (g) of Au element distribution of a microscaffold assembled with Au NPs. Side-view SEM images (h, i) of a micro-architecture (bird’s nest) and a 3D micro-metastructure (j, k) assembled with Au NPs. All samples underwent 600 immersion/retraction cycles. Scale bars are 300 μm for two optical images and 100 μm for SEM image in (c), 60 μm in (d, h, j), 20 μm in (e, g), 200 nm in (f), and 10 μm in (i, k).
The microscaffolds on the substrate are crucial for precisely capturing the solution and guiding the assembly and deposition of nanomaterials within these structures. Without these scaffolds, nanomaterials accumulating at the solid-liquid-air interfaces form flat ‘coffee-ring’ patterns^41,42^. This pattern results from capillary flows, which move nanomaterials to the edge to compensate for solution loss during lateral evaporation process, leading to the accumulation of nanomaterials at the interface (Supplementary Fig. 1). In contrast, within the microscaffolds, the 3D microstructures provide a stronger pinning ability, ensuring the solution remains within the microscaffolds. As the evaporation occurs, the bulk solution on the substrate, carrying nanomaterials, tends to directionally flow into these 3D microscaffolds to replenish the evaporated solution due to its higher affinity for the 3D microscaffolds (Fig. 1c and Supplementary Movie 1). This leads to the first accumulation phase, creating a 3D liquid-air interface confined by the microscaffolds. This accumulation increases the nanomaterial concentration, facilitating a high nanomaterial loading onto the 3D microscaffolds during subsequent evaporation stages within the microscaffolds.
Sequentially, as evaporation continues within the 3D microscaffolds, local contact lines form along each building block, leading to a second phase of nanomaterial accumulation (the second accumulation) at the meniscus of each contact line. The steady accumulation (Supplementary Fig. 2) indicates that the interparticle van der Waals forces are robust enough to counteract the capillary forces during ongoing deposition cycles. Furthermore, we immersed the as-assembled scaffolds in a pure solvent to assess if the capillary forces during evaporation could dislodge nanoparticles from the scaffolds (Supplementary Fig. 3). Even after 600 evaporation cycles, there was no noticeable change in the deposition morphology on the scaffolds. These findings lead us to conclude that although van der Waals forces are generally weak, they are adequately strong to overcome the capillary forces, particularly given that nanoparticles possess high surface areas, enabling a high interparticle adhesion strength. To facilitate a dense and uniform deposition, a small amount of salt is added to reduce the electrostatic interactions among the nanomaterials. This salting-out effect neutralizes the surface charge of the nanomaterials, diminishing their electrostatic repulsion^43–45^ (Supplementary Fig. 4). As the solvent evaporates, the salt concentration increases, further accelerating the coagulation of the nanomaterials^46,47^.
Our strategy assembles Au NPs onto 3D microscaffolds, as demonstrated in the SEM images (Fig. 1d–f) and the elemental mapping from energy-dispersive X-ray spectroscopy (EDS) data (Fig. 1g). These images show that Au NPs are uniformly and densely packed onto each building block of the 3D microscaffold. This technique enables us to create diverse Au NP-assembled 3D microstructures with a high structural integrity. Examples include a micro “bird’s nest*”* (Fig. 1h, i) and a micro-metastructure (Fig. 1j, k). As this strategy leverages the prevalent physical interactions—capillary forces (a noticeable interaction at small scales^38^), to guide the assembly of nanomaterials, and van der Waals forces to stabilize the assembled nanomaterial layers—it can assemble nanomaterials onto micro-/nanostructures with submicron resolution (Supplementary Fig. 5) and a roughness of 46.6 nm \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\pm$$\end{document} 3.9 nm (Supplementary Fig. 6), as well as can be widely applicable to assembling various non-specific nanomaterials, including polymeric and non-polymeric materials without needing to consider their specific physicochemical properties, such as their type, size, shape, surface charge, or surface functional groups. Furthermore, this approach is easily capable of integrating multiple materials either in a homogeneous or a heterogeneous manner, fabricating multifunctional 3D microstructures.
Assembly dynamics and optimization of nanomaterial loading

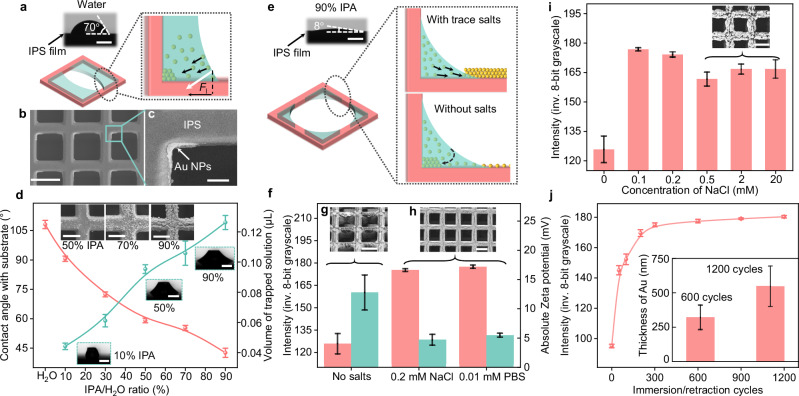

To achieve a uniform, densely packed, and high-loading nanomaterial deposition on 3D microscaffolds, we investigate various factors influencing the deposition quality during the first and second accumulation phases. Uniformly dispersed nanomaterials in the solvent is the prerequisite to ensure their uniform deposition onto the microscaffolds, and the most critical factor is the solution’s high affinity to the 3D microscaffolds. For instance, isopropyl alcohol (IPA) demonstrates a high affinity for IPS polymer scaffolds, whereas H_2_O shows lower affinity. By varying the IPA/H_2_O ratio, we can finely adjust this affinity, as depicted in Supplementary Figure 3. With a low IPA concentration (<10% IPA/H_2_O), where the solution has a contact angle greater than 55° with the IPS polymer, we observe that Au NPs tend to accumulate unevenly, especially at the corners of the microscaffolds’ building blocks (Fig. 2a–c). This unevenness is attributed to the strong lateral force exerted by the liquid meniscus during the receding of the contact line^48^. However, increasing the IPA/H_2_O ratio above 50% substantially enhances the solution’s affinity for the IPS polymer, leading to rapid spreading of the solution drops on the IPS polymer substrate (Supplementary Fig. 7). Consequently, the high affinity brings more uniform deposition of Au NPs as shown in the SEM images (insets of Fig. 2d). Additionally, the selective affinity of the silane-treated substrate and IPS polymer microscaffolds to the IPA/H_2_O solution is also crucial. When the substrate is withdrawn from the solution, the amount of solution (and thus Au NPs) captured by the microscaffolds varies with the IPA/H_2_O ratio. This variation results from the differentiated affinities of solution to the substrate. As the ratio increases, so does the solution volume captured by the IPS polymer microscaffolds (Fig. 2d), because of the reduced contact angle on the silane-treated substrate, leading to higher mass loadings of Au NPs. For optimal fabrication efficiency, we opt for a solution ratio of 90% IPA/H_2_O in the subsequent experiments. In short, beyond the rational design of solvent used for the deposition (Supplementary Fig. 8), surface treatments of nanomaterials, microscaffolds, and substrates, including O_2_ plasma treatment, chemical modification, or vapor deposition, can also enhance the efficiency and uniformity of the deposition, as these techniques can adjust their mutual selective affinity (wettability).Fig. 2. Nanomaterial assembly dynamics and optimization.a An optical image showing the water contact angle measurement on an IPS film and a schematic of the second accumulation phase. b, c, SEM images of microscaffold beams assembled with Au nanoparticles. d Contact angles (red dots) as a function of various IPA/H_2_O ratio solutions on a silane-treated silicon substrate, alongside the trapped volumes of these solutions (green dots). Insets show optical images of solutions with different IPA/H_2_O ratios trapped in a microscaffold and SEM images of Au nanoparticles assembled on the microscaffold beams through solutions with varying IPA/H_2_O ratios. e Schematics of the second accumulation phase in a nanomaterial suspension with and without salts. f Intensity of averaged inverted 8-bit grayscale values (red bar) for microscaffolds treated with Au nanoparticles in 90% IPA/H_2_O solutions containing different salts and their corresponding zeta potentials (green bar). SEM images of microscaffold beams assembled with Au nanoparticles in solutions without salts (g) and with 0.01 mM PBS (h). i Intensity of averaged inverted 8-bit grayscale values for microscaffolds treated with Au nanoparticles in 90% IPA/H_2_O solutions with different NaCl concentrations. Inset shows an SEM image of microscaffold beams assembled with Au nanoparticles in a solution with 20 mM NaCl. j Intensity of averaged inverted 8-bit grayscale values for microscaffold beams assembled with Au nanoparticles over different immersion/retraction cycles. An inset depicts the thickness of the assembled Au NP layer after 600 and 1200 immersion/retraction cycles. All samples from (b) to (i) underwent 600 immersion/retraction cycles. Data in (d, f, i, j) are extracted from Supplementary Figs. 9, 12–15, respectively. These data points are shown as mean ± s.d. with at least 4 independent samples/measurements. (n \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\ge$$\end{document} 4). Scale bars represent 300 μm for all optical micrographs in (a, d, e), 10 μm for SEM images in (d), 20 μm in (b, g–i), and 5 μm in (c). Source data are provided as a Source Data file.
The surface charge of the nanomaterials is another crucial aspect for efficient nanomaterial deposition. Nanomaterials in solvents are typically charged, creating strong electrostatic repulsion as the solvent evaporates and the particles draw nearer to each other^49,50^. This repulsion impedes the effective coagulation and deposition of Au NPs, causing them to predominantly accumulate at the corners of the 3D microscaffolds’ building blocks as the contact line recedes, resulting in an uneven deposition. We find that adding a trace amount of salt can improve the nanoparticle deposition (Fig. 2e–h). Salt in the solution can effectively neutralize the surface charge of nanoparticles, reducing their electrostatic repulsion and facilitating their coagulation. For example, the presence of NaCl or phosphate buffered saline (PBS) in solutions results in a lower surface charge of Au NPs (zeta potential of ≈-5.0 mV) compared to solutions without salt (≈12.8 mV) (Fig. 2f). The salting-out effect, consequently, would aid in the dense packing and uniform deposition of nanoparticles. As illustrated in the SEM images of Fig. 2g, h, Au NPs show a more uniform and efficient deposition on 3D microscaffolds after evaporating the solution containing trace NaCl or PBS. We semi-quantify this effect by measuring the average (inverted) 8-bit grayscale of microscaffolds under an optical microscope. Different amounts of Au NPs cause distinct light absorption in the microscope, with scaffolds having less gold (before salt addition) appearing brighter (lower inverted grayscale value) and those with more gold (after salt addition) appearing darker (Fig. 2f, Supplementary Fig. 9). A small amount of salt increases the contrast in nanoparticle loading (Fig. 2i), but a higher salt concentration can adversely disrupt uniform deposition due to salt crystallization (Supplementary Fig. 10). Furthermore, any added salt can be easily removed by immersing the assembled microscaffolds in DI water for a few minutes (Supplementary Fig. 11).
Finally, the amount of the assembled nanomaterials can be gradually increased by repeating the immersion-retraction cycle. More cycles lead to darker microscaffolds (Fig. 2j), indicating increased Au NPs loading. The average inverted grayscale value of the microscaffolds saturates after ≈300 immersion-retraction cycles, suggesting complete coverage of the microscaffolds beams by Au NPs. However, the thickness of the assembled Au NP layer keeps increasing after many cycles (inset in Fig. 2j). Given that the throughput of this approach is largely influenced by the number of immersion-retraction cycles, several strategies can be implemented to reduce the deposition time. First, increasing the concentration of nanoparticles in the solution can reduce the required number of cycles. Second, the drying time of the trapped solution during each cycle can be drastically shortened (from the current 50 s to less than 10 s) by implementing measures, such as reducing humidity, enhancing air ventilation, and raising the temperature with infrared light. Furthermore, several types of materials can be assembled automatically and simultaneously in our home-built platform, showing potential for scalable production (Supplementary Movie 2).
High adaptability to versatile materials

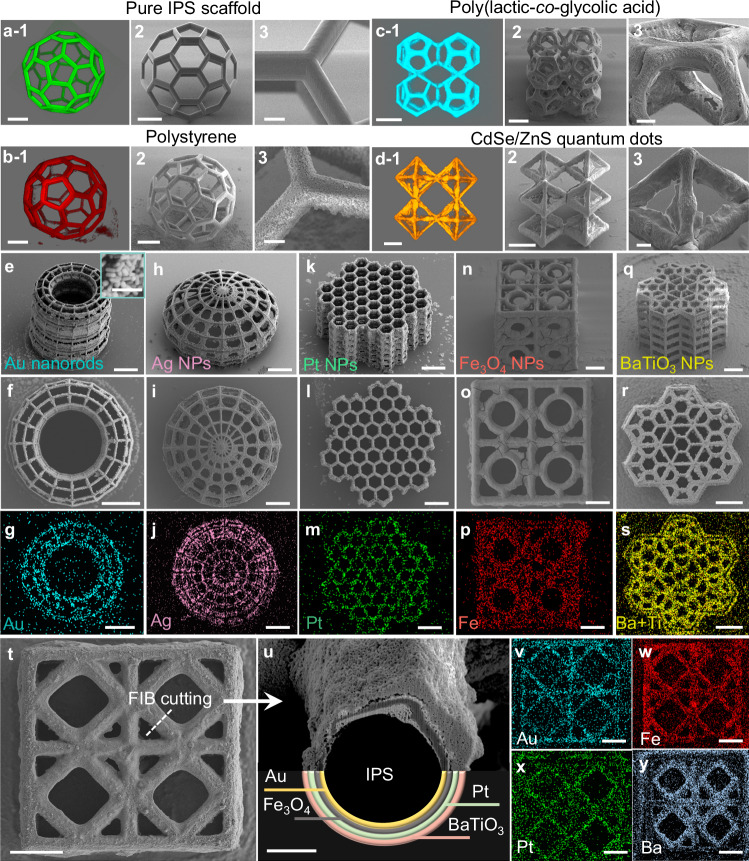

Our capillary-trapping strategy for 3D micro-/nanofabrication stands out for its non-selectivity towards different nanomaterials. This bottom-up approach facilitates the incorporation of a diverse range of materials, as showcased in various 3D microstructures (Fig. 3). The 2PP printed IPS polymer 3D microscaffolds, initially smooth in morphology (Fig. 3a), acquire a rough texture upon dense nanoparticle assembly (Fig. 3b). When nanomaterials are modified with fluorescent molecules, their 3D structures can be visualized using confocal fluorescent microscopy. Our method allows for the assembly of various polymeric nanoparticles like polystyrene (PS, Fig. 3b) and poly (lactic-co-glycolic acid) (PLGA, Fig. 3c). Beyond polymers, our technique efficiently assembles non-polymeric nanomaterials, such as quantum dots (QDs, CdSe/ZnS; Fig. 3d), metals (Au nanorods, Ag NPs, Pt NPs; Fig. 3e–m), and metal oxides (Fe_3_O_4_ NPs, BaTiO_3_ NPs; Fig. 3n–s). These materials are uniformly assembled onto 3D microscaffolds of various geometries, confirmed by their characteristic EDS mappings. This adaptability extends to nanomaterials of varying sizes (from 5 to 500 nm), shapes (e.g., spheres, rods), and surface groups (e.g., -COOH, -NH_2_, PEG, alkyne, azide), enabling on-demand functionality (Supplementary Table 2).Fig. 3. High adaptability of the proposed fabrication process to versatile materials.Fluorescent (1) and SEM images (2, 3) of the printed pure IPS (a) and PS nanoparticles-assembled (b) 3D hollow fullerene microstructures. Fluorescent (1) and SEM images (2, 3) of PLGA-assembled (c) and CdSe/ZnS quantum dots-assembled (d) diamond metastructures. e–s, SEM images and EDS mapping of various complex 3D microstructures assembled with diverse materials, including ring-shaped microscaffolds assembled with Au nanorods (e–g) and Ag NPs respectively (h–j), a honeycomb-like micro metastructure assembled with Pt NPs (k–m), a cube meta-structure assembled with Fe_3_O_4_ NPs (n–p), and a hexagon meta-structure assembled with BaTiO_3_ NPs (q–s). t SEM image of a cube micro meta-structure after depositing four different materials. u Cross-section SEM image of a beam cut by focused ion beam (FIB) from the structure in (t). The order of assembled material from inner to outer is Au, Fe_3_O_4_, Pt, BaTiO_3_. v–y, EDS mapping of Au, Fe, Pt, and Ba elements. The experimental parameters of such various nanomaterials are summarized in Supplementary Table 3. Scale bars are 10 μm in (3 of a–d), 200 nm in (inset in e), 5 μm in (u), 60 μm in all others.
Moreover, our approach can fabricate 3D microstructures with a uniform distribution of multiple materials, which surpasses the existing single-material strategies^36,37^. This flexibility allows for the creation of heterogeneous, multi-layer, and multifunctional material structures. We achieve this by simply replacing the suspensions with different nanomaterials during sequential immersion/retraction cycles. To showcase the potential for integrating multiple materials into a single 3D architecture, we deposit four different nanomaterials (Au, Fe_3_O_4_, Pt, BaTiO_3_) sequentially onto a single 3D microstructure (Fig. 3t–y). The cross-section SEM image shown in Fig. 3u, obtained from a focused ion beam (FIB)-cut beam, exhibits four distinct contrasts, each indicating a separate material layer. Further, the EDS mapping confirms that elements, such as Au, Fe, Pt, and Ba, are uniformly distributed within the microscaffolds (Fig. 3v–y).
Mechanical properties of the as-fabricated structures
The structural stability of our 3D microstructures can be enhanced through thermal annealing (Fig. 4, Supplementary Movies 3, 4), which shows the mechanical performance of nanomaterial-assembled microstructures before and after thermal annealing at different temperatures during compression tests. Initially, these structures are primarily stabilized by van der Waals forces, which are less robust than covalent or ionic bonds^29^. To enhance their interaction and strength, we implement a post-annealing process. Given that nanomaterials typically have lower melting points than their bulk counterparts, we can achieve stronger interfacial bonds through low-temperature sintering^29,37,51^. This process is feasible because the IPS polymeric scaffolds we employ are thermally stable below 300 °C. The interfacial melting of the nanoparticles during annealing remarkably enhances the mechanical strength of the structures. For example, an IPS microcube assembled with Au NPs was annealed at 120 and 240 °C, causing the Au NPs to partially melt and reconfigure into a dense, continuous 3D porous Au upon cooling (Fig. 4a). Both samples annealed at these temperatures (with a density of ≈4.18 g cm^−3^) exhibited a higher compressive strength than their untreated counterpart (Fig. 4b) with enhancements of 160% and 120% in their maximum compressive strength for the respective temperatures. However, it is important to note that higher sintering temperatures do not invariably result in increased mechanical strength; excessive melting of Au nanoparticles can lead to uneven nanoparticle coagulation or potential degradation of the IPS scaffold.Fig. 4. Mechanical performance of nanomaterial-assembled microstructures.a SEM images of Au NPs annealed at different temperatures. b Compressive force-displacement curves of Au NP-assembled cube-shaped microscaffolds before and after annealing at 120 °C, 240 °C. c, d are SEM images show the morphology of an Au NPs/IPS microscaffolds before (c) and after compression (d). e SEM images of Fe_3_O_4_ NP-assembled beams of a 3D hollow microsphere before and after annealing at 600 °C, where the cross-section SEM image from FIB-cut beam shows the polymer scaffold is removed. f Compressive force-displacement curves of Fe_3_O_4_ NP-assembled microspheres before and after annealing at 300, 600, and 900 °C. g, h are SEM images showing the morphology of a 900 °C annealed Fe_3_O_4_ NPs microsphere before (g) and after compression (h). Scale bars are 200 nm in (a), 60 μm in (c, d, g, h), 30 μm in (e, SEM images of “no annealing” and “600 °C annealing”), 1 μm in (e, cross-section SEM image). Source data are provided as a Source Data file.
When the annealing temperature exceeds the degradation temperature of polymer scaffolds, the polymer can be completely removed, resulting in a 3D microstructure composed solely of the targeted materials. For instance, Fig. 4e show the morphological comparison of a 3D fullerene-like microsphere assembled with Fe_3_O_4_ NPs before and after annealing at 600 °C for 2 h. The annealed structure maintains good shape integrity with slight shrinkage and deformation, despite the removal of the polymer scaffold. The key to preserving the high integrity of these annealed microstructures at elevated temperatures is ensuring a uniform and high loading of nanoparticles on the microscaffolds. This uniformity is crucial as non-uniform or sparse distribution of nanomaterials can lead to structural instability, especially due to the thermal degradation of the IPS polymer scaffold. A typical example of this issue is observed in the same type of 3D fullerene-like microsphere, which collapses after annealing at 600 °C due to a lesser load of Fe_3_O_4_ nanoparticles (Supplementary Fig. 16). Once the polymer template is removed, the pure materials exhibit increased rigidity; this is evidenced by the steeper force profiles observed at higher annealing temperatures (Fig. 4f).

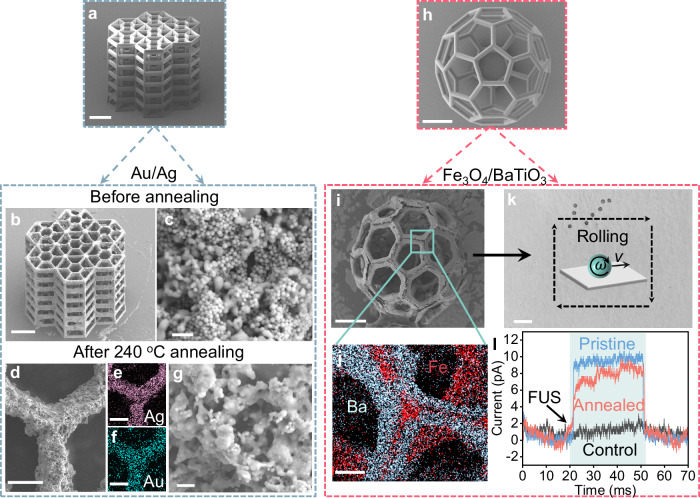

Heterogeneous 3D microstructures can be fabricated by co-deposition multiple nanomaterials. Figure 5a–g show the co-deposition of Au and Ag on a hexagon microstructure. After annealing at 240 °C for 2 h, a co-melting morphology revealed by their EDS mapping (Fig. 5e, f) demonstrates the potential for creating alloys-assembled microstructures. In addition, this technique is allowing for the creation of the micro-/nanodevices with diverse materials, equipped with on-demand functionalities. An example is the multifunctional 3D fullerene-like microrobots made entirely of a Fe_3_O_4_-BaTiO_3_ mixture, which retains their structural integrity with magnetic and piezoelectric properties (see Methods for the characterization details) after annealing at 600 °C to remove the polymer scaffolds (Fig. 5h–j). These annealed Fe_3_O_4_-BaTiO_3_ microrobots can be magnetically driven (contributed from Fe_3_O_4_) and manipulated as demonstrated in Fig. 5k and Supplementary Movie 5, and exhibit piezoelectric property (contributed from BaTiO_3_) as well. The annealing process does not noticeably degrade the piezoelectric performance as the piezoelectric current is ≈8.0 pA (originally ≈ 9.5 pA) under the treatment of focused ultrasound (FUS) with a power of 100 mW m^−2^ (Fig. 5l). These multifunctional microrobots can be wirelessly manipulated and used for targeted electrical stimulation, demonstrating great potential for biomedical applications, particularly in targeted cell stimulation^52^. Our approach to 3D micro-/nanofabrication of various materials introduces collective or synergistic functionalities, which holds promise for tailored applications, including the development of advanced smart microrobots and microdevices.Fig. 5. Fabrication of microstructures made of heterogeneous materials and demonstration of on-demand functionalities.SEM images of an IPS honeycomb-like microscaffolds (a), the Au NPs-Ag NPs co-assembled (b), where the morphologies of Au, Ag NPs on the beams before annealing (c) and after annealing treatment (240 °C for 2 h, d, g), as well as the EDS mappings of Ag (e) and Au (f) elements distribution on beams after annealing treatment. SEM images of IPS (h) and Fe_3_O_4_/BaTiO_3_ co-assembled (annealed at high temperature of 600 °C, (i)) 3D hollow microsphere. j EDS mapping of Ba and Fe elements distribution. k Video snapshot showing magnetically controlled microrobots made of Fe_3_O_4_-BaTiO_3_ 3D hollow microspheres (annealed at 600 °C). l Piezoelectric current of the microrobots under the treatment of a focused ultrasound with a power of 100 mW m^−2^. Scale bars are 60 μm in (a, b, h, i), 200 nm in (c, g), 10 μm in (d–f, j), and 1 mm in (k). Source data are provided as a Source Data file.
