Verification of correction factors for determining mean annual levels of radon in underground facilities
Lidia Fijałkowska-Lichwa, Jerzy Olszewski
TL;DR
This study verifies correction factors for estimating annual radon levels in underground facilities using historical data from seven sites in Poland.
Contribution
The paper provides verified correction factors for radon level estimation in underground facilities based on real-world measurement data.
Findings
Monthly correction factors showed 70–99% consistency with measured radon levels in caves.
Quarterly correction factors best fit annual estimates when applied to data collected in the second quarter of the year.
Radon estimation accuracy varied significantly in the fourth quarter, suggesting data from this period should not be used.
Abstract
The first verification of a tool developed to improve the work of controlling bodies, managers and employees of underground facilities subject to radiation protection requirements was conducted. The recommended values of correction factors were verified using archival results of measurements conducted for the Institute of Occupational Medicine in Łódź in seven underground workplaces in Poland over exposure periods of a month (10,8678 data) and a quarter of a year (53,688 data). In a cave two groups of monthly factors, produced estimates with almost 70% to 99% consistency with the measured values. Along tourist routes located in mines, a similar fit was obtained using three groups of correction factors for measurement results from March, June and July. In the extraction areas of active underground mines, the best fit was produced by factors calculated as averages for spaces varying in…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsRisk Perception and Management · Health, Environment, Cognitive Aging · Radiation Dose and Imaging
Introduction
In Poland, provisions concerning radon in workplaces are regulated by an amendment to radiological protection laws (Law 2000; Directive 2013). In 2019, the reference level of radioactive radon in the air of workplaces was defined as 300 Bq/m^3^ (Article 23b of the Law Journal of Laws 2023 item 1173 consolidated text). The responsibility for conducting measurements necessary for determining the mean annual value of radon concentration rests with the head of the entity carrying out business activity (Art. 23c of the Law 2000). In the case of workplaces located in areas where mean annual radioactive concentration of radon may exceed the reference level in a significant number of buildings, legislation specifies the location of these workplaces (on the ground floor or at basement level) and the character of their activity (related to groundwater treatment). A list of workplaces exposed to increased radon concentrations, in addition to those specified by Article 23 of the Atomic Law, has been published in the National Action Plan for Long-Term Risks of Radon Exposure in Buildings and Workplaces (Minister of Health Announcement 2021). Apart for defining a duty to conduct measurements of radon concentration, the law obliges entity heads (employers) to optimise the exposure of employees working in such conditions, and in the event of an exceedance of the level of 300 Bq/m^3^ a year, to take measures ensuring the reduction of workers’ exposure to radon. In Poland, radon measurements in workplaces can be performed by accredited dosimetry laboratories (5 centres in total) and conditionally (until the end of 2023), laboratories which have obtained satisfactory results in intercomparison measurements organized by the Chief Sanitary Inspector (GIS). Soon, such limited technical backup may become an obstacle to providing reliable measurement results, which are subject to strict control by regional GIS units.
A partial solution, but available for quick implementation, is assessment of mean annual levels of radon concentration in workplaces by using correction factors calculated for one-month and three-month (quarter) measurement periods. They have been developed in compliance with the Chief Sanitary Inspector (GIS) guidelines and the provisions of the National Action Plan (Minister of Health Announcement of 22 January 2021 Item 169) by employees of Wrocław University of Science and Technology (Fijałkowska-Lichwa & Przylibski, 2022). The solution, enabling estimation of mean annual values of radon concentration in various types of underground facilities, was developed on the basis of more than 440,000 radon concentrations registered at 1-h intervals in several well-known underground workplaces in the Sudetes. Based on their analyses, the researchers created a database of monthly (k_1m_) and quarterly (k_3m_) correction factors recommended for use in many countries in Europe and worldwide located in zones of temperate climate with continental-to-oceanic (marine) transition, with four distinct seasons, i.e. spring, summer, autumn and winter.
In their study, Fijałkowska-Lichwa and Przylibski (2022) demonstrated relationships between the ranges of variation in estimated correction factors k_1m_ and k_3m_ and individual characteristics of underground facilities such as air exchange method and the extent to which their interiors are insulated from the atmosphere. As a result, they grouped the correction factors by matching them to facilities without a specified ventilation method and those with mechanical and natural ventilation, including spaces well insulated from the atmosphere. Fijałkowska-Lichwa and Przylibski (2022) emphasized that the estimation accuracy of mean annual levels of radon concentration in underground facilities depends on the adopted type of correction factor (k_1m_ or k_3m_). They recommended using monthly correction factors (k_1m_) for determining mean annual concentration in facilities with natural air exchange and quarterly factors (k_3m_) for mechanically ventilated spaces. They specified the value range of k_1m_ factors (from 1.2 to 3.3) for the first group between January and March and between October and December. In the other months of the calendar year, k_1m_ stays in the range of 0.6 to 0.8. In facilities with undisturbed natural indoor-outdoor air exchange, k_1m_ varies from 1.0 to 1.5 between January and March and between September and December, and from 0.7 to 0.8 between May and September. In April, it takes the value of 1.0. For facilities with mechanical ventilation, k_3m_ is characterized by values in the range 1.3–1.4 in the first and the fourth quarter of the year, and of 0.9 in the second and the third quarter. In facilities with unknown ventilation methods or when mixed-mode ventilation is used, Fijałkowska-Lichwa and Przylibski (2022) suggested using mean values. For k_1m_ they range ≥ 1.0–1.6 (from January to March and from September to December) and < 1.0–0.7 from April to November. For k_3m_ they range 1.3–1.4 (in the first and the fourth quarter), and equal 0.9 (in the second and the third quarter). The results of Fijałkowska-Lichwa’s and Przylibski’s analyses (2022) show that the best consistency of estimated and measured mean annual values are obtained based on correction factors estimated in March (over 60%), August (over 70%) and September (even over 80%), and the worst—based on data collected between October and December. Such results have confirmed that the accuracy of correction factors, both for monthly and quarterly exposures, is much higher in periods of increased radon activity concentration. Such conclusions have explicitly underscored the relevance of the proposed solution for broadly defined radiological protection.
In view of the need to determine the mean annual level of radon concentration for initial assessment of occupational exposure risk, the authors went on to verify the solution proposed by Fijałkowska-Lichwa and Przylibski (2022). The rationale behind and the need for such analyses lie in the fact that so far it has been the only alternative solution described in Polish and world literature to streamline the time-consuming measurement process, facilitate corrective decisions and recommend strategic remedial actions aimed at keeping radon concentrations in underground workplaces at a safe level of 300 Bq/m^3^. The authors believe that the alternative solution proposed by Fijałkowska-Lichwa and Przylibski (2022) can be regarded as a good practice relating to methods and techniques of recognizing the first signs of risk of occupational exposure to radon and its short-lived progeny.
So far, databases of correction factors available in literature have been compiled only for dwellings in Poland (Kozak et al., 2011), Ireland (Burke & Murphy, 2011), and Great Britain (Gillmore et al., 2005; Groves-Kirby et al., 2015), in South Korea (Park et al., 2018), several provinces in Canada (Krewski et al., 2005), Pakistan (Rahman et al., 2007) and Slovakia (Müllerová et al., 2022). It is still just a fraction of all places in the world at risk of increased exposure to radon and its short-lived daughters.
Material and methods
To carry out their research task, the authors used a database of archival radiology data from an accredited dosimetry laboratory at the Institute of Occupational Medicine in Łódź with accreditation No. AB 327 of the Polish Center for Accreditation for radon (Rn-222) activity concentration measurements made in any range of time exposure by track detectors (20–4300 kBq∙h∙m^−3^).
These are the results of radon concentration measurements conducted in workplaces between 1995 and 2012, partly published in Polish research papers (Olszewski, 2006; Olszewski et. al. 2010, 2015) and international publications (Olszewski et al., 2005; Walczak et al., 2017). The workplaces chosen for this study satisfy Fijałkowska-Lichwa’s and Przylibski’s (2022) criteria concerning the ventilation method and the degree of insulation from the atmosphere. A new aspect is the work time schedule. In the case of tourist routes, work was done from 9 a.m. to 6 p.m. 7 days a week (it was shortened in autumn and winter). As for the mining plants, work was performed in a four-on four-off shift pattern seven days a week, except a total of 2–5 days a year at Christmas, Easter and on public holidays.
Measurements in underground tourist facilities were conducted in accordance with recommendations issued by the International Commission on Radiation Protection (ICRP 2011, 2014, 2017), the International Atomic Energy Agency (IAEA 2014), the International Radon Measurement Association (IRMA 2017), and the Chief Sanitary Inspectorate (GIS) in Poland (Report 2021). The measurements were conducted using track detectors with a diffusion chamber. The number of used CR-39 track detectors varied as it was adjusted individually to the surface areas of the spaces housing particular workplaces. The detectors were spaced evenly in places occupied by employees, surveillance staff or service workers for at least 4 h a day. Measurements were also carried out in mine chambers, machine rooms, welfare facilities such as bathrooms or changing rooms, reception areas, corridors and entrance/exit halls in tourist facilities located on the ground floor or at basement level. In such places, there was a risk of sizeable radon ingress, and employees occupied them for at least 50 h a year, i.e. about 1 h a week. Along tourist routes, detectors were placed at a height of the breathing zone (1.5 to 2 m above the floor) at places of longer stops representative of the whole space.
In active mining plants, radon concentration was measured using a method consistent with an original methodology for assessing radiation exposure developed entirely by employees of the Radioactive Contamination Department of the Institute of Occupational Medicine in Łódź. The basic tool for measuring radon concentration in underground mines was the track detector LR-115 by French manufacturer Kodak Pathe placed in an open cassette type OC-1, which was mounted directly on mining helmets. It is the so-called HCS system (Helmet Cassette System) based on employees wearing helmets with the cassettes (sealed after the insertion of a detector to prevent unauthorised opening) for a determined exposure time. A detailed description of the measurement system and the dosimetric technique of reading track density from the detector has been provided by Domański et al., (1981).
The method of estimating mean annual values of radon concentration used by the authors was identical to the assumptions presented by Fijałkowska-Lichwa and Przylibski (2022). Two relations were used to determine the mean annual concentration. For measurements in one-month exposure, the mean annual value of radon concentration was estimated using Eq. (1), and for 3-month (quarterly) exposure—according to relation 2:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$C_{Rn} = k_{1m} \cdot C_{1mRn}$$\end{document}where C_Rn_ is the mean annual activity concentration expressed in Bq/m^3^, k_1m_ is the correction factor for the month of the exposure, C_1mRn_ is the mean monthly value of ^222^Rn activity concentration expressed in Bq/m^3^, and
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$C_{Rn} = k_{3m} \cdot C_{3mRn}$$\end{document}where k_3m_ is the correction factor for three month exposure, and C_3mRn_ is the mean value of ^222^Rn activity concentration for a quarter of a year, expressed in Bq/m^3^.
The mean annual value was estimated for four groups of monthly correction factors in four underground facilities and for three groups of quarterly correction factors in three underground facilities (Table 1, Fig. 1).Table 1. Overview of correction factors: 4 monthly groups (a) and 3 quarterly groups (b) Authors’ own work based on Fijałkowska-Lichwa and Przylibski (4)Time of exposurek_1ma_—for naturally ventilated facilities well insulated from the atmospherek_1mb_—for non-insulated facilitiesk_1mc_—averaged for underground facilitiesk_1md_—for facilities with mechanical ventilation systemMonth (a)January3.341.411.520.73February2.801.381.420.38March1.561.191.160.52April0.550.960.880.40May0.830.770.740.40June0.600.710.700.73July0.700.710.811.76August0.560.690.781.80September0.630.830.952.40October1.401.001.101.20November1.201.301.301.60December2.701.501.601.60Quarter (b)k_3ma_—for naturally ventilated facilitiesk_3mb_—for facilities with a mechanical ventilation systemk_3mc_—averaged for all underground facilitiesNo. 10.621.401.32No. 20.760.810.90No. 32.140.720.87No. 41.961.311.37Fig. 1Location of selected underground facilities on a digital administrative map of Poland prepared by the Head Office of Geodesy and Cartography (GUGiK) on the basis of the General Geographic Objects Database available on Statistics Poland website (https://stat.gov.pl/statystyka-regionalna/jednostki-terytorialne/podzial-administracyjny-polski/?pdf=1) with indicated mean annual values of radon concentration determined on the basis of radiation measurements conducted from 1995 to 2012 for the Institute of Occupational Medicine in Łódź (Authors’ own work). Explanation: ZG—copper mining plants, I, II—mining regions, ZL—zinc-and-lead mining plant, K—inhalatorium and tourist rote in Kowary, O- military facility Osówka, JN—Niedźwiedzia (Bear) Cave in Kletno, KZ- tourist route in Gold Mine in Złoty Stok. The map available on the office's website presents the administrative division of Poland into voivodeships and counties on January 1, 2024. Its purpose is to make information available to a wide range of recipients, including: public administration, entrepreneurs, individual users and scientific and research institutions. The authors used it as an illustrative map for scientific and research data
Results and discussion
The estimation accuracy of mean annual radon concentrations calculated using four groups of monthly correction factors was verified with data obtained from measurements conducted for many years in the cave, a former mine operating as an underground tourist route, in two active copper mines and one disused (since 2020) zinc and lead mine (Fig. 1). The correction factor k_1md_ was excluded from analyses conducted for the cave because of its lack of mechanical ventilation. The fitting accuracy of quarterly factors was checked against the results of radon measurements conducted in the workings of a former mine used as a tourist route and a radon inhalatorium, and in a tourist-accessible former military facility in the Sudetes. A list of the groups of correction factors used in the comparative analyses is provided in Table 1.
One-month data

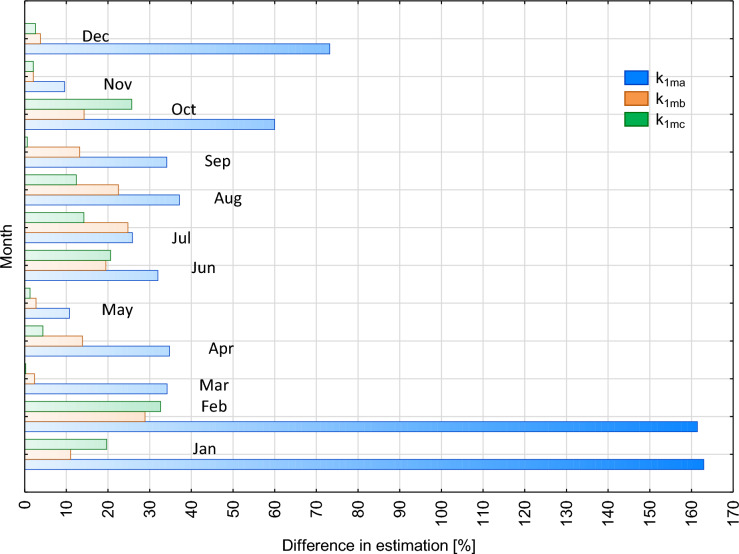

Verification of Fijałkowska-Lichwa’s and Przylibski’s (2022) assumptions started with organising measurement data in one-month intervals. The mean values obtained for successive months were converted according to Eq. 1 using monthly correction factors (Tab. 1a) for: naturally ventilated spaces well insulated from the atmosphere (k_1ma_), naturally ventilated spaces without insulation (k_1mb_) and all facilities in total (k_1mc_). Data analysis was performed using measurement results from 865 points. On the basis of nearly 10 years of measurements, the mean annual value of radon concentration in the cave was calculated as 2034 Bq/m^3^. The values of radon concentration in the cave estimated by using monthly correction factors varied (Fig. 2). The best fit to the annual average was obtained in the cave using correction factors k_1mb_ and k_1mc_ throughout all calendar year. At the same time, correction factors k_1ma_ produced comparable results only in November and May. The mean annual values of radon concentration estimated on the basis of measurements in the indicated months differed by less than 10% compared to the value determined using the other two groups of factors and the value resulting from measurements. The lowest accuracy compared to the mean measured annual concentration was obtained in the cave using the k_1ma_ factor in October and between December and February. In this period, the estimated mean annual concentration differed by 40% to even more than 160% from the value obtained from measurements (Fig. 2).Fig. 2. Differences in fits of mean annual measured value of radon concentration in a tourist facility (cave) to values estimated using correction factors k_1m_. Explanation: k_1ma_—monthly correction factor for naturally ventilated facilities well insulated from the atmosphere, k_1mb_—monthly correction factor for non-insulated facilities, k_1mc_—averaged monthly correction factor for underground facilities, colours of legend and bars are the same, for bars used a colour blur

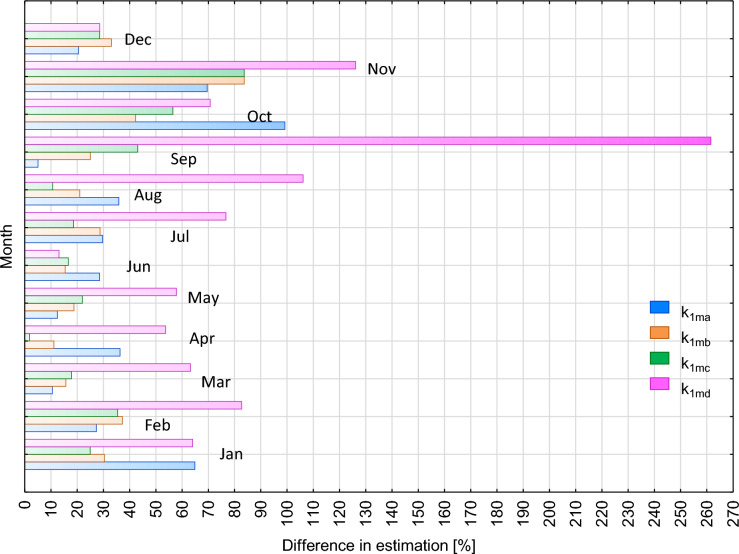

The same kind of analysis was conducted for the correction factors k_1m_ used to calculate the mean annual radon concentration in an underground tourist route operating in a former mine in Złoty Stok. The analyses comprised measurement results from 90 measurement points. On the basis of measurements conducted between September 2004 and January 2006, the mean annual concentration of radon in the whole facility was determined to be 1434 Bq/m^3^. The mean annual values of radon concentration estimated by using monthly correction factors varied (Fig. 3). The best fit of the estimated value to the mean annual value derived from measurements was observed in March, May, June and July for three k_1m_ correction factors: k_1ma_, k_1mb_, and k_1mc_. In these months, the estimated values differed by < 10% to 30% from the mean annual value derived from measurements. The worst fit of the estimated value was obtained in October and November for all the four groups of k_1m_ correction factors (Fig. 3). The k_1md_ correction factors were characterized by a much lower fit. In February, March, April, May, August, and November, the estimated annual means differed by two and even four times from the values calculated using the other three groups of factors (Fig. 3). A comparable degree of fit for all correction factors was observed in December and June (Fig. 3).Fig. 3. Differences in fits of mean annual measured value of radon concentration in a tourist facility located in a mine to values estimated using correction factors k_1m_. Explanation: k_1ma_—monthly correction factor for naturally ventilated facilities well insulated from the atmosphere, k_1mb_—monthly correction factor for non-insulated facilities, k_1mc_—averaged monthly correction factor for underground facilities, k_1md_—monthly correction factor for facilities with mechanical ventilation system, colours of legend and bars are the same, for bars used a colour blur

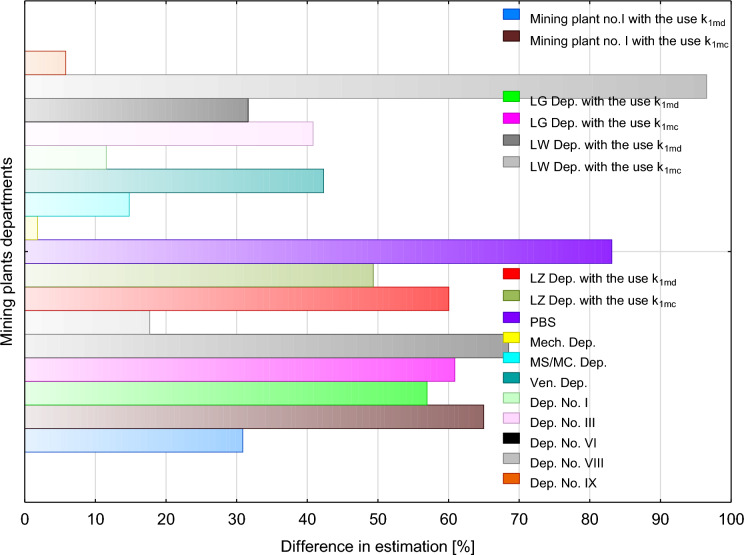

Analyses verifying the k_1m_ correction factors recommended for determining the mean annual value of radon concentration were also conducted in the workings of metal ore mines. In total, these were 4 divisions of a copper mining company and 9 divisions of a zinc and lead mine. In both cases, mean annual values were determined using k_1md_ correction factors for underground facilities equipped with a mechanical ventilation system, and k_1mc_ factors, calculated as averages, for all underground facilities. The estimations were based on 1-month measurements conducted in the copper mining company in February 2012, and in the zinc and lead mining company—in December 2006. Based on environmental dosimetry measurements conducted on a group of 4254 employees of copper mine No. 1 and 3037 employees of mine No. 2 (including 1228 employees in the main area, 1092 in the eastern area, and 717 in the western area of mine No. 2), and 1312 employees of the zinc and lead mining company (including 402 in mine No. 1, 45 in mine No. 3, 444 in mine No. 6, 53 in mine No. 8, 64 in mine No. 9, 113 in the mining and shaft works department, 40 in the electrical department, 38 in the mechanical department, 77 in the shaft and heavy machinery depot and 36 in the ventilation department), mean annual concentrations of radon in each of these plants were determined. For the copper mines these were: 484 Bq/m^3^ (mine No.1), and 420 Bq/m^3^ (mine No. 2). For the zinc and lead mining plant it was 857 Bq/m^3^.
After applying the k_1m_ correction factors, it turned out that the best fits were obtained in the mechanical department, mine No. 9 and mine No. 1 of the zinc and lead mining plant (even 90% consistency of results). In copper mine No. 1, the consistency of results reached 70%. At the same time, in all the extraction areas of copper mine 2, it ranged from just above 40% in the main and the western area to just below 70% in the eastern area (Fig. 4). Outside the western area, better fits were obtained when using k_lmd_ correction factors. In the western area, the difference between the estimate obtained by using the k_1md_ factor and that obtained with k_1mc_ was just above 10%. A higher accuracy was obtained for the correction factor k_1mc_ (Fig. 4).Fig. 4. Differences in fits of mean annual measured value of radon concentration in metal ore mines in Poland to values estimated using monthly correction factors k_1m_ recommended by Fijałkowska-Lichwa and Przylibski (4). Explanation: k_1mc_—averaged monthly correction factor for underground facilities, k_1md_—monthly correction factor for mechanically ventilated facilities. Explanation: ZG—mining plant, LG- main area of copper mine No. 2, LZ—western area of copper mine No. 2, LW—eastern area of copper mine No. 2, I, III, VI, VIII, IX—parts of zinc-and-lead mining company, MS/MC—shaft and heavy machinery depot, Mech—mechanical department, PBS—mining and shaft works department, Vent.—ventilation department, k_1mc_ = 0.38 in February and 1.60 in December, k_1md_—1.42 in February, 1.60 in December. In copper mining plants, measurements were conducted in February 2012, and in zinc-and-lead mining plant—in December 2006, colours of legend and bars are the same, for bars used a colour blur
Three-month data

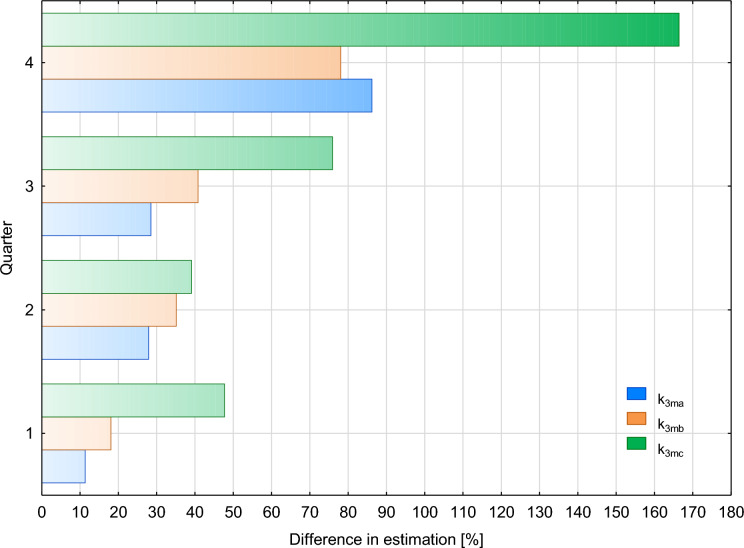

In Kowary, verification of the correction factors was performed using three-month data. Along the tourist route, measurements were conducted at a total of 72 points from November 2000 to 31 January 2005. In the inhalatorium, measurements were conducted at 52 measurement points between August 2001 and 31 January 2005. The mean annual radon concentrations derived from the results of these measurements were 391 Bq/m^3^ for the tourist route and 690 Bq/m^3^ in the inhalatorium. For successive quarters of the calendar year, mean annual concentrations of radon were estimated using three groups of k_3m_ correction factors recommended for: naturally ventilated facilities (k_3ma_), facilities with mechanical ventilation systems (k_3mb_) and all facilities regardless of the ventilation method and the degree of insulation (k_3mc_).

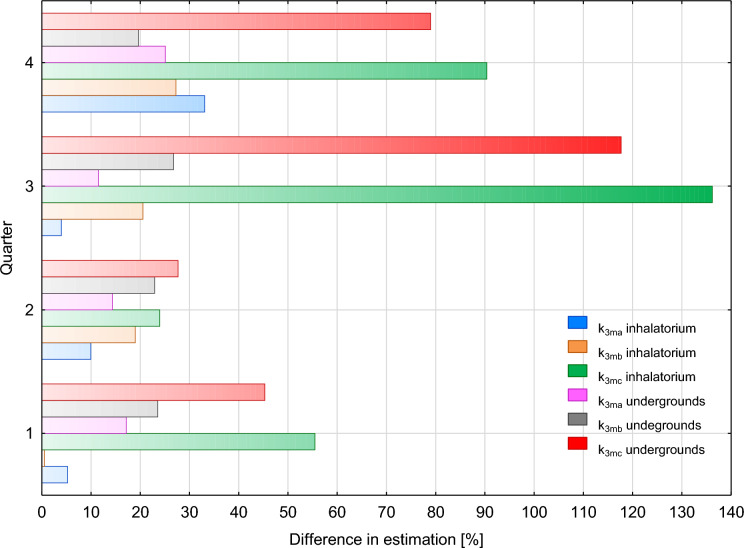

In the whole facility, the closest to the mean annual value derived from measurements was obtained in the second quarter of the calendar year (from > 70 to 82%) using all the groups of k_3m_ correction factors. The worst fit in the whole facility was obtained in the third and the fourth quarter of the year while using the correction factors recommended for all facilities (k_3mc_). Differences between the estimated mean annual values and the value obtained from measurements ranged from 80% to nearly 140% (Fig. 5). In the first quarter of the year, higher accuracy of fitting was characteristic of mean annual radon concentrations in the inhalatorium (from 95 to 99%). However, an equally good fit was obtained for the tourist section of the mine (78–82%). In both cases, better results were produced by correction factors k_3ma_ and k_3mb_ respectively (Fig. 5).Fig. 5. Differences in fits of mean annual measured values of radon concentration in workings of a former uranium mine in Kowary operating as a tourist route and radon inhalatorium to values estimated using quarterly correction factors k_3m_ recommended by Fijałkowska-Lichwa and Przylibski (4). Explanation: k_3ma_—quarterly correction factor for naturally ventilated facilities, k_3mb_ quarterly correction factor for facilities with a mechanical ventilation system, k_3mc_—averaged quarterly correction factor for all underground facilities. Three-month periods corresponded to four quarters of calendar year. Exposure: 1st quarter: from 2160 to 2856 h, 2nd quarter: from 1872 to 2208 h, 3rd quarter: from 2208 to 2616 h, 4th quarter: from 2208 to 2592 h, colours of legend and bars are the same, for bars used a colour blur
