Ubiquitin-derived artificial binding proteins targeting oncofetal fibronectin reveal scaffold plasticity by β-strand slippage
Anja Katzschmann, Ulrich Haupts, Anja Reimann, Florian Settele, Manja Gloser-Bräunig, Erik Fiedler, Christoph Parthier
TL;DR
Scientists engineered proteins based on ubiquitin to target a cancer-related protein, revealing structural flexibility through β-strand shifts.
Contribution
The study demonstrates how β-strand slippage in ubiquitin-based proteins can enhance binding specificity and affinity.
Findings
Affilin proteins bind oncofetal fibronectin via β-strand slippage in the ubiquitin scaffold.
Structural plasticity allows amino acid residues to shift positions, remodeling the binding interface.
Directed evolution reveals that scaffold plasticity increases structural diversity and evolutionary potential.
Abstract
Affilin proteins, artificial binding proteins based on the ubiquitin scaffold, have been generated by directed protein evolution to yield de-novo variants that bind the extra-domain B (EDB) of oncofetal fibronectin, an established marker of tumor neovasculature. The crystal structures of two EDB-specific Affilin variants reveal a striking structural plasticity of the ubiquitin scaffold, characterised by β-strand slippage, leading to different negative register shifts of the β5 strands. This process recruits amino acid residues from β5 towards the N-terminus to an adjacent loop region and subsequent residues into β5, respectively, remodeling the binding interface and leading to target specificity and affinity. Protein backbone alterations resulting from β-strand register shifts, as seen in the ubiquitin fold, can pose additional challenges to protein engineering as structural evidence of…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsProtein Structure and Dynamics · Cardiomyopathy and Myosin Studies · Enzyme Structure and Function
Introduction
The selection of an appropriate, well-understood structural scaffold typically determines the direction for the development, producibility and potential future applications of artificial binding proteins generated through directed evolution. Tailored for a wide range of applications in medicine, biotechnology and research, an increasing number of artificial binding proteins derived from non-immunoglobulin-based scaffolds have been developed. They exhibit favourable biophysical properties and have the potential to specifically bind to any target molecule^1,2^. Most of these scaffolds are based on naturally occurring, stable and structurally well-characterized protein modules, comprising secondary structural elements such as α-helices, β-sheets and loops to varying degrees. They include lipocalins^3^, ankyrin repeat proteins^4^, staphylococcal protein A^5^, fibronectin^6^, γ-crystallin^7^, ubiquitin^8,9^ and others^10^. These modules are typically chosen as structural platforms or building blocks for the directed evolution of novel binding properties. This is achieved primarily through specific amino acid exchanges at selected sites. Screening of combinatorial scaffold protein libraries using appropriate selection techniques enables the isolation of candidate binders with the desired properties. The success of the random evolution approach is highly dependent on the selection of amino acid positions to be diversified^11^. Incorporating residue insertions or deletions (InDels) into evolutionary strategies introduces additional complexity, as they may result in larger, non-local structural changes^12^. Scaffold selection and library design usually depend on existing structural knowledge and assume that the scaffold protein’s overall fold, including the composition and spatial arrangement of secondary structure elements, is essentially fixed^13^.
The structure of ubiquitin (Ub), a 76 amino acid signalling protein conserved among all eukaryotes, features a single five-stranded β-sheet enclosing a short α-helix. Approaches for using a single Ub chain as a scaffold to generate binding proteins^8,14^ have been extended through the development of diubiquitin-based scaffolds (Affilin molecules). They are generated by genetic fusion of two Ub domains and have been evolved to target for example oncofetal fibronectin^15^. This fibronectin (Fn) splice variant contains the extra-domain B (EDB) which is specifically expressed during tumour-associated angiogenesis and other neoplastic processes^16,17^.
Here, we describe the directed evolution and structural determination of Affilin variants targeting oncofetal Fn, resulting in unexpected structural rearrangements through different β-strand register shifts, reflecting the plasticity of the diubiquitin scaffold and enabling the formation of the target binding site. Moreover, with a view to potential future applications, we show that a genetic Affilin-cytokine fusion is functional and able to target EDB-expressing cells in vitro.
Results
Generation of Affilin variants targeting EDB of oncofetal fibronectin
The development of dibiquitin-based artificial binding proteins with evolved binding properties against human oncofetal Fn has been previously described^15^. Using in silico analysis, potential binding epitopes of the Ub scaffold with a high tolerance for amino acid substitutions were evaluated by assessing protein stability perturbations induced by single amino acid exchanges in wild-type Ub. Nine amino acid positions (2, 4, 6, 8, 62–66, positions 2–8 located in strand β1 and loop β1β2, positions 62–66 in loop α2β5 and strand β5) were selected for randomisation, from which subsets of 8 and 6 positions were used for saturation mutagenesis of the two Ub domains (sequence overview given in Supplementary Fig. S1). We followed a similar approach to generate the Affilin Af2, employing the diubiquitin scaffold with a subset of 7 of the same randomised positions in each Ub domain, a modified library design and advanced selection and maturation procedures. In brief, a library of diubiquitin variants was generated by joining two libraries of monomeric Ub (variant Ub-WAA), each randomised at amino acid positions 6, 8 and 62–66, which was then used to select EDB-binding affilin variants by phage display (PD). The effective library size used in PD was calculated to be 2.5·10^9^. Subsequent thermodynamic stability screening selected the affilin variant Af2p, comprising 14 evolved amino acid changes compared to diUb-WAA, including Lys6His, Leu8Asp, Gln62Asp, Lys63Pro, Glu64Gln, Ser65Leu, Thr66Lys, Lys85Thr, Leu87Gln, Lys141Asp, Glu142Tyr, Ser143Arg, Thr144Tyr, and the deletion of Gln140. Af2p displayed nanomolar binding affinity to the target 67B89 and no binding to the Fn fragment 6789, which lacks the EDB. However, the thermal stability decreased significantly (ΔT_m_ = −18K) compared to the parental variant diUb-WAA (Table 1, Fig. 1a–c).Table 1. Binding characteristics and thermal stabilities of Af2 variantsDSFELISASPRAffilin ^a,d^T_m_K_D_K_D_k_on_k_off_[°C][nM][nM][1/M·s][1/s]Af2p537.717.15.7·10^5^9.8·10^−3^Af2s603.13.73.0·10^5^1.1·10^−3^Af2623.61.51.4·10^6^2.2·10^−3^Af2s-Y141A62–83.51.1·10^6^8.8·10^−2^Af2s-ΔDP-KS69–0.71.9·10^6^1.4·10^−3^Af2-IL-2–1.52.11.1·10^6^2.3·10^−3^Target ^b,d^67B89–3.6–––7B8–2.6–––67B–n.b.^c^–––B89–2.1–––6789–n.b.^c^–––^a^Binding to target 67B89.^b^Binding to Affilin Af2.^c^No binding detected.^d^– indicates ‘not measured’.Fig. 1. Analysis of binding properties and thermal stability of evolved Affilin variants.a SPR analysis of increasing Affilin concentrations binding to the immobilized target 67B89. Affilin concentrations used (sensorgram colours from light to dark blue): 0 nM, 1.2 nM, 3.7 nM, 11.1 nM and 33.3 nM. Resulting data are given in Table 1. b Analysis of Affilin thermal stabilities by DSF in comparison with the non-evolved parental diubiquitin variant (diUb-WAA, T_m_ = 71 °C). Vertical lines indicate the midpoint transition temperatures (T_m_). c EDB-specific binding analysed by ELISA, left panel: binding of Affilin variants to 67B89 (filled circles) and absence of binding to 6789 (open circles). Right panel: comparison of Af2 binding to different oncofetal Fn fragments (67B89, 7B8, B89), no affinity to 67B and 6789. Mean data points and error bars shown with black contours, individual measurements superimposed as coloured crosses. d Binding of Af2s to human foetal lung fibroblasts cells (Wi-38, high EBD expression, detected by immunofluorescence in green, cell nuclei stained in blue) and no binding of Af2s to neonatal human dermal fibroblasts (NHDF, no EDB expression). No binding is observed for (non-evolved) diubiquitin variant diUb-WAA. Scale bar: 100 µm.
For affinity maturation of Af2p, we opted for a broader mutagenesis approach by error-prone PCR, allowing re-randomisation of amino acids at any position. Selection of molecules binding to the target 67B89 was performed using four rounds of ribosome display (RD), taking into account a theoretical library size of 6·10^10^ variants, which is significantly larger compared to the library used in PD. Stringency of RD was iteratively increased with every cycle to select for binders with a low off-rate. In order to prevent frame-shift variants from leading to the selection of unspecific binders, a screening procedure was implemented in which a C-terminal eGFP fusion is added to the pool of binders, allowing the identification of candidates with the correct reading frame. The final Affilin variant Af2s (produced without the eGFP fusion) was nominated based on its target binding affinity and specificity, thermal stability, and recombinant producibility. Af2s differed from Af2p by having two additional mutations (Pro38Gln and Tyr143Phe) and a randomly arisen deletion (ΔIle78) in the linker region between the N- and C-terminal Ub domains. The maturation process resulted in higher binding affinities for Af2s (and tag-free Af2) and a remarkable recovery of thermal stability (ΔT_m_ = +9 K compared to Af2p) (Table 1, Fig. 1a–c). Mutational analysis suggests that the amino acid changes evolved during affinity maturation had a cumulative effect on the gain of affinity, with the deletion Δ78I having the largest contribution (Supplementary Discussion).
As the crystallisation of Af2 in complex with 67B89 was unsuccessful, truncated versions of the target were generated (sequences given in Supplementary Fig. S2). The binding affinities of the Fn variants 7B8 and B89 to Af2s were very similar to that of 67B89. However, 67B and the control 6789, which lacks the EDB, did not exhibit any binding (Table 1, Fig. 1c). This suggests an EDB-specific binding mode, with the domains EDB and Fn8 making the most significant contributions.

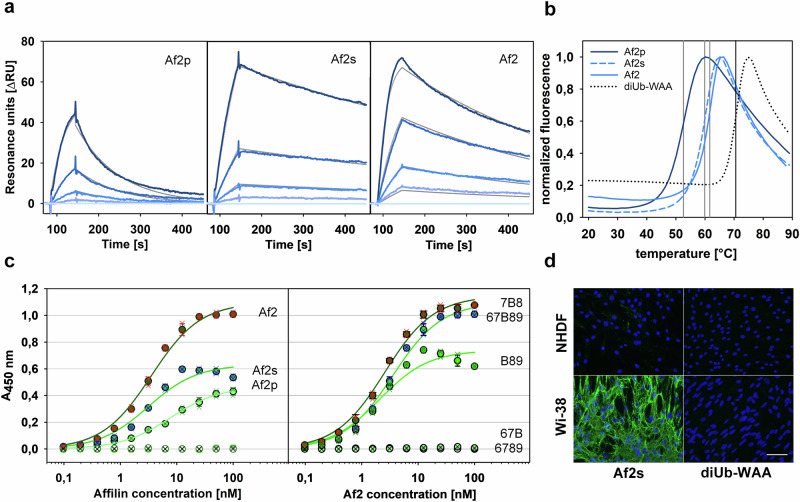

Af2s maintains binding to oncofetal fibronectin in cell culture. An immunofluorescence assay showed that Af2s binds specifically to the EDB, which is expressed at high levels by human foetal lung fibroblast Wi-38 cells. In contrast, the binding to neonatal human dermal fibroblast cells (NHDF), a cell line with low EDB expression, was significantly reduced (Fig. 1d). The absence of detectable binding of diubiquitin (variant diUb-WAA) confirms that the targeting of EDB-expressing cells is mediated by the Affilin’s evolved binding properties.
Target binding involves different register shifts in the β5 strands of Af2
The crystal structure of the Af2:7B8 complex with a resolution of 2.3 Å shows the modular architecture of the Affilin, which comprises an N-terminal Ub-like domain (Ub-N) and a C-terminal Ub-like domain (Ub-C) tethered together by a two-amino acid linker (Fig. 2a). Ub-N and Ub-C display the typical β-grasp fold of ubiquitin and bind the target 7B8 in an elongated conformation. The three Fn domains of 7B8 show the characteristic β-sandwich structure of Fn type III domains and are in slightly kinked orientation relative to each other. The structure confirms HPLC-SEC analysis data showing a complex with an apparent molecular mass of about 45 kDa, corresponding to a 1:1 stoichiometry of binding (Supplementary Fig. S4). The asymmetric unit of the crystal structure contains three Af2:7B8 complexes related by a 3_1_ non-crystallographic symmetry-axis (Supplementary Fig. S5). The superposition of the three complexes reveal a high overall structural similarity, with an average C_α_ RMSD of 3.7 Å. The Af2 molecules (chains L, J, M) show less structural differences with an average C_α_ RMSD of 2.0 Å, compared to the 7B8 molecules (chains A, B, C) with an average C_α_ RMSD of 4.3 Å. The largest deviations result from the shifted position of Fn7 in the C:M complex, as indicated by an average C_α_ RMSD of 7.0 Å to Fn7 in the A:L and B:J complexes. The three complexes demonstrate that Af2 interacts solely with the target domains EDB and Fn8, with no direct involvement of Fn7 in binding. Additional deviations are observed in the β1β2 loop and the linker region of the C:M complex. However, these differences originate from packing effects between the individual complexes in the asymmetric unit and do not imply alternative binding modes. The structural descriptions below refer to the A:L complex.Fig. 2. Crystal structure of Affilin Af2 in complex with the target 7B8.a The crystal structure of Affilin Af2 bound to oncofetal Fn fragment 7B8 revealing three target-binding regions (I-III, dotted red elipsoids) involving the Fn domains EDB and Fn8. The β5-strands of Af2 Ubi-N (darker blue) and Ubi-C (darker red) exhibit distinct negative register shifts, remodelling the α2β5 loops involved in binding (coloured in cyan and magenta, respectively). Detailed view of key interactions between (b) Ub-N and EDB (interface I), (c) Ub-C and EDB (interface II) and (d) Ub-C and Fn8 (interface III). Residues involved in binding shown as sticks, other evolved amino acids as lines, hydrogen bonds depicted as yellow dashed lines, water molecules as red spheres. Residue colouring of C-atoms in cyan/light blue (Ub-N), magenta/light red (Ub-C), orange/blue (EDB). Ub-C residue numbers labelled with asterisk correspond to the residue numbering of the Ub-N domain.

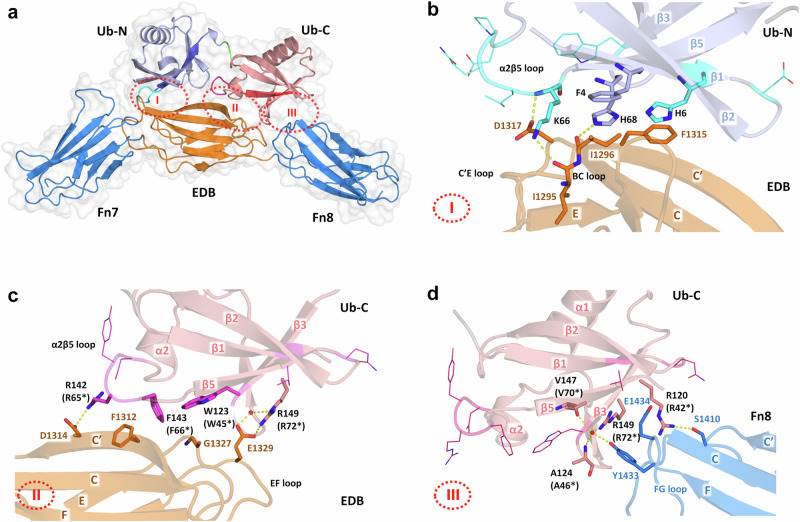

The two Ub-like domains of Af2 form a total binding interface of 1179 Å^2^, with the major contribution from Ub-C (811 Å^2^) compared to Ub-N (368 Å^2^). Target recognition by Af2 is based on three sub-interfaces (I-III, Fig. 2a). Interface I between Ub-N and EDB includes evolved residues from the α2β5 loop and strand β1, but also native (non-evolved) amino acids from β1 and β5 of Af2, which interact with EDB residues located in β-strands C/C’ and loop regions BC/C’E (Fig. 2b). Interface II is formed between Ub-C and EDB, including evolved residues from the α2β5 loop and the non-evolved R149 from β5 of Ub-C that interacts with EDB residues from β-strand C’ and the EF loop (Fig. 2c). Interface III involves interactions between Fn8 and Ub-C and does not comprise any evolved residues. Instead native residues, located in strands β3/β5 and the β3β4-loop of Ub-C, interact with amino acids of the FG loop of Fn8 (Fig. 2d, Supplementary Figs. S6 and S7).

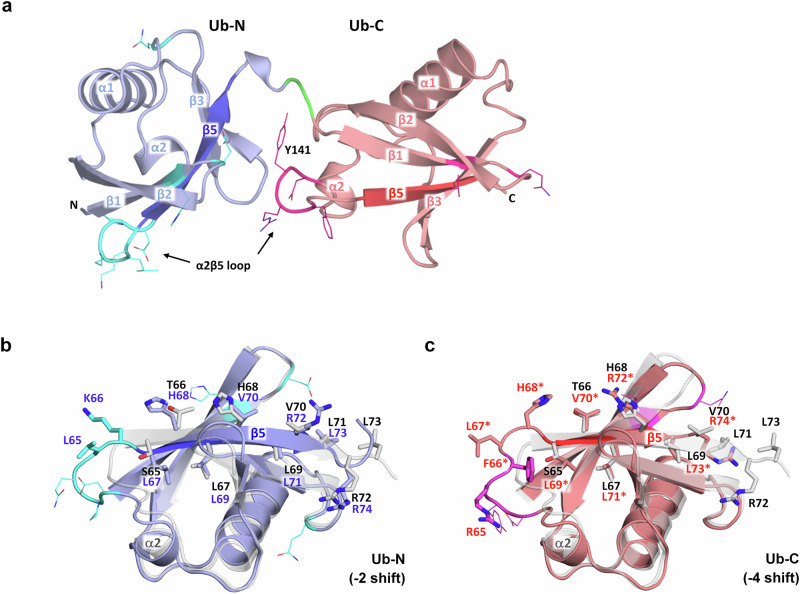

The most striking observation was made by the discovery that the β5-strands of both Ub domains of target-bound Af2 have slipped from their original position in the β-sheet (as in the structure of Ub-wt^18^) by several residues towards the N-terminus (Fig. 3). The resulting negative register shifts of β5 were clearly visible in the 2F_o_-F_c_ electron density of the Af2:7B8 complex, (Supplementary Fig. S8a, b) and are present in all complexes of the asymmetric unit. They are remarkable events due to their dramatic structural impact on neighbouring residues. In Af2, they recruit two Ub-N residues (-2 shift of L65/K66) and four Ub-C residues (-4 shift of R142/R65*, F143/F66*, L144/L67*, H145/H68*, the asterisk designating the residue numbering corresponding to Ub-N), respectively, from β5 to the preceding α2β5 loop. As these residues are directly involved in or located close to interfaces I and II, the register shifts remodel the complete target binding site (Fig. 2b, c). Interestingly, only non-evolved Af2 residues successive to β5 contribute to binding interface III. These amino acids have been relocated by the register shifts into new positions where they contribute to target binding (Fig. 2d).Fig. 3. The different β5 register shifts observed in the 7B8-bound structure of Af2.a Overall structure of 7B8-bound Af2 depicting the distribution of the evolved residues of Ub-N and Ub-C (side chains shown as lines, C-atoms of Ub-N cyan, C-atoms of Ub-C magenta). Linker residues coloured in green. The β5 strands of Af2 Ubi-N (darker blue) and Ubi-C (darker red) exhibit distinct negative register shifts, extending the α2β5 loops involved in target binding. Structural superposition of Ub-wt (PDB id 1UBQ, light grey, black labels) and (b) the Ub-N domain of Af2 (light blue, blue labels, evolved residues shown in cyan) revealing the -2 register-shift of β5 (darker blue) and (c) the Ub-C domain of Af2 (light red, red labels with asterisk, corresponding to residue numbering of Ub-N domain, evolved residues shown in magenta) exhibiting a -4 register-shift of β5 (darker red). Af2 residues relocated by the β5 register shifts and corresponding residues of Ub-wt shown as sticks.
The evolved residue Y141 (Y64*), located in the α2β5 loop of Ub-C, seems to have a crucial role in stabilising the two Ub domains in an orientation predestined for target binding. The sidechain of Y141 is packed in the 308 Å^2^ interface between Ub-N and Ub-C, where it mediates domain contacts and locks the α2β5 loop in its binding conformation (Fig. 3a). Substitution of Y141 with alanine (variant Af2s-Y141A) results in a stable Affilin variant that exhibits a significantly reduced binding affinity towards the target 67B89, compared to Af2s (Table 1, Supplementary Figs. S9 and S10).
The β-strand slippages of Af2 appear to be facilitated by the alternate spacing of a series of four leucine residues (L67, L69, L71, L73) in β5, which are also present in Ub-wt. This sequence motif allows for the occupation of two hydrophobic cavities inside the Ub domain core by leucine residues, even in the −2/−4 register-shift state (Supplementary Figs. S1 and S8c, d). Thermal unfolding analysis of Af2 variants (Table 1, Fig. 1b) suggests the register shifts are associated with significant thermodynamic destabilisation compared to diubiquitin (T_m_ = 71 °C). Amino acid deletions in the α2β5 loop, whether acquired through evolution (such as the deletion of Q140 during PD) or through rational design (variant Af2s-ΔDP-KS), seem to compensate for the loop extension induced by β5 slippage. This is exemplified by the variant Af2s-ΔDP-KS, which exhibits higher thermal stability and increased target affinity (Table 1, Supplementary Figs. S9 and S10). The rationale behind this variant and detailed description of the molecular interactions stabilising the register shifts of Af2 and the binding interface are given in the Supplementary Discussion.

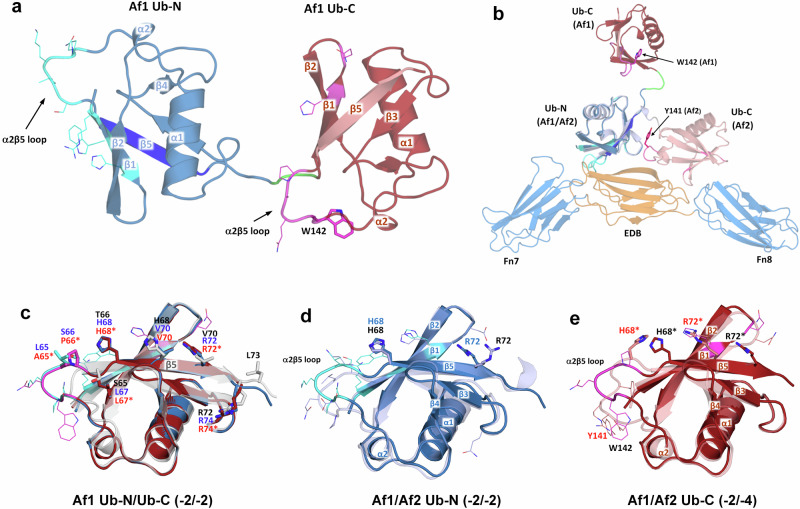

The structure of Af1 reveals β5 register-shifts in absence of the target
Af1 and Af2 were independently evolved against the same target 67B89. Four of the substituted Af1 residues are identical in Af2, including H6, P63, L65 and Q86. Both Affilin variants differ at 14 positions, including three unique positions that were randomised only in Af1 (R2, W4) and Af2 (D8), respectively. The deletion at position 140 of Af2 (ΔQ140) was not observed in Af1 and two changes were uniquely evolved in Af2 during the affinity maturation (Q38, ΔI78 in the linker, full sequences of Af1 and Af2 given in Supplementary Fig. S1). Attempts to crystallise the purified Af1:7B8 complex resulted in crystals of Af1 alone that diffracted to 2.2 Å, allowing elucidation of the Af1 structure in the unbound state (Fig. 4a). The superposition of Af1 with the Af2:7B8 complex shows that the two Ub domains have different orientations. The Ub-C of Af1 is rotated approximately 180° in relation to Ub-N, around an axis almost parallel to the three-amino acid linker (Fig. 4b). Solvent-exposed W142 of Af1 is not involved in domain contacts between Ub-N and Ub-C, as observed for the corresponding Y141 in Af2.Fig. 4. Crystal structure of unbound Affilin Af1.a Overall structure of Af1 depicting the distribution of the evolved residues of Ub-N and Ub-C (side chains shown as lines, C-atoms of Ub-N cyan, C-atoms of Ub-C magenta). Linker residues coloured in green. The β5 strands of Af1 Ub-N (bright blue) and Ub-C (lighter red) exhibit -2 negative register shifts. W142 (corresponding to Y141 in Af2) shown as sticks. b Structural superposition of Af1 and the Af2:7B8 complex, based on the alignment of the Ub-N domains, showing the different relative orientations of Ub-N und Ub-C. Regions of evolved residues coloured in cyan (Ub-N) and magenta (Ub-C). Y141 (Af2) and W142 (Af1) shown as sticks. c The two β5 register shifts of Af1 are apparent from the structural superposition of Ub-wt (PDB id 1UBQ, light grey, black labels) with Af1 Ub-N (blue, blue labels) and Ub-C (dark red, red labels). Residues of β5 shown as sticks, evolved residues outside β5 shown as lines. Structural comparison of (d) the Ub-N domains of Af1 (dark blue, black labels) and Af2 (light blue, blue labels), both exhibiting -2 register shifts and (e) the Ub-C domains of af Af1 (dark red, black labels) and Af2 (light red, red labels) with distinct β5 register shifts (−2/−4). Ub-C residue numbers labelled with asterisk correspond to the residue numbering of the Ub-N domain. Residues H68/H68* and R72/R72*, shown as sticks, mark the different structural rearrangements around β5 caused by the register shifts.
Both Af1 domains exhibit a -2 register shift in β5, proving that the strand slippage is present even in the absence of the target. Af1 Ub-N und Ub-C display almost identical overall structures (C_α_ RMSD 0.2 Å, Fig. 4c). The molecular interactions stabilising the −2 register shifts of Af1 are similar to those in Af2 Ub-N (described in detail in the Supplementary Discussion). The very similar structures of the Ub-N domains of Af1 and Af2 (C_α_ RMSD 1.5 Å) both display a −2 register shift in β5. However, there are differences in the conformations of the α2β5 loops (Fig. 4d). The structural superposition of the Ub-C domains of Af1 and Af2 (C_α_ RMSD 2.5 Å) illustrates the plasticity of the Affilin scaffold. The individual register shifts (−2/−4) remodel the α2β5 loop differently, depending on the number of accommodated residues and results in corresponding retractions of the C-terminal residues towards the target binding site (Fig. 4e).
Currently, the structural basis of target binding by Af1 remains elusive due to the unavailability of a complex structure. Our attempts to predict the β5 register shifts of Af1 and Af2 using Alphafold2^19^ have been unsuccessful, both in the absence and presence of the target 7B8. In none of the predicted structures register shifts of β5 were observed, precluding the prediction of a potential Af1 complex structure (Supplementary Fig. S13).
Presumably, the −2 register shift of Af1 Ub-C is incompatible with the binding mode observed in the Af2:7B8 complex, which involves a −4 shift in Ub-C, and would result in clashes of Af1 Ub-C with the target. In contrast, the Ub-N domains of Af1 and Af2 share the same register shift and could allow similar interactions to the EDB (Supplementary Fig. S14). Three different binding modes for Af1 are conceivable: (i) Af1 binds the target completely differently to Af2; (ii) Af1 Ub-N interacts with the target as in the Af2:7B8 complex, while Af1 Ub-C recognizes a different epitope of oncofetal fibronectin; or (iii) Ub-N and Ub-C of Af1 bind the target similarly to the Af2:7B8 complex, which would require additional conformational changes in Ub-C. In the last scenario, Af1 Ub-C would need to undergo a significant domain reorientation to contact the target domains. Additionally, a binding-induced extension of the register shift from −2 to −4 would be required, recruiting Af1 residues into positions appropriate for target binding.

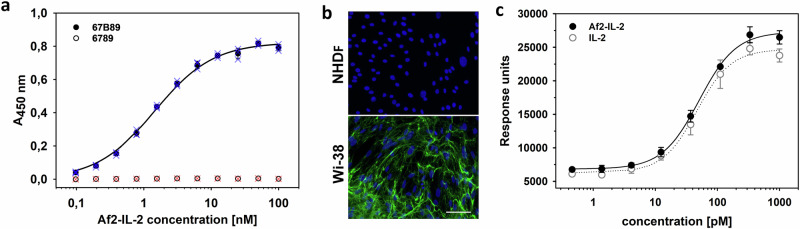

Generation of a functional Af2-Interleukin-2 chimera targeting oncofetal fibronectin
