The genome sequence of the Figure of Eight, Diloba caeruleocephala (Linnaeus, 1758)

TL;DR

This paper reports the genome sequence of the Figure of Eight butterfly, including its chromosomal structure and mitochondrial genome.

Contribution

The study provides a high-quality genome assembly and mitochondrial genome for Diloba caeruleocephala.

Findings

The genome assembly spans 762.5 megabases and is scaffolded into 31 chromosomal pseudomolecules.

The mitochondrial genome is 15.36 kilobases in length.

Abstract

We present a genome assembly from an individual male
Diloba caeruleocephala (the Figure of Eight; Arthropoda; Insecta; Lepidoptera; Noctuidae). The genome sequence is 762.5 megabases in span. Most of the assembly is scaffolded into 31 chromosomal pseudomolecules, including the Z sex chromosome. The mitochondrial genome has also been assembled and is 15.36 kilobases in length.

Figures

Photograph of the Diloba caeruleocephala (ilDilCaer1) specimen used for genome sequencing.

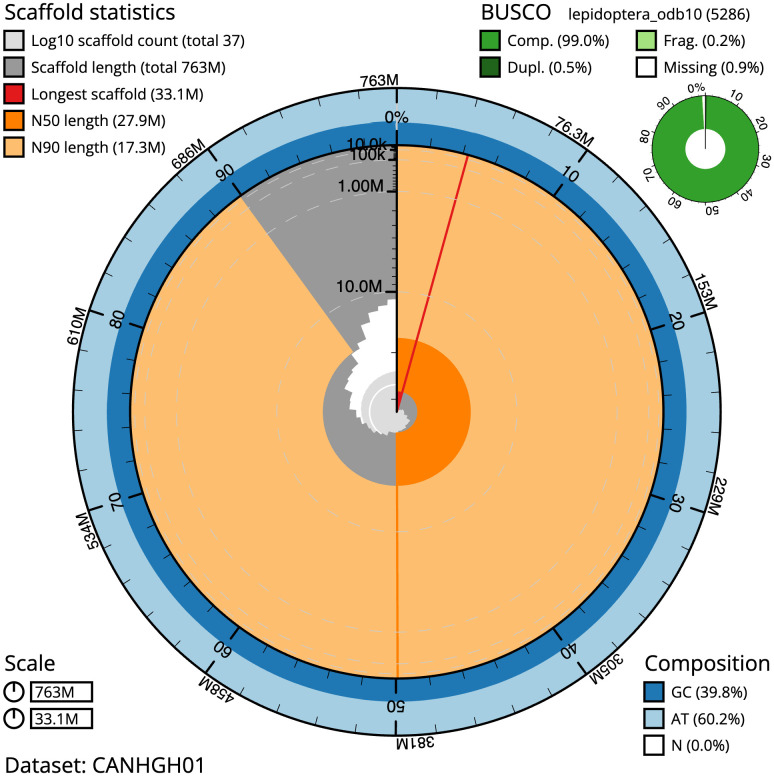

Genome assembly of Diloba caeruleocephala, ilDilCaer1.1: metrics.The BlobToolKit Snailplot shows N50 metrics and BUSCO gene completeness. The main plot is divided into 1,000 size-ordered bins around the circumference with each bin representing 0.1% of the 762,531,772 bp assembly. The distribution of scaffold lengths is shown in dark grey with the plot radius scaled to the longest scaffold present in the assembly (33,052,791 bp, shown in red). Orange and pale-orange arcs show the N50 and N90 scaffold lengths (27,899,106 and 17,255,644 bp), respectively. The pale grey spiral shows the cumulative scaffold count on a log scale with white scale lines showing successive orders of magnitude. The blue and pale-blue area around the outside of the plot shows the distribution of GC, AT and N percentages in the same bins as the inner plot. A summary of complete, fragmented, duplicated and missing BUSCO genes in the lepidoptera_odb10 set is shown in the top right. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/Diloba%20caeruleocephala/dataset/CANHGH01/snail.

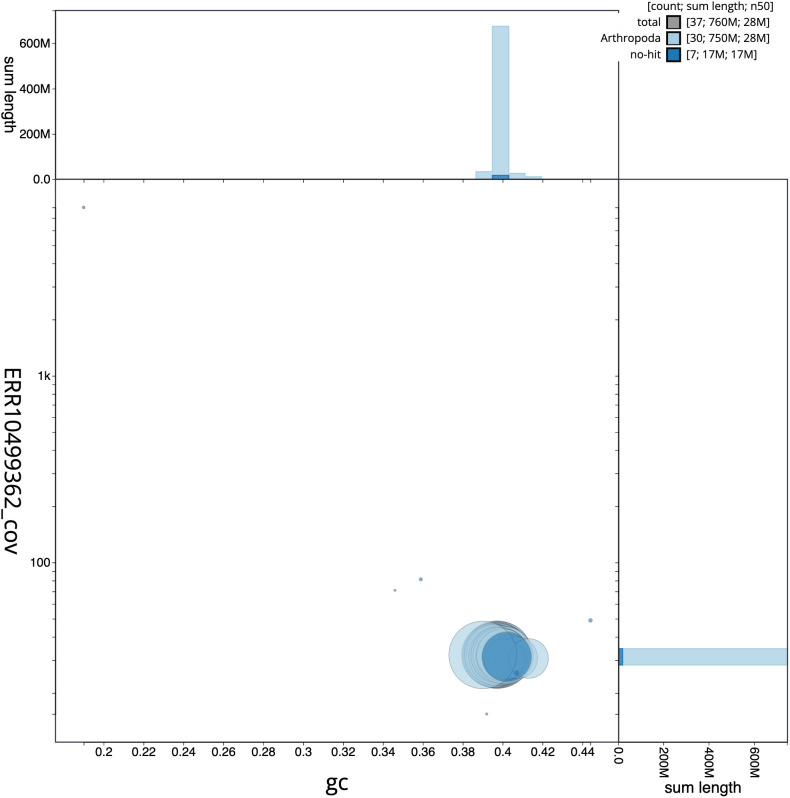

Genome assembly of Diloba caeruleocephala, ilDilCaer1.1: BlobToolKit GC-coverage plot.Scaffolds are coloured by phylum. Circles are sized in proportion to scaffold length. Histograms show the distribution of scaffold length sum along each axis. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/Diloba%20caeruleocephala/dataset/CANHGH01/blob.

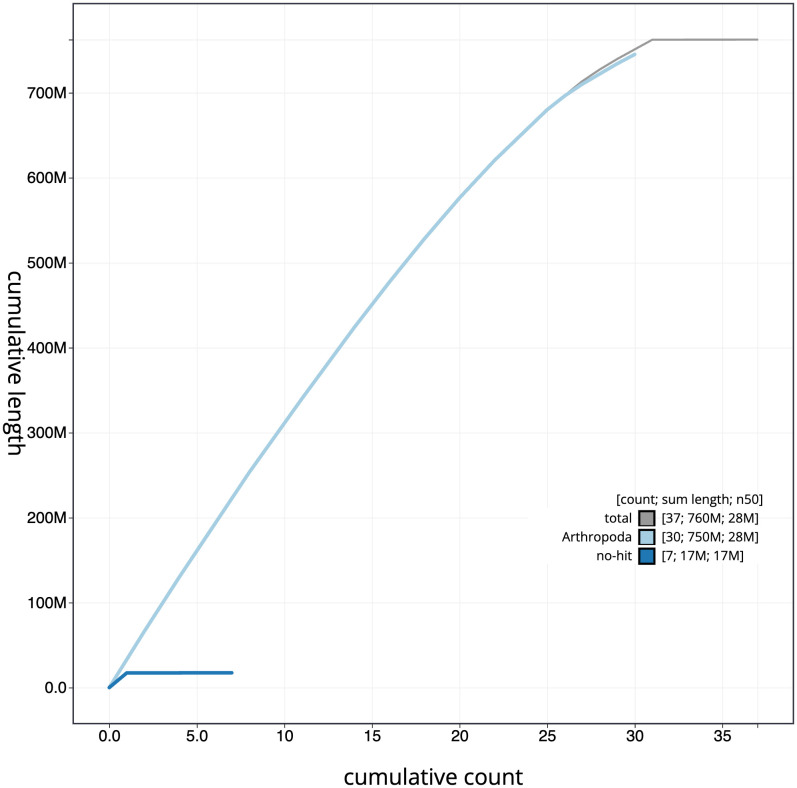

Genome assembly of Diloba caeruleocephala, ilDilCaer1.1: BlobToolKit cumulative sequence plot.The grey line shows cumulative length for all scaffolds. Coloured lines show cumulative lengths of scaffolds assigned to each phylum using the buscogenes taxrule. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/Diloba%20caeruleocephala/dataset/CANHGH01/cumulative.

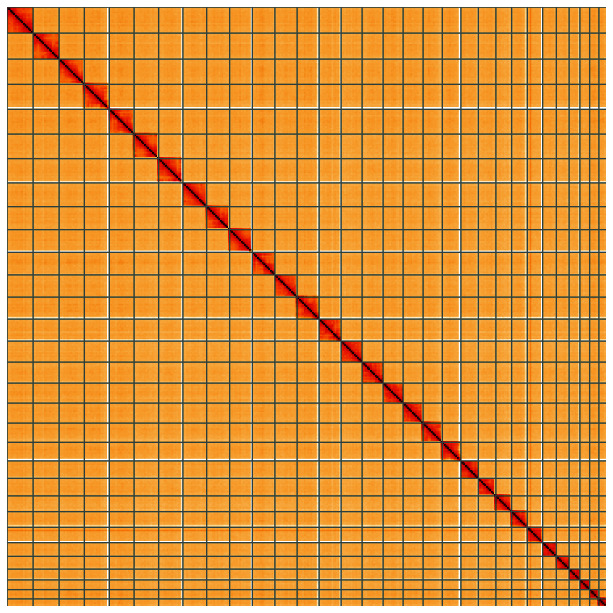

Genome assembly of Diloba caeruleocephala, ilDilCaer1.1: Hi-C contact map of the ilDilCaer1.1 assembly, visualised using HiGlass.Chromosomes are shown in order of size from left to right and top to bottom. An interactive version of this figure may be viewed at https://genome-note-higlass.tol.sanger.ac.uk/l/?d=RGHSoMHwRhCT5dxmF8w16w.

Tables

Table 1.. Genome data for Diloba caeruleocephala, ilDilCaer1.1.

Project accession data
Assembly identifier	ilDilCaer1.1
Species	Diloba caeruleocephala
Specimen	ilDilCaer1
NCBI taxonomy ID	987926
BioProject	PRJEB57680
BioSample ID	SAMEA110451510
Isolate information	ilDilCaer1, male: head and thorax (DNA sequencing, Hi-C data, RNA sequencing)
Assembly metrics *		Benchmark
Consensus quality (QV)	65.6	≥ 50
k-mer completeness	100%	≥ 95%
BUSCO **	C:99.0%[S:98.4%,D:0.5%],F:0.2%,M:0.9%,n:5,286	C ≥ 95%
Percentage of assembly mapped to chromosomes	99.98%	≥ 95%
Sex chromosomes	Z chromosome	localised homologous pairs
Organelles	Mitochondrial genome assembled	complete single alleles
Raw data accessions
PacificBiosciences SEQUEL II	ERR10499362
Hi-C Illumina	ERR10501028
PolyA RNA-Seq Illumina	ERR11606296
Genome assembly
Assembly accession	GCA_947459985.1
Accession of alternate haplotype	GCA_947459995.1
Span (Mb)	762.5
Number of contigs	137
Contig N50 length (Mb)	9.8
Number of scaffolds	36
Scaffold N50 length (Mb)	27.9
Longest scaffold (Mb)	33.1

Table 2.. Chromosomal pseudomolecules in the genome assembly of Diloba caeruleocephala, ilDilCaer1.

INSDC accession	Chromosome	Length (Mb)	GC%
OX381605.1	1	33.04	39.5
OX381606.1	2	32.16	40.0
OX381607.1	3	31.77	39.5
OX381608.1	4	31.24	40.0
OX381609.1	5	31.08	39.5
OX381610.1	6	31.01	39.5
OX381611.1	7	30.11	39.5
OX381612.1	8	29.07	39.5
OX381613.1	9	28.99	39.5
OX381614.1	10	28.49	40.0
OX381615.1	11	28.32	39.5
OX381616.1	12	27.9	40.0
OX381617.1	13	27.89	39.5
OX381618.1	14	26.83	39.5
OX381619.1	15	26.41	39.5
OX381620.1	16	25.62	40.0
OX381621.1	17	25.35	40.0
OX381622.1	18	24.39	40.0
OX381623.1	19	23.59	40.0
OX381624.1	20	22.19	40.0
OX381625.1	21	22.0	40.0
OX381626.1	22	20.24	40.0
OX381627.1	23	19.87	40.0
OX381628.1	24	19.4	40.0
OX381629.1	25	17.26	40.0
OX381630.1	26	16.27	40.0
OX381631.1	27	13.81	40.5
OX381632.1	28	12.37	40.5
OX381633.1	29	11.72	40.0
OX381634.1	30	10.93	41.5
OX381604.1	Z	33.05	39.0
OX381635.1	MT	0.02	19.0

Table 3.. Software tools: versions and sources.

Software tool	Version	Source
BlobToolKit	4.1.7	https://github.com/blobtoolkit/blobtoolkit
BUSCO	5.3.2	https://gitlab.com/ezlab/busco
Hifiasm	0.16.1-r375	https://github.com/chhylp123/hifiasm
HiGlass	1.11.6	https://github.com/higlass/higlass
Merqury	MerquryFK	https://github.com/thegenemyers/MERQURY.FK
MitoHiFi	2	https://github.com/marcelauliano/MitoHiFi
PretextView	0.2	https://github.com/wtsi-hpag/PretextView
purge_dups	1.2.3	https://github.com/dfguan/purge_dups
sanger-tol/genomenote	v1.0	https://github.com/sanger-tol/genomenote
sanger-tol/ readmapping	1.1.0	https://github.com/sanger-tol/readmapping/tree/1.1.0
YaHS	1.2a	https://github.com/c-zhou/yahs

Full text

Species taxonomy

Eukaryota; Metazoa; Eumetazoa; Bilateria; Protostomia; Ecdysozoa; Panarthropoda; Arthropoda; Mandibulata; Pancrustacea; Hexapoda; Insecta; Dicondylia; Pterygota; Neoptera; Endopterygota; Amphiesmenoptera; Lepidoptera; Glossata; Neolepidoptera; Heteroneura; Ditrysia; Obtectomera; Noctuoidea; Noctuidae; Dilobinae; Diloba; Diloba caeruleocephala (Linnaeus, 1758) (NCBI:txid987926).

Background

The Figure of Eight Diloba caeruleocephala (Linnaeus, 1758) is an endangered moth in Britain, having suffered a 96% decrease in abundance between 1970 and 2016 as well as a decline in its distribution ( Randle et al., 2019). Within the family Noctuidae, it is the sole British representative of the subfamily Dilobinae, and is a distinctive species named for the white markings on the forewing, the inner of which resembles an ‘8’. The most likely confusion species in the British Isles are probably the Lasiocampids Tethea ocularis (Linnaeus, 1767), the Figure of Eighty, and Tethea or ([Denis & Schiffermüller], 1775), the Poplar Lutestring, which have similar white markings but otherwise very different forewing patterning and lack serrated antennae in the male.

D. caeruleocephala overwinters as an egg, with the larvae hatching in late April. Larvae feed on the leaves of a large variety of trees and shrubs (particularly Prunus spinosa and Crataegus spp.), before pupating on or under the ground in a silken cocoon. The larvae are pale grey with large black pinacula, yellow dorsal and lateral spots and a raised yellow band across the second abdominal segment ( Henwood et al., 2020). The life cycle of the species was studied in detail by Bolu & Özgen (2007).

Despite the rapid decline of the species in Britain, in Ireland (where it has a very scattered distribution) it has fared better, seeing a significant increase in records from just five before 1970 to twenty-six between 2000 and 2019 ( Randle et al., 2019). A synthetic sex-attractant for the species was presented by Subchev et al. (2000).

We present a chromosomally complete genome sequence for Diloba caeruleocephala, based on one male specimen from Wytham Woods, Oxfordshire, as part of the Darwin Tree of Life Project. This project is a collaborative effort to sequence all named eukaryotic species in the Atlantic Archipelago of Britain and Ireland.

Genome sequence report

The genome was sequenced from one male Diloba caeruleocephala ( Figure 1) collected from Wytham Woods, Oxfordshire, UK (51.77, –1.34). A total of 30-fold coverage in Pacific Biosciences single-molecule HiFi long reads was generated. Primary assembly contigs were scaffolded with chromosome conformation Hi-C data. Manual assembly curation corrected 2 missing joins or mis-joins and removed one haplotypic duplication.

Photograph of the Diloba caeruleocephala (ilDilCaer1) specimen used for genome sequencing.

The final assembly has a total length of 762.5 Mb in 36 sequence scaffolds with a scaffold N50 of 27.9 Mb ( Table 1). The snailplot in Figure 2 provides a summary of the assembly statistics, while the distribution of reads on GC proportion and coverage is shown in Figure 3. The cumulative assembly plot in Figure 4 shows curves for subsets of scaffolds assigned to different phyla. Most (99.98%) of the assembly sequence was assigned to 31 chromosomal-level scaffolds, representing 30 autosomes and the X sex chromosome. Chromosome-scale scaffolds confirmed by the Hi-C data are named in order of size ( Figure 5; Table 2). While not fully phased, the assembly deposited is of one haplotype. Contigs corresponding to the second haplotype have also been deposited. The mitochondrial genome was also assembled and can be found as a contig within the multifasta file of the genome submission.

Table 1.: Genome data for Diloba caeruleocephala, ilDilCaer1.1.

Genome assembly of Diloba caeruleocephala, ilDilCaer1.1: metrics.The BlobToolKit Snailplot shows N50 metrics and BUSCO gene completeness. The main plot is divided into 1,000 size-ordered bins around the circumference with each bin representing 0.1% of the 762,531,772 bp assembly. The distribution of scaffold lengths is shown in dark grey with the plot radius scaled to the longest scaffold present in the assembly (33,052,791 bp, shown in red). Orange and pale-orange arcs show the N50 and N90 scaffold lengths (27,899,106 and 17,255,644 bp), respectively. The pale grey spiral shows the cumulative scaffold count on a log scale with white scale lines showing successive orders of magnitude. The blue and pale-blue area around the outside of the plot shows the distribution of GC, AT and N percentages in the same bins as the inner plot. A summary of complete, fragmented, duplicated and missing BUSCO genes in the lepidoptera_odb10 set is shown in the top right. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/Diloba%20caeruleocephala/dataset/CANHGH01/snail.

Genome assembly of Diloba caeruleocephala, ilDilCaer1.1: BlobToolKit GC-coverage plot.Scaffolds are coloured by phylum. Circles are sized in proportion to scaffold length. Histograms show the distribution of scaffold length sum along each axis. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/Diloba%20caeruleocephala/dataset/CANHGH01/blob.

Genome assembly of Diloba caeruleocephala, ilDilCaer1.1: BlobToolKit cumulative sequence plot.The grey line shows cumulative length for all scaffolds. Coloured lines show cumulative lengths of scaffolds assigned to each phylum using the buscogenes taxrule. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/Diloba%20caeruleocephala/dataset/CANHGH01/cumulative.

Genome assembly of Diloba caeruleocephala, ilDilCaer1.1: Hi-C contact map of the ilDilCaer1.1 assembly, visualised using HiGlass.Chromosomes are shown in order of size from left to right and top to bottom. An interactive version of this figure may be viewed at https://genome-note-higlass.tol.sanger.ac.uk/l/?d=RGHSoMHwRhCT5dxmF8w16w.

Table 2.: Chromosomal pseudomolecules in the genome assembly of Diloba caeruleocephala, ilDilCaer1.

The estimated Quality Value (QV) of the final assembly is 65.6 with k-mer completeness of 100%, and the assembly has a BUSCO v5.3.2 completeness of 99.0% (single = 98.4%, duplicated = 0.5%), using the lepidoptera_odb10 reference set ( n = 5,286).

Metadata for specimens, barcode results, spectra estimates, sequencing runs, contaminants and pre-curation assembly statistics are given at https://links.tol.sanger.ac.uk/species/987926.

Methods

Sample acquisition and nucleic acid extraction

A male Diloba caeruleocephala (specimen ID Ox001971, ToLID ilDilCaer1) was collected from Wytham Woods, Oxfordshire (biological vice-county Berkshire), UK (latitude 51.77, longitude –1.34) on 2021-10-10 using a light trap. The specimen was collected and identified by Liam Crowley (University of Oxford) and preserved on dry ice.

The workflow for high molecular weight (HMW) DNA extraction at the Wellcome Sanger Institute (WSI) includes a sequence of core procedures: sample preparation; sample homogenisation; DNA extraction; HMW DNA fragmentation; and fragmented DNA clean-up. The sample was prepared for DNA extraction at the WSI Tree of Life laboratory: the ilDilCaer1 sample was weighed and dissected on dry ice with tissue set aside for Hi-C sequencing ( https://dx.doi.org/10.17504/protocols.io.x54v9prmqg3e/v1). Tissue from the head and thorax was disrupted using a Nippi Powermasher fitted with a BioMasher pestle ( https://dx.doi.org/10.17504/protocols.io.5qpvo3r19v4o/v1). DNA was extracted at the WSI Scientific Operations core using the Qiagen MagAttract HMW DNA kit, according to the manufacturer’s instructions.

RNA was extracted from head and thorax tissue of ilDilCaer1 using the Automated MagMax™ mirVana protocol ( https://dx.doi.org/10.17504/protocols.io.6qpvr36n3vmk/v1). The RNA concentration was assessed using a Nanodrop spectrophotometer and Qubit Fluorometer using the Qubit RNA Broad-Range (BR) Assay kit. Analysis of the integrity of the RNA was done using the Agilent RNA 6000 Pico Kit and Eukaryotic Total RNA assay.

Protocols developed by the Tree of Life laboratory are publicly available on protocols.io: https://dx.doi.org/10.17504/protocols.io.8epv5xxy6g1b/v1.

Sequencing

Pacific Biosciences HiFi circular consensus and 10X Genomics read cloud DNA sequencing libraries were constructed according to the manufacturers’ instructions. Poly(A) RNA-Seq libraries were constructed using the NEB Ultra II RNA Library Prep kit. DNA and RNA sequencing was performed by the Scientific Operations core at the WSI on Pacific Biosciences SEQUEL II (HiFi) and Illumina NovaSeq 6000 (RNA-Seq) instruments. Hi-C data were also generated from remaining head and thorax tissue of ilDilCaer1 using the Arima2 kit and sequenced on the Illumina NovaSeq 6000 instrument.

Genome assembly, curation and evaluation

Assembly was carried out with Hifiasm ( Cheng et al., 2021) and haplotypic duplication was identified and removed with purge_dups ( Guan et al., 2020). The assembly was then scaffolded with Hi-C data ( Rao et al., 2014) using YaHS ( Zhou et al., 2023). The assembly was checked for contamination and corrected as described previously ( Howe et al., 2021). Manual curation was performed using HiGlass ( Kerpedjiev et al., 2018) and Pretext ( Harry, 2022). The mitochondrial genome was assembled using MitoHiFi ( Uliano-Silva et al., 2023), which runs MitoFinder ( Allio et al., 2020) or MITOS ( Bernt et al., 2013) and uses these annotations to select the final mitochondrial contig and to ensure the general quality of the sequence.

A Hi-C map for the final assembly was produced using bwa-mem2 ( Vasimuddin et al., 2019) in the Cooler file format ( Abdennur & Mirny, 2020). To assess the assembly metrics, the k-mer completeness and QV consensus quality values were calculated in Merqury ( Rhie et al., 2020). This work was done using Nextflow ( Di Tommaso et al., 2017) DSL2 pipelines “sanger-tol/readmapping” ( Surana et al., 2023a) and “sanger-tol/genomenote” ( Surana et al., 2023b). The genome was analysed within the BlobToolKit environment ( Challis et al., 2020) and BUSCO scores ( Manni et al., 2021; Simão et al., 2015) were calculated.

Table 3 contains a list of relevant software tool versions and sources.
