The genome sequence of the hawkweed Cheilosia, Cheilosia urbana (Meigen, 1822)

TL;DR

This paper presents the genome sequence of the hawkweed Cheilosia, a type of fly, including its chromosomes and mitochondrial DNA.

Contribution

The novel contribution is the first genome assembly of Cheilosia urbana, including scaffolded chromosomes and mitochondrial DNA.

Findings

The genome assembly spans 546.9 megabases and is scaffolded into 5 chromosomal pseudomolecules.

The mitochondrial genome is 17.08 kilobases in length and has been assembled.

Abstract

We present a genome assembly from an individual female
Cheilosia urbana (the hawkweed Cheilosia; Arthropoda; Insecta; Diptera; Syrphidae). The genome sequence is 546.9 megabases in span. Most of the assembly is scaffolded into 5 chromosomal pseudomolecules, including the X sex chromosome. The mitochondrial genome has also been assembled and is 17.08 kilobases in length.

Figures

Photograph of the Cheilosia urbana (idCheUrba1) specimen used for genome sequencing.

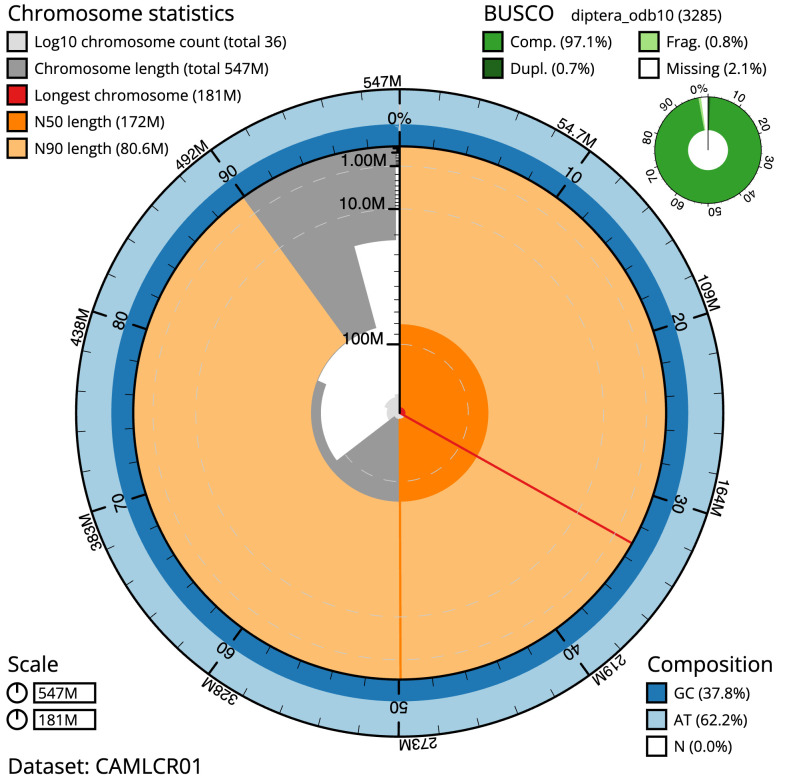

Genome assembly of Cheilosia urbana, idCheUrba1.1: metrics.The BlobToolKit Snailplot shows N50 metrics and BUSCO gene completeness. The main plot is divided into 1,000 size-ordered bins around the circumference with each bin representing 0.1% of the 546,942,332 bp assembly. The distribution of scaffold lengths is shown in dark grey with the plot radius scaled to the longest scaffold present in the assembly (181,276,847 bp, shown in red). Orange and pale-orange arcs show the N50 and N90 scaffold lengths (171,959,956 and 80,646,311 bp), respectively. The pale grey spiral shows the cumulative scaffold count on a log scale with white scale lines showing successive orders of magnitude. The blue and pale-blue area around the outside of the plot shows the distribution of GC, AT and N percentages in the same bins as the inner plot. A summary of complete, fragmented, duplicated and missing BUSCO genes in the diptera_odb10 set is shown in the top right. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/idCheUrba1.1/dataset/CAMLCR01/snails.

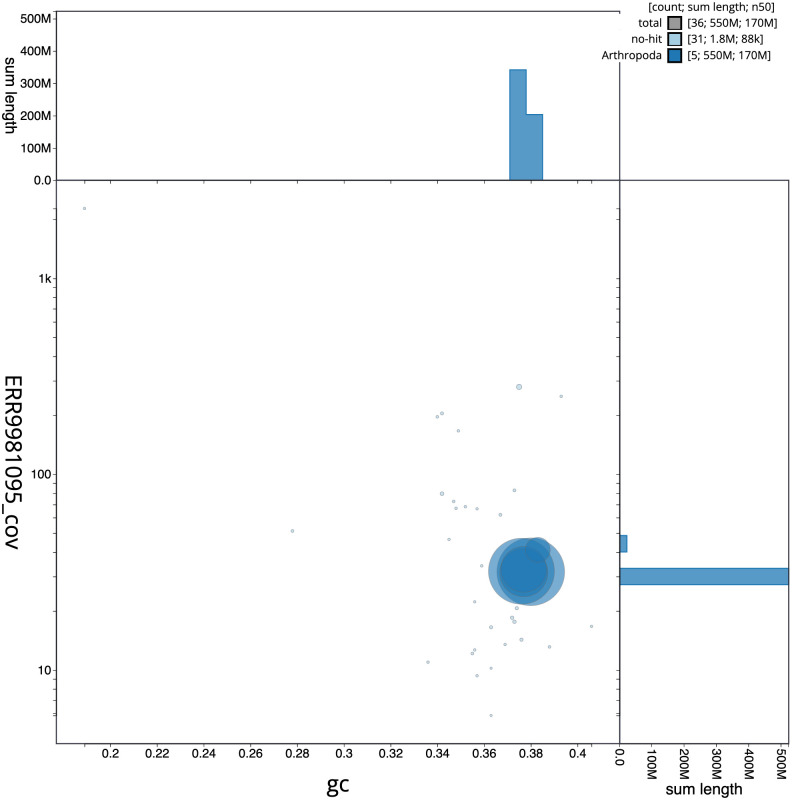

Genome assembly of Cheilosia urbana, idCheUrba1.1: BlobToolKit GC-coverage plot.Scaffolds are coloured by phylum. Circles are sized in proportion to scaffold length. Histograms show the distribution of scaffold length sum along each axis. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/idCheUrba1.1/dataset/CAMLCR01/blob.

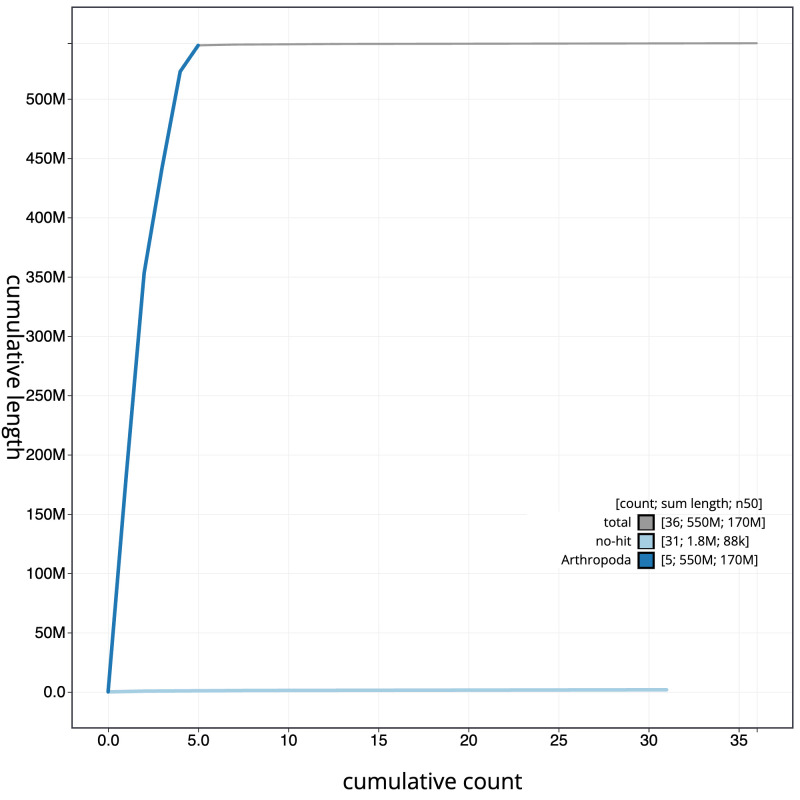

Genome assembly of Cheilosia urbana, idCheUrba1.1: BlobToolKit cumulative sequence plot.The grey line shows cumulative length for all scaffolds. Coloured lines show cumulative lengths of scaffolds assigned to each phylum using the buscogenes taxrule. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/idCheUrba1.1/dataset/CAMLCR01/cumulative.

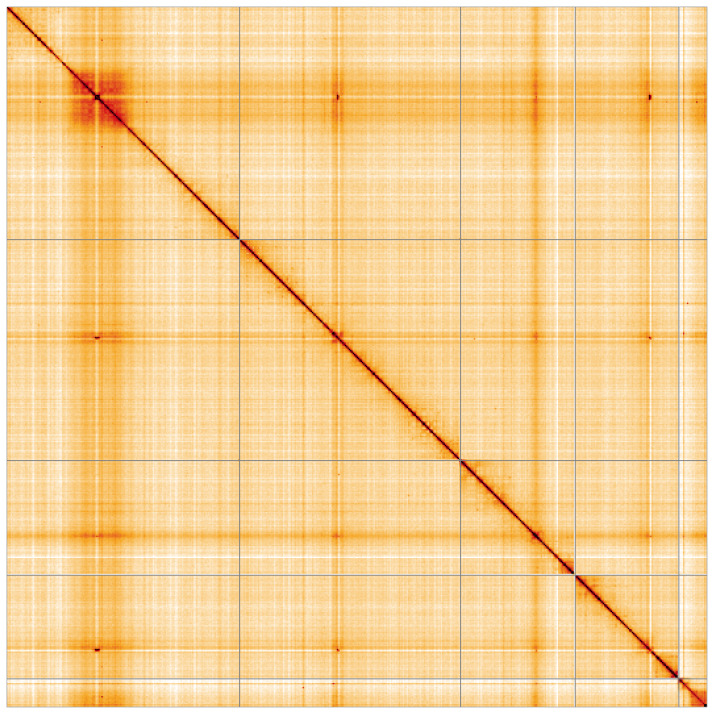

Genome assembly of Cheilosia urbana, idCheUrba1.1: Hi-C contact map of the idCheUrba1.1 assembly, visualised using HiGlass.Chromosomes are shown in order of size from left to right and top to bottom. An interactive version of this figure may be viewed at https://genome-note-higlass.tol.sanger.ac.uk/l/?d=LxrU8VG5TYuxrLOcPeXiKg.

Tables

Table 1.. Genome data for Cheilosia urbana, idCheUrba1.1.

Project accession data
Assembly identifier	idCheUrba1.1
Species	Cheilosia urbana
Specimen	idCheUrba1
NCBI taxonomy ID	173985
BioProject	PRJEB54805
BioSample ID	SAMEA10166768
Isolate information	idCheUrba1, female: whole organism (DNA sequencing) idCheUrba2, male: whole organism (Hi-C scaffolding)
Assembly metrics *		Benchmark
Consensus quality (QV)	65.1	≥ 50
k-mer completeness	100%	≥ 95%
BUSCO **	C:97.1%[S:96.4%,D:0.7%], F:0.8%,M:2.1%,n:3,285	C ≥ 95%
Percentage of assembly mapped to chromosomes	99.7%	≥ 95%
Sex chromosomes	X chromosome	localised homologous pairs
Organelles	Mitochondrial genome assembled	complete single alleles
Raw data accessions
PacificBiosciences SEQUEL II	ERR9981095
Hi-C Illumina	ERR9988137
Genome assembly
Assembly accession	GCA_946477585.1
Accession of alternate haplotype	GCA_946477595.1
Span (Mb)	546.9
Number of contigs	152
Contig N50 length (Mb)	11.8
Number of scaffolds	36
Scaffold N50 length (Mb)	172.0
Longest scaffold (Mb)	181.3

Table 2.. Chromosomal pseudomolecules in the genome assembly of Cheilosia urbana, idCheUrba1.

INSDC accession	Chromosome	Length (Mb)	GC%
OX297853.1	1	181.28	38.0
OX297854.1	2	171.96	37.5
OX297855.1	3	89.2	37.5
OX297856.1	4	80.65	37.5
OX297857.1	X	22.08	38.5
OX297858.1	MT	0.02	18.5

Table 3.. Software tools: versions and sources.

Software tool	Version	Source
BlobToolKit	4.1.5	https://github.com/blobtoolkit/blobtoolkit
BUSCO	5.3.2	https://gitlab.com/ezlab/busco
Hifiasm	0.16.1-r375	https://github.com/chhylp123/hifiasm
HiGlass	1.11.6	https://github.com/higlass/higlass
Merqury	MerquryFK	https://github.com/thegenemyers/MERQURY.FK
MitoHiFi	2	https://github.com/marcelauliano/MitoHiFi
PretextView	0.2	https://github.com/wtsi-hpag/PretextView
purge_dups	1.2.3	https://github.com/dfguan/purge_dups
sanger-tol/genomenote	v1.0	https://github.com/sanger-tol/genomenote
sanger-tol/readmapping	1.1.0	https://github.com/sanger-tol/readmapping/ tree/1.1.0
YaHS	yahs-1.1.91eebc2	https://github.com/c-zhou/yahs

Full text

Species taxonomy

Eukaryota; Metazoa; Eumetazoa; Bilateria; Protostomia; Ecdysozoa; Panarthropoda; Arthropoda; Mandibulata; Pancrustacea; Hexapoda; Insecta; Dicondylia; Pterygota; Neoptera; Endopterygota; Diptera; Brachycera; Muscomorpha; Eremoneura; Cyclorrhapha; Aschiza; Syrphoidea; Syrphidae; Eristalinae; Rhingiini; Cheilosia; Cheilosia urbana (Meigen, 1822) (NCBI:txid173985).

Background

Cheilosia urbana (Meigen, 1822) is a common and widespread Palaearctic spring-flying species, that inhabits grasslands as well as open areas in both coniferous and deciduous forests and scrublands ( Speight, 2020). This hoverfly occurs from the United Kingdom eastward through central and southern Europe to the Balkans and Turkey. The flight season extends from April to June, and even to July at higher altitudes and/or more northern latitudes. Adults have been found to visit a variety of flowers, including Acer pseudoplatanus, Anemone nemorosa, Prunus spinosa and species of the genera Salix, Taraxacum, Euphorbia and Potentilla.

In addition to pollination service, individuals of C. urbana also have a role as biological control agents. The English common name ‘hawkweed Cheilosia’ derives from its association with mouse-ear hawkweed, Hieracium pilosella ( Doczkal, 1996). The females oviposit on leaf axils, afterwards larvae migrate into the soil and feed externally on the roots of the plant, in which they make small holes. Moreover, Grosskopf et al. (2002) revealed that neonate C. urbana larvae fed and completed development to the adult stage on eight different Hieracium spp., approving the potential of this hoverfly in management strategy of weeds. This is of particular importance in New Zealand, as well as the North and South Americas, where Hieracium species of Eurasian origin represent invasive alien plants that threaten to cause great economic and environmental harm ( Grosskopf, 2005; Grosskopf et al., 2002).

This is the first production of a high-quality C. urbana genome and we believe that the sequence described here, generated as part of the Darwin Tree of Life project, will further aid understanding of the biology and ecology of this hoverfly.

Genome sequence report

The genome was sequenced from one female Cheilosia urbana ( Figure 1) collected from Wytham Woods, Oxfordshire, UK (51.76, –1.34). A total of 32-fold coverage in Pacific Biosciences single-molecule HiFi long reads was generated. Primary assembly contigs were scaffolded with chromosome conformation Hi-C data. Manual assembly curation corrected 48 missing joins or mis-joins and removed 6 haplotypic duplications, reducing the assembly length by 0.51% and the scaffold number by 41.94%, and increasing the scaffold N50 by 1.65%.

Photograph of the Cheilosia urbana (idCheUrba1) specimen used for genome sequencing.

The final assembly has a total length of 546.9 Mb in 35 sequence scaffolds with a scaffold N50 of 172.0 Mb ( Table 1). Most (99.7%) of the assembly sequence was assigned to 5 chromosomal-level scaffolds, representing 4 autosomes and the X sex chromosome. The assemblies used as comparators to identify the X chromosome were Cheilosia pagana (GCA_936431705.1) and Cheilosia vulpina (GCA_916610125).1. Chromosome-scale scaffolds confirmed by the Hi-C data are named in order of size ( Figure 2– Figure 5; Table 2). While not fully phased, the assembly deposited is of one haplotype. Contigs corresponding to the second haplotype have also been deposited. The mitochondrial genome was also assembled and can be found as a contig within the multifasta file of the genome submission.

Table 1.: Genome data for Cheilosia urbana, idCheUrba1.1.

Genome assembly of Cheilosia urbana, idCheUrba1.1: metrics.The BlobToolKit Snailplot shows N50 metrics and BUSCO gene completeness. The main plot is divided into 1,000 size-ordered bins around the circumference with each bin representing 0.1% of the 546,942,332 bp assembly. The distribution of scaffold lengths is shown in dark grey with the plot radius scaled to the longest scaffold present in the assembly (181,276,847 bp, shown in red). Orange and pale-orange arcs show the N50 and N90 scaffold lengths (171,959,956 and 80,646,311 bp), respectively. The pale grey spiral shows the cumulative scaffold count on a log scale with white scale lines showing successive orders of magnitude. The blue and pale-blue area around the outside of the plot shows the distribution of GC, AT and N percentages in the same bins as the inner plot. A summary of complete, fragmented, duplicated and missing BUSCO genes in the diptera_odb10 set is shown in the top right. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/idCheUrba1.1/dataset/CAMLCR01/snails.

Genome assembly of Cheilosia urbana, idCheUrba1.1: BlobToolKit GC-coverage plot.Scaffolds are coloured by phylum. Circles are sized in proportion to scaffold length. Histograms show the distribution of scaffold length sum along each axis. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/idCheUrba1.1/dataset/CAMLCR01/blob.

Genome assembly of Cheilosia urbana, idCheUrba1.1: BlobToolKit cumulative sequence plot.The grey line shows cumulative length for all scaffolds. Coloured lines show cumulative lengths of scaffolds assigned to each phylum using the buscogenes taxrule. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/idCheUrba1.1/dataset/CAMLCR01/cumulative.

Genome assembly of Cheilosia urbana, idCheUrba1.1: Hi-C contact map of the idCheUrba1.1 assembly, visualised using HiGlass.Chromosomes are shown in order of size from left to right and top to bottom. An interactive version of this figure may be viewed at https://genome-note-higlass.tol.sanger.ac.uk/l/?d=LxrU8VG5TYuxrLOcPeXiKg.

Table 2.: Chromosomal pseudomolecules in the genome assembly of Cheilosia urbana, idCheUrba1.

The estimated Quality Value (QV) of the final assembly is 65.1 with k-mer completeness of 100%, and the assembly has a BUSCO v5.3.2 completeness of 97.1% (single = 96.4%, duplicated = 0.7%), using the diptera_odb10 reference set ( n = 3,285).

Metadata for specimens, spectral estimates, sequencing runs, contaminants and pre-curation assembly statistics can be found at https://links.tol.sanger.ac.uk/species/173985.

Methods

Sample acquisition and nucleic acid extraction

The specimen selected for genome sequencing was a female Cheilosia urbana (specimen ID Ox001288, individual idCheUrba1, while the specimen used for Hi-C scaffolding was a male C. urbana (specimen ID Ox001310, individual idCheUrba2). Both specimens were netted in Wytham Woods, Oxfordshire (biological vice-county Berkshire), UK (latitude 51.76, longitude –1.34) on 2021-04-23. Steven Falk (independent researcher) collected and identified the specimens. The specimens were snap-frozen on dry ice.

The specimen was prepared for DNA extraction at the Tree of Life laboratory, Wellcome Sanger Institute (WSI). The idCheUrba1 sample was weighed and dissected on dry ice. Whole organism tissue was disrupted using a Nippi Powermasher fitted with a BioMasher pestle. DNA was extracted at the Wellcome Sanger Institute (WSI) Scientific Operations core using the Qiagen MagAttract HMW DNA kit, according to the manufacturer’s instructions.

Sequencing

Pacific Biosciences HiFi circular consensus DNA sequencing libraries were constructed according to the manufacturers’ instructions. DNA sequencing was performed by the Scientific Operations core at the WSI on a Pacific Biosciences SEQUEL II (HiFi) instrument. Hi-C data were also generated from whole organism tissue of idCheUrba2 using the Arima2 kit and sequenced on the Illumina NovaSeq 6000 instrument.

Genome assembly, curation and evaluation

Assembly was carried out with Hifiasm ( Cheng et al., 2021) and haplotypic duplication was identified and removed with purge_dups ( Guan et al., 2020). The assembly was then scaffolded with Hi-C data ( Rao et al., 2014) using YaHS ( Zhou et al., 2023). The assembly was checked for contamination and corrected as described previously ( Howe et al., 2021). Manual curation was performed using HiGlass ( Kerpedjiev et al., 2018) and Pretext ( Harry, 2022). The mitochondrial genome was assembled using MitoHiFi ( Uliano-Silva et al., 2022), which runs MitoFinder ( Allio et al., 2020) or MITOS ( Bernt et al., 2013) and uses these annotations to select the final mitochondrial contig and to ensure the general quality of the sequence.

A Hi-C map for the final assembly was produced using bwa-mem2 ( Vasimuddin et al., 2019) in the Cooler file format ( Abdennur & Mirny, 2020). To assess the assembly metrics, the k-mer completeness and QV consensus quality values were calculated in Merqury ( Rhie et al., 2020). This work was done using Nextflow ( Di Tommaso et al., 2017) DSL2 pipelines “sanger-tol/readmapping” ( Surana et al., 2023a) and “sanger-tol/genomenote” ( Surana et al., 2023b). The genome was analysed within the BlobToolKit environment ( Challis et al., 2020) and BUSCO scores ( Manni et al., 2021; Simão et al., 2015) were calculated.

Table 3 contains a list of relevant software tool versions and sources.
