A Wideband High Gain Differential Patch Antenna Featuring In-Phase Radiating Apertures
Honglin Zhang, Jianhao Ye
TL;DR
This paper introduces a high-gain, wideband antenna design suitable for communication and radar systems due to its improved performance and bandwidth.
Contribution
The novel antenna design uses in-phase radiating apertures to achieve high gain and wide bandwidth simultaneously.
Findings
The antenna achieves an average gain of 9.7 dBi over a bandwidth of 1.49 GHz to 3.92 GHz.
The design increases bandwidth from 65 MHz to 2.43 GHz using coplanar waveguide feeding and short-circuited patches.
The maximum gain of the antenna reaches 11.3 dBi with a fractional bandwidth of 89.8%.
Abstract

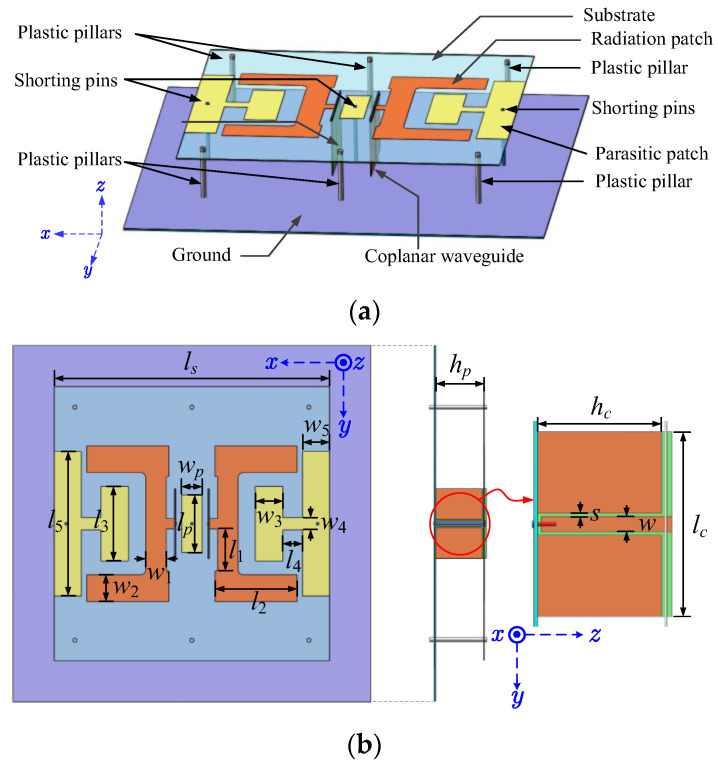

Communication systems need antennas with wide bandwidths to provide large throughput, while imaging radars benefit from high gain for increased range and wide bandwidths for high-resolution imaging. This paper presents the design and evaluation of a wideband, high-gain antenna that achieves an average gain of 9.7 dBi over a bandwidth of 1.49 GHz to 3.92 GHz by using multiple in-phase radiating apertures. The antenna has a unique structure with a central rectangular short-circuited patch sandwiched between two back-to-back U-shaped radiating patches and two flanking H-shaped short-circuited patches. Each of the U-shaped patches employs a coplanar waveguide as feeding to achieve ultra-wideband impedance matching. Benefiting from design arrangement, in-phase electrical field distributions appear at the gaps between the patches that result in equivalent radiating magnetic currents in the…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1

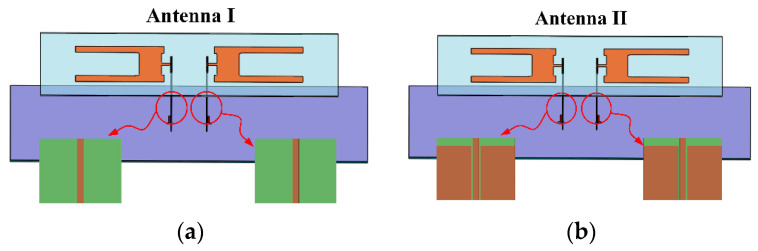

Figure 2

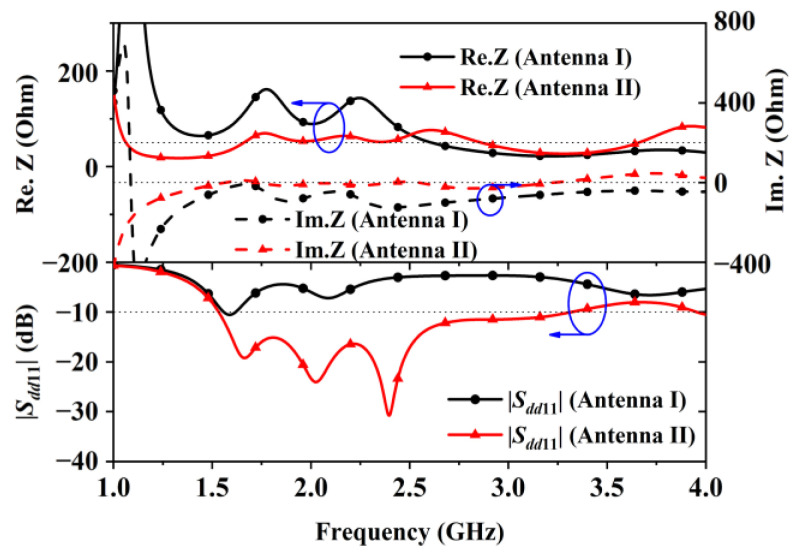

Figure 3

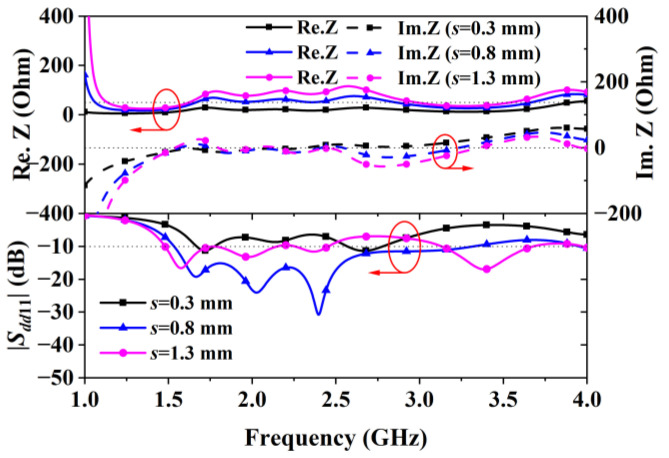

Figure 4

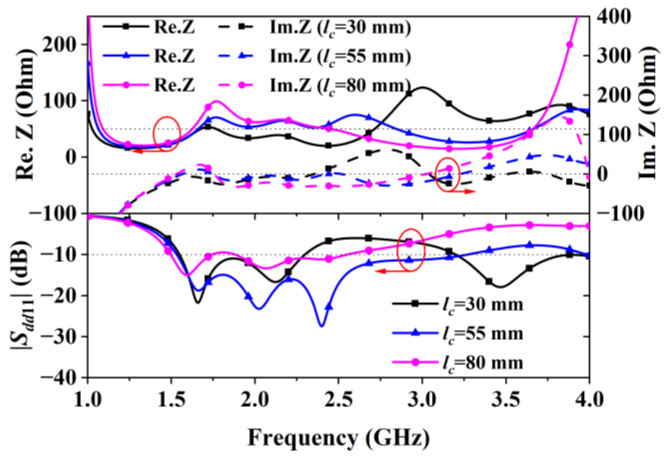

Figure 5

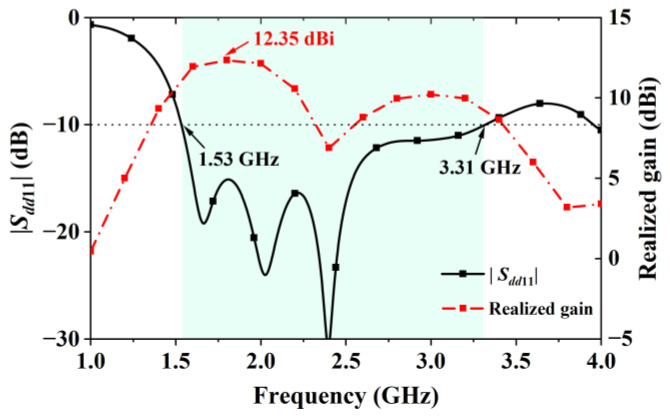

Figure 6

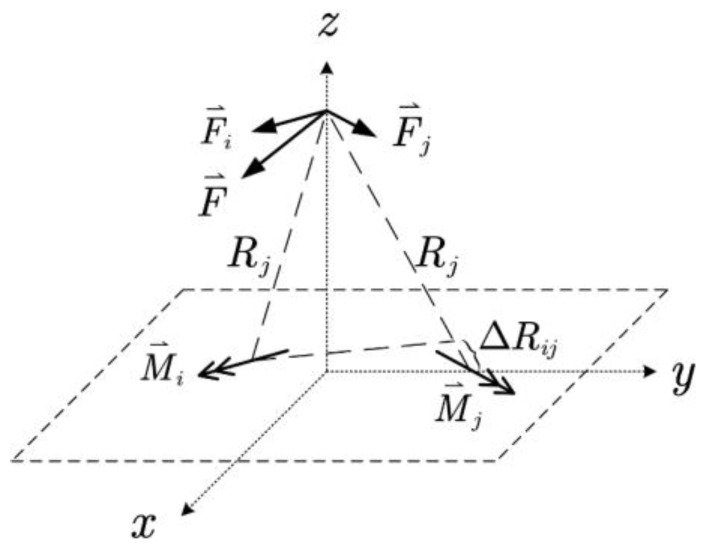

Figure 7

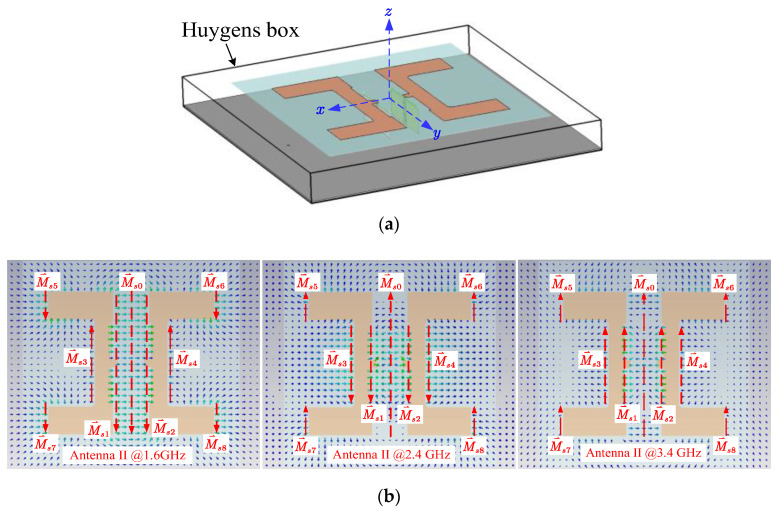

Figure 8

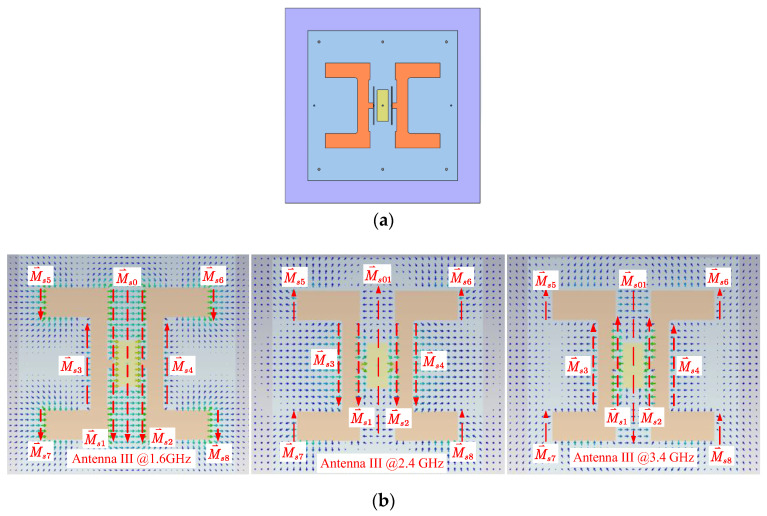

Figure 9

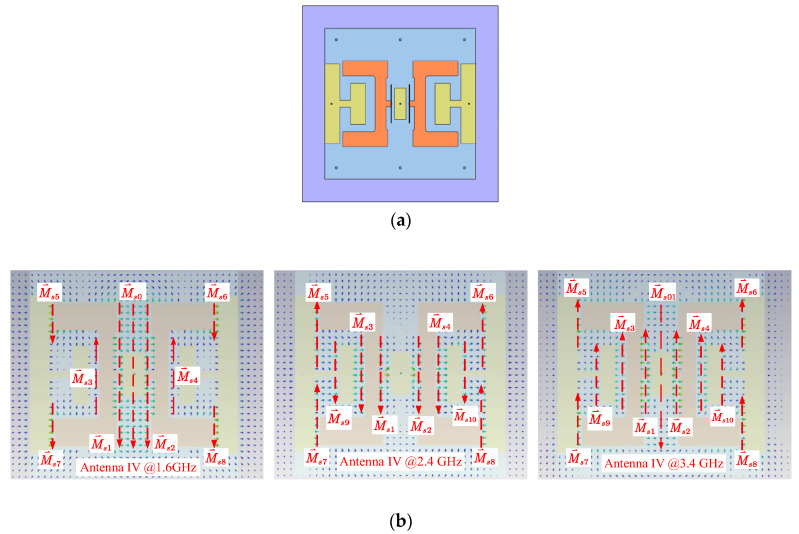

Figure 10
Figure 11

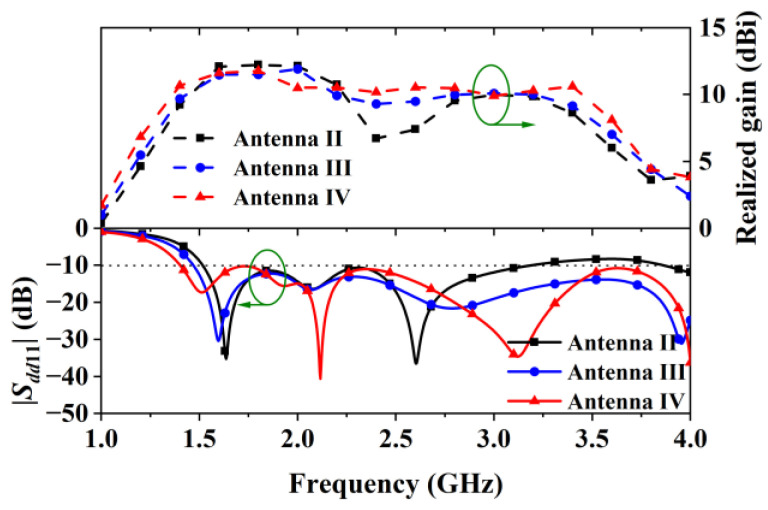

Figure 12

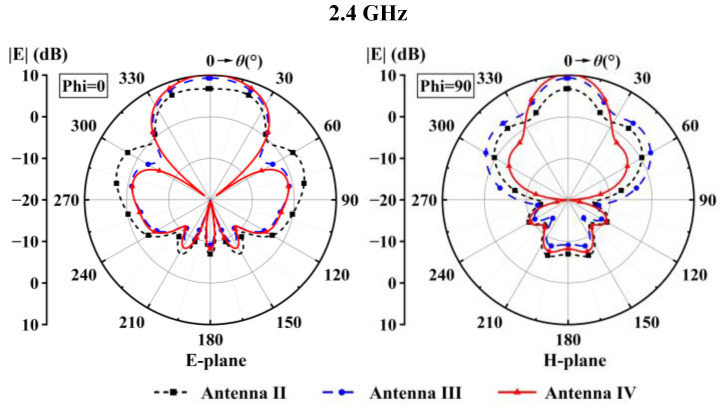

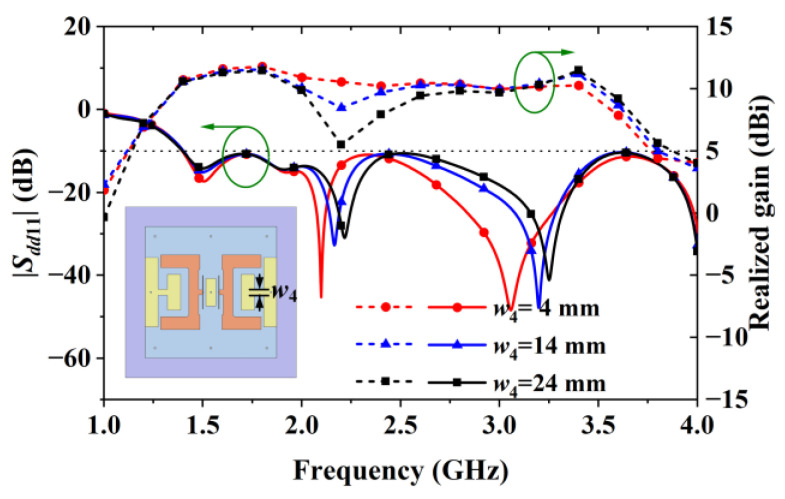

Figure 13

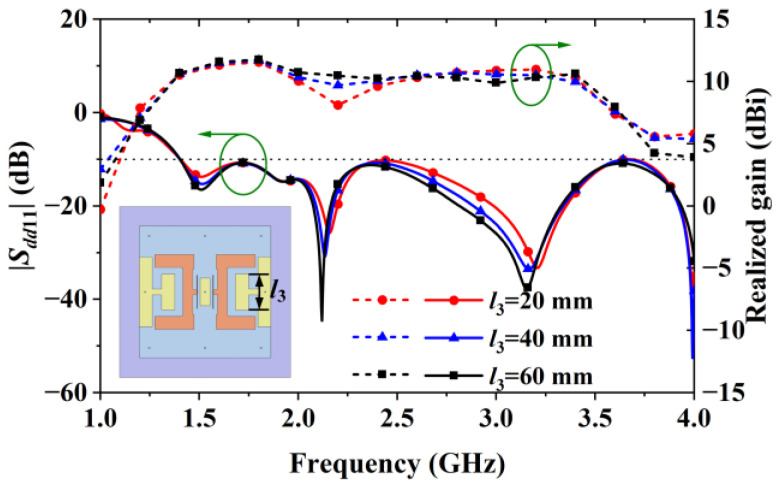

Figure 14

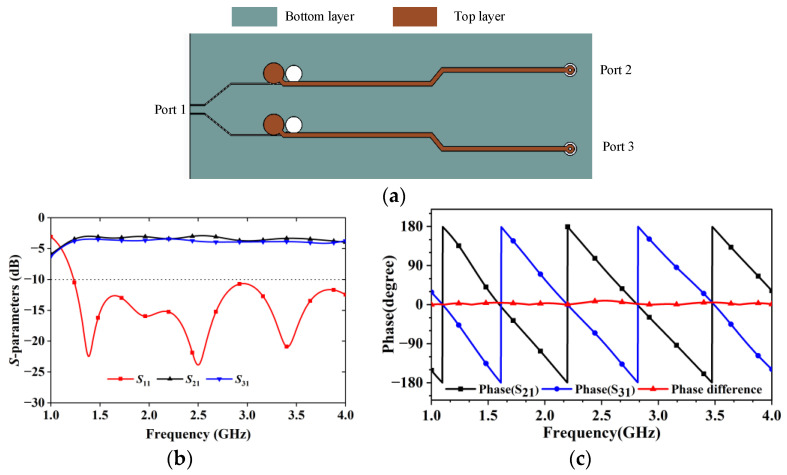

Figure 15
Figure 16

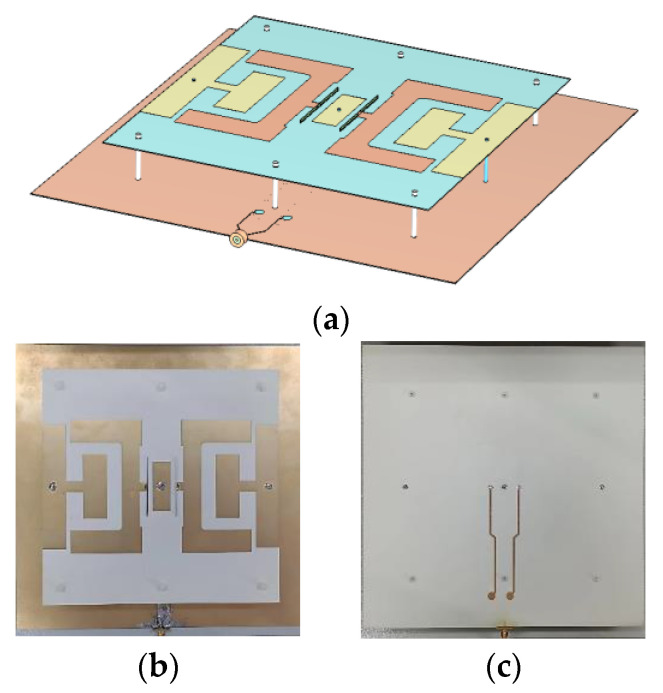

Figure 17

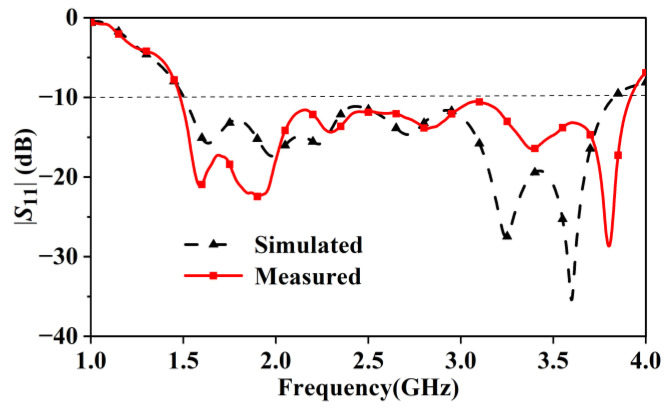

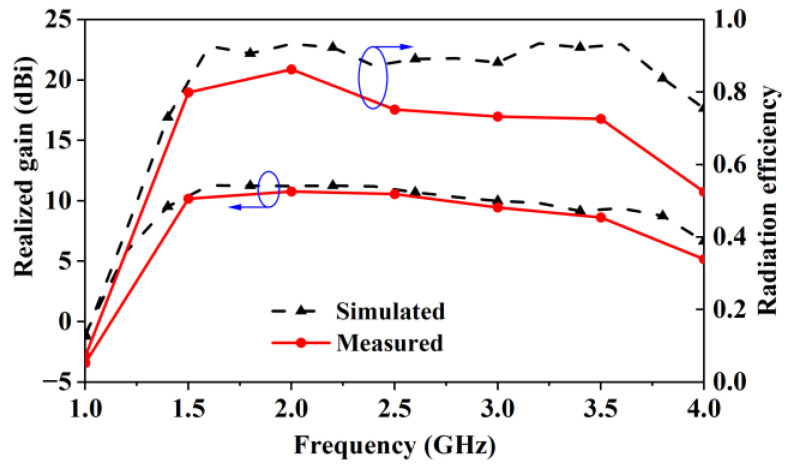

Figure 18

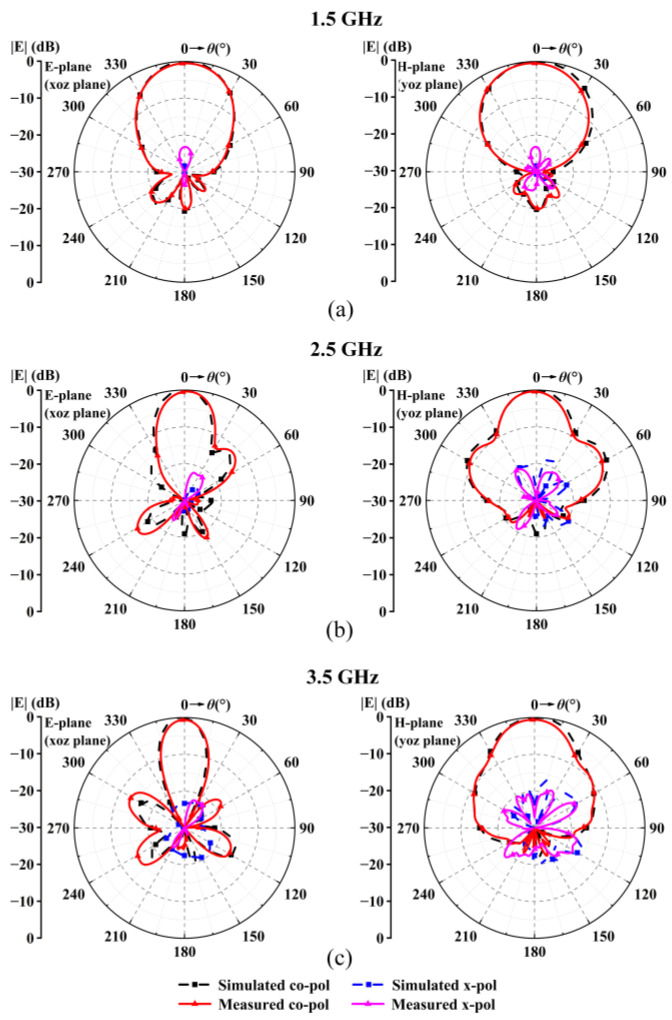

Figure 19Peer Reviews
