Small duct and large duct type intrahepatic cholangiocarcinoma reveal distinct patterns of immune signatures

TL;DR

This study compares immune patterns in two types of liver cancer and identifies potential biomarkers for better diagnosis and treatment.

Contribution

The study identifies novel immune-related biomarker candidates specific to small and large duct type intrahepatic cholangiocarcinoma.

Findings

SD-iCCA showed strong downregulation of immune-related genes like DMBT1 and CEACAM6.

LD-iCCA exhibited upregulation of CRP and complement-related genes.

SD-iCCA had altered immune cell ratios and downregulated chemokine and cytokine pathways.

Abstract

Dedicated gene signatures in small (SD-iCCA) and large (LD-iCCA) duct type intrahepatic cholangiocarcinoma remain unknown. We performed immune profiling in SD- and LD-iCCA to identify novel biomarker candidates for personalized medicine.

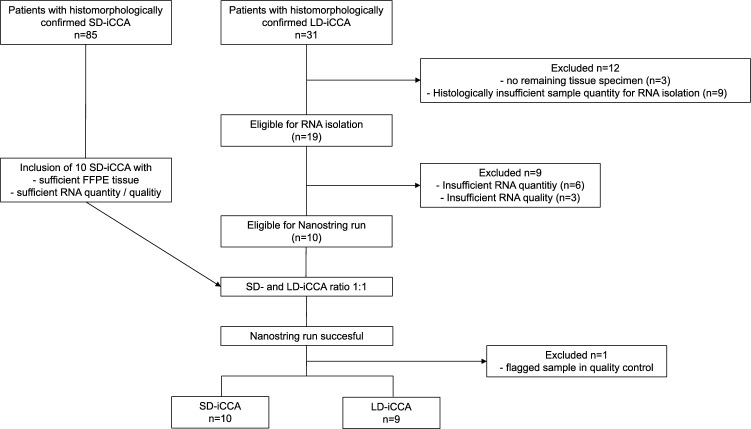

Retrospectively, 19 iCCA patients with either SD-iCCA (n = 10, median age, 63.1 years (45–86); men, 4) or LD-iCCA (n = 9, median age, 69.7 years (62–85); men, 5)) were included. All patients were diagnosed and histologically confirmed between 04/2009 and 01/2021. Tumor tissue samples were processed for differential expression profiling using NanoString nCounter® PanCancer Immune Profiling Panel.

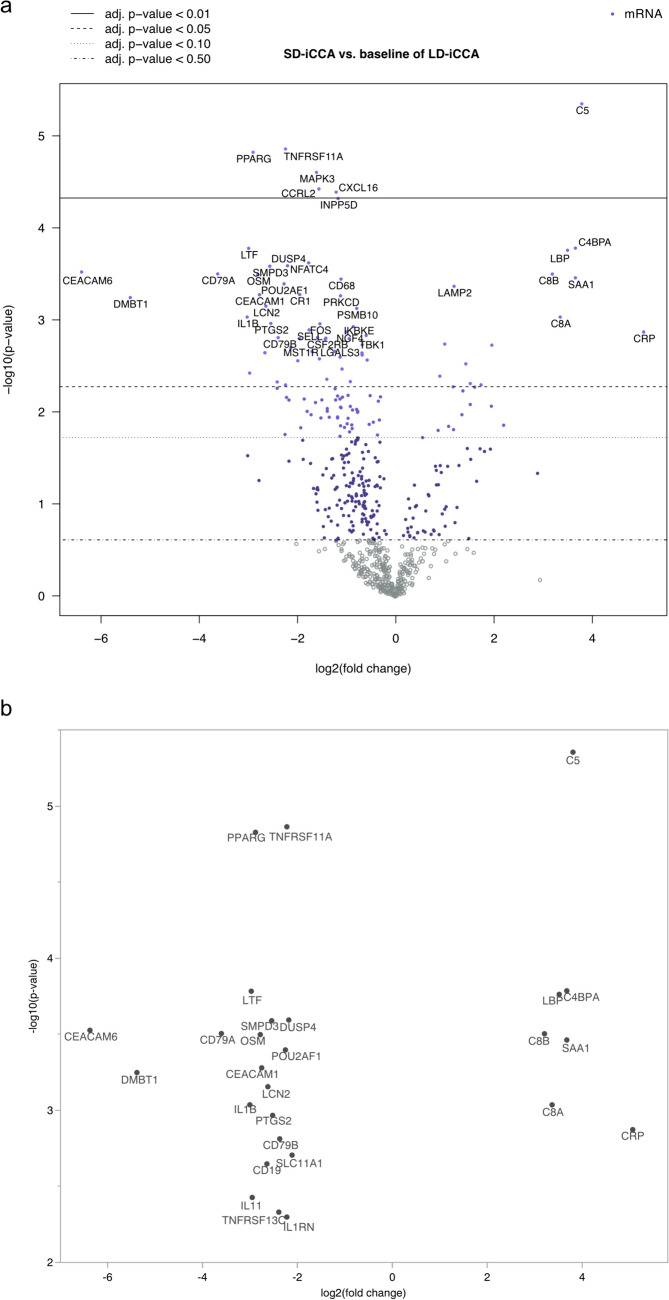

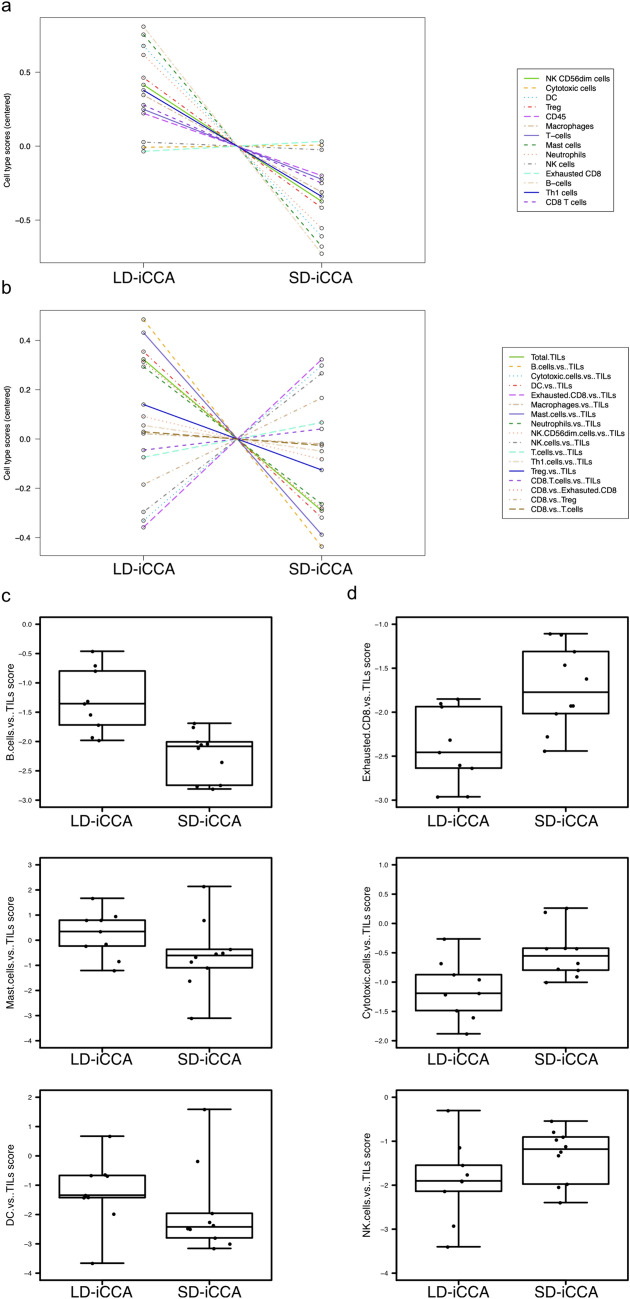

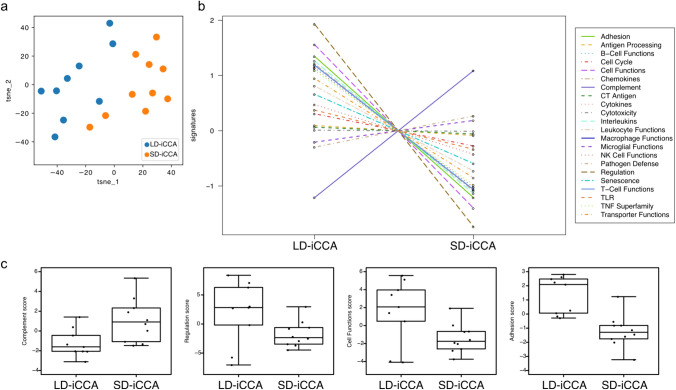

With the exception of complement signatures, immune-related pathways were broadly downregulated in SD-iCCA vs. LD-iCCA. A total of 20 immune-related genes were strongly downregulated in SD-iCCA with DMBT1 (log2fc = -5.39, p = 0.01) and CEACAM6 (log2fc = -6.38, p = 0.01) showing the strongest downregulation. Among 7 strongly (log2fc > 2, p ≤ 0.02) upregulated genes, CRP (log2fc = 5.06, p = 0.02) ranked first, and four others were associated with complement (C5, C4BPA, C8A, C8B). Total tumor-infiltrating lymphocytes (TIL) signature was decreased in SD-iCCA with elevated ratios of exhausted-CD8/TILs, NK/TILs, and cytotoxic cells/TILs while having decreased ratios of B-cells/TILs, mast cells/TILs and dendritic cells/TILs. The immune profiling signatures in SD-iCCA revealed downregulation in chemokine signaling pathways inclulding JAK2/3 and ERK1/2 as well as nearly all cytokine-cytokine receptor interaction pathways with the exception of the CXCL1/CXCR1-axis.

Immune patterns differed in SD-iCCA versus LD-iCCA. We identified potential biomarker candidate genes, including CRP, CEACAM6, DMBT1, and various complement factors that could be explored for augmented diagnostics and treatment decision-making.

The online version contains supplementary material available at 10.1007/s00432-024-05888-y.
