A Video App for Screening Osgood-Schlatter Disease Using Soccer Instep Kicking Motion Analysis

TL;DR

A new video app was developed to screen for Osgood-Schlatter disease in soccer players by analyzing their kicking motion, showing a key difference in knee flexion angles.

Contribution

This study introduces a tablet-based 2D motion analysis app for screening Osgood-Schlatter disease in adolescent soccer players.

Findings

The knee flexion angle during instep kicking was significantly larger in the Osgood-Schlatter disease group.

Lower limb tightness was not correlated with the occurrence of Osgood-Schlatter disease.

2D motion analysis using a tablet device can detect pathological factors of Osgood-Schlatter disease.

Abstract

Background: Osgood-Schlatter disease (OSD) is a type of osteochondrosis and traction apophysitis that results from repeated contractions of the quadriceps femoris muscle on the tibial tuberosity. Its prevention, early diagnosis, and treatment are crucial because it causes chronic knee pain and surgical approaches are required if left untreated. Three-dimensional motion analysis is a useful approach for elucidating the pathological factors of OSD; however, it requires advanced cameras, sophisticated facilities, and expensive software. Conversely, the advent of technology has provided affordable video recording devices, and smartphone/tablet-based applications have enabled two-dimensional (2D) motion analysis. This emerging tool and artificial intelligence technology were used to analyze the pivot leg from videos recorded on a tablet device during the instep kicks of adolescent soccer players. Therefore, in this study, we aimed to determine whether the pathological factors for OSD occurring in the pivot foot can be identified through a simple 2D motion analysis using a tablet device.

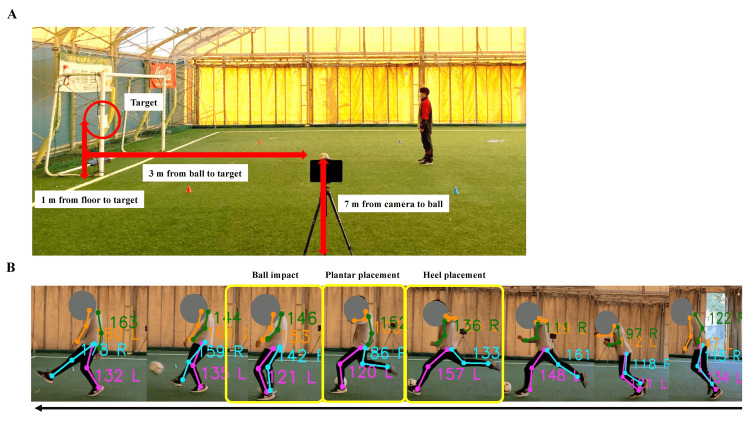

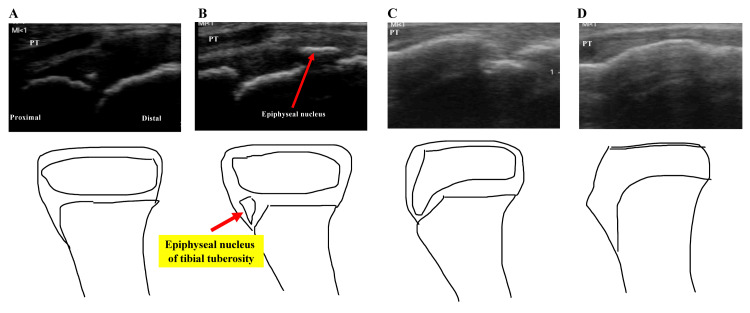

Methods: In total, 94 knees of 47 soccer players (aged 14.1±0.8 years, all male) who belong to a single soccer club were evaluated. OSD was diagnosed using ultrasonography and physical examination (a positive bone fragment on ultrasonography or tenderness at the tibial tuberosity). Lower limb muscle tightness was evaluated using the finger-floor distance, straight leg raising test, heel-buttock distance, Thomas test, and ankle range of motion using a goniometer. We then performed motion analysis, and the instep kicking motion was recorded using a video camera on a tablet device. The joint angles of the hip, knee, and ankle were measured using a real-time human-pose detection system. Data were compared between the OSD and non-OSD groups.

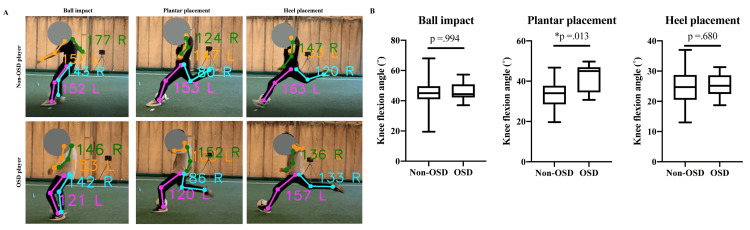

Results: Overall, six of the 47 players (12.8%) were diagnosed with OSD. No correlation was found between lower limb tightness and the occurrence of OSD in all indices. However, the 2D motion analysis revealed that the knee flexion angle at the time of plantar placement during the instep kick movement was significantly larger in the OSD group than in the non-OSD group (OSD group: 42.0±7.2˚, non-OSD group: 33.5±6.6˚, *p=0.013).

Conclusion: A video motion analysis revealed that the knee flexion angle during the instep kicking motion was significantly greater in athletes with OSD of the supporting foot.
