Single-level laminoplasty approach to selective dorsal rhizotomy with conus localization by rapid spine MRI

TL;DR

This paper shows that quick MRI scans without sedation can accurately locate the conus for a specific spinal surgery in children.

Contribution

Demonstrates rapid MRI's effectiveness for conus localization in single-level SDR without sedation.

Findings

Rapid MRI without sedation successfully identified conus level in 97.5% of cases.

Rapid MRI procedures took significantly less time than full MRI under anesthesia.

Only two patients had ambiguous conus levels due to motion or spinal hardware.

Abstract

While selective dorsal rhizotomy (SDR) was originally described as a multilevel approach, single-level approaches are now popularized. Conus localization is beneficial for operative planning in single-level selective dorsal rhizotomy. Our approach to SDR involves minimal exposure for a single-level laminoplasty, preserving one attached interspinous ligament. Pre-operative conus localization is required for this tailored approach to determine the laminoplasty level and dictate rostral or caudal division of the superior spinus ligament. While rapid MRI sequences have been popularized for pediatric cranial imaging, its utility for spinal imagining is less well-described, and specific application for conus localization has not been reported.

Illustrate that rapid MRI without sedation is sufficient to identify conus level for tailored single-level laminoplasty SDR.

Patients undergoing SDR from 2014 to 2022 at one institution were reviewed for type of pre-operative MRI (rapid vs full), conus level, procedural time for MRI, and radiology report. The typical rapid MRI has four sequences utilizing single-shot technique (scout, sagittal T2, axial T2, and axial T1) that typically take less than 1 min each of acquisition time, with non-single-shot sequences added periodically in cooperative patients. To include time for patient positioning, pre-scan shimming, procedural incidentals, and other patient-specific variations, MRI procedure length was recorded as documented in the electronic medical record.

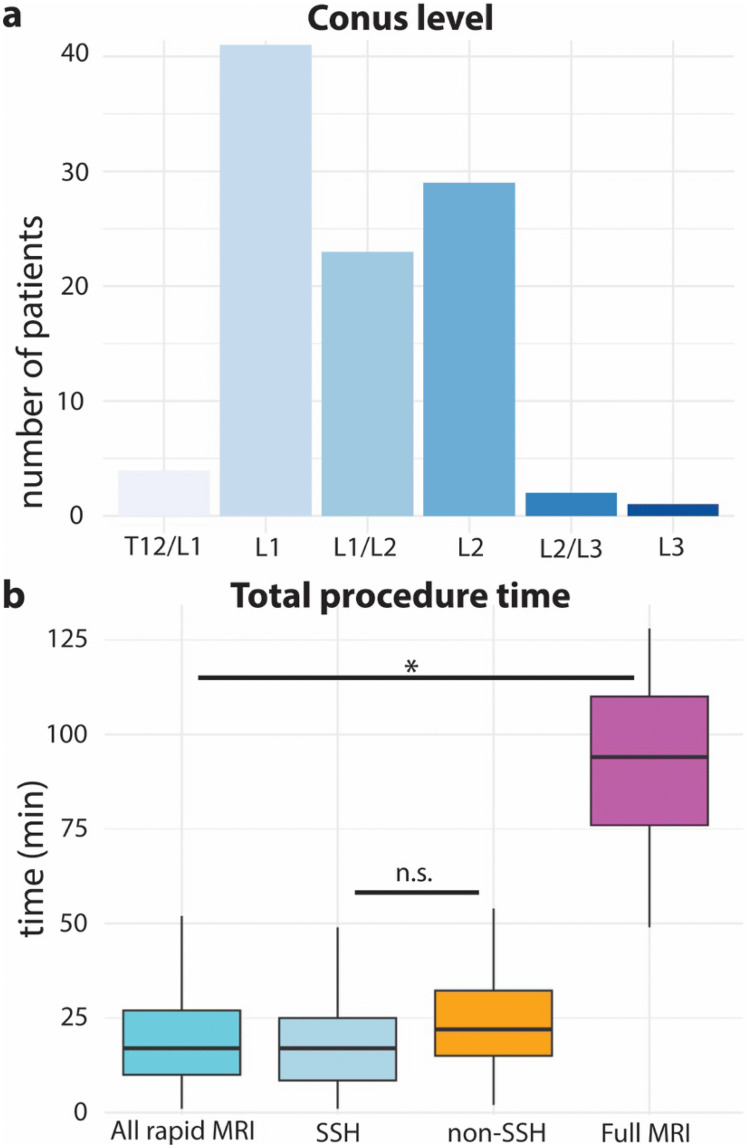

N = 100 patients had documentation of an MRI for pre-operative imaging. Seventy-nine of these had a rapid MRI, and 21 required a full MRI with anesthesia for their treatment plan. Mean total procedure time for rapid MRI was 21.5 min (median 17). Mean procedure time for MRI under general anesthesia was 91.2 min (median 94). Of patients with rapid MRI imaging, 2/79 had an ambiguous conus level (1 from motion artifact, 1 from spinal hardware) vs 1/21 with a full MRI under anesthesia (due to spinal hardware).

Rapid spinal MRI without sedation can be used for conus localization in a pediatric population. This may be routinely used as pre-operative imaging for a single-level approach to selective dorsal rhizotomy, without sedation or intubation procedures.

Figures
