Design of a high-efficient SiC-based interleaved voltage source converter
Adolfo Dannier, Gianluca Brando, Marino Coppola, Ciro Attaianese
TL;DR
This paper presents a design method for high-efficiency SiC-based interleaved voltage source converters used in renewable energy and electric vehicles.
Contribution
A novel smart design procedure for optimizing IVSC performance based on semiconductor choice and system parameters.
Findings
IVSC efficiency depends on the number of interleaved converters and semiconductor devices.
SiC devices improve system performance when used with proper design parameters.
The proposed methodology was experimentally validated for optimal converter configuration.
Abstract
The paper deals with some peculiar aspects of the design of interleaved voltage source converter (IVSC) topology in high-power applications such as renewable energy systems and electric vehicles. The IVSC offers advantages like power sharing among multiple modules, improved power quality, redundancy, and fault tolerance. The design of an IVSC mainly involves the selection of the number of deployed converters and the choice of suitable semiconductor devices with the aim to reach a desired overall efficiency for an assigned operating condition. The paper develops an approach to characterize through a straightforward procedure the dependence of the IVSC' power losses on the number of the interlaced converters, on the employed semiconductor devices used and on a properly conceived set of key parameters which define the system operating conditions. The proposed methodology allows to…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

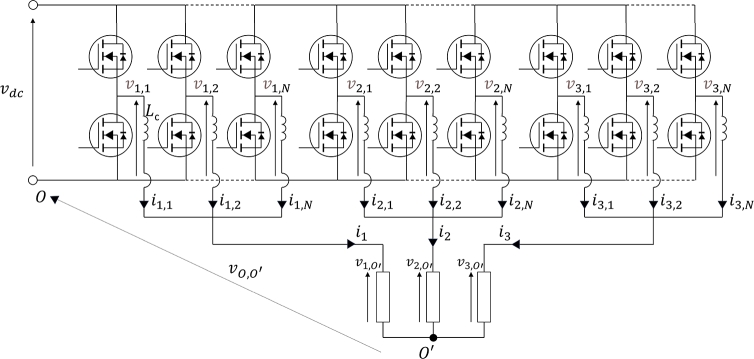

Figure 1

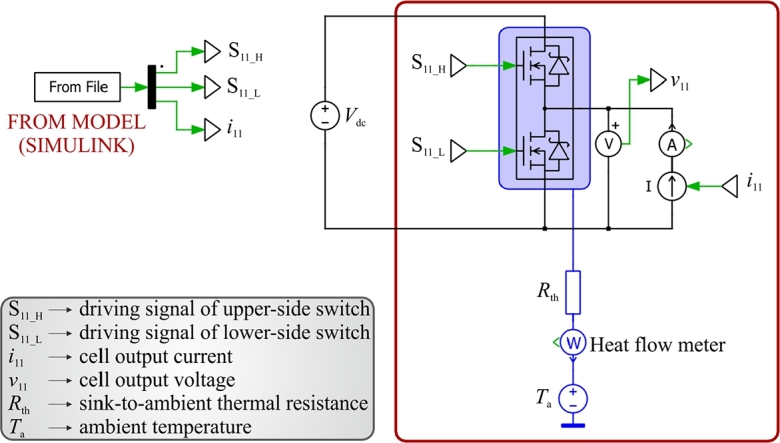

Figure 2

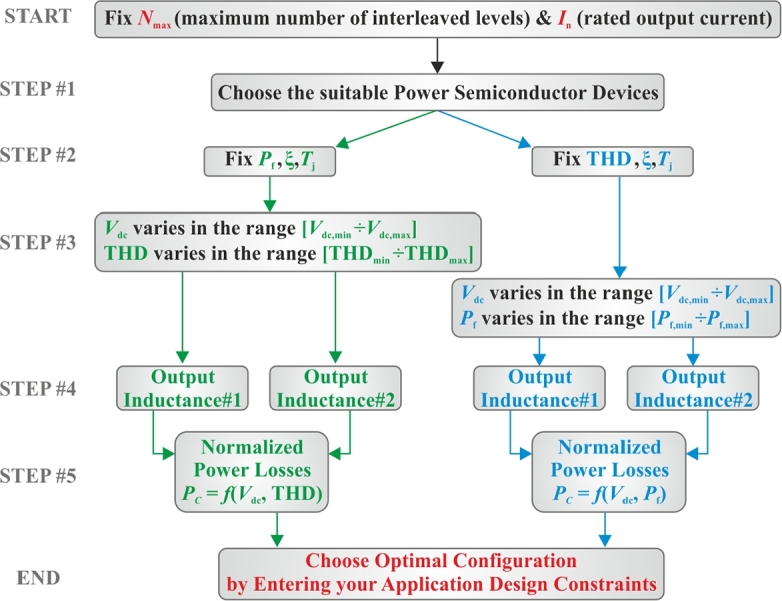

Figure 3

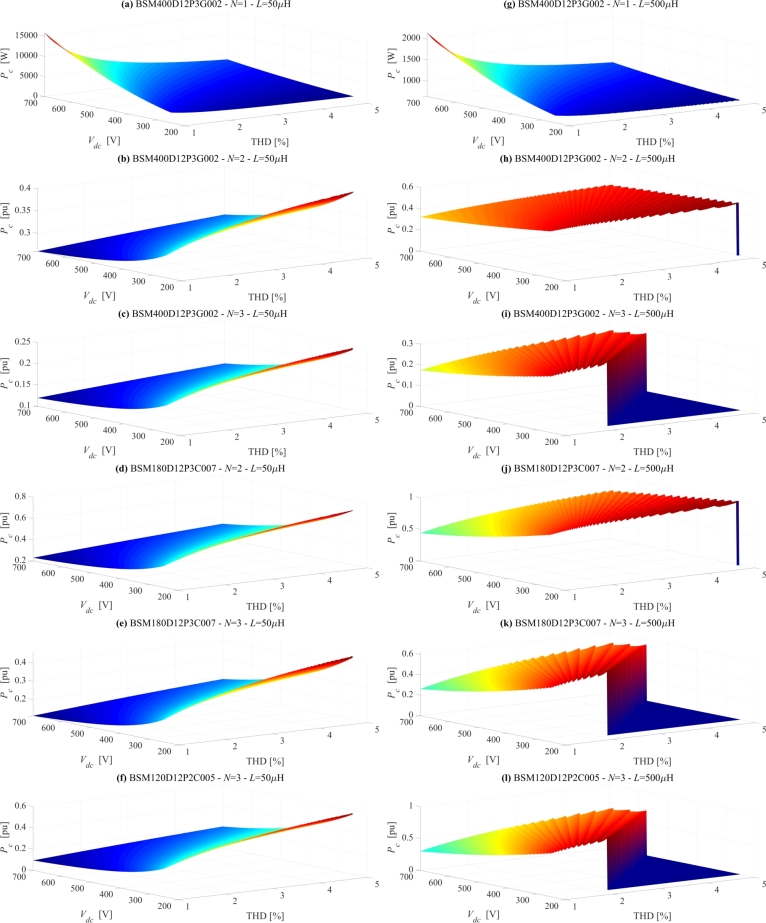

Figure 4

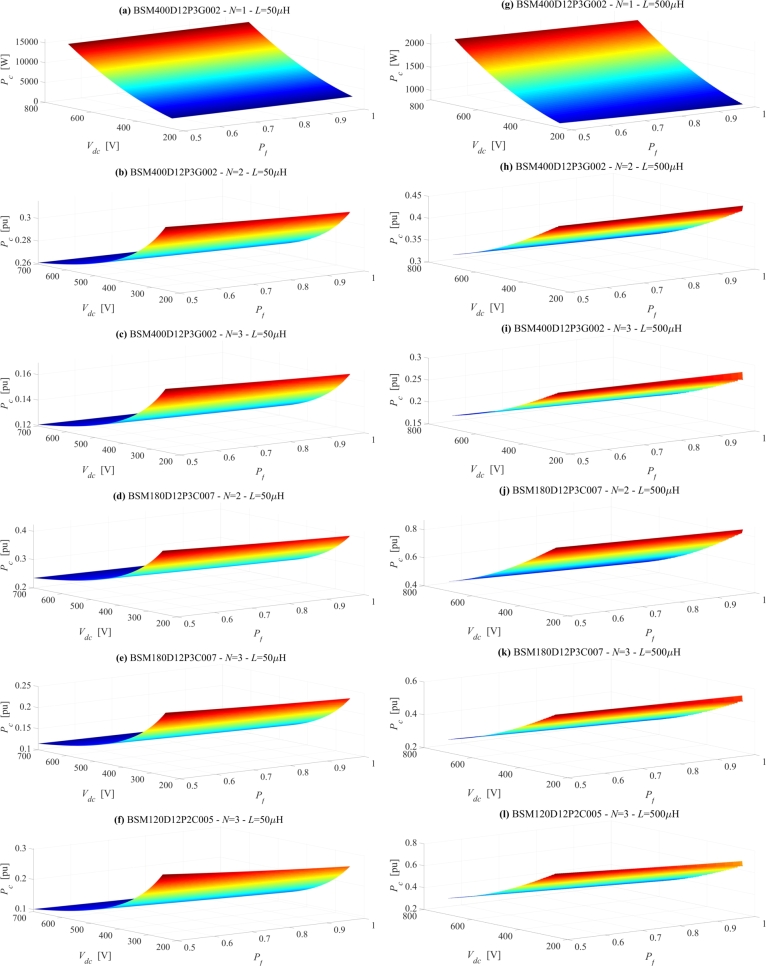

Figure 5

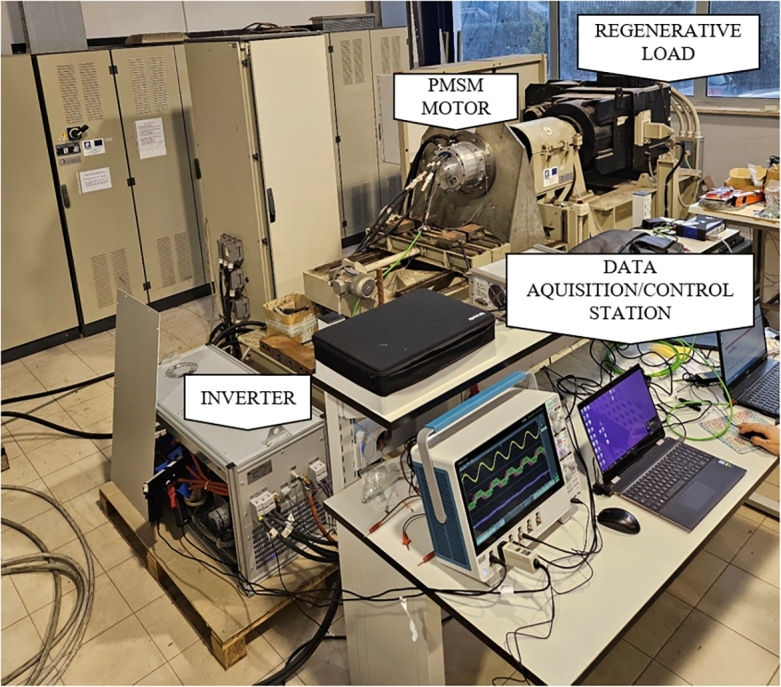

Figure 6

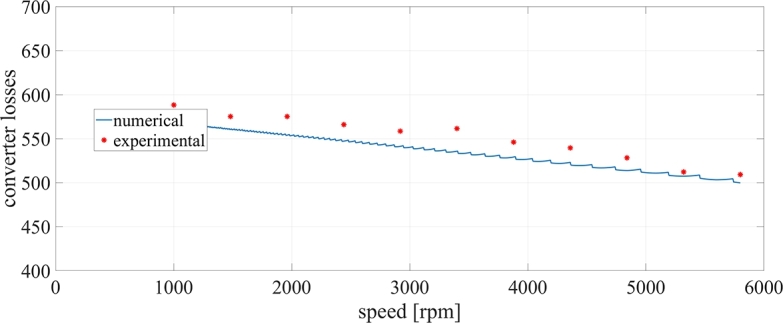

Figure 7

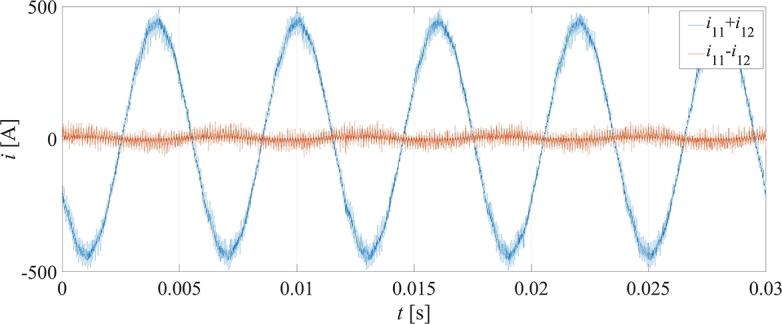

Figure 8Peer Reviews
