Accumulation and removal of Streptococcus mutans biofilm on enamel and root surfaces in vitro
Anne Breivik, Aida Mulic, Amer Sehic, Håkon Rukke Valen, Simen Kopperud, Linda Stein, Qalbi Khan
TL;DR
This study shows that biofilm removal is less effective on root surfaces compared to enamel using water or toothpaste in a lab setting.
Contribution
The study introduces a novel in vitro method to compare biofilm removal efficacy on enamel and root surfaces using a flow chamber system.
Findings
Biofilm accumulation was similar on enamel and root surfaces.
Toothpaste and water significantly reduced biofilm on both surfaces compared to untreated ones.
Enamel surfaces had more biofilm removal than root surfaces with both treatments.
Abstract
This study aimed to quantitatively investigate the accumulation of Streptococcus mutans biofilm on enamel and root surfaces and assess the amount of biofilm removal using (1) experimental toothpaste and (2) water, in a closed system of flow chamber. Eight sound premolars were embedded in epoxy resin and polished with silicon carbide grinding papers to display enamel and root surfaces. To mimic biofilm, cultures of Streptococcus mutans were prepared and grown on the tooth surfaces over night before they were exposed to either 2 liters of Milli Q water or 2 liters of 40% experimental toothpaste in the flow chamber. The amount of biofilm was measured and quantified in Fluorescence microscopy. Mean fluorescence values were recorded and analysed using Microsoft® Excel® (MS Excel 2016). The ability to grow biofilm was equally present at both the enamel and root surfaces. The use of water…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4| Composition | Weight |
|---|---|
| CaCO3 (Calcium carbonate) | 80 g |
| SDS (sodium dodecyl sulphate) | 3.9 g |
| CMC (Carboxymethyl cellulose) | 2 g |
| Sorbitol | 20 g |
| Glyserin/Glyserol | 20 g |
| Distilled water | 64 g |
| Compared mean values of biofilm | Corrected | |
|---|---|---|
| Untreated vs Water |
| 8.700228E-09 |
| Untreated vs Toothpaste |
| 9.532890e-10 |
| Water Vs Toothpaste | 0.175943292 | 1.000000e+00 |
| Untreated vs Water |
| 1.101744E-06 |
| Untreated vs Toothpaste |
| 5.163066E-07 |
| Water Vs Toothpaste | 0.29883622 | 1.000000E+00 |
| Untreated Enamel vs Untreated Root | 0.467530711 | 1.000000E+00 |
| Water Enamel vs Water Root |
| 1.135249E-02 |
| Toothpaste Enamel vs Toothpaste Root |
| 2.244614E-02 |
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsOral microbiology and periodontitis research · Dental Health and Care Utilization · Dental Research and COVID-19
Introduction
Dental caries is a biofilm-mediated and multifactorial disease resulting in mineral loss of dental hard tissues. Carious lesions can be categorized according to their anatomical location on the tooth, on the coronal or root/cementum surfaces, respectively [1]. Although a range of bacteria are involved in the cariogenic flora in biofilm, Streptococcus mutans have been considered a key pathogen in the progression of dental caries [2–6]. Notwithstanding, root surfaces are at higher risk of biofilm-triggered mineral loss than enamel, as tooth substance of the root have lower mineral content than enamel [7]. As a result, the demineralization process occurs more rapidly on root surfaces than enamel [7,8]. Additionally, as the location of the root surface is close to the gingival margin and the cementoenamel junction, tooth cleaning in these areas is more difficult. Consequently, more biofilms are considered to be retained in these sites, making them more susceptible to dental caries [7,9,10].
Dental caries is the most widespread noncommunicable disease globally, affecting more than 2 billion people worldwide [11]. A systematic review on the global burden of untreated dental caries found that the oral disease is now peaking later in life, and has been shifting from childhood to adulthood [12]. The review stated that the prevalence and incidence of untreated dental caries increased after the age of 40, with a prevalence peak at 70 years of age due to the appearance of root caries [12]. Root caries is the dominant primary caries form in older people, particularly due to gingival recession caused by normal ageing process, but also as a result of periodontitis, which is highly prevalent among older individuals [13–19]. The exposed root surfaces are predisposed to oral microorganisms which cause demineralization of the cementum surfaces [20]. It is estimated that one-third of the geriatric population is affected by root caries [21], and as the proportion of elderly people is increasing worldwide, prevalence estimates will continue to increase in the future [8,22]. Efforts to prevent the burden of root caries in the elderly population are therefore strongly needed [8,23–25], particularly as the ability to remove biofilm often decreases as people age due to reduced manual dexterity, impaired vision or physical limitations associated with Parkinson’s disease or arthritis [9,26].
A common and effective method to reduce the amount of oral bacteria is mechanical removal with a toothbrush (manual or powered) supplied with fluoride toothpaste [23,27–29]. Interdental aids such as interdental brushes, dental floss or water flossers are recommended as supplements to remove biofilm from interproximal and subgingival areas [30]. Although the efficacy of various mechanical tools for removal of biofilm is well-documented [31–33], few studies have reported on how much biofilm removal is achievable through such mechanisms.
In addition, due to the irregular surface topography of the root surfaces, it has been argued that root surfaces have greater ability to retain and grow more oral biofilm compared to smooth enamel surfaces [10,34]. Dental enamel is an acellular, hard, avascular tissue, which consist of 96% inorganic material (hydroxyapatite nanocrystals), 3% water, and 1% organic component [35]. The enamel crystals form both prisms (rods) and interprisms (interrods) in the enamel, providing it its characteristic structure and strength. The rods and interrods cause the uneven microstructure of the surface enamel, which is especially noticeable when exposed to acid [36]. In contrast, the mineral content of dentin is approximately 50 vol% (hydroxyapatite minerals). The dentin is also a hydrated tissue, which is rich in both collagen and non-collagenous molecules (30 vol%). Consequently, dentin is considered structurally more intricate than enamel, involving dentinal tubules which contain a hypermineralized layer (peritubular dentin), and a softer intertubular dentin between them. Fluid from the pulp and cytoplasmic cell extensions of odontoblasts fill the dentinal tubes [36].
However, although adhesion of oral biofilm is assumed to differ between the root surfaces and enamel, the ability and grade of differences have not been widely demonstrated in controlled environments. Thus, assessing dental biofilm accumulation on both enamel and root surfaces and monitoring biofilm formation could give important directions that could strengthen the significance of caries prevention in older people. Therefore, the aim of this study was to quantitatively investigate the accumulation of Streptococcus mutans biofilm on enamel and root surfaces and assess the amount of biofilm removal using (1) experimental toothpaste and (2) water, in a closed system of flow chamber.
Materials and methods
Tooth surface preparations
Eight sound premolars from the Nordic Institute of Dental Materials (NIOM) toothbank (REK 2012/413) were placed in cylindrical shaped teflon molds (Ø 25 mm) and filled with epoxy resin (EpoFix; Struers, Rotherham, UK). After 24 hours, the molded teeth were polished with silicon carbide grinding papers (Struers, Ballerup, Denmark) to display enamel and root surface of either buccal or lingual aspect. The surfaces were polished with grinding paper with grain size 15 µm (Struers Waterproof SiC FEPA P# 1200, Ballerup, Denmark). The disk thickness was trimmed to ~2.5 mm (Figure 1). Prior to the experiments, the disks were rinsed in soap-water, and disinfected with 75% ethanol. They were then left in a 50 mL falcon tube containing a mixture of 75% ethanol diluted 1:3 in 10X phosphate buffered saline (Dulbecco’s PBS, DPBS, Lonza, Verviers, Belgium).

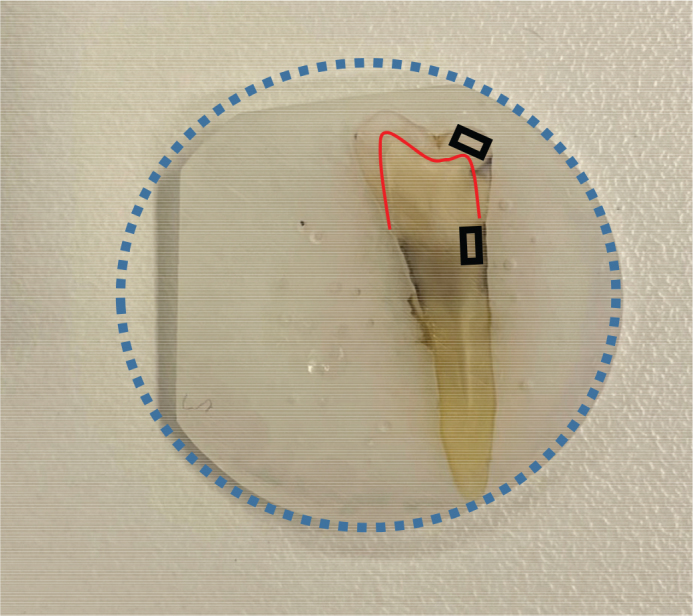

Premolars embedded in resin disks of 25 mm diameter (blue circle) were trimmed to fit in the flow chamber and to avoid movement. The red line depicts the enamel-dentin-junction. Images were approximately obtained from area of enamel (upper black rectangle) and root dentin (lower black rectangle).
Biofilm formation
Stock cultures of Streptococcus mutans (ATCC 700610) for experimental use were prepared from the batch stored at -70ºC freezer. An approximated amount of 10 µL bacteria, using a sterile plastic inoculation loop, was diluted in 10 mL of Brain Heart Infusion medium (BHI) (Oxoid Ltd, Basingstoke, UK) as a stock solution and incubated overnight (ON) (approximately 24 Hrs.) at 37ºC and 5% CO_2_ supplemented atmosphere.
The disks used for biofilm formation were washed with 75% ethanol for 2 minutes, using forceps, in circular movements. The disks were then air-dried before washing in Phosphate-buffered saline (PBS) (Lonza, Walkersville, MD, USA) for 2 minutes in same circular movements. The disks of teeth were then dried in separate wells before they were transferred into 6 wells of petri dishes (Corning Incorporated, ME, USA) containing a diluted (1:100) stock solution of Streptococcus mutans in BHI for ON in the laboratory cabinet at 37ºC and 5% CO_2_ supplemented atmosphere. Disks that were to serve as controls were placed in separate wells.
Flow chamber
The disks were placed into the flow chamber (Figure 2) after the biofilm was formed overnight on the surface of interest. A parallel plate laminar flow chamber, milled from a single block of PMMA, was used for creating liquid flow directed towards and above the disks. The chamber was designed to fit a 50 mm × 25 mm glass slide, cut from ordinary microscope glass slides (VWR collection). A 5 mm thick quartz glass lid was sandwiched between the flow chamber and a rigid 8 mm aluminum plate. To fit the disks of teeth, the height of the chamber was fixed to 3 mm.

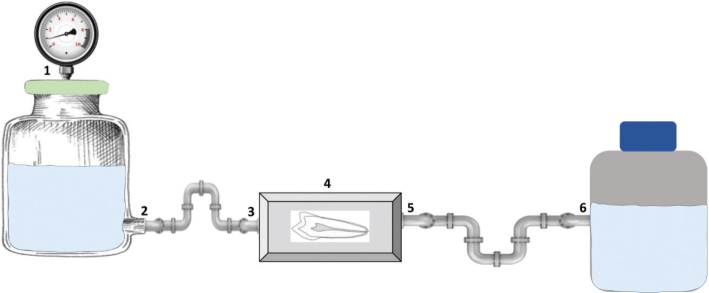

Flow chamber setup: (1) Air supply with pressure kept at approximately 1.5 bar – (2) Output valve with tank containing either water or 40% toothpaste – (3) Input valve – (4) Flow chamber containing tooth (embedded in resin disk) – (5) Outlet valve – (6) Waste container.
The biofilm covered disks were flushed with either 2 liter of Milli Q water or 40% experimental toothpaste in the flow chamber. Flow rate was kept at approximately 1 liter per minute, with a pressure at ~1.5 bar.
Four separate runs of all 8 teeth were conducted. The teeth were randomized in each experimental run. Two teeth were kept as positive control (‘Untreated’). Three teeth were subjected to Milli Q water treatment and three teeth were treated with 40% experimental toothpaste. Additionally, four tooth disks without biofilm formation, were served as negative control.
Experimental toothpaste
Different toothpaste-dilutions were tested according to their ability to flow through the chamber-system without clogging the connected tubes and valves. The final flow rate and the pressure (~1.5 bar) were also a result of this consideration. A maximum amount of 40% toothpaste, diluted in Milli Q water, was found to be optimal for this. Hence a 40% experimental toothpaste was used in the trials described below. The toothpaste containing the main ingredients [37] (Table 1), was prepared, diluted, covered and then kept at room temperature on a magnetic stirrer before use.
Fluorescence microscopy
All eight teeth were measured and quantified for fluorescence biofilm on the root dentin and enamel. Before quantifying the biofilm formation in the fluorescence microscopy, all teeth were washed in PBS using forceps in circular movements. For bacterial viability, 1.5 µL of Filmtracer (LIVE/DEAD FilmTracer, Biofilm Viability Kit) was diluted in 1 mL 10X PBS. The samples were then incubated in room temperature, and covered with aluminimum foil for 15 minutes. The surfaces were then investigated using a fluorescence light microscope with excitation bandpass filter of 530–550 for red fluorescence of PI (Olympus BX51, Tokyo, Japan), where images using a 10x magnification were obtained, comparing the root dentin to the enamel for the same specimen.
Fluorescence quantification
A Java-based image processing program, namely ImageJ (software version 1.51j, NIH, USA), was used to quantify fluorescence. The images were converted to 16-bit versions and adjusted for suitable level prior to measuring the mean value. Mostly, entire images were subjected to quantification. However, if the photographed images displayed cracks or artifacts, a standardized region of interest (ROI-tool) was utilised to eliminate this source of error. It this case, the comparing surface (enamel or root dentin) was matched for area of detection.
Statistical analysis
Each run yielded two disks as positive control (untreated biofilm), three disks treated with water and another three treated with toothpaste. Two images (enamel and root) from the eight teeth specimens (16 images per run), through four different runs, provided a total number of 64 images, which were used in the statistical analysis.
Mean fluorescence values were recorded and analyzed using Microsoft® Excel® (MS Excel 2016). Average values and standard errors to denote a 95% confidence interval (CI) were calculated, and the effects of different treatments (water or toothpaste) on different surfaces (enamel or root dentin) were analyzed using one-tailed t-test with unequal variance. In this analysis, we set α < 0.01 to reduce the change of type I error and used Bonferroni correction to reduce the change of type II error.
Results
Fluorescence measurements of biofilm on tooth disks
Images from the fluorescence microscopy technique (with 10x magnification) appeared to display a multilayered formation of the Streptococcus mutans biofilm (Figure 3A, E). Treatment of disks with water flow showed reduced and evenly distributed single layered biofilm on the surface, including areas of accumulation (Figure 3B, F). Disks treated with 40% experimental toothpaste showed generally less amount of biofilm and areas with biofilm accumulation (Figure 3C, G). The negative control teeth without biofilm formation showed ground surfaces, but without biofilm formation (Figure 3D, H).

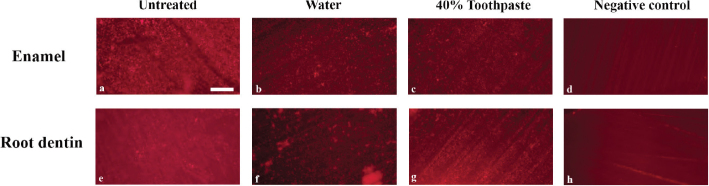

Layered Streptococcus mutans biofilm grown on a plane surface of enamel and root dentin (A, E). Reduced, but evenly distributed single layer of biofilm observed on plane enamel surfaces after water treatment. (B, F), with variating aggregation of biofilm. Little biofilm and less aggregations were observed on the surfaces after treatment with toothpaste (C,G). Negative controls, with no Streptococcus mutans biofilm, show neither biofilm or aggregations but lines after grinding (D, H). Scale bar of 200 µm is shown in image 3a.

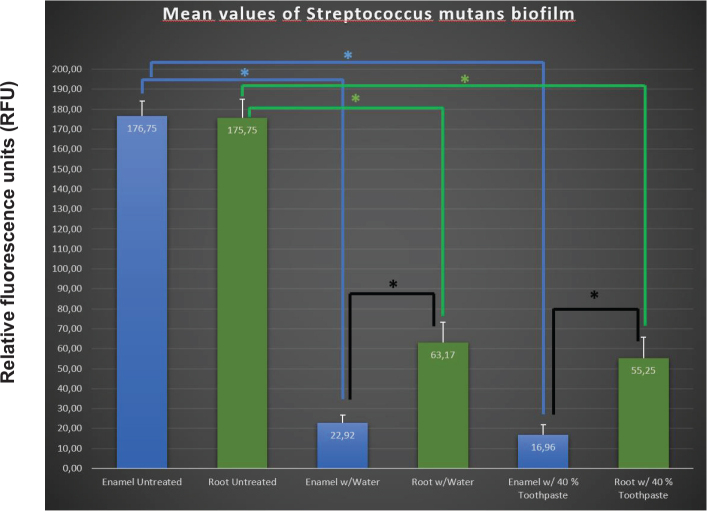

The quantified values of fluorescence biofilm are presented in Figure 4. Mean values with error bars denoting 95% confidence interval (CI) were determined by one-tailed t-test with unequal variance. P-values for compared groups are given in Table 2. The green bar graphs in Figure 4 represent mean values for biofilm on root dentin, and the blue bars show mean values of biofilm on enamel (Figure 4). The results showed that the ability to grow biofilm on enamel and root dentin was equally present at both tooth surfaces, and the differences were not found to be statistically significant (p > 0.45). Similar conclusion could be drawn regarding the use of water compared to 40% experimental toothpaste on enamel and root dentin, showing that although slightly less biofilm was removed using water compared to toothpaste on enamel (p > 0.18) and root dentin surfaces (p > 0.29), the results were not statistically significant. However, the results indicated that the use of water and toothpaste resulted in a significant reduction of area covered with biofilm on both enamel and root dentin, in comparison to untreated surfaces (p < 0.01). Correspondingly, significantly more biofilm was removed from enamel compared to root dentin surfaces using both water and toothpaste (p < 0.01).
Table 2: To determine significant difference in amount of biofilm between the compared groups, p-values (sig. diff < 0.01) were calculated.*
*Mean fluorescence values (with errorbars denoting the 95% confidence interval determined by one-tailed t-test with unequal variance) of amount of Streptococcus mutans biofilm as measured in RFU, on plane root dentin and enamel surfaces. Treatment with water showed a reduction of biofilm area regarding both enamel and root dentin compared to untreated surfaces (*p-value < 0.01). Similar reduction is observed with 40% toothpaste for both enamel and root dentin (*p-value < 0.01). Difference between enamel and root dentin was found (p-value < 0.01) when treating with both water and 40% toothpaste.
Discussion
This study aimed to quantitatively investigate the accumulation of Streptococcus mutans biofilm on enamel and root surfaces and assess the amount of biofilm removal using (1) experimental toothpaste and (2) water, in a closed system of flow chamber. The results demonstrated that the ability to grow biofilm was equally present at enamel and root surfaces, and there were no significant differences in the amount of biofilm accumulated on the two tooth surfaces (p = 0.45). These findings are not in congruence with research indicating that exposed root surfaces have binding properties different from enamel surfaces, which consequently could affect early biofilm formation on the adjacent enamel surface [10,34]. This discrepancy could be explained by our in vitro model, which is based on a simplified biofilm, without involving the complex oral environment of saliva, pellicle or any other microorganisms. However, our findings could still contribute to underscore the importance of biofilm removal from both enamel and root surfaces in clinical practice, especially as Streptococcus mutans particularly possesses the ability to colonize clean tooth surfaces at early stages [10]. More importantly, as research indicate that more biofilms are considered to be retained on root surfaces compared to enamel [34], and that the growth of microbiota on exposed root surfaces proceeds more rapidly than on enamel [10], plaque removal from root surfaces in clinical practice is of particularly great importance [23,38,39]. Additionally, as poor oral hygiene and the presence of plaque are considered important risk factors for root caries in older people [20,38], maintaining good oral hygiene practices and not allowing plaque to accumulate on exposed root surfaces are essential [38]. Hence, older individuals should be encouraged to brush their teeth twice a day [18,40], and for most elderly people, sulcular brushing with soft toothbrush (Bass method) is a preferable method for teeth cleaning [9]. Individuals with gingival recession should additionally be instructed to prevent further recession, which could involve the use of extra soft toothbrush, lighter brushing pressure or remodification of the brushing method [9]. Older people affected by diminished manual dexterity may additionally benefit from electric toothbrushes or manual customized toothbrushes [34,35]. For those being care-dependent, tooth brushing should be supported by caregivers [40,41], and dental professionals should provide necessary oral health care education [18,40].
The use of both water and 40% experimental toothpaste in flow chamber managed to remove biofilm from both enamel and root surfaces. A similar effect of water on plaque removal was found in a recent in vitro study, which tested the ability of water flossers to remove biofilm from training typodont teeth [33]. The study concluded that water flosser is an effective and appropriate oral hygiene device for cleaning teeth, preventing dental caries and maintaining oral hygiene [33]. Although our model does not have the same power as water floss devices, working in the pressure range of 50–90 psi. [29], our study has clinical relevance with regard to biofilms’ ability to adhere to surfaces of the teeth when treated with water or toothpaste under specific flow and pressure conditions. Notwithstanding, our model is not able to accurately simulate a traditional mechanical biofilm removal with toothbrushes or a professional biofilm removal with air/powder flow in the dental practice or even water flosser device. In future in vitro studies, we therefore suggest that parameters such as flow and pressure should be adjusted as much as possible to mimic the clinical aspect more closely, although factors such as valves and tubes naturally tend to pose limitations in laboratory studies.
Moreover, although not all biofilm was removed by either water or toothpaste, our results indicated that slightly more biofilm was removed on both tooth surfaces using experimental toothpaste compared with only water. This finding supports the evidence showing that particulate abrasive is a key ingredient for cleaning effectiveness in toothpaste [42]. Additionally, as the abrasivity of toothpaste largely depends on the amount of abrasive [43,44], it is reasonable to assume that a greater amount of plaque could have been removed from the tooth surfaces in this study, if the experimental toothpaste had not been diluted with water.
A main finding in this study was that significantly more biofilm was removed from enamel compared to root surfaces when treated with water and 40% experimental toothpaste. This indicates that the use of water and 40% experimental toothpaste in flow chamber is more able to efficiently remove biofilm from enamel in comparison to root surfaces. This could be explained by the irregular surface topography of the exposed root dentin surface, as the organization and structure of oral biofilm vary according to the sites where plaque forms [10]. Additionally, as poor oral hygiene and the presence of Streptococcus mutans are found to be associated with the formation of root caries [22,45], and because cleaning of root surfaces proves to be difficult due its location close to the gingival margin and cementoenamel junction [7,46], the importance of plaque removal from root surfaces is further reinforced. Thus, improving older individuals’ oral hygiene practices should therefore be considered an important measure to prevent root caries.
The single-species biofilm used in this study may be considered a limitation with regard to clinical comparison. The oral biofilm is both multi-species and interacts with the protein pellicle, probably adhering more firmly and hence not that easily removed as described in our model. As an attempt to mimic the biofilms attachment as in the oral environment, both coating with (sterile natural or artificial) saliva and introduction of 0.5% sucrose, prior to bacterial incubation, could have been implemented. These may have altered the attachment ability and hence the outcome of the study.
Furthermore, the cell concentration of the final bacterial suspension covering the disks was not measured. Optical density (OD) and bacterial count would have strengthened the model even further. However, this study focused on measurement of the remaining amount of biofilm covering the surface, not on the number of bacteria. Hence, the results remain informative in such scope.
Another aspect to take into consideration, is the number of samples used in this study. Our findings indicated that toothpaste treatment seemed to remove more biofilm than water, although the results were not supported by the statistical analysis as statistically significant. Hence, a larger sample could possibly have resolved this uncertainty.
Conclusion
Based on the results of the present study, it can be concluded that the ability to grow biofilm was equally present at both enamel and root surfaces, as layered Streptococcus mutans biofilms grown on plane surfaces of enamel and root dentin were corresondingly equal.
It could further be concluded that significantly more biofilm was removed from enamel compared to root dentin surfaces by the use of both water and 40% experimental toothpaste in flow chamber. The results may give oral health professionals important directions that could strengthen the significance of dental caries prevention in the elderly population, and improvement of older individuals’ oral hygiene practices should be particularly considered in relation to root caries prevention.
