Feasibility and safety of ultrasound-guided percutaneous transhepatic measurement of portal venous pressure

TL;DR

This study shows that measuring portal venous pressure using an ultrasound-guided liver puncture is accurate, safe, and feasible.

Contribution

The study introduces and validates a novel direct method for measuring portal venous pressure using ultrasound-guided percutaneous transhepatic puncture.

Findings

The 22G Chiba needle was found suitable for accurate pressure transmission and liver puncture.

Positive correlations were observed between PVP and other venous pressure measurements.

No complications were observed in patients undergoing the procedure.

Abstract

The measurement of portal venous pressure (PVP) has been extensively studied, primarily through indirect methods. However, the potential of ultrasound-guided percutaneous transhepatic PVP measurement as a direct method has been largely unexplored. This study aimed to investigate the accuracy, safety, and feasibility of this approach.

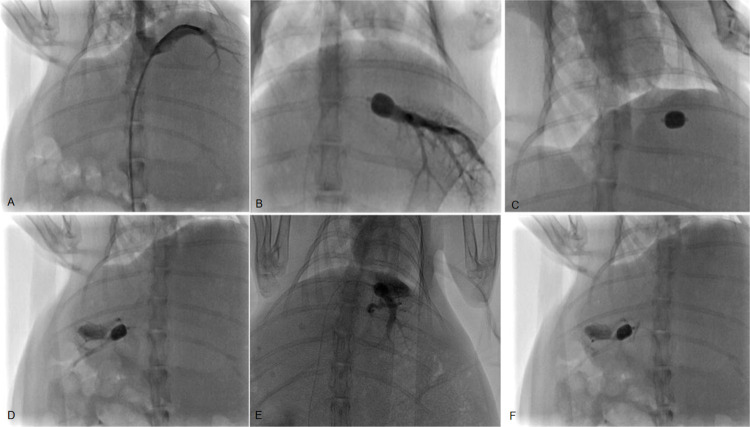

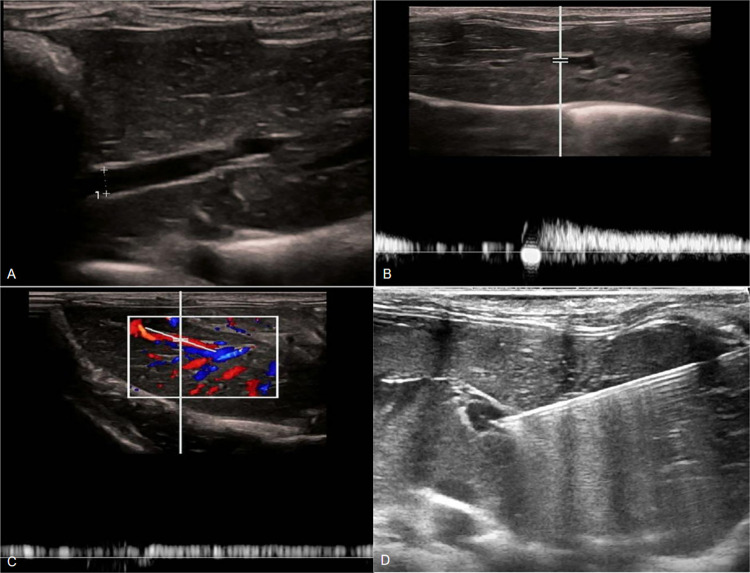

In vitro, the experiment aimed to select a needle that could accurately transmit pressure, had a small inner diameter and was suitable for liver puncture, and performed on 20 healthy New Zealand white rabbits. An ultrasound-guided percutaneous transhepatic portal vein puncture was undertaken to measure PVP. Additionally, free hepatic venous pressure (FHVP) and wedged hepatic venous pressure (WHVP) were measured under digital subtraction angiography (DSA). The correlation between the two methods was assessed. Enroll study participants from October 18, 2023 to November 11, 2023 with written informed consent. Five patients were measured the PVP under ultrasound guidance before surgery to determine the feasibility of this measurement method.

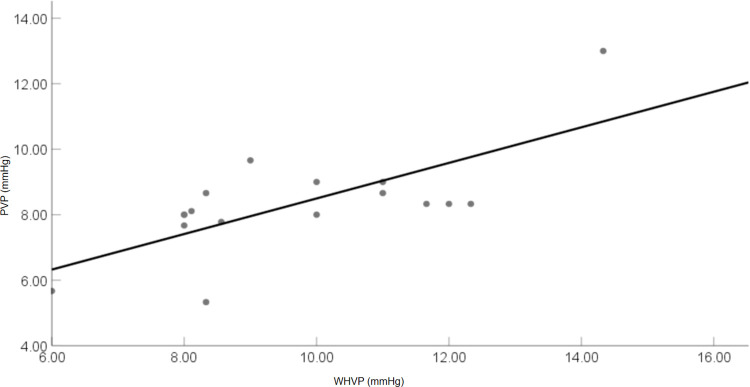

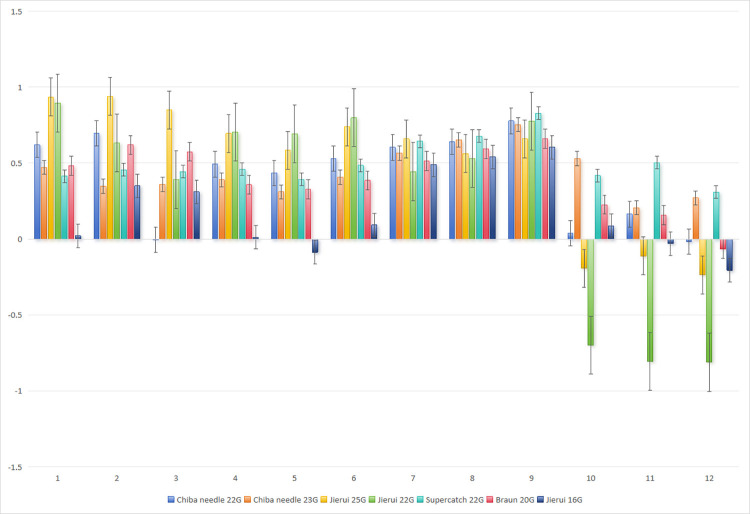

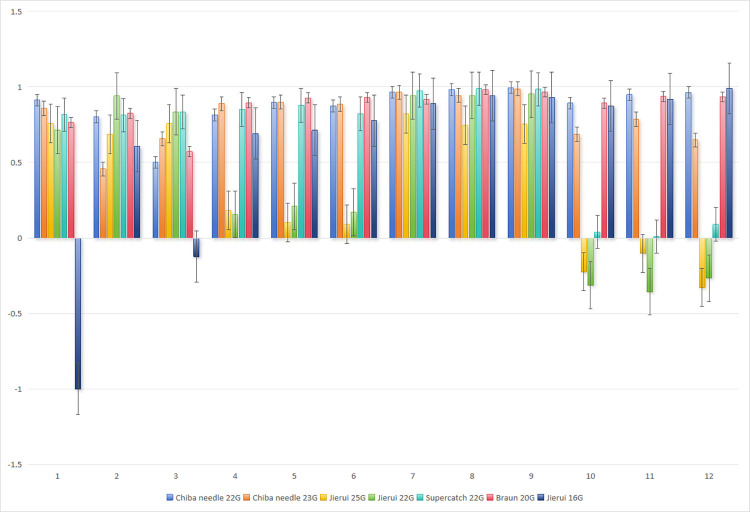

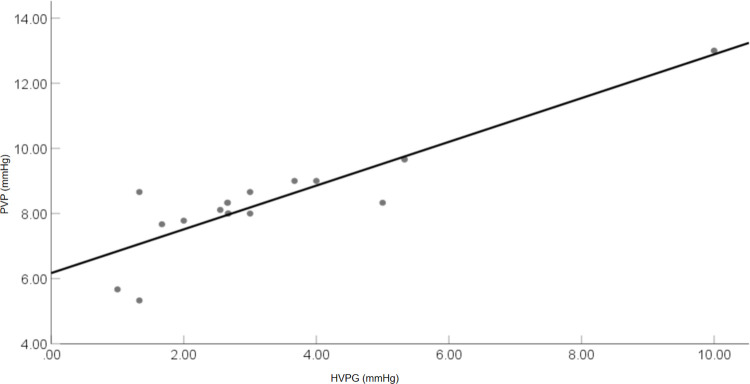

There was no significant difference in the results obtained using 9 different types of needles (P > 0.05). This demonstrated a great repeatability (P < 0.05). The 22G chiba needle with small inner diameter, allowing for accurate pressure transmission and suitable for liver puncture, was utilized for percutaneous transhepatic PVP measurement. There were positive correlations between PVP and HVPG (r = 0.881), PVP and WHVP (r = 0.709), HVPG and WHVP (r = 0.729), IVCP and FHVP (r = 0.572). The PVP was accurately and safely measured in 5 patients with segmental hepatectomy. No complications could be identified during postoperative ultrasound.

Percutaneous transhepatic portal venous puncture under ultrasound guidance is accurate, safe and feasible to measure portal venous pressure.

This study has been registered in the Chinese Clinical Trial Registry with registration number ChiCTR2300076751.
