Coronary artery calcium quantification technique using dual energy material decomposition: a simulation study

TL;DR

This study shows that a new dual-energy method for measuring coronary artery calcium is more accurate and sensitive than current techniques.

Contribution

A novel dual-energy material decomposition technique for coronary artery calcium quantification is proposed and validated.

Findings

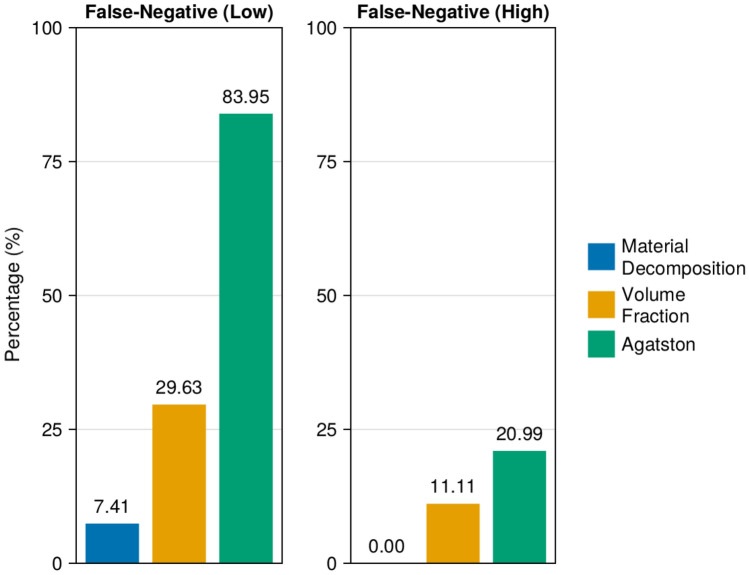

The dual-energy method had fewer false negatives than Agatston scoring in low-density phantom measurements.

It completely eliminated false negatives in high-density phantom measurements compared to Agatston scoring.

The technique demonstrated higher sensitivity and reliability for detecting coronary artery calcification.

Abstract

Coronary artery calcification is a significant predictor of cardiovascular disease, with current detection methods like Agatston scoring having limitations in sensitivity. This study aimed to evaluate the effectiveness of a novel CAC quantification method using dual-energy material decomposition, particularly its ability to detect low-density calcium and microcalcifications. A simulation study was conducted comparing the dual-energy material decomposition technique against the established Agatston scoring method and the newer volume fraction calcium mass technique. Detection accuracy and calcium mass measurement were the primary evaluation metrics. The dual-energy material decomposition technique demonstrated fewer false negatives than both Agatston scoring and volume fraction calcium mass, indicating higher sensitivity. In low-density phantom measurements, material decomposition resulted in only 7.41% false-negative (CAC = 0) measurements compared to 83.95% for Agatston scoring. For high-density phantoms, false negatives were removed (0.0%) compared to 20.99% in Agatston scoring. The dual-energy material decomposition technique presents a more sensitive and reliable method for CAC quantification.

Figures
